Wynnyeen GPS008 User manual

GPS/GSM (GPRS) Vehicle Tracker
Operation Instructions
GPS008

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
Contents
1 System Function Introduction.........................................1
2 Product Description.....................................................2
3 Ports Description ........................................................3
4 SMS Operation Instruction .............................................5
4.1 Location Enquiry (000).....................................6
4.2 Change Password (001) ....................................6
4.3 Real-time return setting (002) ...........................7
4.4 Alarm/Listen Number setting.............................7
4.5 Over-speed Alarm Setting (005) ..........................7
4.6 e-Fence Setting(006).......................................8
4.7 Engine Cut-off Setting (007) ..............................8
5 GPRS Communication Settings........................................9
5.1 Set APN (APN(Access Point NAME)) ......................9
5.2 Set the IP and Port of Gprs_Server ......................9
5.3 Open GPRS function ........................................9
5.4 Query the GPRS Setting.................................. 10
6 GPS tracking system on website.................................... 11

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
6.1 User Login.................................................. 11
6.2 Vehicle real-time tracking .............................. 11
6.3 Vehicle history record playback........................ 12

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
1
1System Function Introduction
This vehicle tracking system has combined GPS and
GSM（GPRS）functions. Location information within a text message
in accordance with the requirements of mobile phone users will be
sent from GPS to a specific phone or through the GPRS network to
the GIS (geographic information system) server. It can achieve
vehicle scheduling, monitoring, tracking and other functions, the
system can also achieve the remote control car circuit, monitor
phone calls and other functions, as the graph shown.

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
2

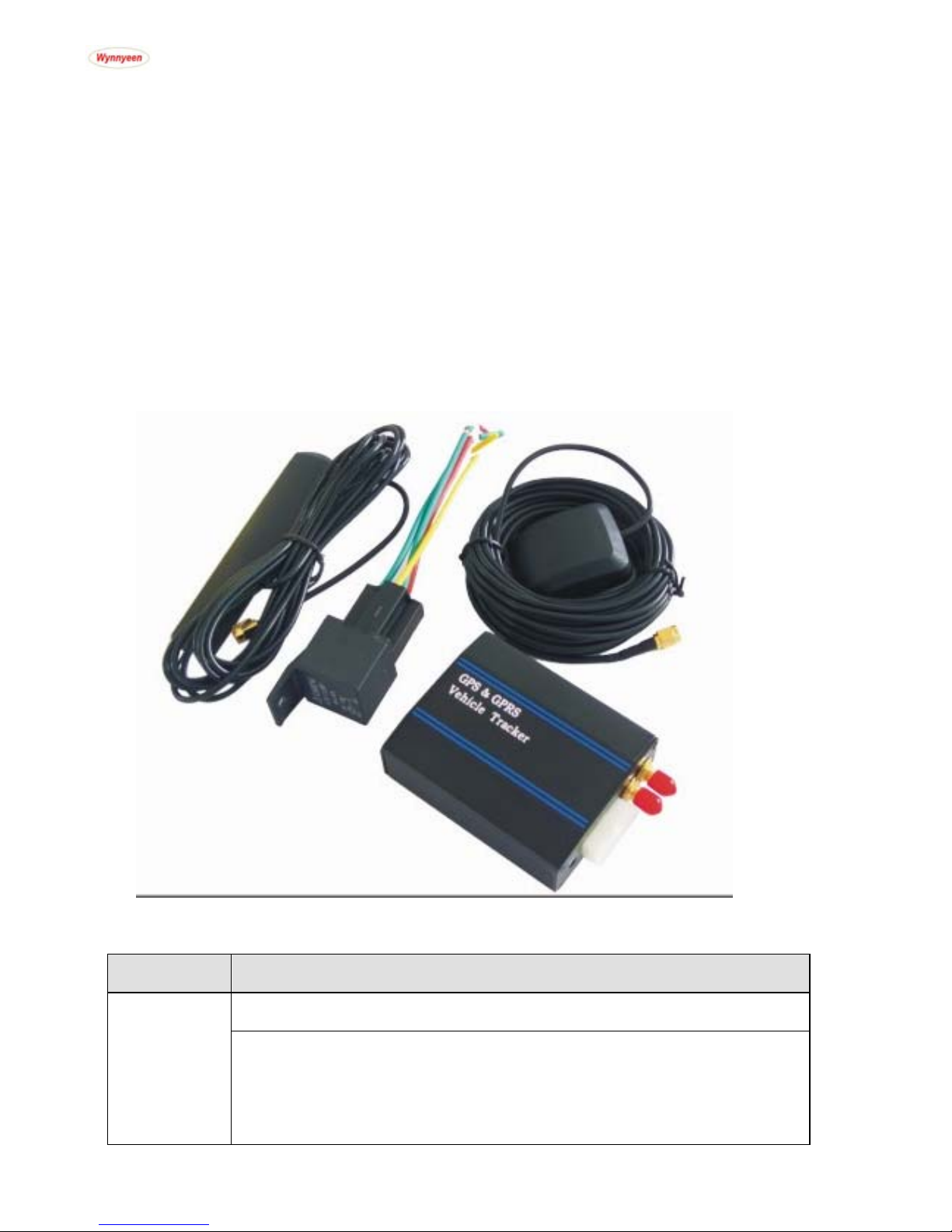

2Product Description
This product is made up of GPS module and GSM（GPRS）
module. GPS can track the exact position of a car and GSM
（GPRS）can achieve communications. There are two induced
ports and a one-way output control.
Data as shown in the table as below:
Hardware Characteristics
Tri-mode:850/900/1800/1900MHz
GSM DATA
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
3
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class ПRBER≤2％（-102dBm）
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
GPS
DATA
Velocity limit: 515 m/s
3Ports Description
1109876 5432
GPS GSM
RES
RES: RESET
1: DC (12V) with 5A protective tube

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
4
2: Idle
3:GND
4: ACC (12V) ignition wire
5: Power Cut-off
6: GND
7: SOS
8: Alarm
9: Idle
10: Idle
1、SIM: Port for SIM card
2、PHONE: Loudhailer
3、MIC: Microphone for Listen-in
4、LED1: Power indicator
5、LED2: Status indicator
NOTE：
LED1 is off which indicates the equipment does not work.
LED2 flashes for one second which indicates GSM registers successfully.
LED2 flashes three seconds once which indicates GPS is obtaining
orientation
LED2 is on which indicates work successfully that GSM has registered and
GPS has obtained the orientation.
6、RESET button

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
- -
5
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
4SMS Operation Instruction
SMS Format: A******,cmd,param1,param2…
00000
rameter. Different cmd use different
para
1. ******is the password, Initial Password is 0
2. cmd is the command ID.
3. Param is the command pa
meters. All the parameters must use half-angle symbol. Wrong

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
6
4.1 Location Enquiry (000)
Message format: A******,000
E113.93923 Latitude N22.54079 08-10-20
enquiry in HTTP://maps.google.com
SMS format or wrong password, it will not respond.
e.g. A000000,000
Reply: Longitude
17:38:30,
User could .
4.2 Change Password (001)
Message format：A******,001,New Password
ord ,123456 is the new password.
e.g. A000000,001,123456
Note:000000 is the old passw
Reply：Set Password OK!

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
7
4.3 Real-time return setting (002)
Message format：A******,002, XXX
XXX=0 is for STOP, value of XXX is within [15~64800] seconds.
e.g. A000000,002,30
Message replied after successful setting: Set time interval (30) OK!
Message contains position information will be sent in every 30
seconds after successful setting.
4.4 Alarm/Listen Number setting
Message format：A******,003,P, TelNumber
P=1 is for SOS and listen
P=2 or 3 is the second\ the third listen number.
e.g. A000000,003,1,136xxxxxxxx
Message replied after successful setting：Set Telephone OK!
Keep pressing SOS button for 2 seconds. The device will send
emergency SMS and dial the number you set as SOS number.
Reply: SOS Pos: Longitude E114.04577 Latitude N22.32405 08-10-20 17:38:30,
If you dial with your listen number, it can be connected automatically after the
7th ring. Then you can listen the voice in the vehicle.
4.5 Over-speed Alarm Setting (005)
Message format：A******,005,XXX
XXX=[000,200] (unit: km/h)XXX=00 is close the function.

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
8
e.g. A000000,005,020
Message replied after successful setting: Set Over speed (20) KM
OK!
If the vehicle is over speed you set, it will send alarm SMS to SOS
mobile number. 20 KM/H Over speed!
4.6 e-Fence Setting(006)
Message format：A******,006,XX
XX =[00-50] (Unit:100m) .
When XX=0, e-Fence is OFF. And the maximum limited value of XX is
50*100=5000m. e.g. A000000,006,10
Reply: Set Distance (1000)M OK!When user is out of the bound
region (e.g. 1020m), a prompt message will be sent to the user:
1020m is further than 1000m!
4.7 Engine Cut-off Setting (007)
Message format: A******,007,X
X=0 cut off engine , x=1 resume engine, For security, this command will
execute when the speed less than 20Km / h or the ACC is off .
e.g. A000000,007,0
·4.8 Fuel data collect（017）
Message format: A******,017,XX
Note：XX =[0 , 100], which corresponds to fuel percentage. For
example: if the fuel meter shows 50% fuel, (A000000,017,50),and the
device checking value is 170, it will reply: Oil interval (50:170)!You

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
9
can view fuel line in GPS Vehicles Tracking system.
4.9 Open/Close camera function (019)
Message format: A******,019,X
X=0 close camera function, x=1 open camera function
e.g. A000000,019,0
5GPRS Communication Settings
5.1 Set APN (APN(Access Point NAME))
Message format: A******,012,APN
Length of APN is limited within 100 characters,
E.g:A000000,012,cmnet
“cmnet”is the APN of China Mobile
5.2 Set the IP and Port of Gprs_Server
Message format: A******,010,IP,PORT
e.g. A000000,010,121.37.58.10,6900
121.37.58.10 is the IP of GPRS_server, 6900 is the port of
GPRS_Server application (be in communication with GPS camera
tracker)
5.3 Open GPRS function
Message format: A******,011,X

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
10
(note:x=1 open GPRS, X=0 close GPRS)
e.g. A000000,011,1
GPRS function will be open, and GPS Camera tracker will send data
to Internet,Users can turn off this function though send SMS:
A000000,011,0

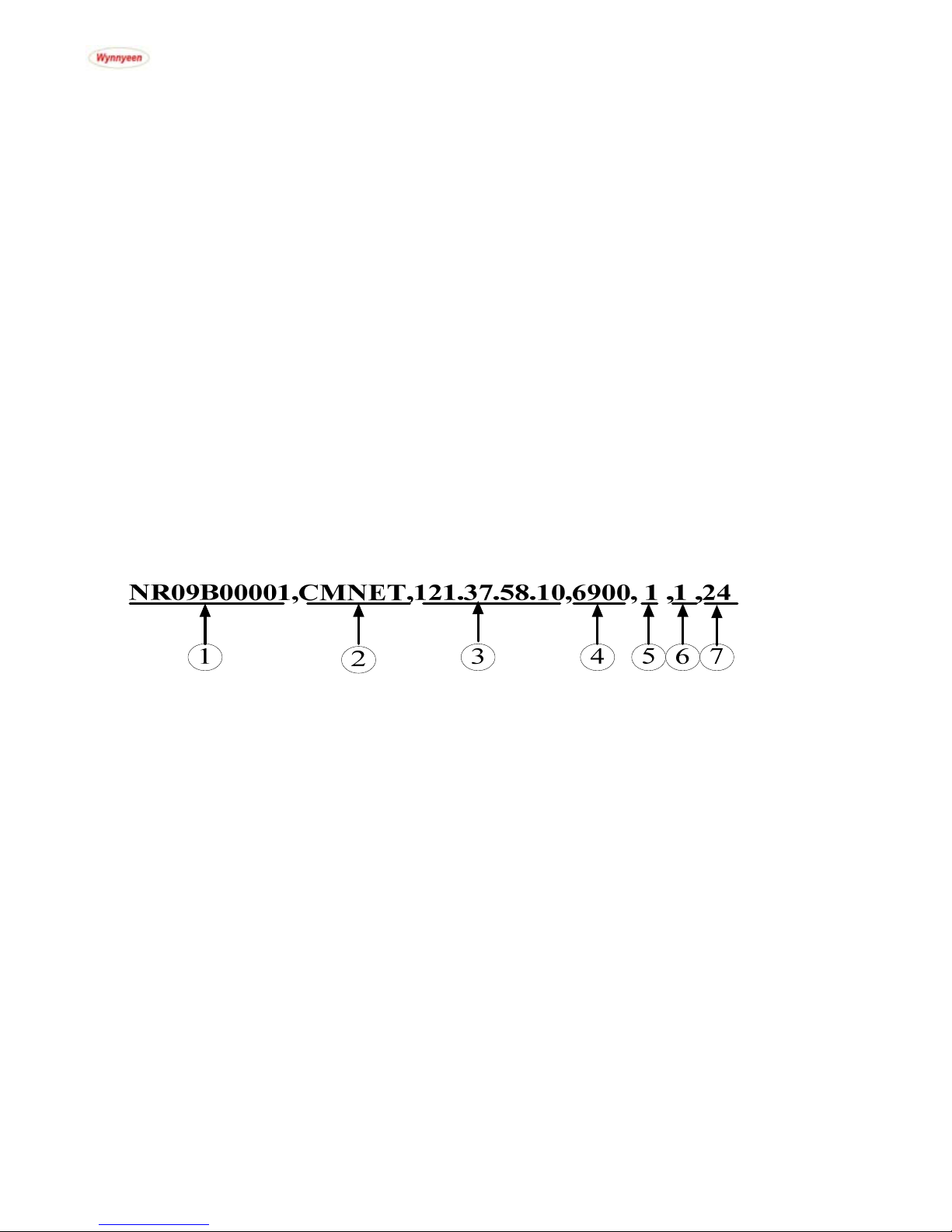

5.4 Query the GPRS Setting
Message format: A******,004
The device will send back GPRS setting parameters. You can check
whether the parameter sets correctly by it.
（1）Device ID
（2）APN (China Mobile is CMNET, China Unicom is UNINET)
（3）Server IP address
（4）Server port
（5）GPRS open status（0- off ，1- on）
（6）GPRS connecting status（0- Internet is bad，1- work well）
（7）GSM signal value（1~31），if value<10 is too weak to work well.

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
11
6GPS tracking system on website
6.1 User Login
Google Map can support many different languages. It can change
language for local language by itself.
6.2 Vehicle real-time tracking
1 choose vehicle 2 map mode 3.vehicle state, Google map
have 3 model: map mode ,satellitic mode and Hybrid mode
Mapmode satellitesmode：

Wynnyeen International (China) Limited
Office: 008675526161537 Fax: [phone]
Website: www.wynnyeen.com.cn
Address: Rm.632, Wan Junhui Business Center, Baoan, Shenzhen, Guangdong, P.R.China
- -
12
6.3 Vehicle history record playback
Please point run history review page
1 choose vehicle 2 start time 3 inquire time 4.setup
review speed 5 start review process you can know that time date ,
speed , way and distance sum.
