XDynamics EVOLVE 2 User manual

USER MANUAL v1.0
2020.06

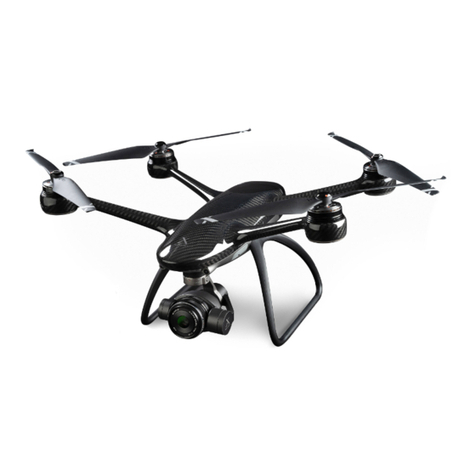

Front R-Side Bottom 60* View
P1

1EVOLVE 2 User Manual V1.0 by XDynamics Limited
ABOUT THIS MANUAL
WHAT IS IN THE DOCUMENT
Welcome to the Evolve 2 user manual. This user guide is designed to give you a detailed overview of each element of our
product. It provides information on how to set up your Evolve 2 and optimise its use for safe ight.
Please read it carefully before you begin.
If you encounter any issues at any stage, visit the “contact us” section of our website at www.xdynamics.com/contactus to
get in touch with us. Thank you.

2
LEGEND
Within this manual the following Legends are used:
Safety Warning
Important
User Hints and Tips
Reference
REQUIREMENTS BEFORE THE FIRST FLIGHT
Read the following information before using the EVOLVE 2
1. EVOLVE 2 User Manual
2. Quick Start Guide
PRODUCT SUPPORT
Store Website
Please visit the y safe page and download information related to the EVOLVE 2 here -
https://store.xdynamics.com/y-safe/
Support Website
Find more information, tips, and troubleshooting and browse our comprehensive articles at -
https://store.xdynamics.com/support/
Tutorials
Browse our tutorials at -
https://store.xdynamics.com/tutorials/

3EVOLVE 2 User Manual V1.0 by XDynamics Limited
SECURITY DISCLAIMER
Security of information for aircraft products has become a major concern for UAS operators that do not wish for their ight
information and collected imagery to be accessed by outside entities or governments. Most leading aircraft manufacturers
do not have the ability to secure this type of information. A typical consumer aircraft sends all the metadata information,
such as aircraft position history and copies of all video and photography les, to unsecured cloud accounts. Some
aircraft manufacturers require the operator/owner of the aircraft to create an online cloud account before the aircraft
can be activated. This cloud account downloads all the information and history from the aircraft every time the system
is connected to the internet or when a rmware update is performed regardless of whether the operator/owner gives
consent. This raises serious security concerns for UAS operators that y their aircrafts near secure and sensitive locations,
such as military installations and airports.
XDynamics uniquely offers secure aircraft products not available by many other aircraft manufactures. We understand the
need for secure aircraft systems and will never download secured or private metadata information without the consent of
our customers. XDynamics believes in guarding our customers privacy and will continue to strive for more secure aircraft
products in the future.

4
DISCLAIMER AND WARNING
This product is not a toy, and should only be operated by persons over the age of 18. Please keep it out of reach
of children, and pay particular attention to the possible scenarios of children’s unexpected appearance during ight
operation. It is highly recommended that any pilot using this product have a Small Unmanned aircraft Systems‘ Remote
Pilot Airman Certicate.
Be sure to read this document carefully before using the product to fully understand your legal rights, responsibilities and
safety instructions. Failure to do so, may cause property damage, safety accidents and personal safety risks. Once this
product is used, it is deemed that you have understood, recognized and have accepted all the terms and conditions of this
statement. The user is responsible for all the consequences of his/her actions and consequences. The user agrees to use
the product for his/her sole & legal purpose, and agrees with the terms & conditions of this agreement, and other relevant
policies & guidelines that may be specied by XDynamics LLC.
Under the maximum permission by law and approved circumstances, XDynamics LLC is exempt of liability for any indirect,
punitive, consequential, special or criminal damages, including the purchase cost, or for loss of income due to the loss of
use of the aircraft.
*XDynamics LLC is exempt from the user‘s liabilities for damage(s) to person/s or property, or injuries incurred directly or indirectly
from the use of this product in the following conditions:
•Damage(s) or injuries incurred when the user/s are under the inuence of alcohol, drugs or medication.
•Any malfunction caused by operators’ failure to follow the guidance of the manual to assemble and set up,
or operate the aircraft as described, and designed.
•Damage(s) or injuries that may occur due to failure to study the tutorial videos, and the user manual before
ying the aircraft.
•Damage(s) or injuries caused to a person/s or property, due to failure in correctly calibrating the UAV as
outlined in the manual, prior to ight.
•Damage(s) or injuries incurred as a result of the use or installation of any unauthorized third party accessories
or counterfeit parts - which were not provided and approved of by XDynamics.
•Damage(s) or injuries as a result of ying the aircraft out of eyesight range, or more than 300m away from the
Ground Station.
•Damage(s) or injuries caused by ying the aircraft in areas of magnetic elds & radio interference.
•Damage(s) or injuries caused by ying in a NO-FLY ZONE that is regulated by local laws & rules.
•Damage(s) or injuries including crashes, loss of control or water ingress caused by abusing or modifying the
original aircraft structure.
•Damage(s) or injuries caused by using broken & ageing components.
*XDynamics LLC reserves all the rights for final interpretation.

5EVOLVE 2 User Manual V1.0 by XDynamics Limited
INTELLIGENT FLIGHT BATTERY SAFETY GUIDELINES
All instructions and other collateral documents are subject to change at the sole discretion of XDynamics LLC. For up-to-
date product information, visit http://www.xdynamics.com and click on the product page for this product.
Read the ENTIRE user manual to become familiar with the features of this product before operating. Failure to operate
the product correctly can result in damage to the product or personal property and cause serious injuries. This is a
sophisticated product. It must be operated with caution and common sense and requires some basic mechanical
abilities. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product
or other property. This product is not intended for use by children without direct adult supervision. DO NOT use with
incompatible components or alter this product in any way outside of the documents provided by XDynamics LLC. These
Safety Guidelines contain instructions for safety, operation and maintenance. It is essential to read and follow all of the
instructions and warnings in the user manual prior to assembly, setup or use, in order to operate the product correctly and
avoid damage or serious injuries.
To avoid re, serious injuries, and property damage, observe the following safety guidelines when using,
charging, or storing your batteries.
WARNING

CONTENTS
Contents
PRODUCT PROFILE ________________________________________________________8
PRODUCT DESCRIPTION ____________________________________________________9
KEY FEATURES ________________________________________________________10
AIRCRAFT ANNOTATED DIAGRAM ______________________________________________12
GROUND STATION ANNOTATED DIAGRAM _________________________________________13
AIRCRAFT _____________________________________________________________14
INSERTING THE AIRCRAFT BATTERY _____________________________________________15
REMOVING THE AIRCRAFT BATTERY _____________________________________________16
AIRCRAFT FLIGHT CONTROL _________________________________________________17
AIRCRAFT AND PILOT ORIENTATION _____________________________________________17
BEGINNER MODE _______________________________________________________18
FLIGHT MODES ________________________________________________________19
TURN ON THE AIRCRAFT ___________________________________________________20
TURN OFF THE AIRCRAFT __________________________________________________21
TURNING ON/OFF AIRCRAFT BATTERY ____________________________________________22
AIRCRAFT LED INDICATORS _________________________________________________23
CAMERA INDICATORS ____________________________________________________26
AIRCRAFT BATTERY ______________________________________________________27
CHARGING THE AIRCRAFT BATTERY _____________________________________________28
GROUND STATION _______________________________________________________30
TURNING ON THE GROUND STATION ____________________________________________31
GROUND STATION LED INDICATORS _____________________________________________32
FLIGHT MODE (MODE 2) ___________________________________________________33
PREPARE THE GROUND STATION _______________________________________________37
GROUND STATION ______________________________________________________38
APPLICATION ___________________________________________________________39
SCREEN INTRODUCTION ___________________________________________________40
WARNINGS AND ALERTS ___________________________________________________42
SETTINGS MENU _______________________________________________________43
LINKING THE GROUND STATION _______________________________________________44
MAP PRELOADING (OFFLINE MAP) ______________________________________________45
RUN WAYPOINT PLAN_____________________________________________________46
CAMERA AND GIMBAL SECTION _______________________________________________47
ALBUM AND IMAGE EDITING _________________________________________________48
WI-FI NETWORK ________________________________________________________49
BLUETOOTH __________________________________________________________49
FIRMWARE UPDATES _____________________________________________________50
FLIGHT _______________________________________________________________51
PREFLIGHT CHECKLIST ____________________________________________________52
FLIGHT SYSTEM LIMITATIONS _________________________________________________54
ENSURE CORRECT PROPELLER ALIGNMENT _________________________________________55

ATTACHING AND DETACHING THE PROPELLERS_______________________________________56
PREPARING AIRCRAFT FOR FLIGHT ______________________________________________57
CAMERA AND GIMBAL SECTION _______________________________________________58
AIRCRAFT CALIBRATION ___________________________________________________59
AIRCRAFT CALIBRATION ___________________________________________________61
ARMING THE AIRCRAFT ____________________________________________________63
ARMING PRE-CHECK _____________________________________________________63
ARMING ____________________________________________________________63
DISARMING THE AIRCRAFT __________________________________________________64
AUTO TAKE OFF _______________________________________________________65
AUTO LANDING ________________________________________________________66
RETURN TO HOME ______________________________________________________67
USING THE RETURN TO HOME BUTTON ON THE GROUND STATION ____________________________68
RETURN TO HOME BUTTON CANCELLATION ________________________________________69
DETERMINING THE RETURN TO HOME ALTITUDE ______________________________________70
APPENDIX _____________________________________________________________71
PRODUCT SPECIFICATION __________________________________________________72

PRODUCT PROFILE

9EVOLVE 2 User Manual V1.0 by XDynamics Limited
PRODUCT DESCRIPTION
Within this section, the EVOLVE 2 aircraft and Ground Station are explained and the individual components are listed. The
EVOLVE 2 aircraft and Ground Station form a powerful system offering a XXXX low latency FPV video downlink with 4K
local video recording, combined with an out the box, ready to use fully integrated dual touch-screen Ground Station.

10
KEY FEATURES
Dual-screen Ground Station
Aerial photography and lming experience with XDynamics EVOLVE 2 begins at your ngertips. Drawing inspiration from
handheld game consoles, the foldable Ground Station holds two separate high brightness touch-sensitive screens in the
palm of your hand, an 8” FPV viewnder and a 5.5” control panel, which is complemented with uncluttered buttons and
tactile gimbal control.
Removable Antennas
With removable antennas, the EVOLVE 2 can be used with not only it’s internal antenna, but external as well. The external
antennas, that come standard, give the user ight distances up to XXX_miles.
Smart Pilot System (SPS)
The EVOLVE 2 by XDynamics boasts the world’s most advanced dual-screen pilot assistant system, an integrated system
which combines all the required assistant functions under a single interface.
•Aircraft Radar: know where your aircraft is.
•Alert Center: fully understand your aircraft‘s status.
•Map Preloading: ensure you can view your map at ight.
•Dual-Screen Editing: retouch your aerial images and edit your footages more conveniently.
Ultra-Precise Positioning System
Combined with algorithms and a comprehensive suite of positioning tools, including a GNSS module that supports GPS/
QZSS, GLONASS and BeiDou navigation systems that cover 99% of the world, as well as advanced optical ow and
LiDAR sensors. With these features, EVOLVE 2 provides position tracking with higher precision than general aircrafts with
ultrasonic or visual sensors.
4K M 4/3 Camera
Equipped with a __mm __ lens and a CMOS image sensor, with effective pixels of 12MP, the EVOLVE 2 supports video
capture at 4K@30/25fps, FHD1920p@120/60/30fps, HD1280@240/120/60/30fps, (Need nal specs) accommodating
to various scenarios and themes, from peaceful landscapes to dynamic sport shorts. It supports RAW image le outputs
(DNG format) and records videos at __Mbit/s, preserving data for post-production editing.
Removable Lens
With a mount built for removable lenses, the EVOLVE 2 is truly a lmmaking tool. Quickly swap lenses on the go from a
range of several M4/3 options.
CFast / Pro-Res (coming soon)
Build into the EVOLVE 2 is a CFast card slot. This will enable users to record up to 500 Mbits/s. A future rmware release
will give users access to ProRes.

11EVOLVE 2 User Manual V1.0 by XDynamics Limited

12
AIRCRAFT ANNOTATED DIAGRAM
Detailed Schematic of the EVOLVE 2 aircraft
1. LED Light
2. Camera Micro SD Port / TypeC / Pairing
Button
3. Camera LED Status
4. Camera
5. Lens Button
6. Motor
7. Forwarad Vision System
8. Lens
9. Propellers – 2 CW and 2 CCW
10. Camera CFast Port
11. Gimbal Button
12. Gimbal
13. Camera
14. Battery Display
15. Battery
16. Battery Release Latch (Side)
17. Magnesium Undercarriage
18. Bottom LED Light
19. Bottom Vision System
20. Optical Flow Camera
21. Lidar (Altitude Sensor)
20
19
21
18
2
1
4
5
7
8
6
3
CFAST 2.0
15
16
17
14
13
12
11
10
9
9

13EVOLVE 2 User Manual V1.0 by XDynamics Limited
Detailed Schematic of the EVOLVE 2 Ground Station
1. Front Camera
2. Microphone
3. 8 inch Touch Screen
4. On/Off Button
5. Control Sticks
6. 5.5 inch Touch Screen
7. Landing / Take-off Button
8. Light Sensor
9. Signal LED
10. Speaker
11. RTH Button
12. Battery Charging Port
13. Customizable Button C2
14. Customizable Button C4
15. Customizable Button C1
16. Customizable Button C3
17. Triport
18. Battery Level Checking Button
19. Customizable Button B2
20. Photo Button
21. Roller (R2)
22. Antenna
23. Flight Mode Switch
24. Customizable Button B1
25. Record Button
26. Roller (R1)
GROUND STATION ANNOTATED DIAGRAM
13
14
15
16
18
17
3
7
5
6
4
8
9
10
11
12
2
1
20
21
22
19 24
23
25
26

AIRCRAFT

15EVOLVE 2 User Manual V1.0 by XDynamics Limited
INSERTING THE AIRCRAFT BATTERY
Be sure that the aircraft battery is fully charged ( Refer to Charging the aircraft Battery Section )
• The aircraft battery contains a contact lubricant suitable for electronic connectors.The grease is white in
appearance and can be seen on the aircraft power connector and aircraft battery. The lubricant is designed
to last for full lifetime of the aircraft and improve electrical performance. The white appearance is normal.
The user MUST not attempt to replace the grease with any other products. No attempts should be made to
remove the lubricant.
See diagram for battery installation intructions
Steps for aircraft battery installation:
1. First ensure the battery is turned OFF .
2. Then ensure the orientation of the battery is correct, the OLED display should be pointing upwards. Battery detail
facing upwards
3. Insert by pushing the battery gently into the aircraft until the two latches of the battery engage into the aircraft.

16
REMOVING THE AIRCRAFT BATTERY
Remove the battery by squeezing the battery mechanical latches and pulling the battery out of the aircraft.
Ensure the aircraft battery is turned OFF before inserting or removing it from the aircraft or battery charger.
When removing the battery from the aircraft allow the battery to cool to room temperature before charging
the battery with the supplied charger.
See diagram for removing the aircraft battery below
Steps for removing the aircraft battery:
1. First ensure the battery is turned OFF.
2. Squeeze the side latches to disengage the lock.
3. Remove by rmly gripping and pulling the battery from the aircraft.

17EVOLVE 2 User Manual V1.0 by XDynamics Limited
AIRCRAFT FLIGHT CONTROL
Flight control of the EVOLVE 2 is accomplished by manipulating the control sticks on the Ground Station. Proper
orientation must always be considered when ying the aircraft. A basic rule of thumb when remote piloting a aircraft is
to realize that when the aircraft’s nose, or front end, is facing the pilot the control inputs for roll and yaw are backwards.
This disorientation is the leading cause of all aircraft accidents that are due to pilot error. Therefore, it is very important to
practice piloting in the proper orientation. This includes
•Positioning the aircraft’s nose, or front end, away from the pilot.
•Be sure to stand at least 6ft directly behind the aircraft and keep the nose pointed away from you.
•Fly in an open area free of obstacles such as trees, power lines, and buildings.
•Make sure you are ying in GPS mode. (The aircraft will automatically hold position when the control sticks
are released )
•Ensure that all spectators are standing behind you.
AIRCRAFT AND PILOT ORIENTATION
Ensure that thr operator and aircraft are both facing the same direction prior to launch.
(MODE 2)
Left Right
Forward
Backward
Forward
Turn Left Turn Right
UP
Down

18
BEGINNER MODE
User may enable Beginner Mode at the Settings Page. After enabling the Beginner Mode, the aircraft can only be own
within a spherical radius of 30m from the take-off point.
