ehang GHOST User manual

OPERATING | MANUAL
www.ehang.com

Congratulations on purchasing your new GHOST Drone!
For customer service and support,
please e-mail [email protected].
Connect With Us Online:
www.ehang.com
www.twitter.com/theghostdrone
www.facebook.com/theghostdrone
www.instagram.com/theghostdrone

TABLE OF CONTENTS
Disclaimer & Warning ----------------------------------------------------------------------------01
Ghost Drone Diagram----------------------------------------------------------------------------02
Accessories and Assembly --------------------------------------------------------------------04
Flight Instructions ---------------------------------------------------------------------------------14
GHOST App ----------------------------------------------------------------------------------------19
FAQ---------------------------------------------------------------------------------------------------25
Owner Support ------------------------------------------------------------------------------------26
Battery------------------------------------------------------------------------------------------------------------ 04
G-BOX ----------------------------------------------------------------------------------------------------------- 06
Camera ---------------------------------------------------------------------------------------------------------- 07
Gimbal ---------------------------------------------------------------------------------------------------------- 08
Landing Gear ---------------------------------------------------------------------------------------------------10
Propellers ------------------------------------------------------------------------------------------------------- 10
Propeller Guards -----------------------------------------------------------------------------------------------12
LED Legend ---------------------------------------------------------------------------------------------------- 13
Parts -------------------------------------------------------------------------------------------------------------- 02
In the Box -------------------------------------------------------------------------------------------------------02
Product Type --------------------------------------------------------------------------------------------------- 03
Specifications --------------------------------------------------------------------------------------------------- 03
App Download -------------------------------------------------------------------------------------------------14
Binding with GHOST Drone ---------------------------------------------------------------------------------- 14
Compass Calibration ------------------------------------------------------------------------------------------ 15
Drone Configuration -------------------------------------------------------------------------------------------17
Acquiring GPS -------------------------------------------------------------------------------------------------18
First Flight -------------------------------------------------------------------------------------------------------- 18
Mobile App Explained ----------------------------------------------------------------------------------------- 20
Unlock and Lock ----------------------------------------------------------------------------------------------- 20
Takeoff------------------------------------------------------------------------------------------------------------ 21
Hover ------------------------------------------------------------------------------------------------------------ 21
Follow-Me-------------------------------------------------------------------------------------------------------- 21
Micro-Control ---------------------------------------------------------------------------------------------------22
Elevation and Yaw ---------------------------------------------------------------------------------------------23
Controlling the Gimbal ----------------------------------------------------------------------------------------23
Return ------------------------------------------------------------------------------------------------------------ 24
Land ------------------------------------------------------------------------------------------------------------- 24

WARNING!
DISCLAIMER & WARNING
The GHOST Drone is equipped with a “black box” that records flight data. (Please Note:
This data is only accessible by the staff in our service department). If the user fails to land
when the battery is depleted and causes damage to the GHOST Drone, the user is
responsible for the cost of any repairs that might be necessary.
Disassembling and/or modifying the GHOST Drone is prohibited. If the user requires
custom modifications, please contact the GHOST team before attempting to modify the
GHOST.
When storing the GHOST Drone, remove the battery. Store all GHOST-related parts at
room-temperature, out of direct sunlight, and away from magnetic interference and
moisture. Pay special attention to the storage of the Lithium Polymer (LiPo) battery.
The GHOST Drone may not fly normally near high-rise buildings due to GPS interfer-
ence.Please fly in open spaces, away from densely populated urban areas, to minimize
GPS interference and maintain safe flight.
Do not fly near obstacles, people, crowds, power lines, trees, water, or anything else that
may cause interference with your GHOST Drone.
Do not fly in restricted air space.
Do not fly in or around congested electromagnetic (EM) environments. The GHOST Drone
must be kept at least 200m (656 ft.) away from strong EM sources to operate normally.
EM interference can cause a loss of communication with the GHOST Drone and result in
damage to the GHOST and/or objects and people in the flight environment.
Do not operate in bad weather, including extremely high temperatures, heavy snow, high
wind, or rain.
Before unlocking your GHOST, stand at least 5m (16 ft.) away from the Drone and ensure
that people or animals do not approach the GHOST.
When flying, the user must retain line-of-sight with the GHOST Drone. Losing sight of the
GHOST Drone can result in dangerous operating conditions.
Do not touch spinning propellers as they may cause injury. To ensure the best flying
experience, use only EHANG-supplied propellers.
Do not operate the GHOST with the propeller guards and landing gear both installed. For
users who purchased the GHOST Aerial or Aerial Plus, practice flying with the basic
configuration before you fly with a camera attached.
To ensure safe flying, calibrate the GHOST Drone’s compass with the GHOST App before
each flight.
Adult supervision is required when the GHOST Drone is operated by a minor.
01
Before flying, please consult flight documentation from the International Civil
Aviation Organization (ICAO) and Federal Aviation Administration (FAA) regard-
ing unmanned aircraft operation. The user is responsible for his or her actions
and any ensuing consequences. Users are hereby advised that they are liable
for the use of the GHOST Drone and any and all liability is solely theirs. Please
fly responsibly.

02
1 2
4 5 6
8
Aircraft
1G-BOX (Charging Cable Included) 2
7
3
GHOST DIAGRAM
PARTS LIST
IN THE BOX
Body Cover
Motor
Top Cover
Landing
Gear
Camera
LED Cover
Front Cover
Propeller Prop Nut
Gimbal
3Battery 4Battery Charger (Two Charging Cables Included)
5Gimbal 6Camera (16 GB Micro SD Card Included)
Hex Driver & Screws (8 Pieces)
87 Landing Gear

4
3Battery Battery Charger
GHOST AERIAL PLUS
5Gimbal 6Camera
8Hex Driver & Screws 7Landing Gear
2G-BOX 1Aircraft
GHOST AERIAL
4
3Battery Battery Charger
8Hex Driver & Screws
5Gimbal 7Landing Gear
2G-BOX
1Aircraft
03
Diagonal Wheelbase
Aircraft Height
Aircraft Height with Landing Gear
Weight
Propellers
350mm
90mm
200mm
780g
8-Inch High-Efficiency 8045 Tri-Blade
Propellers (CW and CCW)
SPECIFICATIONS
PRODUCT TYPE
Aircraft
G-BOX
Battery
Battery Charger
1
2
4
3
GHOST BASIC

The 1S 2S 3S indicators will be solid red. The 4Sdoes
not illuminate when charging the GHOST Drone battery,
as this is a 3S battery pack.
Battery type: LiPo (Ensure that LiPo is selected)
Charging status: indicates charging;
indicates fully-charged
The capacity of the GHOST Lithium Polymer (LiPo) battery is 5400 mAh, rated at 11.1v.
It uses an XT60 connector. The GHOST battery has a power management function built
in, and it should only be charged using the included GHOST charger.(59.94Wh)
BATTERY
04
ACCESSORIES AND ASSEMBLY

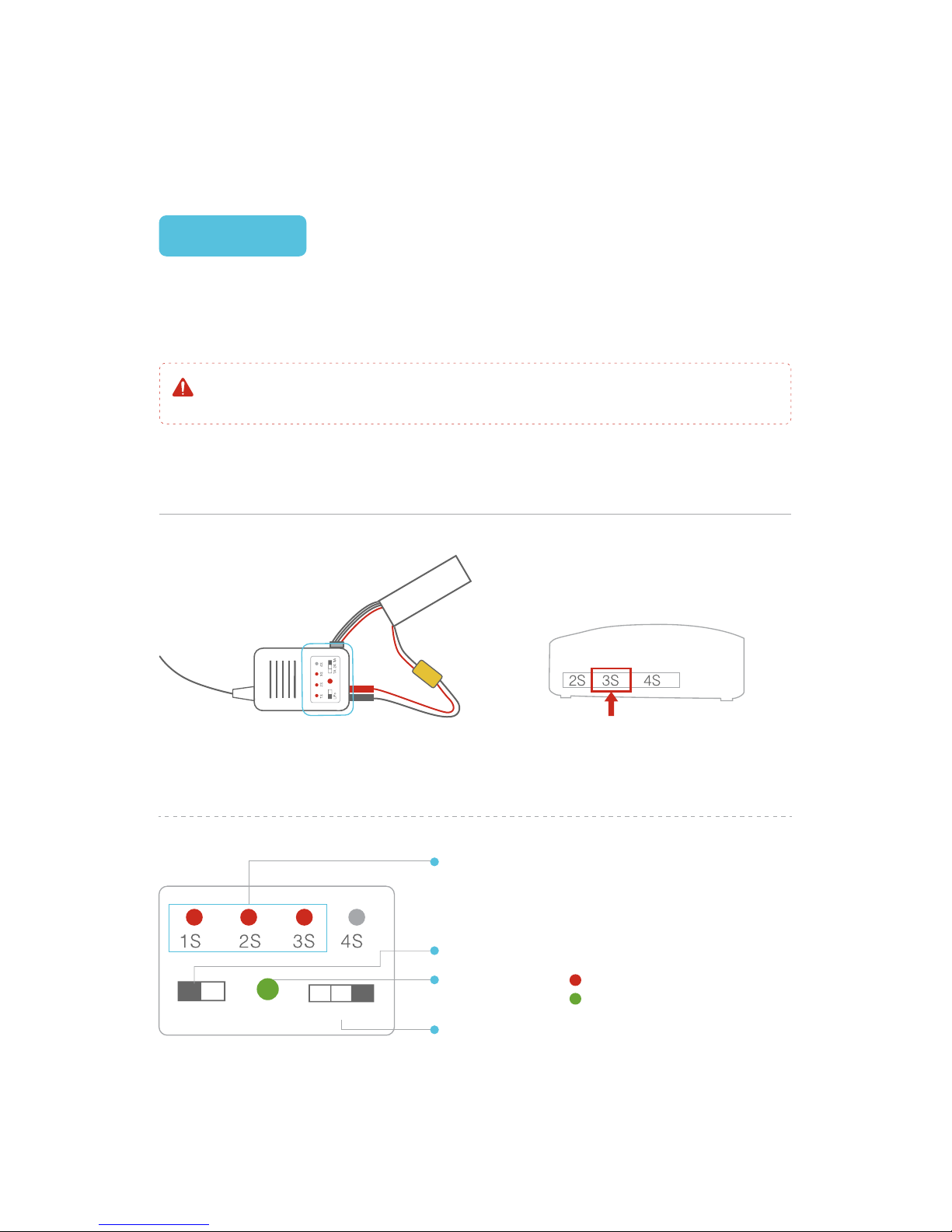

CHARGING THE BATTERY
Front view of the charger
Please note that the battery voltage may rise post-flight. This is normal. Do not fly the
GHOST if the battery shows less than a 30% charge.
Battery charging diagram Side view of the charger
(Make sure the wires are
connected correctly)
(Plug in the 3S balancing socket)
1A 2A 3A
LiPo 1A 2A 3A: Indicates charging amperage
(Battery charges faster with higher amperage.Please
note the suggested charge rate for the included 3S
5400mAh battery is 10 C.)

Use only the included GHOST battery charger.
Do not use the battery if the casing and included balancer is broken, deformed or inflated.
Always set the charge output volts to match battery volts.
Never allow battery temperature to exceed 140°F (60 °C)
Recharge your battery post-flight only after it has returned to room temperature.
Never leave a charging battery unattended, and do not place the battery or charger on anything
flammable. Do not store or charge the battery in direct sunlight.
Never disassemble the battery and do not modify the battery circuit. Never discharge below
3.2V per cell. Never puncture the battery assembly or individual cells.
Store the battery between 11.4V and 11.6V (3.8V – 3.85V per cell).
Do not store the GHOST Drone with the battery connected. This will drain the battery and
possibly damage it.
Keep the battery away from children, animals, water, and fire.
If your battery breaks or becomes unusable, it must be recycled by an authorized electronic
waste facility. Batteries and other electronic waste must be disposed of in a strict manner.
Consult your local waste disposal agency for guidelines on battery disposal.

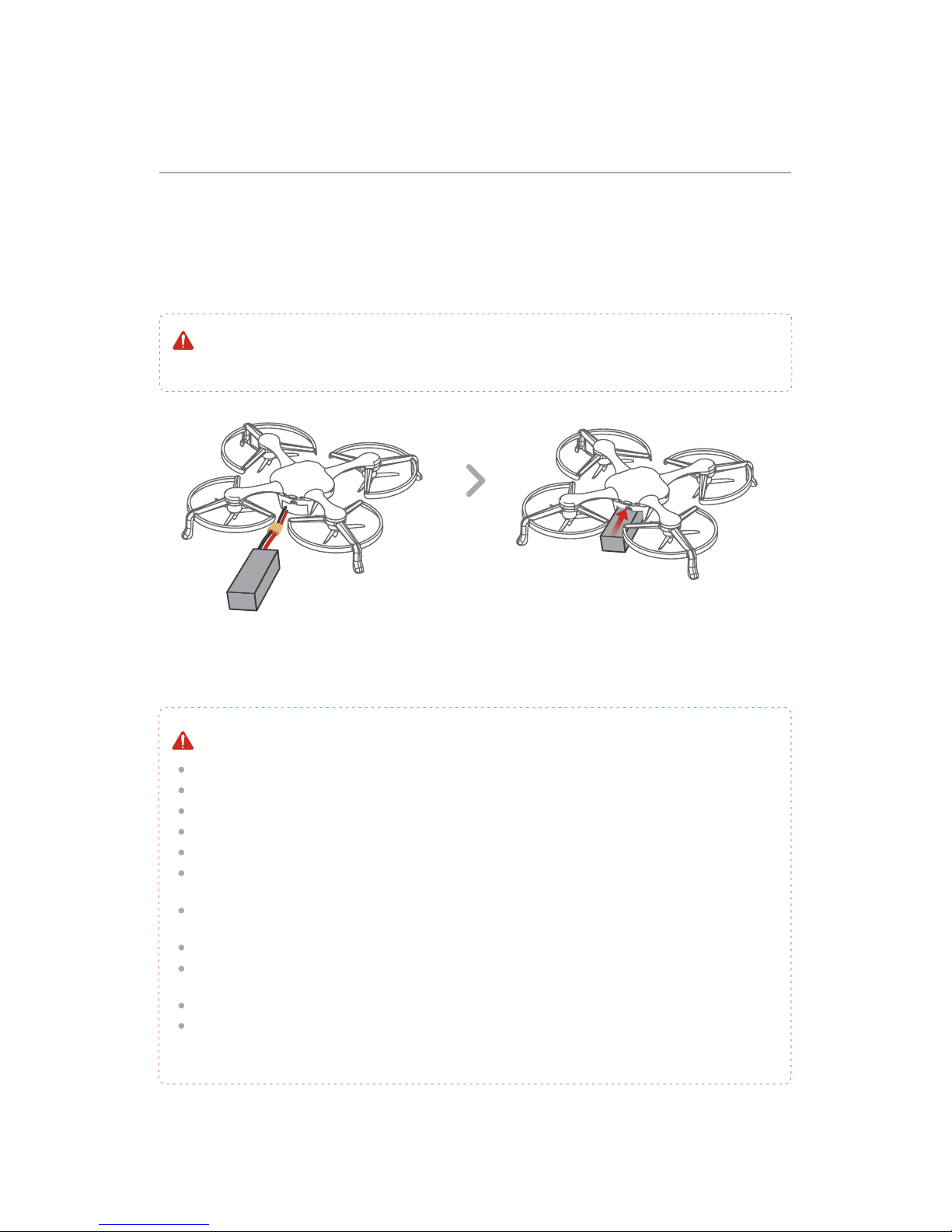

Place the GHOST on a horizontal surface to connect the battery. Push the battery into
the battery compartment (inward as shown in the diagram below). Close the compartment
door, making sure that the battery is correctly seated inside the battery compartment. Do
NOT 'force' the door closed as this could damage the wires or the GHOST Drone itself.
If the door will not close easily, reposition the wires accordingly.
Before flight, ensure that the battery is correctly installed in the GHOST Drone. An
incorrectly installed battery may cause safety issues when flying, and may cause incorrect
voltage readings. An incorrectly installed battery may prevent take-off.
05
BATTERY INSTALLATION
BATTERY WARNINGS & TIPS
Ensure battery wire is correctly connected
(Red to Red, Black to Black)

G-BOX
The G-BOX is a wireless interface unit designed specifically for controlling and interfac-
ing with the GHOST Drone. Each GHOST Drone is paired with one G-BOX. The GHOST
App cannot operate the Ghost without a G-BOX. Please store the G-BOX appropriately.
Should your G-Box become damaged, it will be necessary to replace the G-Box unit.
Keep the G-BOX in your hand or in your pocket during fight. If the G-Box is not near you, you
may lose connection with the GHOST Drone.
Quickly press the power button once.
Hold the power button until the PWR
indicator turns off.
The four LEDs next to the power button
flash in sequence.
The left side LED flashes while the three
LEDs on the right are solid.
Note: After the G-BOX turns on, the battery
indicator, PWR and DATA indicators will turn on.
After several seconds the battery indicator turns
off to save battery.
G-BOX SidesUSB Power CableG-BOX
06
Switch
Charging Port
Communication
Lights
Charge/Battery
Level Indicator
Power Indicator
ON/OFF
USING THE G-BOX
IMPORTANT TIPS
Phone Pocket
G-BOX
G-BOX
USB PWR DATA
Power On
Power Off
While Charging
Fully Charged

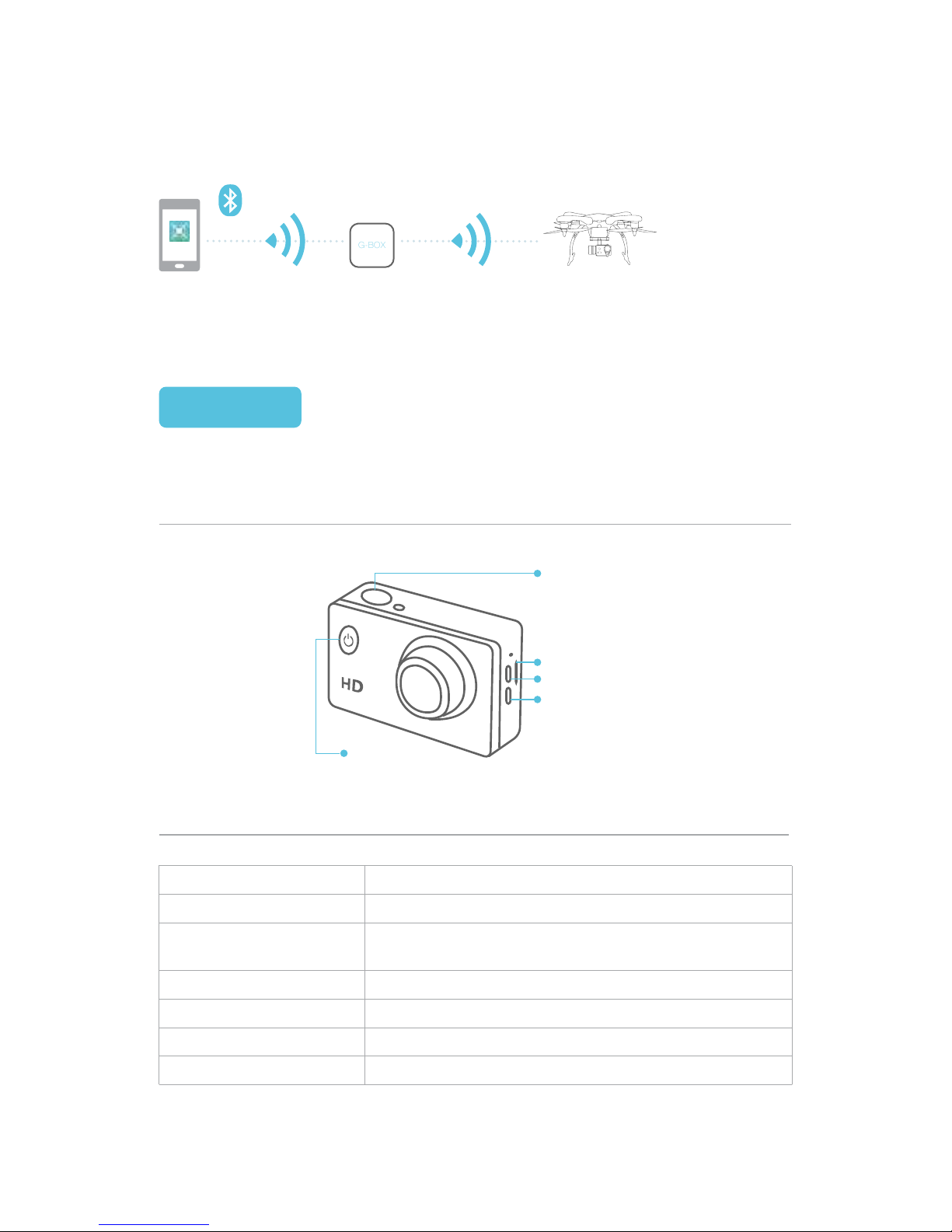

Communication Overview
07
App G-BOX GHOST Drone
Confirm
MICRO SD
USB
HDMI
Power/Mode
EHANG’s Sports Camera can shoot up to 1080P HD.
CAMERA
SPECIFICATIONS
CAMERA
Lens
Video Format
Video Compression
Format
Photo Resolution
Battery Capacity
Power Consumption
170-degree high resolution wide angle lens
MOV
H.264
12M/8M/5M
900mAh
[email protected]
Second Beeps 5s/10s/20s
G-BOX

08
The GHOST gimbal is made from lightweight aluminum alloy and is used to carry a
camera.
CAMERA OPERATION

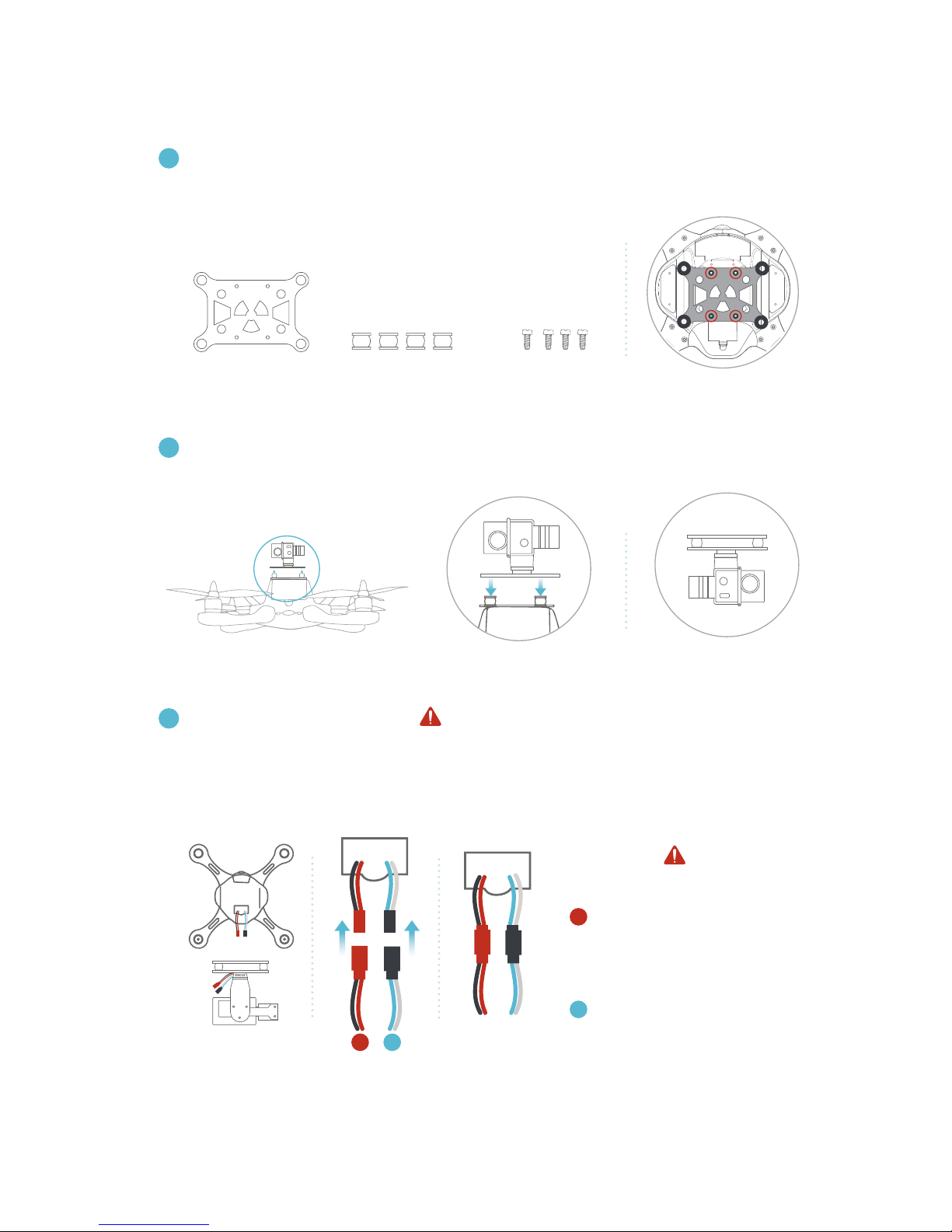

INSTALLATION
GIMBAL
Supports exFAT 32k formatted cards.
70 minutes @ 1080P when fully charged.
Note:Quickly press the power button to change modes.
Press the Confirm button to start and stop recording.
(When charging, do not use a charger that delivers more than 1000mA
or the camera may be damaged.)
Micro SD Card
Recording Time
Power On/Off
Charging
Connect a USB cable to charge the camera.
Press the power button to turn on. To turn off, hold the power
button until “GOODBYE” appears.
SPECIFICATIONS
127g
±0.09°
7 V – 17 V
Roll ±45°/ Pitch -90°to +30°
EHang Sports Camera, GoPro3, GoPro 3+, GoPro4
Weight
Accuracy
Operating Voltage
Angle Restrictions
Supported Cameras
Gimbal (with Clamp)
Clamp the camera into the gimbal holder, and then tighten the long screws to hold
the camera in place.
The camera lens should be on the right side of the clamp when installed correctly.
Completion
1Installing the camera.

09
Make sure the camera faces the front of Ghost.
WIRE COLOR
Power Cable:
Black to Black, Red to Red
(Gimbal will be destroyed if
colors are reversed.)
Control Cable:
White to White, Blue to Blue
Install rubber ball dampeners onto the gimbal mount, then tighten the short screw
to hold it together with GHOST.
Completion
Completion
Gimbal GHOST
Mount Short Screws
Rubber Ball
Dampeners
Pop open the cover under GHOST, then pull out the power lead inside of
GHOST. Connect the lead from the GHOST to the female lead on the gimbal.
1
2
2Installing the gimbal
3Connect the gimbal with the gimbal Ghost mount.
4Connecting the power supply
1 2

10

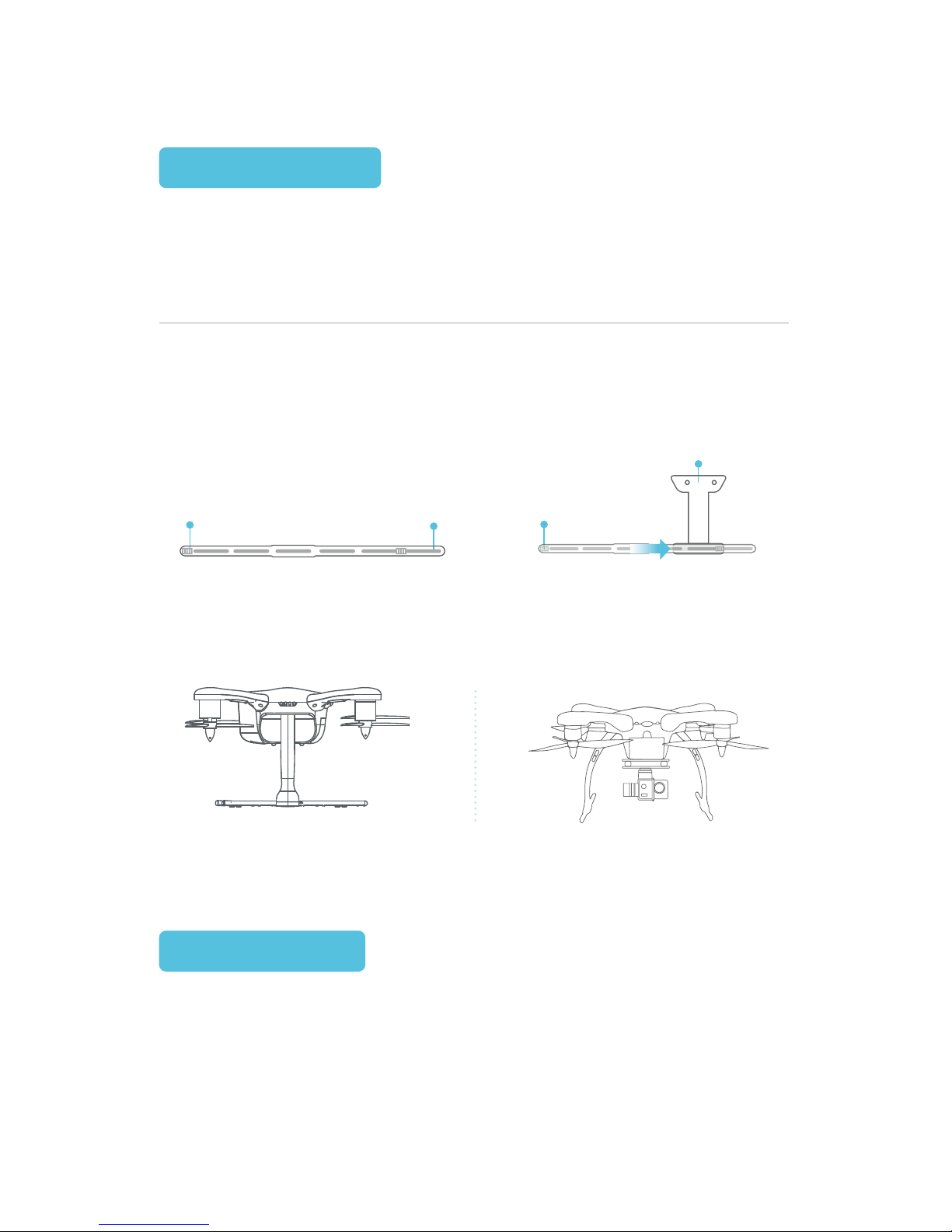

LANDING GEAR
The landing gear must be installed on the GHOST Drone when the gimbal is attached.
Please note the direction of the horizontal bars when assembling the landing gear. The
proper assembly is shown in the diagram below.
Bottom Plate
Horizontal Bar
Head Rear
Head
Front
Head
Assembled Landing Gear
Front ViewSide View
The landing gear is made from a high-strength composite material. The landing gear is
designed to support the weight of the Ghost Drone with gimbal and camera attached.
INSTALLATION
GHOST uses 3-blade 8 inch fast-assemble propellers. Propeller nuts have two colors,
red andblack. Each indicates different rotating directions.
PROPELLERS

11
ICON EXPLANATION
INSTALLATION
3
1
Left
Put the aircraft upside down on soft surface to avoid scratches.
Right
LOCK: Tighten the propeller in this direction.
UNLOCK: Remove the propeller in this direction.
Attach the black nut propellers to the R motors in the same way.
2
Match the red nut propellers with the L motors, and tighten the propellers according
to the fastening instructions.

12
Completed Assembly
Propeller Guard Assembly and Removal
To install the propeller guards, place each guard over the GHOST motor area and align
with the three, pre-drilled holes. Use three screws to secure each guard to the GHOST
Drone body. To remove, unscrew the three holding screws and remove the guard.
PROPELLER GUARDS
The GHOST Drone propeller guards are made from a high-strength composite material.
They are effective in preventing damage to the propellers.
DISASSEMBLING
Keep the motor deadlocked in place with one hand and remove the propeller accord-
ing to the unfastening instructions.
Check that the propellers and motors are installed correctly and firmly before each flight.
It is necessary to check that all propellers are in good condition before take-off. DO NOT
use any aged, deformed or damaged propellers.
To avoid injury, do NOT approach or touch the propellers or motors while they are spinning.
Be careful during propeller assembly and removal.
For a better and safer flight experience, please use original EHang propellers.
If you need to replace your propellers, please go to our website www.ehang.com
WARNING

Be advised that the GHOST Drone does not have an on/off switch. To power on the
GHOST Drone, connect the GHOST battery. After connecting the battery, LED lights
will flash, two red and two blue. The red LEDs indicate the front of the GHOST Drone,
the blue indicate the rear. If the LEDs flash rapidly during GPS flight, land the GHOST
immediately.

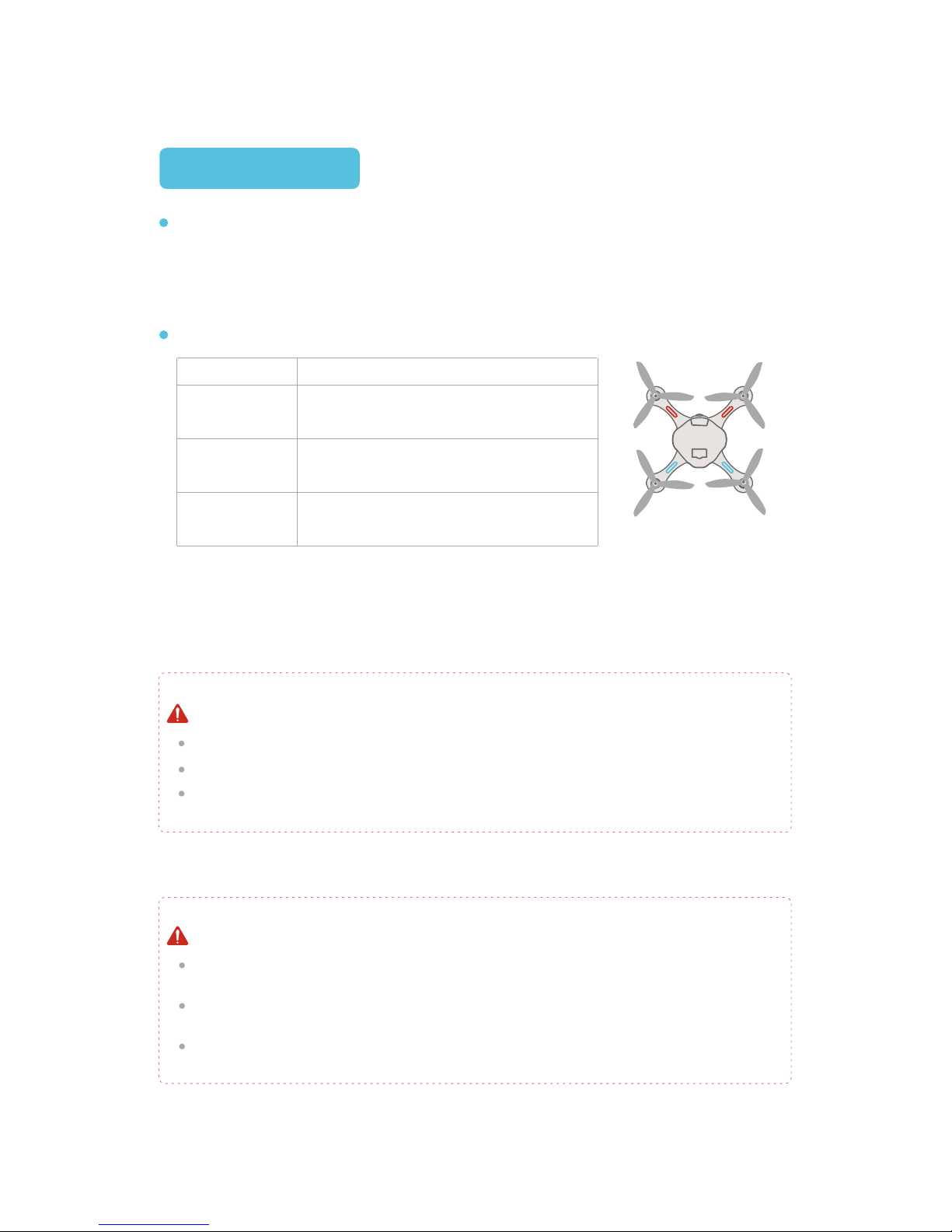

LED Indicators
G-BOX, aircraft battery level high.
Check that propellers are installed correctly, secure, and damage-free.
Check that the motors turn the props freely and easily.
PRE-FLIGHT CHECKLIST
Keep the G-BOX and mobile device together to ensure the connection does not drop while
using the GHOST Drone.G
Remember to enable the location function on your device, as the GHOST App can cache
local maps to ehance your flying experience (requires network connectivity).
Do not unlock and takeoff until the GPS has acquired at least six satellites.
REMINDER FOR iOS USERS
LED LEGEND
LED legend
13
1.Before takeoff: Initializing
2.During flight: Low battery power
1.The Ghost is unlocked
2.During flight
Searching for GPS satellites.
Found six or more satellites, can unlock
and takeoff.
Blue Flashing
Blue Solid
Red Flashing
Red Solid
Note: After the GHOST is powered on, the red LED light will flash rapidly. Place the GHOST on flat,
even ground. After approximately five seconds, the GHOST can be unlocked and takeoff.

14

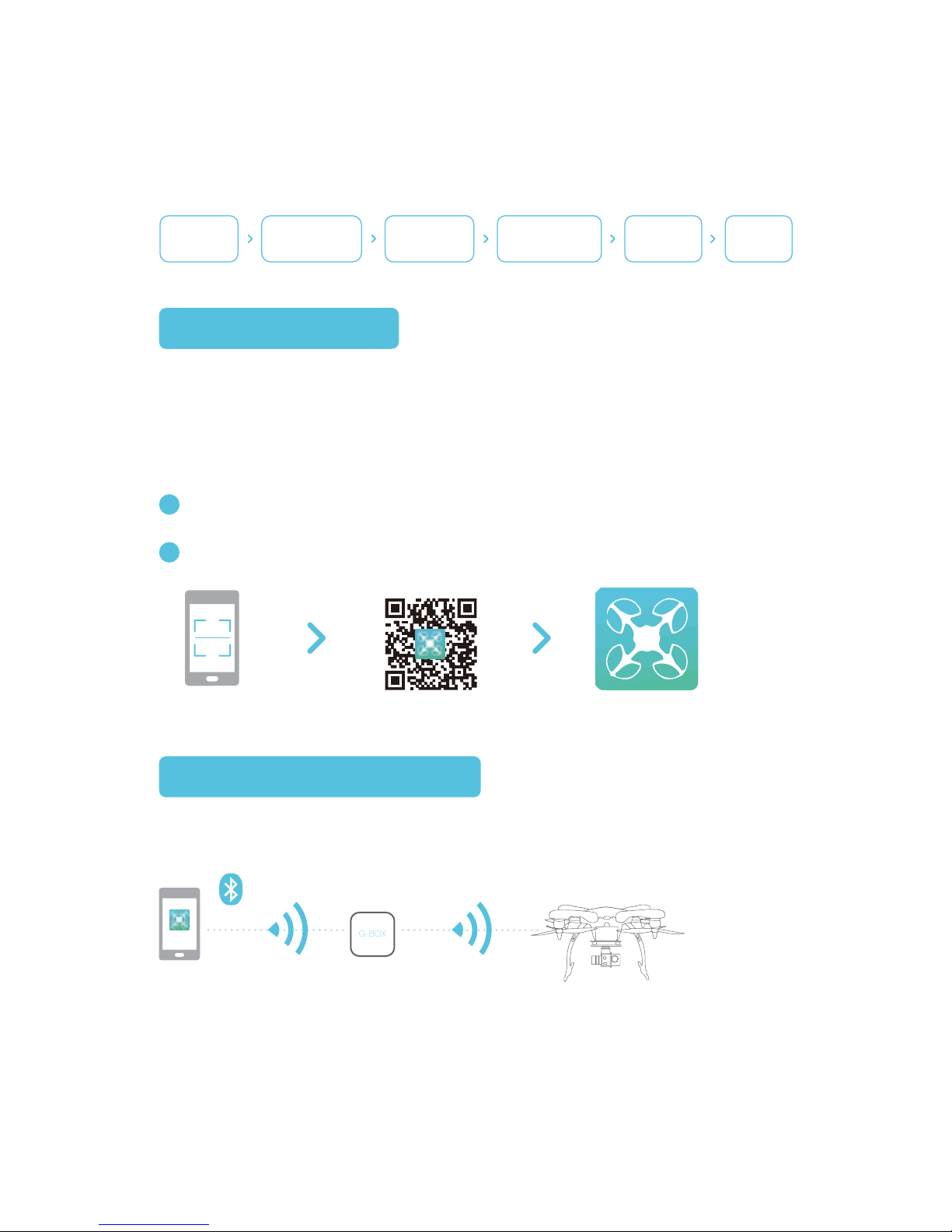

App and G-BOX connection:
The GHOST App connects to the G-BOX through Bluetooth, the G-BOX connects to the
GHOST Drone through a data transmission module.
1.Connect to the G-Box by turning on the Bluetooth settings in your GHOST Drone compatible smartphone
or tablet.
2.Turn on the G-Box as noted on Page 6 of this manual.
3.Turn on the GHOST Drone as noted on Page 5 of this manual.
FLIGHT INSTRUCTIONS
1
2
DOWNLOAD APP
CONNECT WITH DRONE
Android hardware requirement: Arm processors
Android system requirement: android 3.0 or above( including android 3.0)
iOS model requirement: iPhone 5 or above (including iphone5) , iPad3 or above (including iPad3)
iOS system requirement: iOS 7.0 or above
To Download the GHOST App, visit www.ehang.com.
Or scan this QR code to download.
Download
App
Connect with
GHOST Drone
Compass
Calibration
Drone
Configurations
Acquiring
GPS
First
Flight
App G-BOX GHOST
G-BOX

15
1Mobile device compass calibration.
Calibrate the compass using the GHOST App. The compass calibration will automatically
begin after the Bluetooth has successfully paired. Ensure that the direction of the
GHOST in the GHOST App aligns with the GHOST Drone. Rotate the GHOST until the
text in the GHOST App turns green, then tap the “Yes” button. If it is not the same, click
“Inconsistent” to enter compass calibration.
COMPASS CALIBRATION
2Rotate the GHOST Drone slowly and allow the App to fully determine the heading of the GHOST
Drone before proceeding to the next heading direction. The text for a given heading will turn
green, indicating that the direction has been determined accordingly.
Note: Instructions in the GHOST App may be newer than this manual. The following is included solely
as a reference, please operate according to instructions in the latest GHOST App.
Smart-
phone/tablet
compass
calibration
compass calibration
(Observe the Ghost’s
direction and check
that it matches the
GHOST App) Inconsistent
Yes continue
compass calibration

16
In the “Not Same” page, the green dots show the drone orientation. Rotate the GHOST Drone
slowly clockwise to populate the circle with green dots.
（1）
The red dots show the GHOST Drone trajectory. Tilt the nose down until the GHOST Drone is
perpendicular to the ground, and then slowly rotate clockwise until the red dots fully populate
the circle.
（2）
If it is not the same, click “Inconsistent” to enter compass calibration.
ALL lines of text must be green in order for the Yes button to be functional.

17
Make sure all App settings match that of your current GHOST Drone configuration.
This is critical. Flying with incorrect flight settings may jeopardize your GHOST
Drone.The different settings tell the GHOST which flight mode to use. Using an
incorrect flight mode may result in damage to your GHOST Drone.
DRONE CONFIGURATION
Click “Confirm” to re-enter the previous interface. Then repeat step .
（3）2
