XENIA SCD-7000 User manual

XENIA
SCD-7000
ETR AM/FM/MPX, 4CH-HIGH
POWER IN DASH 5 CD CHANGER
WITH FLIP DOWN FULL FRONT
DETACHABLE PANEL

2
INDEX
-Installation.................................…3
-Connection..................................5
-Basic Operation..........................6
-Radio Operation........................…9
-CD Changer Operation.............11
-Trouble Shooting......................14
-Care and Maintenance..............15
-Specification.............................16

3
INSTALLATION
Disconnect Battery Prepare Radio for Installation
Before you begin, always Remove transport screw (you can not
disconnect the battery insert a CD until the screw is removed.)
negative terminal.
Install Half-sleeve
Not needed for ISO-DIN installation.
Half-sleeve Support Strap
(supplied)(supplied)
1. Install adapter of necessary. Install half-2. Bend over tabs where possible to
sleeve into adapter from front of dash. secure half-sleeve to adapter or
It will be a tight fit. in side of dash.
3. Install a back strap where possible
to make unit more secure

4
Final Installation
1. Slide radio chassis into half-sleeve.
2. Secure to strap using nut if possible.
3. Reinstall any items you removed from the dashboard.
Bolt (supplied)
Final Installation-ISO-DIN.
1. Remove trim ring from front of radio.
2. Mount factory brackets on new radio using existing screws from old radio.
3. Slide radio and frame into dash opening and secure.
4. Install dash panels previously removed.

5
CONNECTION –Wiring Diagram
.
If you are installing new speakers or amplifiers of replacing an aftermarket installation, Use
this diagram.
Color Function
White/black LF-Speakers
White LF+ Speakers
Green/black LR-Speakers
Green LR+ Speakers
Gray/black RF-Speakers
Gray RF+ Speakers
Violet/black RR-Speakers
Violet RR+ Speakers
Dark blue Power Antenna
Black Ground
Red Ignition
Yellow Battery
Pink Cellular mute
Orange Dimmer

6
BASIC OPERATION
(1) (3),(4),(5),(6),(7),(8) (14) (11) (12)
k(13) (10) (9)
(1) POWER ON-OFF BUTTON (PWR)
Press this button to turn the unit on or off. When the ignition switch is "on", the unit will turn on
automatically if the CDC/BAND/AUX buttons are pressed.
(2)AUDIO (LEVEL) CONTROL (VOLUME +/-)
To increase the volume level, turn the VOLUME +/-knob clock-wise (+ direction). VOL will appear and the
volume level will be shown on the display panel from a minimum of V--0 to a maximum of V--46. To
decrease the volume level, turn the knob counter-clockwise (-direction). The display will automatically
return to the normal indication 5 seconds after the last volume adjustment or when another function is
activated. This control is also used in conjunction with the Select (SEL) control button(3) to adjust the bass,
treble, balance and fader levels as described (4), (5), (6) and (7)
¨é SELECT (SEL) CONTROL BUTTON
This button is used to select the audio function (volume, bass, treble, balance, or fade) whose setting is
adjusted using the VOLUME +/-control¨è. Pressing the SEL button once will set the unit for volume (VOL)
adjustment as described previously. Pressing the button additional times will select bass adjustment (BAS
will appear on the display panel) treble adjustment (TRE on the display), balance (BAL), or fader (FAD).
The display will automatically return to the normal indication 5 seconds after the last adjustment or when
another function is activated.
¨ê BASS CONTROL
To adjust the bass level, first select the Bass mode by pressing the SEL button¨é so the BAS indication
appears on the display panel. With 5 Seconds of choosing the Bass mode, turn the VOLUME +/-control¨è

7
counter-clockwise to decrease the bass response or clockwise to increase it as desired. The level will be
shown on the display panel from a minimum B-6 to maximum of B +6. (B 0indicates flat response) The
display will automatically return to the normal indication 5 seconds after the last adjustment or when another
function is activated.
¨ë TREBLE CONTROL
To adjust the treble level, first select the Treble mode by pressing the SEL button¨é so the TRE indication
appears on the display panel. Within 5 seconds of choosing the Treble mode, turn the VOLUME +/-control
¨è counter-clockwise to decrease the treble response or clockwise to increase to as desired. The level will be
shown on the display panel from a minimum T--6 to a maximum of T+6 (T 0 indicates flat response). The
display will automatically return to the normal indication 5 seconds after the last adjustment or when another
function is activated.
¨ì LEFT/RIGHT BALANCE CONTROL
To adjust the left-right speaker balance, first select the Balance mode by pressing the Select button¨é so the
BAL indication appears on the display panel. Within 5 seconds of choosing the Balance mode, turn the
VOLUME control¨è counter-clockwise to adjust the stereo balance to the left channel speakers or clockwise
to adjust it to the right channel speakers. The balance position will be shown on the display panel from L 12
(full left) to R 12 (full right). When the volume level between the left and right speaks is equal, C 00 will be
shown on the display panel. The display will automatically return to the normal indication 5 seconds after the
last adjustment or when another function is activated.
¨í FRONT REAR FADER CONTROL
To adjust the front-rear speaker balance, first select the Fader mode by pressing the Select button¨é so the
FAD indication appears on the display panel. Within 5 seconds of choosing the Fader mode, turn the
VOLUME control¨è counter-clockwise to adjust the front-rear speaker balance to the rear speakers or
clockwise to adjust it to the front speakers. The fader position will be shown on the display panel front R 12
(full rear) to FAD F12 (full front). When the level between the front and rear speakers is equal, C 00 will be
shown on the display panel. The display will automatically return to the normal indication 5 seconds after the
last adjustment or when another function is activated.
¨î LOUDNESS CONTROL (LOUD)
When listening to music at low volume levels, this feature will boost the bass and treble ranges to
compensate for the characteristics of human hearing. Press the LOUD button for longer than 2 seconds to
activate this feature and the indication LOUD will appear on the display panel. Pressing the button again for
longer than 2 seconds will deactivate the feature (the LOUD indication will disappear from the display
panel).
¨ï TIME/FREQUENCY SELECTOR (T/F)
During radio operation, press this button to call the time display on the quartz clock. The display will return
to the radio frequency indication after 5 seconds. During integral CD player operation, a press of the button
will call the time display, but disc play will continue uninterrupted. If the time of day is not adjusted within 5
seconds, the display will return to the play mode currently in effect.

8
SETTING THE CLOCK
1.Switch the vehicle ignition.
2. Press and release the Time/Frequency button to access the time display; then press and hold the T/F button
until the time colon begin to flash.
3. With the time colon flashing, press the Down Tuning ( ) button to adjust the hours or the Up Tuning
() button to adjust the minutes indication to the correct time.
4. Five seconds after the last hour or minute adjustment is made, the will be set into the unit and the display
will return to the normal indication.
¨ð AUXILIARY (AUX) INPUT SELECTION
The radio is equipped with auxiliary audio input connectors, which can be interfaced to an external audio
source. The connectors are compatible with most CD and cassette players or an MP3 digital audio playback
unit. When the external source is connected and the AUX button is pressed, only that media is played by the
radio; no other input sources (radio or CD) are operative.
¨ñ LIQUID CRYSTAL DISPLAY PANEL
The Liquid Crystal Display (LCD) panel displays the frequency, time, and activated functions.
NOTE: It is a characteristic of LCD panels that, if subjected to cold temperatures for an extended period of
time,they may take longer to illuminate than under normal conditions. In addition, the visibility of the
numbers on the LCD may slightly decrease. The LCD read-out will return to normal when the temperature
increases to a normal range.
¨ò FRONT PANEL RELEASE BUTTON (REL)
This button is used to release the mechanism that holds the front panel to the chassis. To detach the front
panel, press the button so that the panel drops to the lowered position. Press the RELEASE bar at the front
edge of the panel and slide the panel off of the front mounting plate. After removing the panel, push the front
mounting plate back up to the vertical position.
¨ó RESET BUTTON
A RESET button can be used to activate the reset circuitry. However, this feature should only be activated
under the following circumstances as it will erase the time and pre-set memories:
1. Upon initial installation after all wiring is completed.
2. If there is a malfunction of any of the switches on the unit, pressing the RESET button may clear the
system and permit a return to normal operation.
¨ô ANTI-THEFT LED FLASHING
Located on the chassis behind the front panel, a Light Emitting Diode (LED) will flash when the panel is
removed. The flashing light serves as a visual warning to the would-be thief that the unit has been disabled
by removal of the front panel.

9
RADIO OPERATION
¨è ¨é ¨ê
j ¨ë
¨ç AM/FM BAND SELECTOR (BAND)
During radio operation, each time this button is pressed, the radio band is changed. The indication AM I, AM
¥±, FM¥°, FM¥± or FM¥² will appear on the display panel according to your selection. During disc play,
pressing this button will stop play of the disc and switch to radio operation. The disc will remain in the
machine without being ejected. During this time, the icons will remain on the display panel to show that
a disc number is still loaded in the unit. Press the CDC button to return to disc play from the beginning of the
last track in play. When AM¥°or AM¥± is selected, the stereo ( ) indication will disappear from the
display.
¨è MANUAL UP/DOWN TUNING ( ) / AUTOMATIC SEEK TUNING
To manually select a radio station, momentarily press the Up Tuning ( ) side of the button to advance the
unit two digital higher or the Down Tuning ( ) side of the button to tune two digital lower. Pressing either
side of the button for longer than one second and then releasing will activate the Automatic Seek Tuning
function. The radio will seek the next station in the selected direction and stop and remain at that frequency.
Pressing and holding either side of the button for longer than one second will cause the radio to continue
tuning rapidly in the selected direction until the next available station and momentarily stop there. Tuning in
the same direction will continue unless the button is released at the desired station.
¨é LOCAL SELECTION (LOC)
This feature provides automatic selection of signals at which the radio will stop during Auto-Store (AS)
tuning; thus, only strong (local) stations will be received and selected When Auto-Store (AS) tuning is not in
effect, LOC will disappear from the display panel, and the radio will stop at a wider range of signals,
including weaker (more distant) stations.

10
¨ê PRE-SET SCAN (PS) / AUTO-STORE TUNING (AS)
Press this button momentarily to scan the stations pre-set into each AM band and each FM band. The unit
will stop at each pre-set station for 10 seconds before continuing to the next pre-set station (the pre-set
station number on the display panel will flash during Pre-Set Scan operation). Press the button again
momentarily to stop pre-set scan operation and remain on the selected frequency. Pressing and holding the
button for longer than 2 seconds will activate the Auto-Store (AS) Tuning feature which will automatically
scan and enter up to 6 local area stations into the pre-set memories on the band in use. LOC will be displayed
during station selection. If you have already set the pre-set memories to your favorite stations and enter the
new local ones. This feature is most useful when traveling in a new area where you are not familiar with the
local stations.
¨ë STATION PRE-SET MEMORIES
To set any the 6 pre-set memories in each band, use the following procedure.
1. Turn the radio on and select the desired band.
2. Select the first station to be pre-set using the TUNE/TRACK or Auto-Store (AS) Control.
3. Press the pre-set button to be set and continue to hold it in for approximately 2 seconds. The pre-set
number (CH 1-6) will appear on the display panel, indicating that the station is now set into that pre-set
memory position. The station can now be recalled at any time by pressing that button.
4. Repeat the above procedure for the remaining 5 pre-sets on that band and for the other 4 bands on the unit.

11
CD CHANGER CONTROL
¨ë¨í ¨ô
¨ì¨î¨ï¨ð¨ñ¨ò¨ó
j
¨õmkl
¨ç DISC SLOT
With the front panel in the fold-down position, gently insert the disc into the slot (label surface facing up)
until the soft-loading mechanism engages and pulls the disc in. The Disc number will appear on the display.
CAUTION: This unit is designed for play of standard 5"(12cm) compact discs ONLY. Do not attempt to use
3" (8cm) CD-Singles in this unit, either with or without an adapter, as damage to the player and/or disc can
occur. Such damage will not be covered by the Warranty on this product.
DISC INF
1

12
¨è Loading CDs
Insert a disc in to the slot. The disc number is shown on the display. To insert more discs,repeat the above
procedure. Flip the panel up to close. The display will show "cd-in". Press the CDC button to begin the play.
¨é Ejecting a CD
Press the REL button to open flip-over panel. Press the DISC SEL button for the disc you want to eject and
the press the eject button.
For ejecting all CDs
To eject all CDs loaded in the unit, press the eject button for 2 seconds at least. All CDs are ejected in turn.
¨ê LCD display
The LCD display shows the disc number.
¨ë DISC play/Pause button
Press the CDC button to play the CD. To pause CD play operation,press the CDC button again. PAUS will
appear on the display.
¨ì DISC Select button
Press the DISC SEL button to change the different discs. When the DISC SEL button is pressed, playback
begins the next disc. Each time the DISC SEL button is pressed,the disc number will change accordingly.
¨í TRACK SELECT ( )
During disc play, the Track Select function are performed by the TUNE TRACK button; track select is used
to quickly access the beginning of a particular track. Each time the Forward Track Select () side of the
button is pressed and released, the next higher track number will be selected as shown on the display panel,
Similarly, each time the Backward Track Select ( ) side of the button is pressed, the next lower track
number will be selected as shown on the display panel.
CUE/REVIEW FUNCTIONS ( )
During disc play, high-speed audible search to any section of the disc can be made by the Cue and Review
functions of the TUNE TRACK button. Press and hold the Cue ( ) side of the button to advance rapidly in
the forward direction (the advancing disc playing time will be shown on the display panel), or the Review
( ) side of the button to advance rapidly in the backward direction (the decreasing disc playing time will be
shown on the display panel). During either function, the elapsed time within each track will automatically be
shown on the display panel.
¨î TRACK SCAN SELECTOR (SCN)
During disc play, press this button to play the first 10 seconds of each track on the disc (SCN will appear
from the display panel.) When a desired track is reached, press the SCN button again to cancel the function
(SCN will disappear on the display panel) and play of the selected track will continue, Scan mode will also
be canceled by activating the Repeat Play (including A-B), Random Play or track select functions.

13
¨ï REPEAT PLAY SELECTOR
During disc play, press this button to repeat the play of the selected track (RPT will appear on the display
panel). Play of the track will continue to repeat until the button is pressed again and the RPT indication
disappears from the display panel. Repeat Play mode will also be canceled by activating the Track Scan,
Random Play or track select functions.
¨ð REPEAT SELECTION (RPT A-B)
During disc play, the RPT A-B button allows you to continuously repeat a specific selection of music/voice
on the disc. This may entail portions of the same track, a complete track, or several specific tracks. To set the
beginning point (A) of the segment, press the RPT A-B button during play of the segment in question. RPT
appears at the top of the display, and Aappears after the track number and elapsed time at the bottom of the
display. After listening to the complete segment, press the RPT A-B button again to set the end point (B); b
appears after the track number on the display. The chosen selection of the track or track will repeat over and
over until the RPT A-B button is pressed again. RPT and b disappear from the display.
¨ñ RANDOM PLAY SELCTOR (RDM)
During disc play, press this button to play the tracks on the disc in a random shuffled order (RDM will
appear on the display panel). In Random Play mode, the Track Select function will also select tracks in the
random order instead of the normal progression. The Random Play mode can be canceled by pressing the
button again (RDM indication will disappear from the display panel).
¨ò PROGRAM CD TRACKS
During disc play, the programming function can select up to 18 CD tracks to play in any order. Program
works by allowing you to select a track number for each spot in the playing sequence. To begin
programming, select a desired track number on the disc by using the TUNE TRACK button; this initiates an
up/down scroll of the CD track. When the desired track is found, press the MEM/CLR button for less than 1
second to enter the track number into memory. M--01 will appear on the display. Repeat this procedure for
each of the other 18 selected tracks in the desired order. M--02--18 will appear on the display. To play the
CD tracks in the programmed order, press the PGM button. PGM will appear on the display, and the tracks
on the CD(s) will play in the desired order.
¨óPROGRAM CLEAR
To clear the programmed CD tracks, press the MEM CLR button for more than 3 seconds. M--CL will
appear on the display and the programmed tracks will be erased.
¨ô ELAPSED TIME
During disc play, press this button to see the elapsed time, the elapsed time will appear on the display. Press
this button again to revert the track number.
¨õ FLASHING LED
The LED will flash when the panel is removed, or when the ignition switch is on if the CD is not loaded.
Also, The LED will flash when the CD is ejected. The LED will continue to light when the CD is loaded.

14

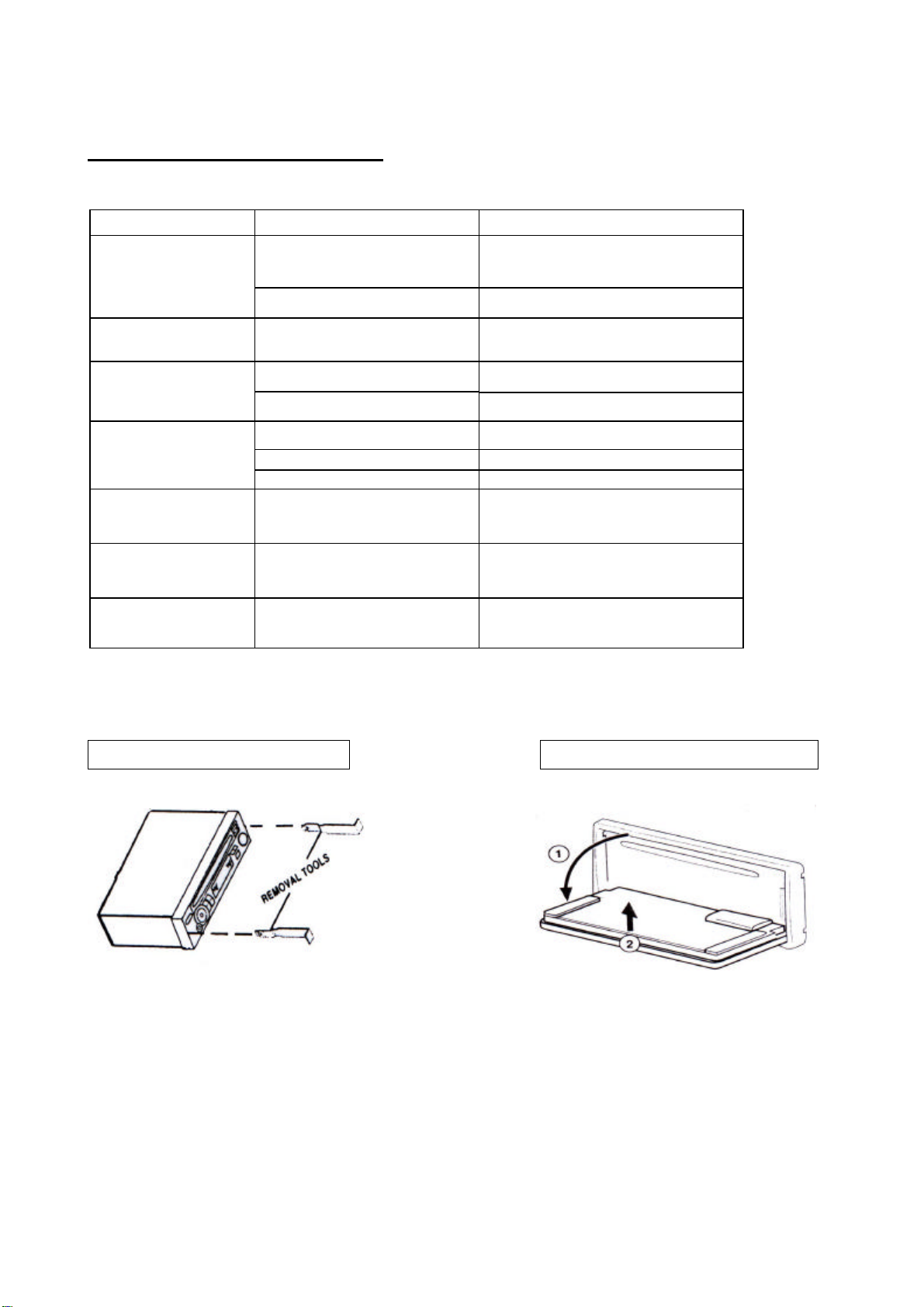

TROUBLE SHOOTING
Remove Radio from Dash Detachable Flip-Over Panel
Remove Radio from Dash 1. Press REL button to open flip-over
To remove radio, insert removal keys into slots panel
between trim ring and radio and pull radio out. 2. Gently pull up on faceplate to remove.
Store faceplate panel in carrying case.
Problem Cause Corrective Action
No power to yellow wire
No power to red wire Check connection Check vehicle fuse
Does not operate
(display does not light)
Inline fuse blown Replace fuse
No speakers operate
(display lights normally) Speaker harness not connected Connect speaker harness
Incorrect splices or connections Check all splices and connections
Not all speakers operate Speaker wires shorting to ground Check splices, insulate all bare wires
Power wire shorting to ground Insulate wire
Speaker wires shorting to ground Insulate wire
Blows fuses
Incorrect fuse Install fuse of correct rating
Inf-1, 2, 3or ,6
appears on display
Mechanical malfunction Press Reset button.
Inf-4, 5, 7 or 8
appears on display
Disc reading malfunction Try a different disc. The disc may be damaged
or dirty.
Inf-9appears on display Disc loading or eject malfunction Press Reset button
Insert a disc and try again.

15
CARE AND MAINTENANCE
The radio portion of your new sound system does not require any maintenance. We recommend you keep
this manual for reference to the any features found in this unit as well as how to set the clock. The compact
disc player section also requires no routine maintenance, but proper understanding of its use and handing will
help you obtain maximum enjoyment of its capabilities. The following points should be observed.
lWhen cleaning the interior of the vehicle, do not get water or cleaning fluids on the unit.
lThe CD player is a precision instrument and will not operate properly in extreme hot or cold. In case
of such conditions, wait until the interior temperature of the vehicle reaches a normal temperature
before using the player.
lIf the temperature inside the player gets too hot, a protective circuit will automatically stop play of
the disc. In this case, allow the unit to cool off before operating the player again.
lNever insert anything other than a 5" (12cm) compact disc into the player as the mechanism can be
damaged byforeign objects.
lDo not attempt to use 3" (8m) CD-Single discs in this unit, either with or without an adaptor, as
damage to the player and or disc may occur. Such damage will not be covered by the Warranty on
this product.
lWhen not using the disc player, always remove the compact disc. Do not leave an ejected disc
sitting in the disc slot as this can expose it to sunlight and other causes of damage.
lDo not attempt to open the unit chassis. There are no user serviceable parts or adjustments in side.
lWhen the vehicle warms up during cold weather or under damp conditions, moisture may condense
on the lens of the disc player. Should this occur, the player will not operate properly until the
moisture has evaporated.
lThe unit is designed with a vibration dampening CD mechanism to minimize interruption of disc
play due to normal vibration in a moving vehicle. When driving on very rough roads, however,
occasional sound skips may occur. This will not scratch or damage the disc and normal play will
resume when the rough conditions cease.
Handing Compact Discs:
Dirt, dust,scratches, and warpage can cause skips in the playback and deterioration of sound quality.
Please follow these guidelines to take care of your compact discs:
lUse only compact discs with the mark:
lFingerprints, dust, and dirt should be carefully wiped off the disc's playing surface (shiny side) with
a soft cloth. Wipe in a straight motion from the inside to the outside of the disc.
lNever use chemicals such as record sprays, household cleaners or thinner to clean compact discs.
Such chemicals can irreparably damage the disc's surface.
lDiscs should be kept in their storage cases when not in use.
lDo not expose discs to direct sunlight, high temperatures or high humidity for extended periods.

16
lDo not stick paper, tape, or labels on the disc surfaces nor write on them with any type of marker.
SPECIFICATIONS
Size: 178(W) x 166(D) x 50(H)
Operating Voltage: 12 Volts DC, Negative Ground.
Output Power: 160Watts Maximum
(40Watts x 4 Channels)
Output Wiring: Floating Ground Type Designed for use with 4 Speakers
(Front and Rear Channels Cannot be combined (Bridged) for use with 2
Speakers)
Output Impedance: Compatible with 4/8-Ohm Speakers
Low-Level Output: 2.0 Volts (2000mV)
Tuning Range: AM: 530-1720kHz
FM: 87.5-107.9MHz
Sensitivity: AM: 20uV
FM: 3.0uV
FM Stereo Separation: 30dB
CD Frequency Response: 20-20000Hz +/-3dB
CD Signal/Noise Ratio: 70dB
CD Channel Separation: 60dB
CD Distortion: 0.10%
