Installation Guide
2. Symbols used in the Installation Guide
Gdenotes instructions which are important for your safety and the safety of others.
denotes instructions which are important for the installation and function of the unit.
3. Safety and Installation Instructions
The OnlinePro should only be installed by trained personnel.
• Disconnect the vehicle battery before installation of the unit.
GNote the safety instructions of the vehicle manufacturer (airbags, immobilisers etc.).
• Ensure that leads are installed in such a manner that they cannot be pinched, bent or pulled out.
• Before installation, park the vehicle in a safe and level place and remove the ignition key.
• If using branch connections, it is important to note the relevant cable section.

Subject to errors and technical changes 33 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
4. Connection schematic for the OnlinePro
Note: Connection options are described in detail on page 57.
Speed signal antenna
Radio
CD changer
Optional
Earphone
Optional
OnlinePro
GSM
Antenna
GPS
GPS/GSM Box Sound system /
loudspeaker
Hands-free
microphone
Reverse signal Power supply

Subject to errors or technical changes 34 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
5. Installation of the GPS/GSM antenna
The antenna delivered with the system is a two-piece combination
GSM/GPS antenna. The combination GSM/GPS antenna is a glass-
adhesive antenna; i.e. no leads must be run from the outside to the
vehicle interior.

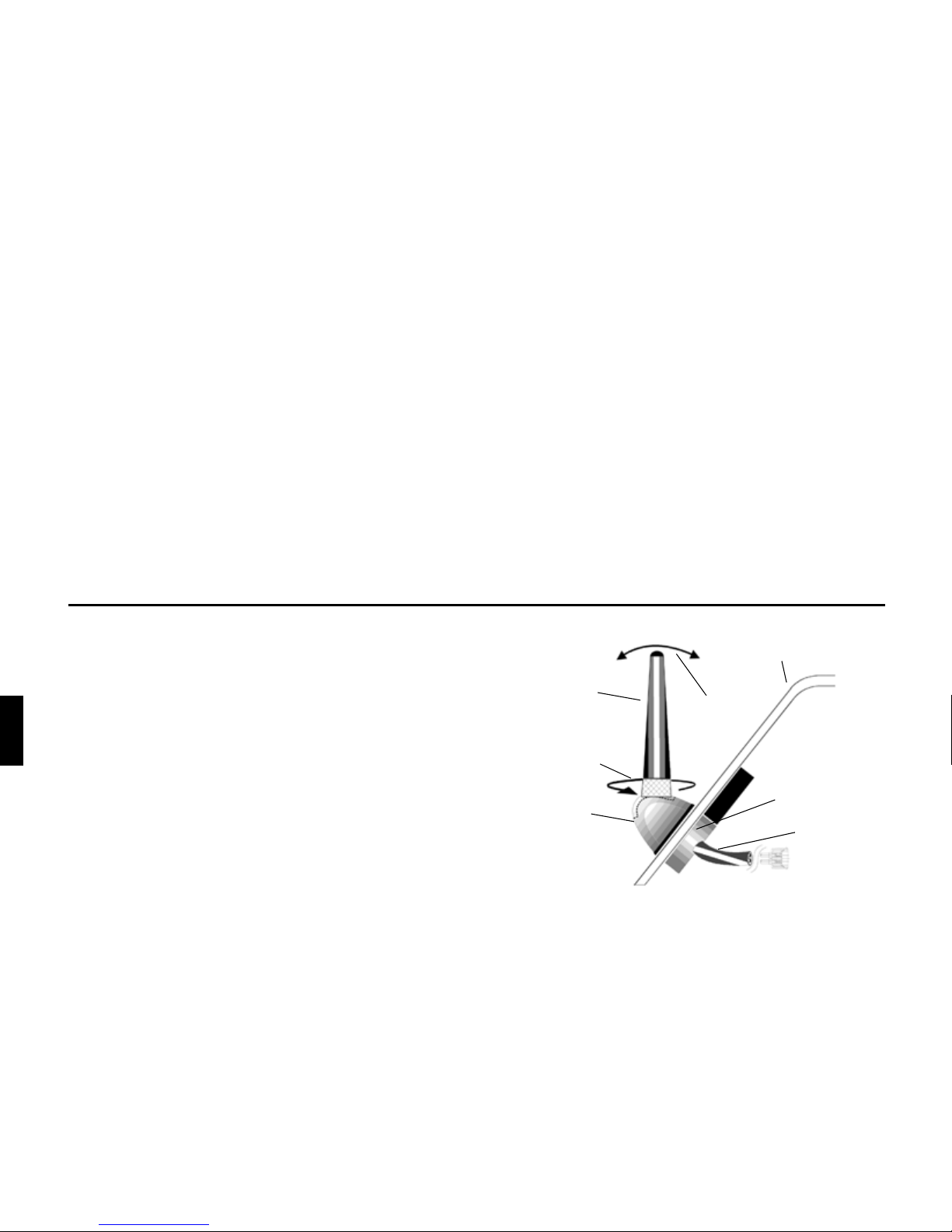

The GSM/GPS combination antenna consists of an internal unit Aand
an external unit B. To ensure correct function, the two units must be
installed as described below: Attached to the internal unit Ais a 3-metre
long cable Cwith the combined GSM/GPS plugs. The connecting cable
is connected to the GSM/GPS Box with the GSM/GPS plugs. If more
than 3 metres of cable are required, the cable can be extended with the
optionally available extension cable (Stock No. 1380311). The antenna
Dcan be loosened Fto adjust the angle Eby twisting the antenna. After
loosening and adjusting, the antenna Dmust be screwed on hand-tight.
)The angle of the antenna to the vehicle has an influence on
the antenna’s transmission and reception.
If reception is still unsatisfactory after installation, the
angle of the antenna to the vehicle can be adjusted to
optimise reception. In most cases, best results are achieved
with the antenna in a vertical position.
Windscreen or rear window
A
D
C
E
B
F

Subject to errors and technical changes 35 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Installation of the GSM/GPS Antenna
GThe antenna is to be affixed in such a manner that it cannot detach in the event of a collision or sudden
braking.
)The antenna can only be installed under a non-metallised windscreen or rear window.
The installation of the GSM/GPS antenna on sharply angled windows (i.e. side windows or rear window in
estate cars/ stations wagons) is not recommended as satisfactory GPS reception cannot be ensured.
(1)
Rear window
Possible antenna positioning

Subject to errors or technical changes 36 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
a. Determine installation position (1) (rear window, windscreen)
)The antenna must not be affixed over the heating wires of heated windscreens or rear windows.
Windows with metal layered plastic window tinting are not suitable.
Take the windscreen-wiper range into account when positioning the antenna.
The glass surface to which the antenna must adhere, may be slightly curved.
When selecting position for installation, please bear in mind the possibility of cable extension.
Windscreen/Rear window
Slot faces upwards.
(2)
(A)
(B)
Protective paper

Subject to errors and technical changes 37 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
GThe driver’s field of vision must not be obstructed.
GClean adhesion surfaces (inside and outside) with the enclosed cleaning cloth.
After cleaning, wait until the cleaned surfaces have dried.
b. Completely pull off protective paper from the adhesive surface (the square piece as well) (2). Caution: The
adhesive part is now exposed.
First adhere the external unit (A) with the slot at the top to the glass by firmly pressing (approx. 3-5 seconds)
around the circumference of the external unit base.
Subsequently, affix internal unit (B) to the inside of the window, once again by pressing on the housing of the unit
for approx. 3-5 seconds, with the circular area centred in the middle of the outside unit (centre point = centring
axis).
Depending upon the amount of space, the position of the internal unit can be turned on this centring axis before
being directly affixed.
)The ideal adhesion temperature is between +15 °C and +25 °C.
The adhesive foil will adhere immediately to the adhesion surface and cannot be repositioned. It is not possible
to reuse the adhesive foil.
c. Run connecting cable to the installation position of the GSM/GPS Box.

Subject to errors or technical changes 38 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
6. Installation of the hands-free microphone
The hands-free microphone should be placed in the vehicle to allow optimal recognition of the speaker’s voice. Possible
positions in the vehicle for the microphone can be seen in the following diagram.
)The installation position should be as far away from the loudspeakers as possible. If problems occur, different
positions should be tested. In order to pick up as little background noise as possible, the microphone has a
narrow pick-up angle and must consequently be directed towards the driver.
Affixing the hands-free microphone to a flat and smooth surface can be accomplished with the adhesive strip E(Clean
adhesion surfaces). If the microphone is to be affixed to a rough or uneven surface, the screw-on plate Gshould be affixed
first with the screw F(To avoid risk of damage, please pay attention to screw length). Subsequently, affix the microphone
to the screw-on plate Gwith the adhesive strip E. The connection of the hands-free microphones takes place in socket C
of the OnlinePro.
A: Optimal installation position
B: Alternative installation position
C: Less suitable installation position
D: Speaking direction on microphone
E: Adhesive strip for affixing to smooth surfaces
F: Screw for fastening the screw-on plate
G: Screw-on plate for affixing to rough or uneven surfaces.

Subject to errors and technical changes 39 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Install the lead in such a manner that it cannot be pinched, bent or pulled out.
Connection of the hands-free microphone to the OnlinePro
a. Connection without CD changer
For connection of the hands-free microphone to an OnlinePro without CD changer, the enclosed blue socket must
be connected as described below. Before connection, remove protective cap Afrom both contacts.
b. Connection with CD changer
For connection of the hands-free microphone to an OnlinePro with CD changer, the enclosed blue socket must
be connected with the two leads as described below. Before connection, remove protective cap Afrom both
contacts.
)Once the contacts are inserted into the blue plug housing, a special tool is required to remove them.
Connection of the blue plug housing
13
14
Socket C
Socket C3
A
Pin Colour Function
13 White NF
14 Yellow Earth

Subject to errors or technical changes 40 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
7. Installation of the GSM/GPS Box
The connectors for the combination GSM/GPS antenna, the optional operating headset and connecting cable to the
OnlinePro are to be connected to the GSM/GPS Box. The SIM card necessary for activation and operation of the telephone
must be inserted into the card-holding slot.
The GSM/GPS Box can be installed in the glove compartment, for example. However, an installation position allowing a
maximum possible distance from the Online Pro should be selected.
On the housing of the GSM/GPS Box, there are two Velcro strips Ffor attachment.
Install the lead in such a manner that it cannot be pinched, bent or pulled out.
The GSM/GPS Box should be installed in such a way that the SIM card inserted into the SIM card holder can be taken out
without having to remove the GSM/GPS Box.

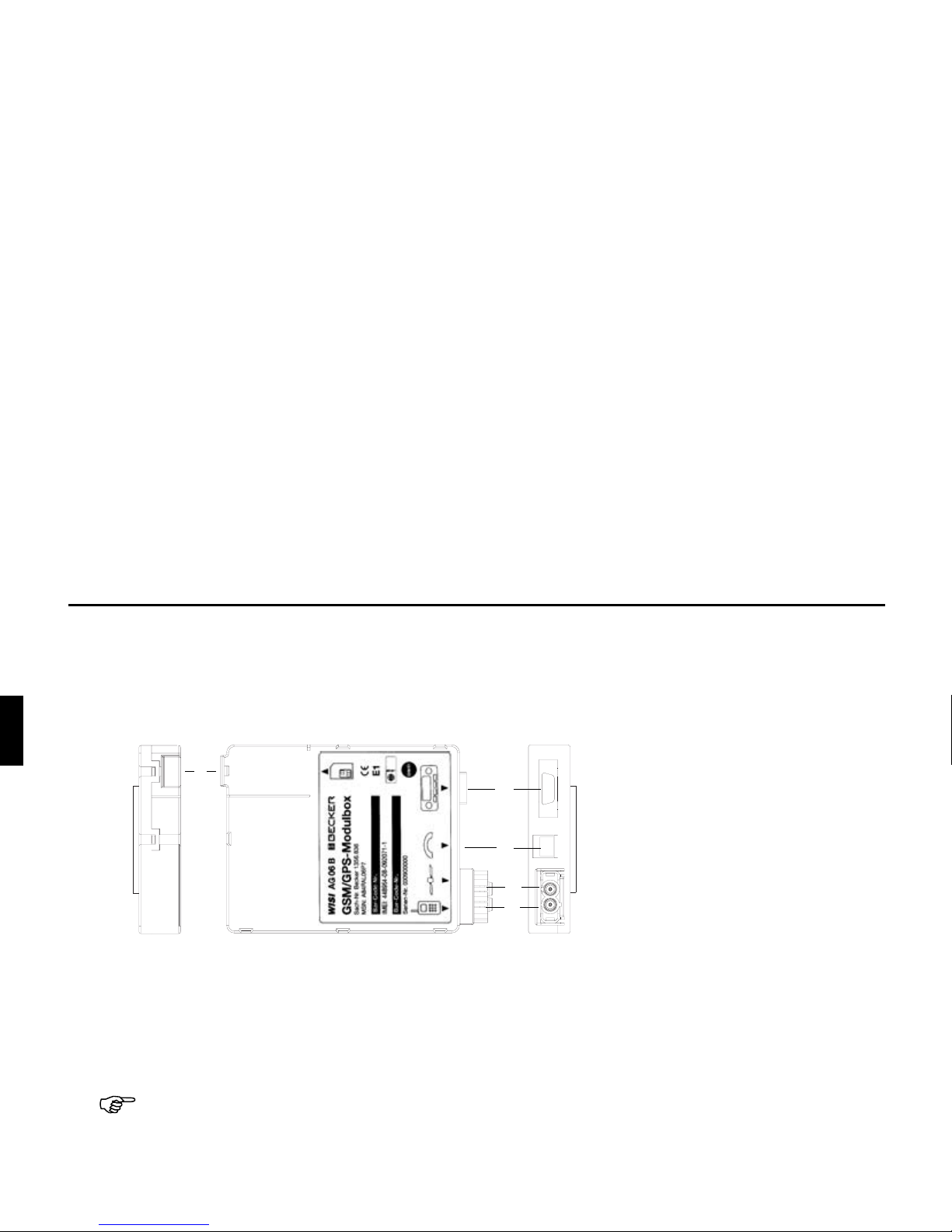

Side view,
left
GSM/GPS Box Side view,
right
A: Retaining cover over SIM card holder
B: Connection socket for connection
cable to OnlinePro
C: Connection for optional
operating headset
D: GPS antenna connection
E: GSM antenna connection
F: Velcro strip for attachment
A
B
C
D
E
F
F

Subject to errors and technical changes 41 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Inserting the SIM card
In order to insert the SIM card received from your network operator/
provider, the retaining cover Amust be opened. If the SIM card was
delivered in "credit card" format, please detach the small section of the
card.
The SIM card holder is found under the retaining cover A.
Push the top side of the SIM card holder in the direction of the arrow.
Now lift up on the released SIM card insertion slot.
Slide the SIM card with the connectors into the raised SIM card
insertion slot. The slanted corner of the SIM card must face toward the
edge of the housing.
Subsequently, press the SIM card insertion slot back down and push in
the opposite direction of the arrow.
Close the retaining cover A.
)Older SIM cards (5 Volt technology) cannot be used.
Please consult your network provider.
GSM/GPS Box
A
Position of the SIM
card in the holder

Subject to errors or technical changes 42 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Connecting the leads
• Insert the connecting cable into socket Bof the GSM/GPS Box and connect the other end of the cable to the
appropriate connection on the OnlinePro.
• Connect the additional earth lead to the lug intended for this purpose on the Online Pro
• Connect the GSM/GPS antenna plugs to the sockets Dand Eon the GSM/GPS Box.
• Connect the optional telephone handset (if available) to socket Cof the GSM/GPS Box.
Additional earth lead

Subject to errors and technical changes 43 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
8. Connection of the reverse signal
If the switch on the gearbox or shift linkage is accessible:
• Connect a separate lead to the activated contact.

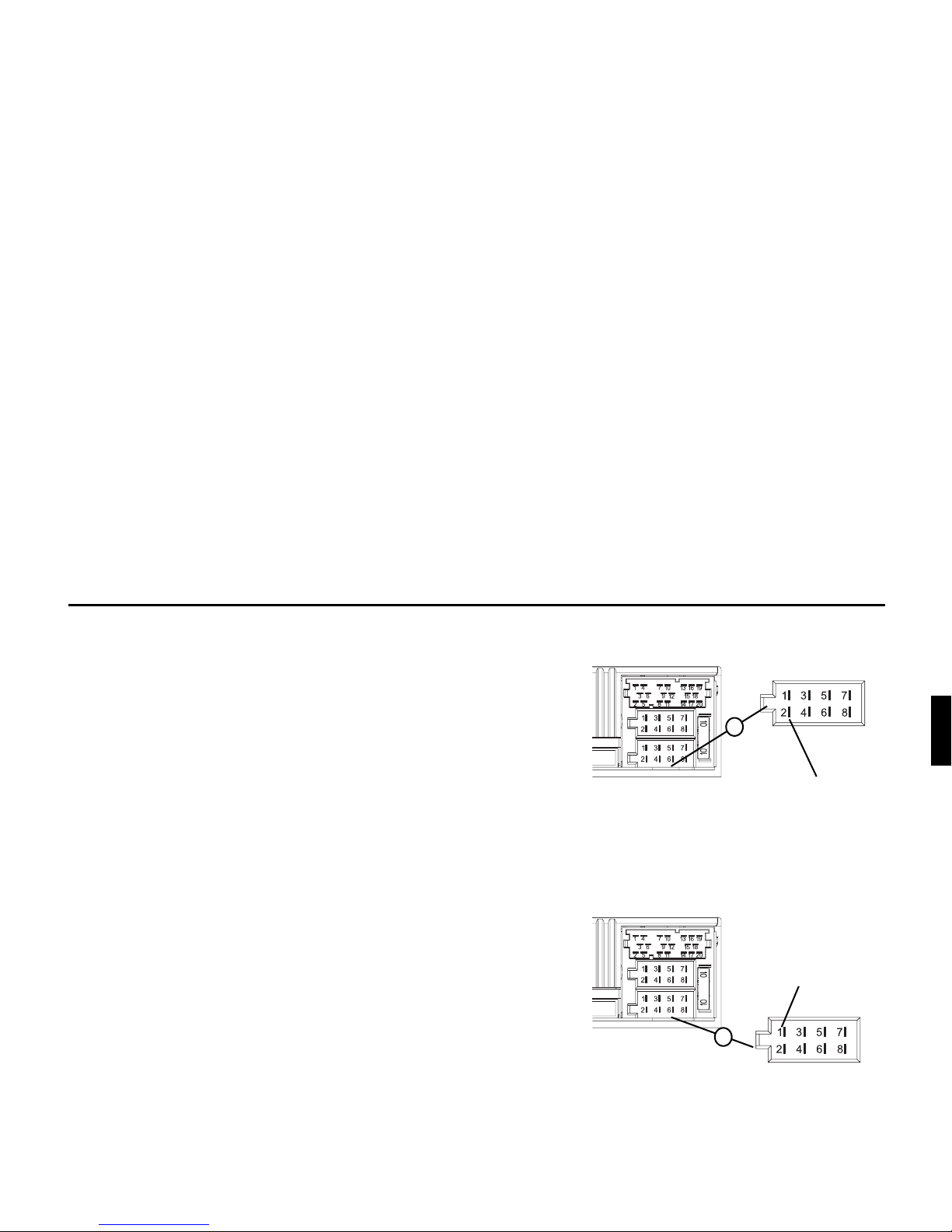

Connect lead to socket A, pin 2.
Low - level = earth, high - level 12 V - 16 V
If the switch is not accessible:
• Check which lead is routed to the reversing lamp. Then, if
necessary, remove the inner cover for the reversing light.
Connect a separate lead to the active lead of the reversing lamp and
connect with socket A, pin 2.
9. Connection of the speed signal (GAL) from the speedometer/ tachometer
Electronic speedometer
• Remove the signal from the speedometer, extend and connect to
socket A pin 1.
)Depending on the vehicle equipment, the lead for the GAL
signal is usually connected to the DIN - ISO plug of the car
radio. The assignment of the DIN - ISO plug may vary
depending on the vehicle type.
• Minimum requirement for the signal:
0.5 Hz - 4 kHz / Square wave signal
Low level < 0.3 V, High level 5 V - 16 V
)If you do not know the exact installation position / location
of the speed signal, please consult the vehicle
manufacturer.
Reverse
signal
A
GAL signal
A

Subject to errors or technical changes 44 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Mechanical speedometer with built-in speed sensor in the speedometer cable
• Remove the signal from the speed sensor, extend and connect to
socket A pin 1.
• Minimum requirement for the signal:
0.5 Hz - 4 kHz / square wave signal
Low level < 0.3 V, High level 5 V - 16 V
)If you do not know the exact installation position / location
of the speed signal, please consult the vehicle
manufacturer.
Mechanical speedometer without speed sensor in the speedometer cable
A speed sensor must be built into the speedometer cable to generate a
digital signal.
The VDO Adapter 2152.30300000 or a vehicle-specific adapter that
fulfils the minimum requirements can be used. The VDO speed sensor
is suitable for direct installation on the gearbox (no further installation
parts required) or in the speedometer cable (in conjunction with
additional universal installation parts).
)If the sealed speedometer cable is released, a correct
display cannot be guaranteed. Incorrect installation leads to
improper functioning of the navigation system or of the
speedometer.
GAL signal
A

Subject to errors and technical changes 45 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Installing the speed sensor directly on the gearbox
• Release the speedometer cable and screw speed sensor onto
gearbox. Screw released speedometer cable onto the speed sensor
and connect the wires.
Cable connections for the speed sensor
Brown - earth (terminal 31)
Black - power supply (terminal 15), 9 - 16V, 30 mA
Blue/red - signal for socket A pin 1
Installing the speed sensor in the speedometer cable
In order to install the speed sensor, the speedometer drive cable must
be cut at a straight section, in which the speed sensor is then inserted.
When removing the speedometer cable from the vehicle, ensure that the
location of the straight-routed section is determined and marked
accordingly.
Installation is illustrated without reference to any specific vehicle. In
addition to the sensor, the following VDO universal parts are required:
1 x connecting piece 1040 1300 025 (VDO part number)
2 x knurled nuts 1040 1000 003 (VDO part number)
2 x hose sleeves 1040 1000 031 (VDO part number)
2 x dogs 1040 1000 049 (VDO part number)
2 x friction washers 1040 0900 003 (VDO part number)
2 x fuel washers 4.0 KN07.0570.18 (VDO part number)
2 x washers KN11.1904.122 (VDO part number)
A complete set can also be ordered from VDO (Part number
X 39397106191).
GAL signal
A
Figure 1

Subject to errors or technical changes 46 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
Recommended tools: Cable installation tool for speedometer cables
from VDO, Order No: 1999.10.13.000.110
If you require vehicle-specific parts, please consult the vehicle
manufacturer or your nearest VDO branch.

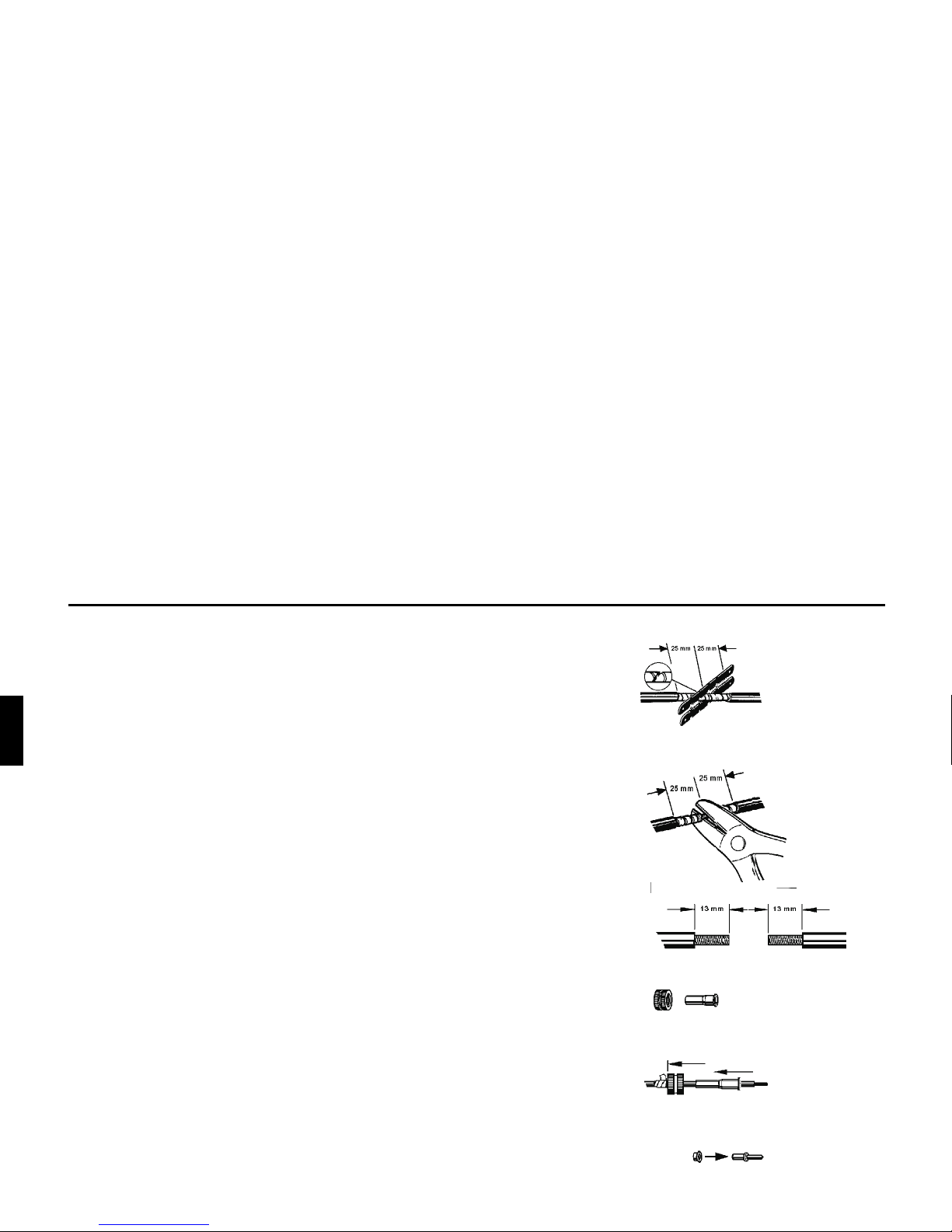

• Using a metal saw, cut into the cable approx. 1 mm at a right angle
to the profile and break off (Figure 3).
• Then cut the cable in the centre with side-cutting pliers
(Figure 4).
)For protective hoses with wire netting, the hose and flex
cable can be cut directly with the side-cutting pliers.
• Shorten the protective hose again at both ends up to the plastic
sheathing. Check whether the ends of the flex cable still engage in
the speedometer and the gearbox.
• Shorten the inner cable to a projection of 13 mm (Figure 5).
• Connect the union nut and hose sleeve (Figure 6) and push onto the
hose ends (Figure 7).
• Connect friction washer to dog (Figure 8).
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8Figure 8

Subject to errors and technical changes 47 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
• Remove grease from flex cable and connect dog to flex cable.
Using a suitable installation tool, press the dog onto the flex cable
(Figure 9).
)When pressing in, ensure that the dog is securely positioned
and that it runs smoothly.
• Pull the hose sleeve and nut as far as possible in the direction of the
dog, to achieve approx. 1-2 mm play (Figure 10).
Slightly squeeze the hose sleeve with pliers. Wrap with isolating
tape to secure (Figure 11).
• Screw the connecting piece and the speed sensor into the cable
(Figure 12).
• Electrically connect the speed sensor using the extension cable
from VDO (part number: 2152.90 30 0100).
Wire connections for the speed sensor
Brown - earth (terminal 31)
Black - power supply (terminal 15), 9 - 16V, 30 mA
Blue/red - signal for socket A pin 1
Figure 9
Figure 10
Figure 12
Figure 11

Subject to errors or technical changes 48 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide

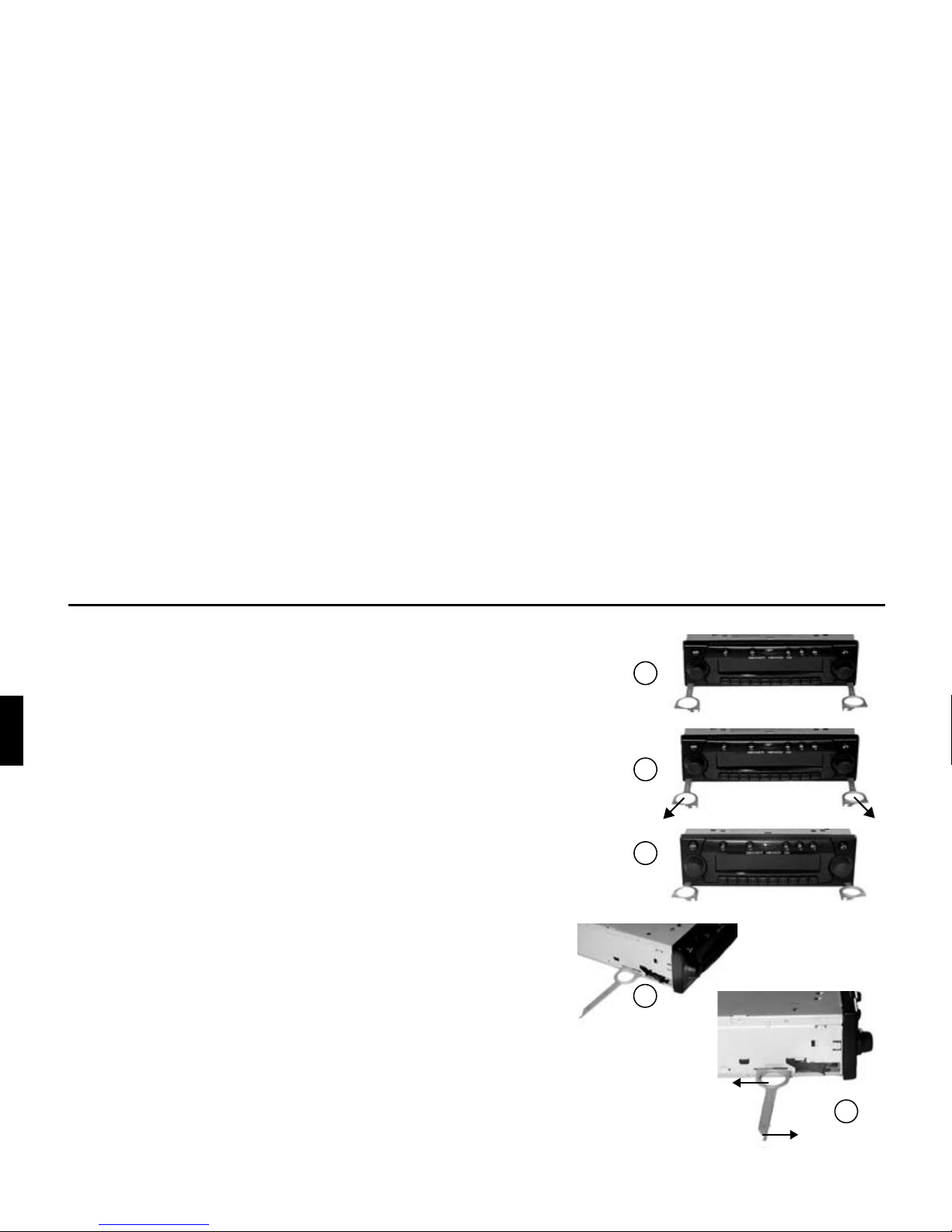

10. Installation/ Removal of the OnlinePro
• Installation:
With this radio, a universal mounting for DIN installation slots is
integrated. An installation frame is not required. The unit is insert-
ed into the installation slot and secured with the slides supplied.
To install, complete all electrical connections. Then push the unit
into the installation slot. Subsequently, insert slides into the open-
ings on the front of the unit until the first detent position (Fig. A).
Now lock the radio in by pulling on both slides as shown in Fig. B.
Subsequently, remove the slides.
)The installation angle of the unit must not exceed 0° - 35°
(vertical).
• Removal:
To remove the unit, it must first be unlocked. For this purpose,
push in both slides to the second detent position, as shown in Fig-
ure A. Subsequently, withdraw the unit with both slides. (Fig. C).
Then remove the slides by pressing the springs on the right and left
sides of the unit.
If the unit was installed previously in another vehicle, it may be
necessary to adjust the springs on the unit before installation. To
adjust the springs, insert slide as shown in Fig. Dand subsequently
adjust as shown in Fig. E(Gently press slide in the direction of 1
while at the same time moving the slide in the direction of 2).
A
B
C
D
E
1
2

Subject to errors and technical changes 49 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
11. Initial operation
• Connect the battery.
• Switch on the vehicle ignition for commissioning. Switch on the
OnlinePro.
Enter code (see the operation guide for a detailed description).
• Insert the Navigation CD to install the software for the navigation
system.
• After successful installation of the navigation software, press the
key. The next display appears. The language selection is then
requested.
• With the right rotary control , select language. The language
selection is accepted by pressing the control and the language is
installed.
With some languages, a selection can be made between male and
female voices.
With the right rotary control , select voice. The voice is accepted
and installed by pressing the control.

Subject to errors or technical changes 50 Copyright by Becker GmbH, D-76303 Karlsbad
Installation Guide
12. Calibration
• After voice installation, you will have to wait for GPS reception
before beginning the calibration journey.
During this reception check, the vehicle must be in an open area
and the GPS antenna must have as clear a view as possible in all
directions. It may take a few minutes until adequate GPS reception
is available. The next display appears during this period. A calibra-
tion journey is requested when sufficient GPS reception is availa-
ble.
)In order to minimise the waiting period for sufficient GPS
reception, the vehicle should not be moved during this time.
The unit must be switched on.
Before beginning the calibration journey, the sensors tests described in
"Service Mode" on page 52 must be performed.
To call up the Service Mode, press and hold the multifunction
button . Now press the multifunction buttons .
The Service Mode will be called up.
After successful completion of the tests, the calibration journey can
begin.
Exit the Service Mode by pressing the key.
After commissioning, a calibration journey is required. During this
journey, the speedometer signal (GAL) is adapted to the vehicle-
specific data, and the gyro-sensor to the unit installation position.
