XENO XPANHDA180A-6MP User manual

XPANHDA180A-6MP
180 Degree panoramic AHD IR Bullet
User’s Manual Version 1.0
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.

CE INFORMATION
The product must be installed according to the currently valid installation regulations for EMC to guarantee
the designed use and to prevent EMC problems.
The device supplied with this manual is according to the EC, EMC Directive,
2004/108/EC & LVD 2006/95/EC
SAFETY PRECAUTIONS
1. Do not modify the three-prong grounding type monitor power plug in any way.
2. Operate this unit only from the type of power source indicated on the label.
3. Do not block or cover ventilation openings on the back or bottom of the monitor cabinet.
4. Do not place this monitor near a radiator or heating vent.
5. Do not push objects of any kind through cabinet openings. This may result in fire or electrical shock.
6. Before adding attachments always ask a service technician to perform routine safety tests to determine
that equipment is in safe operating condition. Ground potential tests should be part of the routine safety
check made by the service technician.
7. Do not place monitor on an unstable cart, stand, or shelf where it may fall and injure personnel or
damage equipment.
8. Route power cords so that they cannot be walked upon or tripped over. Do not allow anything to rest on
the power cord.
9. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not spill liquid of any
kind on the unit.
10. Unplug the power cord from the unit before cleaning the display. Use only a damp cloth. Do not use
alcohol, spirits, or ammonia to clean the display. DO NOT ATTEMPT TO CLEAN THE INTERIOR OF
THIS UNIT- THIS ACTION MUST BE PERFORMED BY THE SERVICE TECHNICIAN AS REQUIRED
DURING NORMAL MAINTENANCE.
11. Refer all servicing to qualified service personnel. REMOVAL OF BACK COVER BY UNAUTHORIZED
PERSONNEL MAY EXPOSE THE USER TO DANGEROUS VOLTAGES OR OTHER HAZARDS.
12. Unplug the unit immediately and notify the service technician.
A. If liquid has been spilled into the display or the display has been exposed to rain or water.
B. If the unit has been dropped or the cabinet damaged.
C. If fuses continue to blow.
D. If the power cord is damaged or frayed.
E. If a distinct change from normal operation is apparent.
When replacement parts are required, be sure that the service technician uses components specified by the
manufacturer which have the same characteristics as the original parts. UNAUTHORIZED SUBSTITUTIONS
MAY RESULT IN FIRE, ELECTRICAL SHOCK OR OTHER HAZARDS.
Upon completion of any service or repairs, ask the technician to perform safety checks to determine that the
equipment is in safe operating condition.

WARNING: SERIOUS SHOCK HAZARDS EXIST WITHIN THE COVERS OF THIS MONITOR. DO NOT
OPEN THE COVERS UNDER ANY CIRCUMSTANCES,
THERE ARE NO USER SERVICEABLE COMPONENTS INSIDE
Before You Begin
Read these instructions before installing or operating this product.
Note: This installation should be made by a qualified service person and should conform to local codes.
This manual provides installation and operation information. To use this document, you must have the following
minimum qualifications:
A basic knowledge of CCTV systems and components
A basic knowledge of electrical wiring and low-voltage electrical connections
Intended use
Only use this product for its designated purpose; refer to the product specification and user documentation.
Customer Support
For assistance in installing, operating, maintaining and troubleshooting this product refer to this document and
any other documentation provided. If you still have questions, please contact Norbain Technical Support and
Sales:
Vista, 210 Wharfedale Road, IQ Winnersh, Wokingham, Berkshire RG41 5TP, England.
UK [phone]
Note: You should be at the equipment and ready with details before calling Technical Support.
Conventions Used in this Manual
Boldface or button icons highlight command entries. The following WARNING, CAUTION and Note
statements identify potential hazards that can occur if the equipment is not handled properly:

* WARNING:
Improper use of this equipment can cause severe bodily injury or equipment damage.
** Caution:
Improper use of this equipment can cause equipment damage.
Note: Notes contain important information about a product or procedure.
This apparatus is manufactured to comply with the radio interference.
A Declaration of Conformity in accordance with the following EU standards has been
made. The manufacturer declares that the product supplied with this document is
compliant the provisions of the EMC Directive 2004/108/EC, the CE Marking Directive
93/68 EEC and all associated amendments.
All lead-free products offered by the company comply with the requirements of the
European law on the Restriction of Hazardous Substances (RoHS) directive:
2011/65/EU, which means our manufacture processes and products are strictly “lead-
free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the
product must be collected separately at the product end-of-life. This applies to your
product and any peripherals marked with this symbol. Do not dispose of these
products as unsorted municipal waste.
* This symbol indicates electrical warnings and cautions.
** This symbol indicates general warnings and cautions.

NORBAIN SD LTD reserves the right to make changes to the product and specification of the product from
time to time without prior notice.
WARNINGS AND CAUTIONS:
To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or
other openings on the equipment.
WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.

Product & Accessories
Please check if all the camera and accessories are included in the package.
Quick Manual ManualCD Template Sheet T-Wrench
Screw &
Plastic Anchor-4pcs
Test Monitor Cable Sunshield SunshieldScrews
NOTE: The ‘Test Monitor Cable’ is used to test the camera by connecting to a portable display.
Cables
Camera

Part name
HD Universal1CH
HD Universal 2CH
HD Universal3CH
HD Universal4CH
ALARM
RS485
Ball Neck Bracket
Pan/Tilt Stopper
Screw
Lens
Cable cap
POWER
Sunshield

Dimension
Unit : mm
116
250 ~ 270
96.5
144.5 101

Installation
10
Before installing your camera, you have to read the following cautions.
1. You have to check whether the location can bear five times of the weight of your camera.
2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged.
Otherwise itmay cause a breakdown or fire.
3. When installing your camera, don’t allow any person to approach the installation site.
If you have any valuable things under the place, move them away.
To pass cables through the wall/ceiling,
drill holes on the ceiling panel.
Connect the cables respectively.
See the section ‘4. Cabling’ for details.
Fix the camera on the wall/ceiling by
screw provided.
Loosen the Pan/Tilt stoper screw a litte before
fixing the camera.
By using the video test cable, check
the screen during installation.
5
Attach the Sunsheild to the bottom case
by using Sunshield Screws.
Reset to the Factory Default
Press the reset button for 5 seconds to
return the setup to the factory default.
Warning:
If you press the ‘Reset’ button, you will
lose all setting data. If needed, please,
make a note for further installation.
1
2
3
4

Installation -Cabling
11
4
Use the diagram below to connect the camera to external devices:
Power : connect the camera to a proper power supply.
~ HD Universal BNC Outputs 1~3 : Connect each of the camera’s lenses as a separate output to a DVR
supporting HD Universal signal such as the VMAX HD Universal CORE
TM
and MAX A1TM. On the DVR side, each lens will be set as a diVerent channel.
HD Universal Output 4 : Connect all 3 of the camera’s lenses as a single output to a DVR supporting HD Universal
signal such as the VMAX HD Universal CORE
TM
and VMAX A1
TM
. On the DVR side,
the camera’s full panoramic view will appear on a single channel.
Alarm
1# DOUT +
ORANGE
1# DOUT -
RED
2# DOUT +
YELLOW
2# DOUT -
BLUE
3# DOUT +
GREEN
3# DOUT -
GRAY
RS485 : Connect the camera to a
controller or the DVR using RS485.
RS485
1
7
6
ALARM
5
HD Universal 4CH
4
HD Universal 3CH
3
HD Universal 2CH
2
HD Universal 1CH
1
Power
2
5
6
7

Connecting to Monitors
12
Secondary Video Output
Use the diagram below to connect to a Monitor or CRT Monitor properly.
DC 12V / AC 24V
Monitor
AHD DVR
BNC Selection Switch
(See page 13)
-Power Connection - 12vdc / 24VAC Dual Voltage (Auto Polarity Detection and Protection)
- All cameras aed equipped with a second video output for on-site configuration.
2nd BNC Output will display video for 60 seconds.

Control Board
13
1
Remove the console’s cover byrotatingit counter-clockwise.
2
Use the Joystick tocontrol the camera’s OSD options.
Secon
OSD JoystickController
BNC SelectionSwitch

14

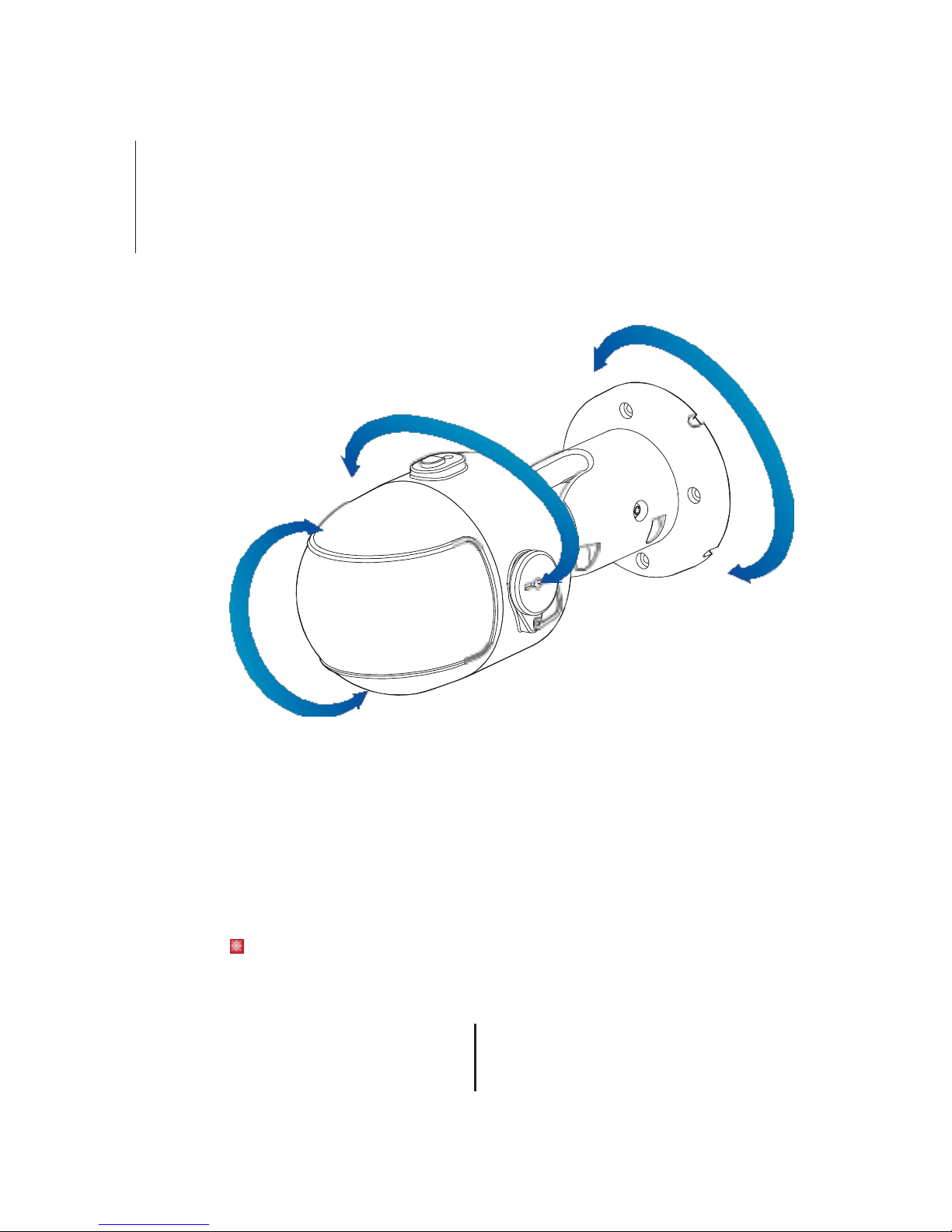

Adjusting the Cameraangle
360 ˚
360 ˚
90 ˚
Warning:
- Do not rotate more than 360
˚
-
Donot unnecessarily twist too manytimes.

15
How to access the Camera’s OSD Menus
The camera has three separate sensors, each with its own OSD menu and settings.
When adjusting the camera’s settings, each lens/ sensor will have their own set of values and settings and
will be set separately.
In addition, the camera ofers a 4
th
BNC output of a combined 180˚view as a single camera output. This output
has an additional Panoramic OSD menu with special settings including stitching and motion and patrol setup.
To access each sensor’s OSD menus select one of the following options :
1 The camera has four (4) BNC outputs, each supporting UTC (Up the Coax) communication.
When the camera isconnected to a DVR supporting UTC communication like the VMAX A1
TM
, you can access
the camera’s OSD menu directly from the DVR.
2 The camera supports RS485 communication, allowing to control the camera remotely.
3 In the camera’s external control board, there is a switch next to the joystick controller. The switch determins
which of the three (3) sensor will be displayed in the secondary BNC output. When selected, the selected sensor’s
display will appear in the 2nd video out for 60 sec.
Option 3 does not support access to the fourth Panoramic OSD menu. Please use UTC or RS485 cabling to access those options.
UP
OSD Joystick
BNC SelectionSwitch
L
R
D

16
OSD Menu Tree
RGB
COLOR
SET
SETUP
PRIV
PRIVACY
D&N
DAY &NIGHT
FUNC
FUNCTION
LENS BRIGHTNESS / SHUTTER
DET. WINDOWS
/ FOCUSADJ.
BACKLIGHT OFF / HME / BLC / WDR
DRC OFF / LOW / MIDDLE / HIGH
DEFOG OFF /ON
SENSITIVITY 0 ~ 10
MOTION OSD OFF / ON
TEXT ALARM OFF / ON
EXIT JUMP SAVE & EXIT / EXIT
AGC
SENS-UP
3D DNR
EXITJUMP
0 ~ 10
OFF / x4 ~ x32
OFF / LOW / MIDDLE / HIGH
SAVE & EXIT / EXIT
BOX
POLYGON
OFF / ON
OFF / ON
WHITE BAL. AUTO / AUTO-EX / PRESET
EXIT JUMP SAVE & EXIT / EXIT
/ MANUAL
COLOR GAIN 0 ~ 20
EXIT JUMP SAVE & EXIT / EXIT
CAM TITLE OFF / ON
FREQUENCY 50Hz / 60Hz
LANGUAGE ENG / CHN / CHN (S) / JPN
DEFECT DET ON
MODE AUTO / COLOR / BW
INITIAL
EXIT JUMP
ON
SAVE & EXIT / EXIT
CDS THRES
CDS MARGIN
EXIT JUMP
SHARPNESS
EXIT JUMP
0 ~ 20
0 ~ 20
SAVE & EXIT / EXIT
0 ~ 10
SAVE & EXIT / EXIT
SAVE & EXIT
EXIT
The contents might be diVerent some products.
4
th
BNC OUTPUT PANORAMIC OSD MENU
MOTION
PATROL
STITCH
EXIT
OFF / ON
OFF / ON
FIX / CAM1+ / CAM2+ / CAM3+
MOTI
MOTION
EXPO
EXPOSURE
EXIT
EXIT

17
OSD Menu_Exposure
LENS
The camera’s lens mode is set by default to AUTO. This allows the camera’s iris automatically.
Under the LENS sub-menu, you can adjust the following settings:
1. Brightness
Adjust the camera’s brightness from 0~20. The higher the number, the brighter the image will appear.
2. Shutter
Set the shutter speed to AUTO, Manual, or FLC (Flicker-less mode).
If AUTO is selected
- Select NORMAL for INDOOR applications.
- Select DEBLUR for OUTDOOR applications.
-If MANUAL is selected, set the shutter speed from the options: 1/30,1/60, 1/120 ~ 1/30000.
3. Focus Adjustment
When on, the default level isset automatically by controlling lens focus and
based on the installation and environment circumstances.
1
EXPOSURE
EXPO RGB D&N FUNC MOTI PRIV SET EXIT
LENS
BACKLIGHT OFF
DRC OFF
DEFOG OFF
AGC 10
SENS-UP X4
3D DNR HIGH
EXIT JUMP
LENS
BRIGHTNESS 8
SHUTTER AUTO
FOCUS ADJ OFF
RETURN
LENS
BRIGHTNESS 8
SHUTTER FLC
FOCUS ADJ ON
RETURN
1

18
OSD Menu_Exposure
2
BACKLIGHT
OFF
HME HIGHLIGHT MASKING EXPOSURE
HME allows objects to appear clearly on the screen by
masking extremely bright areas. To set up HME, set the
level and color. The lower the setting, the darker the
masking areas have to be. Select from: 0 ~ 10.
Color: Set the color of the HME mask. Select from:
BLACK / WHITE / YELLOW / CYAN / GREEN /
MAGENTA / RED / BLUE
BLC BACK LIGHT COMPENSATION
If BLC is selected, adjust the size and position of the mask:
- H-POS: Move the Zone position left or right. The higher the number,
the zone will move to the right.
- V-POS: Move the Zone position up or down. The higher the number,
the zone will move down.
- H-Size: Reset the zone‘s size horizontally. The higher the number,
the right side panel will move further to the right.
-V-Size: Reset the zone’s size vertically. The higher the number, the
bottom side panel will move further down.
WDR Wide Dynamic Range
If WDR is selected, adjust the WDR level (Weight) in the sub-menu. Select
from Low, Middle, or High (Default).
EXPOSURE
EXPO RGB D&N FUNC MOTI PRIV SET EXIT
LENS
2
BACKLIGHT
DRC
DEFOG
AGC
SENS-UP
3D DNR
EXIT JUMP
HME
OFF
OFF
10
X4
HIGH
BACKLIGHT
H-POS 8
V-POS 7
H-SIZE 3
V-SIZE 3
RETURN

19
OSD Menu_Exposure
DEFOG
MODE AUTO
LEVEL MIDDLE
RETURN
DRC ( DYNAMIC RANGE COMPRESSOR )
DRC enables dark areas in images to become more visible without overexposing the bright areas to create
one perfect image. Select from: OFF / ON.
If WDR or DEFOG are enabled, the DRC settings are set automatically and will not be available for adjustment.
DEFOG
Allows the camera to process a scene that is obscured by fog or weather conditions and provides a visibly
improved image. AUTO / Manual: Select AUTO to have the WDR and DRC levels adjusted automatically.
Set the DEFOG level from LOW / MIDDLE / HIGH.
AGC ( AUTO GAIN CONTROL )
0~10 - AGC enhances the picture brightness in low light conditions. A higher level AGC setting makes
the images brighter, however, it could increase the amount of noise.
SENS-UP
OFF / x2 ~ x32(Default: X4) - Automatically activates slow shutter function when the image is too dark.
High values are not recommended as they may causes the image to lag.
Sens-up menu cannot be controlled if the SHUTTER setting is above 1/60.
3D DNR ( 3D DIGITAL NOISE REDUCTION )
OFF/ LOW/MID/ HIGH - 3D-DNR reduces the noise on the screen in low light conditions and allows
for clearer images, even atnight.
EXPOSURE
EXPO RGB D&N FUNC MOTI PRIV SET EXIT
3
4
5
6
7
LENS
BACKLIGHT
DRC
DEFOG
AGC
SENS-UP
3D DNR
EXIT JUMP
OFF
OFF
ON
10
X4
HIGH
3
4
5
6
7

OSDMenu
_
Color
20
WB MODE
AUTO Auto Tracking White Balance Control mode compensates for color temperature changes
between 2400K
˚
and 11000K
˚
AUTO-EX Auto White Balance Control mode compensates for color temperature changes lower than
2000K
˚
and tigher than 15000K
˚
PRESET Preset fixes the white balance based on the current lighting automatically.
MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN. (see blow)
C-TEMP: Select the color temperature for the white balance setup. If enabled,
the Red and Blue Gain settings will be set utomatically according to the C-TEMP selected.
Select from 3000K, 5000K, or 8000K. The default value is 5000K.
RED GAIN: 0 ~ 20. Adjusts the amount of red in the image. The default value is 10.
BLUE GAIN: 0 ~ 20. Adjust the amount of blue in the image. The default value is 10.
COLOR GAIN Set the color gain from 0~20. The default value is 7.
COLOR
EXPO RGB D&N FUNC MOTI PRIV SET EXIT
WHITE BAL. MANUAL
COLOR GAIN 7
EXIT JUMP
WHITE BAL.
C-TEMP
R-GAIN
B-GAIN
RETURN
5000X
10
10
