XO Appliance XOMWD24 Series User manual

I worked really hard
on this manual -
so please read it...
XOMWD24_
MICROWAVE DRAWER
SAFETY PRECAUTIONS 4
RADIO INTERFERENCE
5
6
INSTALLATION INSTRUCTIONS 7

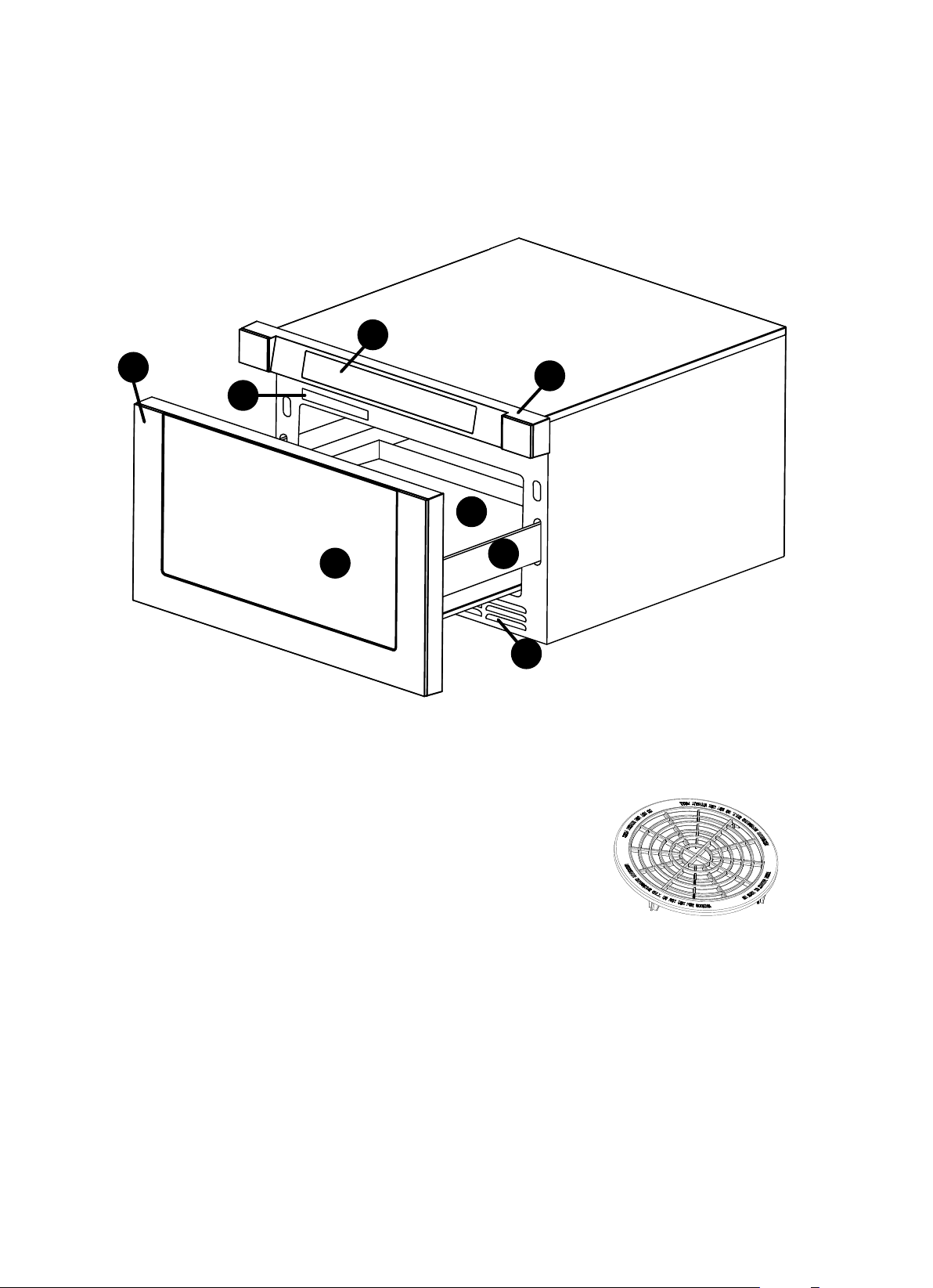

OVERVIEW 11
UTENSILS | FOOD SAFETY 12
CONTROL PANEL 13
OPERATING INSTRUCTIONS 14
CLEANING + MAITENANCE 19
WARRANTY 20
WWW.XOAPPLIANCE.COM
IMPORTANT
INSTALLER - LEAVE THIS MANUAL
WITH THE CUSTOMER
GROUNDING INSTRUCTIONS

2

3
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Internal Dimensions
External
Dimensions:
Net Weight:
Approx.
120V~60Hz
1000W
1500W
1.2 cu ft
16-11/16” W x 7-3/16” H x 17-1/4” D
23-5/8” W x 15” H x 23-7/8” D
69.2 sbl
XOMWD24S | XOMWD24BS | XOMWD24SM
(a). Do notattempt to operate this oven with the door open since open door operation can
result in harmful exposure to microwaveenergy. It is importantnot to defeat or tamper
with the safety interlocks.
(b). Do notplace anyobject between the oven front face and the door or allowsoil or
cleaner residuetoaccumulate on sealing surfaces.
(c). Do notoperate the oven ifitisdamaged. It is particularly important that the oven door
closes properly and that there isnodamage to the:
(1). DOOR (bent)
(2). HINGES AND LATCHES (broken or loosened)
(3). DOOR SEALS AND SEALINGSURFACES
(d). The oven should not be adjusted orrepaired byanyone except properlyqualified service
personnel.
Specifications

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using electrical appliances basic safety precautions should be followed,
including the following. To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave energy.
1. Read all instructions before using the appliance.
2. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY" found on page 3.
3. This appliance must be grounded. Connect only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 5.
4. Install or locate this appliance only in accordance with the provided installation
instructions.
5. As with any appliance, close supervision is necessary when used by children.
6. When cleaning surfaces of door and oven that comes together on closing the door, use
only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
7. Keep cord away from heated surface.
8. Liquids, such as water, coee, or tea are able to overheat beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED
OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:
1). Do not overheat the liquid.
2). Stir the liquid both before and halfway through heating it.
3). Do not use straight-sided containers with narrow necks.
4). After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
5). Use extreme care when inserting a spoon or other utensil into the container.
9. This appliance should be serviced only by qualified service personnel. Contact nearest
authorized service facility for examination, repair, or adjustment.
10. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven o, and
disconnect the power cord, or shut o power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
11. Some products such as whole eggs and sealed containers, for example, closed glass jars
are able to explode and should not be heated in this oven.
12. Do not cover or block any openings on the appliance.
13. Do not store this appliance outdoors. Do not use this product near water - for example,
near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
14. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically designed
to heat, cook or dry food. It is not designed for industrial or laboratory use.
15. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
16. Do not immerse cord or plug in water or any other liquid.

5
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY(NOT FOR
COMMERCIAL USE)
GROUNDING INSTRUCTIONS
.
17. Do not let cord hang over edge of table or counter.
18. Do not operate any heating or cooking appliance beneath the appliance. (Exception: A
microwave oven investigated for use above another heating appliance.)
19. Do not mount unit over or near any portion of heating or cooking appliance. (Exception:
A microwave oven investigated for use above another heating appliance.)
20. Do not mount over sink.
21. Do not store anything directly on top of the appliance surface when the appliance is in
operation.
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. This
appliance is equipped with a cord having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed and grounded.
WARNING - Improper use of the grounding can result in a risk of electric shock. Consult a
qualified electrician or serviceman if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded. If it is
necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or greater than the electrical rating of the
appliance.
DANGER - Electric Shock Hazard:
Touching some of the internal components can cause serious personal injury or death. Do
not disassemble this appliance.
WARNING - Electric Shock Hazard:
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
1. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1). The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2). The extension cord must be a grounding-type 3-wire cord.
3). The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.

6
RADIO INTERFERENCE
UTENSILS
Utensil Test:
This device complies with part 18
of the FCC Rules.
1. Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
2. When there is interference, it may be reduced or eliminated by taking the following
measures:
1). Clean door and sealing surface of the oven.
2). Reorient the receiving antenna of radio or television.
3). Relocate the microwave oven with respect to the receiver.
4). Move the microwave oven away from the receiver.
5). Plug the microwave oven into a dierent outlet so that microwave oven and receiver
are on dierent branch circuits.
CAUTION - Personal Injury Hazard:
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pouches should be pierced before cooking.
See the instructions on "Materials you can use in microwave oven ." or "Materials can not be
used in microwave oven ."
There may be certain non-metallic utensils that are not safe to use for microwaving. If in
doubt, you can test the utensil in question following the procedure below.
NOTE - KEEP THE CAVITY CLEAN
1. Fill a microwave-safe container with 1 cup of cold water
(250ml) along with the utensil in question.
2. Cook on maximum power for 1 min.
3. Carefully feel the utensil. If the empty utensil is warm, do
not use it for microwave cooking.
4. Do not exceed 1 min cooking time.

CLEARANCES AND DIMENSIONS
For safety considerations, do not install drawer in any combustible cabinetry, which is
not in accordance with the stated clearances.
UNPACKING YOUR MICROWAVE DRAWER
Remove all packing materials from inside the microwave drawer. DO NOT REMOVE
THE WAVEGUIDE COVER, located on the top of the microwave drawer. Remove the
feature sticker, if there is one. Check the drawer for any damage, such as misaligned
or bent drawer, damaged drawer seals and sealing surfaces, broken or loose drawer
guides, and dents inside the cavity or on the front side of the drawer. If there is any
damage, do not operate the microwave drawer and contact your dealer or XO.
IMPORTANT NOTES TO THE INSTALLER
Read the entire installation portion of the manual before installing the microwave
drawer. Remove all packing materials before connecting the electrical supply. Observe
all governing codes and ordinances. Be sure to leave these instructions with the
consumer.
IMPORTANT NOTES TO THE CONSUMER
Keep this manual for the future reference. With use of any heat generating microwave
oven, there are certain safety precautions you should follow. These are listed in the
operation portion of the manual. Read all and follow carefully. Be sure your microwave
drawer is installed and grounded properly by a qualified installer or service technician.
IMPORTANT SAFETY INSTRUCTIONS
Fire or electrical shock resulting in property damage, personal injury or death may
occur if the information in this manual is not followed exactly. To reduce the risk of
tipping, the microwave drawer must be secured with a properly installed Anti-Tip block.
This microwave drawer must be electrically grounded in accordance with local codes.
Make sure any wall coverings and/or cabinets around the microwave drawer can
withstand the heat generated by the microwave drawer. Never leave the drawer open
when the microwave is unattended. Stepping, leaning, or sitting on the drawer may
result in serious injuries and may also cause damage to the microwave.
WARNING
INSTALLATION
7

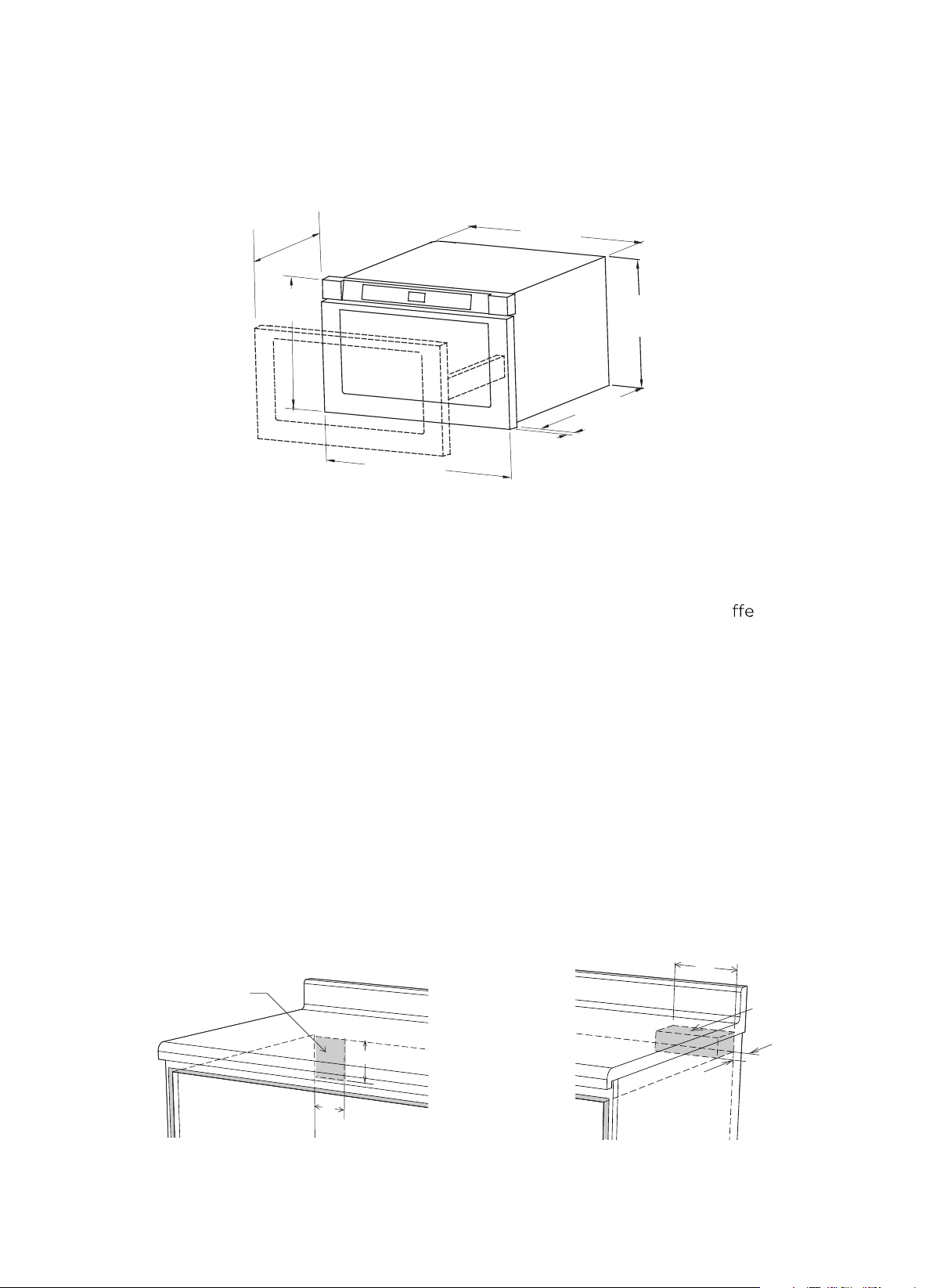

CLEARANCES AND DIMENSIONS
Dimensions shown in the figure below must be used. Given dimensions provide
minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand
corner of the cutout. Contact surface must be solid and level. The floor of the opening
should be constructed of plywood strong enough to support the weight of the oven.
INSTALLATION
Standard Installation Dimensions and Clearances
8
Suggested electrical
outlet location
4” W x 5” H
Allow 7/8”
Overlap
14-13/16” 22-1/8”
19” to Top
Of Base
36”
14-13/16”
to Bottom
Of Anti-Tip
Block
Allow 3/16”
Overlap
Anti-Tip
Block
6” W x 3-1/2” D
Base must
be able to
support
100lbs min.
Allow 7/8”
Overlap
23-1/2”
Allow 7/16”
Overlap
24”
CABINET

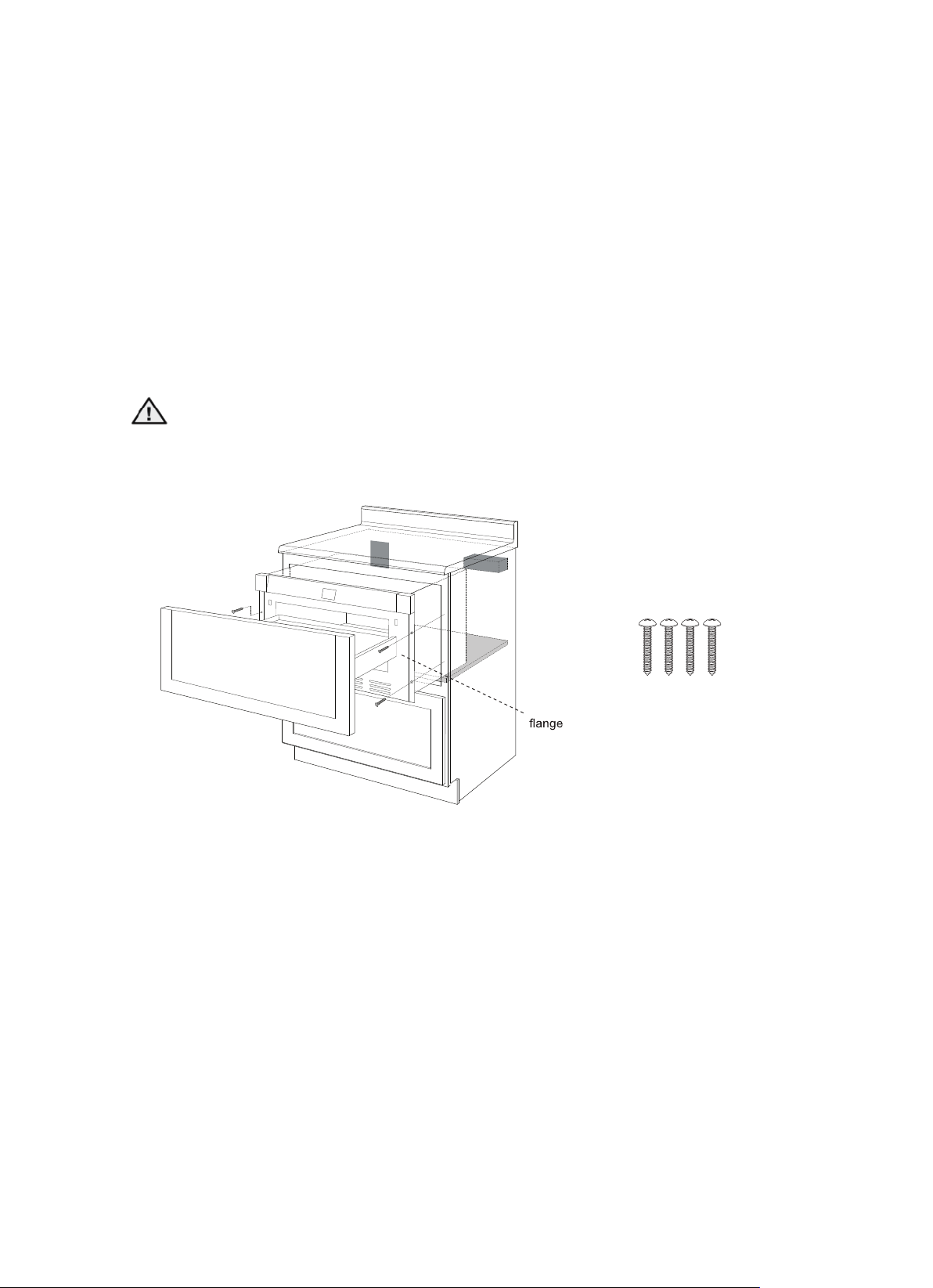

INSTALLATION
ELECTRICAL OUTLET AND ANTI-TIP BLOCK
To reduce the risk of tipping the drawer, the anti-tip block must be properly located
14-13/16” above the floor on which the microwave drawer will sit. The 6” anti-tip block
must be provided by the installer. The anti-tip block prevents serious injury that might
result from spilled hot liquids. If the microwave drawer is ever moved to a di rent
location, the anti-tip block must also be moved and installed. When secured to the
wall, make sure that the screws completely penetrate the dry wall and are secured in
wood or metal so that the block is totally stable. When fastening, be sure that the screws
do not penetrate electrical wiring or plumbing. The electrical requirements are 120
volt, 60 Hz, AC only, 15 amp. It isrecommended that a separate circuit serving only
this appliance be provided. The drawer is equipped with a 3-prong grounding plug
and must be plugged into a wall receptacle that is properly installed and grounded.
Should you only have a 2-prong outlet, have a qualified electrician install a corrrect wall
receptacle.
NOTE: If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or service person. The microwave drawer can also be installed
using an electrical outlet in an adjacent cabinet within the area where the provided
electrical cord can reach. ALWAYS check electrical cord can reach.
Appliance Dimensions
4"
5"
Suggested electrical
outlet location*
Anti-Tip
block
6"
31/2"
4"
5"
Suggested electrical
outlet location*
Anti-Tip
block
6"
31/2"
9
21-9/16”
548mm
1-1/2” 39mm
Door Thickness
22-3/8”
569mm
14-9/16”
370mm
15”
380mm
15” 380mm
DRAWER
OPENING
23-5/8”
600mm

INSTALLATION
DRAWER INSTALLATION
1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply
cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord
between the oven and wall.
3. Slide the drawer all the way until the mounting flange is flush with the face of the
cabinet.
4. Open the drawer. Using the four holes on the drawer as a template, pre-drill the
cabinet using a 1/16” bit.
5. Secure the drawer with the four screws supplied.
MODEL AND SERIAL NUMBER LOCATION
To locate the model and serial number, open the microwave drawer fully. The label can
be found beyond the back wall of the microwave cavity, facing up from the flat surface.
GROUNDING INSTRUCTIONS
This appliance must be grounded. The microwave drawer must be plugged into a wall
receptacle that is properly installed and grounded in accordance with the National
Electrical Code along with local codes and ordinances. In the event of an electrical
short circuit, grounding reduces risk of electrical shock by providing an escape wire for
the electrical current.
WARNING: Improper use of the grounding plug can result in the risk of
electric shock. Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install an outlet near the
appliance.
WARNING
4 Screws
Parts supplied
Mounting
10
