YANHUI CCTR-829 Guide

CCTR-829 GPS Tracker Using Guide
Welcome to use this Real Time GPS tracker CCTR-829 with external microphone & SOS button &
ACC detect and control uploading location, this product is with GPS module and GSM module, it can
upload current location to website, display history tracking on website, it has Google map link locate
function without platform, it is very slim & water-proof, and it can remote turn off car engine, also it built in
shock sensor to control power saving, shock & move alarm, built in rechargeable polymer battery
350mAH for power down alarm (tracker removed alarm), over area alarm, over speed alarm, etc.
With GPS and GSM, the tracker sends the present location information through GPRS to internet
server, so that user visit the website www.999gps.net with the applied user’s name and password
(Default user name is the last 7 digital of the tracker ID, password is same with user name or 123456)
through any computer with available internet. And it can help to arrange the whole fleet or the vehicles of
company or group or personal vehicles with the anti-hijack function.
And also user can download Android & iOS iPhone app software to mobile phone, click the app,
login with the same user name and password with PC website visiting, current location & history tracking
playing back also can be operated, Using mobile phone Send SMS, the tracker will send back the current
location Google map link by SMS.
This GPS tracker can be used as car alarm, fleet management, driver management etc, it can be
used for tracking cars, company vehicles, buses, taxis, trucks, moving equipments, transportations, etc.
iPhone App Download QR Code Android App Download QR Code
Manual(Word) Download QR Code Manual(Pdf) Download QR Code

Packing list
GPS tracker, Wires, External SOS button, External Microphone, Manual, etc.
Immobilizer (Cut replay, Optional)
Specification
Universal 4 GSM Band for Global;
Wide Range Working Voltage: 9-40V DC;
GPS Locate, GPRS Upload Location to Server;
SMS Reply Current Location Google Map Link;
Built in Shock Sensor for Car Move and Shock Alarm;
Remote Turn Off Car Engine (need add optional cut relay);
Built in rechargeable battery for power down alarm (Tracker removed alarm).
External SOS button.
External monitor microphone.
1. Red power LED indicator
Red Power LED
Status
Flash Fast (ON 0.1s, Off 2 s)
Normal working
Flash Slow(ON 1s, Off 2 s)
Batter Low
OFF
Power Off or fault
2. Blue GPS LED indicator
Blue GPS LED
Status
Flash Fast (ON 0.1s, Off 2 s)
GPS Located
Flash Slow(ON 1s, Off 2 s)
Searching GPS Signal
OFF
No GPS Signal, Can not Locate
3. Yellow GSM LED indicator
Yellow GSM LED
Status
Flash Fast (ON 0.1s, Off 2 s)
GSM & GPRS Working Well
Flash Slow(ON 1s, Off 2 s)
Searching GSM Signal
OFF
No GSM Signal
Before Using
1. Power ON / OFF

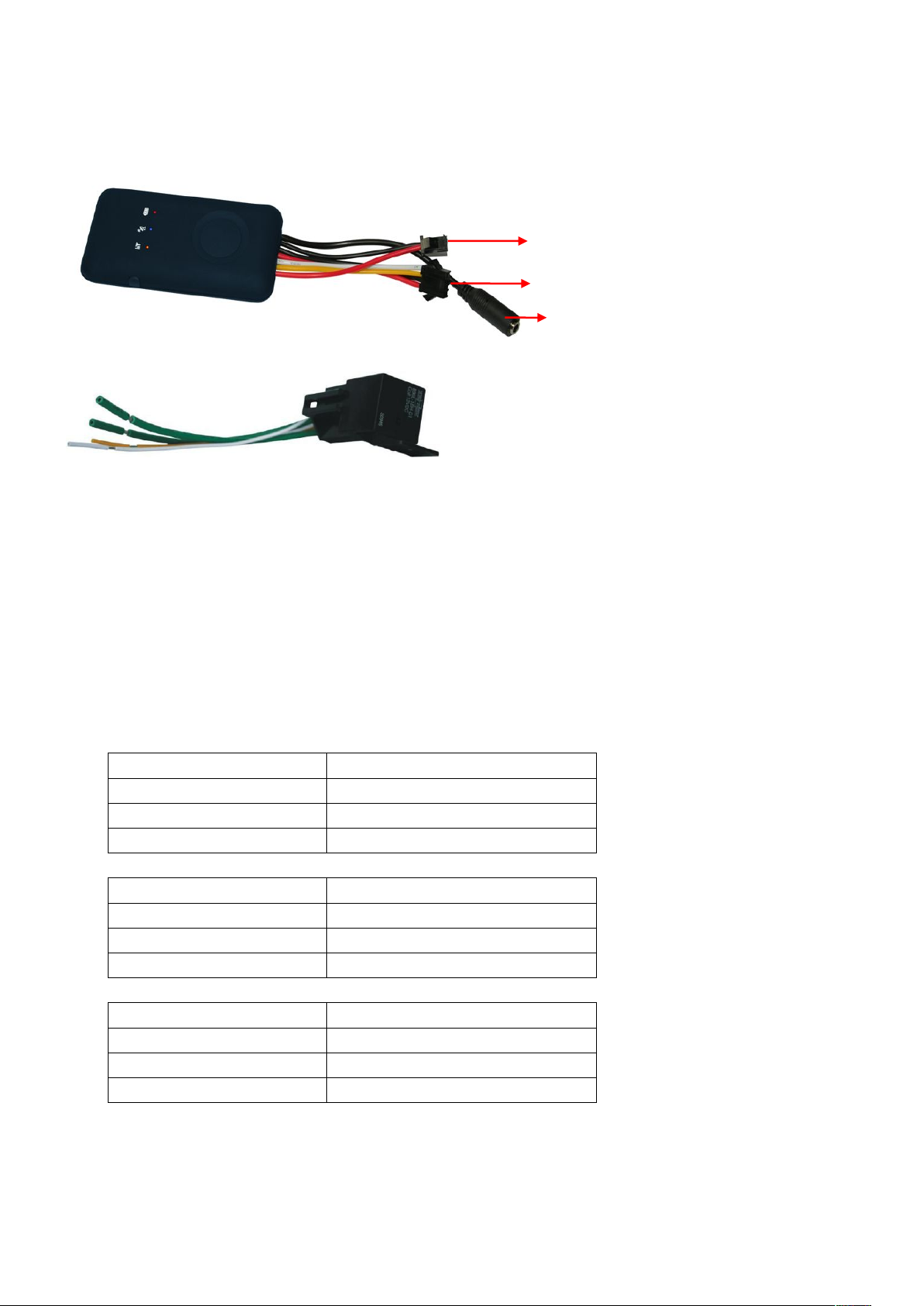

When power is OFF, connect the tracker power line to car battery, the tracker will power on
P1 connect with the main harness
P2 connect with the SOS button
P3 connect with the monitor microphone

automatically.
When power is OFF, please press the “ON-OFF” button beside the tracker case, till the RED LED
is ON or FLASH, release the button and the tracker is power ON.
When power is ON, please press the “ON-OFF” button beside the tracker case, till the RED LED
is OFF, release the button and the tracker is power OFF.
When the battery voltage in the tracker is too low, the tracker will power off automatically.
2. Install SIM card
Unfasten the screw on the back case of the tracker, and open the case of the tracker , the SIM
card holder will be seen, pull the metal cover to “OPEN” direction, and the cover can be opened up,
and put the SIM card in the holder (Metal pin face to down), close the metal cover and push the metal
cover to “LOCK” direction, after a sound of lock the SIM card has been locked and installed.
Up to Open
Down to Lock
Unfasten Screw Sim Card Metal Pin Face to Down
Note: 1. This tracker use 2G GSM network, and it upload tracking only through GPRS, it can not
work in CDMA network or 3G(WCDMA or CDMA2000) network. (Some 3G SIM card
can use in 2G GSM network, this kind of 3G SIM card can use in this tracker)
2. Please confirm the PIN code of the SIM card is disabled (insert the SIM card to mobile
phone and can be disabled in mobile phone setting menu).
3. Before installing or uninstalling the SIM card, please power off the tracker.
3. ANTENNA
The Antenna of GSM and GPS are built in the tracker.
Pleas leave the tracker away from big metal, this will reduce the GSM and GPS signal. And the
GPS antenna need faced to heaven, otherwise the GPS signal will be weak and maybe can not
located.
4. Waterproof
The design of the tracker is IP56 level waterproof, it means the raining or sprinkling can not
damage the tracker, but you can not drop the tracker into water.
5. Using Condition

The working temperature is -20 0C to 60 0C, over this range the specification maybe can not reach
the standard level, the storage temperature can reach to -40 0C to 80 0C.
6. Back to factory setting (Default configuration)
First send SMS (pw,123456,center,yourphonenumber#) to the tracker to set your mobile phone
number as center or slave center number, then sending SMS (factory#) to the tracker will delete all
user setting and back to factory configuration and repower on.
Notes: After back to default set, all IP / APN / GPRS / Language / Timezone / Alarm Setting
etc are deleted and back to factory setting, just like a new product, all preset phone number
are deleted and password change to 123456, all the alarm setting is canceled, if the
IP/APN/GPRS name & password/TIMEZONE are changed, and you need set these again by
sending SMS.
How to Install
1. Connect the P1 to the car battery / ACC and immobilizer, and P2 & P3 to the external
microphone & SOS button, the wire of the P1 P2 & P3 are as follow.
P3: External Microphone, insert the microphone to the socket is OK, please install the
microphone close to driver but driver can not see the microphone.
P2: External SOS button, insert the microphone to the socket is OK, and please install the SOS
button close to driver and the driver can press or step by hand or foot, but it can not be pressed by
mistake very easy.
P1: Power supply & ACC / Immobilizer.
RED: Power supply, 9-40V, Connect to the car battery is OK, and the fuse on the red wire
can not be removed.
BLACK: GND or Car body.
WHITE: ACC Signal, Positive Trigger Input, ACC can control the location uploading.
YELLOW: turning OFF car engine control, Cut Relay Driving (Immobilizer Control) output,
Negative output (500mAH driving capacity), if user like to control the car engine off, a cut relay is
necessary to install to control the car engine, the installation please refer the following.

Attention: Turning off engine is very dangerous when car is driving, this will
make the car difficult to control and maybe cause a accident, so we recommend make
the relay cut the start motor wire, this will make you can not remote turn off car engine,
but you can make the car engine can not be started.
2. Installation Place on the vehicle
The tracker should be installed in the hidden place, then it is not easy to be broken and
removed, because the GPS & GSM antenna are built in the tracker, so you should confirm the
installation place have good GPS and GSM signal, the GPS antenna should face to sky, and it can
not face to ground, please keep the tracker away from the big metal, we recommend install the
tracker under the front panel of the car, or under the rear panel or under the rear glass, or in the pillar
beside the driver seat etc. And please fasten the tracker to the car body with adhesive tape or other
tape, and keep away from the other auto accessory.
3. Upload tracking control & built in battery
After the tracker is powered on, the tracker will begin to work automatically, and the built in
battery will be recharged automatically, after the backup battery is full, the built in recharging circuit
will stop recharging. The tracking upload is controlled by ACC signal & shock sensor, if the car engine
is turned on or the tracker begin to move, the tracker begin upload the tracking, the tracker status on
the platform will change to online immediately. if the car engine is turned off or the tracker stop
moving, the tracker will stop upload the tracking , after 10 minutes the tracker status on the platform
will change to offline. If you like to keep the tracker always online, send SMS to change is OK, but this
will exhaust more data charge and car battery power.
How to Use
1. First to buy a 2G GSM phone SIM card, which needs SMS service and incoming caller ID

display and GPRS function, and please disable the PIN code of the SIM card, this SIM card phone
number is the tracker number and all the operations (calling and sending SMS) to the tracker is this
number.
2. After install the SIM card to tracker, connect the tracker to car battery to power on the tracker,
send SMS to tracker to set your mobile phone number as center or slave center number
(pw,123456,center,yourphonenumber#) , then you can use your mobile phone to send SMS to change
the setting of the tracker or control the tracker.
Only the center or slave center number can send SMS or call the tracker to change the
setting of the tracker or control the tracker.
3. After set the center number, park the car in the open place (indoor or underground can not
receive the GPS signal), send SMS (Where# or 123#) to tracker with center number, the tracker will
reply SMS with Google map link , click the link to visit internet, the map will display on your mobile
phone. This means the GPS and GSM is working.
4. Upload the tracking to internet server through GPRS also you need set APN etc, send SMS to
tracker to set the tracker SIM card APN / GPRS user name & password / Plmn number etc.
apn,xxx#
apn,xxx,plmn,yyy#
apn,xxx,user,uuu,pd,ppp,plmn,yyy#
xxxis apn name, yyy is the tracker SIM card mobile company code, uuu is GPRS user name, ppp is
GPRS password, if you can not confirm this, please search on internet or call your tracker SIM card mobile
company to confirm.
Some mobile phone APN and GPRS user name & password has been preset in the device,
if the device can not upload location to platform please try to reset the APN name and GPRS
user name & password, the APN name and GPRS user name & password please call your
tracker SIM card supplier mobile phone company to confirm this.
4. After set all the above, check the LED flash on the tracker, if the LED flash slow, it is means all
setting is OK, please note that, the tracker will reply message to indicate the setting is success or fault,
if no reply SMS message, it means the command is not right or have some other problem.
5. After complete the setting, visit the website www.999gps.net, login with given user name and
password (user name is the last 7 digital number of the tracker’s ID number, the default password is
same with user name or is 123456, for example ID is 1451217388, the default login name and

password all are 1217388, the ID is print on the label on the back of the device, user can change the
password and user information after login, but can not change the user name, our administrator or
dealer can change the user name by user request (ask your dealer to contact us), After login, click the
car you want check, the current location will display on the Google map, check the date and time and
location is right or not, if it is correct, then you have installed the tracker and set the tracker properly,
and it work well.
6. If you have many vehicles , we can create a user that can see all your trackers after you login,
this can be used as fleet management, ask your dealer to contact us to get your administrator user
name and password of your fleet.
7. The data & time of the tracker upload to the website is GMT time (Greenwich Mean Time,
add or minus a fixed digit is your local time), you can change the display time to your local time by
setting the time zone to your local time zone in the menu of My Account after logon the platform ( For
example newyork time zone is -05), please refer the platform operation guide.
Command Instruction
Only center or slave center number can send SMS to control or change the setting of the
the tracker, the alarm SMS will send to center and slave center number, but the alarm
calling only call to center number, so please send SMS to tracker to set the center or slave
center number first.
1. Set center and slave center number.
Send SMS “pw,123456,center,13987654321#” to the tracker to set center number, Send SMS
“pw,123456,slave,13912345678#” to the tracker to set slave center number,123456 is the tracker
default password, 139817654321 and 13912345678 are your personal mobile phone number, the
tracker will reply set center or slave number OK. If the tracker has no reply, please check the tracker
work properly and confirm the SMS command is right.
2. SMS locate tracker
Send SMS “url#” or “123” to the tracker, the tracker will reply a google link or text location
description of current location to user by SMS, user click the link to visit website, the current location will
display on the google map. If the tracker has no reply, please check the tracker work properly and
confirm the SMS command is right.
http://maps.google.com/maps?q=N22.6775,E114.1518

Call the tracker with center or slave center number, you can hear ringing, a few seconds
later after the tracker hang up the calling , the tracker will reply the location same wit the above.
3. Arm and Disarm the Car (Enable or Disable Alarm System)
Send SMS “fortify,0#” (disable the alarm function) or “fortify,1#” (enable alarm function) to the
tracker to set car enable alarm or disable the alarm system, after enable the alarm system, continuously
shock will trigger the tracker shock alarm, it will notice the center number by making call 6 times, and
also it will send SMS to center and slave center number to warning the car owner.the tracker will reply
set fortify OK. If the tracker has no reply, please check the tracker work properly and confirm the SMS
command is right.
4. Stop alarming
Send SMS “alarm#” to the tracker will stop this alarming and back to arm state (stop make
calling to center number, start detect shock sensor again,and car is still in alarm state), the tracker will
reply stop alarm OK, but if the shock sensor is still trigger, the tracker will keep alarming. If the tracker
has no reply, please check the tracker work properly and confirm the SMS command is right.
5. Remote Turn Off Car Engine
Send SMS “relay,0#” (disable the turn off engine) or “relay,1#” (Remote turn off engine) to the
tracker to disable turn off the car engine or turn off the car engine, when the tracker turn off the car
engine, the relay will disconnect, the turn off car engine function need buy and install a optional external
relay to cut off the engine, the installation method please refer the above diagram. the tracker will reply
turn off engine OK. If the tracker has no reply, please check the tracker work properly and confirm the
SMS command is right.
Attention: Turning off engine is very dangerous when car is driving, this will make the
car difficult to control and maybe cause a accident, please install and use this function
carefully.
6. Power Down Alarm
This tracker has power down alarm function, when the power supply is break, the tracker will
notice the center number by making call 6 times, and also it will send SMS to center and slave center
number to warning the car owner. If you receive this warning information, it means some try to remove
your tracker from your vehicle or your vehicle battery is removed by someone or the vehicle battery
power is running out. Please check and confirm your vehicle is safety.
Attention: If the center or slave center number are not set first, this function can not

send alarm information by SMS, also your SIM card in the tracker should enable the SMS
function. The power down alarm function can be disabled by sending SMS to tracker
(power,0#) and enabled by sending SMS to tracker (power,1#).
7. Delete center and slave center number.
Send SMS “pw,123456,center,d#” to the tracker to delete center number, and Send SMS
“pw,123456,slave,d#” to the tracker to delete slave center number,123456 is the tracker default
password, the tracker will reply delete center or slave number OK. If the tracker has no reply, please
check the tracker work properly and confirm the SMS command is right.
A: only 1 center and 1 salve center number can be set.
B: Set new center and slave center number can replace the old number.
8. Change the tracker password.
This password is different with the platform login password, it is the password of the tracker, it is
only used to control tracker by sending SMS or calling to the tracker. Send SMS “pw,123321#” to the
tracker to change the tracker password, 123321 is the new password of the tracker (The default
password of the tracker is 123456), only center or slave center can change the password. the tracker
will reply change password OK. If the tracker has no reply, please check the tracker work properly and
confirm the SMS command is right.
9. Set monitor phone
Send the SMS “monitor,13987654321#” the tracker to add the monitor phone ,then the tracker will
send “ listening number set successfully” back. Then call the monitor with the monitor phone,and it
will enter the monitoring mode.
10. Delete the monitor phone
Send the SMS “monitor,d#” the tracker to delete the monitor phone ,then the tracker will send
“listening number deleted successfully” back.
11. Set the SOS phone
Send the SMS “SOS,no1,13912345678#” the tracker to add the monitor phone ,then the tracker
will send “ SOS number set successfully” back. The tracker can be set 3 SOS phone,like below:
SOS,no2,13812345678#
SOS,no3,13712345678#
12. Delete the SOS phone
Send the SMS “SOS,no1,d#” the tracker to delete the SOS phone number then the tracker will

send “SOS number deleted successfully” back.
13. Check the tracker setting
Send SMS “check#” to the tracker, the tracker will reply the setting of the tracker by SMS. If the
tracker has no reply, please check the tracker work properly and confirm the SMS command is right.
For example the tracker reply SMS:
SN:9876543210 IP:58.64.155.133 Port:8011
Interval:10,upload:20,sleep:10,alarm:10;
SN: 9876543210; Tracker ID number.
IP:58.64.155.133:8011; Server IP and port.
Upload:30; Upload time interval, default is 30 seconds
Sleep:10; Sleep interval time, unit is minutes (0-1800)
interval:10; ACC off auto arm delay time, unit is minutes (1-60)
14. Set tracker sleep time
Send SMS “sleep,10#” (time unit is minutes, from 10-1800, 0 means no sleep) to the tracker to
set the sleep time, normally when the tracker stop moving ,the tracker will keep online and not go to
sleep, but for some cold place or in the winter, the car battery capacity is very small, let the tracker go to
sleep after stop moving can save battery power, and this can avoid the car battery run out, the tracker
will reply set sleep time OK. If the tracker has no reply, please check the tracker work properly and
confirm the SMS command is right.
15. Set tracker sleep out time
Send SMS “sleepout,5#” (time unit is minutes, from 0-1800, 0 means no sleepout) to the
tracker to set the sleepout time, after set sleepout time, the tracker will back to online every interval time
and sleep again, this can keep the tracker update the location every interval time. the tracker will reply
set sleepout time OK. If the tracker has no reply, please check the tracker work properly and confirm the
SMS command is right.
16. Set shock sensor time
Send SMS “motion,0#” (time unit is seconds, from 1-10, default is 5) to the tracker to set the
shock sensor trigger time, the upload is trigger by shock sensor, only continuously moving can trigger
shock sensor, set the shock sensor time longer will make the shock sensitivity lower. the tracker will
reply set sleepout time OK. If the tracker has no reply, please check the tracker work properly and
confirm the SMS command is right.
Note: don’t set shock sensor time too small, it is easy to trigger the tracker alarming or
uploading tracking to the server even the tracker do not move.

17. Re-power on tracker
Send SMS “reset#” to tracker can make the tracker power off and power on again, some time
the tracker can not online, send the reset command, the tracker will re-power on a few minutes later.
18. Restore to factory setting (Back to Default)
Send SMS “factory#” to the tracker, the tracker will delete all user setting, and restore all setting
to factory mode, just like a new tracker, and the tracker will repower on after delete user setting. If the
user have changed the setting, such as APN, IP, center number, etc, you need set this again after back
to factory mode.
Platform Operation Please Refer Platform Operation Guide
Notes:
1. Please confirm that the SIM card PIN code has been disabled, it means if mobile phone use
this SIM card, it is not necessary to input any password. Otherwise the tracker can not find
GSM network, the Green LED will keep ON .
2. This tracker use 2G GSM network, and it upload tracking only through 2G GPRS, it can not
work in CDMA network or 3G(WCDMA or CDMA2000) network, if the 3G SIM card can use in
2G GSM network, then the SIM card can be used in this tracker.
3. The antenna of GSM and GPS is built in tracker, please note that the install location of the
tracker must can receive the GPS signal, normally the back of the seat or arm rest box or
under the back window or room on the panel etc. please leave away the tracker from big
metal, and keep away from the magnetic components.
4. The tracker built in backup rechargeable Li battery, the battery can be used 5-10 hours after
the power supply is disconnected.
5. The GPS need 10-200 seconds to locate the position, when the GSM signal is weak or the
network is very busy, the SMS maybe delay to send by the GSM network, this is normal.
6. The tracking data on our server will keep 6-12 months, the old data will be deleted.
Trouble Shooting

1. The tracker auto power off: please confirm the tracker power supply is connect properly and
confirm the fuse is OK .
2. After power on the tracker, the tracker RED LED keep on, and it has not any repose, and no
ring, please confirm the SIM card has been installed properly, the SIM card PIN code is
disable, and the SIM card has enough charge, and the mobile phone can work well in that
place. If the tracker work well the Green LED will flash once every 4 seconds.
3. If the tracker can not upload location to website, please confirm the SIM card GPRS function
is enabled, and the APN or GPRS username & password have been set properly (call the
mobile phone to confirm the APN & GPRS username and password). if the tracker do not
move, the tracker will not upload tracking, try moving the tracker.
4. If the tracker can not send back information by SMS, please confirm the SIM card has ID
caller display function and SMS service function, and you have set the center or slave center
number (only center or slave center number can send SMS), and please read the SMS
information of the tracker sending back, and check the instruction & password is right or not.
5. Can not login the platform: use SMS to check the ID of the tracker, and try it again, if not
success please contact us.
6. After go out the under ground park, some tracking will lost, the GSM and GPS module will
take a few minutes to receive signal and re-locate, some tracking maybe lost, this is normal.
7. Some time some location point is lost, this is normal, in the transmit process, some point
maybe is lost, but this will not happen very often.
Specification:
GSM Module
MTK
GPS Module
MTK
GSM Frequency
850/900/1800/1900Mhz (4 Band)
GPS channel
32 channels
GSM / GPS Antenna
Built in
Locate precision
10-20 Meters
GPS Cold Start Time
36 seconds
GPS Hot Start Time
1 second
Working Voltage
9-40V DC
Recharging Current
< 5V/300mA
Standby Current
< 10 mA
Uploading Current
<200mA / 5V
Battery
180mAh
Working Temperature
-20 0C to +55 0C
Absolute Temperature
-35 0C to +70 0C
Storage Temperature
-40 0C to +80 0C

Warranty
This system has been tested before sold. We strongly recommend you to get this system installed by
professional. There is a one-year warranty except the following condition:
1. Installed, fixed, or changed by personally or unprofessional.
2. Warranty will eliminate if the ownership of the tracker has been changed.
3. Parts damaged by man-made.
4. Battery, adapter, wires, etc.
Warning: this device is just a auxiliary product that applying the location of current object, we have not any
responsibility if you have damage or lost in using this tracker.
Customer
User Mobile Phone
Tracker SIM card
Date
Year month day
Model
CCTR-829
Serial Number
Distributor
Notes: The explanation of this manual is belonged to our company, some small changes may not notice
customer, if you have any problem please contact us, thanks !
