Yard-Man 247.77038 User manual

Yard Vacuum
Chipper/Shredder/
Vacuum/Hose
Model Number
247.770380
Factory Number
24A-060F402
PRINTED IN U.S.A.
OPERATOR’S MANUAL
FORM NO.
770-10574A.fm
(8/01)
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State ofCalifornia the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.

2
TABLE OF CONTENTS
Content Page
Important Safe Operation Practices...................................................................3
Assembling Your Yard Vacuum.........................................................................5
Know Your Yard Vacuum...................................................................................7
Operating Your Yard Vacuum............................................................................8
Maintaining Your Yard Vacuum .........................................................................10
Troubleshooting.................................................................................................13

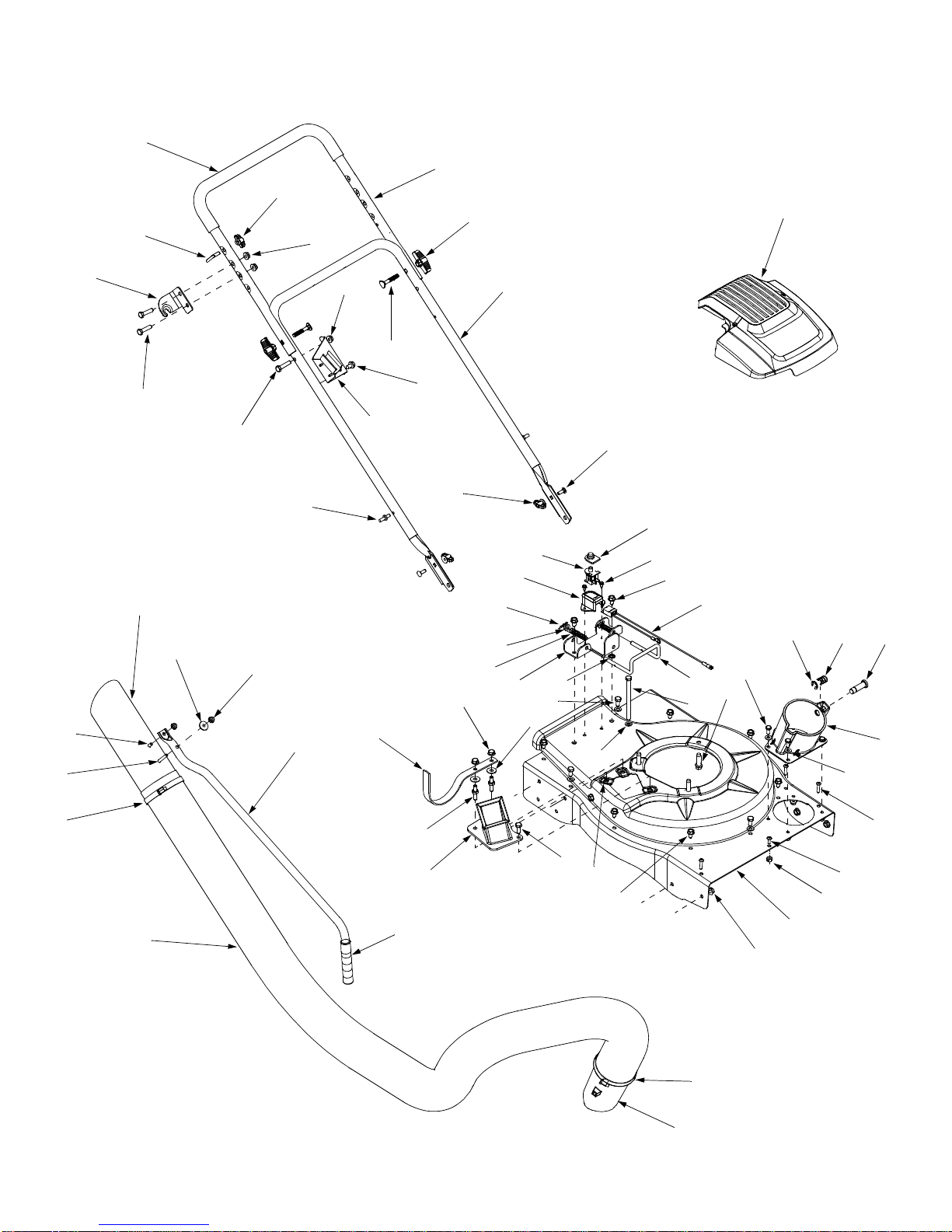

Parts List............................................................................................................14
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new Yard Vacuum. It will help you assemble, prepare
and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment,please locate the model plate on the
equipment and copy the information from it in the space provided below. The information on
the model plate is very important if you need help from our Customer Support Department or
an authorized dealer.
• You can locate the model number by looking down at the rear of the Yard Vacuum. A sample model
plate is explained below. For future reference, please copy the model number and the serial number
of the equipment in the space below.
ENGINE INFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-
rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s
Manual packed separately with your unit for more information.
CALLING CUSTOMER SUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support
representative. Please have your unit’s model number and serial number ready when you
call. See previous section to locate this information. You will be asked to enter the serial
number in order to process your call.
Copy the model number here:
Copy the serial number here:
(Model Number) (Serial Number)
MTD PRODUCTS INC
CLEVELAND, OHIO 44136
For more details about your unit, visit our website at www.yardman.com

3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
WARNING: This symbol points out important safety instructions which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and follow all instructions in
this manual before attempting to operate this machine. Failure to comply with these instructions may
result in personal injury. When you see this symbol - heed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to State of California to cause cancer
and birth defects or other reproductive harm.
DANGER:This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
TRAINING
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe
place for future and regular reference and for
ordering replacement parts.
2. Be familiar with all controls and their proper
operation. Know how to stop the machine and
disengage them quickly.
3. Never allow children under 16 years old to operate
this machine. Children 16 years old and over
should read and understand the operation
instructions and safety rules in this manual and
should be trained and supervised by a parent.
4. Never allow adults to operate this machine without
proper instruction.
5. Keep bystanders, helpers, pets, and children at
least 75 feet from the machine while it is in
operation. Stop machine if anyone enters the area.
6. Never run an engine indoors or in a poorly
ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
7. Do not put hands and feet near rotating parts or in
the feeding chambers and discharge opening.
Contact with the rotating impeller can amputate
fingers, hands, and feet.
8. Never attempt to unclog either the feed intake or
discharge opening, remove or empty vacuum bag,
or inspect and repair the machine while the engine
is running. Shut the engine off and wait until all
moving parts have come to a complete stop.
Disconnect the spark plug wire and ground it
against the engine.
PREPARATION
1. Thoroughly inspect the area where the equipment
is to be used. Remove all rocks, bottles, cans, or
other foreign objects which could be picked up or
thrown and cause personal injury or damage to the
machine.
2. Always wear safety glasses or safety goggles
during operation or while performing an adjustment
or repair, to protect eyes. Thrown objects which
ricochet can cause serious injury to the eyes.
3. Wear sturdy, rough-soled work shoes and close-
fitting slacks and shirts. Loose fitting clothes or
jewelry can be caught in movable parts. Never
operate this machine in bare feet or sandals. Wear
leather work gloves when feeding material in the
chipper chute.
4. Before starting, check all bolts and screws for
proper tightness to be sure the machine is in safe
working condition. Also, visually inspect machine
for any damage at frequent intervals.
5. Maintain or replace safety and instructions labels,
as necessary.
6. To avoid personal injury or property damage use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes, and
other sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes
before refueling.
f. Never over fill fuel tank. Fill tank to no more
than 1/2 inch below bottom of filler neck to
provide space for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine
and equipment. Move machine to another
area. Wait 5 minutes before starting the
engine.

4
i. Never store the machine or fuel container
inside where there is an open flame, spark,
or pilot light (e.g. furnace, water heater,
space heater, clothes dryer, etc.)
j. To reduce a fire hazard, keep machine free
of grass, leaves, or other debris build-up.
Clean up oil or fuel spillage and remove any
fuel soaked debris.
k. Allow machine to cool at least 5 minutes
before storing.
OPERATION
1. Do not put hands and feet near rotating parts or in
the feeding chambers and discharge opening.
Contact with the rotating impeller can amputate
fingers, hands, and feet.
2. Before starting the machine, make sure the chipper
chute, feed intake, and cutting chamber are empty
and free of all debris.
3. Thoroughly inspect all material to be shredded and
remove any metal, rocks, bottles, cans, or other
foreign objects which could cause personal injury
or damage to the machine.
4. If the impeller strikesa foreign object or if your
machine should start making an unusual noise or
vibration, immediately shut the engine off. Allow the
impeller to come to a complete stop. Disconnect
the spark plug wire, ground it against the engine
and perform the following steps:
a. Inspect for damage.
b. Repair or replace any damaged parts.
c. Check for any loose parts and tighten to
assure continued safe operation.
5. Do not allow an accumulation of processed
material to build up in the discharge area. This can
prevent proper discharge and result in kickback of
material through the feed opening.
6. Do not attempt to shred or chip material larger than
specified on the machine or in this manual.
Personal injury or machine damage could result.
7. Never attempt to unclog either the feed intake or
discharge opening while the engine is running.
Shut the engine off, wait until all moving parts have
stopped, disconnect the spark plug wire and
ground it against the engine before clearing debris.
8. Never operate without vacuum bag and discharge
chute properly attached to the machine. Never
empty or change vacuum bag while the engine is
running. Zippered end of vacuum bag must be kept
closed at all times during operation.
9. Never operate without either the inlet nozzle or
optional hose attachment properly attached to the
machine. Never attempt to attach or change either
attachment while the engine is running.
10. Keep all guards, deflectors and safety devices in
place and operating properly.
11. Keep your face and body back and to the side of
the chipper chute while feeding material into the
machine to avoid accidental kickback injuries.
12. Never operate this machine without good visibility
or light. Always be sure of your footing and keep a
firm hold on the handles.
13. Do not operate this machine on a gravel surface.
14. Do not operate this machine while under the
influence of alcohol or drugs.
15. Muffler and engine become hot and can cause a
burn. Do not touch.
16. Never pick up or carry machine while the engine is
running.
MAINTENANCE AND STORAGE
1. Never tamper with safety devices. Check their
proper operation regularly.
2. Check bolts and screws for proper tightness at
frequent intervals to keep the machine in safe
working condition. Also, visually inspect machine
for any damage and repair, if needed.
3. Before cleaning, repairing, or inspecting, stop the
engine and make certain the impeller and all
moving parts have stopped. Disconnect the spark
plug wire and ground it against the engine to
prevent unintended starting.
4. Do not change the engine governor settings or
overspeed the engine. The governor controls the
maximum safe operating speed of the engine.
5. Maintain or replace safety and instruction labels, as
necessary.
6. Follow this manual for safe loading, unloading,
transporting, and storage of this machine.
7. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
such as a water heater, furnace, clothes dryer, etc.
8. Always refer to the operator’s manual for proper
instructions on off-season storage.
9. If the fuel tank has to be drained, do this outdoors.
10. Observe proper disposal laws and regulations for
gas, oil, etc. to protect the environment.

5
WARNING - YOUR RESPONSIBILITY: Restrict theuse of thispower machineto persons who read,
understand and follow the warnings and instructionsinthismanual and onthemachine.

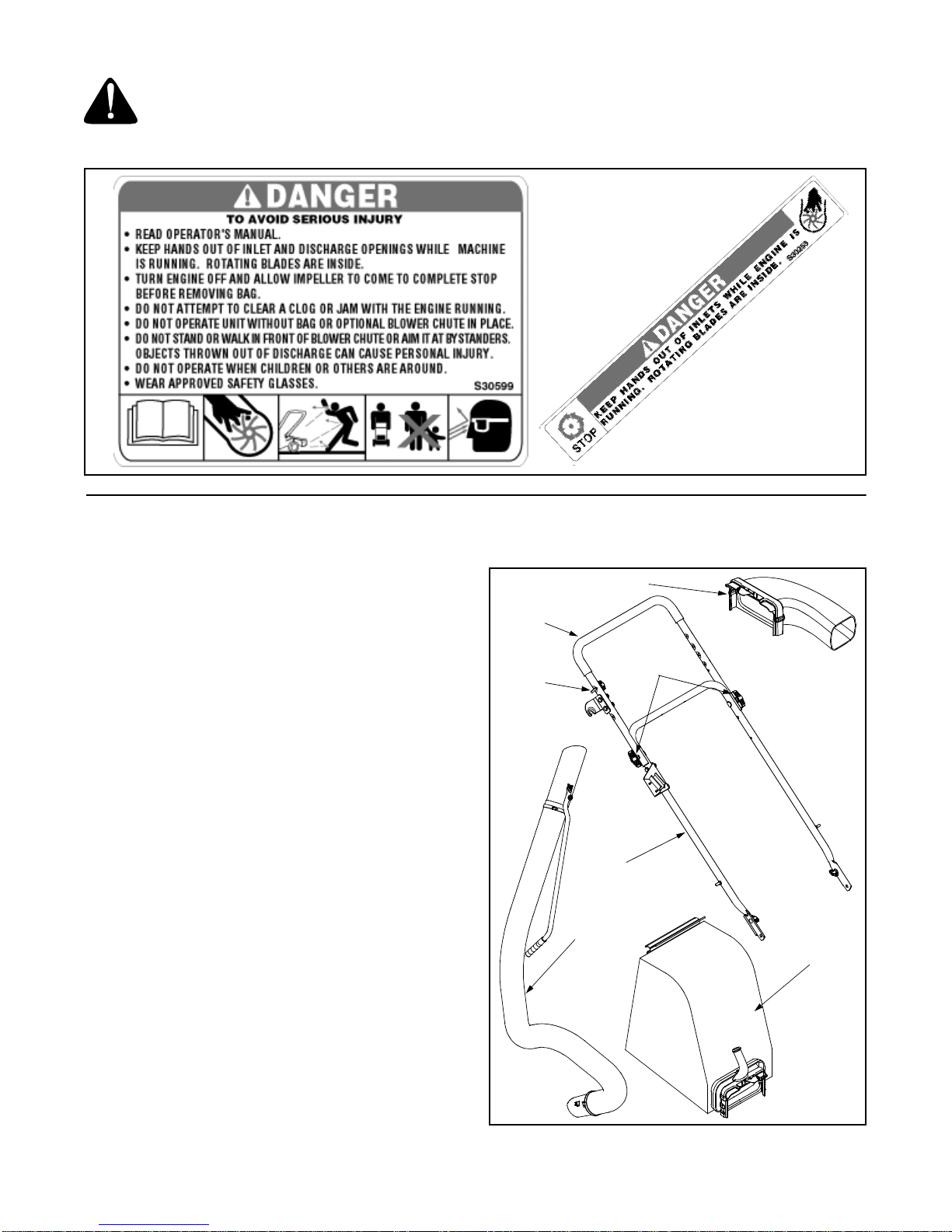

NOTE: Not all safety labels may apply to your Yard Vacuum.
SECTION 2: ASSEMBLING YOUR YARD VACUUM
IMPORTANT: This unit is shipped without gasoline or oil
in the engine. Be certain to service engine with gasoline
and oil as instructed in the separate engine manual
before operating your machine.
NOTE: Reference to right or left hand side of the Yard
Vacuum is observed from the operating position.
Removing Unit FromCarton
•Remove staples, break glue on top flaps, or cut
tape at carton end and peel along top flap to open
carton.
•Remove loose parts if included with unit (i.e.,
operator’s manual, etc.)
•Cut alongcorners, lay carton downflat, and remove
packing material.
•Roll or slide unit out of carton and check carton
thoroughly for loose parts.
Loose Parts In Carton (SeeFigure1)
•Handle Assembly
•Bag
•Blower Chute
•Hose Assembly
Disconnecting Spark Plug Wire
Before setting up your Yard Vacuum, disconnect the
spark plug wire from the spark plug and ground to a
stud on the engine.
Figure 1
Blower Chute
Hose
Assembly
Bag
Upper
Handle
Lower
Handle
Wing
Nuts
Rope
Guide

6
Attaching The Handle
•Unfold the upper handle until it aligns with the lower
handle.
•Secure the two handles by tightening the wing nuts
(carriage bolts must be seated properly into the
handle). See Figure 1
•Remove the hairpin clips from the handle brackets
on the Yard Vacuum and remove the carriage bolts
and wing nuts from the lower handle. See Figure 2.
•Placethebottomholesinlowerhandleoverpinson
handle brackets and secure with hairpin clips.
•Insert carriage bolts through upper hole in lower
handle from the outside and secure with wing nuts.
Figure 2
•Loosen the wing nut that secures the rope guide to
the right side of upper handle.
•Pull the starter rope out of the engine slowly and
slip the starter rope into the rope guide. Tighten the
wing nut.
Attaching The Hose Assembly
•Slide hose adapter of hose assembly into the base
adapter located on the left front of the Yard
Vacuum. See Figure 3.
•Pull spring loaded pin out on the base and align pin
with the first hole in the hose adapter.
•Release the pin to lock the hose in place.
•Connect the hose handle near nozzle end of hose
to the side bracket on the upper handle. Refer to
Figure 6.
•Snap hose handle to the lower handle bracket to
secure in place and lay hose tubing on side bracket
hanger next to chipper chute. Refer to Figure 6.
Figure 3
Attaching The Bag
•Grasp bag handle with one hand and slide locking
rod on mounting bracket with other hand toward
engine. Use the end of mounting bracket as
leverage when sliding the locking rod. See Figure 4.
•Slip bag over the rim of the discharge opening and
release locking rod to secure bag in place.
•Place the straps on the bag over the lower handle,
hooking them on the studs.
•Snap bag clip to the top of the lower handle.
NOTE: The safety switch button attached to the
mounting bracket must be fully depressed by the front
tab on the bag handle when securing the bag or the
engine will not start.
Figure 4
Wing Nuts
Carriage Bolt
Hairpin Clip
Spring
Loaded Pin
Hose
Adapter
Straps
Bag Handle
Stud
Locking
Front Tab
Stud
Rod

7

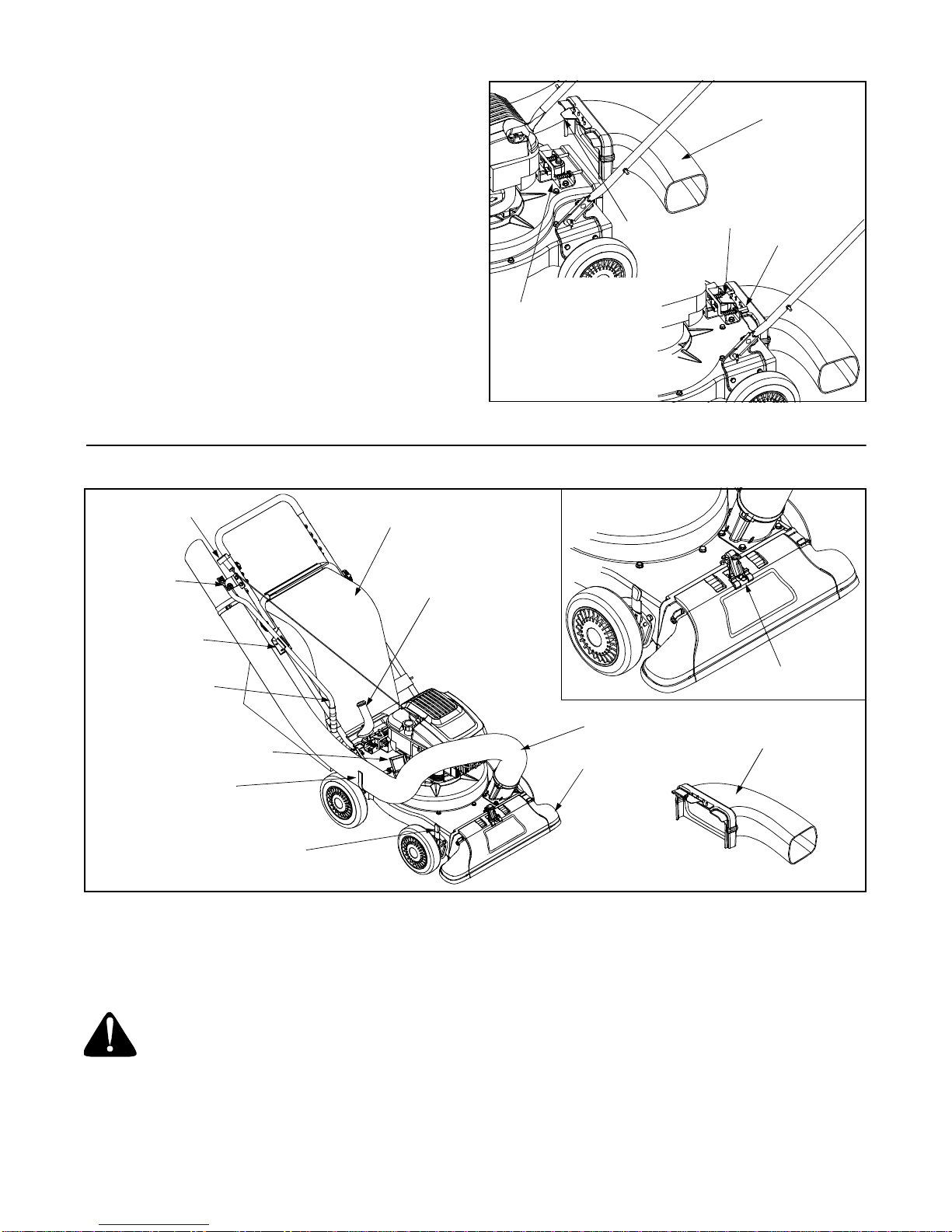

Attaching The Blower Chute
•Grasp blower chute with one hand and slide locking
rod on mounting bracket with other hand toward
engine. Use end of mounting bracket as leverage
when sliding the locking rod. See Figure 5.
•Slip blower chute over rim of the discharge opening
and release locking rod to secure chute in place.
Make sure the safety switch button is fully
depressed by the front tab on the blower chute.
•Raise the nozzle height to the highest setting when
using the blower chute. Refer to nozzle height
adjustment in the OPERATION section.
Figure 5
SECTION 3: KNOW YOUR YARD VACUUM
Figure 6
Read this operator’s manual and safety rules before
operating your Yard Vacuum. Compare the illustrations
in Figure 6 with your unit to familiarize yourself with the
location of various controls and adjustments.
WARNING: The operation of any Yard
Vacuum can result in foreign objects
being thrown into the eyes, which can
result in severe eye damage. Always wear
safety glasses, provided with the Yard
Vacuum, for operating this equipment or
while performing any adjustments or
repairs on it.
StarterHandle
The starter handle is attached to the right upper handle.
Stand behind unit and pull the starter handle to start
engine.
Bag
Collects shredded material fed through the chipper
chute or vacuumed through the nozzle or hose.
Bag Handle
Used to grasp bag in order to assist in attaching,
removing, and emptying bag.
Front
Tab
Locking
Rod
Locking
Rod
Blower
Chute
Front
Tab
Blower Chute
Nozzle/Hose
Vac Handle
Starter Handle
Bag Handle
Bag
Chipper Chute
Nozzle Height
Adjustment Lever
Nozzle
Hose Handle
Hose Assembly
Side Bracket
Handle Bracket
Side Hanger
Bracket

8
Chipper Chute
Allow twigs and small branches up to 1 1/2”in diameter
to be fed into the impeller for chipping.
Blower Chute
When attached to unit the blower chute is used to blow
or scatter yard waste such as leaves, pine needles, or
small twigs across yard.
Nozzle Height Adjustment Lever
Used to adjust the nozzle ground clearance ranging
approximately 5/8”to 4 1/8”.
Nozzle
Yard waste such as leaves or pine needles can be
vacuumed up through the nozzle for shredding.
Hose Assembly
Used as an alternative to the nozzle to vacuum yard
waste such as leaves or pine needles in hard to reach
places.
HoseHandle
Used to guide hose assembly when vacuuming.
Nozzle/Hose Vac Handle
The nozzle/hose vac handle is located on top of the
nozzle and it is used to regulate the vacuum between
the nozzle and the hose assembly.
Throttle Control Lever (Not Shown)
The throttle control lever is located on the engine. It
controls the engine’s speed and stops the engine. See
separate engine manual packed with unit for details.
Engine Controls
See the separate engine manual for the location and
function of the controls on the engine.
Stopping Engine
•Move throttle control lever to STOP or OFF
position.
•Disconnect spark plug wire from spark plug and
ground against the engine.
SECTION 4: OPERATING YOUR YARD VACUUM
WARNING: The operation of the Yard
Vacuum can result in foreign objects
being thrown into the eyes, which can
damage your eyes severely. Always wear
the safety glasses provided with this unit
or eye shields before chipping or blowing
and while performing any adjustments or
repairs.
Gas And Oil Fill-Up
Service the engine with gasoline and oil as instructed in
the separate engine manual packed with your Yard
Vacuum. Read instructions carefully.
WARNING: Never fill fuel tank indoors with
engine running or until the engine has
been allowed to cool for at least two
minutes after running.
Starting Engine
•Attach spark plug wire to spark plug. Make certain
the metal cap on the end of the spark plug is
fastened securely over the metal tip on the spark
plug.
•Make sure safety switch wire is connected to
engine and properly grounded.
•Engines with choke lever:
Move choke lever on engine to CHOKE position. (A
warm engine may not require choking).
•Engines with primer:
Prime engine as instructed in separate engine
manual.
•The throttle control is located on the engine. Move
engine throttle control lever to FAST or ON position.
•Stand behind unit, grasp starter handle and pull
rope out slowly until engine reaches start of
compression cycle (rope will pull slightly harder at
this point).
•Pull rope with a rapid, continuous, full arm stroke.
Keep a firm grip on starter handle. Let rope rewind
slowly.
•Repeat previous steps until engine fires. When
engine starts, move choke control (if equipped)
gradually to RUN position.
WARNING: Never run the engine indoors
or in a poorly ventilated area. Engine
exhaust contains carbon monoxide, an
odorless and deadly gas.

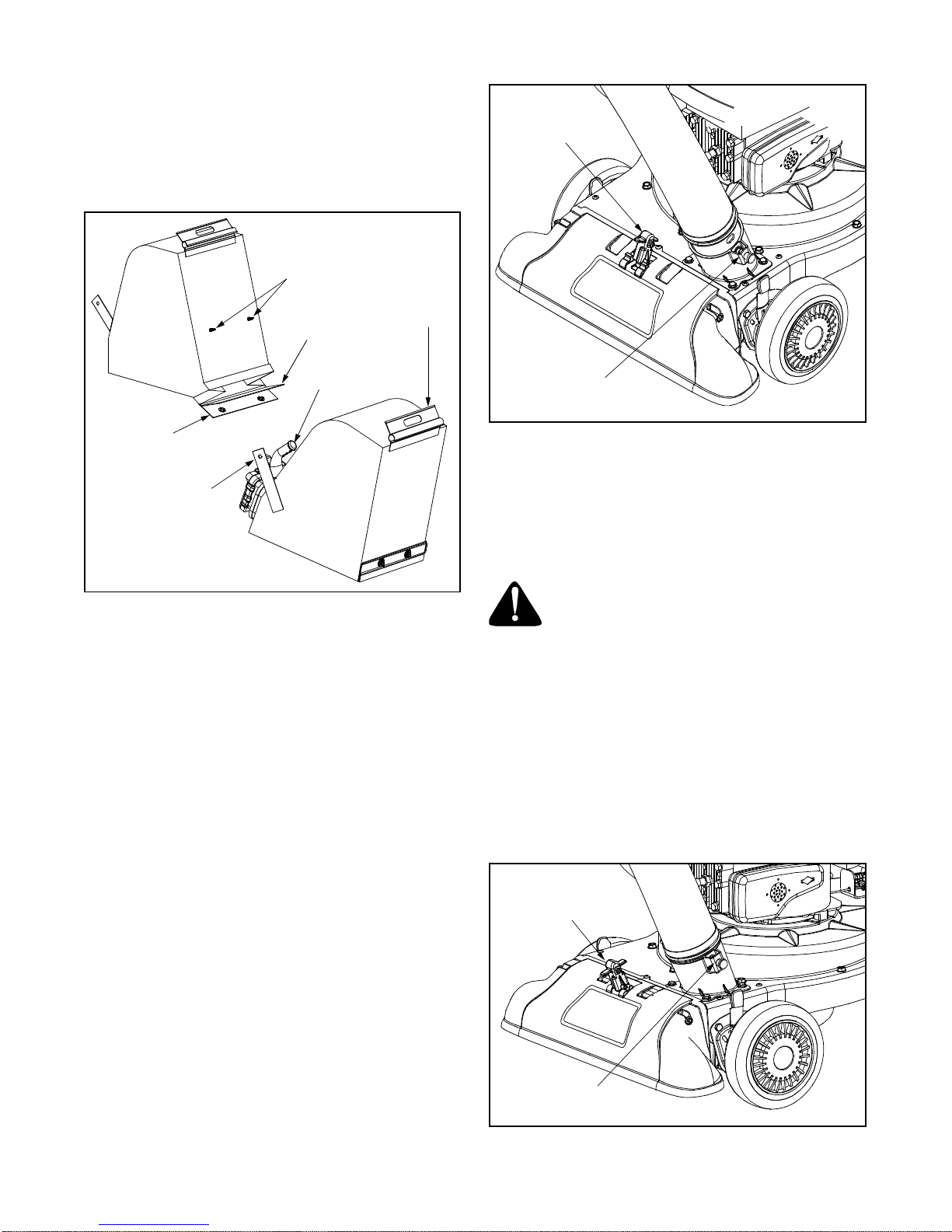

To Empty Bag
•Unhook bag straps from the lower handle and
unsnap bag clip from the top of lower handle.
See Figure 7.
•Grasp bag handle with one hand and pull lock rod
on mounting bracket with other hand toward engine
to release.
•Remove bag from rim of the discharge opening.
Refer to Figure 4.
•Twist the two buttons on the back of the bag to
unlock and empty contents. See Figure 7.

9
•Hold bag handle and bag clip while emptying the
contents.
•Compress bag opening and fold inner flap over
opening.
•Fold outer flap over inner flap and insert buttons on
the bag through metal outlets.
•Twist the buttons to lock bag.
Figure 7
To Remove Blower Chute
•Grasp blower chute with one hand and pull lock rod
on mounting bracket with other hand toward engine
to release. Refer to Figure 5.
•Remove blower chute from rim of the discharge
opening.
Using the NozzleVacuum
•Place nozzle/hose vac handle in the top position on
the nozzle to vacuum through nozzle. See Figure 8.
•Thespringloadedpinmustbeinthefirstholeofthe
hose adapter to operate the nozzle vac.
•Place both hands on top of upper handle to push
unit over yard waste.
Yard waste such as leaves and pine needles can be
vacuumed up through the nozzle for shredding. After
material has been shredded by the flail blades on the
impellerassembly, itwillbe discharged into catcher bag
or through blower chute. Do not attempt to shred or chip
any material other than vegetation found in a normal
yard (i.e. branches, leaves, twigs, etc.) Avoid fibrous
plants such as tomato vines until they are thoroughly
dried out. Materials such as stalks or heavy branches
up to 1 1/2”in diameter may be fed into the chipper
chute.
Figure 8
IMPORTANT: The flail screen is located inside the
housing in the discharge area. If the flail screen
becomes clogged, remove and clean as instructed in
SECTION 5: MAINTAINING YOUR YARD VACUUM.
For best performance, it is also important to keep the
chipper blade sharp.
WARNING: Do not at any time make any
adjustments without first stopping engine
and disconnecting spark plug wire.
Using the Hose Assembly
•Place nozzle/hose vac handle in the bottom
position on the nozzle to redirect vacuum to the
hose assembly. See Figure 9.
•The spring loaded pin must be in the second hole of
the hose adapter to operate the hose assembly.
•Unhook the hose from upper handle bracket and
grasp the hose handle to guide while vacuuming
yard waste such as leaves or pine needles in hard
to reach places.
Figure 9
Buttons
Inner Flap
Outer Flap
Bag Handle
Strap
Bag Clip
Nozzle/Hose
Vac Handle
Spring Loaded Pin
(First Hole)
(Top Position)
Nozzle/Hose
Vac Handle
Spring Loaded Pin
(Second Hole)
(Bottom Position)

10

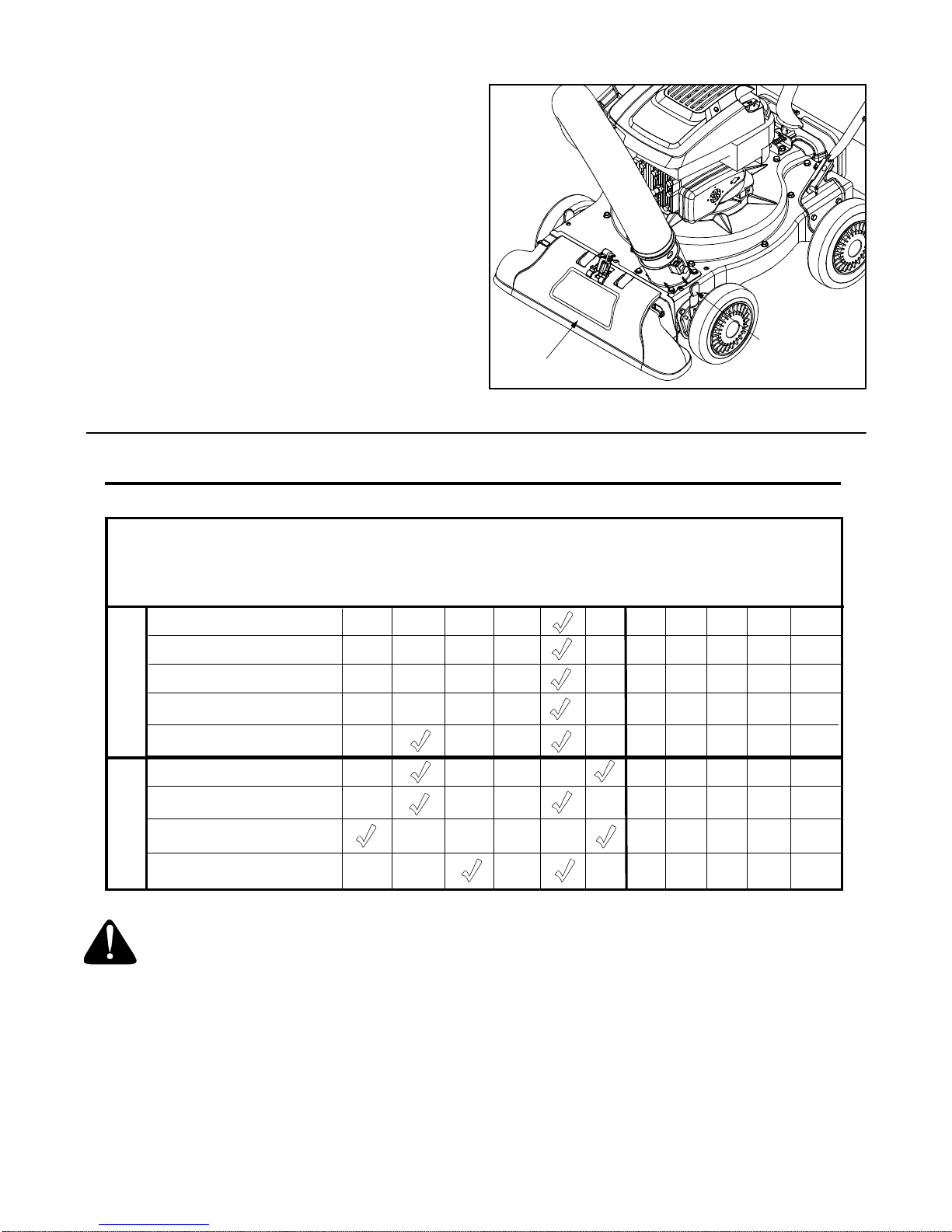

Nozzle Height Adjustment
The nozzle can be adjusted to any six positions,
ranging from 5/8”to 4 1/8”ground clearance. The
nozzle height has to be adjusted according to the
conditions. Move the height adjustment levers forward
or backward to adjust the nozzle upwards or
downwards. See Figure 10.
NOTE: In general, raise the nozzle height to vacuum a
thick layer of leaves or to operate with the blower chute
and lower the nozzle height for smoother surfaces.
Figure 10
SECTION 5: MAINTAINING YOUR YARD VACUUM
WARNING: Always stop engine and
disconnect spark plug wire before
cleaning, lubricating or doing any kind of
maintenance on your machine.
Lubrication
Wheels: Lubricate each wheel shoulder screw once a
season with light oil. Refer to Figure 6.
Nozzle height adjustment levers: Lubricate the pivot
points of the nozzle height adjustment levers once a
season with light oil. Refer to Figure 6.
Locking Rod: Lubricate the locking rod with light oil to
ease the application of attaching on or removing bag or
blower chute. Refer to Figure 6.
Nozzle/Hose Vac Handle: Lubricate the nozzle/hose
vac handle on top of nozzle once a season with light oil.
Refer to Figure 6.
Engine: Follow the separate engine manual packed
with you unit for lubrication instructions.
Nozzle Nozzle Height
Adjustment
Lever
Customer Responsibilities
MAINTENANCE
SCHEDULE
PRODUCT
ENGINE
SERVICE
DATES
Beforeeachuse
Every25hours
Every50hours
Beforestorage
Every100hours
Onceaseason
Lubricate Wheels
Lubricate Locking Rod
Check Chipper Blade
Change Oil
Clean Engine
Check Air Filter
Check Spark Plug
Lubricate Nozzle Levers
Lubricate Nozzle/Hose Handle

11
Maintenance
Engine
Refer to the separate engine manual for all engine
maintenance instructions.
•Check engine oil level before each use as
instructed in the separate engine manual packed
with your unit. Read and follow instructions
carefully.
•Clean air cleaner every 25 hours under normal
conditionsoronce a season.Clean every fewhours
underextremelydustyconditions.To servicetheair
cleaner, refer to the separate engine manual
packed with your unit.
•The spark plug should be cleaned and the gap
reset once a season. Check engine manual for
correct plug type and gap specifications.
Removing The Flail Screen
If the discharge area becomes clogged, remove the flail
screen and clean area as follows:
•Stop the engine and make certain the Yard
Vacuum has come to a complete stop.
•Disconnect spark plug wire from spark plug and
ground against the engine.
•Remove the bag or blower chute from the unit as
instructed in the OPERATION section to obtain
access to flail screen. See Figure 11.
Figure 11
•Remove hex screw on right side of unit that
attaches to the fail screen. It may be necessary to
remove the hose bracket hanger to get access to
the hex screw. See Figure 12.
•Remove hex screw and flat washer on top of rear
housing mounting bracket and the lock nut that
secures flail screen. See Figure 11.
•Remove and clean the screen by scraping or
washing with water. Reinstall the flail screen.
Figure 12
Sharpening Or Replacing Chipper Blade
Because the engine on this unit has a tapered
crankshaft, a special impeller tool (part number 753-
0900) is required to remove the impeller assembly. For
further assistance, contact your local service dealer.
NOTE: When tipping the unit, empty the fuel tank and
keep spark plug side up.
•Disconnect the spark plug wire and ground it away
from the spark plug.
•Remove the front hubcaps, lock nuts, front wheels,
and wave washers that attach to the pivot arm
assemblies. See Figure 13.
•Remove the shoulder screws and bell washers that
go through the pivot arms and height bracket
adjusters to the front support brace.
Figure 13
•Remove the three screws on the upper housing
thatsecure the nozzle cover and the nine screws
that secure the lower housing to the upper housing.
See Figure 14.
Hex Screw &
Flat Washer
Flail Screen
Lock Nut
Remove
Hex Screw
Hubcap
Lock Nut
Wave Washer
Shoulder
Screw
Bell Washer
Height Adjustment
Bracket
Pivot Arm Assembly

12
Figure 14
•Remove lock nut that secures flail screen to the
lower housing. The flail screen does not have to be
removed. Refer to Figure 11.
•Remove the hex bolt, lock washer, and flat washer
that secure the impeller assembly to the crankshaft.
See Figure 15.
Figure 15
•Apply lubricant to the threads of impeller removal
tool and then thread the tool into the crankshaft.
Stop when the impeller assembly can move on the
crankshaft.
•Remove theimpeller assembly fromthe crankshaft.
Unthread the impeller removal tool from the
impeller assembly.
•Remove the blade using a 3/16”allen wrench on
the outside of the blade and 1/2”wrench on the
impeller assembly.
•Replace or sharpen chipper blade.
•When sharpening blade, protect hands by using
gloves and follow the original angle of grind.
•Reassemble by performing the previous steps in
reverse order.
•Tighten blade screws to 210-250 in-lbs.
Tighten impeller bolt to 375-425 in-lbs.
NOTE: Make certain chipper blade is reassembled with
the sharp edge facing upward. See Figure 16.
Figure 16
Storing Your Yard Vacuum
•Clean the equipment thoroughly.
•Wipe equipment with a oiled rag to prevent rust.
•Refer to engine manual for correct engine storage
instructions.
•Store unit in a clean, dry area. Do not store next to
corrosive materials such as fertilizer.
Nozzle
Screws
Lower Housing
Screws
Housing
Screws
Upper
Housing
Impeller
Assembly
Hex Bolt
Lock Washer
Flat Washer
BOTTOM VIEW
Chipper
Blade
Flail
Blade
Flail
Blade
Chipper
Blade
Impeller
Assembly

13
SECTION 6: TROUBLESHOOTING
NOTE: For repairs beyond the minor adjustments listed above, contact your nearest authorized service dealer.
Problem Cause Remedy
Engine fails to start 1. Spark plug wire disconnected.
2. Fuel tank empty or stale fuel.
3. Throttle control lever not in correct
starting position. (If Equipped)
4. Choke not in CHOKE position.
5. Blocked fuel line.
6. Faulty spark plug.
1. Connect wire to spark plug.
2. Fill tank with clean, fresh gasoline.
3. Move throttle lever to FAST position.
4. Move choke to CHOKE position.
5. Clean fuel line.
6. Clean, adjust gap, or replace.
Engine runserratic 1. Spark plug wire loose.
2. Unit running on CHOKE.
3. Blocked fuel line or stale fuel.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
1. Connect and tighten spark plug wire.
2. Move choke lever (if equipped) to OFF
position.
3. Clean fuel line; fill tank with clean, fresh
gasoline
4. Drain fuel tank. Refill with fresh fuel.
5. Clean or replace air cleaner.
6. See authorized service dealer.
Too much vibration 1. Loose parts or damaged impeller. 1. See authorized service dealer.
Engine overheats 1. Engine oil level low.
2. Dirty air cleaner.
3. Carburetor not adjusted properly.
1. Fill crankcase with proper oil.
2. Clean or replace air cleaner.
3. See authorized service dealer.
Occasionalskip(hesitates)
at high speed 1. Spark plug gap too close. 1. Adjust gap to .030”.
Unit does not discharge 1. Discharge chute clogged.
2. Foreign object lodged in impeller.
3. Low engine RPM
4. Vacuum bag is full.
1. Stop engine immediately and
disconnect spark plug wire. Clean flail
screen and inside of discharge opening.
2. Stop engine and disconnect spark plug
wire. Remove lodged object.
3. Always run engine at full throttle.
4. Empty bag.
Rate of discharge slows
considerably or
composition of discharged
material changes.
1. Low engine RPM.
2. Chipper blade dull. 1. Always run engine at full throttle. 2. Replace chipper blade or see your
authorized service dealer.

14
Model 24A-060F402
1
2
3
4
5
6
7
8
9
4
7
11
12
13
14
15
16
17
18
19
20 2111
23
24
25 26
22
27
28
29
24
3031
32
33 34 35
36
37
38
39
4
11
40
41
42
43
44
4
45
46
47
48
50
51
49
52 53
54
31
49
55
56

15
Model 24A-060F402
Ref.
No. Part No. Part Description
1. 720-0295 Foam Grip
2. 749-1423 Upper Handle
3. 720-0279 Knob
4. 712-3004A Flange Lock Nut 5/16-18
5. 710-1205 Eye Bolt
6. 781-1056 Upper Handle Bracket
7. 710-0528 Hex Cap Screw 5/16-18 x 1.25
8. 720-0314 Handle Knob 5/16-18
9. 710-1174 Carriage Bolt
11. 710-0604A Hex Washer Screw 5/16-18 x.625
12. 681-0174 Lower Handle Bracket
13. 749-0907B Lower Handle
14. 711-1293 Studs
15. 710-0703 Carriage Screw 1/4-20 x.75
16. 712-0397 Wing Nut 1/4-20
17. 731-1402B Shroud
18. 725-1700 Switch Cover
19. 725-3166 Safety Switch
20. 731-1613 Safety Switch Cover
21. 710-0224 Hex Washer Screw #10-16 x.50
22. 629-0920 Wire Harness
23. 714-0104 Cotter Pin
24. 736-0264 Flat Washer.330 ID x.630 OD
25. 732-0962 Compression Spring
26. 781-0778A Mounting Bracket
27. 747-1153 Lock Rod
28. 710-3195 Hex Cap Screw 5/16-18 x 4.5
29. 710-3025 Hex Cap Screw 5/16-18 x.625
30. 710-0502A Hex Washer Screw 3/8-16 x 1.25
31. 710-0751 Hex Cap Screw 1/4-20 x .620
32. 731-2484 Hose Base Adapter
33. 716-0104 E Ring .500 Dia
34. 732-3035 Compression Spring
35. 711-1571 Clevis Pin
36. 736-3020 Flat Washer ..271 ID x .630 OD
37. 710-0969 Screw #12-16 x 1.0
38. 710-0425 Machine Screw #10 - 24 x .625
39. 781-1042 Upper Housing
40. 726-0454 U-Clip Lock Nut 5/16-18
41. 710-3008 Hex Cap Screw 5/16-18 x.75
42. 681-0122 Chipper Chute Assembly
43. 738-1167 Stud 5/16-18 x .56
44. 736-0371 Flat Washer .343 ID x .880 OD
45. 781-1058 Hose Bracket Hanger
46. 712-3027 Hex Flange Nut 1/4-20
47. 748-0457 Spacer
48. 731-2478 Hose Nozzle
49. 710-3288 Hex Cap Screw 1/4-20 x 2.625
50. 723-0295 Adjustment Clamp
51. 749-1270 Nozzle Handle
52. 764-0648 Vacuum Hose
53. 07071 Handle Grip
54. 731-2292 Hose Adapter
55. 736-0607 External L-Washer 5/16
56. 712-0161 Hex Lock Nut #10 - 24
Ref.
No. Part No. Part Description
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637

16
Model 24A-060F402
1
2
3
45
6
7
8
9
10
1112
13
14
15
16
1718
19
20
21
17
22
23
24
25
26
27
28
29 30
31
32
33 34
35
36
15
37
38
39
40
41
42
43
44
58
55
56
59
60
47
48
49
50
51
52
42
53
54
44
46 45
39
57

17
Model 24A-060F402
Ref.
No. Part No. Part Description
1. 664-0090 Bag Assembly
2. 681-0154 Screen Assembly
3. 710-1054 Hex Screw 5/16-24 x 1.0
4. 781-0490 Chipper Blade
5. 681-0152 Impeller Assembly
6. 781-0735 Pin Clip
7. 719-0329 Flail Blade
8. 715-0166 Spiral Pin
9. 711-1401 Clevis Pin
10. 736-0247 Flat Washer.375 ID x 1.25 OD
11. 736-0217 Lock Washer 3/8
12. 710-0818 Hex Cap Screw 3/8-24 x 2.0
13. 710-3038 Hex Cap Screw 5/16-18 x .875
14. 781-0721A Lower Housing
15. 712-3004A Flange Lock Nut 5/16-18
16. 712-3027 Hex Flange Nut 1/4-20
17. 736-0142 Flat Washer .281 ID x .50 OD
18. 714-0225 Cotter Pin
19. 711-1560 Pivot Rod
20. 731-2520 Nozzle
21. 781-1064 Base Adapter Door
22. 732-1156 Torsion Spring
23. 726-0106 Cap Speed Nut 1/4
24. 711-1551 Pivot Rod
25. 712-0161 Hex Lock Nut #10-24
26. 736-0400 Flat Washer .194 ID x .62 OD
27. 731-2485 Nozzle Door Lever
28. 710-1156 Hex Screw #10-24 x 1.25
29. 750-1294 Shoulder Spacer
30. 732-3118 Extension Spring
31. 732-1151 Torsion Spring LH
32. 732-1150 Torsion Spring RH
33. 731-2294 Nozzle Door
34. 711-1582 Rod .25 x 1.25 Lg
35. 781-0725A Front Wheel Support Brace
36. 781-0777 Rear Wheel Support Brace
37. 681-0155 Handle Bracket Ass”y LH
681-0156 Handle Brkt Ass”y RH (Not Shown)
38. 714-0104 Cotter Pin
39. 710-3025 Hex Cap Screw 5/16-18 x.625
40. 736-0105 Bell Washer.401 ID x.870 OD
41. 734-1992 Wheel 9 x 2
42. 736-0232 Wave Washer .531 ID x .781 OD
43. 738-1015 Shoulder Screw 3/8-16
44. 731-1426 Hubcap
45. 781-0785 Height Adjustment Bracket
46. 738-1185 Stud 5/16-18 .56 x .75
47. 741-0751 Height Adjustment Bearing
48. 682-0113 Pivot Arm Assembly
49. 720-0426 Height Adjustment Knob
50. 732-1026 Spring Lever
51. 736-0741 Bell Washer .760 IDx .25 OD
52. 738-1173 Shoulder Screw .750 ID x .625 OD
53. 734-1978 Wheel 8 x 2
54. 712-0431 Flange Lock Nut 3/8-16
55. 726-0453 Lock Nut 3/8-16
56. 712-0158 Hex Lock Nut 5/16-18
57. 736-0314 Thrust Washer .375 ID x .70 OD
58. OEM-290-012 Blower Chute
59. 764-0507 Bag
60. 631-0083 Chute Assembly
Ref.
No. Part No. Part Description

18
Notes

19
ÍNDICE
Contenido Página
Medidas importantes de seguridad..................................................................................20
Montaje de la aspiradora para patios ...............................................................................22
Conozca las propiedades de la aspiradora para patios...................................................24
Funcionamiento de la aspiradorapara patios..................................................................25
Mantenimiento de la aspiradora para patios....................................................................27
Guía para la solución de problemas.................................................................................30
Lista de las piezas............................................................................................................14
BÚSQUEDA DEL NÚMERO DE MODELO
Este manual de operación es una parte importante de la nueva aspiradora para patios. Le ayudará a montar, preparar y
mantener la unidad paraobtener los mejores resultados.Porfavor lea y comprenda el contenido del manual.
Antes de comenzar el montaje del equipo nuevo , por favor encuentre la placa del modelo del
equipo y copie la información contenida en la misma en el espacio provisto a continuación. La
información contenida en la placa del modelo es muy importante en caso de necesitar ayuda de
nuestro Departamento de Asistencia al Cliente o de un distribuidor autorizado.
• Para encontrar el número de modelo mire hacia abajo de la parte posterior de la aspiradora para
patios. A continuación se explica un ejemplo de placa de modelo. Para referencias futuras, por favor
copie el número de modelo y el número de serie del equipo en el espacio a continuación.
SERVICIO TELEFÓNICO DE ASISTENCIA AL CLIENTE
En caso de tener problemas para ensamblar este producto o de tener dudas con respecto a los controles,
funcionamiento o mantenimiento del mismo, por favor comuníquese con el Departamento de asistencia al cliente.
Llame al 1- (330) 220-4MTD (4683) o 1- (800)-800-7310 para comunicarse con un representante de
asistencia al cliente. Por favor cuando llame tenga a la vista el número de modelo y el número de serie
de su unidad. Consulte la sección anterior para obtener esta información. Se le solicitará que ingrese el
número de serie para poder procesar su llamada.
(Número de modelo) (Número de serie)
MTD PRODUCTS INC
CLEVELAND, OHIO 44136
Copie el número del modelo en este espacio:
Copie el número de serie en este espacio:
Si desea más información sobre la máquina visite nuestro sitio web en www.yardman.com

20
SECCIÓN 1: MEDIDAS IMPORTANTES DE SEGURIDAD
ADVERTENCIA: La presencia de este símbolo indica que se trata de instrucciones importantes de seguridad que
debe respetar para evitar poner en riesgo su seguridad personal y / o material y de otras personas. Lea y siga todas las
instrucciones contenidas en este manual antes de intentar poner esta máquina en funcionamiento. De no hacerlo puede
ocasionar lesiones. Cuando encuentre este símbolo - respete la advertencia que aparece a continuación del mismo.
ADVERTENCIA:El escape del motor de esteproducto, algunos de sus componentes y algunos
componentes del vehículo contienen o emiten productos químicos que el estado de California considera que
pueden producir cáncer, defectos de nacimiento u otros problemas reproductivos.
PELIGRO:Esta máquina está diseñada para ser utilizada respetando las reglas de seguridadcontenidasen
este manual. Al igual que contodos los equipos eléctricos si el operador es descuidado o comete errores puede
ocasionar lesiones graves. Esta máquina puede amputar manos y pies y arrojar objetos. De no respetar las
instrucciones de seguridad siguientes se pueden producir lesiones graves o la muerte.
CAPACITACIÓN
1. Lea, comprenda y respete todas las instrucciones que
figuran en la máquina oen este(os) manual(es)antes de
proceder al montaje y operación del equipo. Guarde este
manual en un lugar seguro para referencias futuras y
regulares y para solicitar repuestos.
2. Familiarícese con todos los controles y con el uso
adecuado de los mismos. Sepa cómo detener la
máquina y cómo desengranar los controles rápidamente.
3. Nunca permita que niños menores de 16 años operen
esta máquina. Los niños de 16 años y más deben leer y
comprender las instrucciones de operación y las reglas
de seguridad contenidas en este manual y deben ser
capacitados y supervisados por uno de los padres.
4. Nunca permita que adultos sin conocimientos acerca de
la máquina operen la misma.
5. Mantenga a los observadores, ayudantes, mascotas y a
los niños por lo menos a 75 pies de la máquina mientras
la misma está en funcionamiento. Detenga la máquina si
alguien entra en la zona.
6. Nuncaencienda unmotor enespacios cerrados oen una
zona con poca ventilación. El escape del motor contiene
monóxido de carbono, un gas inodoro y letal.
7. No ponga las manos o los pies cerca de las piezas
rotatorias o en las cámaras de alimentación ni en la
abertura de descarga. El contacto con el motor rotatorio
puede producir la amputación de dedos, manos o pies.
8. Nunca trate de destapar la toma de alimentación o la
abertura de descarga, nitrate de sacar ovaciar la bolsa
de la aspiradora, ni de revisar y reparar la máquina
mientras el motor está en marcha. Apague el motor y
espere hasta que todas las piezas que se mueven se
hayan detenido por completo. Desconecteel cable de la
bujía y póngalo de manera que haga masa contra el
motor.
PREPARACIÓN
1. Revise minuciosamente la zona donde se utilizará el
equipo.Retire todas las piedras, botellas, latas u otros
objetos extraños que puedan ser levantados oarrojados
causando lesiones o daños a la máquina.
2. Para protegerse los ojos utilice siempre anteojos o
antiparras de seguridad mientras opera la máquina o
mientras la ajusta o repara. Los objetos arrojados que
rebotan pueden lesionar gravemente la vista.
3. Utilice zapatos de trabajo resistentes, de suela fuerte y
pantalones y camisas ajustados. Las prendas sueltas o
las alhajas pueden quedar atrapadas en las piezas
movibles.Nuncaopereestamáquinaestandodescalzoo
con sandalias. Utilice guantes detrabajo de cuero
cuando alimente material por el canal de la cortadora.
4. Antes de encender la máquina controle que todos los
pernos y tornillos estén bien ajustados para comprobar
que la máquina se encuentra en condiciones seguras de
operación Además realice una inspección visual de la
máquina a intervalos frecuentes para controlar si la
misma está dañada.
5. Mantenga o reemplace las etiquetas de seguridad e
instrucciones según sea necesario.
6. Sea sumamente cuidadoso al manipular la gasolina. La
gasolina es altamente inflamable y los vapores son
explosivos. Se puede lesionar gravemente si derrama
gasolina sobre usted o sobre la ropa ya que se puede
encender. Lave la piel y cámbiese de ropa de inmediato.
a. Utilice sólo recipientes para gasolina autorizados.
b. Apague todos los cigarrillos, cigarros, pipas y
otras fuentes de combustión.
c. Nunca cargue combustible en la máquina en un
espacio cerrado.
d. Nunca saque la tapa del gas ni agregue
combustible mientras el motor está caliente o en
marcha.
e. Deje que el motor se enfríepor lo menosdos
minutos antes de volver a cargar combustible.
f. Nunca recargue el tanque de combustible. Llene
el tanque no más de 1/2 pulgada por debajo de la
base delcuello delfiltro para dejar espacio para la
dilatación del combustible.
g. Vuelva a colocar la tapa de la gasolina y ajústela
bien.
h. Limpie la gasolina derramada sobre el motor y el
equipo. Traslade la máquina a otra zona. Espere
5 minutos antes de encender el motor.
i. Nunca almacene la máquina o el recipiente de
combustible en un espacio cerrado donde haya
fuego, chispaso luzpiloto (por ejemplo,hornos,
calentadoresdeagua,calefactores,secadoresde
ropa, etc.)
j. Para reducir el riesgo de incendio mantenga la
máquina limpia de pasto, hojas y de acumulación
de otros escombros. Limpie los derrames de
