Yard Works YW1000DW User manual

0911
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions
for future reference.
Instruction Manual
1000W Dirty Water Submersible Pump
Model: YW1000DW

TABLE OF CONTENTS
WARRANTY……………………………………………
INTRODUCTION………………………………………
SPECIFICATIONS………………………………………
KNOW YOUR PRODUCT ……………………………….
PACK CONTENTS………………………………………
FITTINGS AND TOOLS REQUIRED FOR INSTALLATION……….
ELECTRICAL SAFETY ………………………………….
DESCRIPTION OF SYMBOLS……………………………
GENERAL SAFETY INSTRUCTIONS……………………….
ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS…………
PREPARATION………………………………………..
SET-UP & INSTALLATION……………………………...
OPERATION………………………………………..…
MAINTENANCE ………………………………………
SPARE PARTS ……………………………………….
TROUBLESHOOTING ………………………………….
2
3
3
4
4
4
5
6
7
8
9
11
13
14
14
15
1

WARRANTY
YARDWORKS TWO YEARS LIMITED WARRANTY
Your YARDWORKS product is covered for a period of 2 years from the ORIGINAL date of purchase
and is intended for home use only.
The warranty covers faulty parts or workmanship.
The warranty is only made available by returning the product to your point of purchase with a
confirmed cash register receipt.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO RETURNING YOUR PRODUCT FOR
WARRANTY OR REPAIR PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY
QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
YARDWORKS. 1-23 Letcon Drive Bangholme, Victoria, Australia
2

INTRODUCTION
Congratulations on purchasing the YARDWORKS 1000W Dirty Water Submersible Pump.
We aim to provide quality products at an affordable price. Before using, it is most important that
you read and follow the instructions in this manual, even if you feel you are quite familiar with
this type of product.
This product has been designed for numerous water transfer applications.
These include draining flooded laundries, bathrooms, basements or garages, emptying rainwater
tanks, pools and spas, emptying garden ponds and transferring water for domestic irrigation.
Input Voltage: 230-240V~50Hz
Input Power: 1000W
Max. Immersion Depth: 8m
Max. Delivery Height: 9.5m
Max. Flow Rate: 15,000 litres/hour
Max. Particle Size: 35mm
Min. Water Depth: 70mm
Max. Water Temp: 35°C
Outlet Sizes: 25.4mm (1"), 32mm (11/4") inside diameter
Power Cable Length: 11m
IP Rating: IPX8
Weight: 6.5kg
SPECIFICATIONS
3
Height/ head (m)
Flow Rate (l/hr)

KNOW YOUR PRODUCT
1. Handle
2. Pump Housing
3. Universal Adaptor
4. L-Shape Connector
5. Suction Base
6. Float Switch
7. Float Switch Adjustor
8. Float Switch Cable
9. Power Cable
1 x Dirty water submersible pump (YW1000DW)
1 x L-shaped connector (2 x O-rings fitted)
1 x Universal adaptor
1 x Instruction manual
PACKED CONTENTS
4
1
3
4
7
6
8
Note: Recommended items below are not included and are readily available at your local Bunnings store.
Suitable hose/tube/piping
Hose clamp
Hack saw
Rope
FITTINGS AND TOOLS REQUIRED FOR INSTALLATION
5
2
9
WARNING! THIS PRODUCT IS NOT SUITABLE FOR USE WITH DRINKING (POTABLE) WATER.

ELECTRICAL SAFETY
WARNING! When using mains-powered equipment, basic safety precautions, including the following,
should always be followed to reduce risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this pump.
Save these instructions and other documents supplied with this pump for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Yardworks pumps are interchangeable for Australia and New Zealand.
This pump is earthed in accordance with AS/NZS 60335-2-41.
Note: The power outlet used for the water pump is recommended to be protected by a 30mA residual current device
or earth leakage circuit breaker.
If the power outlet is external, ensure that it is weather proof. If the supply cord is damaged, it must be replaced by
an electrician or a power tool repairer to avoid a hazard.
The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The
motor restarts automatically after it has cooled down.
Using an extension lead
Always use an approved extension lead suitable for the power input of this product. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable
for the power input of this product or which is damaged or defective may result in a risk of fire and electric shock.
5

DESCRIPTION OF SYMBOLS
V Volts Hz Hertz
~
Alternating current WWatts
/minRevolutions or
n oNoload speed
reciprocation per minute
l Litres ºC Degrees celsius
p/hrPer hour kPa Pressure rating (kilopascals)
bar Pressure rating FInsulation class
PVC Polyvinyl chloride IPX8 Ingress protection from water
Regulator compliance mark Warning
Read instruction manual
6

GENERAL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Pumps create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a pump. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Pump plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) pumps. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord
away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
d) When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a pump. Do not use a
pump while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating pumps may result in serious personal injury.
b) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying pumps
with your finger on the switch or plugging in pumps that have the switch on invites accidents.
c) Remove any adjusting key or wrench before turning the pump on. A wrench or a key left attached to a
rotating part of the pump may result in personal injury.
d) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
4) PUMP USE AND CARE
a) Disconnect the plug from the power source before making any adjustments, changing accessories,
or storing pumps. Such preventive safety measures reduce the risk of starting the pump accidentally.
b) Maintain pumps. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the pumps operation. If damaged, have the pump repaired before
use. Many accidents are caused by poorly maintained pumps.
c) Use the pump, accessories and tool bits etc., in accordance with these instructions and in the
manner intended for the particular type of pump, taking into account the working conditions and the
work to be performed. Use of the pump for operations different from intended could result in a hazardous
situation.
5) SERVICE
a) Have your pump serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the pump is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
7

ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS
Caution: If operating a pump in a swimming pool or spa, the pump must not be used when people are in the water
and the use of a residual current device (RCD) protected supply is required.
WARNING! This product is intended for pumping water in a Home Domestic application. Do not use it for
corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will damage the water pump
and/or create a fire hazard.
This appliance is not intended for use by person (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
•Ensure the water pump is disconnected from mains power when installing.
•Do not install or operate the water pump in an explosive environment or near flammable material.
•Do not operate the water pump without liquid.
•Do not run the water pump dry.
WARNING! The water pump together with associated pipework operate under pressure. Do not disconnect
water pump or pipework until internal pressure has been released. Failure to do this could result in
personal injury and damage to property.
•Avoid inserting hands into the inlets/outlets of the water pump while it is connected to mains power.
•Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged.
If the water pump is damaged, contact Yardworks customer service.
• The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs.
The motor restarts automatically after it has cooled down.
The pump must not be used when people are in the water.
Never work or perform maintenance on the pump without first making sure it has been disconnected from the
mains power.
Pollution of the liquid could occur due to leakage of lubricants.
Important: Avoid inserting hands into the mouth of the pump if it is connected to the mains.
The electrical connection must always be made in a dry area. Make sure that electrical connections are protected
from inundations.
Protect the plug and the power cable from heat, oil or sharp edges.
If damaged, The power cable must be replaced by a qualified electrician.
8

PREPARATION
WARNING! This product is intended for pumping water in a home domestic application. Do not use it
for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water may damage the water
pump and/or create a fire hazard.
WARNING! Disconnect the plug from the mains power prior to making any adjustments
or installation.
Your pump requires no assembly before use other than the connection of a suitable outlet hose (not supplied).
1. After removing the pump from its carton, check that the pump has not been damaged.
2. Unpack the contents.
Note: Use the handle (1) when lifting or moving the pump. Never hang the pump by
the power cable (10) (Fig. 1).
The pump can be used in either permanent applications or temporary
applications. In either application, the installation guidelines must be
followed.

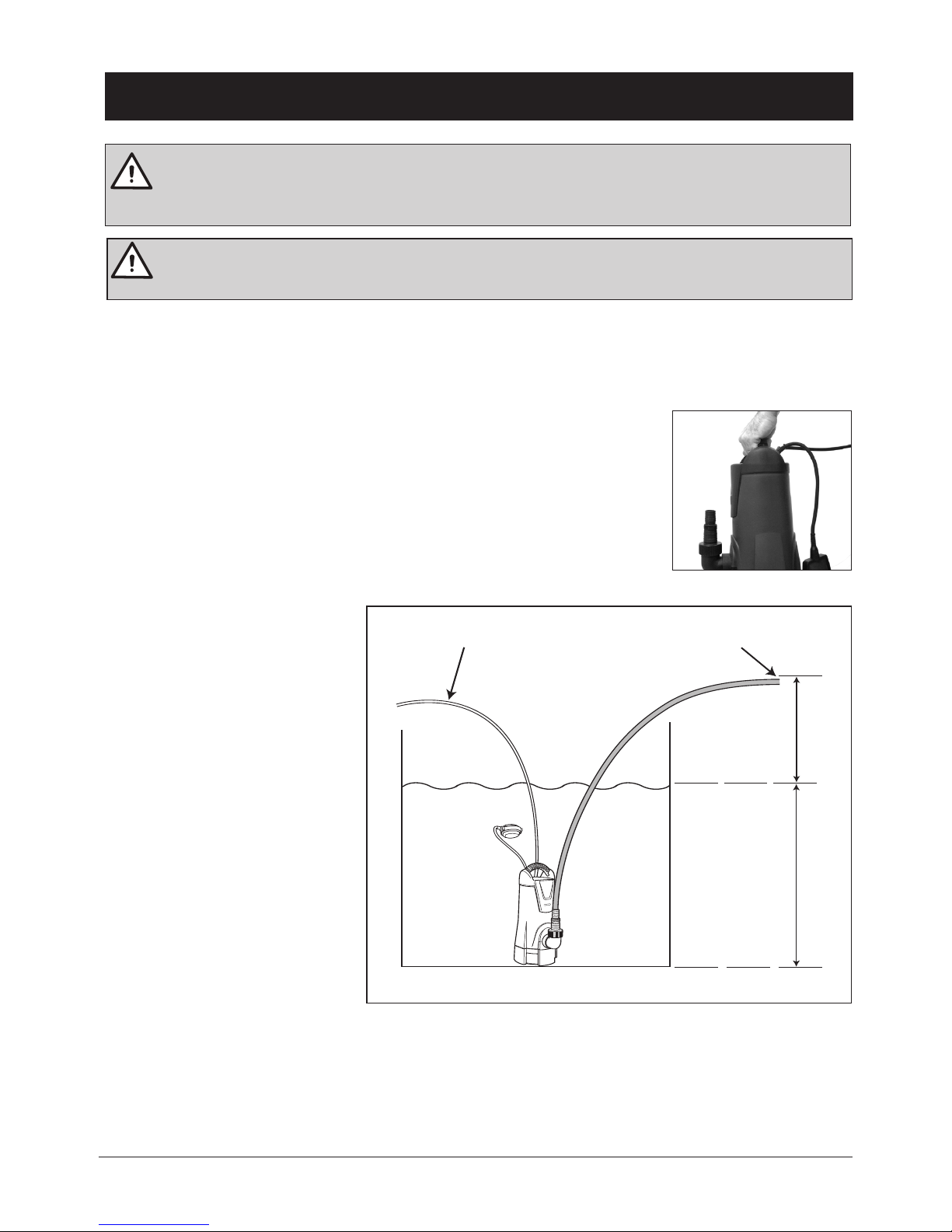

3. Ensure the distance from the
surface of the water to the
highest point that you wish to
deliver the water does not exceed
9.5m (Fig. 2).
4. Ensure that the pump is not
submerged deeper than 8m
(Fig. 2).
5. Ensure that the container is large
enough to allow the float switch
(6) to move freely and function
effectively (Fig. 2).
6. Ensure the pump is placed on a
flat and level surface and there
are no obstructions to the suction
base (5).
9
Float
Discharge point
Max.
Delivery
Height: 9.5m
Max.
Immersion
Depth: 8m
Water level
Pump
Water container
Power cable: 11m
Fig. 2
Fig. 1

PREPARATION (cont.)
10

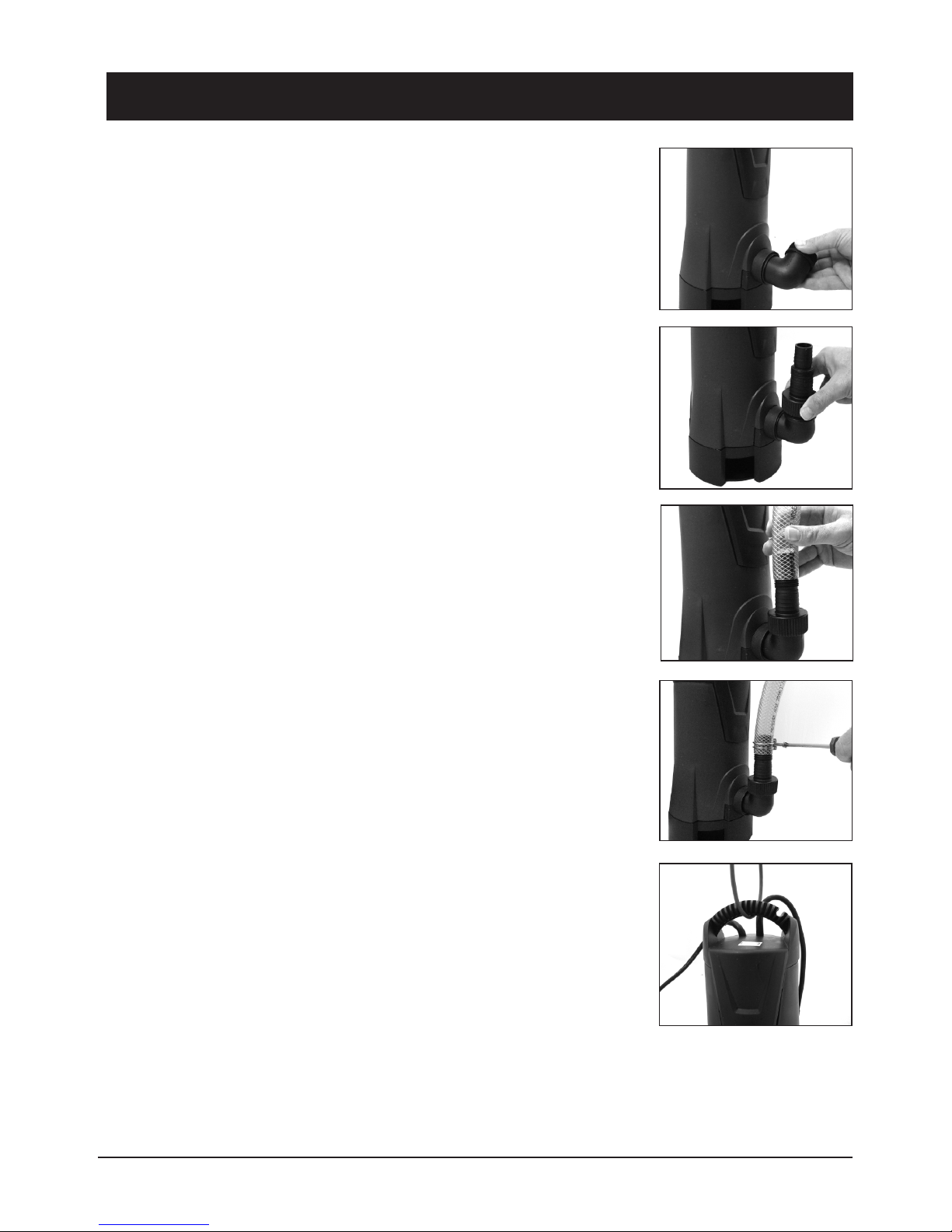

Preparing the Universal Adaptor
The universal adaptor (3) is designed to fit various sizes of pipes and fittings.
Prepare the universal adaptor (3) as required for the accessory, see options A, B
& C below. The universal adaptor (3) allows a range of different diameter
hose/tube to be fitted (Fig. 3).
1.To fit a 25.4mm (1’’) tap adaptor (temporary application only)
Cut the universal adaptor (3) using a hack saw (not included)
(Fig. 4). It is now ready to be fitted with a 25.4mm (1’’) tap
adaptor and flexible tubing (not included) (Fig. 5).
2. To fit a 25.4mm (1’’) or flexible tubing (temporary or
permanent application)
No cutting of the universal adaptor (3) is required (Fig. 6). It is
now ready to be fitted with a 25.4mm (1’’) rigid pipe or flexible
tubing (not included) (Fig. 7).
3. To fit a 32mm (11/4’’) or flexible tubing (temporary or
permanent application)
Cut the universal adaptor (3) using a hack saw (not included)
(Fig. 8). It is now ready to be fitted with a 32mm (11/4’’) rigid pipe
or flexible tubing (not included) (Fig. 9).
Note: To use the pump in permanent installations with rigid pipes,
install a non-return valve into the discharge hose to avoid the fluid
being re-circulated once the pump has stopped.
Note: After temporary applications, the pump should be cleaned with clean water after each use, see
"Maintenance" section for more information.
Fig. 3
25.4mm hose/tube
25.4mm tap adaptor
32mm hose/tube
Fig. 4 Fig. 5
Fig. 6 Fig. 7
Fig. 8 Fig.9

SET-UP & INSTALLATION
1. Screw the L-shape connector (4) into the pump housing (2) by rotating in a
clockwise direction (Fig. 10).
Note: Make sure the L-shape connector (4) is firmly tightened so that the
O-ring is compressed between the pump housing (2) and the L-shape connector
(4). This ensures no leakage will occur at this point.
2. Screw the prepared universal adaptor (3) clockwise onto the L-shape
connector (4) (hose/tube/tap adaptor should not be connected at this stage)
(Fig. 11).
Note: Make sure the universal adaptor (3) is firmly tightened so that the
O-ring of the L-shaped connector (4) is compressed between the universal adaptor
(3) and the L-shaped connector (4). This ensures no water or air leakage will occur
at this point.
3. Securely attach the hose/tube/tap adaptor (not included) to the universal
adaptor (3) (Fig. 12) (see the section "Preparing the Universal Adaptor").
Note: Due to the high water pressure generated by the pump it is recommended
to use a hose clamp (not included) when fitting a flexible hose or tube (available
from your local Bunnings Warehouse). This secures the hose or tube and further
prevents it from becoming removed from the universal adaptor (3) during operation
(Fig. 13).
Note: Before submerging the pump in water, unwrap the power cable (10)
and ensure the plug is clear of any damp locations.
4. To immerse the pump in deep water, use a rope (not included) and
secure it to the handle (1) (Fig. 14). Set the pump in the desired position
within the work area/tank.
Note: The vent valve (7) is used to allow air to escape from the pump body when
submerging the pump so no priming is required.
Fig. 10
Fig. 11
Fig. 13
11
Fig. 12
Fig. 14

SET-UP & INSTALLATION (cont.)
Adjusting The Float Switch
The float switch allows you to adjust the switching On and Off of the pump depending on the application
requirements. The float switch can also be set to ensure the pump continues to run.
Automatic Mode
In automatic mode float heights can be adjusted between max 500mm to 150mm. To
control the automatic switching On and Off of your pump at various water levels, simply
reduce or increase the length of the float switch cable (8) by inserting the cable into
the float switch adjustor (7) which is located on the side of the pump (Fig. 15).
Manual Mode
Caution: You must observe the pump at all times during manual mode. Prolonged use in manual mode may result
in a shorter motor life.
Set the float switch cable (8) up to the cable grommet/cable strain relief as close
as possible in the float switch adjustor (7) (Fig. 16).
To turn on: Simply lift up the float above horizontal to turn on. The pump will
now run in manual mode until the pump is manually turned off.
To turn off: Tilt the float below 30° and /or switch off at the power outlet.
12
Fig. 16
Fig. 15

1. When the float switch (6) is 30° higher than horizontal (start up level) or
above the handle (1), the pump will turn ‘on’ and operate (water depth of
530mm) (Fig. 17).
Attention: The pump runs as soon as the float switch (6) reaches the
start-up level.
2. When the float switch (6) is 30° lower than the horizontal or below the handle
(1), the pump will turn ‘off’ and will not operate (water depth of approximately
150mm) (Fig. 18). You can alternatively, manually turn the pump off at the
mains power.
Attention: If you wish to use the pump down to the minimum water depth of
70mm, the float switch (6) will need to be operated manually. The pump can be
manually turned “on” by lifting the float switch (6) to the required level.
Caution: You must observe the pump at all times when operating manually.
Note: If you manually turn the pump off, be aware of the location of your hose or tube (not included). If it is at a
lower point than the pump, the water will continue to ‘siphon’ out, unless a non-return valve (not included) is used
in the hose or tube and turned off.
Turning On and Off
1. Insert the plug into the mains power socket (Fig. 19). Avoid using extension
cords as this can lead to a voltage drop which may cause power loss and
overheating.
2. Switch on the mains power to commence operation.
3. To cease operation, turn off the mains power. The pump will also stop
operation automatically once the float switch (6) reaches the minimum water
depth (150mm).
HINTS WHEN USING THE PUMP
1. The maximum pumping rate only occurs when using the largest diameter hose or tube possible, if smaller
diameter hoses or tubes are used, the rate will reduce relative to the size of the hose/tube. Try to use
discharge pipes which have a larger diameter than the discharge outlet.
2. Running the pump with no water flowing through leads to increased wear and is not recommended. The pump
must be immediately unplugged as soon as water stops flowing through.
The pump will automatically switch off in the event of overheating due to the built-in thermal overload
protector. After cooling down, the motor automatically switches on again.
3. When disconnecting the pump from the mains power supply, do not pull by the power cable (10). Using 3
fingers around the 3 pin power plug, gently pull and disconnect from the mains power.
13
OPERATION
Fig. 17
Fig. 18
Fig. 19

MAINTENANCE
In ordinary conditions, the pump does not require any maintenance.
Make sure the pump is disconnected from electric power supply before performing maintenance procedures.
Cleaning the Pump Housing
Use a moist cloth to wipe down the pump housing (2). Allow to dry thoroughly before storing in a dry location that is
protected from bad weather conditions.
Cleaning the Suction Base
Gently hose down with low pressured water. Allow to dry thoroughly before storing.
Power Cable
For all submersible pumps, a H07RN-F cable is required to be fitted. Contact Yardworks customer service for
suitable replacement cable.
Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to
order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
O-Ring (2 pack) SPYW1000DW-38
L-shaped Connector SPYW1000DW-39
Universal Adaptor SPYW1000DW-40
SPARE PARTS
14

TROUBLE SHOOTING
15
Problem Possible Cause Solution
The pump does not start, or
pump water
Pump is not connected to the mains power
supply
Check that the pump is connected to the mains
power supply
Float switch has not been activated, water level
too low
Manually raise the position of the float switch
Incorrect assembly leads to air and water
leakage in the discharge lines
Ensure the discharge lines are the correct length
and all assembly instructions are adhered to
The thermal overload protection is activated Wait for the motor to cool and it will
automatically start operation
The motor is damaged Contact Yardworks customer service
The pump does not supply
water when the motor is
running
The suction base is obstructed/blocked Clean the suction base of any foreign matter and
debris
Air lock in the hose/tube and/or
pump (air bubbles)
Perform several start-ups in order to remove all
the air or lift and tilt the pump slightly while the
pump is running
Discharge hose/tube (not included) is kinked
or damaged
Un-kink the discharge hose/tube. Or replace
hose/tube
The pump flow rate is
reduced
The suction base is partially obstructed/blocked Clean the suction base of any foreign matter
and debris
The hose/tube is obstructed Remove the obstructions
Pump will not turn off, even
though the water level is low
The float switch is stuck in the “on” position Ensure that the float switch is free to operate
normally. Contact Yardworks customer service if
the problem still occurs
Hose/tube does not stay on
the universal adaptor when
water is travelling through
The hose/tube is slightly wider than the
dimension of the universal adaptor
An adhesive can be used insidethe hose/tube to
prevent this or teflon tape can be fixed around the
universal adaptor or a hose clamp can be used
(Fig. 13)
Air leak in the suction line or joints Check the suction line connections for air leaks
and tighten or fix where found
The pump operates
intermittently
The suction base is obstructed/blocked Clean the suction base of any foreign matter and
debris
Incorrect voltage is being used Ensure the pump is connected into 230-240V
power supply
The fluid contains particles thicker than 35mm Ensure the pump is not being used with particles
thicker than 35mm.
The motor is faulty or damaged Contact Yardworks customer service
The temperature of the fluid is too high Ensure that maximum permissible water
temperature (35°C) is not exceeded
Water level is below 70mm Ensure the water level is above 70mm
