Yardistry YM12973 User manual

BACKYARD PAVILION
Installaon and Operang Instrucons – YM12973
Revised 11-11-2020
Y40000-973
HEIGHT:
2.692 m / 8’ 10”
"8'- 1
2
5'-9"
1
7'-0"
Plinth to Plinth
2
6'- "
Post to Post
Post to Post
"5'-4 8
5
Post to Post
"7'-8 2
1
4'-6 5
8"
Plinth to Plinth
8‘
2.438 m
5’ 8-9/16”
1.742 m
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
[e-mail]
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken

2 [email protected]
Important Safety Notice!
Yardistry components are intended for privacy, decorative and ornamental use only.
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT ame retardant and will burn. Grills, re pits and chimineas are a re hazard if
placed too close to a Yardistry structure. Consult user’s manual of the grill, re pit or chiminea
for safe distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use OSHA
approved safety glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
During assembly it is important to closely follow the instructions. Complete the assembly
on a solid, level surface and follow the instructions to square up, level and anchor the structure.
This will reduce the gaps at wood connections during assembly.
General Information
General Information: Wood components are manufactured with Cedar (C. Lanceolata)
which is protected with factory applied water-based stain. Knots, small checks (cracks)
and weathering are naturally occurring and do not a󰀨ect the strength of the product.
Annual application of a water-based water repellent sealant or stain is important and will
help reduce weathering and checks.
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(excl. holidays)
(For extended hours see our website)
English and French Spoken
Questions?
Call toll free or write us at:
1 [phone]
[email protected]
Patents Pending

3 [email protected]
July 27, 2018
Limited Warranty
This Warranty gives you specic legal rights. You may have other rights as well which vary from state to state
or province to province. This warranty excludes all consequential damages, however, some states/provinces
do not allow the limitation or exclusion of consequential damages, and therefore this limitation may not apply
to you.
Yardistry warrants that this product is free from defect in materials and workmanship for a
period of one (1) year from the original date of purchase. In addition, for any product with
lumber, all lumber is warranted for ve (5) years against rot and decay. This warranty applies
to the original owner and registrant and is non-transferable.
Regular maintenance is required to assure the integrity of your product and is a requirement of
the warranty. This warranty does not cover any inspection costs.
This Limited Warranty does not cover:
• Labour for replacement of any defective item(s);
• Incidental or consequential damages;
• Cosmetic defects which do not a󰀨ect performance or integrity;
• Vandalism; improper use or installation; acts of nature, including but not limited to wind,
storms, hail, oods, excessive water exposure;
• Minor twisting, warping, checking or any other natural occurring properties of wood that do
not a󰀨ect performance or integrity.
Yardistry products have been designed for safety and quality. Any modications made to
the original product could damage the structural integrity of the product leading to failure
and possible injury. Yardistry cannot assume any responsibility for modied products.
Furthermore, modication voids any and all warranties.
This product is warranted for RESIDENTIAL USE ONLY. Yardistry disclaims all other
representations and warranties of any kind, express or implied.

4 [email protected]
Instructions for Proper Maintenance
Your Yardistry structure is designed and constructed of quality materials. As with all outdoor
products it will weather and wear. To maximize the enjoyment, safety and life of your structure
it is important that you, the owner, properly maintain it.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
If you dispose of your Yardistry structure: Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
HARDWARE:
• Check metal parts for rust. If found, sand and repaint using a non-lead paint complying
with 16 CFR 1303.
• Inspect and tighten all hardware after completion of assembly; after rst month of use; and
then annually. Do not over-tighten as to cause crushing and splintering of wood.
• Check for sharp edges or protruding screw threads, add washers if required.
WOOD PARTS:
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• #2 Phillips Bit or Screwdriver
• 7/16” & 9/16” Wrench
Assembly Guides
• Hard Hat
• Safety Glasses
• Adult Helper
• Safety Gloves
Tools Required:
• Use Help, where this is shown, 2, 3 or 4
people are required to safely complete
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• Pre-drill a pilot hole before fastening
screw or lag to prevent splitting of wood.
• 6’ Step Ladder x 2
• Square
• Ratchet
• 7/16, 1/2 & 9/16 Socket

5 [email protected]
Following are some helpful tips to make the assembly process smooth and e󰀩cient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and at surface such as, a table or saw horse.
• Keep all connections ush where shown in the instructions.
• When assembling the beams keep parts at, straight and snug when
connecting.
METAL PARTS:
• Roong material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roong material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roong screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roong screws so
they sit snug and tight to the roong material.
Assembly Tips

6 [email protected]
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the exibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.

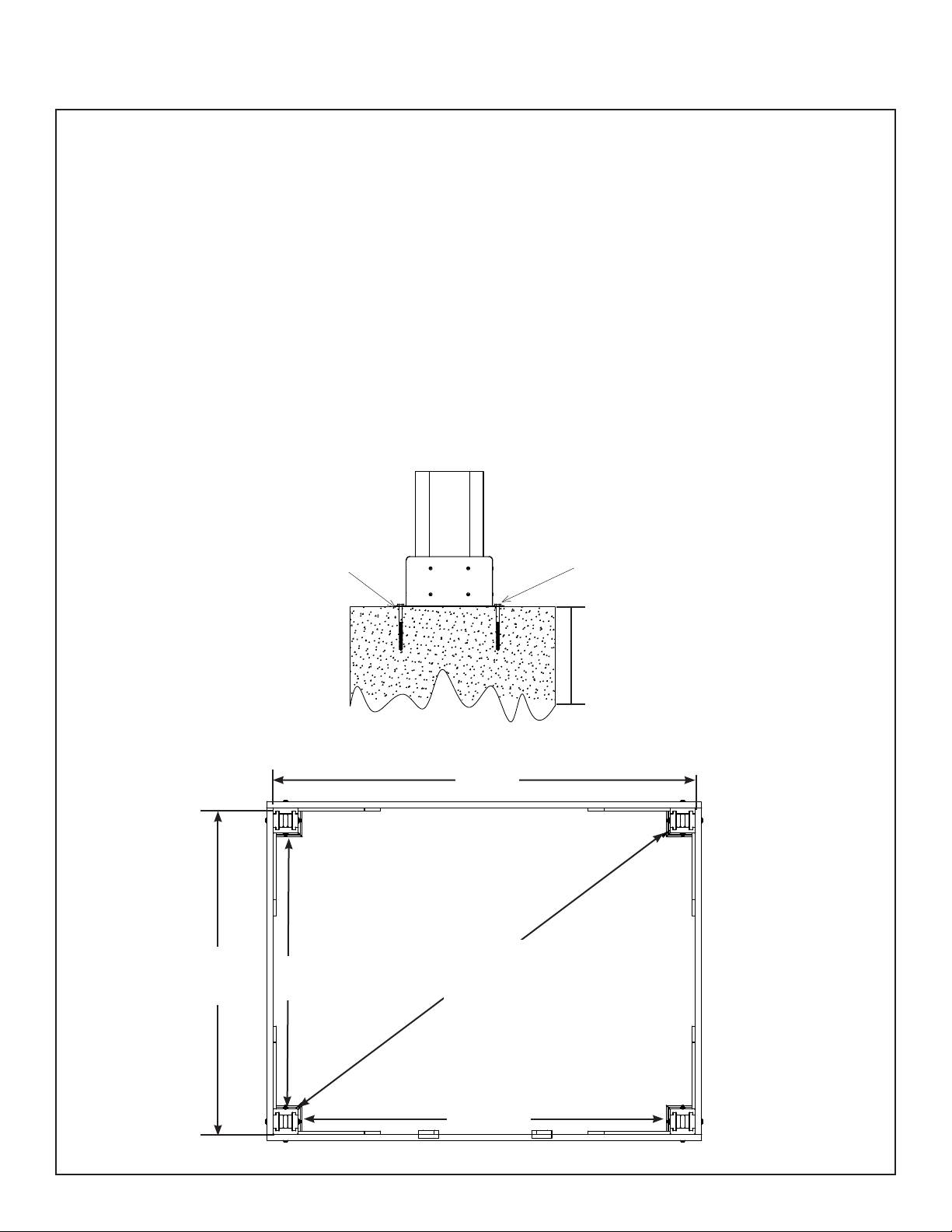

Permanent Installation Examples
Concrete Footer
To
Required
Depth
Anchoring Hardware not included
Post Mount
"8'- 1
2
5'-9"
1
7'-0"
Plinth to Plinth
2
6'- "
Post to Post
Post to Post
"5'-4 8
5
Post to Post
"7'-8 2
1
4'-6 5
8"
Plinth to Plinth
Post to Post Plinth to Plinth
Post to Post
Plinth to Plinth
Post to Post
5’ 4-5/8”
7’ 0”
6’ 1/2”
1.84 m
1.64 m
2.13 m
7’ 8-1/2”
2.35 m
4’ 5-1/2”
1.359 m

7 [email protected]

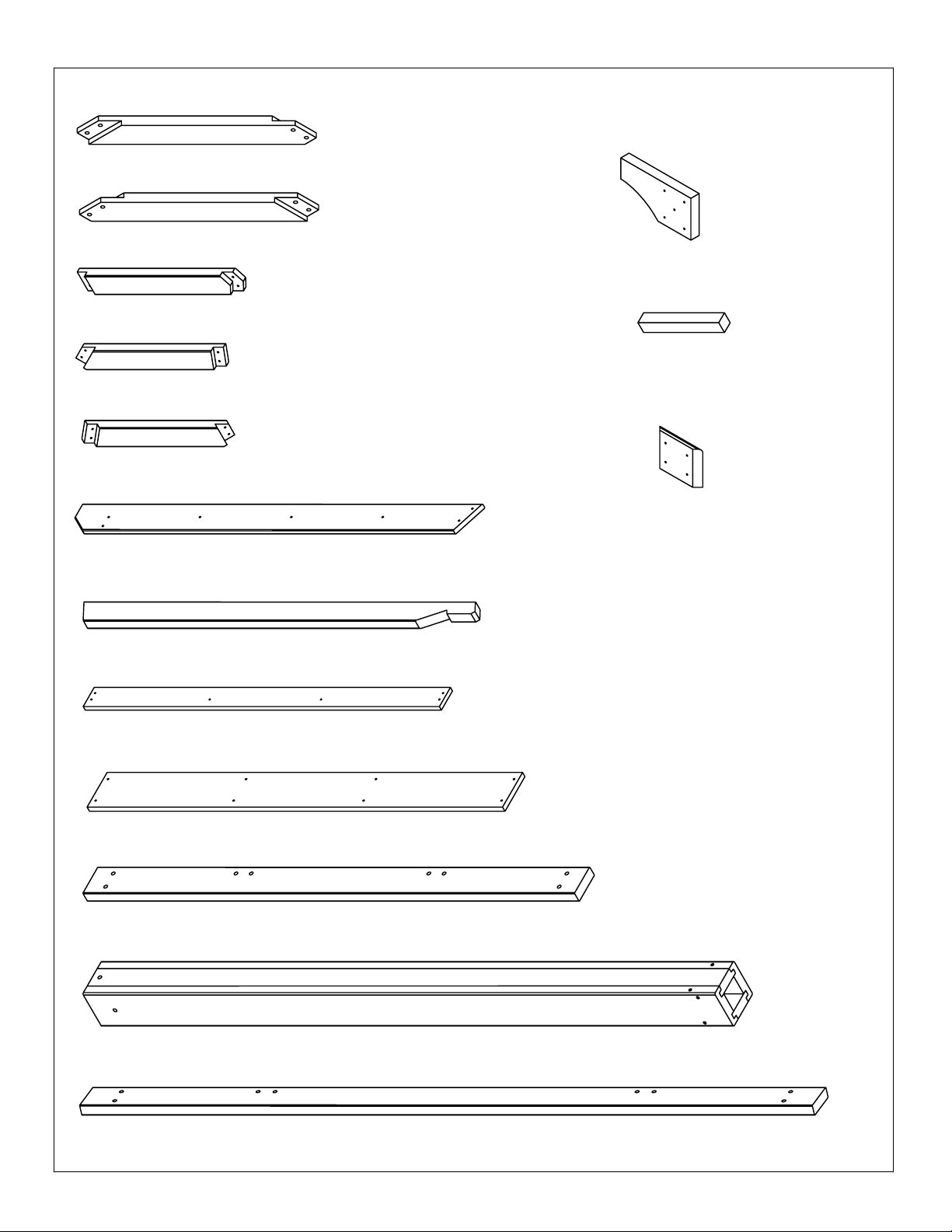

16pc. ( 802) - Plinth - 165mm (6-1/2") (Y50229-802)
4pc. ( 805) - Right Gusset - 651mm (25-5/8") (Y50229-805)
4pc. (806) - Left Gusset - 651mm (25-5/8") (Y50229-806)
4pc. (792) - Front Back Shelf - 1385.9mm (54-9/16") (Y50229-792)
4pc. (793) - Shelf Gusset - 269.7mm (10-5/8") (Y50229-793)
4pc. (794) - Shelf Joist - 269.7mm (10-5/8") (Y50229-794)
4pc. ( 877) - Rafter-1323.5mm (52-1/8") (Y50229-877)
4pc. (801) - Fascia - 1345mm (52-15/16") (Y50229-801)
2pc. (879) - Left Gable Upright - 512.8mm (20-3/16") (Y50229-879)
2pc. ( 881) - Center Gable Upright - 535.3mm (21-1/16") (Y50229-881)
2pc. (880) - Right Gable Upright - 512.8mm (20-3/16") (Y50229-880)
4pc. ( 795) - Shelf Top - 1385.9mm (54-9/16") (Y50229-795)
2pc. (797) - Side Beam - 1640mm (64-9/16") (Y50229-797)
4pc. (788) - Post - 2108.2mm (83") (Y70229-788)
2pc. (796) - Front Back Beam - 2197mm (86-1/2") (Y50229-796)
Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.

8 [email protected]
1pc.
Gazebo ID Plaque
(Y70800-104)
1pc. Ridge Cap (Y01030-251)
2pc. Roof Edge 67 (Y01030-254)
4pc. Corner
Bracket
(Y00419-160)
4pc. Main Panel (5 x 8) (Y01030-250)
1pc. Roof Rafter (8 pk) (Y70829-283)
1pc. Roof Strap (6 pk) (Y70829-284)
1pc. Truss
Bracket (4 pk)
(Y70829-282)
1pc. Steel Rafter to Beam
Bracket (4 pk)
(Y70829-285)
1pc. Roof Cap Bracket (8 pk)
(Y70829-286)
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.
Hardware Identification ( )

9 [email protected]
1pc. #2 x 2" Robertson Driver (Y00400-005)
1pc. - 1/8" Drill Bit
(Y00400-002)
8pc. - 3/8" Lock Nut
(Y08318-803)
16pc. 5/16 - T-Nut
(Y08518-300)
8pc. Pan Screw #10 x 1-1/4" (Y06491-711)
16pc. 5/16" Lock Washer
(Y05318-300)
16pc. Hex Bolt 5/16 x 2" - (Y07718-320)
16pc. Hex Roofing Screw with rubber washer #8 x 1"
(Y06730-510)
20pc. Wood Screw #8 x 2-1/4" - (Y06091-521)
172pc. Wood Screw #8 x 1-1/2 (Y06091-512)
36pc. - 1/4" Lock Nut
(Y08318-203)
40pc. 1/4-5/16 x 1-1/4" Large Washer
(Y05118-311)
16pc. 3/8 x 1-1/4" Large Washer
(Y05118-811)
8pc. Hex Bolt 3/8 x
7" (Y07718-870)
24pc. Lag Screw (1/4" Shank) 5/16 x 3" - (Y06218-330)
1pc. Hex Roofing Screw Driver (Y00400-004)
8pc. Pan Screw #10 x 2-1/2" (Y06491-722)
44pc. Self Tapping Roofing Screw with rubber washer #8 x 7/8"
(Y06930-505)
24pc. - 1/4" x 5/8" Flathead Bolt
(Y06018-208)
12pc. - 1/4" x 5/8" Pan Bolt
(Y07418-208)
16pc. Pan Screw #12 x 2" (Y06418-620)
Hardware Identification ( )
Dimensions are approximate and are shown to assist in the identification of
parts for assembly. Actual dimensions may be smaller or larger.

10 [email protected]
PRODUCT NUMBER: YM12973
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2)
CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 3)
STOP STOPSTOP STOP
1-888-509-4382
[email protected]
C. Read the assembly manual completely, paying special attention to ANSI warnings;
notes; and safety/maintenance information on pages 1 - 4.
• Follow the instructions in order.
• This structure is designed to be assembled and installed ideally by four people,
DO NOT attempt to install alone.
• Consider the slope of elevation where you plan to install the structure. Also, check for
gas, telephone, other utilities or sprinkler line locations prior to excavating any holes.
D. Before you discard your cartons ll out the form below.
• The carton I.D. stamp is located on the end of each carton.
• Please retain this information for future reference. You will need this information if you
contact the Consumer Relations Department.
• Each step indicates which bolts and/or screws you will need for assembly, as well as
any at washers, lock washers, t-nuts or lock nuts.
A. This is the time for you to inventory all your hardware, wood and accessories,
referencing the parts identication sheets. This will assist you with your assembly.
Step 1: Inventory Parts - Read This Before Starting Assembly
B. If there are any missing or damaged pieces or you need assistance with
assembly please contact the consumer relations department directly. Call us
before going back to the store.

11 [email protected]

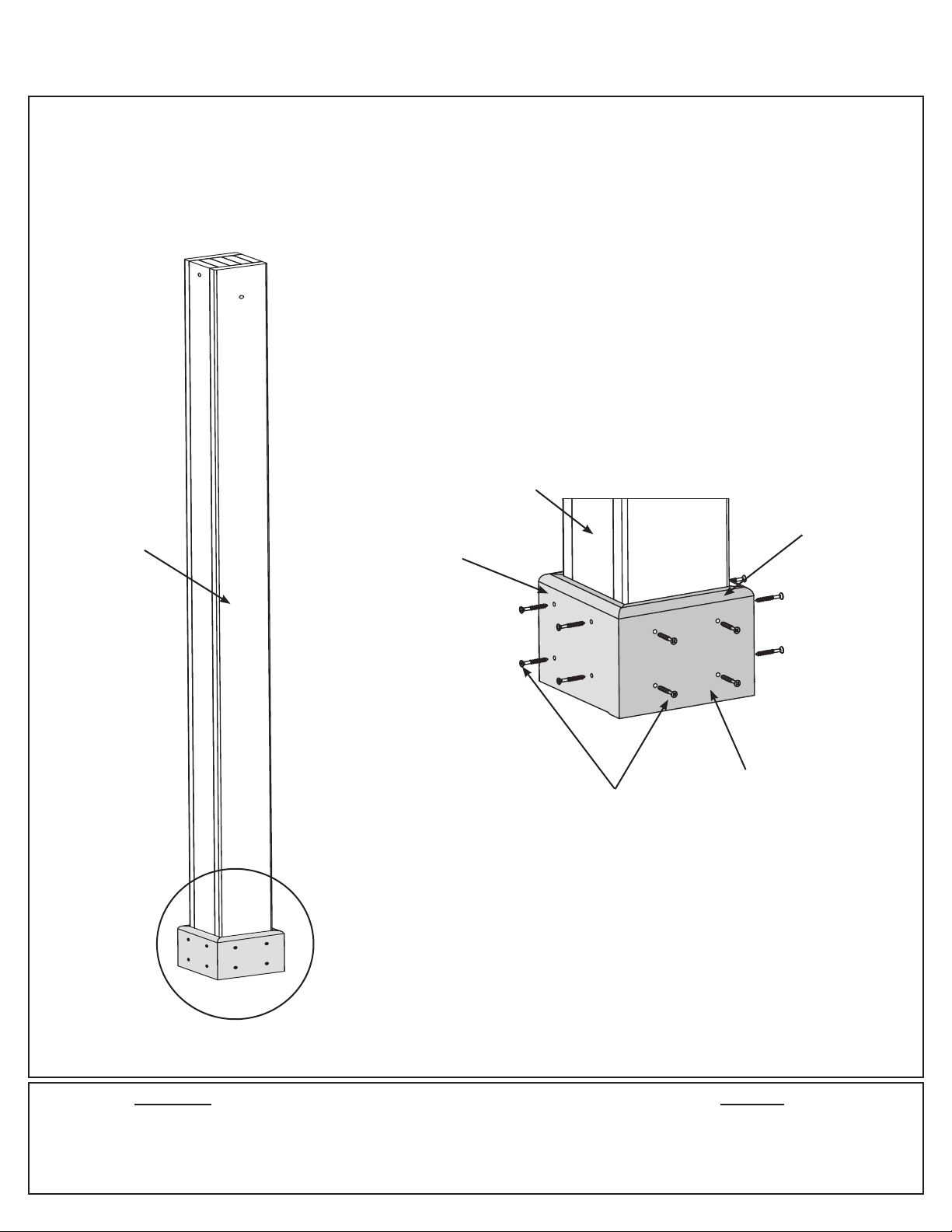

A: At the bottom of each (788) Post, on each side of the Posts, place one (802) Plinth ush to the bottom and
attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.1 and F2.2)
Note: There will be four Post Assemblies.
Step 2: Post Assemblies
HardwareWood Parts
F2.2
(802)
Plinth
4 x (788) Post
16 x (802) Plinth
Top
Bottom
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
64 x #8 x 1-1/2” Wood Screw
F2.1
(788)
Post
Rounded
Edge on Top
(788)
Post
11 [email protected]
(802)
Plinth

12 [email protected]
Step 3: Frame Assembly
F3.1
A: Move your Post Assemblies to the nal location. Make
sure the ground is at and level before continuing assembly.
B: With one person at each Post stand two complete Post
Assemblies. A third person places one (797) Side Beam
against the outside of two Posts, ush to the tops and outside
corners. Notice bolt hole orientation on the (797) Side Beam.
A fourth person attaches Beam to Post with one 3/8 x 7” Hex
Bolt (with two 3/8” large washers and one 3/8” lock nut), in
the top hole, per Post. Attach a second (797) Side Beam to
the two remaining Post Assemblies. The distance from the
outside of one Post to the outside of the second Post should
be 5’ 4-5/8” (1.64 m). (F3.1, F3.2 and F3.3)
C: Place one (796) Front Back Beam against the outside of
two Posts, ush to the tops and outside face of (797) Side
Beam. Notice bolt hole orientation on (796) Front Back
Beam. Attach Beam to Post with one 3/8 x 7” Hex Bolt (with
two 3/8” large washers and one 3/8” lock nut), in the bottom
hole, per Post. Attach a second (796) Front Back Beam to
the opposite side. The distance from the outside of one Post
to the outside of the second Post should be 7’ (2.13 m) (F3.1
and F3.2) See F3.3 for accurate positioning of Posts. F3.2
Hardware
8 x 3/8 x 7” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Note use
bottom
hole
F3.3
3/8” Large
Washer
3/8” Large
Washer
3/8 x 7”
Hex Bolt
3/8 x 7”
Hex Bolt
Post Assembly
Note use
top hole
Note hole
orientation (on
bottom)
Post
Assembly
Plinth
(796) Front
Back Beam
(797) Side
Beam
(796) Front
Back Beam
(797) Side
Beam
Post
Assembly
Post
Assembly
3/8” Large
Washer
3/8” Lock
Nut
3/8” Lock
Nut
(796) Front
Back Beam
(797) Side
Beam
Wood Parts
2 x (796) Front Back Beam
2 x (797) Side Beam
"8'- 1
2
5'-9"
1
7'-0"
Plinth to Plinth
2
6'- "
Post to Post
Post to Post
"5'-4 8
5
Post to Post
"7'-8 2
1
4'-6 5
8"
Plinth to Plinth
Post to Post Plinth to Plinth
5’ 4-5/8”
Post to Post
7’ 0”
Plinth to Plinth
6’ 1/2”
1.84 m
1.64 m
2.13 m
4’ 5-1/2”
1.359 m
7’ 8”
Post to Post
2.34 m

13 [email protected]
Note: The bevelled ends on each gusset
should always face away from the wood it
is attaching to.
A: Make sure the assembly is still square
and level then facing one (797) Side Beam
place one (805) Right Gusset on the right
hand side so the top ts tight to the (797)
Side Beam and the bottom ts tight to the
Post Assembly. Attach gusset to (797) Side
Beam with two 5/16 x 2” Hex Bolts (with 5/16”
lock washer, 1/4-5/16” large washer and 5/16”
t-nut). Pre-drill with a 1/8” drill bit then attach
gusset to Post Assembly with two 5/16 x 3”
Lag Screws (with 1/4-5/16” large washer).
Repeat for the left hand side with one (806)
Left Gusset. (F4.1 and F4.2)
B: Repeat Step A for (796) Front Back Beam.
(F4.1 and F4.2)
C: Repeat Steps A and B so all 8 gussets are
attached. (F4.1 and F4.2)
Step 4: Attach Gussets
F4.1
HardwareWood Parts
F4.2
Tight
Post
Assembly
5/16 x 3”
Lag Screw
5/16”
T-nut
5/16” Lock
Washer
1/4-5/16”
Large Washer
5/16 x 2”
Hex Bolt
5/16 x 2”
Hex Bolt
1/4-5/16”
Large Washer
1/4-5/16”
Large
Washer
5/16 x 3”
Lag Screw
(806) Left
Gusset
(805) Right
Gusset
4 x (805) Right Gusset
4 x (806) Left Gusset
(806) Left
Gusset
(805) Right
Gusset
16 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
16 x 5/16 x 2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(797) Side
Beam
(797) Side
Beam
(805) Right
Gusset
(806) Left
Gusset (805) Right
Gusset
(806) Left
Gusset
(796) Front
Back Beam
(796) Front
Back Beam
(806) Left
Gusset
(805)
Right
Gusset
5/16”
T-nut
(796) Front
Back Beam
(797) Side
Beam
5/16” Lock
Washer
1/4-5/16”
Large Washer

14 [email protected]
A: Attach (796) Front Back Beams and (797) Side Beams to Post Assemblies with two 5/16 x 3” Lag Screws
(with 1/4-5/16” large washer) per corner. (F5.1 and F5.2)
Hardware
8 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
1/4-5/16”
Large
Washer
5/16 x 3”
Lag Screw
5/16 x 3”
Lag Screw
F5.1
Post Assembly
1/4-5/16”
Large
Washer

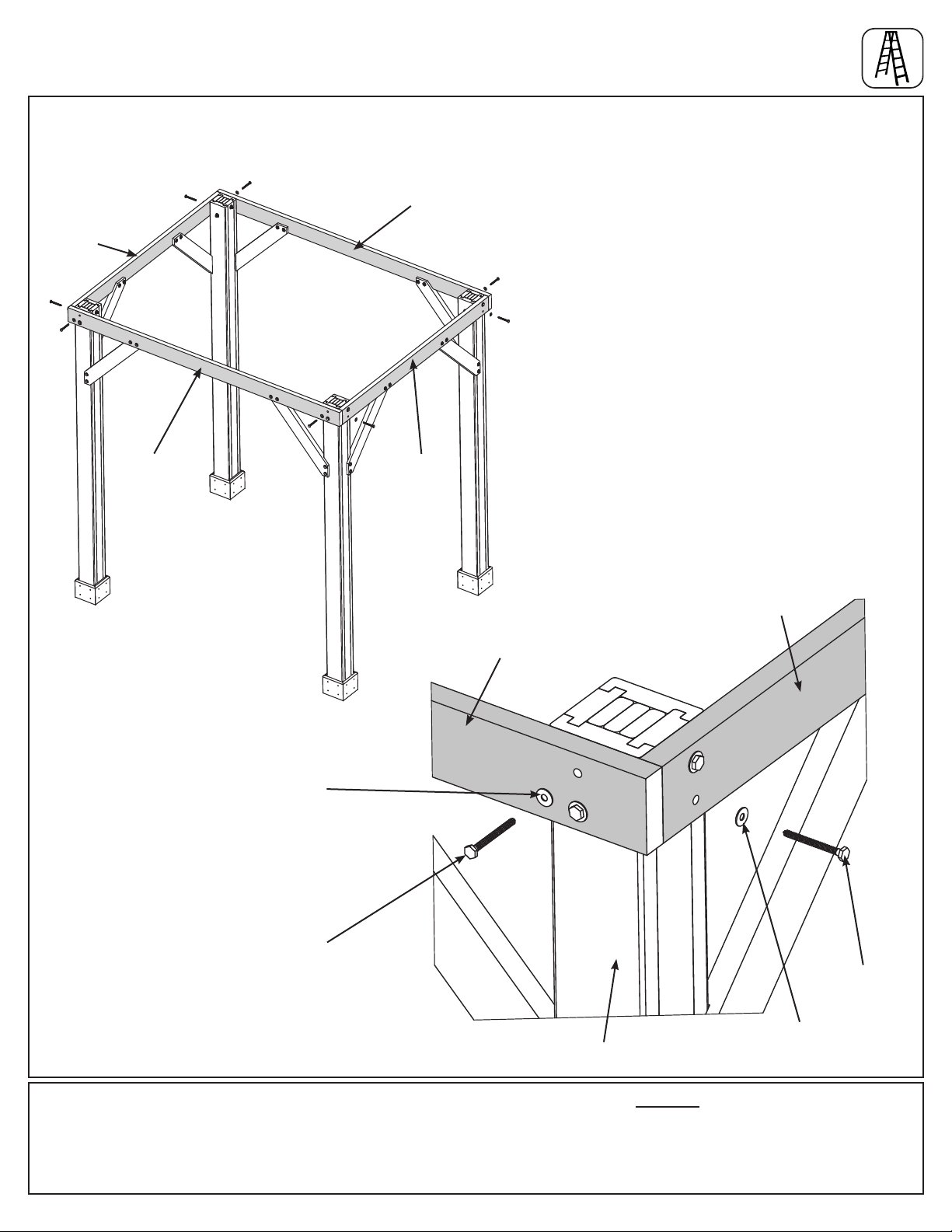

Step 5: Secure Frame Assembly
F5.2
(797) Side
Beam
(797) Side
Beam
(796) Front
Back Beam
(796) Front
Back Beam
(797) Side
Beam
(796) Front
Back Beam

15 [email protected]
Step 13 - Position Center Uprights 35-9/16" [1062mm] from post.
Measure from inside of post to inside of Upright. Fasten to front
and back beam with (2) #8 x 1-1/2 Wood Screws.
(2) 881-Center Upright
(4) Wood Screw-#8 x 1-1/2
Step 13 - Position Center Uprights 35-9/16" [1062mm] from post.
Measure from inside of post to inside of Upright. Fasten to front
and back beam with (2) #8 x 1-1/2 Wood Screws.
(2) 881-Center Upright
(4) Wood Screw-#8 x 1-1/2

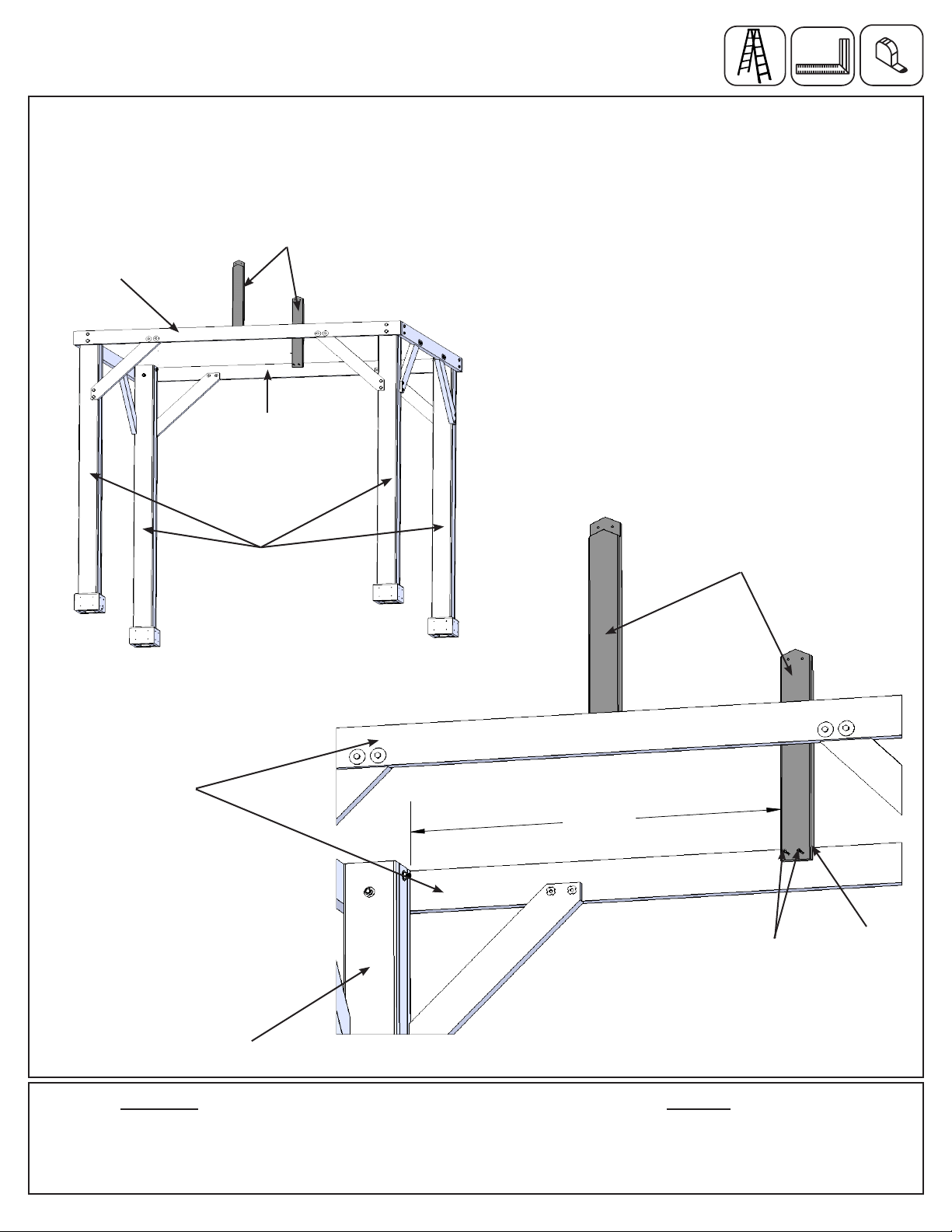

Step 6: Attach Uprights
F6.1
F6.2
HardwareWood Parts
2 x (881) Centre Gable Upright
A: From inside the frame measure 35-9/16” (90.3 cm) along one (796) Front Back Beam from inside the Post
Assembly then place one (881) Centre Gable Upright tight to top of (796) Front Back Beam, make sure it is
square then attach with two #8 x 1-1/2” Wood Screws. Repeat for other (796) Front Back Beam. (F6.1and F6.2)
4 x #8 x 1-1/2” Wood Screw
#8 x 1-1/2”
Wood Screw
Note: The Gable Uprights
may have to be adjusted
when roof is installed.
(796) Front
Back Beam
(796) Front
Back Beam
Post
Assembly
Post
Assembly
(796) Front
Back Beam
(881) Centre
Gable Upright
35-9/16”
(90.3 cm)
(881) Centre
Gable Upright
Tight

16 [email protected]
AA
AA
AC
Step 7: Roof Frame Assembly
Assemble Roof Straps to Rafters. Insert Cap bracket at angled end of Roof Strap & Rafter assembly.
Bolt at each connection.
(4) 823-Steel Roof Rafter
(3) 284-Steel Roof Strap
(18) 1/4" x 1/2" Flathead Bolt
(18) 1/4" Lock Nut
Make two assemblies.
AA
AA
AC
Step 7: Roof Frame Assembly
Assemble Roof Straps to Rafters. Insert Cap bracket at angled end of Roof Strap & Rafter assembly.
Bolt at each connection.
(4) 823-Steel Roof Rafter
(3) 284-Steel Roof Strap
(18) 1/4" x 1/2" Flathead Bolt
(18) 1/4" Lock Nut
Make two assemblies.
AA
AA
AC
Step 7: Roof Frame Assembly
Assemble Roof Straps to Rafters. Insert Cap bracket at angled end of Roof Strap & Rafter assembly.
Bolt at each connection.
(4) 823-Steel Roof Rafter
(3) 284-Steel Roof Strap
(18) 1/4" x 1/2" Flathead Bolt
(18) 1/4" Lock Nut
Make two assemblies.
AA
AA
AC
Step 7: Roof Frame Assembly
Assemble Roof Straps to Rafters. Insert Cap bracket at angled end of Roof Strap & Rafter assembly.
Bolt at each connection.
(4) 823-Steel Roof Rafter
(3) 284-Steel Roof Strap
(18) 1/4" x 1/2" Flathead Bolt
(18) 1/4" Lock Nut
Make two assemblies.
Hardware
F7.1
24 x 1/4 x 5/8” Flathead Bolt (1/4” Lock Nut)
F7.3
A: Lay out four Roof Rafters, on a hard at surface as shown in F7.1. Place three Roof Straps across Roof
Rafters so the holes line up. Attach botttom Roof Strap with four 1/4 x 5/8” Flathead Bolts (with 1/4” lock nut).
(F7.1 and F7.2)
B: At the angled end of each Roof Rafter place one Roof Cap Bracket. The top hole is for screwdriver access
only. Attach top Roof Strap to Roof Rafters and Roof Cap Brackets with four 1/4 x 5/8” Flathead Bolts (with 1/4”
lock nut). (F7.1, F7.3 and F7.4)
C: Attach middle Roof Strap with four 1/4 x 5/8” Flathead Bolts (with 1/4” lock nut). (F7.1 and F7.2)
D: Repeat Steps A - C for a second Roof Frame Assembly.
F7.2
Roof Rafter
F7.4
1/4 x 5/8”
Flathead Bolt
Bottom
Roof
Rafter
Roof Strap
Roof Strap
Roof Cap
Bracket
Top
1/4”
Lock
Nut
Step 7: Roof Frame Assembly
Part 1
Components:
8 x Roof Rafter
6 x Roof Strap
8 x Roof Cap Bracket
1/4 x 5/8”
Flathead Bolt
1/4”
Lock
Nut
This hole for
screwdriver
access only
Roof
Rafter
Roof
Strap
Roof Cap
Bracket
1/4 x 5/8”
Flathead Bolt

17 [email protected]
AM
Step 7: Roof Frame Assembly
Assemble Roof to Beam Brackets to middle Rafters.
(2) 285-Steel Rafter to Beam Bracket
(2) 1/4" x 1/2" Pan Bolt
(2) 1/4" Lock Nut
AM
Step 7: Roof Frame Assembly
Assemble Roof to Beam Brackets to middle Rafters.
(2) 285-Steel Rafter to Beam Bracket
(2) 1/4" x 1/2" Pan Bolt
(2) 1/4" Lock Nut
F7.6
D: At the bottom of each Roof Frame Assembly, on the two middle Roof Rafters, place one Rafter to Beam
Bracket underneath Roof Rafters and attach with one 1/4 x 5/8” Pan Bolt (with 1/4” lock nut) per bracket, as
shown in F7.5 and F7.6.
Roof
Rafter
F7.5
Bottom
Roof
Rafter
Rafter
to Beam
Bracket
Step 7: Roof Frame Assembly
Part 2
Hardware
4 x 1/4 x 5/8” Pan Bolt (1/4” Lock Nut)
Components:
4 x Rafter to Beam Bracket
Rafter
to Beam
Bracket
1/4 x 5/8”
Pan Bolt
1/4”
Lock
Nut
1/4 x 5/8”
Pan Bolt
1/4” Lock
Nut
Notice the angle
of the bracket is
towards the bottom
of the assembly.
Bottom

18 [email protected]
AK
AN

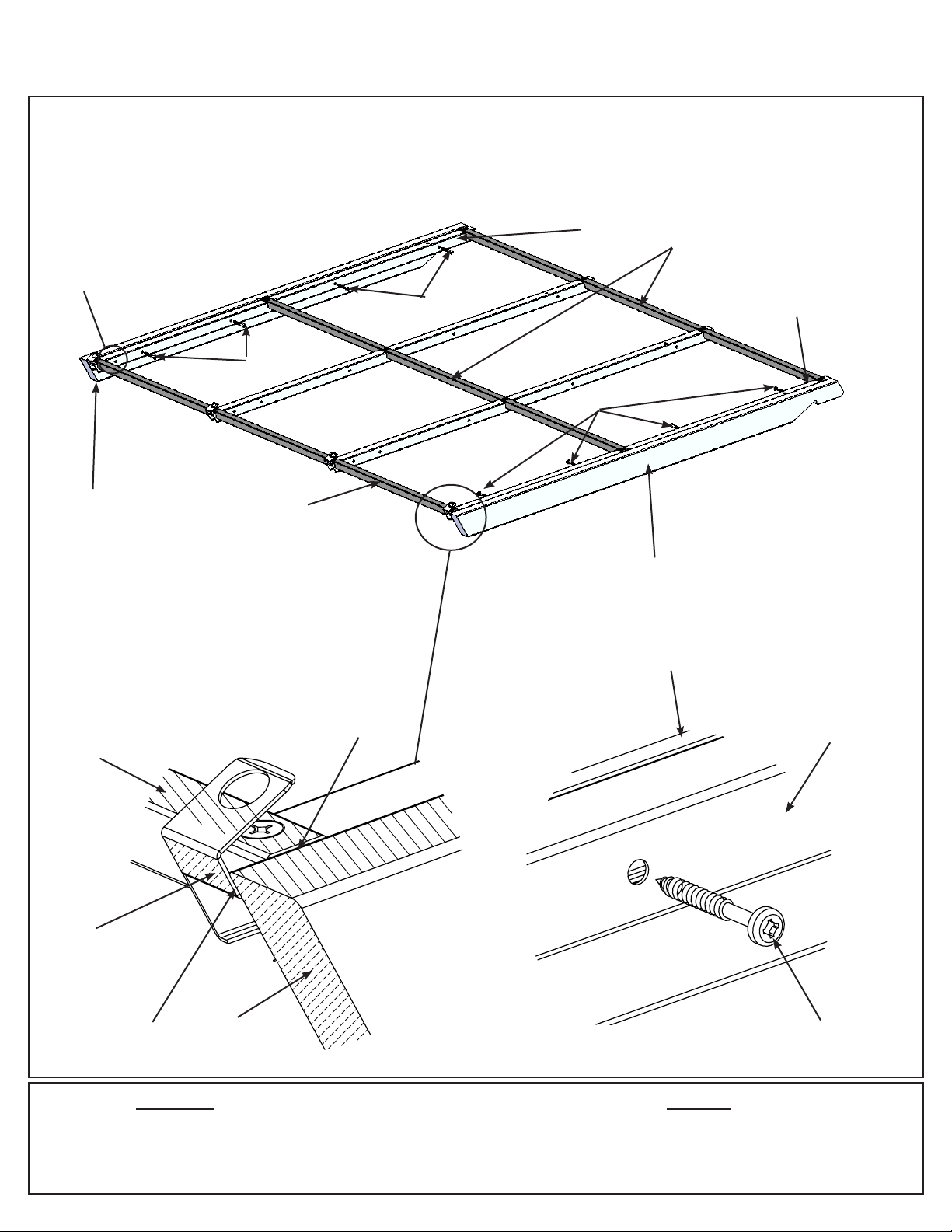

Step 8: Wood Rafter to Roof Frame Assembly
Fasten Wood Rafter to Frame. Hole at miter end of Steel Rafter is not used. Miter at top of Rafter is
flush with Roof Cap Bracket. Wood Rafter is flush with Steel Rafter
(2) 877-Rafter
(8) Pan Screw #10 x 2-1/2"
AK
AN
Step 8: Wood Rafter to Roof Frame Assembly
Fasten Wood Rafter to Frame. Hole at miter end of Steel Rafter is not used. Miter at top of Rafter is
flush with Roof Cap Bracket. Wood Rafter is flush with Steel Rafter
(2) 877-Rafter
(8) Pan Screw #10 x 2-1/2"
AK
AN
Step 8: Wood Rafter to Roof Frame Assembly
Fasten Wood Rafter to Frame. Hole at miter end of Steel Rafter is not used. Miter at top of Rafter is
flush with Roof Cap Bracket. Wood Rafter is flush with Steel Rafter
(2) 877-Rafter
(8) Pan Screw #10 x 2-1/2"
E: On each outside Roof Rafter attach one (877) Rafter with four #12 x 2” Pan Screws. Angle of (877) Rafters
to be ush to the angle of Roof Cap Brackets and ush to the tops of Roof Straps. Do not use the hole at the top
of the Roof Rafters. Complete for each Roof Frame. (F7.7, F7.8 and F7.9)
Step 7: Roof Frame Assembly
Part 3
HardwareWood Parts
4 x (877) Rafter 16 x #12 x 2” Pan Screw
#12 x 2”
Pan Screw
(877) Rafter
F7.7
F7.8
Inside View
Roof
Rafter
Roof
Rafter
Roof
Rafter
(877) Rafter
#12 x 2” Pan
Screw
#12 x 2” Pan
Screw
#12 x 2” Pan
Screw
Do not use
this hole
Roof Strap
Roof Strap
(877) Rafter F7.9
Roof Strap
Roof Cap
Bracket
(877)
Rafter
Flush
Flush

19 [email protected]
Step 7: Roof Frame Assembly
Part 4
F: Makes sure each Roof Frame Assembly is square. The diagonal distance between outside corners of (877)
Rafters is 84-7/16” (2.145 m). (F7.10)
Step 9: Check for square. Diagonals are same dimension (81-1/8")
F7.10
84-7/16”
(2.145 m)

20 [email protected]
INSTALLING ROOFING MATERIAL
CAUTION!
Roong material may have sharp edges! Wear gloves!
HANDLE WITH CARE!
Place roong material on a non-abrasive surface before assembly as it
can bend, dent and scratch easily.
WARNING – DO NOT OVER TIGHTEN ROOFING SCREWS!
Over tightening screws will cause roong material to crush.
The roong screws can easily crush the Roof Panels and Roof
Edges when using a power drill. We recommend hand tightening the
roong screws so that they sit snug and tight to the roong material.
STOP STOPSTOP STOP
Overtightened and Crushed Snug and Tight
X
