Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 1 of 10
SUMMARY
This Technical Tip provides an example set-up for a Yaskawa iQpump1000 drive and a
Seametrics AG2000 Flow Meter.
Features of this system example:
Display flow rate
Check for high or low flow rates and provide a digital output/alarm/fault
Display accumulation of flow over time (volume)
Provide a digital output/alarm/fault for high accumulation totals
Provide constant pressure system
Limit flow rate to 500 gallons per minute (GPM) to avoid pumping off the well
Limit accumulation to 100,000 gallons per day (GPD)

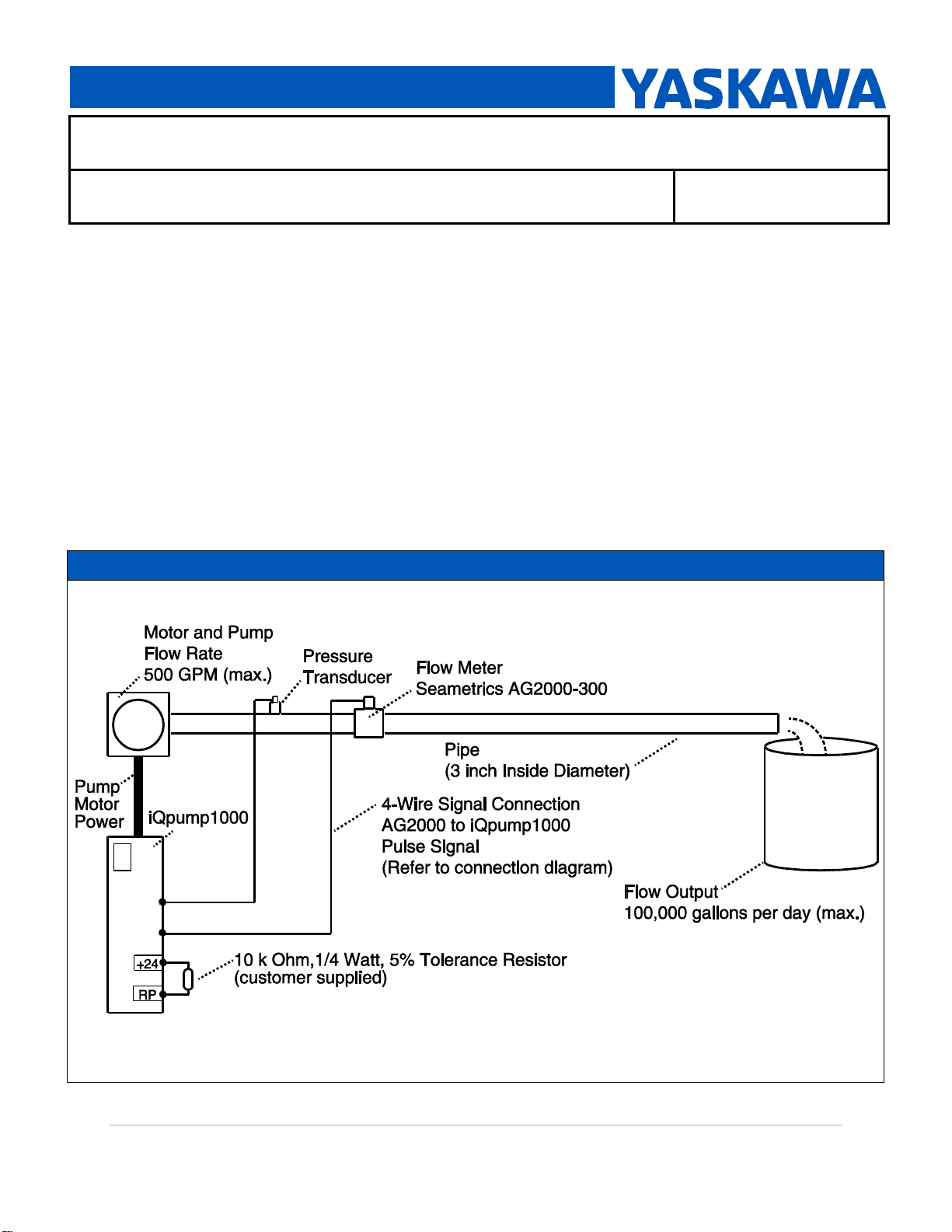

Figure 1: Example System Overview

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 2 of 10
SYSTEM COMPONENTS
Component
Description
iQpump1000 Drive
Available models:
CIMR-PWA 200 V Class: 3/4 to 175 HP ND
CIMR-PWA 400 V Class: 3/4 to 1000 HP ND
CIMR-PWA 600 V Class: 2 to 250 HP ND
Customer supplied
Flow Meter (Seametrics)
The flow meter displays flow rate and total accumulation.
Model: AG2000-300 (Magnetic Type) Flow Meter
(http://www.seametrics.com)
3 inch cross-section (I.D.)
25.228 pulses per gallon (PPG)
700 GPM capacity limit
Pressure transducer
Produces pressure feedback signal for a constant pressure
system
Pull-up Resistor
10 k Ohm 1/4 Watt 5% tolerance resistor
PROCEDURE
Warning ! - Electrical Shock Hazard. Do not allow unqualified personnel to perform work on the
drive. Installation, maintenance, inspection, and servicing must be performed by authorized
personnel familiar with installation, adjustment, and maintenance of AC drives Failure to comply
may result in electrocution.
Warning ! - Electrical Shock Hazard. Shut off the power supply to the drive before wiring the
main circuit terminals. The internal capacitor remains charged even after the power supply is
turned off. After shutting off the power, wait for at least the amount of time specified on the drive
before touching any components. Failure to comply may result in electrocution.
Warning ! - Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on.
Failure to comply may result in death or serious injury

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 3 of 10
PREREQUISITES (PRIOR TO PERFORMING THIS PROCEDURE)
Install the iQpump1000: Follow the instructions in TOEPYAIP1W02 iQpump1000
Installation & Start-up Guide provided in product packaging.
Mechanically install the Seametrics AG2000 flow meter according to manufacturer’s
instructions. Route shielded signal cable from the meter to the iQpump1000 I/O
terminals .
*Install pressure transducer if used.
*Configure pressure regulation function if used (Refer to iQpump1000 User Manual
TOEPYAIP1W01**, parameter A1-03=6008 Constant Pressure Mode)
Pre-charge function is enabled and functional (optional)
(Refer to iQpump1000 User Manual TOEPYAIP1W01**, parameters: P4-01, P4-02,
P4-03, P2-02)
Loss-of-Prime function is enabled and functional (optional)
(Refer to iQpump1000 User Manual TOEPYAIP1W01, parameters: P4-05, P4-08)
*Note: Required if constant pressure regulation is desired
**iQpump1000 User Manual Download URL:
https://www.yaskawa.com/links?type=documents&docnum=TOEPYAIP1W01&name=

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 4 of 10
STEP 1 –MAKE ELECTRICAL CONNECTIONS
1.1 Refer to Figure 2. Make electrical connections to the iQpump1000.

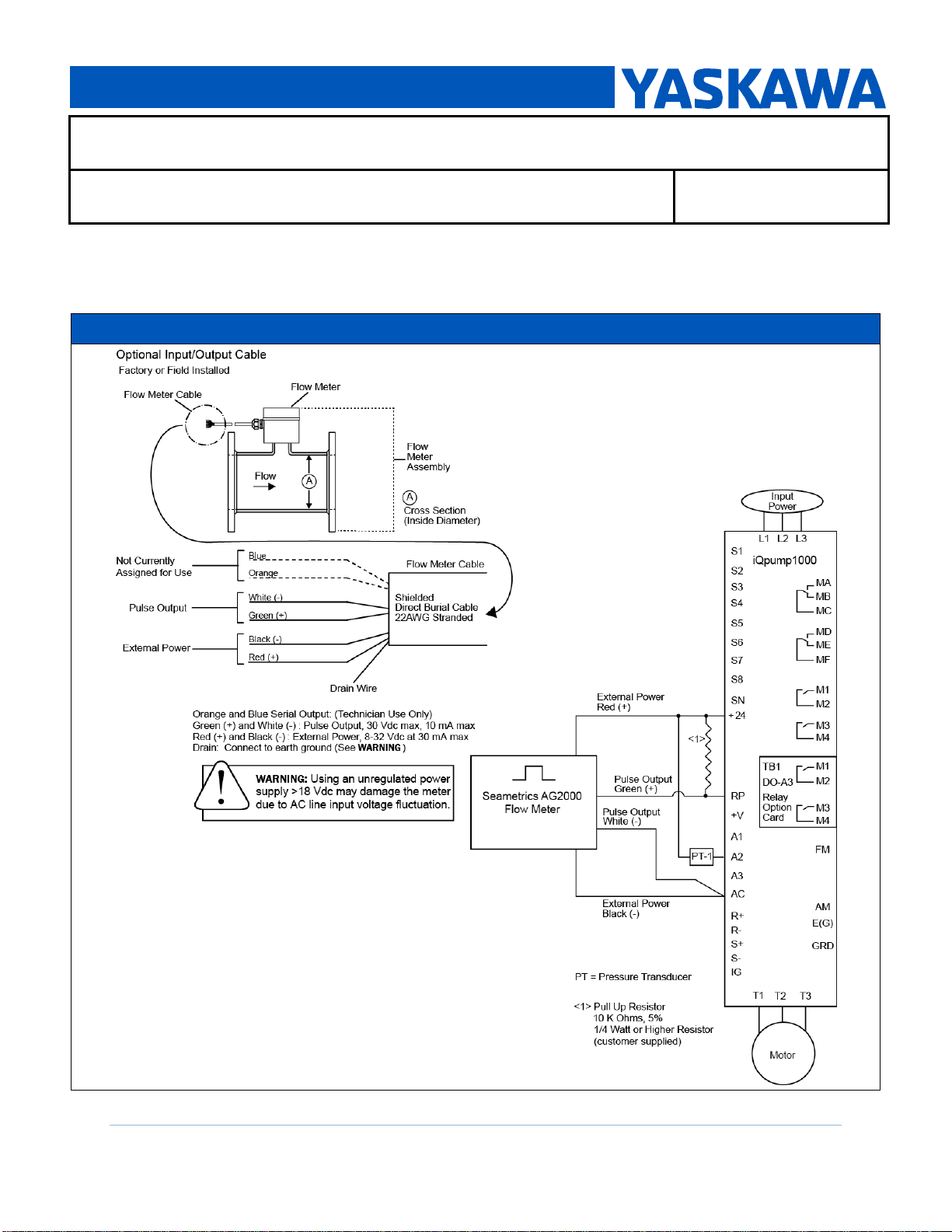

Figure 2: Connection Diagram

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 5 of 10
1.2 Install a pull-up resistor at iQpump1000 I/O terminals RP and 24V as shown in Figure 3.
The pulse train output of the Seametrics AG2000 Flow Meter is a “sinking” type that requires a
customer-supplied 10k Ohm resistor to condition the signal for the iQpump1000.
1.3 Re-install all covers on the iQpump1000.
1.4 Re-install the JVOP-183 digital operator on the iQpump1000 drive.
STEP 2 –VERIFY SIGNAL FROM FLOW METER TO IQPUMP1000
WARNING ! - Sudden Movement Hazard. Clear all personnel from the drive, motor, and machine
area before applying power. System may start unexpectedly upon application of power, causing
death or serious injury.
Preparation:
Prepare a digital multi-meter with a frequency counter function to measure a signal at
iQpump1000 I/O terminals AC to RP.
2.1 Energize the drive. The JVOP-183 digital operator should display: U1-01= 0.00 Hz.
2.2 Verify the pump is primed, and the system is prepared to receive flow.
Figure 3: iQpump1000 Control Terminal Arrangement with Pull-up Resistor Installed

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 6 of 10
WARNING ! - Sudden Movement Hazard. Clear all personnel from the drive, motor, and
machine area before applying power to prevent injury from unexpected motor rotation.
2.3 Start the iQpump1000 by pressing the HAND key on the JVOP-183. To set HAND SPEED,
press ENTER and adjust P5-02 to set the speed to a known safe operating speed.
2.4 View parameter U1-24 to verify that the RP terminal on the iQPump1000 is receiving a
signal from the AG2000 flow meter. Refer to Figure 4.
2.5 Measure the signal across I/O terminals AC and RP, Figure 4.

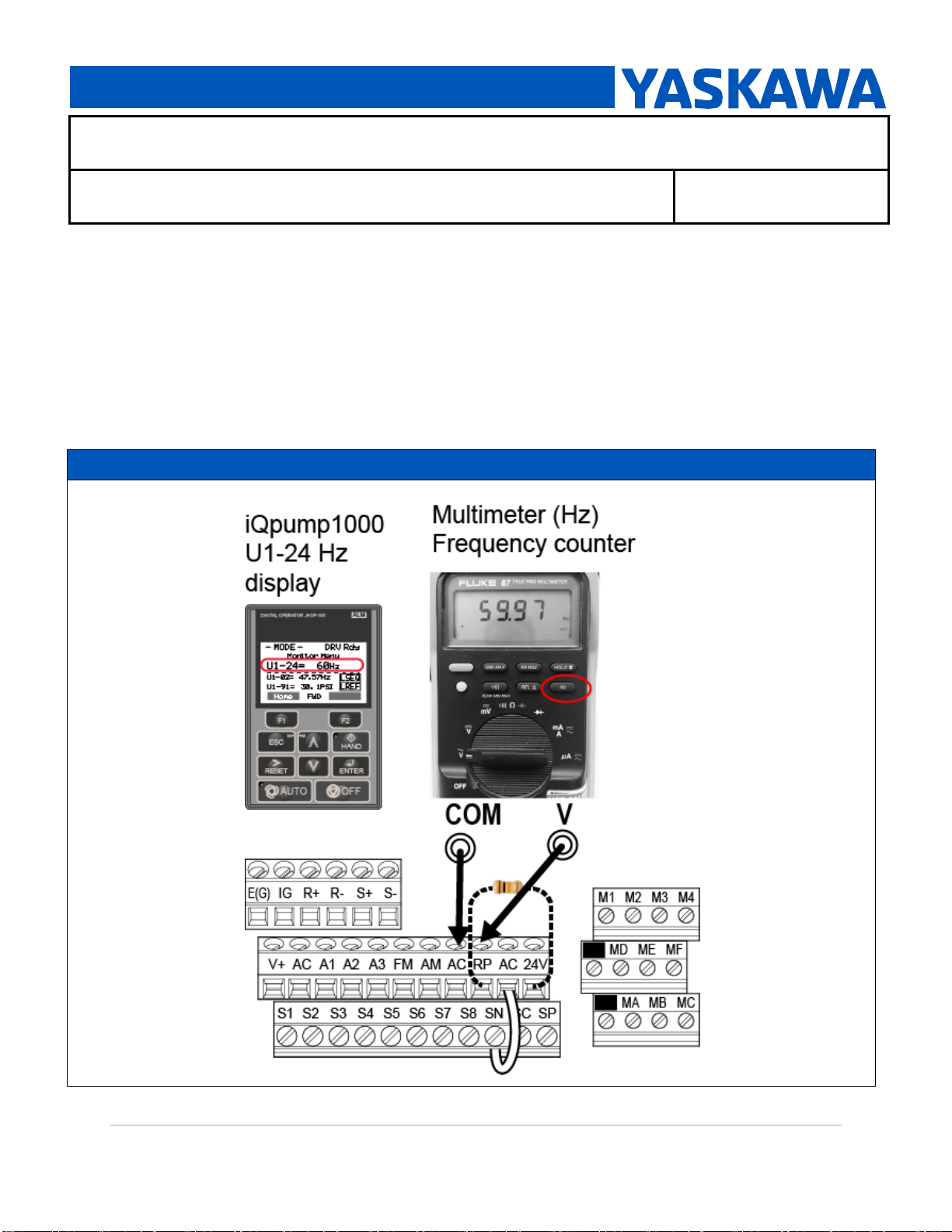

Figure 4: Flow Meter Signal Verification (Terminals AC to RP)

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 7 of 10

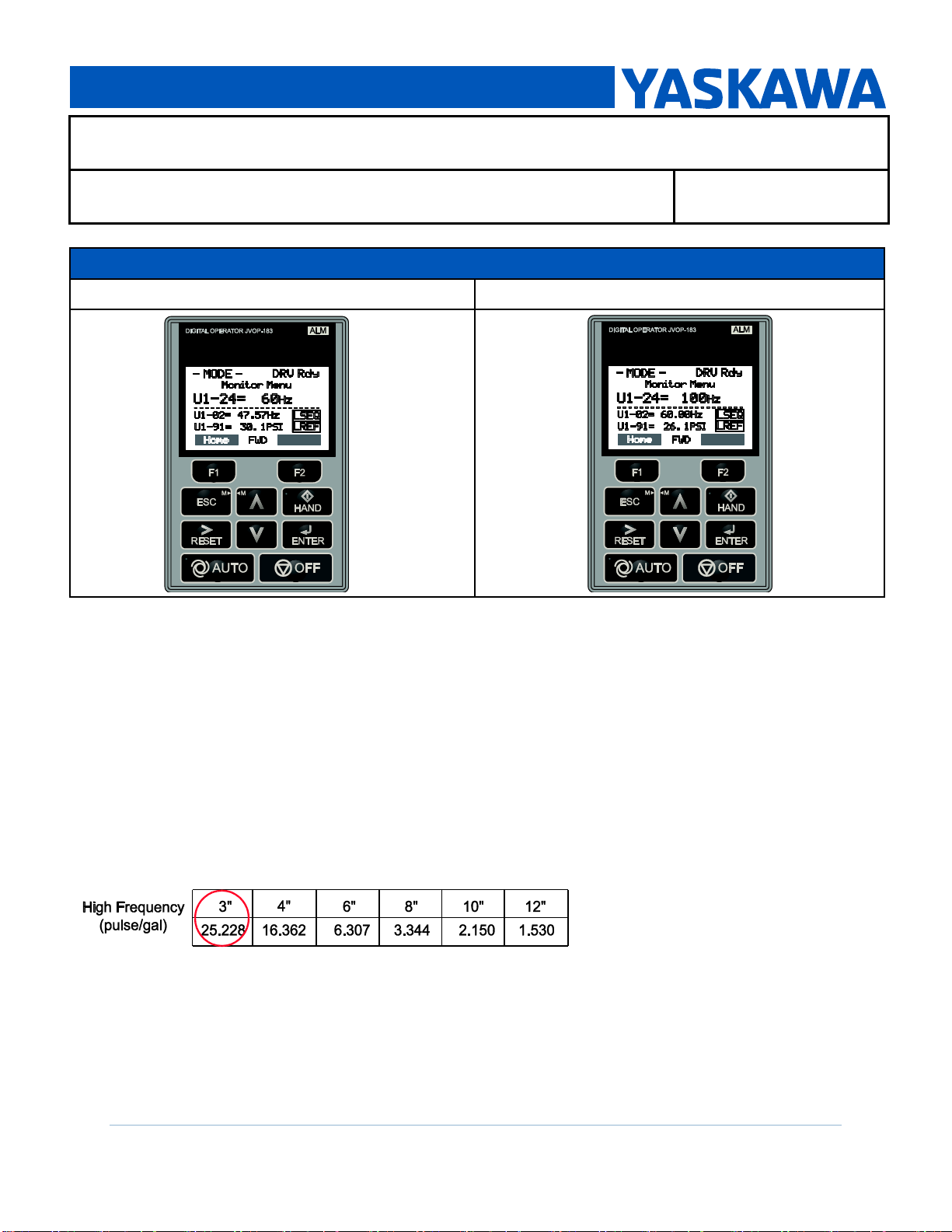

Figure 5: iQpump1000 Parameter U1-24 Flow Meter Output Signal Display
60 Hz Signal
100 Hz Signal (Higher flow rate example)
2.6 Alternate Method for Flow Meter Signal Verification (if multi-meter is not available)
Use an analog GPM gauge in proximity to the flow meter, to find flow rate.
2.7 Convert the U1-24 (Hz) display to GPM for comparison.
Because the U1-24 display reads in HZ and the analog gauge reads GPM we must convert the
U1-24 display to GPM for comparison.
Multiply the U1-24 display value by 60 secs 
60 Hz x 60 = 3,600 pulses per minute (PPM)
2.8 Divide 3,600 PPM by 25.228 PPG. 25.228 is the calibrated flow meter output for an
AG2000-300 meter 
3600 PPM/25.228 PPG = 142.7 GPM @ 60 Hz
*Note: PPG can be found on the AG2000 flow meter spec sheet.
2.9 Compare the calculated result from STEP 2.8, to the pipe mounted analog gauge GPM
value. The two values should match.
2.10 Recheck all electrical connections for a wiring error and make corrections if a substantial
difference in the compared readings exists (no match).

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 8 of 10
STEP 3 –PARAMETER SETTINGS
3.1 Verify system pressure regulation is function properly.
3.2 Ensure other desired features such as Pre-Charge, or Loss of Prime are functioning before
proceeding.
Refer to the iQpump1000 User Manual TOEPYAIP1W01 for details about Pre-Charge and
Loss of Prime.
Note: In this example, the iQPump1000 drive will shut down and require resetting if the system
reaches the setting level set in parameter P6-17.
Table 1. iQPump1000 Parameter Settings for Seametrics AG2000-300 Meter (Example)
Parameter
Setting
Description
H6-01
Pulse Train Input
Terminal RP
Function
Selection
5
Sets RP (Pulse train input terminal) pulse input for flow meter function.
This will disable all other H6 parameters
P6-01
Flow Meter Scale
700
Sets flow meter maximum gpm (gallons per minute) flow rate.
700 GPM maximum scaling is according to AG2000-300 flow meter
specifications.
Note: Set to the expected maximum flow the system will see, taking
into account unusual conditions such as broken main lines that may
produce excessive flows.
P6-02
Turbine Scale 1
25.0
Coarse setting of pulses per gallon PPG rating.
Set P6-02=25.0 (Whole numbers to left of decimal)
Note: The flow rate from example flow meter specification is a fixed
rate of 25.228 ppg (pulses per gallon). The specified flow rate will
vary based on the Seametrics flow meter model.
P6-03
Turbine Scale 2
.228
Fine setting of pulses per gallon (PPG) rating.
Set P6-03=0.228 (Fractions to right of decimal)
P6-12
AccumLvl*1000
100
Accumulation level in thousands.
Set parameter P6-12=100.
Example: 100 = 100,000 gallons per day maximum accumulation.
The maximum daily accumulation rate depends on the unique
requirements of a particular system.

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 9 of 10
Table 1. iQPump1000 Parameter Settings for Seametrics AG2000-300 Meter (Example)
Parameter
Setting
Description
P6-15
Accum Behavior
3
Set parameter P6-15=3 to cause a fault if limit set in P6-12 is reached.
Note: Fault and reset on matching accumulated level set in P6-11 to
P6-14.
P6-17
High Flow Level
500
Maximum flow allowed gallons per minute (GPM)
Set parameter P6-17=500 GPM. Maximum flow allowed is 500 GPM in
this example.
P6-19
High Flow Sel
2
Requires user reset after fault. Set parameter P6-19=2 to cause a fault
if limit set in P6-17 is reached.
Monitor Parameters
3.3 View iQPump1000 monitor parameters, U1-83 through U1-87, to find current system flow
rate and accumulation levels during system operation.
Table 2. Monitor Parameters
No.
Name
Description
U1-24
Input Pulse Monitor
The frequency in Hz to pulse train input terminal RP
from the flow meter.
U1-83
Flow Rate
The flow rate based on the pulse input frequency or
the analog voltage (flow rate input) and parameters
P6-01 and P6-04. The Flow Rate is gpm (gallons per
minute) in this example.
U1-84
Volume * 1000000
The recorded volume from the flow meter (pulse input
or analog voltage).
Total volume is calculated as follows:
Total Volume=(U1-84 * 1000000) + (U1-85 * 1000) +
(U1-86 * 100) + (U1-87 * 10)
U1-85
Volume * 1000
U1-86
Volume * 1
U1-87
Volume * 0.0001

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 10 of 10
Reading Accumulation: Monitors U1-84 to U1-87
3.4 Refer to Table 3. Observe Monitors U1-84 to U1-87 to build digits for total accumulation.
Table 3. Example Accumulation Readings - iQpump1000 Display
Monitor No.
U1-84
U1-85
U1-86
U1-87
Total
Display Example

28
413
546
.245
Display Value
Meaning 
28,000,000
413,000
546
.245
28, 413, 546.245 Gallons
TROUBLESHOOTING
Table 4 provides troubleshooting tips from the Seametrics Flow Meter instructions.
Table 4. Troubleshooting - AG2000 Flow Meter (from Seametrics LT-65200290-042115)
Problem
Probable Cause
Corrective action
Blank display
Dead battery
Replace battery pack.
Flow rate steadily
reads
zero when there is
flow
Flow is below cutoff
(very low)
Reading will resume when flow increases.
There is air in the meter
Reposition meter for full pipe.
Display reads [ - ]
Meter is installed
backward
Note flow direction arrow, reverse meter.
Flow rate
intermittently
drops when there is
flow
There is air in the meter
Reposition meter for full pipe or rotate to avoid
bubbles.
Erratic reading
Improperly equalized
Check for proper equalization.
Pulsing flow
Use external power source (allows more flow
averaging).
Rapidly changing
conductivity
(chemigation
applications)
Install chemigation line downstream of meter (or
enough upstream for thorough mixing of fluids
before meter).
