YESKAMO Z6 User manual

Smart Battery Powered IP Camera
User Manual
YESKAMO

DIRECTORY
Ⅰ. Statement ........................................................................ 1
Ⅱ. Safety Caution ............................................................ 1
Ⅲ. Product Details ............................................................ 3
1.Camera structure ...................................................... 3
2.Camera button and indicator .............................. 4
3.Specification .................................................................. 5
IV. Configuration on Phone App .............................. 6
1. Download Cloudedge App on phone ............ 6
2. Create account and login .................................... 7
3. Add device to phone app .................................... 8
V. Share the Camera with Family .............................. 13
1. Sign up new account ................................................ 13
2. Add as friends ............................................................ 13
3.Share camera ............................................................ 14
4.Sharing permissions ................................................ 16
VI. Cloudege APP Menu ................................................ 16
VII. More Features About Battery Camera ............ 19
1. Motion detection alarm .......................................... 19
2. Video storage and replay .................................... 22
3. Battery management and recharge .................. 22
4. Two-way talk and volume control ........................ 23
VIII. Installation .................................................................. 24
1. Camera surveillance Area .................................... 24
2. Camera installation ................................................ 24
3. Tips to reduce false alarms .................................... 25
IX. Troubleshooting ............................................................ 26
YESKAMO

1.Though we apply all efforts to make the manual complete and
accurate, there could still be some discrepancies due to
products’ timely update.
2.The products and manual are subject to change without
previous notification.
3.The content in this manual is only for reference. We don’t
promise the accessories or App are exactly the same with you
received. Detailed information is in accordance with the final
products.
4.Should you meet any challenges or issues in operating the
camera, please do not hesitate reaching out us for assistance.
We always responsive to any questions.
1. Please read the manual carefully and operation in
accordance with the instructions.
2. Please do not transform or modify the product, do not open
the case or disassemble the product.
WWW.YESKAMO.COM
Ⅰ. Statement
Ⅱ. Safety Caution
Contact us
-1-
United States: [email protected]
United Kingdom: [email protected]
[phone] (US)
[phone] (UK)
YESKAMO

3. Please use the product under its standard working tempera-
ture and humidity, extra-high temperature and humidity will
reduce battery performance and lead to camera drop line.
4. If doesn’t use the camera for a long time (a week or more),
take off the camera and stored it in room. If the moisture
inside does not evaporation due to the temperature and
humidity of environment, it will affect the periphery of the main
board and cause rust.
5. Avoid mud, sand, water, drops, bumps, etc., Also avoid
setting up device on that environment and condition as it can
lead to failures or damage.
6. Conditions of Fire, earthquake, lightning, wind and flood
damage, other disasters or external factors (such as pollution
or voltage disturbances) that could cause malfunction or
damage, do not use this product.
7.Malfunctions or damages due to bracket failures (storage in
hot and humid places, battery leakage, etc.) or improper
protection, we assume no responsibility.
8. The camera is IP65 weatherproof , it’s better to install the
battery camera in a shaded area( such as under eaves) to
prevent any possibility of accelerated wear and tear the
element. Please noticed IP65 rate won't allow soak into water
or stay under heavily rain for long time.
9. Please turn off the device before insert micro SD card. Please
setup camera and test camera well before installation.
-2-
YESKAMO

Night vision
Sensor
Working status
Bracket
Lens
PIR sensor
Microphone
Reset button
Charge lamp
Power key
SD card slot
DC 5V USB Port
Ⅲ. Product Details
1. Camera structure
-3-
YESKAMO

2. Camera button and indicator
Press and hold the button for 5
seconds to turn on/off the device.
Press and hold the button for 5
seconds to reset and restart the device.
Waiting for Wi-Fi connection, and start
Add devices.
WiFi connected, camera is
running normally.
Camera Button Operation
Camera Status
WiFi connecting
Network is abnormal
Power-Button
Reset- Button
Front Indicator
Flashes red slowly
Flashes red fast
Constant red
Constant blue
No
No
1
2
1
2
3
4
-4-
YESKAMO

3. Specification
1080P Color Sensor 1/3CMOS
Built-in microphone and speaker
3.6mm
100 degree
Electronic (IR-CUT filter with auto switch)
1080P(1920*1080),VGA(640*480)
25fps
PIR Intelligent motion detection
WEP, WPA, WPA2
Support
2.4G WIFI(IEEE802.11b/g/n)
User authentication,software encryption
10400mA, rechargeable
500µA
220mA
10 months
4 months(assumed 15 times wake up per day)
−20 °C to 50 °C
Optional DC 5V 1A/2A
Night visibility up to 20 meters
H.264
16Kbps~2Mbps
Yes
Camera
Image sensor
Audio Input/output
Lens
Angle of view
Day & night
Compression Standard
Video compression
Bit rate
Dual stream
Image resolution
Frame rate
Network
Alarm trigger
Wireless Security
Remote wakeup
Wireless
Security
Battery
Battery
Standby consumption
Work consumption
Standby time
Working time
General
Operating temperature
Power supply
IR distance
-5-
YESKAMO

1.1 Searching the ''Cloudedge'' App from phone App store or
Google play and install it.
2.2 Please approve the following two authorities when you run
this App for the first time.
Enable 4G or wireless LAN on phone
Enable Cloudedge's "Notification" on phone's "Settings"
Enter phone "Settings" >> Notification >> Cloudedge ,
and enable "Allow notification" on the Notification
management interface of Cloudedge.
(App may be updated, the following QR code is for
reference only)
IV. Configuration on Phone App
1. Download Cloudedge App on phone
Step 1.
Step 2.
-6-
YESKAMO

2.1 Selecting Your country, Example as: United States
2.2 Tap "Sign Up" on the interface
2. Create Account and Login
-7-
YESKAMO

3.1 Power and reset the camera

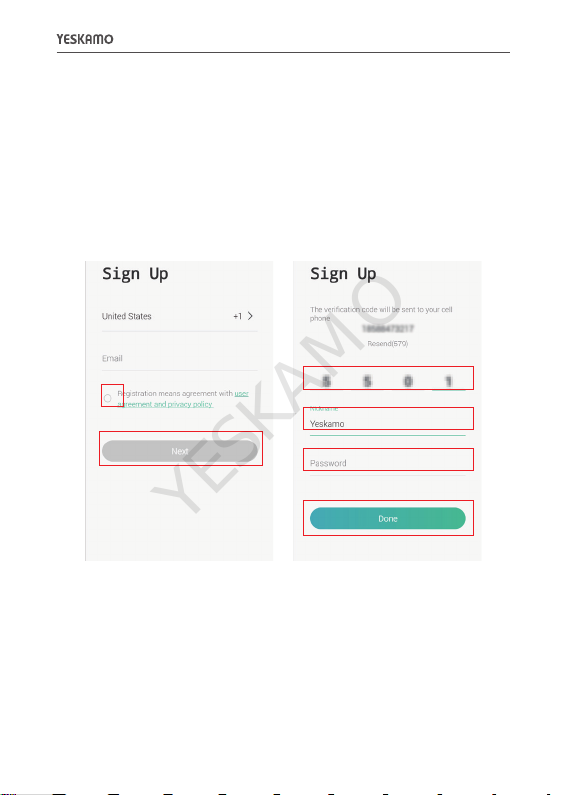

2.3 Sign up App account
Sign up your email address OR phone number, enable
the "Registration means agreement with user
agreement and privacy policy "and click next.
A verification code will sent via text, input the verified
code, set username and password, tap ''done''.
If you sign up with your email address and without
receiving any code, you may check your email spam.
Login App with the created account
3. Add device to phone app
Step 1.
Step 2.
Step 3.
-8-
YESKAMO

-9-
Power the camera: uncover the rubber seal cover on
camera bottom, press and hold the camera power
button for 5 seconds to turn it on, make sure the front
indicator light red, it blinks red when ready for
configuring network.
If it doesn't turn on, please charging it with DC5V 1A/2
A power adapter for 15 minutes to wake it up.
NOTE: DC5 V 1 A / 2 A power adapter is not included
in package
Power Key
Power indicator turns red
Step 1.
Take the camera and smartphone close to the router
(30 to 100 cm) and connect phone to the router's
Wi-Fi, support 2.4GHz WiFi only
Step 2.
YESKAMO

-10-
3-2. Wi-Fi wireless connection
Reset camera: press and hold the camera reset button
for about 5 seconds to reset it, release after hear the
prompt‘’bugu“ sound .
Step 3.
Add device on app: Run Cloudedge app on phone, tap
"+" on screen and choose “Battery Camera”.
Step 1.
We powered and reset the camera on previous steps
already, here we just click ‘’next’’ on below screens.
Step 2.
YESKAMO

-11-
WiFi Setup: It auto identify your 2.4GHz wireless
network name (if no, please tap ‘’change WiFi ‘’to
select).
Input your WiFi password, make sure it’s correct, then
touch “Next”
Step 3.
YESKAMO

-12-

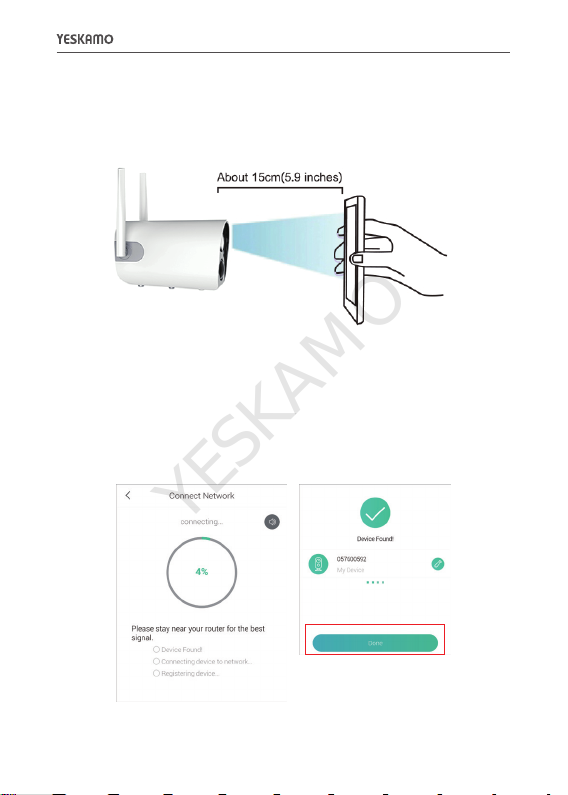

Camera is connecting to network, waiting the bar
update to 100% to finish connection.
Please make sure the ID on the "Device Found" is the
same series number print on camera.
Touch "Done" to complete the initial setting, camera
front indicator blinks blue.
Step 5.
At the ‘’Scan QR Code’’ interface, Put the QR code in
front of the Camera lens about 15 cm(5.9 inches).
After the camera recognizes the QR code ,it makes
‘’bugu’’ sound. Then we tap ’’next’’ on phone.
Step 4.
YESKAMO

V. Share the Camera with Family
1. Sign up new account
Camera send notifications when motion detected, but
save recording only when equipped with storage
capacity. Please insert MicroSD card or purchase
cloud service on App to save the video.
NOTE:
1. Configuration is finished, the camera in standby status when
not watching video or no motion detected and the indicator
off.
2. If need switch WiFi network, require to reset the camera and
re-setup. If you reset the camera after setup, the camera will
disconnect with network.
3. The camera support setup on one phone only, need reset to
setup to another phone. It allows share the device on the
default mobile phone to others. Refer the following " V.
Share the Camera with Family" for detail instructions.
Download Cloudedge App on family’s phone, sign up and
login with new account.
(Follow the instruction of previous ''IV. Configuration on
Phone App > 2. Create account and login'' )
2. Add as friends
2.1 On default phone APP "Friends" interface, enter App
account e-mail or mobile number of the family’s phone, tap
"Add" .
Step 6.
-13-
YESKAMO

The family’s phone will receive your friends’ request, touch the
request notification lead to "message" > "system message"
interface of App.
Touch the request and "Tips" box pop up, touch "Agree" to
approve friends request.
3. Share camera
3.1 On family’s phone App "Devices" interface, slide screen to
update data and the camera ID appears.
2.2 Approve request
-14-
Awaiting for approval
YESKAMO

Slide down
3.2 From the default phone “Friends” interface to choose
specific friend, sharing the device or cancel sharing by
touching the frame.
-15-
Success Sharing Cancelled
YESKAMO

VI. Cloudege APP Menu
1. Add camera
2. Recording time
3. Playback
4. Camera icon
5. Camera ID
6. Alarm information icon: A red dot on the icon
indicates that alarm triggered. Tap the icon to display
the recorded screenshot or video.
7. Cloud storage service
8. Device
9. Message
10. Friends
11. Me (Personal Center)
4.Sharing permissions
4.1 You can adjust camera setting on the default phone
only. The friends’ phones have only viewing privileges.
4.2 Once the added account on the ''Friends'' interface is
deleted, sharing will be failed.
4.3 If the camera ID is deleted on the default phone, the
camera ID on friends’ phones deleted automatically.
-16-
YESKAMO

12. Camera Settings: Alarm, SD card, etc.
13. Battery level
14. Microphone: on / off
15. SD/HD switch
16. Full screen display
17. Bit rate
18. Network signal strength
19. Preview
20. Replay
21. Cloud storage service
-17-
1
3
54 6 7
8 9 10 11
2
YESKAMO

22. Screenshot
23. Intercom option: long press it to talk
24. Recording: manually recording
25. Body detection: Default at "ON" and appears green,
recording once movements detected.
26. Green playback time zone: Motion detection video other
than alarm time
27. Red playback time zone: video of the alarm time
28. Calendar: Click to select a date
29. Screenshot
30. Recording: Recording manually
31. Alarm: alarm notifications
-18-
12
13
14
17
22
25
23 24
19 20 21
18
15 16
YESKAMO
