Yinkman Omnos 5.1.2 User manual

1/ 32
Version Update
Version
Anthor
Modification Notes
1.0
Yinkman
The initial version
1.1
Yinkman
Button Functions 、LED and
ARC indicdation
1.2
Yinkman
BT connection、System Sound
and second generation Remote
controller
1.3
Yinkman
Automatic Standby and Lock
Subwoofer

2/ 32
Content
Introduction.............................................................................................................................................4
Product Package ......................................................................................................................................5
Basic Manipulations................................................................................................................................6
Power Cables ...................................................................................................................................6
The HDMI Input Connection ..........................................................................................................7
Connect Soundbar to Your TV-Set .................................................................................................8
TV-Set Input Setting........................................................................................................................8
Front Panel Button Functions ........................................................................................................9
LED Light Indications.....................................................................................................................10
Remote Controller ........................................................................................................................10
Subwoofer Buttons .......................................................................................................................12
Audio Playback and Streaming.............................................................................................................13
HDMI Streaming............................................................................................................................13
The HDMI Device Setting..............................................................................................................13
AUX Playback.................................................................................................................................13
Bluetooth Playback .......................................................................................................................14
HDMI ARC ......................................................................................................................................14
HDMI Audio Passthrough .............................................................................................................15
Mobile App ............................................................................................................................................16
App Introduction and Download .................................................................................................16
Omnos Play Control Page .............................................................................................................16
Connection Status.........................................................................................................................17
System............................................................................................................................................17
Wi-Fi Connections.........................................................................................................................18
Adaptive Tuning Capability...........................................................................................................19
Virtual Soundfield Listening Modes.............................................................................................20
Subwoofer Settings.......................................................................................................................21
Advanced Settings.........................................................................................................................21
Upgrade Checking Period.....................................................................................................21
Factory Reset ........................................................................................................................22
HDMI Audio Passthrough.....................................................................................................22
Firmware Upgrading .....................................................................................................................22
OTA (On the Air) Upgrading .................................................................................................22
USB Upgrading or Rescue ....................................................................................................22
Troubleshooting ....................................................................................................................................23
Soundbar or Subwoofer Won’t Power Up or No Sound.............................................................23
No Sound from the Subwoofer ....................................................................................................24
Noisy Output from TV...................................................................................................................24

3/ 32
No Video Output ...........................................................................................................................24
Omnos Play App Can’t find Omnos or Connection Issue ...........................................................24
No Obvious Surround Effect .........................................................................................................25
Wireless Interference ...................................................................................................................25
Bluetooth streaming not working................................................................................................25
Specifications and Safety ......................................................................................................................26
Important Safety Instructions ......................................................................................................26
Limited Warranty.................................................................................................................................27

4/ 32
Introduction
Omnos 5.1.2 Soundbar utilizes state of the art audio technology to create
lifelike theater sound right in your home. The 5 indicates the horizontal
speakers that cover left, right, center rear left and rear right, similar to standard
5.1 audio systems. The 1 stands for the subwoofer channel, which is to create
deep bass. The 2 indicates the two height channels located above the
listener's head. The cumulative result creates a truly three dimensional sound
experience.
The Omnos can take any sound format from stereo to multichannel audio as an input
signal. The signal processing algorithm then converts the input audio signal to 5.1.2 audio
signal.
Omnos contains following components:
Soundbar Unit - Each speaker in the Soundbar has an independent audio signal that is
processed by a digital signal processer. Three face directly at you, two face toward the
sides of the room and two face the ceiling to bounce sound for a fully immersive effect.
Each speaker unit has its own cavity to deliver superior sound quality while minimizing

5/ 32
interference from speaker units. The available inputs include HDMI /3.5mm
Analog/Bluetooth/HDMI ARC, also the control buttons for the input switch/ volume control
and standby are available in the front panel.
Subwoofer - The subwoofer is connected wirelessly to the Soundbar and completes the
comprehensive sound package. With a phase-inverted tube structural design and unique
grid bottom, this subwoofer makes your bass much more powerful.
Remote Controller –Used for the volume control, input switch and power on/off operations.
Mobile App -The custom app allows you to control and fine tune your audio for each
room. Set your virtual sound field and room tuning preference and switch your devices
through a single click.Also the common control such as the listening mode switch, the
bass control and volume/input control are included in the MobileApp.
Product Package

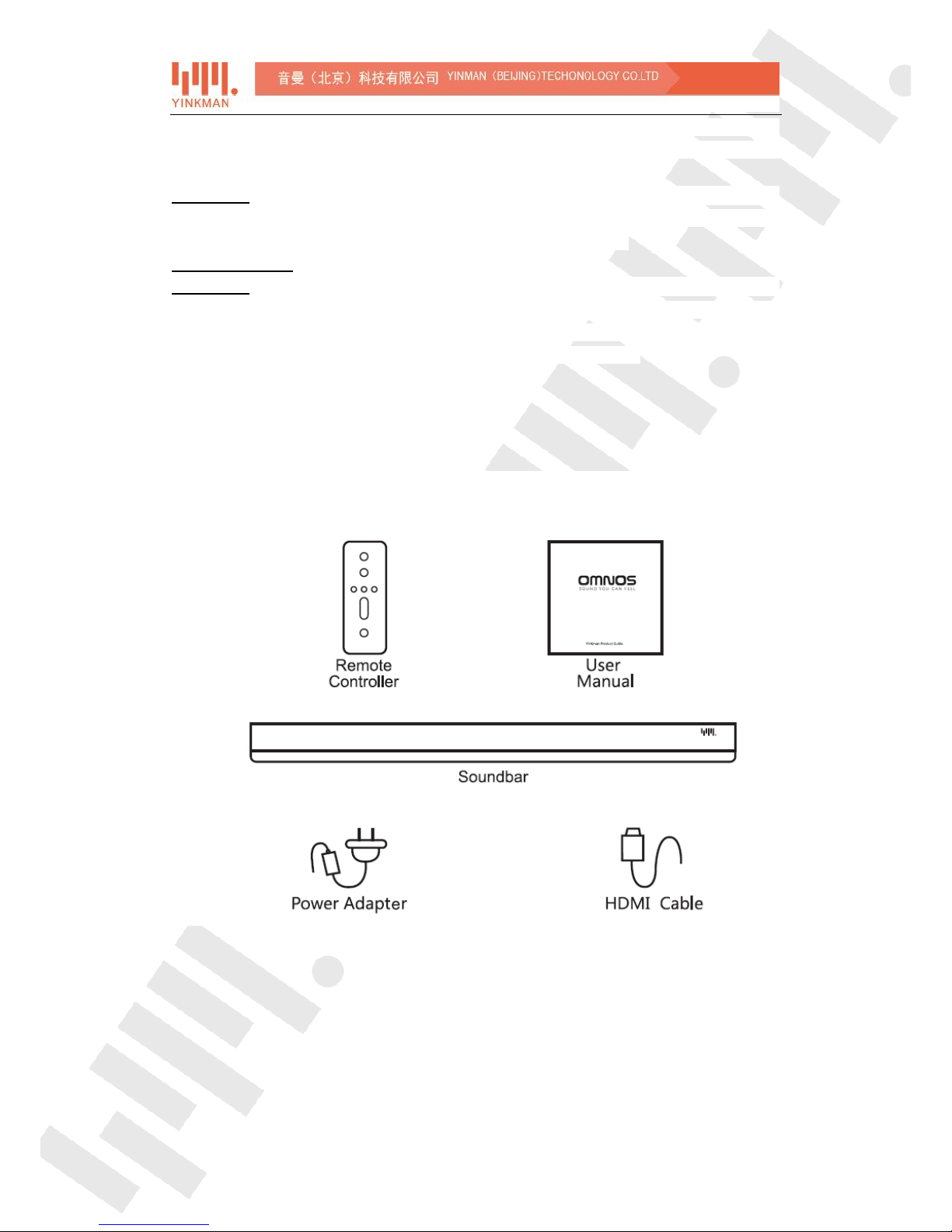

Figure 1. Soundbar Package List

6/ 32
Figure 2. Subwoofer Connection Package List
Basic Manipulations
Below is the user guide for Connections and basic introductions on the functional
components.
Power Cables
Place the power adapter into the Omnos Soundbar and the other end into AC socket,
wide-range voltage supported from 100V to 240V.
Connect the power cable of the subwoofer to the AC socket.

7/ 32

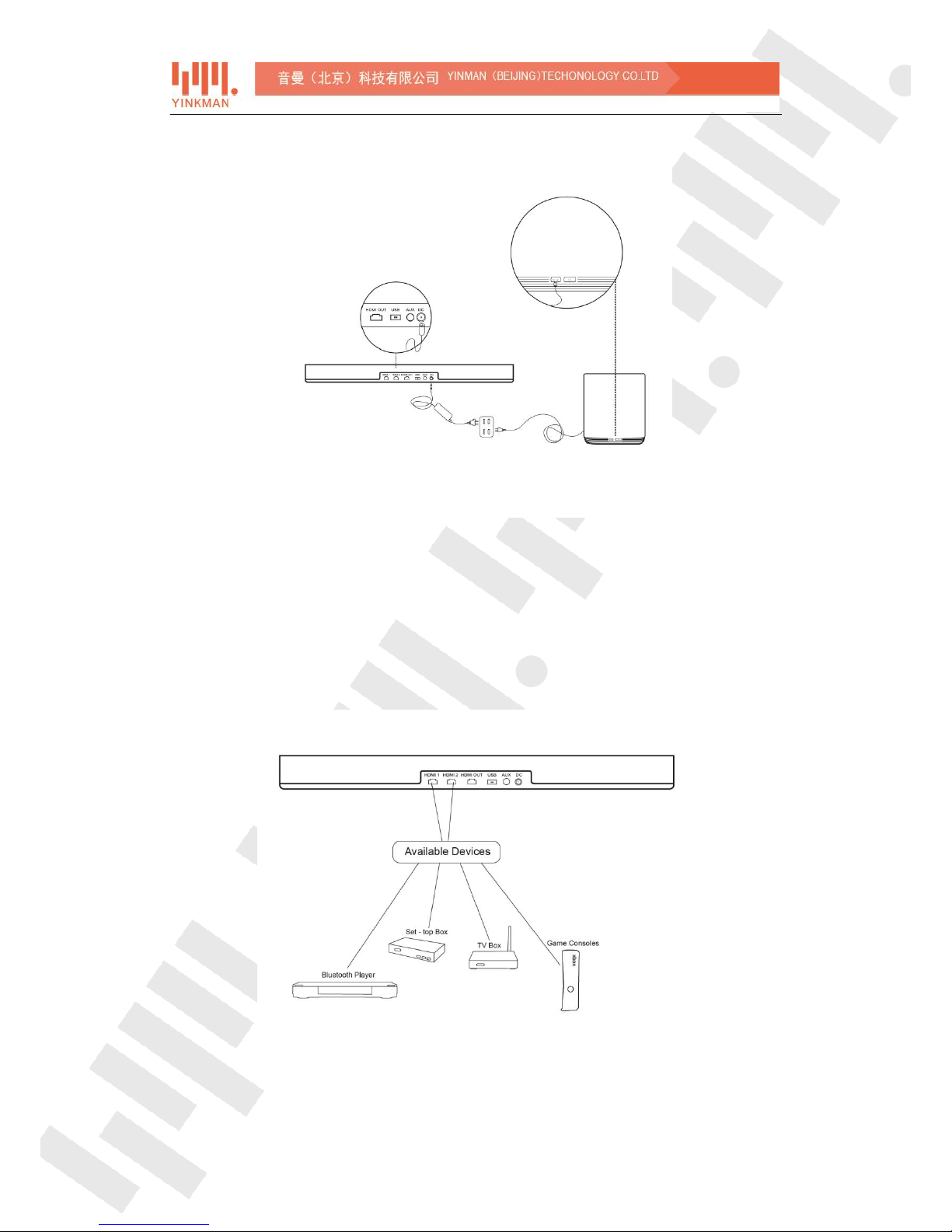

Figure 3. Power Cables Connections
The HDMI Input Connection
Connect your most commonly used device such as set-top-box, games console,
multi-media players etc to the HDMI 1 port of the Omnos Soundbar, and other devices
can be connected to the HDMI2 port.
Figure 4. Available HDMI Devices for HDMI Ports

8/ 32
Connect Soundbar to Your TV-Set
Connect the HDMI out port to the HDMI input port of your TV. If your TV has an
HDMI/ARC interface, it is highly recommended to use this interface to connect the
Omnos Soundbar to your TV.

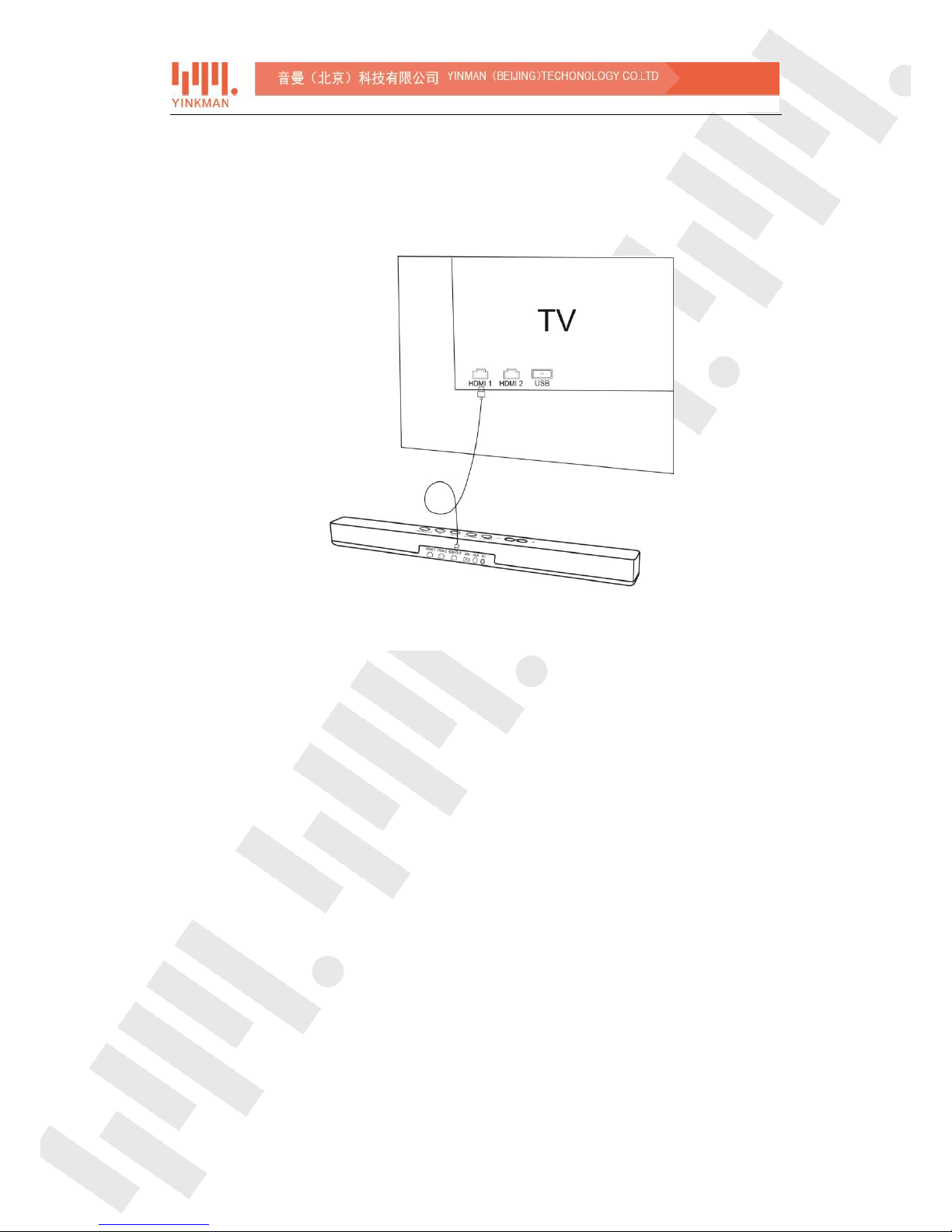

Figure 5. Connect Soundbar to TV-Set
TV-Set Input Setting
Turn on the TV and use the TV-Set remote controller to select the HDMI port that is
connected to your Omnos Soundbar as the input for your TV-Set.

9/ 32
Figure 6. TV-Set Input Setting
Front Panel Button Functions
Button for volume control. ‘+”for volume up and ‘-‘for volume down. And if
you press the ‘-‘(volume down button) for more than 5 seconds, system will turn mute.
Input switch for HDMI devices. Also long press the HDMI1 key for 5 seconds, the
input switch to ARC.
Input switch to 3.5mm Analog. Mobile phone and other players can stream
through 3.5mm cable.
Function button to switch listening mode and also used for the Wi-Fi connection
confirmation during the Wi-Fi initialization stage and long press the function key for 5
seconds, the Omnos Soundbar turns to AP (access-point) mode waiting for Wi-Fi devices
connecting.
Standby button to power on/off the current Omnos system.
Press and hold the botton at the same time for more than 8 seconds, system will
restore factory settings

10 / 32
Figure 7. Front Panel Button Functions
LED Light Indications
There’re 4 LED lights on the Omnos Soundbar front panel, three of which (i.e. the LEDs for HDMI1,
HDMI2 and Aux, when the current input is selected, the LED will stay constant) are to indicate the
current input and one for current status (i.e. the function button LED). The status indications are
as follows.
HDMI1 LED stays constant: the current input is HDMI1
HDMI1 LED blinks slowly: current input is ARC
HDMI2 LED stays constant: the current input is HDMI2
AUX LED stays constant: the current input is AUX
AUX LED blinks slowly: current input is Bluetooth or Airplay
The function LED slowly blinks: some device connects the Omnos for the first time and
waiting for the connection confirmation
The function LED fast blinks: the Omnos Soundbar is now in AP mode and waiting for
Wi-Fi connection.
The function LED stays constant: currently Wi-Fi is configured and connected.
Remote Controller
The First generation Omnos Remote Controller：Standby/Power Button，HDMI1 input，
HDMI2 input，function key for listening mode switch，AUX input，Volume Control keys.
Also long press the HDMI1 key for 5 seconds, the input switch to ARC, and long press
the function key for 5 seconds, the Omnos Soundbar turns to AP (access-point) mode
waiting for Wi-Fi devices connecting.

11 / 32
Figure 8. First Generation Remote Controller Keys
The Second generation Omnos Remote Controller：Standby/Power Button，HDMI1 input，
HDMI2 input，function key for listening mode switch，AUX input，Volume Control keys
and four types Virtual Soundfield: Night Mode/Music Mode/Movie Moive/Omnos Mode.
Also long press the HDMI1 key for 5 seconds, the input switch to ARC, and long press
the function key for 5 seconds, the Omnos Soundbar turns to AP (access-point) mode
waiting for Wi-Fi devices connecting.
Figure 9. Second Generation Remote Controller Keys

12 / 32
Subwoofer Buttons
Besides the AC cord, there’s a Power Switch button behind the subwoofer. After
connecting the power cable of the subwoofer, please press the Power Switch button as
well. Then press the Standby Button on the subwoofer to supply power for the sub
amplifier. Now you can check the status of the LED Indicator Light, if it blinks, it means
the subwoofer is not connected to any Omnos Soundbar. Then you can press the Pairing
Button on the subwoofer to repair until the LED Indicator Light turns constant. When
you don’t need the Omnos working, you can press the Standby Button for power saving.

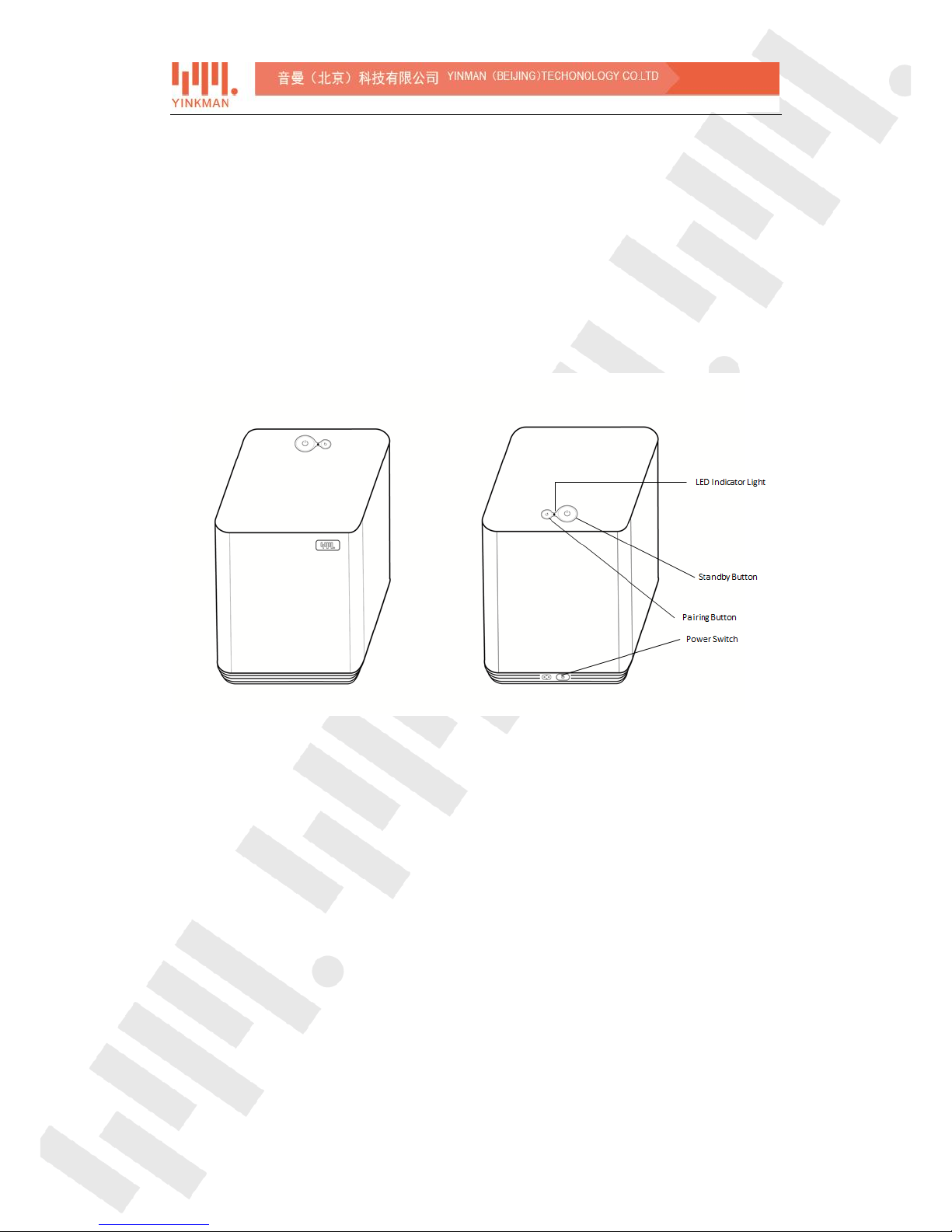

Figure 10. Subwoofer Buttons

13 / 32
Audio Playback and Streaming
HDMI Streaming
You can select the HDMI source (either HDMI1 or HDMI2) for the Omnos Soundbar
input through the front panel button or remote controller. Just follow the above
chapters for the HDMI input/output connection and TV-Set settings.
The HDMI Device Setting
For better audio performance, it is recommended to switch to ‘raw data’or ‘bitstream’
for your HDMI input device. This setting could be under the control page like
[Settings][Audio][Digital Audio Output]. (For the detailed digital audio output
setting, please check your playback device user manual.)
Notice: not all audio format could be streamed, if no sound output, there may be
compatibility between the HDMI source and sink about the ‘raw data’or ‘bitstream’
format, you can switch back to “PCM”instead, then there’ll be audio output.
AUX Playback
Figure 11. AUX Audio Streaming
You can connect your phone or tablet with a 3.5mm analog cable and switch your

14 / 32
Omnos input device to Aux by the front panel button or remote controller. Then you can
enjoy the music content on your devices.
Bluetooth Playback
Besides the Aux playback from the mobile or tablet, Bluetooth devices are also
supported. Turn on the Bluetooth on your mobile device and search the available device
named like “Omnos”. After pairing with Omnos Soundbar, you can stream wirelessly
with Bluetooth connection. When you stream audio through Bluetooth, the input of
Omnos will switch to Bluetooth automatically and the AUX LED on the front panel with
blink slowly to indicate the current input as Bluetooth. When you switch the Bluetooth
input to any other input, the Omnos will disconnect the Bluetooth device and if you
want to stream through Bluetooth again, you have to pair and stream again.
Figure 12. Bluetooth Streaming
HDMI ARC
If you have a smart TV—that is, one that has an Internet connection and works with
streaming services. Firstly, in your TV’s audio settings, make sure the audio output
is set to “External Speaker,” or “Receiver” instead of “TV Speakers”. This option is
usually in the [Settings][Audio] tab. Then switch the current input to ARC by either
the Omnos Play App or the front-panel HDMI1 input button (by long press the HDMI1
input button for 5 seconds). When switching to ARC, the HDMI1 LED on the front-panel
will keep blinking slowly.
For compatibility, it’s recommended to set the Digital Audio output as PCM in the TV’s

15 / 32
audio setting, or some bitstream may not be handled properly on Omnos Soundbar.
As the TV’s audio output is switched to “External Speaker,” if you want the HDMI
audio passthrough functionality below, you have to switch the TV’s audio output
back to “TV’s speakers”, or no sound will be available on your TV.
HDMI Audio Passthrough
You can bypass the Omnos Soundbar and stream directly to your TV by turning on the
HDMI Audio Passghrough by turning on [Settings][Advanced Settings][Audio
Passthrough].
When you power off the Omnos, the system will turn to HDMI audio passthrough mode
if current input is HDMI.
To make sure sound playback works well on your TV, please make sure the TV’s audio
setting switch to “TV’s speakers”.

16 / 32
Mobile App
App Introduction and Download
Besides the front-panel buttons and the Omnos remote controller, there’s an “Omnos Play”
mobile App provide by Yinkman. To install this app, you can download Android version from link
http://www.yinkman.cn/download.html , and search for “Omnos Play”from Apple Store. Then
follow the native initialization guide inside the App to connect your Omnos and control it
afterwards.
IOS QR Code：Android QR Code：
Figure 13. QR Code for Omnos Play App Downloading
Omnos Play Control Page
Volume Control Ball : slide down for volume down and slide up for volume up.
Mute Key in the left-down corner: to mute the Omnos system.
Power Button in the down center: Standby or Power on Omnos.
Settings in the right-down corner: more control options inside.
Connection Status in the left-up corner: the connection exceptions.
Input Switch Button in the up center: Scroll down for input selection.
Virtual Soundfield Modes in the right-up corner: to select the listening mode.

17 / 32
Figure 14. Omnos Play Control Page
Connection Status
In the left-up corner of the control page, if any connection exception occurs, a small figure will be
there to indicate the exception.
Exclamation mark for Wi-Fi: there’s no Wi-Fi connection configured for the Omnos, i.e.
the Omnos Wi-Fi is not connected.
Exclamation mark for Subwoofer: the subwoofer is not connected to the Omnos
Soundbar.
Audio passthrough options: When audio passghrough is on, the control of the Omnos
will not function except for a few options such as power cycle and input switch.
Exclamation mark for system Exception: the new firmware available and you need to
upgrade the Omnos firmware.
BT Connection function: when Omnos is connected with other device by Bluetooth, The
option of Disconnect Bluetooth is ‘NO’. click ‘NO’, option will change to ‘YES’, and this
time Omnos will disconnect Bluetooth with the device.
Figure 15. Omnos Play Connection Status Page
System
Device Name: The name for Omnos Soundbar Device
My Devices: you may have multiple Omnos, and you can switch between the Omnos
Soundbars by their names.

18 / 32
Firmware Version: The version for Omnos Soundbar
APP Version: the version for you App
Figure 16. Omnos Play System Page
Wi-Fi Connections
When no Wi-Fi is configured for your Omnos, the Function LED will stay blinking fast.
To connect your Omnos to your home Wi-Fi, follow below steps:
Turn the Omnos AP mode by long pressing the function button for more than 5
seconds.
Turn on the WLAN of your mobile phone and search for an AP named as “Omnos
xxxx”and connect it.
Open “Omnos Play”App and connect your Omnos through AP.
Go to the [Settings][Wi-Fi] page or the [Connection Status][Wi-Fi] page and
search for the available Wi-Fi list for the Omnos
Select your Home Wi-Fi and enter the password for your Wi-Fi
Then switch your mobile App back to your home Wi-Fi.
Switch back to “Omnos Play”App to check the connection with your Home Wi-Fi
If connected, now everything is under control
If not connected, repeat all the above stage and ensure you type the correct
password for your Home Wi-Fi, you can show the password during the type
stage.
When you configure the Wi-Fi for Omnos correctly, the Function LED on the front panel
will stay constant.

19 / 32
Figure 17. Wi-Fi Connection for Omnos Play
Adaptive Tuning Capability
Use the Omnos app to calculate your space and fine tune the Omnos
Soundbar for optimal performance. Your Soundbar emanates waves that
sweep the room in three dimensions to estimate the volume of the space. The
Soundbar then fine tunes its settings for optimal sound effects in that space.
To tune your Omnos, switch to [Settings][Room Tuning] [Room
Tuning]
Follow the tuning steps as the App guides, i.e. first set the distance from
your listening position to the Omnos Soundbar and start the tuning.
Please keep quiet during the tuning and also make sure you’re not very
close to the Omnos Soundbar as the loud sound during tuning process.

20 / 32
Figure 18. Tuning Process for Omnos Play
Virtual Soundfield Listening Modes
Adjust your listening mode to suit your playback content. The app features four
listening modes to choose from: Home Theater, Music, Late Night &
Omnos. Each listening mode is optimized for performance in their respective
playback content.
Home Theater: Omnos can restore the real life audio effects of all your favorite movies and
TV programs. Get the 3D surround sound effects of the movie theater experience all from the
comfort of your couch.
Music: This listening mode creates a panoramic surrounding sound field to create a
performance appreciated by any audiophile. The Omnos algorithm optimizes for best audio
timbre.
Late Night: While watching late night TV, Omnos can reduce the dynamic sound effect in the
program through algorithmic rebalancing techniques so you don't wake up everybody in the
house.
Omnos: Another 3D soundfield Virtualizer, could be more natural.
