Yinuo-Link YN-Q300N-B1 User manual
manual
manual
YN-Q300N-B1 WiFi Router Module
YN-Q300N-B1 300M Router Module
Shenzhen Yinuo-Link Tech Co., Ltd
Description:
YN-Q300N-B1 is one WiFi Router Module based on QCA9531 chip design, with high-performance and small
size design. This item supports large capacity DDR2 and high speed SPI Flash, can connected to the
motherboard by "Pin". The user can make multiplex structural design according to the mold ID and board type.
It complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b standards, adopts 2x2 MIMO structure. This
item can also supports WiFi signal multiplexing transceiver and its Wireless Signal Rates can be up to
300Mbps. It provides one USB2.0 port, 2 10/100M PHY and several GPIO ports. It reserves the UART
communication interface suiting for further development.
YN-Q300N-B1 adopts 2x2 MIMO (Multiple input multiple output) architecture, wireless signal multiplexing,
transmission rate up to 300Mbps; provides two 10 / 100M PHY interface, a USB2.0 and GPIO interface,
extended powerful, widely used in wireless mobile hard disk, wireless high-definition receiving box, network
camera, air conditioning or TV embedded wireless applications, MIFI and other products. Customers can
either select an onboard antenna or an external antenna. The module provides a complete network interface.
You can achieve WiFi AP, WiFi STA, WiFi Repeater and other functions.
Product Features:
1. In line with IEEE802.11N / G / B wireless network protocol, wireless transmission rate up to 300Mbps;
2. Small size, through the "pin" and the motherboard connection;
3. Rich USB, GPIO interface, user-friendly expansion of WiFi embedded applications
4. Stable performance, powerful, scalable
5. System software can be customized to meet a variety of application needs;
6. Provide a variety of communication interfaces and debugging interface;
7. DC 3.3V single power input;
8. The system supports OpenWRT, QSDK
9. Customers can be the second development, custom services
YN-Q300N-B1 300M Router Module
Shenzhen Yinuo-Link Tech Co., Ltd
Typical Applications
·Power Bank，Wireless Plus
·Wireless HD STB，web camera
·WiFi Advertising Displayer & Consumer electronic products or IA Intelligence Appliance
·Air-condition or TV Embedded WiFi application
·MIFI and other Mobile application
Features
Chipset QCA9531
Frequency 550MHz
RAM 64/128MNB
SPI Flash 8/16MB
WiFi 802.11 b/g/n 2T2R 300Mbps
Eth 802.3 10/100M
Size 45*25*8.5mm(L*W*H)
Interface
·Ethernet ×2
·USB Host×1
·SPI ×1 multiplex
·UART Lite ×1
·I2C ×1
·GPIO ×7
·IPEX ×2
·Input 3.3V1A
Working Temperature -20°C- 85°C
WiFi Data
Protocol/Standard IEEE 802.11b, IEEE 802.11g, IEEE 802.n
Frequency Range 2.400~2.4835GHz
Modulation Type ·802.11b：DSSS (CCK, DQPSK, DBPSK)
·802.11g/n：(BPSK, QPSK, 16QAM, 64QAM)
Wireless Signal
Rates
·802.11b：11, 5.5, 2, 1Mbps
·802.11g：54, 48, 36, 24, 18, 12, 9, 6Mbps
·802.11n：300Mbps(Max)
Transmitting Power 15 ±2dBm
Receiver Sensitivity -72±1.0dBm
Software Systems
YN-Q300N-B1 300M Router Module
Shenzhen Yinuo-Link Tech Co., Ltd
·Open-Wrt/QSDK
·Linux 3.8 kernel
·CGI/HTTPD
·Open VPN/PPTP VPN
·Routing/Switch
·WPA2/WPA/WEP
·Simple file system
·USB
·PPPOE/DHCP

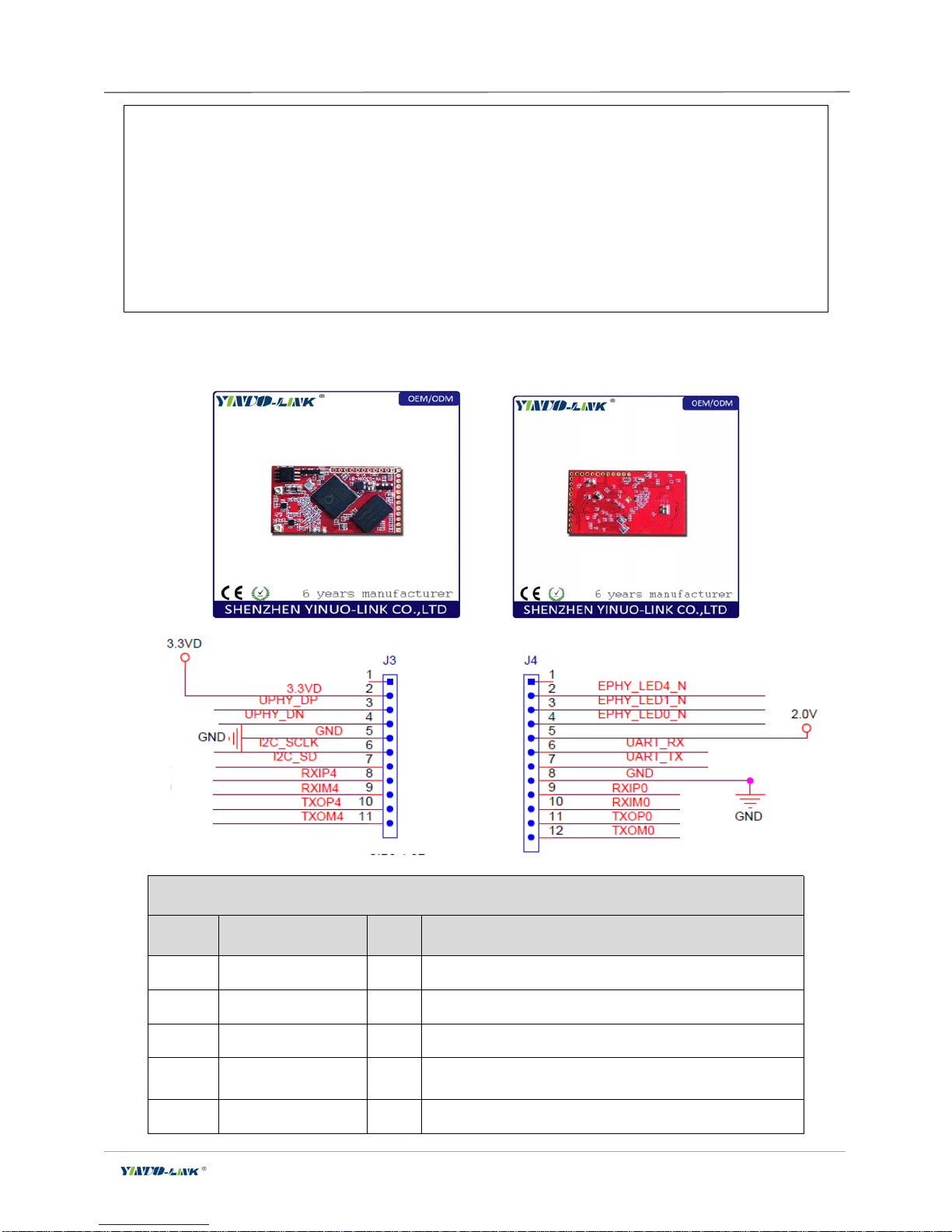

Definition of Pin
TOP BOTTOM
J3 1*11 Pin Header (2.0mm)
Pin
No Symbol Type
Description
1
GPIO12
I/O
GPO Function
2
3.3V
P
DC 3.3V Power Supply
3
UPHY_DP
I/O
USB Port0 Data Pin Data+
4
UPHY_DN
I/O
USB Port0 Data Pin Data-
5
GND
G
Ground Pin
YN-Q300N-B1 300M Router Module
Shenzhen Yinuo-Link Tech Co., Ltd
6
GPIO1 I/O
GPO Function
7
GPIO2 I/O
GPO Function
8
P0_RX+ I/O
10/100 PHY Port #0 RXP
9
P0_RX-
I/O
10/100 PHY Port #0 RXN
10
P0_TX+
I/O
10/100 PHY Port #0 TXP
11
P0_TX- I/O
10/100 PHY Port #0 TXN
J5 1*12 Pin Header (2.0mm)
Pin
No Symbol Type
Description
1
GPIO14
I/O GPO Function
2
GPIO4
I/O GPO Function
3
GPIO16 I/O GPO Function
4
GPIO15
I/O GPO Function
5
2.0V P2.0V Power Supply
6
UART_TX I/O UART Lite ×1
7
UART_RX
I/O UART Lite ×1
8
GND G Ground Pin
9
P4
_
RX+
I/O 10/100 PHY Port #4 RXP
10
P4_RX- I/O 10/100 PHY Port #4 RXN
11
P4_TX+
I/O 10/100 PHY Port #4 TXP
12
P4_TX-
I/O 10/100 PHY Port #4 TXN
