YUHAO 1163 User manual

Model No.: 1163
Ceiling Fan
Installation Instructions
THANK YOU
We appreciate the trust and confidence you have placed in us through the purchase
of this ceiling fan.We strive to continually create quality products designed to
enhance your home.Thank you for choosing us!

.1.
Safety Precautions
1. For your safety, all electrical connections and disconnections should be performed by a
qualified electrician.
2. Any action performed for the electrical connection of the device must be carried out after
ensuring that the general power supply is disconnected,by removing the corresponding fuse or
disarming the protective switch in order to ensure total isolation of the power supply.
3. When deciding where to mount the fan, be sure that there is at least 30 inches(76 cm) of space
between the fan and any wall or other obstruction that the fan blades could collide with. The
greater this distance, the more effective the air flow produced.After the fan is mounted, be sure
that the blades are no less than 7ft(2.1 m) above the ground.
4 . The anchor point for the fan must be able to support a weight of at least 100 pounds(45 kg). If
mounting on a ceiling junctionbox, be sure that the fan is adequately supported to prevent
loosening or turning.
5. The fan’s electrical connection must be “grounded” (the fan’s ground cable connected to the
installation’s grounding network) in order to avoid any branching that may be dangerous to
people.
6. Do not connect the fan’s power supply to any dimmers,potentiometers, or light switches, as it
will cause the fan tomalfunction and/or will damage the motor. The fan must be directly
connected to a properly protected installation circuit(magnetothermal differential switch with the
adequate size for the fan’s consumption and technical specifications).Only use the fan’s control
to turn it on or stop it.
7. It is recommended to not use these types of fans along with gas installations simultaneously in
the same room.
8. The fan must be not be moving and must have come to a complete stop before changing its
direction of rotation.This will prevent damage to its motor and to the control unit, when
applicable.
9. Do not insert anything that could hit the fan’s blades into its pathway while it is moving, as this
could cause damage to people, can damage the blades, and can offset the balance of the unit,
causing vibrations and wobbling.
10. After installing the fan, ensure that all fastenings aresecure and tightened in order to avoid any
noise caused by loose elements.
11. Due to the fan’s movement, certain fastenings may become loose. Check all fastenings twice
per year at a minimum in order to ensure that they are sufficiently tight. If necessary, they must
be retightened.
12. The motor housing can be cleaned with a soft brush or a lint-free cloth to avoid scratching the
surface. Clean the blades with a lint-free cloth. Important: Turn off the main power supply before
starting any maintenance. Do not clean the fans with water or a damp cloth.
Note: The important warnings and instructions indicated in this manual are not
guaranteed to cover all possible conditions and situations that may occur. It
must be understood that common sense, precaution, and care are factors that
cannot be included in all products. These factors can and must only be provided
by the user who maintains and enjoys this fan.
The information contained in the following pages has been prepared to ensure your
maximum enjoyment of your fan
Please remove the fuse or turn off the circuit breaker to cut off the power before installing
the fan. Ensure all electrical connections are in compliance with local laws, regulations
and national eletrical codes. If you are not familiar with electrical installation and wiring,
please hire a qualified electrician or consult the wiring manual.
Visit www.pmwfan.com for further assistance.

.2.
Installation kit
Blade balancing kit
Pre-Installation
AA
AA
BB
BB
CC
CC DD
DD
Wire nut
Part Description
3
22
2
4
Quantity
Screw
Self tapping screw
Blade screw
Tools
Needed
Visit www.pmwfan.com for further assistance.

.3.
Specification
H
F
G
Pre-Installation
D
E
B
I
J
K
A
C
Part
A
B
C
D
E
F
G
H
Quantity
1
1
1
1
1
1
1
7
Description
Down rod
Bracket
Canopy
Yoke cover
Body/motor
Light kit
Light cover
Blades
Part
I
J
K
L
M
Quantity
1
1
1
1
2
Description
Remote controller
Receiver
Battery
AAA 1.5V
Note:The Illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected
to change without prior notice for further improvements.
Visit www.pmwfan.com for further assistance.
LM
Spare power cable
Spare safety rope

.4.
Step 1(Basic assembly of the fan)
①
Installation Instruction
Decompose Drown rod.
Visit www.pmwfan.com for further assistance.
NOTE:If you are going to use a long down rod, follow these steps.
1.Connecting the Spare Power Cable

.5.
②
Installation Instruction
Pass the cable through the
down rod and lock the down
rod.
Insert the canopy,yoke cover, and suspension
ball into the down rod. Then insert the fixing
pin, push the Hanging ball up, and fix it with
screws.
③
Visit www.pmwfan.com for further assistance.
2.Connecting the Spare Safety rope

.6.
Step 2 (Ceiling bracket installation and fan into the installed Bracket.)
②
OFF
①Turn off the fan power supply at the circuit breaker box and the wall switch.
Failure to disconnect the power
supply prior to installation may
result in serious injury or death.
！
Choose the following installation methods according to the actual situation of the roof.
③Snap the basically assembled fan into the installed Bracket.
Installation Instruction
Octagon box Solid wood roof
Concave
Convex
Visit www.pmwfan.com for further assistance.

Step 3 (Receiver and wiring installation)
②③
Put the receiver into the Bracket and
arrange the wires
Adjust the position of Canopy, then
lock it
①
Installation Instruction
Connect the Connectors from Fan and Receiver. Connect the wires from the receiver
to House Supply Wire.
Safety rope installation method
Safety rope
.7.
Visit www.pmwfan.com for further assistance.
House power
To Light To Motor Ground wire
AC IN L( Black )
AC IN N(
White )

.7.
Align the blades with the
mounting holes, and then fix
them with screws.
②
①
Installation Instruction
Step 5 (Switch on and ceiling fan works)
ON
Step 4 (Blades and Light kit installation)
Remove the pre-installed screws.
Connect the light kit cable, and then lock
the light kit.
Visit www.pmwfan.com for further assistance.

.8.
Remote Control ( Emitter ) Operation
34
5
6
1
2
1H 3H
6H
Fan Speed
(1/2/3/4/5/6)
Fan Off
Fan Timer Switch
(1hr,3hr,6hr)
Light brightness “+/-”
Forward/Reverse
LED On/Off
Colour Change
-
+
Transmitter FunctionRemote Control Holder
Installation
②
③
⑤⑥
④
①
AAA 1.5V
Press and hold
for about 3 sec
1.Insert the 2 pcs of batteries into
transmitter.
2.Turn on the power supply to the fan.
Within 10 sec, press and hold the “1”
and “2” button for about 3 sec. Once
the receiver has detected the frequen-
cy, receiver will “Beep Beep” twice.Pro-
gramming process is completed and fan
is ready to use.
Transmitter learning
process
NOTE:The remote control device has already been
code matching when it leaves the factory.If the fan is
not responding to the transmitter,repeat transmitter
learning process.
Visit www.pmwfan.com for further assistance.

.9.
TroubleShooting
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The remote control is
not working.
Problem Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware is secured tightly.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs.
Regulator Dimmer Switch
Visit www.pmwfan.com for further assistance.

.10.

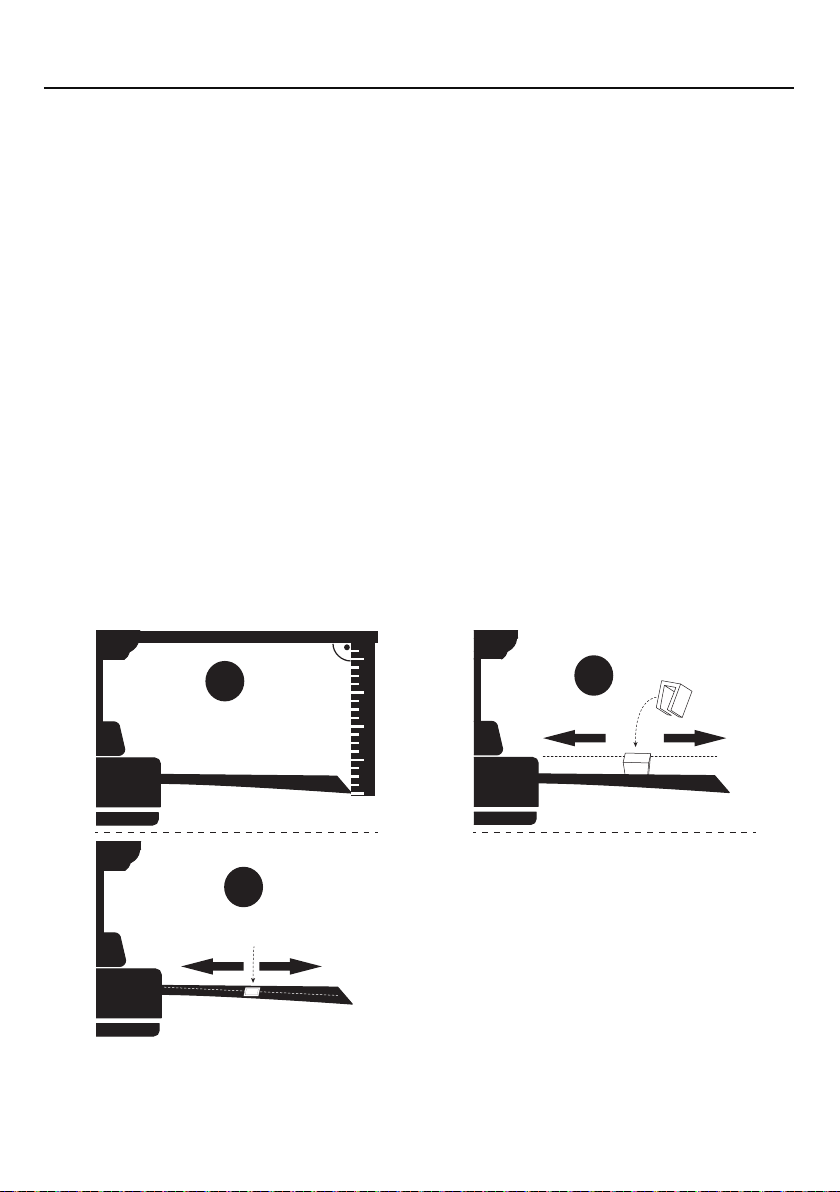

If the fan body wobbles during its operation, this is not a sign of malfunctioning (even if it wobbles a
few centimeters). To reduce wobbling, you can turn off the fan,and:
1.Check that all blades are properly fastened by tightening their screws.
2.Check the distance between each blade and the ceiling. Measurements to the ceiling can be carried
out as shown in the following diagram. If variations exist and you have already correctly tightened the
screws, check that all blades have the same shape. If any of them have a shape that is visibly
different, this may be causing an imbalance during fan operation.
If you have completed the previous steps and the wobbling has not resolved,you should apply dynamic
balancing with the kit provided, as explained below:
1.Turn the fan on to the highest speed so that the greatest amount of wobbling is produced.
2.Turn off the fan. Select a blade and place a clip on it (see diagram) halfway between the fastening
and the far edge of the blade.
3.Turn on the fan and check whether the wobbling has improved or gotten worse.Turn it off once again
and if the wobbling has not improved, place the clip on another blade. Repeat this process and
determine on which blade it improves the wobbling.
4.Leave the clip on the blade that produces the best results. Move the clip forward or backwards on
this blade until finding the position that offers the best results.
5.Afterwards, remove the clip and place one of the weights on the upper part of the center line of the
blade at the position where the clip was located.
3
12
Balancing – Wobbling problems during fan operation
Visit www.pmwfan.com for further assistance.

23-04
visit www.pmwfan.com for further assistance.
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
