Zamel gardi ZMB-01/C User manual
file: ZMB-01_C_inst_gar_pl | modified on: 26.03.2020
ZMB-01/C WIRELESS WI-FI CAMERA
USER MANUAL
ZAMEL sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
DESCRIPTION
The ZMB-01/C camera is supported by recorders from the ZMB-01 monitoring system manufactured by ZAMEL and will not operate
independently.
ZMB-01/C is a 2 MP wireless WI-FI camera which can be used to expand the basic ZMB-01 monitoring system (comprising a recorder and
2 cameras).
A maximum of 9 cameras can be observed on the recorder.
TECHNICAL DATA
ZMB-01/C
Power supply:
12 V DC
Power consumption:
1.7 W
Frequency:
2.4 GHz
Matrix type:
2MP (1080p), 1/2.9” CMOS
Sensor HISILICON Hi3516C
Infrared:
20 LEDs of ca. 25 m in light range
Housing protection rating:
IP66
Weight:
284 g
Dimensions:
73 x 160 x 160 mm (with the antenna unfolded)
NOTE
Connect the device to a one-phase grid, in accordance with effective standards. The connection method is specified in this user manual.
All activities connected to: installing, connecting and setting the system must be performed by qualified electricians who familiarized this
user manual and all functions of the device. Before proceeding to installation, make sure all connection cables are de-energized. Before
opening the housing to install the hard drive, make sure the power supply unit is disconnected from the device. Use a max 3.5 mm Philips
screwdriver. The method of transport, storage and operation of the device impacts its correct functioning. The device should not be installed
in the following cases: absence of any components, the device is damaged or deformed. Refer to the manufacturer if the device is
malfunctioning.
Do not dispose of this device in the trash can with other waste! In order to avoid harmful effects on the environment and human health, store used device in specially
designated places. Household electronic waste can be returned for free and in any amount to the collection point established for this purpose, and also to the shop when
buying new equipment.
APPEARANCE
Antena
Antenna
Regulacja daszku ochronnego
Protective canopy adjustment
Śruba blokująca
Locking screw

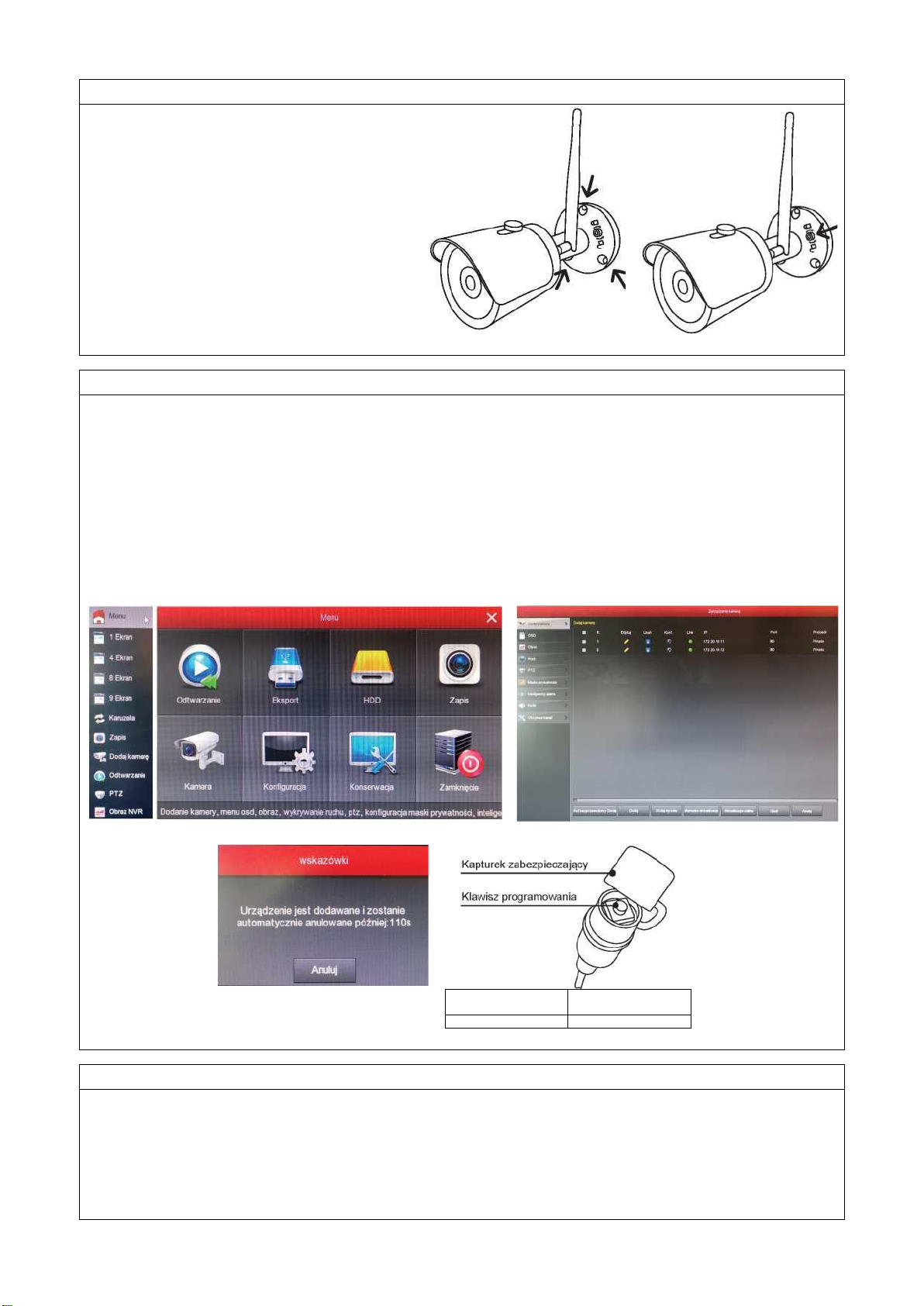

INSTALLATION AND CONNECTION
- Hang the camera using 3 expansion plugs and screws
provided with the system - Fig. 1.
- To adjust the camera angle, loosen the screw at the bottom
of the camera using the Allen key provided with the system
(Fig. 2). Next, adjust the two dimensions of the camera to
set its position at the required angle. After adjusting the
camera, tighten the locking screw.
•To connect the camera, plug in the power supply (12 V/500
mA power supply unit). The culverts provided with the
system should be used for conducting cables through walls.
Fig 1.
Fig 2.
ADDING THE CAMERA TO THE RECORDER
To pair the camera with the recorder:
•In the main menu of the recorder, select the “Camera” option to open the “Camera management” window” and display the list of cameras
installed in the system (Fig. 4).
•Click on the “Wireless code Add” to display the notification in Fig. 5 signaling that the 120 sec. programming procedure was started.
•Find the programming button on the incoming cable connected to the camera. If it is secured with a cap, remove it to gain access to the
button (Fig. 6).
•Next, press the programming button for about 6 sec. until 3 LEDs on the camera front start to blink. After a few seconds from releasing
the button, the new camera should appear on the list of available devices in the recorder. Use this method to add subsequent cameras
(as part of the 120 sec. programming procedure). If all cameras are not programmed in 120 sec., call the programming function from the
recorder’s menu again.
9 cameras in total can be programmed for the recorder.
The remaining settings, i.e. the period, in which the camera is to record image, motion detection settings, etc., should be configured
according to the user manual provided with the ZMB-01 monitoring system.
Fig 3.
Fig 4.
Kapturek
zabezpieczający
Protective cap
Klawisz programowania
Programming key
Fig 5.
Fig. 6.
WARRANTY CARD
The manufacturer grants a 24-month
warranty
1. ZAMEL Sp. z o.o. grants a 24-month warranty for the sold goods.
2. The following ones are not covered by the ZAMEL Sp. z o.o. warranty:
a) mechanical damage caused during transport, loading / unloading or in other circumstances,
b) damage caused as a result of defective assembly or operation of ZAMEL Sp. z o.o. products,
c) damage caused as a result of any modifications made by the BUYER or third parties and referring to products forming the subject of sale or
devices necessary for correct functioning of products forming the subject of sale,
d) damage arising from force majeure or other fortuitous events for which ZAMEL Sp. z o.o. does not bear responsibility & liability.
3. Any and all claims arising from the warranty shall be reported by the BUYER in the point of purchase or to ZAMEL Sp. z o.o. in writing after their
identification.
4. ZAMEL Sp. z o.o. undertakes to examine complaints in accordance with applicable provisions of Polish law.
5. Selection of the form of handling a complaint e.g. replacement of goods with goods free of defects, repair or return of money belongs to ZAMEL Sp.
z o.o.
6. The territorial range of the warranty: The Republic of Poland.
7. The warranty shall not exclude, limit or suspend BUYER’s rights under the provisions on warranty for defects of a good sold.
Stamp and signature of the seller, date of
sale
