Zanussi DV 35 Operating and safety instructions

INSTRUCTIONS FOR
THE USE AND CARE OF
ZANUSSI
FREEZER

IMPORTANT
1. Remove all foam transit blocks from the front of
each basket before operating this appliance by
pinching the block at its base and peeling back.
2. The accumulator tray should be located under the
bottom freezer shelf. It can be removed and fitted
by flexing the sides of the tray. This tray can be
used to store ice trays.

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is left with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant warnings.
Warnings and Guidance
These warnings are provided in the interest of safety. You must read
them carefully before installing or using the appliance.
This appliance is designed to be operated by
adults, children should not be allowed to tamper
with the controls or play with the product.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
This product should be serviced by an authorised
Zanussi Service Force Centre, and only genuine
Zanussi spare parts should be used.
It is dangerous to alter the specifications or
modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Zanussi domestic refrigerators, freezers and
fridge/freezers are designed to be used specially
for the storage of edible foodstuffs only.
Frozen food must not be re-frozen once it has
been thawed out.
Manufacturer’s storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
There are working parts in this product which heat
up. Always ensure that there is adequate
ventilation as a failure to do this could result in
component failure and possible food loss. See
installation instructions.
Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.
Before any cleaning or maintenance work is
carried out, be sure to switch off the appliance and
unplug.
• The inner shelves of the appliance consists of
channels through which the refrigerant passes. If
this should be punctured this would damage the
appliance beyond repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS to scrape off
frost or ice. Frost may be removed by using the
scraper provided. Under NO circumstances should
solid ice be forced off the liner. Solid ice should
be allowed to thaw when defrosting the appliance.
See Defrost instructions.
• The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
• Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in
damage to the appliance.
• The appliance is heavy. Care should be taken
when moving it. Ice lollies can cause frost bums if
consumed straight from the freezer.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to Your local
Zanussi Service Force Centre, always insist on
genuine Zanussi spare parts.
1

CONTENTS
Conservation
Page 3
Specifications
Page 4
General Features
Page 5
Installation
Page 6
Door Reversal
Page 7
Adjustment of Door
Page 8
The Electrical Connections
Page 9
Health And Safety Guidelines
Page io

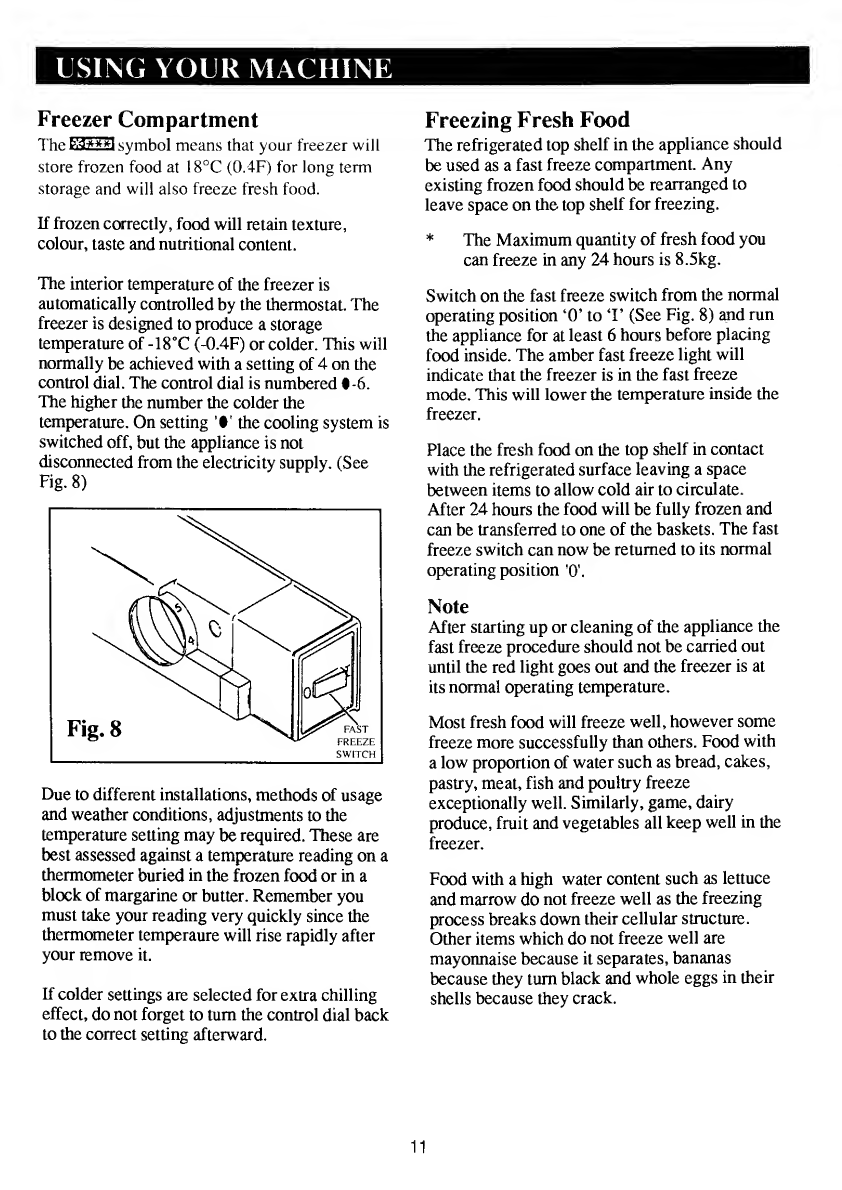

Using Your Machine
Page li
The Warning Lights
Page 13
Starting Up Page 14
General Food Preparation
Page is
Food Freezing Guide
Page 18
Maintenance And Cleaning
Page 20
What Happens If Something Goes Wrong?
Page 21
Servicing
Page 22
Service Agent Directory
Page 23
Peace Of Mind For Twelve Months
Page 27
Or Five Years
Page 28
2

CONSERVATION
In The Interests Of The Environment:
When disposing of your old fridge, freezer or fridge/freezer.
Check with your local Council or Environmental Health Officer to see if there are facilities in
your area for collecting the gas from the appliance for re-cycling. This will help reduce the
amount of CFC gas released in the atmosphere.
Help to keep your countryside tidy - use authorised disposal sites for your old appliances.
For Maximum Efficiency:
Make sure that the appliance is cleaned properly.
Make sure that the door is closed properly.
Do not position the appliance near to sources of heat.
Do not over-fill your appliance, air MUST be allowed to circulate.
3

SPECIFICATIONS
Exterior Dimensions DV35
Height
85cm (33.4”)
Width 45cm (17.7”)
Depth
60cm (23.6”)
Capacity
Gross 88 Litres
Net 70 Litres
Star Rating
4
Power Absorbed now
Voltage 220/240V
Frequency 50Hz
4

GENERAL FEATURES
1. Fast Freeze Flap
2. Thermostat Control
3. Food Charts
4. Freezer Basket
5. Drain Channel
6. Level Adjusters (in 4 feet)
7. Warning Lights

INSTALLATION
WARNING:
IF YOU ARE DISCARDING AN OLD
APPLIANCE THAT HAS A LOCK OR
CATCH ON THE DOOR, PLEASE ENSURE
THAT IT IS MADE UNUSABLE TO
PREVENT YOUNG CHILDREN BEING
TRAPPED INSIDE.
The appliance should be gently pushed into
place until the top rear ventilation grill touches
against the wall. (See Fig. 1).
When in position, if a 20mm (3/4") clear gap
above the appliance is not available, gaps of
25mm (1”) should be maintained on both sides
of the appliance, this is to provide sufficient air
circulation. Always ensure that ventilation is
kept clear. If the ventilation is blocked by tea
towels etc., this will cause the appliance to
work incorrectly.
Fig. 2
Before switching on, make sure that the voltage
of your mains supply is the same as that stated
on the rating plate. This is located inside the
cabinet behind the bottom drawer.
At first you may be aware of sounds in your
kitchen which you are not used to, particularly if
your appliance is against sound-reflective
surfaces such as tiled or painted walls. Please
remember the cooling unit includes precision
built components which, like those in car
engines and other machinery with fast moving
parts, need a running in period which may last
several weeks. During this period, don’t worry,
just allow the appliance time to settle down.
Your appliance will be heavy when loaded with
food and must therefore be stood on a strong
firm floor, which must be level.
Adjust the level by screwing out the appropriate
level adjusters in the front feet using your fingers
or a 25mm (1") spanner (See Fig. 2).
Level adjusters are also available in the rear feet
in the event of excessive floor unevenness.
Make sure the appliance is upright and level so
that it does not move and is stable.
B

DOOR REVERSAL
Before carrying out the following instruction
make sure that you:
* Disconnect the appliance from the mains
supply.
* Remove all food and store in a cool dry
place.
* Remove all shelves and other loose items.
1. Gently lay the appliance back, with the top
raised at least 30cm (12") from the floor (use a
stool or something similar). Use a towel or cloth
at the base of the appliance to protect the side
panels and the floor from damage. Do NOT
support the appliance on the rear venitlation grill
(See Fig. 3 for correct positioning).
Remove level adjuster (1) from the small foot
assembly. The small foot (2) can now be
removed by removing the screw (3). In order
to remove the large foot/hinge assembly (7),
screws (4 & 5) should be removed making
sure that spacer (6) is retained with the
assembly (See Fig. 4)
2. Carefully disengage the door from the upper
hinge pin (See Fig. 4).
4. Refit the door, engaging the top with the
upper hinge pin in its new position.
5. P ull out the lower hinge pin (8) which may
have come away with the hinge blade or
remained in the door. Push the pin (rounded end)
into the bush at the bottom of the door on the
side opposite to its original position.
6. T aking care not to press down on the door.
The large foot/hinge assembly should be
transferred over to the opposite side of the
cabinet and screws 4 and 5 moved over to their
new positions in the hinge foot (See Fig. i).
Fig.i
7. I t is important that the spacer (6) is retained
with screw (4) in the channel between the base
of the appliance and the foot/hinge assembly
when screwing it into its new position.
8. Refit the small foot, positioning the screw in
the hole furthest from the cabinet front on the
flat portion of the base.
9. Replace the level adjuster (1) in the small foot.
10. S tand the appliance upright.
3. Unscrew the upper hinge pin (9) and transfer
it to the opposite side (See Fig. 5).
7

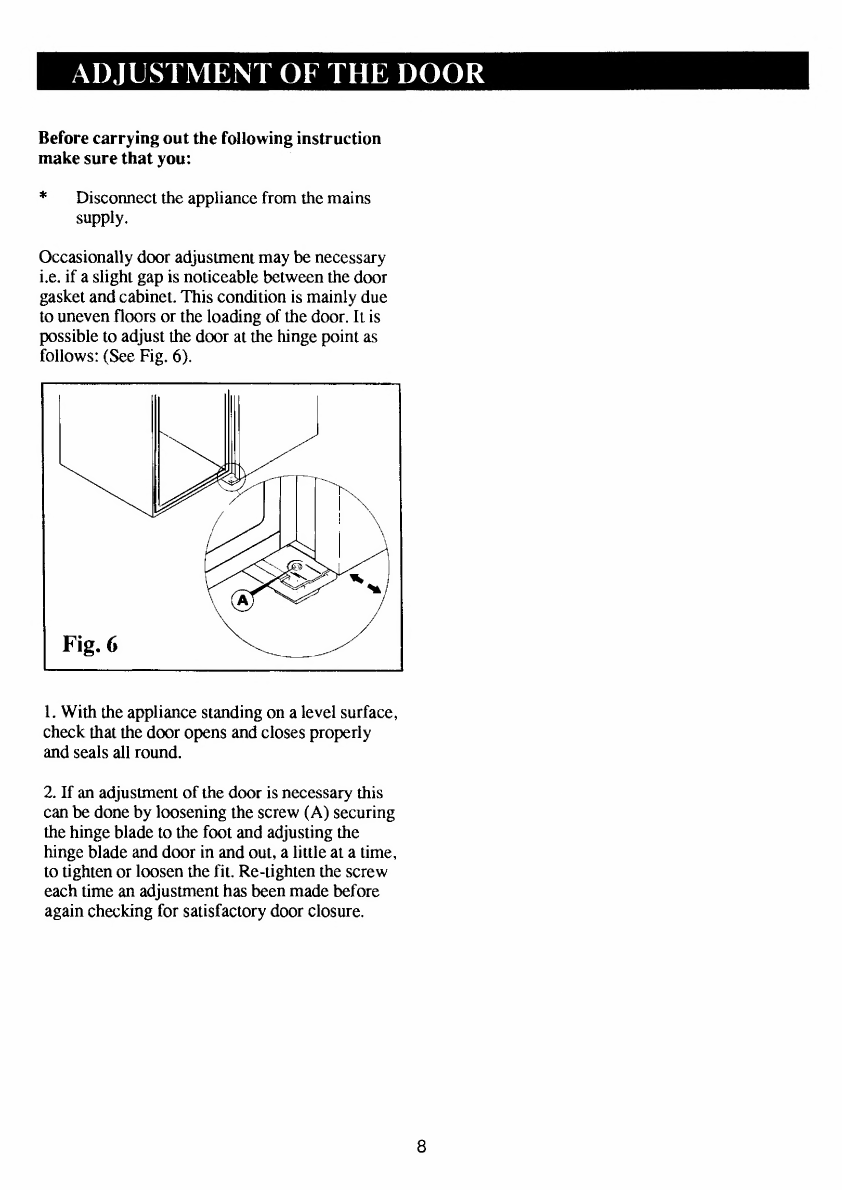

ADJUSTMENT OF THE DOOR
Before carrying out the following instruction
make sure that you:
* Disconnect the appliance from the mains
supply.
Occasionally door adjustment may be necessary
i.e. if a slight gap is noticeable between the door
gasket and cabinet. This condition is mainly due
to uneven floors or the loading of the door. It is
possible to adjust the door at the hinge point as
follows: (See Fig. 6).
1. With the appliance standing on a level surface,
check that the door opens and closes properly
and seals all round.
2. If an adjustment of the door is necessary this
can be done by loosening the screw (A) securing
the hinge blade to the foot and adjusting the
hinge blade and door in and out, a little at a time,
to tighten or loosen the fit. Re-tighten the screw
each time an adjustment has been made before
again checking for satisfactory door closure.
