Zanussi ZFC21410WE User manual

EN
ZFC21410WE
User Manual
Chest Freezer

Contents
Safety information 2
Safety instructions 3
Operation 4
Before first use 5
Daily use 5
Hints and tips 6
Care and cleaning 7
Troubleshooting 8
Installation 9
Technical information 11
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an
incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by children
without supervision.
•Keep all packaging away from children.
General Safety
•This appliance is intended to be used in household and similar
applications such as:
–Farm houses; staff kitchen areas in shops, offices and other
working environments
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
2 www.zanussi.com

•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
Safety instructions
Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always wear
safety gloves.
• Make sure the air can circulate around the
appliance.
• Wait at least 4 hours before connecting the
appliance to the power supply. This is to
allow the oil to flow back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand against
the wall.
• Do not install the appliance where there is
direct sunlight.
• Do not install this appliance in areas that are
too humid or too colds, such as the
construction appendices, garages or wine
cellars.
• When you move the appliance, lift it by the
front edge to avoid scratching the floor.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an electrician
to change the electrical components.
• The mains cable must stay below the level of
the mains plug.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
www.zanussi.com 3

Use
WARNING!
Risk of injury, burns, electrical shock
or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless they
are stated applicable by the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.
• If damage occurs to the refrigerant circuit,
make sure that there are no flames and
sources of ignition in the room. Ventilate the
room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure on
the drink container.
• Do not store flammable gas and liquid in the
appliance.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are wet or
damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.
Care and cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in the
cooling unit. Only a qualified person must do
the maintenance and the recharging of the
unit.
• Regularly examine the drain of the appliance
and if necessary, clean it. If the drain is
blocked, defrosted water collects in the
bottom of the appliance.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas.
Contact your municipal authority for
information on how to discard the appliance
correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat exchanger.
Operation

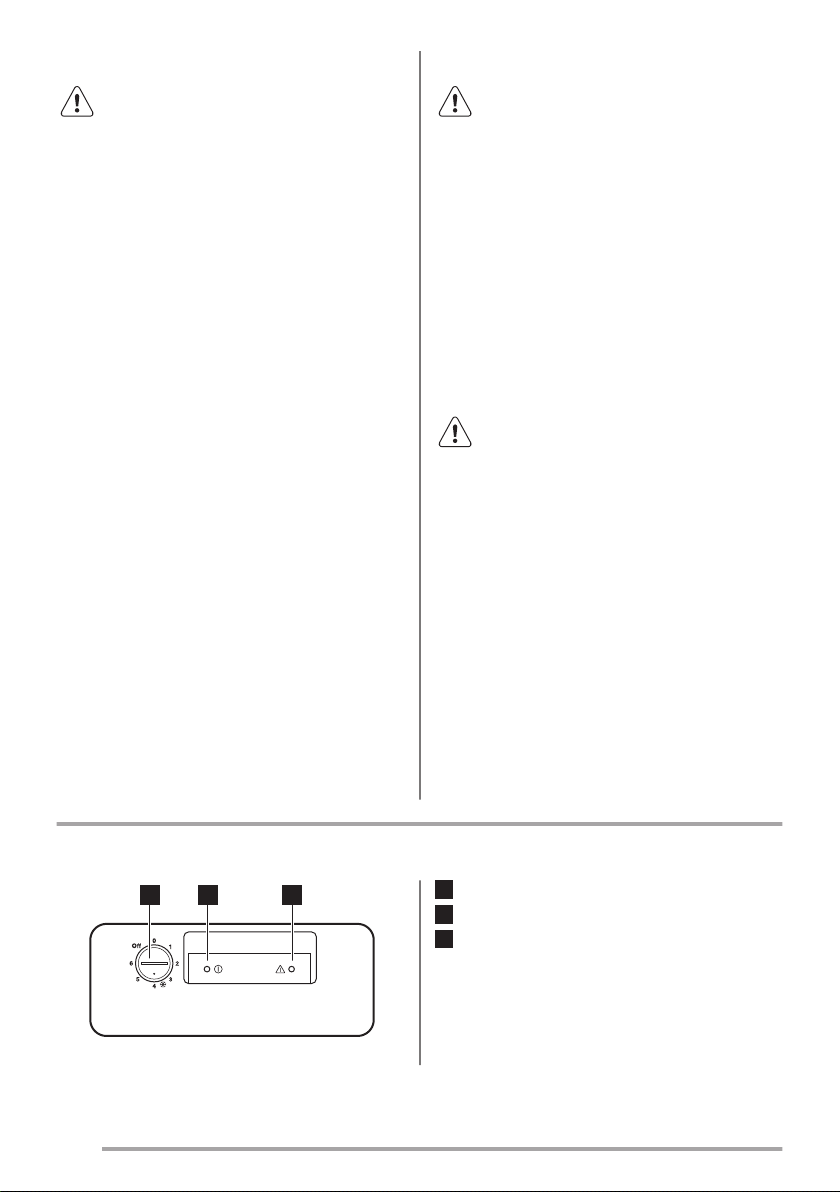

Control panel
21 3
1Temperature regulator
2Power indicator light
3High temperature alarm light
4 www.zanussi.com

Switching on
B
C
A
A) Temperature Regulator
B) Half Loaded position
C) Full Loaded position
1. Insert the plug into the wall socket.
2. Turn the Temperature Regulator to the Full
Loaded position and let the appliance run
for 24 hours to allow the correct
temperature to be reached before placing
food inside.
The power indicator light will light up.
3. Adjust the Temperature Regulator
according to the quantity of the stored
foods.
Switching off
Turn the Temperature regulator to the OFF
position.
Temperature regulation
The temperature within the appliance is
controlled by the Temperature Regulator
situated on the control panel.
To operate the appliance, proceed as follows:
• to obtain the minimum coldness, turn the
Temperature Regulator toward lower
settings.
• to obtain the maximum coldness. turn the
Temperature Regulator toward higher
settings.
In case of freezing less food
volumes, the Half Loaded setting is
the most suitable. In case of freezing
much food volumes, the Full Loaded
setting is the most suitable.
High temperature alarm
An increase in the temperature in the freezer
(for example due to an power failure) is
indicated by:
• switching on of the Alarm light
• sounding of buzzer
During the alarm phase, the buzzer can be
switched off by pressing the Alarm reset switch.
During the alarm phase, don't place food inside
the freezer.
When normal conditions are restored the Alarm
light will switch off automatically.
Before first use
WARNING!
Refer to Safety chapters.
Cleaning the interior
Before using the appliance for the first time, the
interior and all internal accessories should be
washed with lukewarm water and some neutral
soap to remove the typical smell of a brand-new
product, then dried thoroughly.
CAUTION!
Do not use detergents or abrasive
powders, as these will damage the
finish.
Daily use
WARNING!
Refer to Safety chapters.
www.zanussi.com 5

Freezing fresh food
The freezer compartment is suitable for freezing
fresh food and storing frozen and deep-frozen
food for a long time.
The maximum amount of food that can be frozen
in 24 hours is specified on the rating plate. 1)
The freezing process lasts 24 hours: during this
period do not add other food to be frozen.
Storage of frozen food
When first starting-up or after a period out of
use, before putting the products in the
compartment let the appliance run at least 24
hours Temperature Regulator to the Full Loaded
position.
CAUTION!
In the event of accidental defrosting,
for example due to a power failure, if
the power has been off for longer
than the value shown in the
technical characteristics chart under
"rising time", the defrosted food
must be consumed quickly or
cooked immediately and then re-
frozen (after cooling).
Opening and closing the lid
CAUTION!
Never pull the handle with immense
force.
As the lid is equipped with a tightly closing seal,
it is not easy to reopen it shortly after closing
(due to the vacuum formed inside). Wait for few
minutes before reopening the appliance.
The vacuum valve will help you to open the lid.

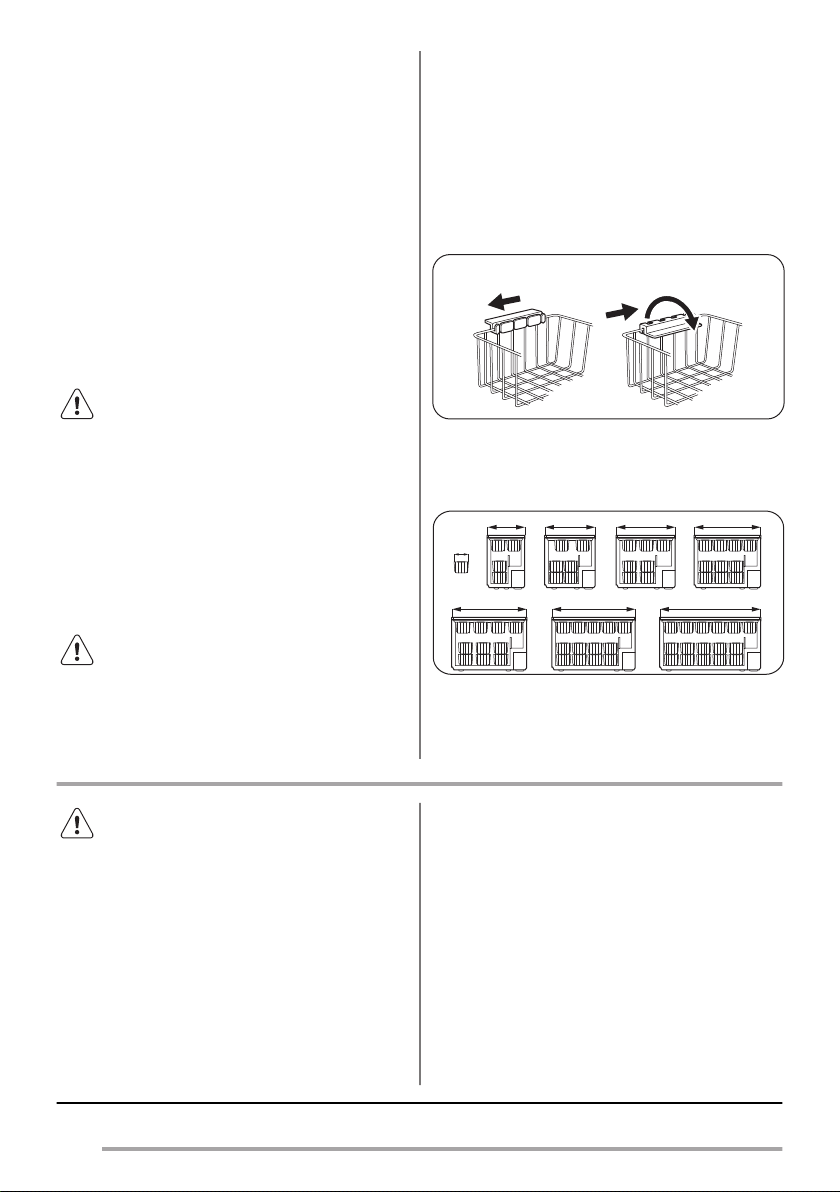

Storage baskets
Hang the baskets on the upper edge of the
freezer (A) or place them inside the freezer (B).
Turn and fix the handles for these two positions
as shown in the picture.
A B
The following pictures show how many baskets
can be placed inside the various freezer models.
The baskets will slide into each other.
230
806606 946 1061
1201 1336 1611
You can purchase additional baskets from your
local Service Centre.
Hints and tips
WARNING!
Refer to Safety chapters.
Hints for freezing
To help you make the most of the freezing
process, here are some hints:
• The maximum quantity of food which can be
frozen in 24 hours is shown on the rating
plate.
• The freezing process takes 24 hours. No
further food to be frozen should be added
during this period.
• Freeze only top quality, fresh and thoroughly
cleaned foodstuffs.
• Prepare food in small portions to enable it to
be rapidly and completely frozen and to
make it possible subsequently to thaw only
the quantity required.
• Wrap up the food in aluminium foil or
polythene and make sure that the packages
are airtight.
• Do not allow fresh, unfrozen food to touch
food which is already frozen, thus avoiding a
rise in temperature of the latter.
1) Refer to "Technical data"
6 www.zanussi.com

• Lean foods store better and longer than fatty
ones; salt reduces the storage life of food.
• Water ices, if consumed immediately after
removal from the freezer compartment, can
possibly cause the skin to be freeze burnt.
• It is advisable to show the freezing in date on
each individual pack to enable you to keep
tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred
from the store to the freezer in the shortest
possible time;
• not open the lid frequently or leave it open
longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly
and cannot be refrozen.
• Do not exceed the storage period indicated
by the food manufacturer.
Care and cleaning
WARNING!
Refer to Safety chapters.
Periodic cleaning
CAUTION!
Unplug the appliance before
carrying out any maintenance
operation.
Do not use detergents, abrasive
products, highly perfumed cleaning
products or wax polishes to clean
the inner side of the appliance.
Prevent damage to the cooling
system.
There is no need to clean the
compressor area.
1. Switch off the appliance.
2. Regularly clean the appliance and the
accessories with warm water and neutral
soap.
Clean the lid seal carefully.
3. Fully dry the appliance.
4. Connect the mains plug to the mains
socket.
5. Switch on the appliance.
Defrosting the freezer
CAUTION!
Never use sharp metal tools to
scrape off frost as you could
damage the appliance. Do not use a
mechanical device or any artificial
means to speed up the thawing
process other than those
recommended by the manufacturer.
A temperature rise of the frozen food
packs, during defrosting, may
shorten their safe storage life.
Defrost the freezer when the frost layer reaches
a thickness of about 10-15 mm.
The amount of frost on the walls of the
appliance will be increased by the high level of
the outer environment humidity and if the frozen
food is not wrapped properly.
The best time to defrost the freezer when it
contains no or only a little food.
1. Switch off the appliance.
2. Remove any stored food, wrap it in several
layers of newspaper and put it in a cool
place.
3. When defrosting is completed, dry the
interior thoroughly and refit the plug.
4. Switch on the appliance.
5. Set the temperature regulator to obtain the
maximum coldness and run the appliance
for two or three hours using this setting.
6. Reload the previously removed food into the
compartment.
www.zanussi.com 7

Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Switch off the appliance and disconnect the
appliance from electricity supply.
2. Remove all food
3. Defrost and clean the appliance and all
accessories.
4. Leave the lid open to prevent unpleasant
smells.
If the cabinet will be kept on, ask
somebody to check it once in a
while to prevent the food inside from
spoiling in case of a power failure.
Troubleshooting
WARNING!
Refer to Safety chapters.
What to do if...
Problem Possible cause Solution
The appliance does not operate. The appliance is switched off. Switch on the appliance.
The mains plug is not connected
to the mains socket correctly. Connect the mains plug to the mains socket correctly.
There is no voltage in the mains
socket. Connect to a different electrical mains socket. Contact a qualified
electrician.
The appliance is noisy. The appliance is not supported
properly. Check if the appliance stands stable.
Audible or visual alarm is on. The cabinet has been recently
switched on or the temperature
in the appliance is too high.
Refer to "High Temperature
Alarm" and if the problem still oc-
curs contact the nearest Author-
ized Service Centre.
Power indicator light is flashing. An error has occurred in measur-
ing the temperature or the appli-
ance is not working properly.
Contact the nearest Authorized
Service Centre.
The lid doesn't close completely. Food packages are blocking the
lid. Arrange the packages in the right way, see the sticker in the appli-
ance.
There is excessive frost. Eliminate excess frost.
The lid is difficult to open. The lid gaskets are dirty or sticky. Clean the lid gaskets.
The valve is blocked. Check the valve.
The compressor operates contin-
ually. Temperature is set incorrectly. Refer to "Operation" chapter.
Large quantities of food to be
frozen were put in at the same
time.
Wait some hours and then check
the temperature again.
8 www.zanussi.com

Problem Possible cause Solution
The room temperature is too
high. Refer to climate class chart on the rating plate.
Food placed in the appliance
was too warm. Allow food to cool to room tem- perature before storing.
The lid is not closed properly. Check if the lid closes well and
the gaskets are undamaged and
clean.
There is too much frost and ice. The lid is not closed correctly or
the gasket is deformed/dirty. Refer to "Opening and closing the lid".
The water drainage plug is not
correctly positioned. Position the water drainage plug in the correct way.
Temperature is set incorrectly. Refer to "Operation" chapter.
The temperature in the appliance
is too low/too high. The temperature regulator is not set correctly. Set a higher/lower temperature.
The lid is not closed correctly. Refer to "Opening and closing
the lid".
The products' temperature is too
high. Let the product temperature de- crease to room temperature be-
fore storage.
Many products are stored at the
same time. Store less products at the same time.
The thickness of the frost is
greater than 4-5 mm. Defrost the appliance.
The lid has been opened often. Open the lid only if necessary.
Products to be frozen are placed
too closely to each other. Make sure that there is cold air circulation in the appliance.
Customer Service
If your appliance is still not working properly
after making the above checks, contact the
nearest Authorised Service Centre.
To obtain fast service, it is essential that when
you apply for it you specify the model and serial
number of your appliance which can be found
either on the guarantee certificate or on the
rating plate located on the external right side of
the appliance.
Installation
WARNING!
Refer to Safety chapters.
www.zanussi.com 9

Positioning
CAUTION!
If you are discarding an old
appliance that has a lock or catch on
the lid, you must ensure that it is
made unusable to prevent young
children being trapped inside.
This appliance can be installed in a dry, well
ventilated indoor where the ambient
temperature corresponds to the climate class
indicated on the rating plate of the appliance:
Climate
class Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation can
only be guaranteed within the
specified temperature range. If you
have any doubts regarding where to
install the appliance, please turn to
the vendor, to our customer service
or to the nearest Service Centre
The appliance shall have the plug
accessible after installation.
Electrical Connection
CAUTION!
Any electrical work required to install
this appliance should be carried out
by a qualified electrician or
competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any
liability should these safety
measures not be observed.
The wires in the mains lead are coloured in
accordance with the following code:
A B
C
D
E
•A- green and yellow: Earth
•C- brown: Live
•D- blue: Neutral
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either with the
letter “E“ or by the earth symbol or
coloured green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of wire is
present and the cord clamp (E) is secure
over the outer sheath.
Make sure the electricity supply voltage is
the same as that indicated on the appliance
rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp fuse
(B). In the event of having to change the fuse in
the plug supplied, a 13 amp ASTA approved
(BS 1362) fuse must be used.
WARNING!
A cut off plug inserted into a 13 amp
socket is a serious safety (shock)
hazard. Ensure that it is disposed of
safely.
10 www.zanussi.com

Ventilation requirements
The airflow behind the appliance must be
sufficient.
1. Put the freezer in horizontal position on a
firm surface. The cabinet must be on all four
feet.
2. Make sure that the clearance between the
appliance and rear wall is 5 cm.
3. Make sure that the clearance between the
appliance and the sides is 5 cm.
Technical information
Technical data
Height mm 868
Width mm 806
Depth mm 665
Rising time Hours 28
Voltage Volts 230 - 240
Frequency Hz 50
The technical information are situated in the
rating plate on the external side of the appliance
and in the energy label.
ENVIRONMENT CONCERNS
Recycle the materials with the symbol . Put
the packaging in applicable containers to
recycle it. Help protect the environment and
human health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol with the
household waste. Return the product to your
local recycling facility or contact your municipal
office.
www.zanussi.com 11
*

www.zanussi.com/shop
804181099-A-042015
