Zanussi FA825E User manual

E
LAVADORA
WASHING MACHINE
MÁQUINA DE LAVAR ROUPA
FA825E
FA1025E
MANUAL DE USO
USER MANUAL
MANUAL DE UTILIZAÇÃO
35.292.809/1
GB
P

25
ENGLISH
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.

26
Maintenance 43
Bodywork 43
Detergent dispenser drawer 43
Cleaning of the drainage area 43
Water inlet filter 44
Emergency emptying out 44
Frost precautions 44
Something not working? 45-47
Warnings 27-28
Disposal 28
Tips for environmental protection 28
Technical specifications 29
Installation 30-31
Unpacking 30
Hydraulic connection 30
Levelling 31
Electrical connection 31
Your new washing machine 32
Description of the appliance 32
Detergent dispenser drawer 32
Use 33

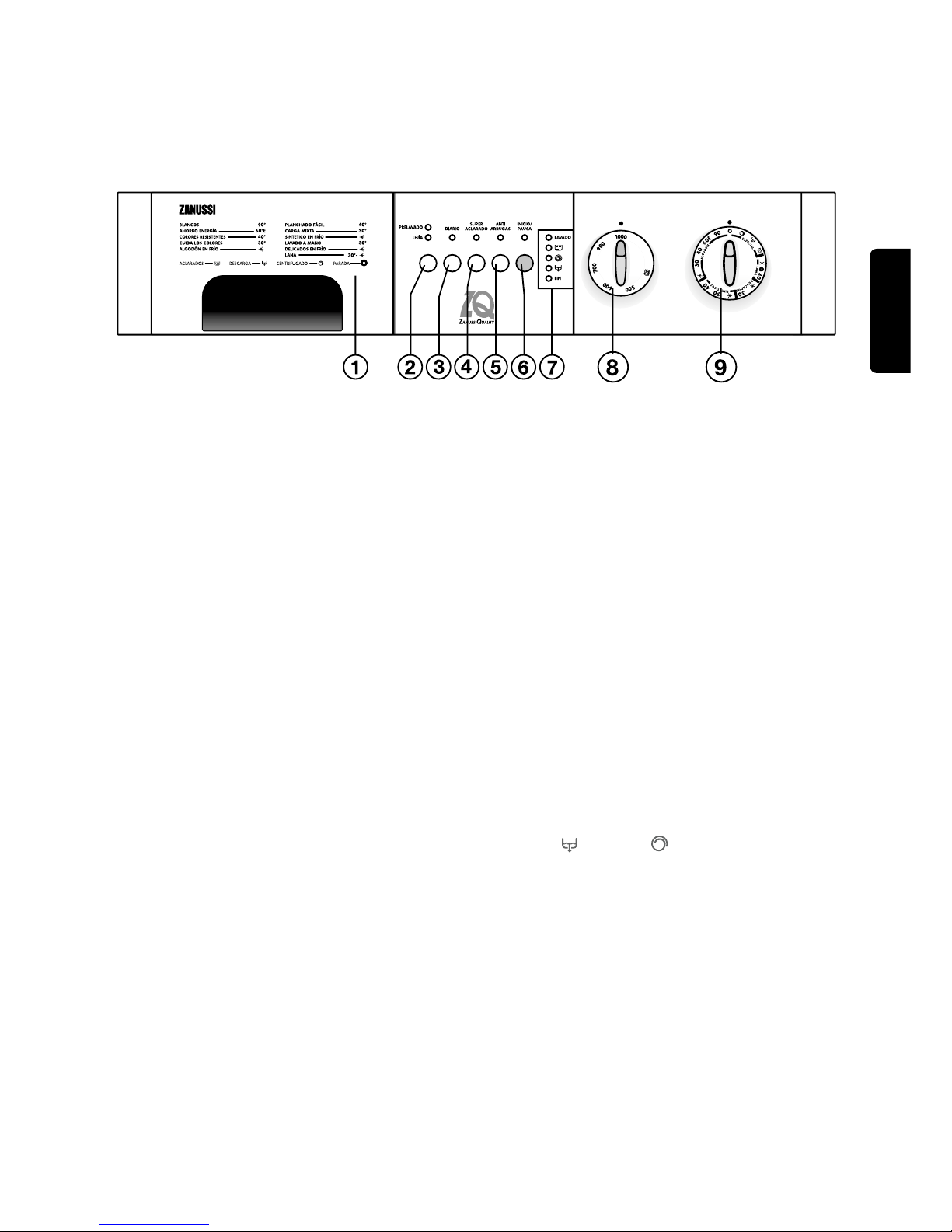

Control panel 33
Controls 33-34
Washing hints 35
Sorting the laundry 35
Temperatures 35
Before loading the laundry 35
Maximum loads 35
Laundry weights 35
Removing stains 35
Detergents and additives 36
Quantity of detergent to be used 36

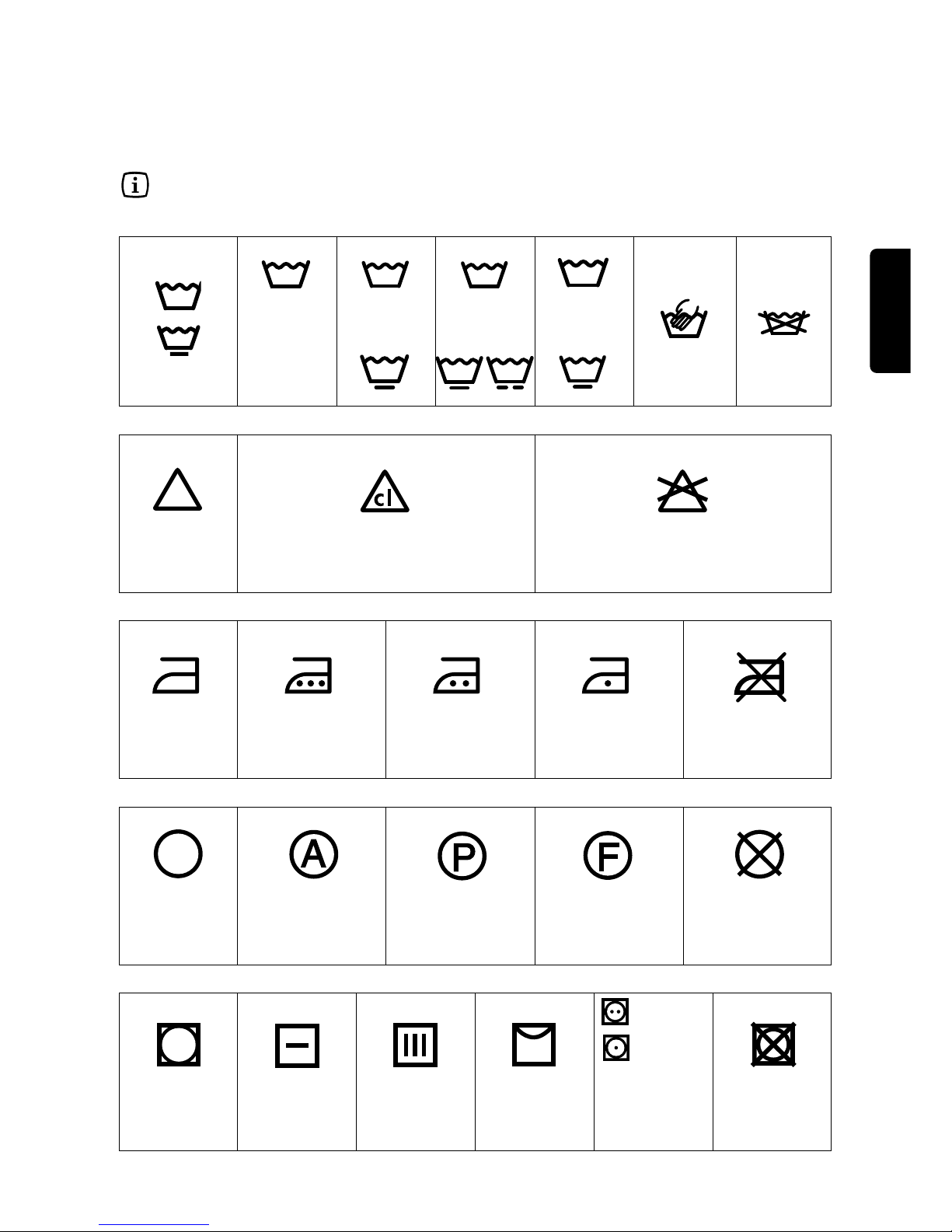

International wash code symbols 37
Operating sequence 38-39
Washing programmes 40-42
Contents

27
ENGLISH
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the feet
and the floor.
• The power supply cable only can be replaced by a
person of the Technical Service.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing garments
in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
Warnings
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.

28
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.

29
ENGLISH
DIMENSIONS Height 85 cm
Width 60 cm
Depth 60 cm
MAXIMUM RECOMMEND LOAD Cotton, linen 4,5 kg
Synthetics 2 kg
Delicates 2 kg
Woollens 1 kg
SPIN SPEED FA825E 800 rpm máx.
FA1025E 1000 rpm máx.
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2100 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 50 kPa
Maximum 800 kPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
Technical specifications
It is dangerous to alter the specifications or attempt to modify this product in any way.
Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
Any electrical work required to install this appliance should be carried out by a qualified electrician or
competent person.
Any plumbing work required to install this appliance should be carried out by a qualified plumber or
competent person.
The power supply cable only can be replaced by a person of our Service Force Centre.
Installation instructions

30
Installation
Transit security bars
Before starting the machine up, the transport
security bars must be removed as follows:
You are advised to keep all the transport security
bars. In case the appliance has to be transported
again.
1. Unscrew and remove
the three rear screws
by means of a key.
2. Lean the appliance
back on the rear and
fit one of the
polystyrene angles
between the appliance
and the floor.
Make sure the hoses
are not squashed.
3. Carefully remove the
plastic bags on the left
and the right, pulling
them to the centre of
the appliance
4. Place the machine in an upright position and
remove the three plastic bolts.
5. Plug the 3 holes with the plastic plugs which you
can find in the envelope containing the instruction
booklet.

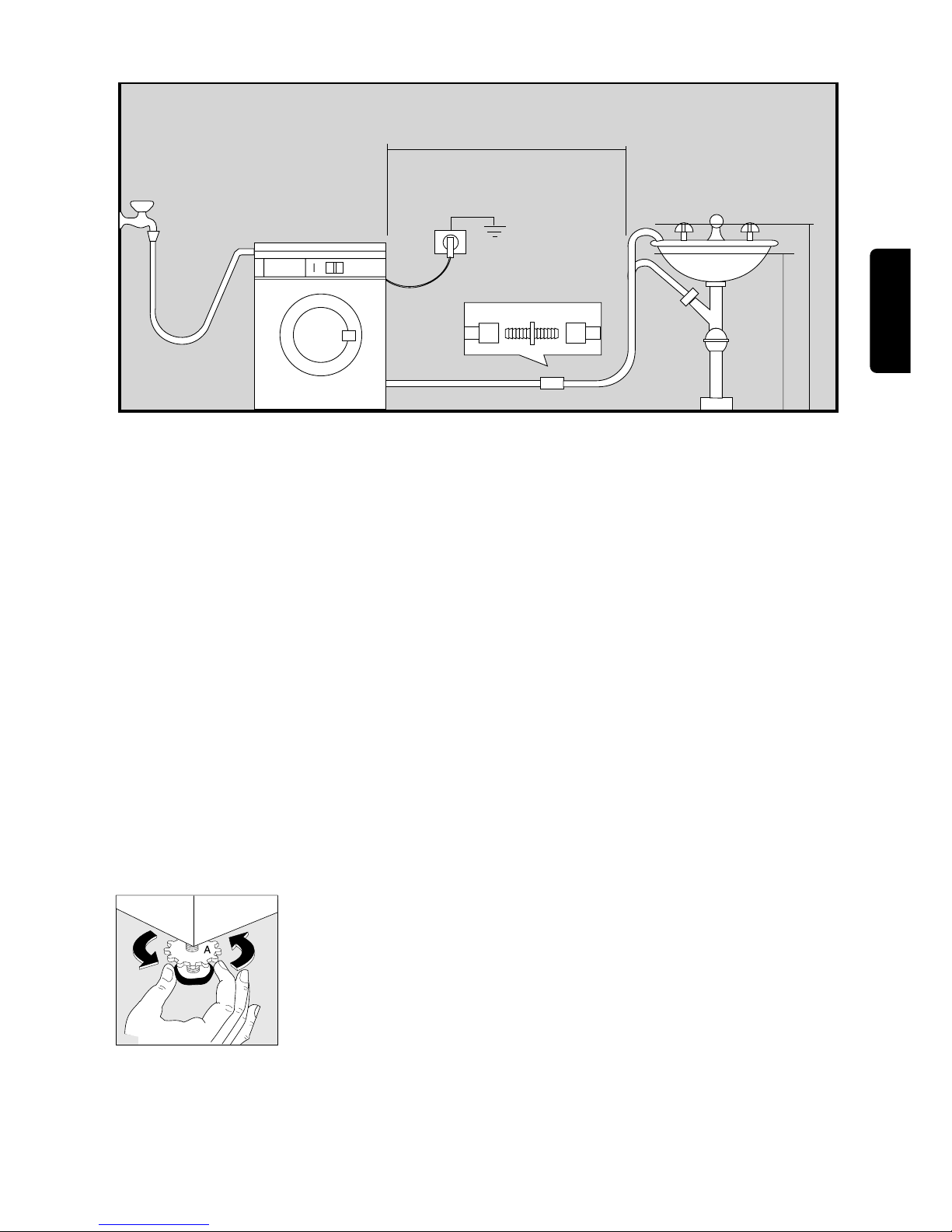

Hydraulic connection
There should be a COLD WATER tap near the
washing machine with a screwing on connection
pipe of 3/4 gas for the water supply, a sink, a wash
basin or a drainage system in the wall.
Previously check if:
— it is not a hot water tap.
— the running water is clean. If not, run off a
reasonable amount of water to flush out any
debris that may have collected in the pipes.
Have the permanent drainage system in the wall
checked by a plumber.
1. Place the enclosed
rubber joint, delivered in
a plastic bag together
with the appliance (A), at
the very end of the inlet
hose and carefully screw
the pipe to the tap taking
care not to damage the
screwdrive and fix the
nut well on to the end in
order to avoid leaking.
2. If necessary turn the
hose adequately by
unscrewing the nut at the
rear of the appliance.
Now tighten the nut anew
to avoid leaks. (Open the
tap and assure that it
does not leak and close
it again.)
3. Place the discharging
hose in a washbasin or
sink with the aid of the
bent piece delivered
separately. The bent
piece has to be entered
into the tube’s mouth in
order to assure the
support. Aforesaid piece
allows the hose to be
fixed to the wall by means of an opening on the upper
part and that way the hose does not move and its
falling is avoided.
P0287
P0018
AL009
2
1
P0001
P0002
P0021
P0022
AL013
A

31
ENGLISH
1,5 m. Max.
60 cm. Min.
90 cm. Max.
IMPORTANT: The distance from the floor to the
highest part of the hose should be between 60 to
90 cm. (It is advised to be between 60 and 70 cm).
The hose must not be bent nor twisted to avoid
clogging. Should a prolongation of the discharging
hose be unavoidable this must never surpass 1.5 m
and must be of the same diameter as the original
hose.
Make sure the hoses are not too tense.
Levelling
Level the appliance by loosening or tightening the
feet. Once in the right position fix the feet by
pushing the nuts (A) (see graphic P0254) against
the base of the case. Accurate levelling will prevent
vibration, noise and displacement of the appliance
during operation.
Some vibration is inevitable, especially if placed on
a wooden floor. Wooden floors are particularly
susceptible to vibrations. If possible always place
the appliance on a solid floor.
Electrical connections
Before plugging the appliance make sure that:
1º. the mains of your installation is the same as on
the rating plate of your appliance (the plate is
sticked to the rear of the appliance).
2º. The meter, the fuses, the wiring and the socket
outlet can support the max. power absorbed stated
on the rating plate.
3º. The socket base and the plug must fit in
adequately without any reducing interposition,
multiple outlets or adapters. If necessary replace
the socket outlet by an adequate one.
The applicable rules for electrical security
require an adequate earthing. The plug of the
appliance is provided with such a device.
Make sure your socket outlet is provided with
an adequate earthing too.
The manufacturer declines any liability in case
of accidents or incidents should these safety
measures not be observed.
The power supply cable only can be replaced by
a person of our Service Force Centre.
P0254

32
This new machine meets all modern requirements for effective treatment of laundry with low water, energy and
detergent consumption.
•The balance control device reduces the risk of instability in machine movement and it guarantees a quieter
operation.
1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drainage area door
6 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Bleach
Your new washing machine
Description of the appliance
R0001
Cl

33
ENGLISH
Use
1. Detergent dispenser drawer
Programme option buttons
Depending on the programme, different option
buttons can be combined.
When these buttons are pressed, the corresponding
lights come on. When they are pressed again, the
lights go off.
If an incompatible option with the selected
programme has been chosen, the corresponding
light flashes for about 2 seconds.
The option buttons: PRELAVADO or LEJÍA;
DIARIO; SUPER ACLARADO and ANTIARRUGAS
must be selected after the required programme has
been chosen, by turning the programme selector
(see section 8) and before starting the machine, by
pressing INICIO / PAUSA button.
2. PRELAVADO OR LEJÍA button
By pressing this button you have the possibility of
choosing between the following options:
•PRELAVADO option: Adds a pre-wash phase at
the start of the cycle with water heating to 30° C.
In COTTON and SYNTHETIC cycles, performs a
short spin before passing to the washing phase.This
option cannot be selected for WOOL.
•LEJÍA option: Runs water through the bleach
compartment at the beginning of the first rinse in
COTTON cycles.
Press the button as many times as you need to get
the required option. The corresponding light will
come on.
IF BOTH LIGHTS (PRELAVADO AND LEJÍA) ARE
NOT ILLUMINATED, THE PROGRAMME WILL
RUN WITHOUT EITHER PREWASH OR BLEACH.
3. DIARIO button
By selecting this option the washing cycle duration is
reduced. We recommend its use for slightly soiled
cotton and synthetic fabrics.
4. SUPER ACLARADO button
Can be used with all programmes, except wool.
The machine will add 2 rinses to the selected
programme.
This option is recommended for people who are
allergic to detergents and in areas where the
water is very soft.
5. ANTIARRUGAS button
By selecting this option, the water of the last rinse is
not drained, in order to prevent the fabrics from
wrinkling. The corresponding light will remain lit
during the entire washing cycle. When the
programme has finished, FIN light will also
illuminate.
To drain the water follow these three steps:
A) Turn the programme selector dial to “O”.
B) Select DRAIN or SPIN programme.
C) Press INICIO / PAUSA button.
6. INICIO / PAUSA button
After selecting the required programme, by the
programme selector (see section 8), press this
button to start the machine; the corresponding
light stops flashing and will keep lighting until
the programme finishes.
To interrupt the running programme, depress
INICIO / PAUSA button: the corresponding
light starts to flash.
To restart the programme from the point at
which it was interrupted, press INICIO / PAUSA
button again.
Control panel

34
7. Programme progress display
During programme development, the light
corresponding to the cycle phase which the machine
is in will illuminate. In other words, if the machine is
in the pre-wash or wash phases the light LAVADO
will come on; if it is in the rinses phase the light
will come on; if it is in the spin phase the light
will come on; and finally, if it is in the drain phase
the light will come on.
The light FIN will illuminate to indicate that the
selected programme has finished.
The light FIN flashes in the event of operating
problems:
• 4 flashes: door open.
• 2 flashes: problem with water draining.
• 1 flash: problem with water supply.
For more information see paragraph "Something not
working?" at the end of this booklet.
8. Spin speed selector dial
This dial allows the reduction of the final and the
intermediate spin speed or to select NO SPIN
option.
The speeds on the dials refer to cotton programmes.
In FA1025E model: position 1000 r.p.m.
corresponds to 900 r.p.m. for synthetics and 700 for
wool and delicates.
Position 500 r.p.m. is common for all fabrics.
In FA825E model: position 800 r.p.m. corresponds
to 800 r.p.m. for synthetics and 700 for wool and
delicates.
Position 400 r.p.m. is common for all fabrics.
• NO SPIN: by selecting this option all the
spinning phases are turned off. To be used for
extremely delicate items.
9. Programme selector dial
The selector dial can be turned either clockwise or
counter-clockwise.
Use this selector dial to select the required
programme.
At the end of each programme the selector dial
must be turned to position “O”, to switch off the
machine.
ATTENTION!
If the programme selector dial is turned to another
position (programme) when the machine is working,
the lights of the programme progress display start to
flash. The machine will not perform the new selected
programme, but it will continue running on the same
cycle.
REMEMBER!
In the event a wrong programme has been selected
and the machine is already working, proceed as
follows:
1. Turn the programme selector dial to position “O”.
2. Select the new required programme.
• If the machine has not already gone through the
rinse cycle, when you decide to change the running
programme, in the new programme the water and
the detergent from the previous cycle will be re-
used, making it an energy-saving tool. On the
other hand, if it is already in the rinse phase;
detergent, bleach,… must be re-measured.
3. Press INICIO / PAUSA button, to start the new
cycle.

35
ENGLISH
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
90° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
(cold)for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove difficult stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Glue: moisten with acetone (*), lay the garment on a
soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
residual marks with bleach.

36
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
The bleaching agent (chlorine) can be used only for
white or fast coloured cotton and linen items.
Pour it into the compartment marked .
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturer’s instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
Degrees of water hardness
Level Characteristic
Degrees
German
°dH
French
°T.H.
soft
medium
hard
very hard
0- 7
8-14
15-21
more than
21
0-15
16-25
26-37
more than
37
1
2
3
4

37
ENGLISH
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C
Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C
Warm iron
max 150°C
Lukewarm iron
max 110°C
Do not iron
Dry cleaning Dry cleaning
in all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger
Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30

38
4. Select the required programme
Turn the programme selector to the required
programme.
5. Select the spin speed or
option .
Turn the spin selector to the required position.
6. Select the required option push
button/s
1. Place the laundry in the drum
Open the door by pulling the handle outwards. Place
the laundry in the drum, one item at a time, shaking
them out as much as possible. Close the door.
2. Measure the detergent
Pull out the dispenser drawer until it stops.
Measure the required amount of detergent, pour it
into the main wash compartment and into the
compartment marked (if PRE-WASH option
has been chosen).
3. Measure the fabric softener
and/or bleach
If required, pour fabric softener into the compartment
marked and bleach into the compartment
marked (the amount used must not exceed the
"MAX" mark in the drawer).
Close the drawer gently.
R0052
R0055
P0004
Operating sequence
Before washing your first load of laundry, we recommend that you run a cotton cycle at 60° C, with the machine
empty, in order to remove any manufacturing residue from the drum and tub. Pour half of the normal amount of
detergent into the main wash compartment and start up the machine.

39
ENGLISH
10. Opening the door after the
programme has started
Firstly, stop the machine by pressing
INICIO / PAUSA button.
After about one or two minutes the door can be
opened.
If the door does not open , this means that the
temperature of the water is too high, that the water
level exceed the lower limit of the door (which could
cause overflowing) or that the drum is spinning.
If the door cannot be opened but you need to open it,
switch the machine off by turning the selector dial to
“O”. After approximately one or two minutes the door
can be opened. (PAY ATTENTION TO THE WATER
LEVEL AND TEMPERATURE!)
11. At the end of the programme
The machine stops automatically.
Release of the lock is indicated when FIN light
comes on.
Turn the programme selector dial to position “O” to
switch the machine off.
Remove the laundry from the drum and carefully
check that the drum is empty.
If you do not intend to put in another wash, turn off
the water tap. Leave the door open to prevent from
forming mildew and unpleasant smells.
ATTENTION!
If the ANTIARRUGAS option has been selected, the
last rinse water does not drain. To drain the water,
carry out the following steps:
1. Turn the programme selector dial to “O”.
2. Select DRAIN or SPIN programme.
3. Press INICIO / PAUSA button.
7. Start the machine
Before starting the machine check that:
• the appliance is plugged in.
• the water supply tap is turned on.
• the drain hose is correctly and securely positioned.
• the door and the detergent dispenser drawer are
closed.
To start the selected programme, push
INICIO / PAUSA button; the corresponding light will
stop flashing and will remain lit until the end of the
programme.
8. Modification of a running
washing programme
Once the programme has started, it only can be
modified by turning the programme selector dial to
“O” and afterwards the new programme can be
chosen.
The washing water remains in the tub, provided that
the machine does not reach the rinse phase, since,
in this case, the machine drains it automatically.
Start the new programme by pressing
INICIO / PAUSA button.
9. Interrupting a programme
Depress INICIO / PAUSA button to interrupt a
running programme, the corresponding light will
begin flashing. Press this button again to re-start the
programme.

40
Programme table
Washing programmes for cotton and linen
(*) When this option is selected, the last rinse water does not drain to avoid wrinkling in the fabrics. To drain
the water select SPIN or DRAIN programme.
(**) In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the
60° C wash programme for cotton (programme E60) with a wash load of 4,5 Kg.
Programme
selector
dial
position
90
ALGODÓN BLANCOS
AHORRO
ENERGÍA
(**)
COLORES
RESISTENTES
CUIDA LOS
COLORES
ALGODÓN
EN FRÍO
PARADA
Washing
programme Stains and type of fabric Description Possible option
For heavily soiled cotton items.
White cotton, for example
moderately soiled work
garments, sheets, household
linen, underwear, towels.
Fast coloured cotton or linen
fabrics, moderately soiled, shirts,
blouses, underwear.
Non fast coloured cotton or linen
fabrics, moderately soiled, shirts,
blouses, underwear.
For slightly soiled cotton fabrics.
To cancel the running wash
programme and to switch the
machine off.
Wash at 90° C
3 rinses
Spin
Wash at 60° C
3 rinses
Spin
Wash at 40° C
3 rinses
Spin
Wash at 30° C
3 rinses
Spin
Cold wash
3 rinses
Spin
60E
ALGODÓN
40
ALGODÓN
30
ALGODÓN
ALGODÓN
O
Prelavado o lejía
Diario
Super aclarado
Antiarrugas (*)
Prelavado o lejía
Super aclarado
Antiarrugas (*)
Prelavado
Diario
Super aclarado
Antiarrugas (*)
Prelavado
Diario
Super aclarado
Antiarrugas (*)
Prelavado o lejía
Diario
Super aclarado
Antiarrugas (*)
4,5 kg
4,5 kg
4,5 kg
4,5 kg
4,5 kg
—
Load

41
ENGLISH
Programme table
Washing programmes for synthetics, mixed fabrics, delicates, wool
(*) When this option is selected, the last rinse water does not drain to avoid wrinkling in the fabrics. To drain
the water select SPIN or DRAIN programme.
Programme
selector
dial
position
Prelavado
Diario
Super aclarado
Antiarrugas (*)
Prelavado
Diario
Super aclarado
Antiarrugas (*)
Prelavado
Diario
Super aclarado
Antiarrugas (*)
Antiarrugas (*)
40
SINTÉTICOS
PLANCHADO
FÁCIL
CARGA MIXTA
SINTÉTICO
EN FRÍO
LANA
PARADA
Washing
programme Stains and type of fabric Description Possible option
Special programme for synthetic
fabrics, which makes ironing
easier.
Synthetic or mixed fabrics,
underwear, coloured garments,
perma-press shirts, blouses.
Slightly soiled delicate synthetic
fabrics.
Use this wash cycle to wash
Woolmark garments according to
the instructions on the garments
label and following the
instructions booklet provided by
the manufacturer of this machine
(M9604).
To cancel the running wash
programme and to switch the
machine off.
Wash at 40° C
4 rinses
Spin impulse
Wash at 30° C
3 rinses
Short spin
Cold wash
3 rinses
Short spin
Cold wash or
wash at 30° C
(depending on
the selected
position)
3 rinses
Short spin
30
SINTÉTICOS
SINTÉTICOS
-30
LANA
O
Prelavado
Super aclarado
Antiarrugas (*)
LAVADO A
MANO Especially delicate fabrics.
Wash at 30° C
3 rinses
Short spin
30
DELICADOS
Prelavado
Super aclarado
Antiarrugas (*)
DELICADOS
EN FRÍO
Delicate fabrics, such as
curtains.
Cold wash
3 rinses
Short spin
DELICADOS
2 kg
2 kg
2 kg
1 kg
2 kg
1 kg
—
Load

42
Programme table
Special washing programmes
Programme
selector
dial
position
Antiarrugas (*)
ACLARADOS
CENTRIFUGADO
DESCARGA
PARADA
Washing
programme Stains and type of fabric Description Possible option
With this programme it is
possible to rinse and spin
garments which have been
washed by hand.
The machine performs 3 rinses,
and it finishes with a short spin.
This programme can be used to
perform a short spin: for
garments washed by hand, for
example: to
wring them out, before hanging
them up.
This programme can be used to
drain and spin, too, when
ANTIARRUGAS option has
been selected.
To drain the water from the last
rinse in programmes with
ANTIARRUGAS option selected.
To cancel the running wash
programme and to switch the
machine off.
3 rinses
Short spin
Short spin
Water drain
O
(*) When this option is selected, the last rinse water does not drain to avoid wrinkling in the fabrics. To drain
the water select SPIN or DRAIN programme.
4,5 kg
4,5 kg
4,5 kg
—
Load

43
ENGLISH
1. Bodywork
Clean the outside of the machine with warm water
and a neutral, non-abrasive household detergent.
Rinse with clean water and dry with a soft cloth.
Important: do not use methylated spirits, solvents or
similar products to clean the bodywork.
2. Detergent dispenser drawer
After a while, detergents and fabric softeners leave
deposits in the drawer.
Clean the drawer from time to time by rinsing it under
a running tap. To remove the drawer from the
machine, press the button in the rear left-hand
corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
Detergent can also accumulate inside the drawer
recess: clean it with an old toothbrush. Refit the
drawer after cleaning.
P0038
R0054
R0053
3. Cleaning of the drainage area
The drainage area must be cleaned if the pump has
been blocked with objects such as buttons, safety
pins, coins, etc. , or if lint has built up because
clothes that generate lint have been washed at high
temperatures.
• Pull out the plug from the power socket.
• If necessary, wait until the water has cooled down.
• Open the drainage area door.
• Place a bowl to collect the water.
• Release the emergency emptying hose, place it in
the bowl and remove its cap, when the bowl is full
put the cap back on the emergency emptying hose.
• Empty the bowl. Repeat the procedure until you
have completely emptied the washing machine.
• To continue, unscrew the lid of the diaphragm by
turning it counter clockwise and pull it out.
• Always keep a rag nearby to dry up spillage of
water when removing the cover.
• Remove the objects such as buttons, coins and the
lint that has been accumulated in the area of the
pump impeller by rotating it.
• Screw the lid of the diaphragm clockwise, be sure
is completely tighten.
• Replace the emergency emptying hose in its initial
position and close the drainage area door.
P1117
P1116
P1115
P1114
Maintenance
