Zensorium Self ZSWW User manual

Page 1of 14
User Manual
Version 4.0
Model: ZSWW

Page 2of 14
Contents
1 Self by Zensorium at a Glance ................................................................................................................... 33
1.1. What Self by Zensorium is................................................................................................................. 33
1.2. What’s in the box?............................................................................................................................. 33
1.3. At a Glance......................................................................................................................................... 33
1.4. Navigation command ........................................................................................................................ 44
1.5. Charging............................................................................................................................................. 55
2 Setup App and Device................................................................................................................................ 66
2.1 Mobile Application compatibility ...................................................................................................... 66
2.2 App installation.................................................................................................................................. 66
2.3 Setup - Pairing ................................................................................................................................... 77
2.4 Wearing Self by Zensorium................................................................................................................ 88
3 Important notice and safety information.................................................................................................. 99
4 Compliance ............................................................................................................................................ 1010
4.1 Regulatory Compliance.................................................................................................................. 1010
4.2 Federal Communications Commission (FCC) Statement............................................................... 1010
4.3 Federal Communications Commission (FCC) RF Exposure:........................................................... 1111
4.4 Simplified EU Declaration of Conformity....................................................................................... 1111
4.5 Disposal and Recycling Information .............................................................................................. 1111
4.6 Symbols used on device or package labelling ............................................................................... 1212
5 Technical Specification .......................................................................................................................... 1313
6 General Disclaimer ................................................................................................................................ 1313
7 Health Disclaimer .................................................................................................................................. 1414
8 Product Disclaimer ................................................................................................................................ 1414

Page 3of 14
1Self by Zensorium at a Glance
1.1. What Self by Zensorium is
Self by Zensorium is an advanced wearable that provides insights into your wellness for better
mindful living. Self by Zensorium includes a device, USB Charge Dock and an interchangeable strap
for ease of fitting.

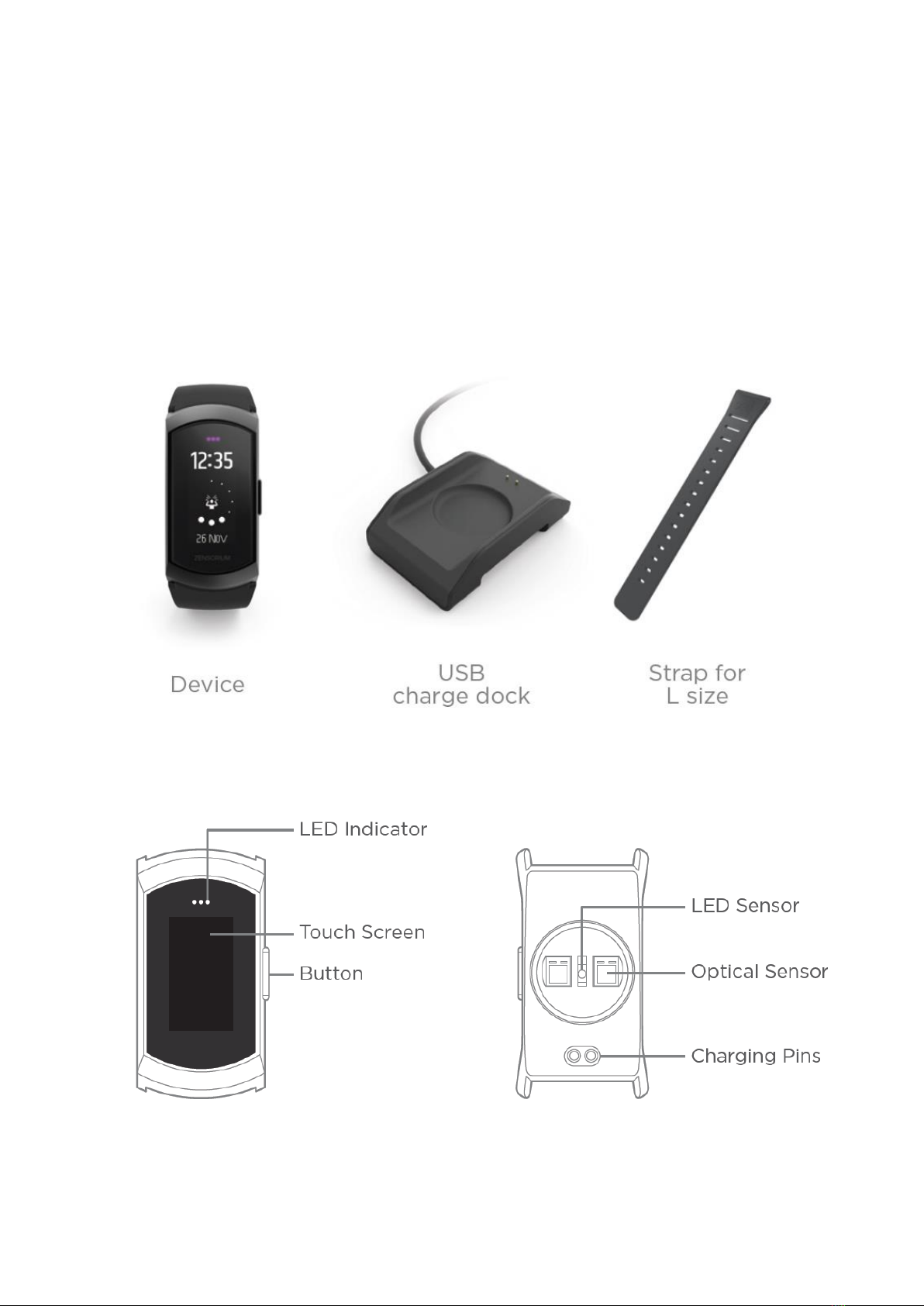

1.2. What’s in the box?
1.3. At a Glance

Page 4of 14
1.4. Navigation command
Turn ON: Press button and “Self By Zensorium” logo appears together with Blue LED and a
single vibration.
Turn OFF: Press and hold button for 3-5 seconds until “Self By Zensorium” logo appears and
phases off with a single vibration.
Screen On: Press button or lift your wrist towards your face
Screen OFF: Press button or wait for 5 seconds
Switch mode view: Swipe the screen
•Up/Down –viewing a different mode
•Right/Left –change view within the mode
Make selection: Tap screen button

Page 5of 14

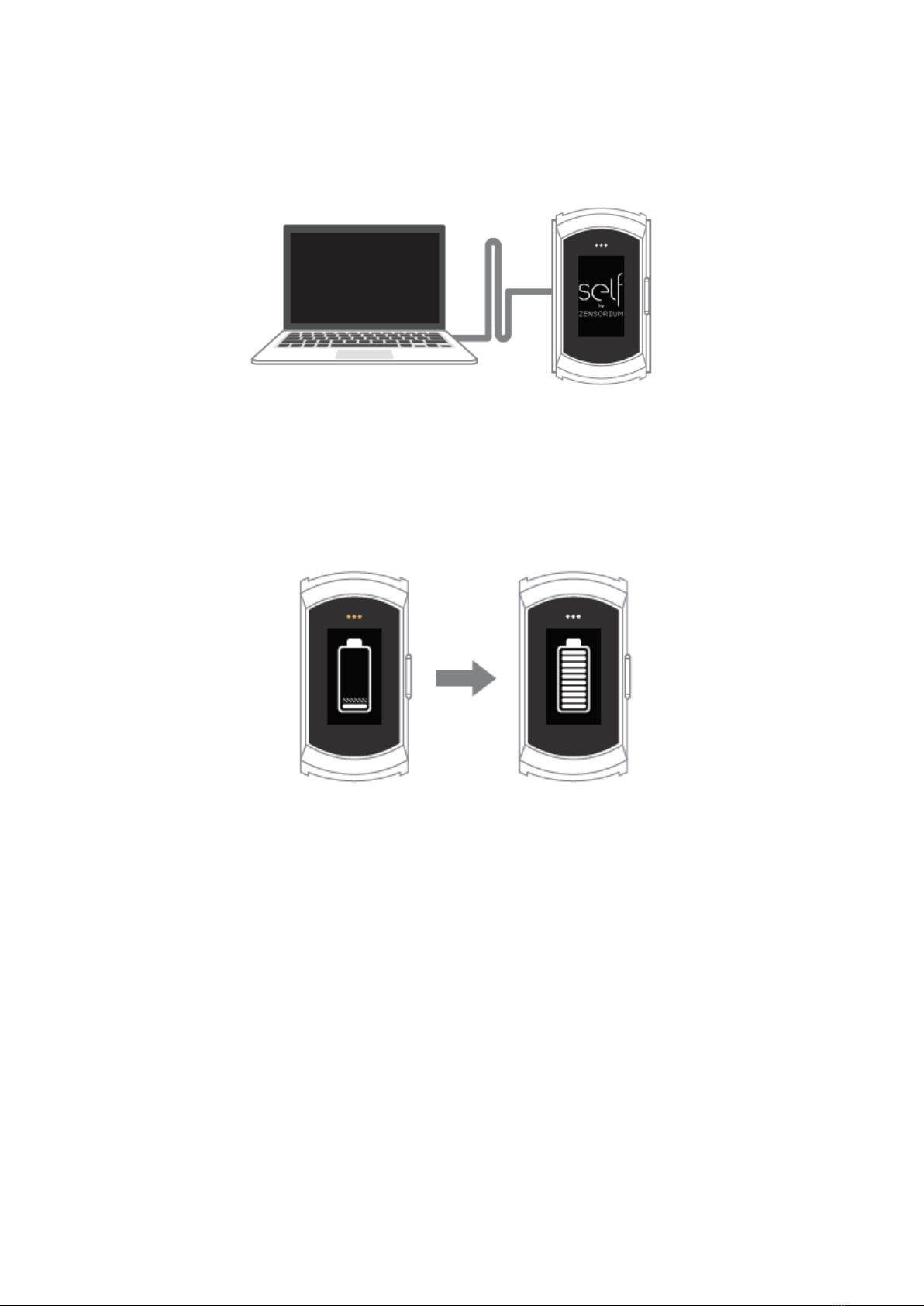

1.5. Charging
1. Plug the USB cable into the USB port of your computer or mobile phone adapter then connect the 2
charging pins on the USB charge dock to the 2 charging pins on the back of your device.
Note: Please do not place your device to charge dock if your device is wet. Ensure device is dry before
charging.
2. You will know your device is charging when the charging animation and the LED indicator in orange
appears on the screen together. The battery bar will fill up and the LED indicator turns OFF when
charging is completed in 2 hours.
Note: Each full charge will provide 2-3 days of use depending on your usage.

Page 6of 14
2Setup App and Device
2.1 Mobile Application compatibility
Zensorium Connect is compatible with smartphones that support Bluetooth Low Energy technology running
on iOS 11.0 or later, or Android 6.0 or later.
2.2 App installation
1. Before using your device, please install “Zensorium Connect” on your smartphone for setup
2. Search “Zensorium Connect” either on the Apple store or Google Play Store.
Or scan below.
Note: Account setup is required separately before use of the App.

Page 7of 14

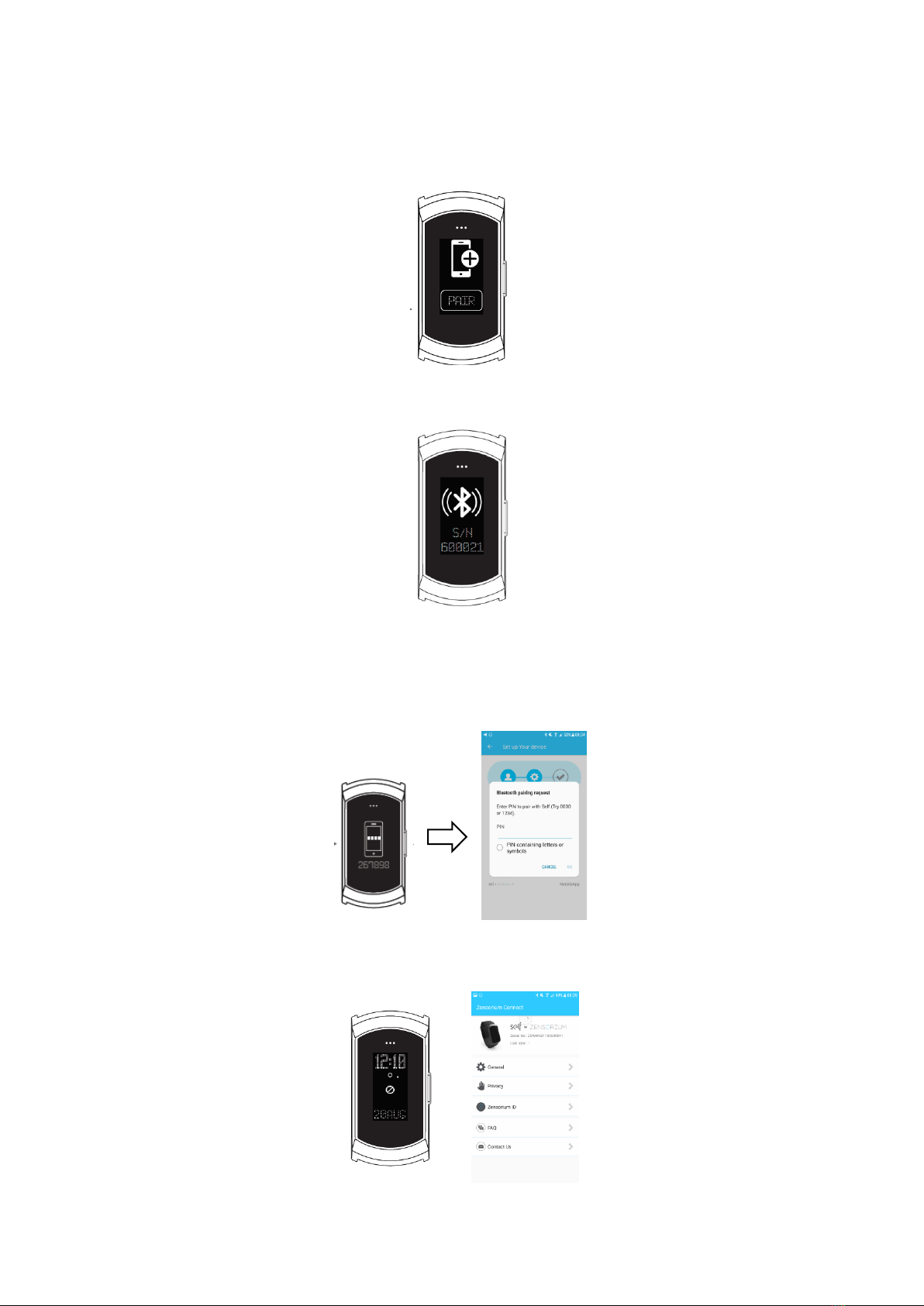

2.3 Setup - Pairing
1. Turn ON device and press “PAIR”
2. On APP, find your device by checking the serial number under “Self by Zensorium”. You can compare
the serial number shown on your device.
Note: Turn on the Bluetooth and Internet feature on your smartphone.
3. When your device is selected, Bluetooth pairing request appears. Input the 6 digits shown on your
device to the App to complete the pairing process.
4. Once paired, the application displays the Home screen and your device will automatically update to the
correct date/time.

Page 8of 14
2.4 Wearing Self by Zensorium
1. Self by Zensorium should be worn on wrist to accurately monitor your mood, heart rate, activity and
sleep.
2. Fasten the device snugly on your lower arm, about a finger’s width above your wrist bone. Make sure
the Zensorium logo is upright and the optical sensor on the back is in contact with your skin.
Note: For optimal accuracy, do not wear your device too tight as it may restrict blood flow, which may
potentially affect the signal.

Page 9of 14
3Important notice and safety information
•Clean and dry your device regularly, particularly under the strap.
•Do not use your device if you have skin problems in the wrist area.
•Do not leave your device under direct sunlight for extended period of time.
•Do not leave your device in conditions of extremely high or low temperatures.
•Do not tamper your device. The sensor unit cannot be removed from the module.
•Do not attempt to repair or modify your device under any circumstances.
•The use of unauthorized parts or accessories may cause injury or damage to your device.
•Device is rated IP65, dust tight and splash resistance but is not suitable for water immersion
activities.
•Should you feel hot or warm on your wrist where your device is in contact, please remove your
device and do not place to charge dock for charging.
•Charge your device when the battery is running low. Unplug your device from the charge dock when
the battery bar is full.
•Do not attempt to replace your device battery. It is built-in and not changeable.
•Always switch off your device when you are not using it for an extended period.
•Use device in the temperature range of 0oC to 35oC.
•Store device in the temperature range of -20oC to 45oC.

Page 10 of 14
4Compliance
4.1 Regulatory Compliance
Self by Zensorium has been tested and deemed in conformance with the relevant requirement standards:
Electromagnetic Compatibility
•FCC Part 15B
•ETSI EN 301 489-1/-17
Radio Frequency
•ETSI EN 300 328
•FCC Part 15C
RF Exposure
•FCC Part 2
•EN 62479
Safety
•IEC/EN 62368-1
Ingress Protection
•IP65
Biocompatibility (Device main body)
•ISO 10993-5 Cytotoxicity
•ISO 10993-10 Primary Skin Irritation
4.2 Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
