Zio WLB5254AIP/X11 User manual

X11 Wireless Broadband Router User manual
Page 1 of 69
WLB5254AIP/X11
Wireless Broadband Router

X11 Wireless Broadband Router User manual
Page 2 of 69
Table of Contents
Quick Installation Guide …………………………………………………………….4
1 Connecting the Wireless Broadband Router ..………………………………………..5
2 Setting Up PC to Access the Router’s Web Based Management……………5
3 Checking PC’s IP and Connection with the Router…………………………………12
4 Accessing the Web-Based Configuration Utility…………………………………….13
5 Quick Configuration for Wireless Router ………………………………………………14
6 Checking the Connection to the Internet ……………………………………………..17
User’s Manual …………….……………………………………………………………18
Chapter 1 Introduction .................................................................... 19
1.1 Welcome ................................................................................19
1.2 About This Guide .....................................................................19
1.3 Copyright statement ................................................................19
Chapter 2 Designing Your Wireless Network ................................... 20
2.1 System Requirements ..............................................................20
Chapter 3 Getting to Know the Wireless-G Broadband Router ......... 21
3.1 Back Panel..............................................................................21
3.2 LED Description.......................................................................22
Chapter 4 hardware connection....................................................... 23
4.1 Connecting the Wireless Broadband Router .................................23
Chapter 5 Configuring Local PC to Access the Wireless Router ........ 24
5.1Setting up TCP/IP .....................................................................24
5.1.1 Windows 98/Me...............................................................24
5.1.2 Windows 2000 ................................................................24
5.1.3 Windows XP....................................................................27
5.2 Additional Settings for Wireless Client.........................................30
5.3 Checking PC’s IP and Connection with the Router .........................31
Chapter 6 Web Configuration........................................................... 33
6.1 Logging In ..............................................................................33
6.2 Quick Setup Wizard .................................................................34
6.3 Status....................................................................................37
6.3.1 System Status ................................................................37
6.3.2 Statistics ........................................................................41
6.4 WAN Setup .............................................................................41
6.4.1 Dynamic IP Address .........................................................41
6.4.2 PPPoE ............................................................................42
6.4.3 Static IP .........................................................................44
6.5 LAN Setup ..............................................................................45
6.5.1Lan Setup........................................................................45
6.5.2 DHCP Info ......................................................................46
6.6 Wireless Settings.....................................................................46
6.6.1 Basic Wireless Settings.....................................................46
6.6.2 Advanced Wireless Settings...............................................47
6.6.3 Wireless Security.............................................................48
6.6.4 Wireless MAC Filter ..........................................................53
6.6.5 Association Table.............................................................54

X11 Wireless Broadband Router User manual
Page 3 of 69
6.6.6 WDS Set ........................................................................54
6.7 Routing ..................................................................................55
6.8 NAT .......................................................................................55
6.8.1 DMZ Host Setup ..............................................................56
6.8.2 FTP Private Port...............................................................56
6.8.3 Virtual Server Setup.........................................................57
6.8.4 Port Tiger .......................................................................58
6.9 Fire Wall.................................................................................59
6.9.1 MAC Filtering ..................................................................59
6.9.2 Access Control ................................................................60
6.9.3 URL Filtering ...................................................................62
6.10 DDNS...................................................................................62
6.11 MISC....................................................................................63
6.11.1 Login ID & Password Setup .............................................63
6.11.2 Remote Mgmt................................................................64
6.11.3 WAN Link Status & Setup................................................64
6.11.4 Restore Default / Restart System .....................................64
6.11.5 Firmware Upgrade .........................................................65
Appendix Ⅰ: Troubleshooting ......................................................... 66
Appendix Ⅱ: Specification ............................................................... 69

X11 Wireless Broadband Router User manual
Page 4 of 69
X11
Wireless Broadband Router
Quick Installation Guide

X11 Wireless Broadband Router User manual
Page 5 of 69
This Quick Installation Guide only provides you some basic instructions. For more
detailed information, please refer to the User Manual.
○
1Connecting the Wireless Broadband Router
Prior to connecting the hardware, make sure to power off your ethernet device,
Cable/ADSL modem and X11 Wireless Broadband Router. Then follow the steps below
to connect the related devices.
Step 1 Connecting your computer to the LAN port.
Attach one end of the Ethernet cable with RJ-45 connector to your hub, switch or a
computer’s Ethernet port, and the other end to one of the LAN ports of your Wireless
Broadband Router.
Step 2 Connecting Cable/ADSL Modem to the WAN port.
Connect the Ethernet cable attaching to your Cable/ADSL modem to the WAN port of your
Wireless Broadband Router.
Step 3 Connecting the power adapter.
Connect the single DC output connector of the power adapter to the power jack on the side of the
Wireless Broadband Router. Then plug the Power Adapter into an AC outlet,
Step 4 Power on the following devices in this order:
Cable/ADSL modem, Router, and PCs

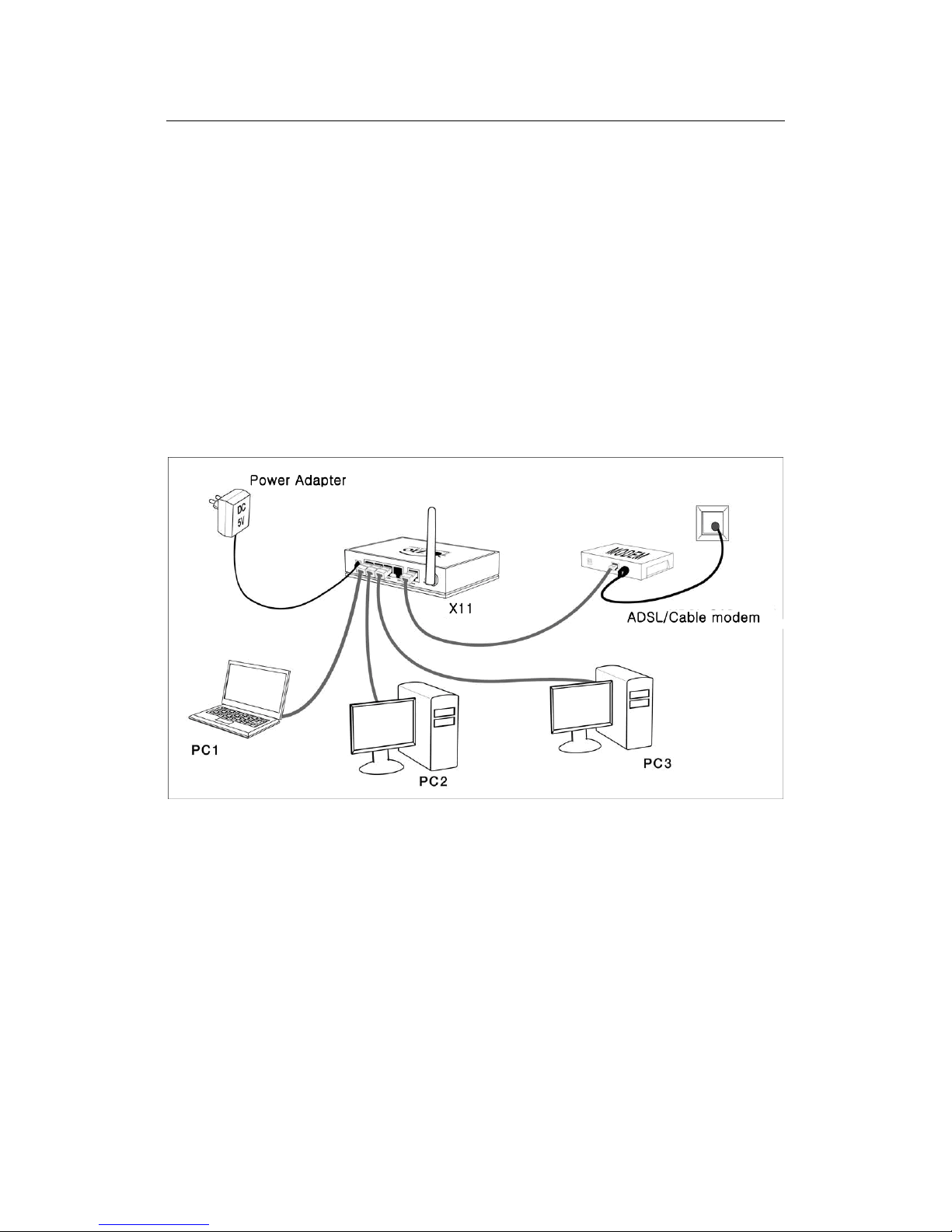

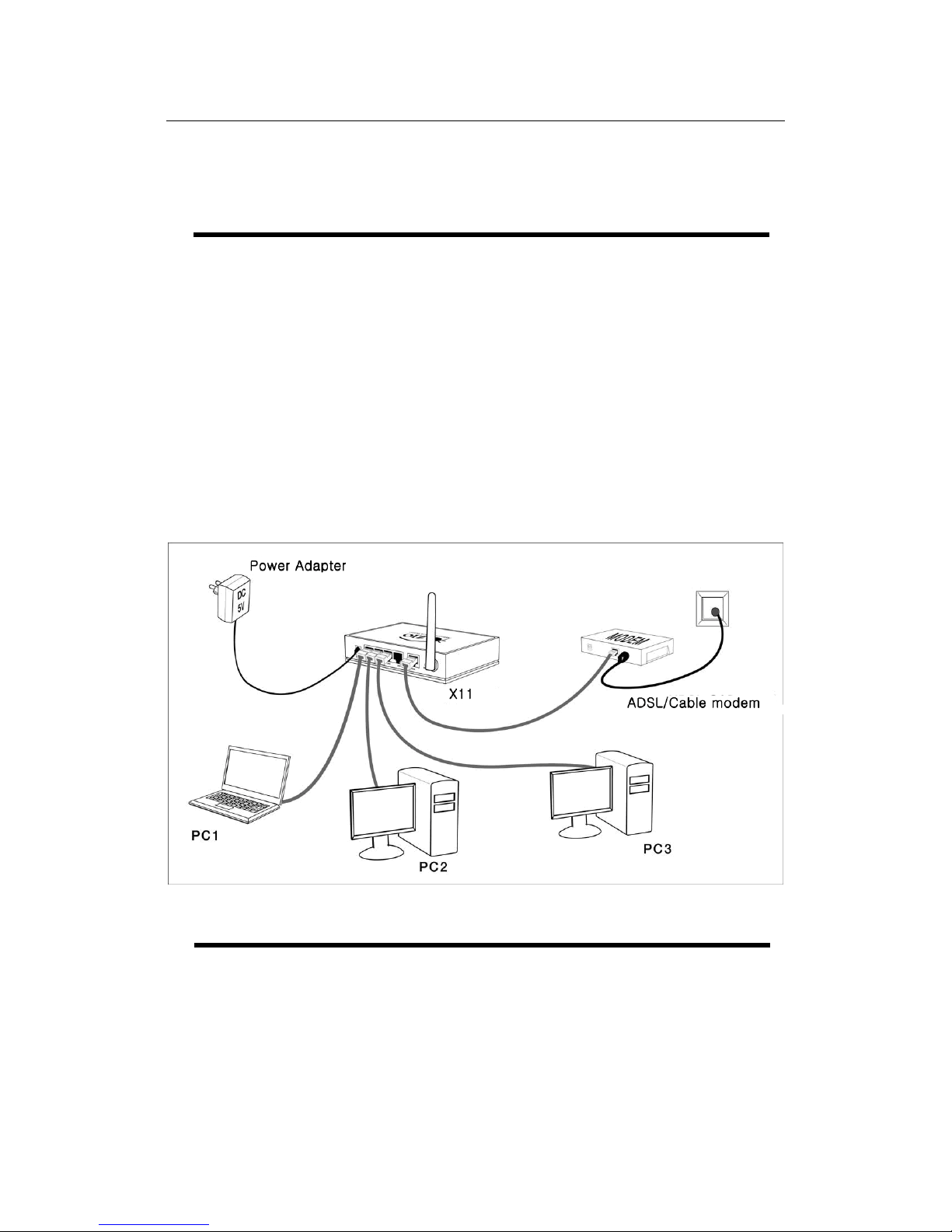

The figure below illustrates a connection example:
○
2 Setting Up PC to Access the Router’s Web Based Management
You can manage the Wireless Broadband Router through the Web browser-based
configuration utility. To configure the device via Web browser, at least one properly
configured computer must be connected to the device via Ethernet or wireless network.
The Wireless Broadband Router is configured with the default IP address of
192.168.10.1 and subnet mask of 255.255.255.0, and its DHCP server is enabled by
default. Before setting up the Router, make sure your PCs are configured to obtain an IP

X11 Wireless Broadband Router User manual
Page 6 of 69
(or TCP/IP) address automatically from the Router by the steps below.
Windows 98/Me
1. Go to Start ÆSettings ÆControl Panel.
2. Find and double-click the Network icon. The Network dialog box appears.
3. Click the Configuration label and ensure that you have network card.
4. Select TCP/IP. If TCP/IP appears more than once, please select the item that has an arrow
“Æ” pointing to the network card installed on your computer. DO NOT choose the instance of
TCP/IP with the words “Dial Up Adapter” beside it.
5. Click Properties. The TCP/IP Properties dialog box appears.
6. Ensure the Obtain IP Address Automatically is checked.
7. From the WINS Configuration dialog box, Ensure that Disable WINS Resolution is checked.
8. From the Gateway dialog box, remove all entries from the Installed gateways by selecting
them and clicking Remove.
9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search
Order box by selecting them and clicking Remove. Remove all entries from the Domain Suffix
Search Order box by selecting them and clicking Remove. Click Disable DNS.
10. Click OK, back to Network Configuration dialog box
11. Click OK, if prompted to restart, click YES.
Windows 2000
Please follow the steps below to setup your computer:

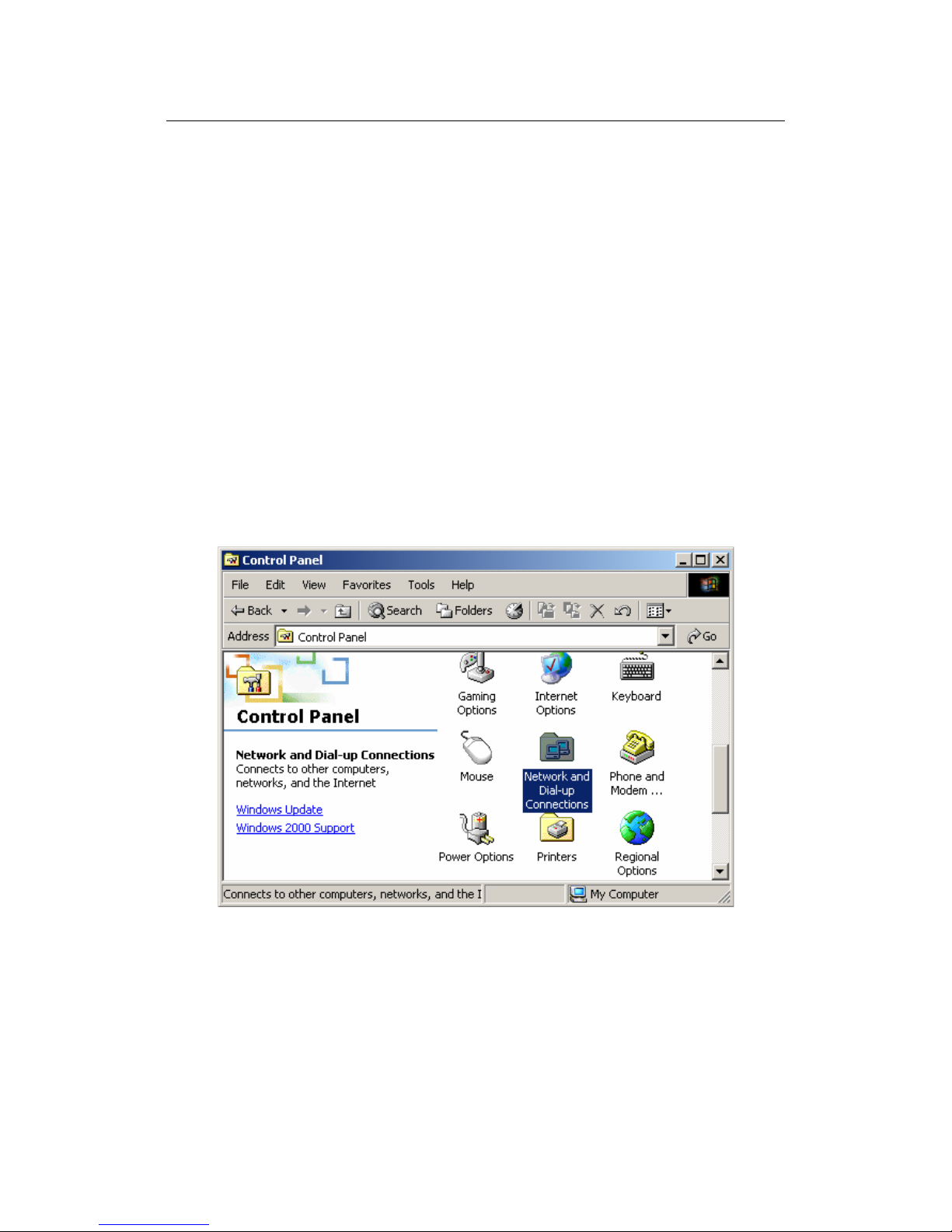

1. Go to Start ÆSettings ÆControl Panel
Figure 2

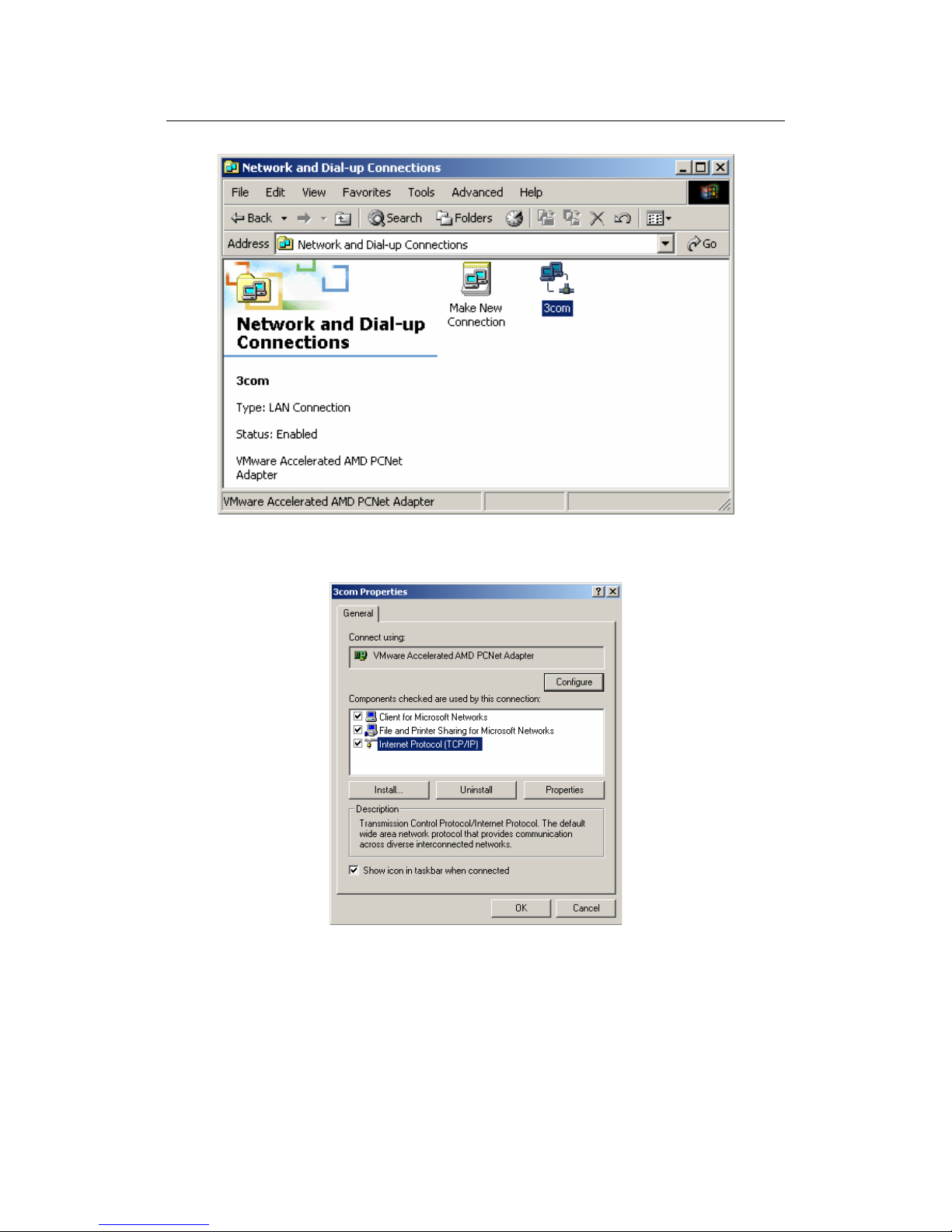

2. Double click the icon Network and Dial-up Connections
3. Highlight the icon Local Area Connection, right click your mouse, Click Properties

X11 Wireless Broadband Router User manual
Page 7 of 69
Figure 3
4. Highlight Internet Protocol (TCP/IP), and then press Properties button
Figure 4
5. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window

X11 Wireless Broadband Router User manual
Page 8 of 69
Figure 5
6. Press OK to close the Local Area Connection Properties window
Figure 6
Windows XP
Please follow the steps below to setup your computer:
1. Go to Start ÆSettings ÆControl Panel
2. Click Network and Internet Connections

X11 Wireless Broadband Router User manual
Page 9 of 69
Figure 7
3. Click Network Connections
Figure 8

X11 Wireless Broadband Router User manual
Page 10 of 69
4. Highlight the icon Local Area Connection, right click your mouse, Click Properties
Figure 9
5. Highlight Internet Protocol (TCP/IP), and then press Properties button
Figure 10
6. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window

X11 Wireless Broadband Router User manual
Page 11 of 69
Figure 11
7. Press OK to close the Local Area Connection Properties window
Figure 12

X11 Wireless Broadband Router User manual
Page 12 of 69
○
3 Checking PC’s IP and Connection with the Router
After configuring the TCP/IP protocol, use the ping command to verify if the computer can
communicate with the Router. To execute the ping command, open the DOS window and
ping the IP address of the Wireless Broadband Router at the DOS prompt:
To execute ping command, open the DOS window by clicking on Start -> Run. In the Run
window, type CMD. At the DOS prompt, type the following command:
If the Command window returns something similar to the following:
Figure 13
Then the connection between the router and your computer has been successfully
established.
If the computer fails to connect to the router, the Command window will return the following:
Figure 14

X11 Wireless Broadband Router User manual
Page 13 of 69
Verify your computer's network settings are correct and check the cable connection between
the router and the computer.
○
4 Accessing the Web-Based Configuration Utility
Step 1 Launch the Web browser and type http://192.168.10.1 in the Address field and
click Enter.
Step 2 After connecting to the device, you will be prompted to enter the username and
password. Type admin in the User Name field, the default password is N/A.
Figure 15

X11 Wireless Broadband Router User manual
Page 14 of 69
○
5 Quick Configuration for Wireless Router
After login, the Wireless Broadband Router’s web-based management is accessible.
Step 1 Click the WAN Setup page link to configure the WAN interface.
Figure 16
Step 2. Select the Internet connection type
The WAN Setup page configures the Internet connection of the Wireless Broadband
Router. Consult your ISP if you are unsure about which Internet connection type to use.
Select the correct protocol for your ISP from the table below. See the User Manual for
more information.

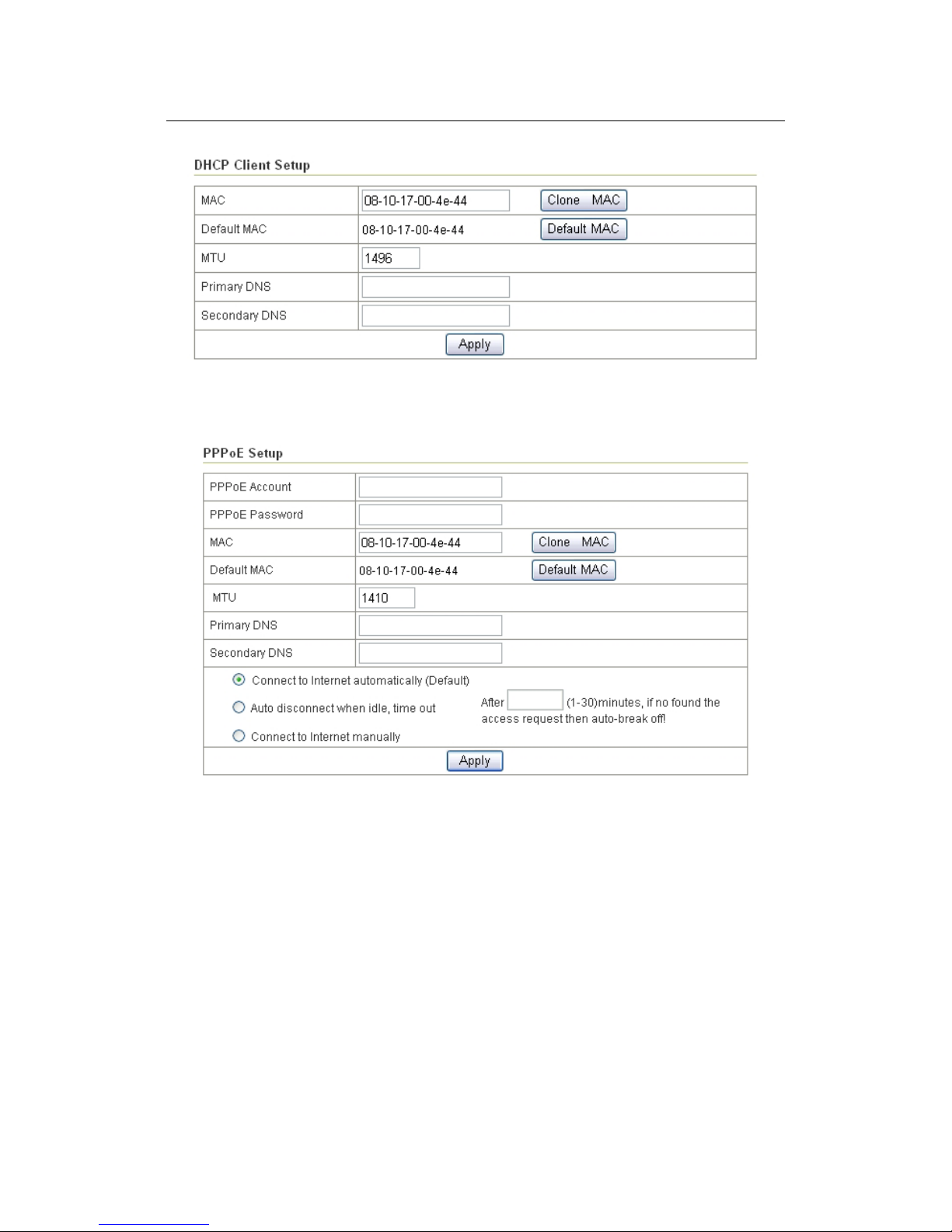

zDynamic IP Address

X11 Wireless Broadband Router User manual
Page 15 of 69
Figure 17
zPPPoE
Figure 18

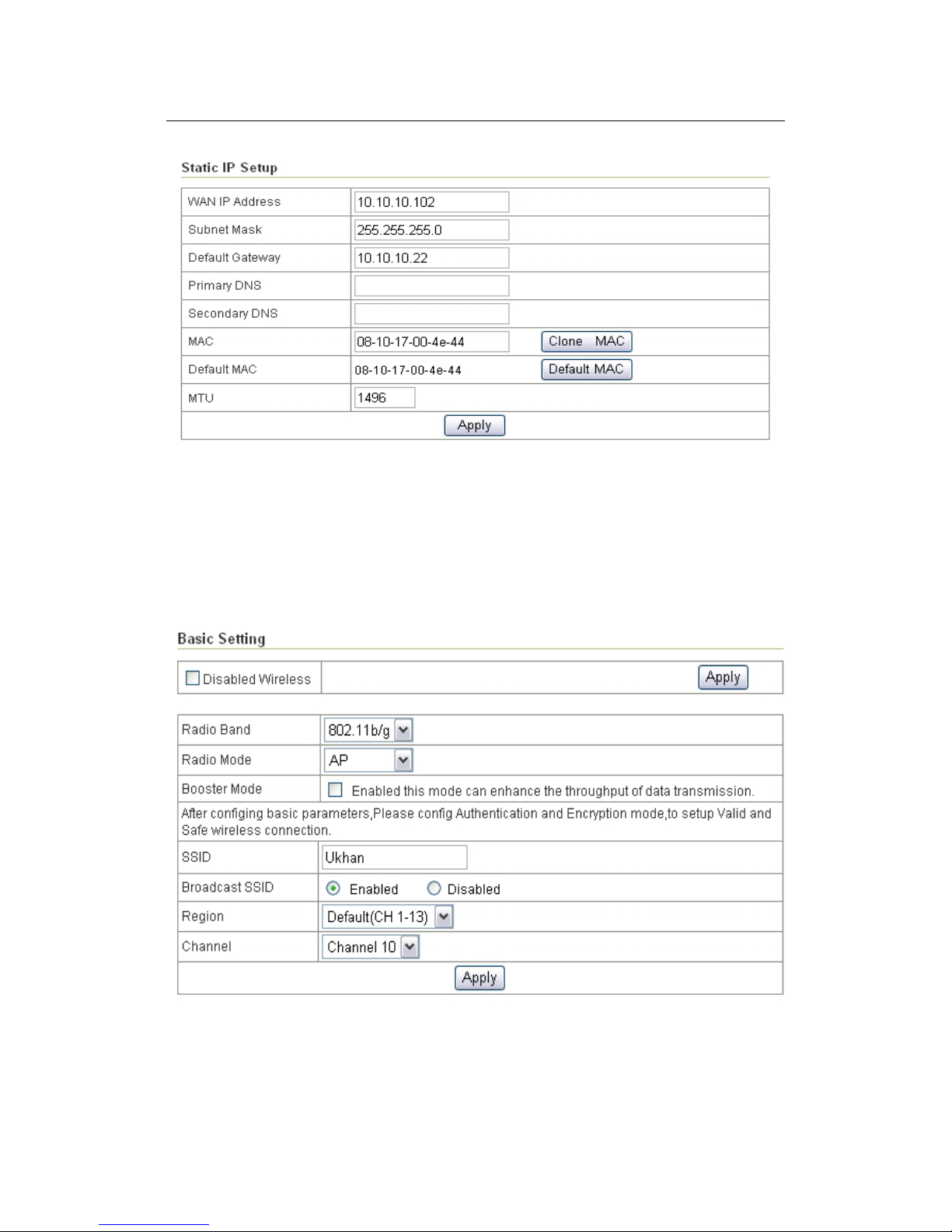

zStatic IP

X11 Wireless Broadband Router User manual
Page 16 of 69
Figure 19
Step 3.After selecting the proper WAN connection setting, click Apply to save
And enable these settings with the Router.
Step 4.Setting the wireless
With the default values, the router (Access Point) can be easily associated by a wireless client. For
security concern, you should modify the basic Wireless LAN security settings. For more detailed
information, please refer to the User Manual.
Figure 20

X11 Wireless Broadband Router User manual
Page 17 of 69
Wireless Router’s Default Values
LAN IP 192.168.10.1
Subnet Mask 255.255.255.0
DHCP Server Enable
IP Lease Range 192.168.10.2 ~ 192.168.10.128
User Name admin
Password N/A
SSID default
Channel 6
Authentication Disabled
Encryption Off
Radio Band 802.11B/G
○
6 Checking the Connection to the Internet
To check the connection to the Internet, you can open the Web browser and go to a website. You
can also go to the System Overview page of the router’s Web -based configuration utility. The
WAN Interface group will display the current connection information.
Congratulations! You’ve successfully configured your Router.

X11 Wireless Broadband Router User manual
Page 18 of 69
11
Wireless Broadband Router
User’s Manual

X11 Wireless Broadband Router User manual
Page 19 of 69
Chapter 1 Introduction
1.1 Welcome
Congratulations on purchasing ZIO X11 Wireless Broadband Router. ZIO X11 is
a cost-effective IP Sharing Router that enables multiple users to share the
Internet through an ADSL or cable modem. Simply configure your Internet
connection settings in the Wireless Broadband Router and plug your PC to the
LAN port and you're ready to share files and access the Internet. As your
network grows, you can connect another hub or switch to the router’s LAN ports,
allowing you to easily expand your network. X11 is embedded with an IEEE
802.11g/b access point that allows you to build up a wireless LAN. With the
support of new emerged 802.11g standard, the access point provides data
transfer of up to 54Mbps, up to 5 times faster than 802.11b, it is backwards
compatible with existing 802.11b infrastructure while migrating to the new
screaming fast 802.11g.The Wireless Broadband Router provides a total
solution for the Small and Medium-sized Business (SMB) and the Small
Office/Home Office (SOHO) markets, giving you an instant network today, and
the flexibility to handle tomorrow's expansion and speed.
1.2 About This Guide
This User Manual contains information on how to install and configure your
Wireless Broadband Router to get your network started accessing the Internet.
It will guide you through the correct configuration steps to get your device up
and running.
Note and Caution in this manual are highlighted with graphics as below to
indicate important information.
Contains related information corresponds to a topic.
Necessary steps, actions, or messages that should not be ignored.
1.3 Copyright statement
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, whether electronic, mechanical,
photocopying, recording, or otherwise without the prior writing of the
publisher.

X11 Wireless Broadband Router User manual
Page 20 of 69
Chapter 2 Designing Your Wireless Network
2.1 System Requirements
zCable/ADSL modem and an Internet access account for Internet connection
zOne computer with 10/100Base-T Ethernet card and TCP/IP protocol
installed for initial setup
zInternet Explorer 5.0 or higher for Web configuration
z802.11g or 802.11b compliant wireless adapters (for wireless connection)
Figure 1 below shows a typical setup for a Local Area Network (LAN).
Figure 1 Local Area Network
