ZLG CANDTU-100UR User manual

Product User Manual
CANDTU-100UR
CAN Bus Message Records and Wireless Data Transmission Equipment
User Manual
UM01010101 V1.01 Date: 2019/03/15
Category
Contents
Keywords
CAN-Bus message recording and storage
Description
Product User Guide
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
1
User Manual
Revision History
Version
Date
Description
V0.90
September 18,
2017
Created
V1.01
March 15, 2019.
Updated the document header and footer and "Sales and
Service Network" content, and added the "Disclaimer" content

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
2
User Manual
Contents
1. Product Introduction.....................................................................................1
1.1 Product Overview...................................................................................................1
1.2 Product characteristics...........................................................................................3
1.3 Typical application..................................................................................................3
2. Product Specification ...................................................................................4
2.1 Electrical Parameters.............................................................................................4
2.2 Operating temperature...........................................................................................4
2.3 Protection class......................................................................................................4
2.4 Machine dimensions...............................................................................................5
3. Product hardware interface description........................................................6
3.1 Interface layout.......................................................................................................6
3.2 DB9 interface, flange terminal interface.................................................................6
3.2.1 Power Interface............................................................................................6
3.2.2 CAN-Bus interface .......................................................................................7
3.3 USB interface .........................................................................................................9
3.4 SD card interface....................................................................................................9
4. Configuration tool installation and introduction...........................................10
4.1 Software Installation.............................................................................................10
4.2 Function description .............................................................................................12
4.2.1 Device selection.........................................................................................13
4.2.2 CAN configuration......................................................................................13
4.2.3 DO configuration........................................................................................15
4.2.4 Filtration......................................................................................................16
4.2.5 Trigger (record mode) ................................................................................17
4.2.6 Data converter............................................................................................20
4.2.7 Menu operation..........................................................................................23
4.2.8 Set and get the device clock......................................................................24
4.2.9 Download and obtain device configurations..............................................25
4.2.10 Pause and resume recording...................................................................25
4.2.11 Clear device storage ................................................................................25
4.2.12 Device information ...................................................................................26
5. How to use the USBCAN function..............................................................27
5.1 CANTest test software installation........................................................................27
5.2 Quick use demonstration of the USBCAN function .............................................29
6. Quick instructions.......................................................................................32
6.1 Operational Guide ................................................................................................32
6.1.1 Configuration..............................................................................................32
6.1.2 Records......................................................................................................32
6.1.3 Upgrade......................................................................................................32
6.1.4 Change the card.........................................................................................32
Product fault report form ................................................................................34

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
3
User Manual
Product return procedure...............................................................................35
Disclaimer......................................................................................................36

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
1
User Manual
1. Product Introduction
1.1 Product Overview
In the CAN bus troubleshooting, the biggest difficulty is occasional faults. This makes
engineers or even CAN experts unable to accurately identify the fault cause. For example,
the pitch system of the wind turbine had a CAN data transmission interruption in 72 hours;
the dashboard of a new energy vehicle appeared "blank" once during a 10,000 km drive,
but this could not reoccur; the high-speed train experienced an emergency deceleration
due to abnormal CAN communication during a 2,000 km journey. These occasional
CANFD communication exceptions have frightened engineers like time bombs. If one
CAN bus data recorder is installed on an occasion prone to faults, it is equivalent to a
"black box" to record CAN data, which helps analyze the fault cause.
Guangzhou ZLG Electronics Co., Ltd., as a leading manufacturer of the domestic
CAN bus, has developed CANDTU series products for troubleshooting CAN buses, which
can record CAN messages offline and perform GPRS and 4G transmission. It can easily
complete the message recording and on-site monitoring of applications such as vehicles,
ships, elevators, wind turbines, and construction machinery.
CANDTU-100UR series products are storage-type 1-channel CAN bus data
recorders. The products can run independently from the PC and store CAN message data
for a long time, which facilitates analysis and troubleshooting. The recorder can transfer
the recorded data to a PC via an SD memory card. After format conversion of the raw data,
users can analyze and evaluate the recorded data offline by using CANoe and
CANScope.
CANDTU-100UR is also a CAN-Bus bus communication device that complies with
USB2.0 high-speed specification protocol and integrates two CAN interfaces. The PC can
be connected to the CAN-Bus network through the USB bus of the device to realize the
data mutual transmission between the PC and the CAN-Bus network.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
2
User Manual

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
3
User Manual
1.2 Product Features
CAN channel
Number of channels: one user-configurable CAN channel
Interface type: high-speed CAN (optional fault-tolerant CAN,
single-wire CAN)
Baud rate: arbitrarily programmable between 5 Kbps and 1 Mbps
Maximum received data flow: greater than 7,000 frames/s
Surge protection: 2 kV (Class B)
Electromagnetic isolation: 3.5 kV
PC interface
Hi-speed USB2.0
Message recording
and storage
Storage capacity: SD memory card of a maximum of 8 GB
Storage mode: rolling record, full stop
Record mode: long time recording, condition recording, pre-trigger
recording, and timing recording
Data export:ASC or CCP data for CANoe, CANScope analysis
Real-time clock
Built-in rechargeable lithium battery
Software
resources
Supports the general configuration function library, which helps
users develop application programs with VC, VB, Delphi and C++
Builder
Supports the configuration tool CANDTU
Power supply
voltage
DC 7.5 ~ 48V
Power
consumption
2.568W
Range of
temperature
Operating temperature: -40℃to +85℃(without an SD card)
Storage temperature: -40℃to +85℃(without an SD card)
External dimension
155.5mm×85.3mm×27mm
1.3 Typical Applications
High-speed train operation fault detection and troubleshooting
Subway train running fault detection and troubleshooting
Train control system operation fault detection and troubleshooting
Wind turbine CAN communication fault detection
Multi-channel CAN communication records and fault analysis for traditional vehicles
and new energy vehicles
Ship CANFD communication fault detection and troubleshooting
Coal mine CAN communication fault analysis
Elevator operation fault detection and troubleshooting
Construction machinery operation fault detection and troubleshooting
Operation detection and troubleshooting of aerospace vehicles and ancillary
equipment

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
4
User Manual
2. Product Specifications
2.1 Electrical Parameters
Table 2.1 Electrical parameters
Parameter
Conditions
Rating
Unit
Minimum
Typical Value
Maximum
Working voltage
DC
7.5
12
48
V
Power consumption
2.568
W
2.2 Operating Temperature
Table 2.2 Operating temperature
Parameter
Conditions
Rating
Unit
Minimum
Typical
Value
Maximum
Operating
temperature
SD card not included
-40
-
85
℃
Storage
Temperature
SD card not included
-40
-
85
℃
Note: The operating temperature of the device depends on the SD card. The specifications are as
follows:
SD card specifications: -25°C to +85°C (operating temperature), -40°C to +85°C (storage temperature).
2.3 Protection class
Table 2.3 Protection level-electrostatic discharge immunity test (IEC61000-4-2)
Interface
Conditions
Test level
Test
voltage
(kV)
Test
Result
Remarks
Power supply
Level 4
8
Class A
Contact
discharge
CAN bus
Level 4
8
Class A
Contact
discharge
Digital switch input and output
Level 4
8
Class A
Contact
discharge
USB
Level 4
8
Class A
Contact
discharge

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
5
User Manual
Table 2.4 Protection level-electrical fast transient pulse group immunity test (IEC61000-4-4)
Interface
Conditions
Test Level
Test
Voltage
(kV)
Test
Result
Remarks
Power supply
Level 3
2
Class A
Capacitive
coupling
CAN bus
Level 3
1
Class B
Capacitive
coupling
Table 2.5 Protection level-surge (impact) test (IEC61000-4-5)
Interface
Conditions
Test Level
Test
Voltage
(kV)
Test
Result
Remarks
Power supply
Level 3
1
Class A
Line-line
Level 3
2
Class A
Line-ground
CAN bus
Level 3
1
Class B
Line-line
Level 3
1
Class B
Line-ground
Note: For details, see the attachment Electromagnetic Compatibility Test Report.pdf.
2.4 Mechanical Dimensions
Figure 2.1 shows the mechanical dimensions (unit: mm).
Figure 2.1 Mechanical dimensions
Note: For more detailed mechanical dimension drawings, contact our sales or technical support
personnel.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
6
User Manual
3. Hardware Interfaces
This section introduces the hardware interfaces of CANDTU series devices.
3.1 Interface Layout
Figure 3.1 shows the device panel layout.
Figure 3.1 Panel layout
3.2 DB9 Interface, Flange Terminal Interface
3.2.1 Power Interface
The rated voltage of the power input of the device is 7.5-48 V DC . The physical form
of the interface is a flange terminal. Table 3.1, Table 3.2 and Table 3.3 list the interface
diagram, signal definition, and interface specifications.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
7
User Manual
Table 3.1 Power interface
Type
Schematic Diagram
Flange terminal
Table 3.2 Flange terminal signal definition
Function
interface
Signal
definition
Signal description
Power
supply
VIN
positive electrode of power
GND_IN
negative electrode of power
Table 3.3 Flange terminal signal definition
Parameter Name
Conditions
Rating
Unit
Minimum
Typical value
Maximum
Working voltage
DC
7.5
48
V
Power
consumption
2.568
W
3.2.2 CAN-Bus interface
The device provides one isolated CAN-Bus interface. The physical form of the interface is
a DB9 terminal. Table 3.4, Table 3.5 and Table 3.6 list the interface diagram, signal
definition, and interface specifications.
Table 3.4 CAN interface
Type
Schematic Diagram
Pin description
DB9, pin
2: CAN_L
3: CAN_GND
5: CAN_SHIELD
6: CAN_GND
7: CAN_H

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
8
User Manual
Table 3.5 Flange terminal signal definition
Function
interface
Signal
definition
Signal description
CAN
CAN_L
CAN data transceiving
differential inverted signal
CAN_GND
CAN isolated ground
CAN_H
CAN data sending and
receiving differential positive
phase signal
CAN_SHIELD
CAN shield ground
Table 3.6 CAN-Bus interface specifications
Parameter
Minimum
Typical
Value
Maximum
Unit
Communication baud rate
5k
1M
bps
Number of nodes
110
pcs
Dominant level (logic 0)
CANH
2.75
3.5
4.5
V
CANL
0.5
1.5
2
Recessive level (logic 1)
CANH
2
2.5
3
CANL
2
2.5
3
Differential level
Dominant (logic 0)
1.2
2
3.1
Recessive (logic 1)
-0.5
0
0.05
Maximum withstand
voltage of the bus pin
-18
18
Instantaneous voltage of
the bus
-100
+100
Isolation voltage (DC)
3500
V
Figure 3.4 Typical high-speed CAN network connection
The CAN bus adopts balanced transmission. ISO11898-2 stipulates: In the
high-speed CAN, a 120 ohm terminal resistor needs to be connected to the network
terminal node to eliminate signal reflection on the bus and avoid signal distortion. Figure
3.4 shows the high-speed CAN network topology.
The device has a built-in 120 ohm terminal resistance, which can be configured to

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
9
User Manual
turn on or off by using the configuration tool CANDTU. For operation details, see 4.2.2.
Note: The bus communication distance and communication rate are related to the field application and
can be designed according to the actual application and related standards. The CAN-Bus cable can use
ordinary twisted pair, shielded twisted pair or standard bus communication cable. In long-distance
communication, the terminal resistance value needs to be selected according to the communication
distance, cable impedance and number of nodes.
3.3 USB Interface
The device provides one USB interface. The device communicates with the PC over
the USB cable. The interface conforms to the high-speed USB2.0 protocol specification
and can communicate with PCs compliant with USB1.1 and USB2.0 standards. The
physical form of the interface is a Type-B USB port.
3.4 SD Card Interface
The device provides one SD card interface, which supports a maximum of 8 GB SD
memory card for storing CAN bus message data. The interface adopts a self-locking card
slot, and the SD card can be locked after the card is inserted according to the direction of
the casing logo to prevent accidental falling off during use. When pulling out the card, just
push it inwards to eject the SD card.
Note: Do not forcibly pull out the card when the device is in use. Otherwise, data loss or memory card
damage may occur! If necessary, after pausing the recording by pressing the button (or configuration
tool), gently push in and eject the SD card.. For details about how to pause the recording, see 4.2.10.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
10
User Manual
4. Configuration Tool Installation and Introduction
4.1 Software Installation
1) Double-click the software installation package to install the software. The dialog
box shown in Figure 4.1 appears.

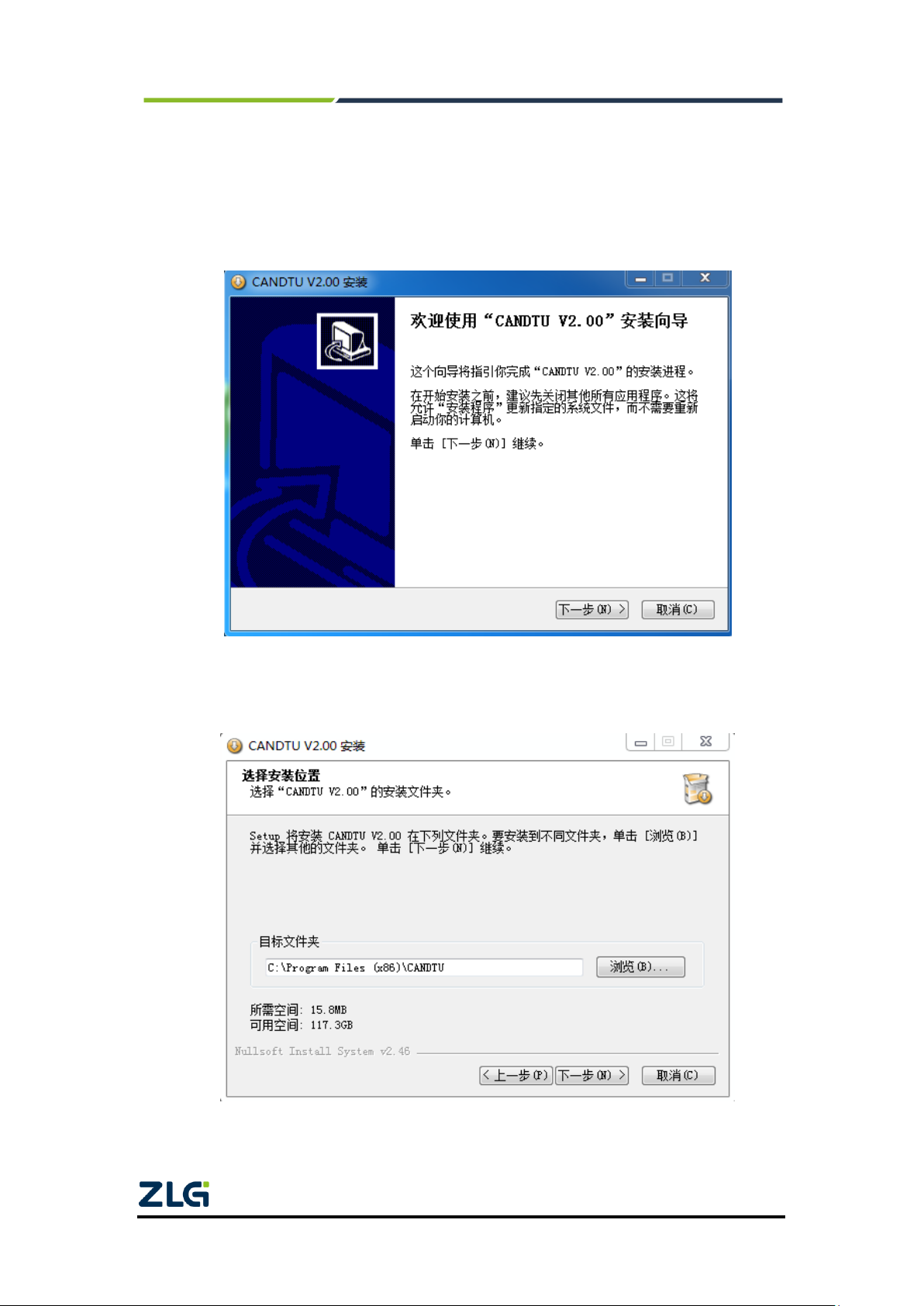

Figure 4.1 Installation wizard
2) Click "Next". The Choose Install Location dialog box appears.
Figure 4.2 Selecting an installation path

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
11
User Manual
3) Click "Next". The dialog box shown in Figure 4.3 appears.
Figure 4.3 Selecting the Start Menu Folder
4) Click "Install". The Install Driver dialog box appears.
Figure 4.4 Installing the driver
5) Click "Install". The dialog box shown in Figure 4.5 appears.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
12
User Manual
Figure 4.5 Installation complete
6) Click "Finish". The configuration software and driver are installed.
4.2 Function Description
After the program is installed, there will be shortcuts to the configuration tool on the
desktop and start menu. Double-click the desktop icon to launch the program. The CAN
configuration page appears by default, as shown in Figure 4.6. The tool interface is
divided into four parts:
1) Menu bar:
Provide all operation commands of the configuration tool, including common
operation commands in the shortcut toolbar, restore factory settings, etc.;
2) Shortcut Toolbar
Provide common operation buttons of the configuration tool to complete the quick
operation of commands;
3) Side navigation bar
Provide multiple categories of information tabs to quickly switch tabs;
4) Information settings bar
Operate the specific configuration information based on the options in the left
navigation bar.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
13
User Manual

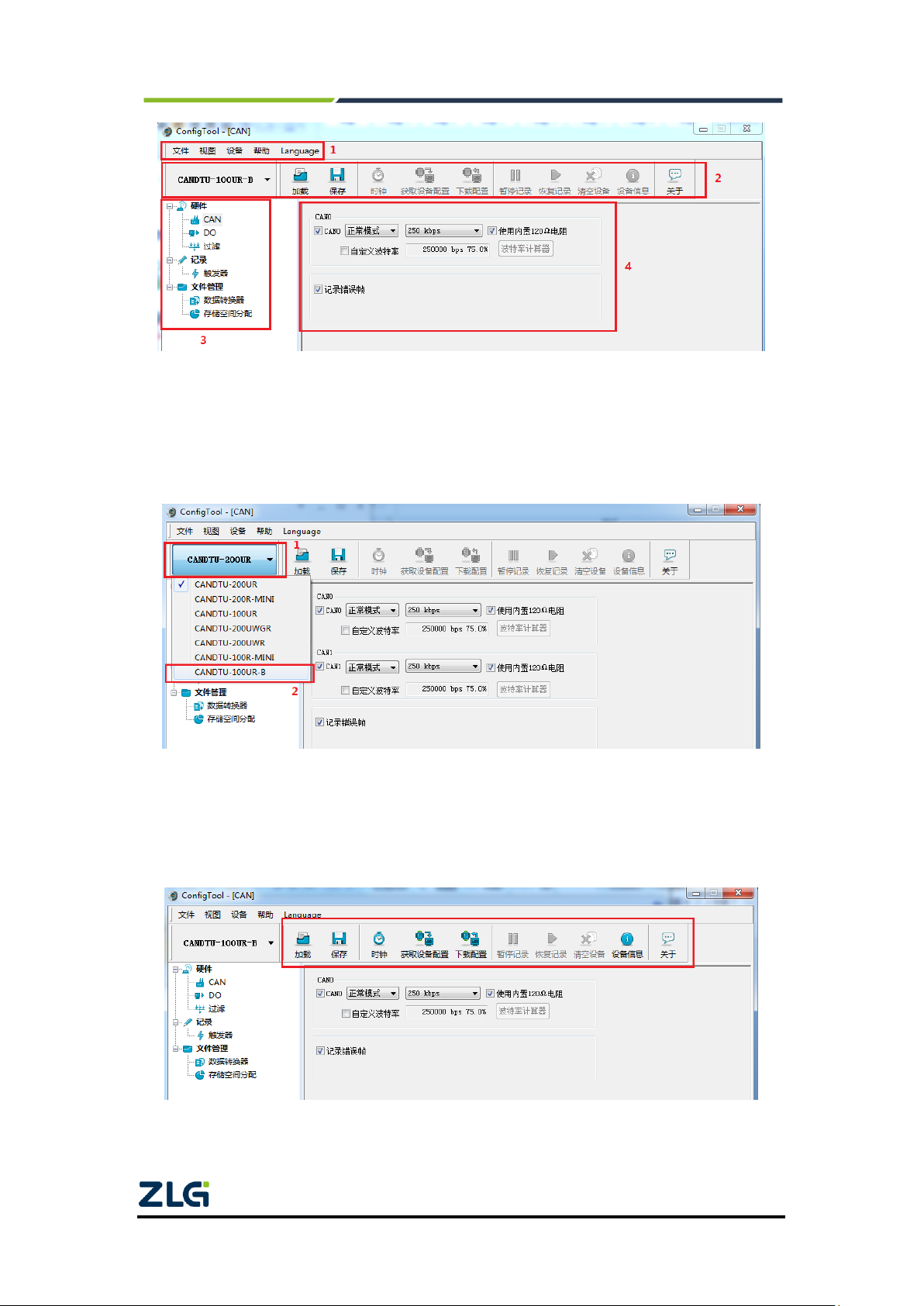

Figure 4.6 Interface
4.2.1 Device Selection
When using the configuration software, select the corresponding device model, as
shown in Figure 4.7.
Figure 4.7 Device selection
When the software retrieves that the device of the selected model is connected to the
computer properly, the shortcut toolbar will change from dark to bright, as shown in Figure
4.8.
Figure 4.8 Device valid
4.2.2 CAN Configuration

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
14
User Manual
Figure 4.9 shows CAN configuration items.
Figure 4.9 CAN Configuration tab
The CAN Configuration tab contains the following parameters:
1) Channel enable
Selected: Enable the corresponding CAN channel.
Deselected: Disable the corresponding CAN channel.
2) Communication mode
Normal mode
Listen only mode
3) Communication baud rate
The drop-down menu provides common baud rates for CAN communication.
4) Use a built-in 120-ohm resistor (connected by default)
Selected: Connect the built-in 120-ohm resistor termination resistor
corresponding to the CAN channel.
Deselected: Disconnect the built-in 120-ohm resistor termination resistor of the
corresponding CAN channel.
5) Custom baud rate
If the provided common CAN communication baud rate cannot meet the
requirements, select the customized baud rate check box, click the baud rate calculator to
calculate the customized baud rate information. The text box displays the current baud
rate and sample point information.
6) Baud rate calculator
As shown in Figure 4.10, select the appropriate synchronous jump width value, select
or deselect the three sampling check box as required, enter a baud rate, and whether it
conforms to the rule of TSEG2>=SJW. Click the Calculate button to calculate the data
combination for the baud rate. Select a numerical combination that matches the desired
sampling point. Press the OK button or double-click the row to complete the customized
baud rate setting.

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
15
User Manual
Figure 4.10 Baud rate calculator
7) Record error frames
Selected: Record CAN error frames.
Deselected: CAN error frames are not recorded.
4.2.3 DO Configuration
Figure 4.11 shows the DO interface configuration items.
Figure 4.11 DO Configuration tab
1) Channel enable
Selected: Enable the corresponding DO channel.
Deselected: Disable the corresponding DO channel.
2) Triggering event
Record full. Trigger output when the SD card is full;
Bus error. Trigger output when the CAN bus is faulty;
SD card is abnormal. Trigger output when SD card is abnormal or SD card does

CANDTU-100UR
CAN Bus Message Recording and Wireless Data Transmission Equipment User Manual
©2021 Guangzhou ZLG Electronics Technology Co.,Ltd.
16
User Manual
not exist.
3) Relay actions
Closed: When an event is triggered, the relay closes.
Open: When an event is triggered, the relay is opened.
4.2.4 Filtering
Figure 4.12 Filter Settings tab
Figure 4.12 shows CAN hardware filter configuration items. Each CAN channel has a
maximum of eight sets of filtering rules. The filtering rules of each CAN channel are
independent of each other and need to be configured separately.
1) Channel selection
Select an CAN channel for which filtering rules need to be set.
2) Acceptance code and mask code
Each set of filter items contains an acceptance code and a mask code. The
acceptance code and mask code are both a 32-bit value. Figure 4.13 shows the specific
format.
Figure 4.13 Filter table format
REM: 1 indicates remote frame reception, data frame rejection.
EXT: 1 indicates extended frame reception, standard frame rejection.
In a standard frame, only 11 bits (bit[29:19]) are used for the frame ID; in an
extended frame, all bits (except bit 0) are used.
