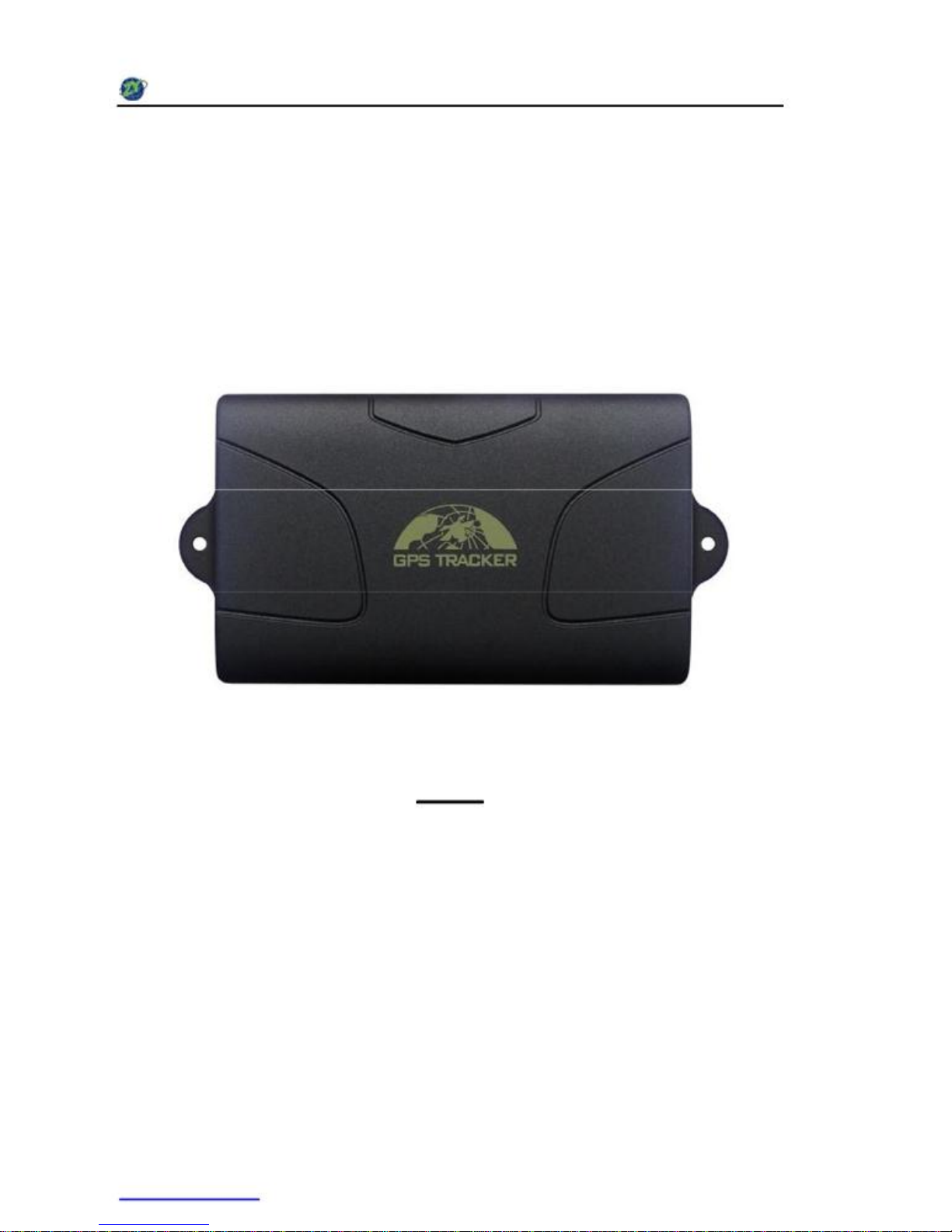

Zy TK-104 User manual

GPSTrackerManualTK-104
GSM/GPRS/GPS PORTABLE
VEHICLE TRACER
GPS104 User manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes
without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer assumes no
responsibility for any errors or omissions in this document.

GPSTrackerManualTK-104
Contents
I. Introduction...................................................................................................................................................2
1. Main Features............................................................................................................................................2
2. Applications............................................................................................................................................. .2
3. Hardware Description...............................................................................................................................2
4. Accessories................................................................................................................................................4
5. Specifications.......................................................................................................................................... ..5
II. Installation and operating..............................................................................................................................6
1. Production installation... ...........................................................................................................................6
2. SIM card installation.................................................................................................................................6
3. Battery Charging.................................................................................................................................... ...7
III. Basic functions.......................................................................................................................................... ...7
1. ON/OFF Function.....................................................................................................................................7
2. Initialization... .......................................................................................................................................... .7
3. Change Password.................................................................................................................................... ..7
4. Add and Delete authorization... ................................................................................................................8
6. Successive Locating Automatically......................................................................................................... .8
7. Get Absolute address including street name.......................................................................................... ...9
8. Check the Vehicle State........................................................................................................................... .9
9. Check IMEI...............................................................................................................................................9
10. Setup time zone for tracker.....................................................................................................................9
11. Track Mode.......................................................................................................................................... ...9
12. Monitor mode..........................................................................................................................................9
13. Cut off the Oil and Power System(Option)... ........................................................................................10
14. Resume the Oil and Power System(Option).........................................................................................10
15. Tracker’s Hardware Resetting... ...........................................................................................................10
IV. Alarm Function and settings.......................................................................................................................10
1. Geo-fence...............................................................................................................................................10
2. Movement Alarm....................................................................................................................................11
3. Over Speed Alarm...................................................................................................................................11
4. Shock Sensor Alarm... ............................................................................................................................11
5. SOS(Option)... ........................................................................................................................................11
6. Low power alarm....................................................................................................................................11
V. GPRS Setting..............................................................................................................................................12
1. Setting up APN... ....................................................................................................................................12
2. GPRS User Name and password Setup..................................................................................................12
3. IP and Port Setup.....................................................................................................................................12
4. Modes Switch between “SMS” and “GPRS” ........................................................................................12
5. GPRS Tracking & monitoring platform..................................................................................................13
VI. Sleep Function.............................................................................................................................................13
VII. Cautions.......................................................................................................................................................13
VIII. Simple Faults & the Solutions....................................................................................................................13
IX. LED indicator status.....................................................................................................................................14
1

3.2 Rear fac
GPSTrackerManualTK-104
I. Introduction
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning
system, which set multiple functions of security, positioning, monitoring surveillance, emergency
alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
1. Main Features
1.1 Waterproof shell
1.2 Built-in large capacity 6000MA battery, long standby time of 60 days.
1.3 Powerful magnets to absorb to vehicle firmly.
1.4 Real-time tracking, retrieve of lost vehicles, cargo.
1.5 Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
1.6 Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time
tracking on web based server.
1.7 Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation,
convenient and quick.
1.8 Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be
installed on the device which can provide power for long-term using.
2. Applications
Applies to: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo
and criminal investigation officer.
3. Hardware Description
GPSTrackerManualTK-104

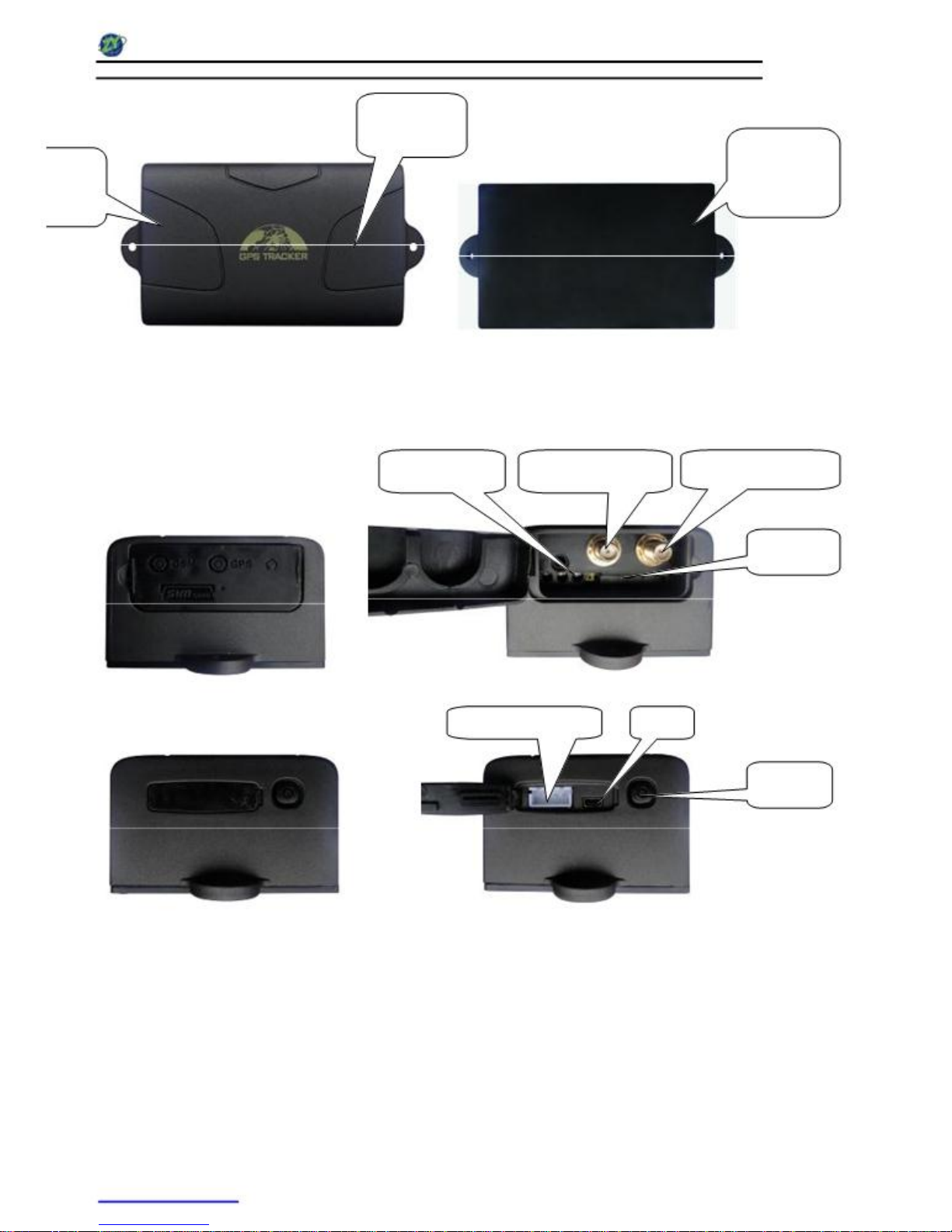

3.1 Front face
uilt-in
SM
tenna
3.3 Side face
3.4 Side face
3.5 Side face
3

GPSTrackerManualTK-104
Built-in Mic Built-in shock sensor

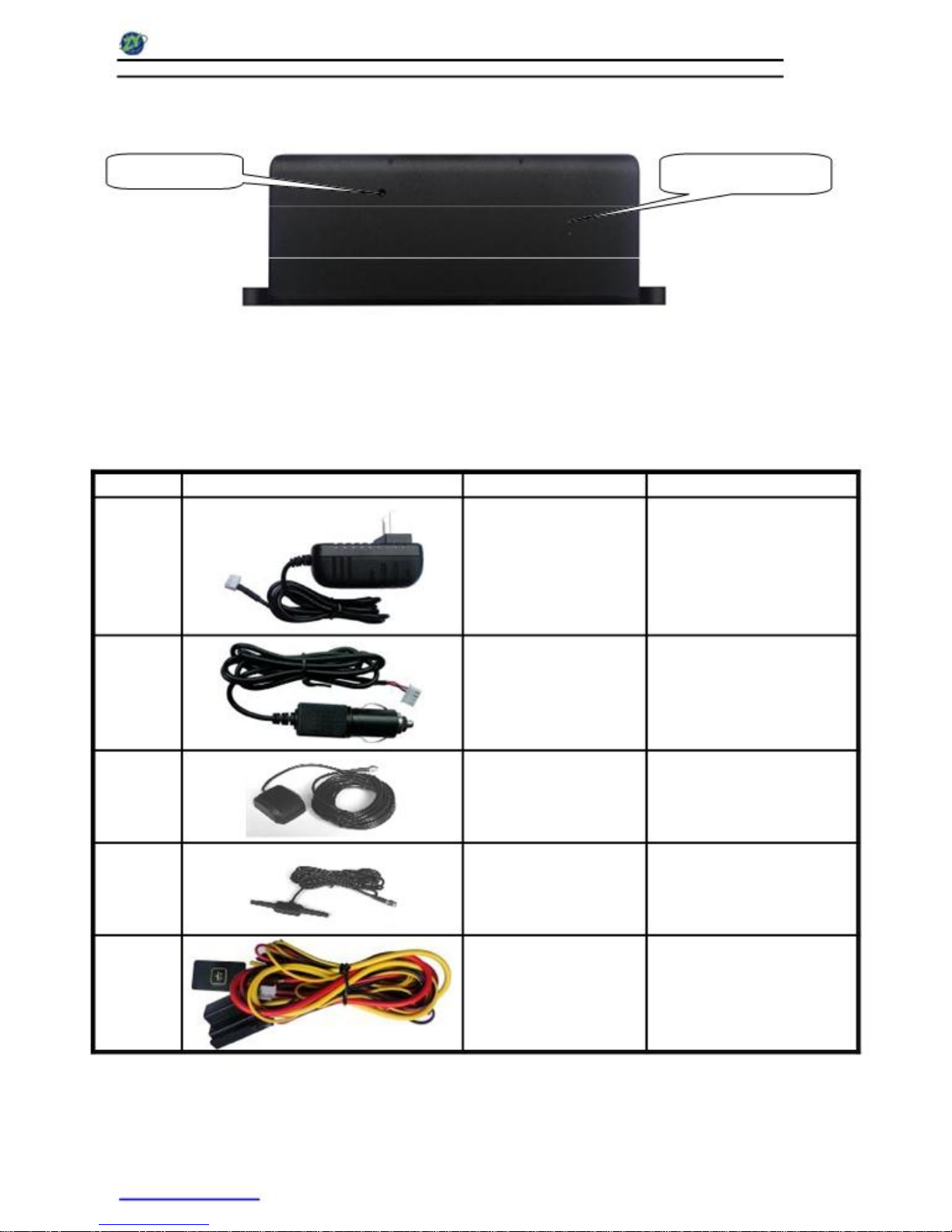

4. Accessories
No. Pictures Name Specs
1
AC Adapter Input: AC 110-220V，
Output DC: 1.5A ，12V
2 Lighter car adapter Car 12V OR 24V power
3
GPS Antenna
3 meters
4
GSM Antenna
2 meters
5 Harness 4PIN (OPTIONAL)
4

GPSTrackerManualTK-104
12V/40A OR 24V/40A
6

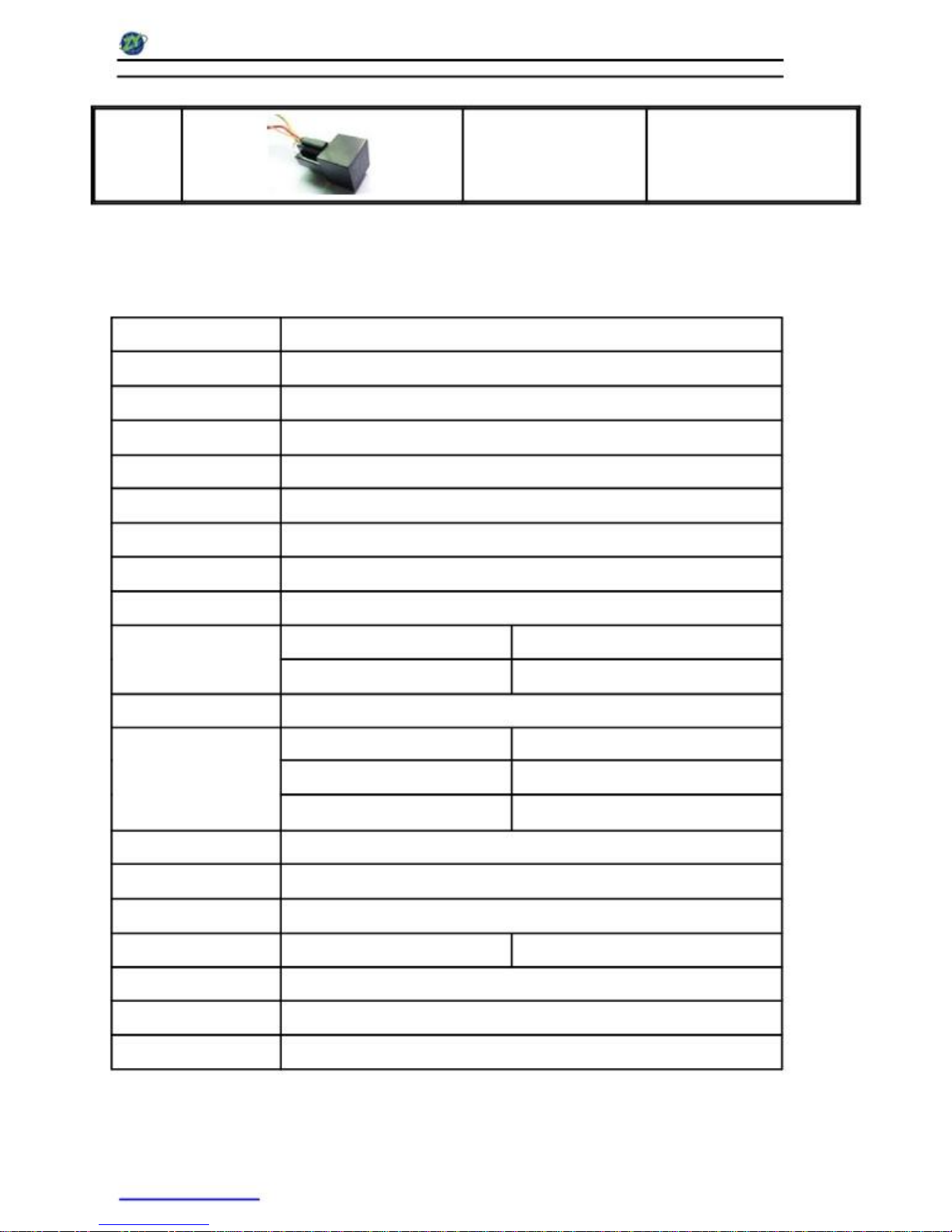

5. Specifications
Relay depends on the vehicle type
(OPTIONAL)
Content specifications
DIM. 94mm*60mm*38mm
Weight 300g
Network GSM/GPRS
Band 850/900/1800/1900Mhz or 900/1800/1900Mhz
GSM/GPRS Module Simcom340z or Simcom300z
GPS Module SIRF3 chip
GPS sensitivity -159dBm
GPS Accuracy 5m
Cold status 45s
GPS Start time Hot status 1s
EXT. power DC 12 V -24V
Sleep Current 4mA±1mA
Operating Current GSM operating Current 54mA±3mA
GPRS Current(data transfer) 60mA±5mA
Battery 3.7V 6000mA/h Polymer battery
Charge current 1.2A±0.2A
Charge time 5h
Standby time GSM sleep mode 1500h
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +65°C
Humidity 5%--95% non-condensing
5

ZY INTERNATIONAL LIMITED GPSTrackerManualTK-104
II. Installation and operating
1. Production installation
1.1 The product is easy to install. The built-in powerful magnet can make it to be directly adsorbed on the
iron objects.
1.2 Built-in GPS and GSM antenna, external antenna can be an optional.
1.3 The tracker is waterproof, but please still avoids the long-term placement in the places of water
infiltration.

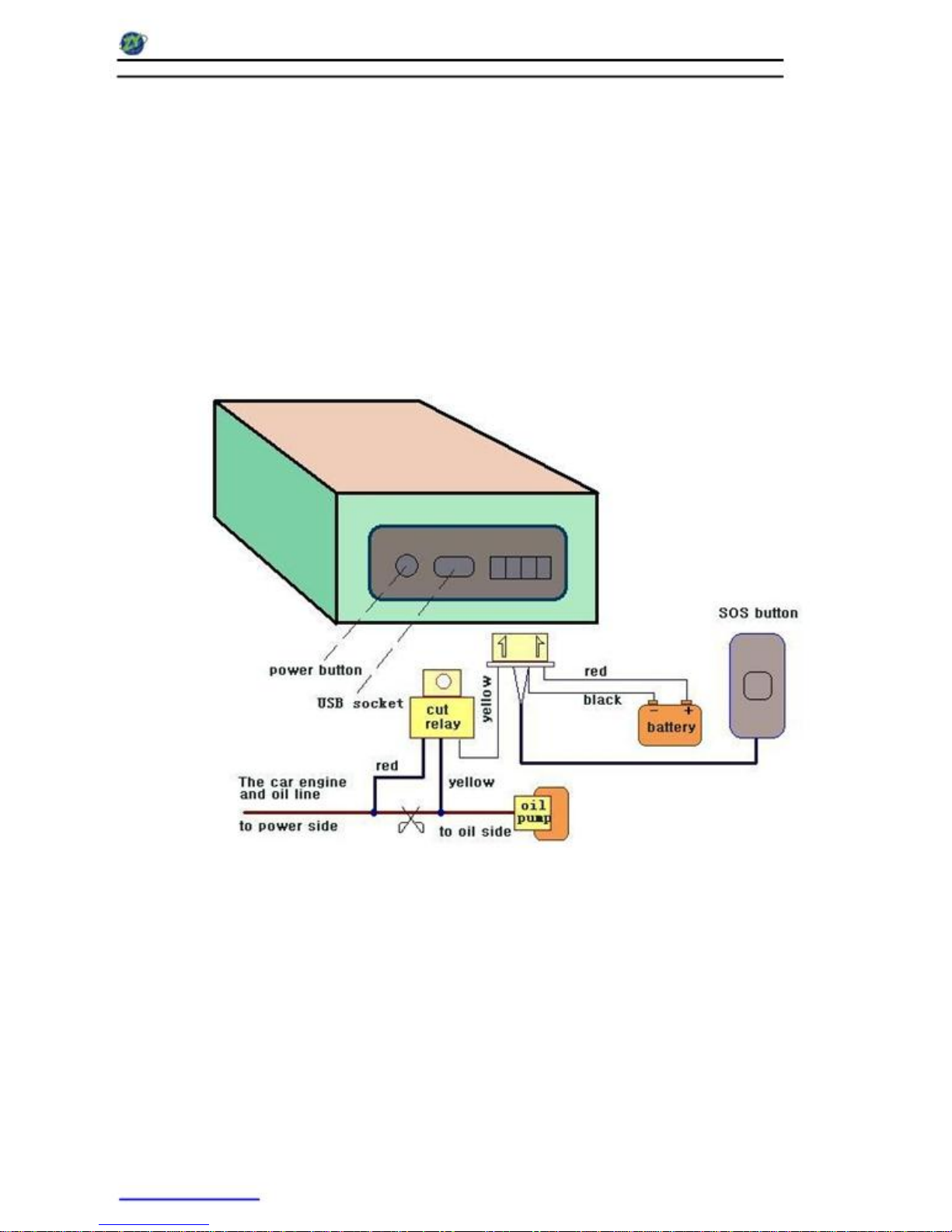

1.4 If you need an external power supply, cut oil & power system and SOS feature, Please find 4PIN main
wire (if optional), wiring diagram is as follows:
Note: Please install SOS button on the hidden place driver can touch.
2. SIM card installation
2.1 Open the waterproof sealant, use tweezers or pointed objects to touch the SIM card switch
lightly, the SIM card slot will pop up, and install the SIM card correctly, and then put the
SIM card slot back.
2.2 Please make sure that the SIM card is GSM network and able to execute the function of
incoming calls display, no calls can be diverted and the PIN code is locked. The SMS
6

ZY INTERNATIONAL LIMITED GPSTrackerManualTK-104
format must be TXT format, and can’t recognize the PDU format.
3. Battery Charging
Please fully charge the product for the first use and charge as following:
3.1 Home charge, find the AC adapter from the accessories and connect 4-PIN plug into
4-PIN socket, and then connect the other end to mains supply.
3.2 Car charge, find the car lighter charger from the accessories and connect to car cigarette
lighter.
Note: The tracker is being charged if the LED is red constantly during the charge, and
charging is finished when the LED change from red to green, and then you can stop
charging.
III. Basic functions
Note: You don't need to type "+" for all the command in this manual, "space" means
press the space button on the cell phone keyboard.
1. ON/OFF Function
1.1 In the OFF state, press the ON/OFF switch for 3 seconds, then the three LED will bright flash 1 time,
which means the tracker had been switched on.
1.2 In the ON state, press the ON/OFF switch for 3 seconds, then the three LED will bright flash 2 times,
which means the tracker had been switched off.
2. Initialization
Send SMS "begin+password" to tracker from you cell phone, it will reply"beginok" and return
to the default factory settings state. (Default password is: 123456). For example: Send SMS
"begin123456" to tracker, it will reply "begin ok".
3. Change Password
Send SMS "password+old password+space+new password" to the tracker from you cell
phoneto change the password. For example: Send SMS "password123456 888888" to tracker, it will
reply “password OK”, and it means the password has changed successfully. And please keep the new
password in mind.
Note: The new password must be 6 digits, or the tracker can't recognize.
7

ZY INTERNATIONAL LIMITED GPSTrackerManualTK-104
4. Add and Delete authorization
4.1 Authorization phone number is the phone number you used for tracking, controlling,
alarms, etc, and only 5 phone numbers to be allowed to authorized in the tracker at most. Add
authorization as following two ways:
4.2 For the first authorization, Call and track the tracker device for 10 times from cell phone
in success, it will make the cell phone number as the authorized number automatically,
and reply “add master ok”.
4.3 Authorization: Send SMS “admin+password+space+cell phone number ” to set up an
authorized number, the other authorized numbers should be set by the first authorized
number, if the number is successfully authorized, the unit will reply” admin OK” .
If you need to track the target tracker device when it enters into another country, you must
add the country code before the cell phone number, for example, send SMS ”
admin123456 008613322221111” to the device. Note: 13322221111 will be set up as the
authorized number.
4.4 Delete authorization: Send SMS “noadmin+password+space+authorized number ” to
delete the authorized number.
5. Single Locating
Anynumber call the tracker device, it will reply a SMS including the position of latitude and
longitude if don’t set up the authorized number. If authorized number has set successfully, the
device won ’t reply SMS including the positioning of latitude and longitude when the
unauthorized number dials up it. Dialing the tracker device from the authorized number, it
will hang up your calling and respond to a real-time latitude and longitude information as
following:
When GPS signals lost, The SMS including the position of
latitude and longitude is the positioning that the tracker
received GPS signals at last. It maybe different with its
exact current location, so pay attention to the time included
in the SMS.
6. Successive Locating Automatically
6.1 Limited intervals and times tracking: Send SMS “fix+intervals+time unit+tracking
times+n+password” to tracker. For example: Send SMS “fix030s005n+password” to
tracker, it means tracker will send GPS coordinates each 30 seconds for 5 times. The
intervals and tracking times must be in 3 digits and the maximum value is 255, the interval must
be not less than 20s. Time unit is (s: second, m: minute, h: hour).
6.2 Non-limited continuously tracking: Send SMS “fix+intervals+time unit+***n+password”,
For example “fix030s***n+password”, it means tracker will send GPS coordinates each
8

ZY INTERNATIONAL LIMITED GPSTrackerManualTK-104
30 seconds continuously.
6.3 Cancel automatically locating: Send SMS “nofix+password” to tracker.
7. Get Absolute address including street name
You must set up the APN of your local GSM network for the SIM card in tracker first
before using this function, if your local GSM network need user name and password for gprs ,
please setup according to the GPRS instructions in chapter V. Send SMS “address+password”
to tracker after setup APN, tracker will reply detailed absolute address including street name.
8. Check the Vehicle State.
Send SMS “check+password” to tracker to check charge status, battery status, GPS
status, GSM reception status. For example, send SMS “check123456” to tracker, and the
tracker will reply following information after execute the SMS command:
Power: Power off /charging/charge finish
Battery: 100%
GPS: OK/NO GPS
GSM Signal: 1-32 (The higher digit it shows; the stronger of GSM signals it receives.)
9. Check IMEI
Send SMS "imei+password" to the unit. For example, Send SMS "imei123456" to the tracker
device, an IMEI number in 15 digits will reply to your cell phone.
10. Setup time zone for tracker
Send SMS “time+space+zone+password+space+time” to the tracker unit, If succeed, It will
reply “time OK ”. For example: Send SMS “time zone123456 8 ”, 8 is Chinese time zone, If
your country time zone is minus, send SMS “time zone123456 -8”.
11. Track Mode
Dial the tracker to get GPS coordinates once, track mode is the factory default mode.
Setup: Send SMS "tracker+password" to tracker, it will reply "tracker ok" and change to track
mode.
12. Monitor mode
12.1 Dial the tracker to monitor the voice around it.
9
