1RT DTK4500 User manual

– 1 – EN
OWNER’S MANUAL
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The caution marking is located on the rear of the cabinet.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of suffi-
cient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instruc-
tions in the literature accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
VIDEO CASSETTE
RECORDER
DTK4500
IMPORTANT SAFEGUARDS
IMPORTANT
Use only cassettes marked VHS with this appliance.
WARNING
To avoid fire or electric shock, do not expose this unit to
rain or moisture.
DEW WARNING
Moisture condensation may occur inside the unit when it
is moved from a cold place to a warm place, or after
heating a cold room or under conditions of high humidity.
Do not use the VCR at least for 2 hours until its inside is
dry.
CAUTION
1. Do not attempt to open the cabinet. There are no
parts inside you can service. Refer all servicing to
qualified service personnel.
2. Slot and openings in the cabinet and at the side or
bottom are provided for ventilation. To ensure reliable
operation and to protect the unit from overheating
these opening must not be blocked or covered. Avoid
enclosed spaces such as book cases unless proper
ventilation is provided.
3. Keep the unit away from the radiator heat sources.
4. Avoid using near strong magnetic fields.
5. Do not push objects of any kind into this appliance
through the cabinet slot as they could touch danger-
ous voltage points or short circuit parts resulting in a
fire or electric shock.
6. Never spill liquid of any kind on this unit. If liquid is
spilled into the unit, consult qualified service engineer.
7. Use this unit in a horizontal (flat) position only.
TABLE OF CONTENTS
PRECAUTIONS..........................................................2
DESCRIPTION OF CONTROLS................................2
PREPARATION FOR USE.........................................3
SETUP........................................................................3
PLAYBACK FUNCTION.............................................4
RECORDING FUNCTION..........................................5
TIMER RECORDING .................................................5
SPECIAL FEATURES................................................6
TROUBLESHOOTING GUIDE...................................7
SPECIFICATIONS......................................................7
MAINTENANCE .........................................................7

– 2 – EN
1. EJECT button
2. NUMBER buttons
3. MENU button
4. RECORD button
5. SPEED button
6. REW button
7. STOP button
8. PLAY button
9. F.FWD button
10. DISPLAY button
11. PAUSE/STILL button
12. SLOW button
13. C.RESET/EXIT button
14. SEARCH-MODE button
15. CHANNEL buttons
16. POWER button
17. VCR/TV button
()
20. AUDIO OUT jack
21. AUDIO IN jack
22. ANT. IN jack
23. ANT. OUT jack
24. VIDEO IN jack
25. VIDEO OUT jack
26. AC Power Cord
Display Window
CHANNEL MENU
REC/OTR REW F.FWDPLAYSTOP/EJECT
POWER
VIDEO AUDIO
23456
7
89101112
1
13
15
16
17
18
19
14
Remote Control
POWER
VCR/TVEJECT
CHANNEL
PAUSE
/STILL
C.RESET
EXIT
SEARCH
-MODE
SLOW
DISPLAYSPEED
STOP
PLAY
RECORD
MENU
REW
F.FWD
123
456
78
0
9
1
3
4
5
6
7
9
11
8
10
17
13
14
16
15
12
2
Rear Panel
ANT
AUDIO
VIDEO
IN
OUT
OUT IN
26
20 21 22
25 24 23
Install Location
For safety and optimum performance of your VCR:
•Install the VCR in a horizontal and stable position. Do not
place anything directly on top of the VCR. Do not place the
VCR directly on top of the TV.
•Shield it from direct sunlight and keep it away from sources
of intense heat. Avoid dusty or humid places. Avoid places
with insufficient ventilation for proper heat dissipation. Do not
block the ventilation holes on the sides of the VCR. Avoid
locations subject to strong vibration or strong magnetic
fields.
Avoid the Hazards of Electrical Shock and Fire
•Do not handle the power cord with wet hands.
•Do not pull on the power cord when disconnecting it from AC
wall outlet. Grasp it by the plug.
Moisture Condensation Warning
Moisture condensation may occur inside the unit when it is
moved from a cold place to a warm place, or after heating a
cold room or under conditions of high humidity. Do not use the
VCR at least for 2 hours until its inside is dry.
FCC Warning
This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harm-
ful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the
authority to operate this equipment if an unauthorized change
or modification is made.
Important Copyright Information
Unauthorized recording or use of broadcast television pro-
gramming, video tape, film or other copyrighted material may
violate applicable copyright laws. We assume no responsibility
for the unauthorized duplication, use, or other acts which
infringe upon the rights of copyright owners.
A Note about Recycling
This product's packaging materials are recyclable and can be
reused. Please dispose of any materials in accordance with
your local recycling regulations. Batteries should never be
thrown away or incinerated but disposed of in accordance with
your local regulations concerning chemical wastes.
Install two AA batteries
(supplied) matching the
polarity indicated on the bot-
tom of the remote control.
1. Cassette Compartment
2. F.FWD button
3. PLAY button
4. REW button
5. STOP/EJECT button
6. REC/OTR button
7. MENU button
18. Indicator
19. Remote Sensor
10. CHANNEL buttons
11. POWER button
12. AUDIO Input jack
13. VIDEO Input jack
()
14. POWER indicator
15. TAPE IN indicator
16. VCR indicator
17. REC indicator
18. TIMER indicator
19. CLOCK indicator
To insert the batteries
PRECAUTIONS
DESCRIPTION OF CONTROLS
Front Panel
VIDEO OUT Jack
Connect a video cable going to
the video in jack of a camcorder,
another VCR, a TV, or an audio-
visual system (laser disc player,
video disc player, etc.) here.
AUDIO OUT Jacks
Connect the audio cables going
to the audio in jacks of a cam-
corder, another VCR, a stereo
amplifier, or an audio system
here.
VIDEO IN Jack
Connect a video cable coming
from the video out jack of a cam-
corder, another VCR, or an
audio-visual source (laser disc
player, video disc player, etc.)
here.
AUDIO IN Jacks
Connect the audio cables com-
ing from the audio out jacks of a
camcorder, another VCR, or an
audio source here.

–3 –EN
1Disconnect the AC power cord of the TV from the AC
outlet.
2Disconnect the antenna or cable from the TV.
3Connect the antenna or cable to the ANT. IN jack of
the VCR.
4Connect the VCR to the TV using the RF cable.
5Plug the AC power cords of the VCR and TV into the
AC outlets.
ANT
IN
OUT
[VHF/UHF
combination antenna] [Back of the VCR]
IN OUT
[Cable box or satellite box]
OR
[Indoor antenna] [Back of the
UHF/VHF combination TV]
UHF/VHF
RF cable
(supplied)
From Cable or
Satellite Company
OR
If your TV does not have A/V terminals:
Press [PLAY] on the VCR for 3 seconds during playback.The RF
output channel will change to CH4 from CH3.
When you want to return to CH3 for RF output channel, press
[PLAY] on the VCR for 3 seconds during playback again. (Default
setting :CH3)
•
There is case that the RF output channel does not change by situation
(For example, when you adjust tracking using [CHANNEL ].
In this case, stop the playback, and start the playback again.
After that, press [PLAY] on the VCR for 3 seconds.
•If there is a power failure or the VCR is unplugged for more than
30 seconds, the RF output channel setting will return to CH3.
()
You can automatically program the tuner to scan only the chan-
nels you receive in your area.
•Channel memory programming is NOT needed when you con-
nect the VCR to a cable box or satellite box as in "Connect VCR
to TV Connection". In this case, select the VCR and TV to chan-
nel 3 or 4 the same channel as the RF output channel of the
VCR. Then, the channel you want to record or view may be
selected at the cable box or satellite box.
•Follow the steps below once. Repeat it only if there is a power
failure or if the VCR is unplugged for more than 30 seconds. (In
these cases, the programmed channels are erased.)
•You must follow the steps below before attempting to play or
record a video tape. If you want to play or record a video tape
BEFORE programming the tuner, you can cancel it by pressing
[C.RESET/EXIT].
1You need to connect the antenna or cable to the VCR
first. Then, connect the VCR power plug into a stan-
dard AC outlet.
2Turn on the TV and set the TV to channel 3. If channel 3
is already occupied for broadcasting, change the RF output
to CH 4, and change the TV channel to CH4.
(See “RF Output Channel”on page 3 for the detail.)
3Turn on the VCR by pressing [POWER]. When the
POWER is on, both the POWER and VCR/TV indicator on
the VCR will be on.
4Select the On Screen Language
("ENGLISH" , "FRANCAIS" or
"ESPAÑOL") by pressing [PLAY] or
[STOP]. Then, press [F.FWD].
5Begin channel preset by pressing [F.FWD] once. The
tuner scans and memorizes all active
channels in your area.
•The VCR distinguishes between standard
TV channels and cable channels.
6After scanning, the tuner stops on the lowest memo-
rized channel. The TV screen returns to TV mode.
•If "AUTO SET UP" appears on the TV screen again, check
the cable connections. Press [F.FWD] once again and the
VCR will begin preset again.
Using Optional AUDIO/ VIDEO Output Jacks
With this connection, you can get better pictures and sounds
when playing back a tape if your TV has A/V Input jacks. Please
refer to your TV’s owner’s manual.
Using AUDIO/VIDEO Input Jacks
You can use the A/V input jacks on the front or the back of
the VCR.
•To use the input jacks on the back of the VCR, select "L1"
position by pressing [0], [0], [1] on the remote control or
[CHANNEL ].
•
To use the input jacks on the front of the VCR, select "L2" position by
pressing [0], [0], [2] on the remote control or [CHANNEL ].
•“L1”or “L2”is found before the lowest memorized channel.
(Example: CH2)
()
()
[TV A/V]
IN
AUDIO
LR
VIDEO
VIDEO
OUT IN
AUDIO
[Playing VCR]
Audio/Video cables
(not supplied)
VCR to TV Connection
RF Output Channel
VCR to AV TV connection using AUDIO/VIDEO Cables
SETUP
Automatic Channel Set Up
PREPARATION FOR USE
You can select the desired channel by using [CHANNEL ]
or directly pressing [Number] on the remote control.
Note for using the Number buttons:
•When selecting cable channels which are higher than 99,
enter channel numbers as a three-digit number.(For example:
117, press 1,1,7)
•You must precede single-digit channel numbers with a zero
(For example: 02, 03, 04 and so on).
1Press [MENU] until the main menu appears.
2Select "CHANNEL SET UP" by pressing [PLAY] or
[STOP]. Then, press [F.FWD].
3Select "TV" or "CATV" by pressing [PLAY] or [STOP].
Then, press [F.FWD] to start scanning (you may have to
press it more than once). After scanning, the tuner stops
on the lowest memorized channel.
To Preset the Channel Again
()
To Select a Desired Channel
ENGLISH
LANGUAGE SELECT
FRANCAIS
AUTO SET UP
CH 01
•If you use the VCR in an area with a voltage 110V-127V, insert
the power plug through the plug adapter provided.

This feature allows you to play a tape over and over.
1Select main menu by pressing [MENU].
2Select "AUTO REPEAT" by pressing [PLAY] or [STOP].
3Begin auto repeat playback by pressing [F.FWD] so that
[ON] appears next to "AUTO REPEAT".
•If the on-screen menu still remains, press [C.RESET/EXIT]
to exit the menu.
•To cancel the Auto repeat mode, press [F.FWD] at step [3]
so that [OFF] appears next to "AUTO REPEAT".
–4 –EN
1Select main menu by pressing [MENU].(If the clock is not
set, the CLOCK SET menu appears first. In this case, fol-
low step [3].)
2Select "CLOCK SET" by pressing [PLAY] or [STOP].
Then, press [F.FWD].
3Set the clock.
•To go back one step, press [REW].
4Start the clock by pressing [C.RESET/EXIT] or [F.FWD].
1Press [MENU] until the main menu appears.
2Select "LANGUAGE SELECT" by pressing [PLAY] or
[STOP]. Then, press [F.FWD].
3Select "ENGLISH" , "FRANCAIS" or "ESPAÑOL" by
pressing [PLAY] or [STOP]. Then, press
[C.RESET/EXIT].
•If you accidentally select Spanish or French and need
English: Press [MENU] and choose SELEC. IDIOMA, or
SELECTION LANGUE. Press [F.FWD], and select ENG-
LISH. Finally, press [C.RESET/EXIT].
To Change the On-Screen Language
Clock Set Up
Auto Repeat Playback
Search Functions
PLAYBACK FUNCTION
Normal Playback
When the VCR automatically program the tuner to scan only the
channels you receive in your area, some channels may be
skipped due to weak signal. You can manually add the channel
in the VCR memory.
1Press [MENU] until the main menu
appears.
2Select "CHANNEL SET UP" by
pressing [PLAY] or [STOP]. Then,
press [F.FWD].
3Select "MANUAL SET UP" by pressing [PLAY] or
[STOP]. Then, press [F.FWD].
4Enter the desired channel number by pressing [PLAY]
or [STOP].
5Add or Delete it from memory by pressing [F.FWD] or
[REW] so that "ADD" or "DELETE" flashes on the TV
screen accordingly.
6Exit the Preset mode by pressing [C.RESET/EXIT].
To Add/Delete Channels
1Insert the prerecorded tape. The VCR will
turn on. If the safety tab has been removed,
the VCR will start playback automatically.
2Turn on the TV and set the TV to channel 3. If channel
3 is already occupied for broadcasting, change the RF out-
put to CH 4, and change the TV channel to CH4.
(See “RF Output Channel”on page 3 for the detail.)
3Begin playback by pressing [PLAY].
•Tracking adjustment will be set automatically (Digital
Tracking function) when you start playback. To adjust the
tracking manually, press [CHANNEL ] on the VCR.
•You cannot manually adjust the tracking of a Still picture.
However, you may press [CHANNEL ] on the VCR to
remove vertical jitter in a Still picture.
•When a tape has reached the end, the VCR will rewind the
tape to the beginning, eject the tape, and turn off the VCR
automatically.
4To stop playback, press [STOP].
•You can reset the counter by pressing [C.RESET/EXIT] on the
remote control
You can freeze the picture on TV screen by pressing
[PAUSE/STILL] during playback.
•You can advance the picture by one frame at a time by press-
ing [PAUSE/STILL] during the still mode.
•If the picture begins to vibrate vertically during the still mode,
stabilize the picture by pressing [CHANNEL ].
•If the picture is distorted or rolling vertically, adjust the vertical
hold control on your TV, if equipped.
You can see the slow motion by pressing [SLOW] during play-
back or the still mode.
•If the noise bar appears on the TV screen, you can reduce it
by pressing [CHANNEL ].
•After the VCR has been in Still/Slow mode for 5 minutes, it will
stop automatically to protect the tape and the video head from
damage.
•To return playback, press [PLAY].
()
()
Still / Slow
Counter Reset
(
)
(
)
If you want to skip or repeat a scene during playback, press
[F.FWD] or [REW].
•Press it again and the VCR will now search in super high
speed. (in the LP/SLP modes only)
Picture Search
CLOCK SET
MONTH DAY YEAR
03 / 17 MON 2003
HOUR MINUTE AM/PM
05 : 40 PM AM
PM
Press [PLAY] or [STOP]repeatedly.
Then, press [F.FWD].
Press [PLAY] or [STOP] repeatedly.
Then, press [F.FWD].
The day of the week will appear automatically.
Press [PLAY] or [STOP] repeatedly.
Then, press [F.FWD].
Press [PLAY] or [STOP] repeatedly.
Then, press [F.FWD].
Press [PLAY] or [STOP]
repeatedly.
Press [PLAY] or [STOP] repeatedly.
Then, press [F.FWD].
Set the month
Set the day
Set the year
Set the hour
Set the minute
Set the AM
or PM
- MENU -
TIMER PROGRAMMING
AUTO REPEAT
CHANNEL SET UP
CLOCK SET
LANGUAGE SELECT
[OFF]

–5 –EN
You may set the VCR to start recording while you are away. You
can set eight programs to record on specific days, daily or week-
ly within a 1 year period.
1Insert a tape with its safety tab into the VCR.
2Select main menu by pressing [MENU].
3Select "TIMER PROGRAMMING" by pressing [PLAY] or
[STOP]. Then, press [F.FWD].
•If you have not yet set the clock, "CLOCK SET" appears. If
so, continue with the step [3] in "CLOCK SET UP" section.
Then, set the timer recording.
4Set the timer.
It may be unlawful to record play back copyrighted material with-
out the consent of the copyright owner.
Accidental erasure prevention
To prevent accidental recording on a recorded
cassette, remove its record safety tab. To
record on it later, cover the hole with cello-
phane tape.
Before recording, make sure:
•
The desired channel is selected by pressing [Number] on
the remote control or the [CHANNEL ]. (If you con-
nected the VCR to a cable box or satellite box as in "VCR
to TV Connection" on page 3, select the VCR to channel
3 or 4 the same channel as the RF output channel of the
VCR. Then, select the channel you want to record at the
cable box or satellite box. In this case, you can ONL
Y
record and view the SAME channel. )
•There is a tape with its safety tab into the VCR.
•The desired recording speed is selected in SP(standard play) or
SLP(super long play) mode by pressing [SPEED] on the remote
control.
()
Record safety tab
Type of tape T60 T120 T160
SP mode 1hour 2hours 2-2/3hours
SLP mode 3hour 6hour 8hour
Tape Speed Recording/Playback Time
1Begin the recording by pressing [RECORD].
•To temporarily stop recording or resume it, press
[PAUSE/STILL]. After the VCR has been in Pause mode for
5 minutes, it will stop automatically to protect the tape and
the video head from damage.
2Press [STOP] when recording is completed.
This feature allows you to set the recording length simply by
pressing [REC/OTR] on the VCR.
1Begin OTR by pressing [REC/OTR] on the VCR repeat-
edly until the desired recording length appears.
RECORDING FUNCTION
Viewing and Recording the Same Program
OTR (One Touch Recording)
TIMER RECORDING
Select once, daily or weekly recording
Set the tape speed
Set the channel number
Set the end time
Set the start time
Set the date
Set the program number (1~8)
Press [PLAY] or [STOP] repeatedly for the desired channel number.
Then, press [F.FWD].
If you connected the VCR to a cable box or satellite box as in "Connect
VCR to TV" on page 3, select the VCR to channel 3 or 4 the same channel
as RF output channel of the VCR.
Then, select the channel you want to record at the cable box or satellite box.
Leave the cable box or satellite box on for timer recording.
Press [PLAY] or [STOP] repeatedly for the
desired
tape speed.
Then, press [F.FWD].
Program number which is not set up flashes.
Press [PLAY] or [STOP] repeatedly for the
desired program number.Then, press [F.FWD].
First, press [PLAY] or [STOP] for the month. Then, press [F.FWD].
Next, press [PLAY] or [STOP] for the day. Then, press [F.FWD].
First, press [PLAY] or [STOP] for the hour. Then, press [F.FWD].
Next, press [PLAY] or [STOP] for the minute. Then, press [F.FWD]
.
And then, press [PLAY] or [STOP] for AM or PM. Then, press [F.FWD]
.
Follow the instructions of "Set the start time" to set the end time.
For weekly:
Press [PLAY] or [STOP] to point to
"WEEKLY".
Then, press [F.FWD]
.
For daily (Monday~Friday):
Press [PLAY] or
[STOP] to point to "DAILY".
PROGRAM NUMBER 4
ONCE
DAILY
WEEKLY
ONE TIME PROGRAM
PROGRAM NUMBER 4
DATE 05/12 MON
START TIME 07:30 PM
END TIME 08:30 PM
CHANNEL 16
REC SPEED SP
SP
SLP
PROGRAM NUMBER 4
DATE - - / - -
START TIME - - : - - - -
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -
For once:
Press [PLAY] or [STOP] to point to "ONCE".
• To go back one step, press [REW].
5To set another program, repeat step [4]. To exit, press
[C.RESET/EXIT].
6Press [POWER] to set the timer. The TIMER indicator on
the VCR comes on. TIMER RECORDING WILL NOT BE
ACTIVATED UNLESS YOU TURN THE VCR OFF.
An index mark will be assigned at the beginning of each record-
ings you make. You may skip to a specific marked point by fol-
lowing the steps below.
1P
ress [SEARCH-MODE] so that the Index Search menu
appears.
2Enter the number of recordings you
wish to skip by pressing [PLAY] or
[STOP] within 30 seconds.
3Press [F.FWD] or [REW] to start index search. If you
want to go in the forward direction, press [F.FWD]. If you
want to go in the reverse direction, press [REW].
•
After index search, the VCR will play the tape automati-
cally.
This feature allows you to go to a specific point on a tape by
entering the exact amount of time you wish to skip in order to
reach the point.
1
Press [SEARCH-MODE] so that the Time Search menu
appears.
2Enter your desired time to skip by
pressing [PLAY] or [STOP] within 30 seconds.
3Press [F.FWD] or [REW] to start time search. If you want
to go in the forward direction, press [F.FWD]. If you want
to go in the reverse direction, press [REW].
•
After time search, the VCR will play the tape automati-
cally.
Time Search
TIME SEARCH
2 : 50
INDEX SEARCH
03
Index Search
REC OTR(0:30) OTR(1:00).....
(Normal recording)
OTR(8:00) OTR(7:30)

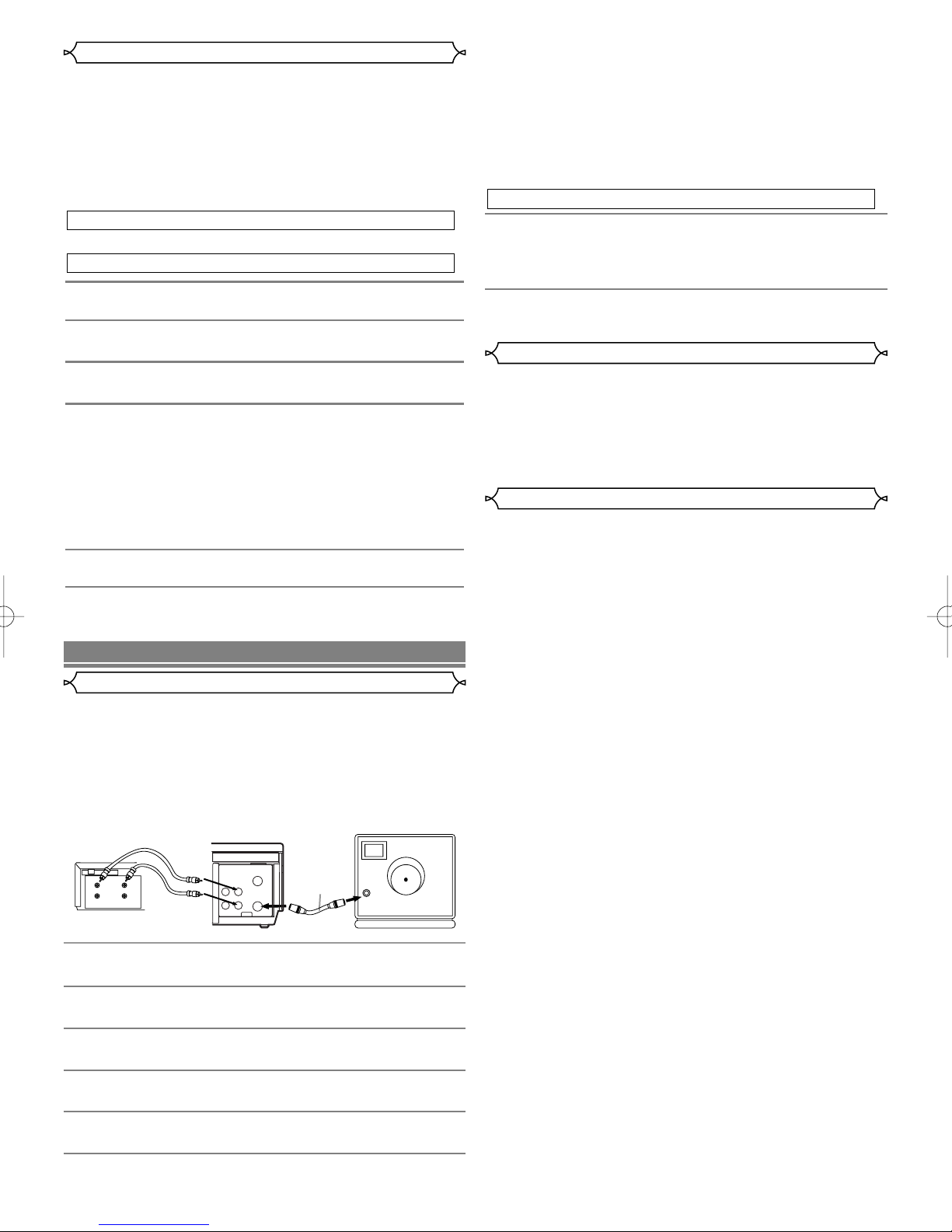

–6 –EN
You can make copies of video tapes made by friends or relatives
for your enjoyment.
Warning: Unauthorized recordings of copyrighted video tapes
may be an infringement of copyright laws.
Connect the recording VCR(this unit), the playing VCR (another
source) and your TV using the following diagram.
1Insert a pre-recorded tape into the playing VCR.
2Insert a tape with its safety tab into the recording
VCR.
3Press [SPEED] on the remote control of the recording
VCR to select the desired recording speed (SP/SLP).
4Select the “L1”or “L2”position on the recording VCR.
See page 3, under “Using AUDIO/VIDEO Input Jacks”.
5Press [REC/OTR] on the recording VCR.
6Begin playback of the tape in the playing VCR.
•For best results during dubbing, use the VCR’s front panel
controls whenever possible. The remote control might affect
the playing VCR’s operation.
•Always use video-quality shielded cables with RCA-type con-
nectors. Standard audio cables are not recommended.
•You can use a video disc player, satellite receiver, or other
audio/video component with A/V outputs in place of the play-
ing VCR.
ANT in
[TV set]
(Use for monitoring)
RF cable
(supplied)
VIDEO
AUDIO
IN
OUT OUT
IN
ANT
[Playing VCR]
(another source)
Audio/Video cables
(not supplied)
IN
OUT
AUDIO VIDEO
[Recording VCR]
(this unit)
IN
OUT
When a tape has reached the end during recording, playback, or
fast-forward, the tape will automatically rewind to the beginning.
After rewinding finishes, the VCR will eject the tape and turn
itself to off.
•The VCR will not rewind the tape automatically during timer
recording or One Touch Recording.
•This shows the elapsed recording or playback time in hours,
minutes, and seconds. (The displayed time will not change dur-
ing blank portions on the tape.)
•The indication will appear when the tape is rewound further
than “0:00:00”on the tape counter.
SPECIAL FEATURES
Auto Rewind
Copying a Video Tape
Real Time Tape Counter
1Turn on the TV and set the TV to channel 3. If channel 3
is already occupied for broadcasting, change the RF output
to CH 4, and change the TV channel to CH4.
(See “RF Output Channel”on page 3 for the detail.)
2Press [VCR/TV] on the remote control of the recording
VCR so that the VCR/TV indicator comes on.
To Monitor the Recording
•If there is a power failure or the VCR is unplugged for more
than 30 seconds, the clock setting and all timer settings will be
lost.
•If the tape runs out before the end time, the VCR will switch to
the Stop mode immediately, eject the tape and the VCR power
will be turned off. The TIMER indicator will flash.
•If a tape is not in the VCR or does not have the safety tab, the
TIMER indicator flashes and timer recording cannot be per-
formed. Please insert a recordable tape.
Press [STOP/EJECT] on the VCR.
1Turn the power on by pressing [POWER].
2Select main menu by pressing [MENU].
3Select "TIMER PROGRAMMING" by pressing [PLAY] or
[STOP]. Then, press [F.FWD].
4Select the program number which you want to check
by pressing [PLAY] or [STOP]. The details of the selected
program appears on the TV screen.
•Go to the digit you want to change by pressing [F.FWD] or
[REW]. Then, enter correct numbers by pressing [PLAY] or
[STOP].
•You may cancel the entire program by pressing [REW] dur-
ing the program number flashes.
5Press [C.RESET/EXIT] to exit.
6Press [POWER] to return to timer stand-by mode.
To Check, Correct, or Cancel an Automatic Timer Program
To Stop an Automatic Timer Program already started
Hints for Timer Recording

–7 –EN
If you have followed the instructions contained in this manual and have difficulty in operating your VCR, locate the PROBLEM in the
left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem.
PROBLEM CORRECTIVE ACTION
No power. •Make sure the power plug is connected to an AC outlet.
•Make sure the power is turned on.
Timer recording is impossible. •Make sure the timer recording is set correctly.
•Make sure the power is off.
•Make sure the VCR clock is set correctly.
Cannot go into Record mode. •Make sure the tape has a safety tab. If needed, cover the hole with cellophane tape.
Playback picture is partially noisy
.•Adjust tracking control for a better picture by pressing [CHANNEL ] on the VCR.
Cannot view a tape but the •Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING”.
audio is OK.•Make sure the VCR is not in the Menu mode.
No or poor playback picture. •Turn on the TV and set the TV to channel 3. If channel 3 is already occupied for broad-
casting, change the RF output to CH 4, and change the TV channel to CH4.
(See “RF Output Channel”on page 3 for the detail.)
•Fine tune your TV.
TV programs cannot be seen •Re-check the ANT. IN and ANT. OUT connections. See page 3.
normally. •Press [VCR/TV] on the remote control so that the VCR/TV indicator on the VCR disap-
pears.
No VCR operation from the •Make sure the power plug is connected to an AC outlet.
infrared Remote Control. •Check batteries in remote control.
Video or color fades in and out •You cannot copy a copyrighted video tape. You are experiencing copy guard protection.
when making a copy of a video tape.
()
Operating temperature : 41°F~104°F (5°C~40°C)
Converter output : VHF Channel 3 or 4.
Power requirement : 110–220V, 50/60Hz
Power consumption : 14 Watts
Dimensions : W 14-1/4”(360mm)
H 3-5/8”(92mm)
D 8-1/2”(216mm)
Weight : 4.0 lbs. (1.8 Kg.) (approx.)
Should your VCR become inoperative, do not try to correct
the problem by yourself. There are no user-serviceable parts
inside. Turn off, unplug the power plug, and take the unit to
our Authorized Service Center.
•Wipe the front panel and other exterior surfaces of the VCR
with a soft cloth immersed in lukewarm water and wrung dry.
•Never use a solvent or alcohol. Do not spray insecticide liq-
uid near the VCR. Such chemicals may cause damage and
discoloration to the exposed surfaces.
•Automatically cleans video heads as you insert or remove a
cassette, so you can see a clear picture.
•Playback picture may become blurred or interrupted while
the TV program reception is clear. Dirt accumulated on the
video heads after long periods of use, or the usage of rental
or worn tapes can cause this problem. If a streaky or snowy
picture appears during playback, the video heads in your
VCR may need to be cleaned.
1. Please visit your local Audio/Video store and purchase a
good quality VHS Video Head Cleaner.
2. If a Video Head Cleaner does not solve the problem, con-
sult our nearest Authorized Service Center.
NOTES:
•Remember to read the instructions included with the video
head cleaner before use.
•Clean video heads only when problems occur.
Auto Head Cleaning
Cabinet Cleaning
Servicing
•Designs and specifications are subject to change without notice and legal obligation.
•If there is a discrepancy between languages, the default language will be English.
TROUBLESHOOTING GUIDE
SPECIFICATIONS
MAINTENANCE
Remote control
(NA311UD/NA361UD)
Two AA batteries
(WPZ0901TM002)
RF Cable
Supplied Accessories
(JTDE0Z0JD002)
Plug Adaptor

–8 –EN
Printed in China 0VMN03486 / HD353ZD ★★★★★
Table of contents
Other 1RT VCR System manuals
