1st Call Lockouts TouchClone version 1.5 User manual

Welcome to Touchclone™ the latest in automotive technology. Touchclone™ is the first all in one
cloner of car keys with the extra function to create programmed transponders via communication
with a cars immobiliser.
Touchclone™
... keys cloned at a touch

2
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Table of Contents
Getting Started ........................................................................................................................................ 3
Touchclone™ Product Specification ........................................................................................................ 4
Touchclone™ Pairing ............................................................................................................................... 6
Touchclone™ Identification of Transponders ......................................................................................... 7
Touchclone™ Cloning .............................................................................................................................. 8
Touchclone™ Transponder Production ................................................................................................... 9
Touchclone™ Transponder Production (Continued)... ......................................................................... 10
Touchclone™ Immobiliser Transponder Production Modules ............................................................. 11
Touchclone™ Feature Lookup ............................................................................................................... 13
Touchclone™ Database Lookup ............................................................................................................ 14
Touchclone™ ID46 Diagnostics ............................................................................................................. 15
Touchclone™ ID48 Unlock .................................................................................................................... 16
Touchclone™ Mercedes Master Key ..................................................................................................... 16
Touchclone™ Settings ........................................................................................................................... 17
Touchclone™ Website ........................................................................................................................... 19
Touchclone™ VAG Group ID48 Pre-Coding ........................................................................................... 20
Touchclone™ EEPROM Reader ............................................................................................................. 23
Touchclone™ Deactivation .................................................................................................................... 31
Touchclone™ Manual Activation .......................................................................................................... 33
Touchclone™ How to Apply TouchClone Manual Updates .................................................................. 35

Getting Started 3
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Getting Started
In The Box
TouchClone
USB Drive (Installer and Digital information)
Box of clip-on probes (box of 0)
2x D-Sub 9 way looms
2v Power adapter
High-speed USB cable
Installation and activation card

Touchclone™ Product Specification 4
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Product Specification
Touchclone™ Identification of Transponders
•ID 11,12,13,14,33,4C
•ID a large range of the ID46 transponder family which includes:- pcf7936, 7941, 7943, 7946, 7952,
7947.
•Blank 7935
•Blank T5
•Blank 7936
•Blank 7946
•ID 40,41,42,44,45,46,48,48Canbus plus variants (e.g. Skoda, VW etc)
•ID 4D60,61,62,63,64, 65, 66, 67, 68, 69, 70
•ID 4D Toyota Master/Slave
•ID TPX1 and TPX2
•ID Z4C
Touchclone™ Cloning
•Clone fixed code transponders 11, 12, 13, 14, 33, T5
•Clone fixed code 4C to EH2, TPX1 or Z4C
•Clone non Crypto ID 40
Touchclone™ Advanced Cloning
•Clone Crypto ID 40 (unlocked), 41, 42, 44 (unlocked), 45 no expensive precoded transponders
required).
•Clone Crypto ID 4D to TPX2 (No external hardware required, or internet connectivity).
•Clone Crypto ID 46 or TPX4 (release version November 2012).
Touchclone™ Lock Status display
•ID 46
•ID 48
•4D
•TPX2
Touchclone™ Special Features
•Hitag 2 remote diagnosis test button, battery and LED test.
•Create Zedbull and AD900 precoded transponders.
•Unlocking ID48 transponders (using factory pin configuration).
•Produce Mercedes transponders for C class, E class and G class up to 2002.
•Eeprom Reader
•VAG pre-coding
Touchclone™ Transponder Production
•Convenient transponder holder.
•Create the following Ids from a blank PCF7935:- ID 40, 41, 42, 44, 45.
•Create the following Ids onto a TPX2/EH2 :- 61, 62, 63, 64 65, 67, 68.
•Create remote functionality onto Hitag2 ID46 virgin remotes.
•Create immobiliser functionality onto PCF7936 ID46 transponders.
•Create fixed code transponders for a range of car manufacturers.
Touchclone™ Immobiliser Transponder Production Modules
•Over 50 immobiliser modules readable inline
•100 immobiliser modules to read EEPROM/MCU bin files

Touchclone™ Product Specification 5
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Reference Libraries
•OBD socket locator (coming soon)
•Immobiliser and ECU box locator
•Immobliser and ECU high res identification pictures
•Key blank reference/per vehicle
•Eeprom and/or mcu identification
•Wiring diagrams for EEPROM and MCU inline reading
•Motorola mask look up
•Customer information database
Touchclone™ Interface Functions
•Intuitive Application Software.
•Touch screen for standard functionality.
•USB connectivity with serial connection for immobiliser probe connectivity.

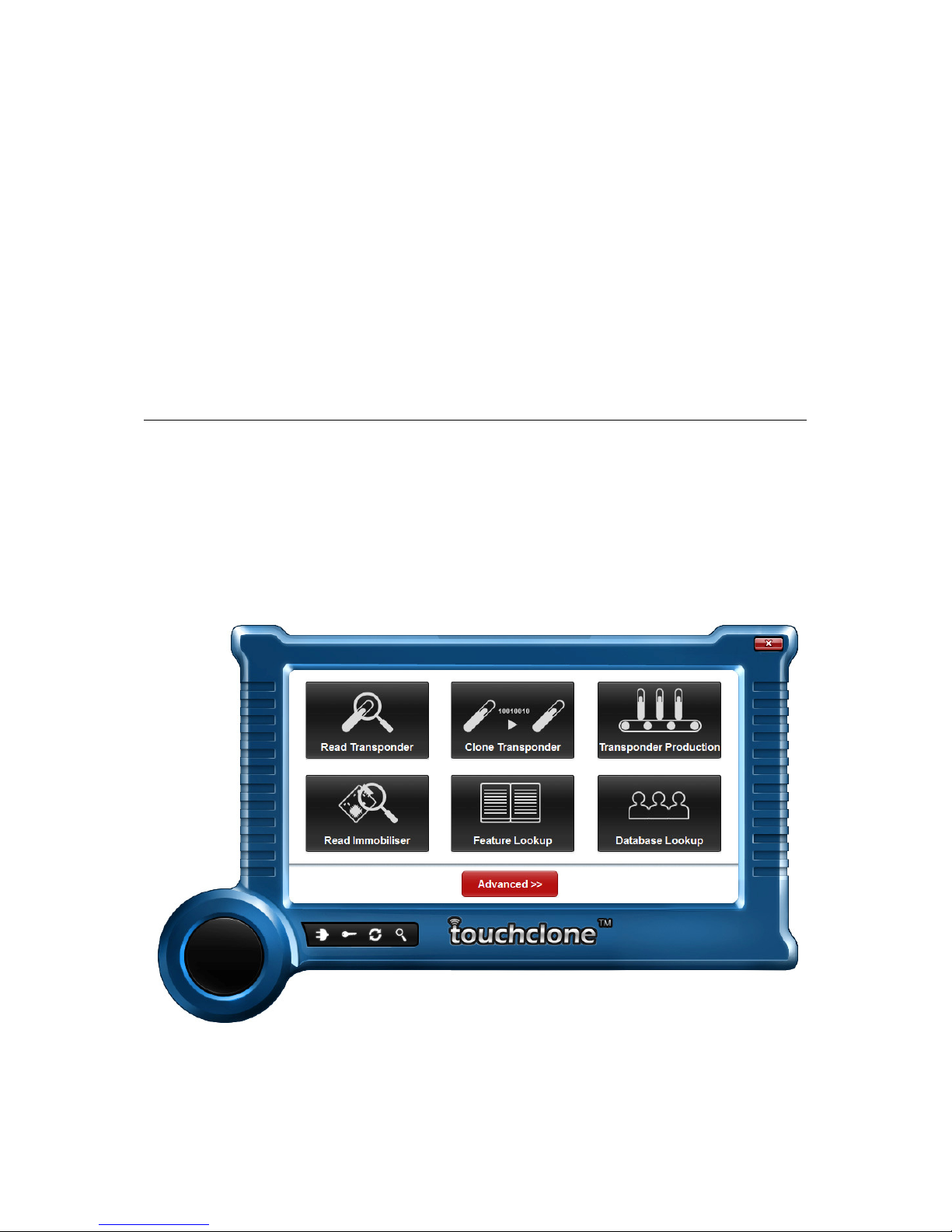

PREVIEW - A quick look at the software interface
Touchclone™ has an extremely intuitive interface which allows the user to read, clone and program keys
quickly and easily. TouchClone has taken any guess work out of the equation and instead replaced it with an
easy to follow step-by-step process for each function embedded in the software

Touchclone™ Pairing 6
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Pairing
Touchclone uses sophisticated encryption pairing to ensure that only activated computers can get
full access to all the functions within the TouchClone software. The activation process occurs during
the installation of the software.
Note: TouchClone can be activated on two PCs at any one time.
Each time TouchClone is connected to a PC and the software is running the pairing will occur. Users
can determine if TouchClone is paired by checking if the connected symbol is illuminated in the
TouchClone software as shown below.
For information on how to deactivate TouchClone, refer to the deactivation section of this guide.
The device pairing system is put in place as a security feature so no unauthorised PC will be able to use the
TouchClone device.
The green symbol above shows TouchClone has been recognised as connected via USB cable to PC but device
pairing has not been completed yet.

Touchclone™ Identification of Transponders 7
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.

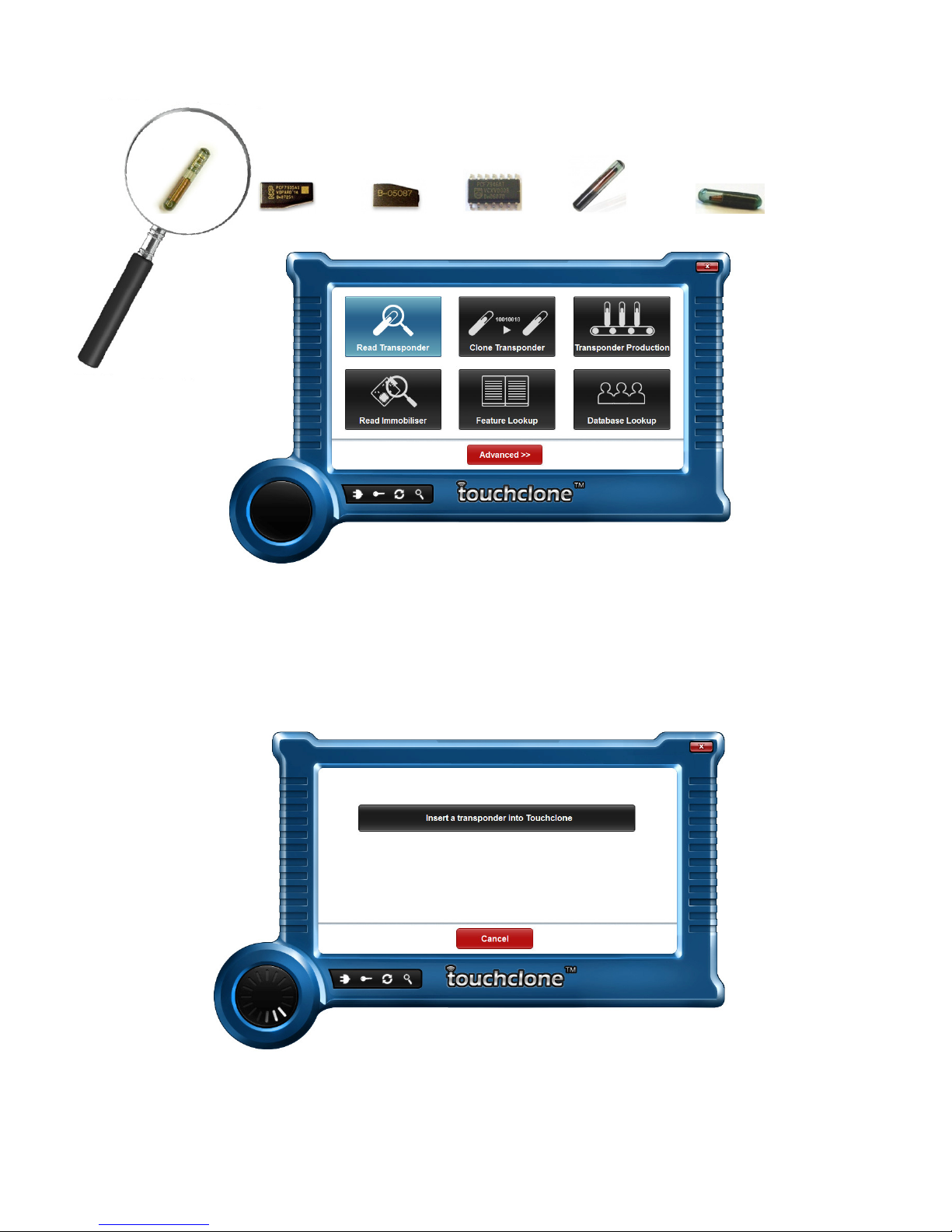

Touchclone™ Identification of Transponders
Read Transponder: Touchclone has been designed to read a vast range of RFID transponders on the market
place today, from the first fixed code transponder (T5), through to the latest Hitag and 4D 80 bit transponders.
To read and ID the transponder simply place it into the Touchclone holder (next to the key holder) and then
‘click’ the read icon with your mouse. The Touchclone software wizard will do the rest for you.

Touchclone™ Cloning 8
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.

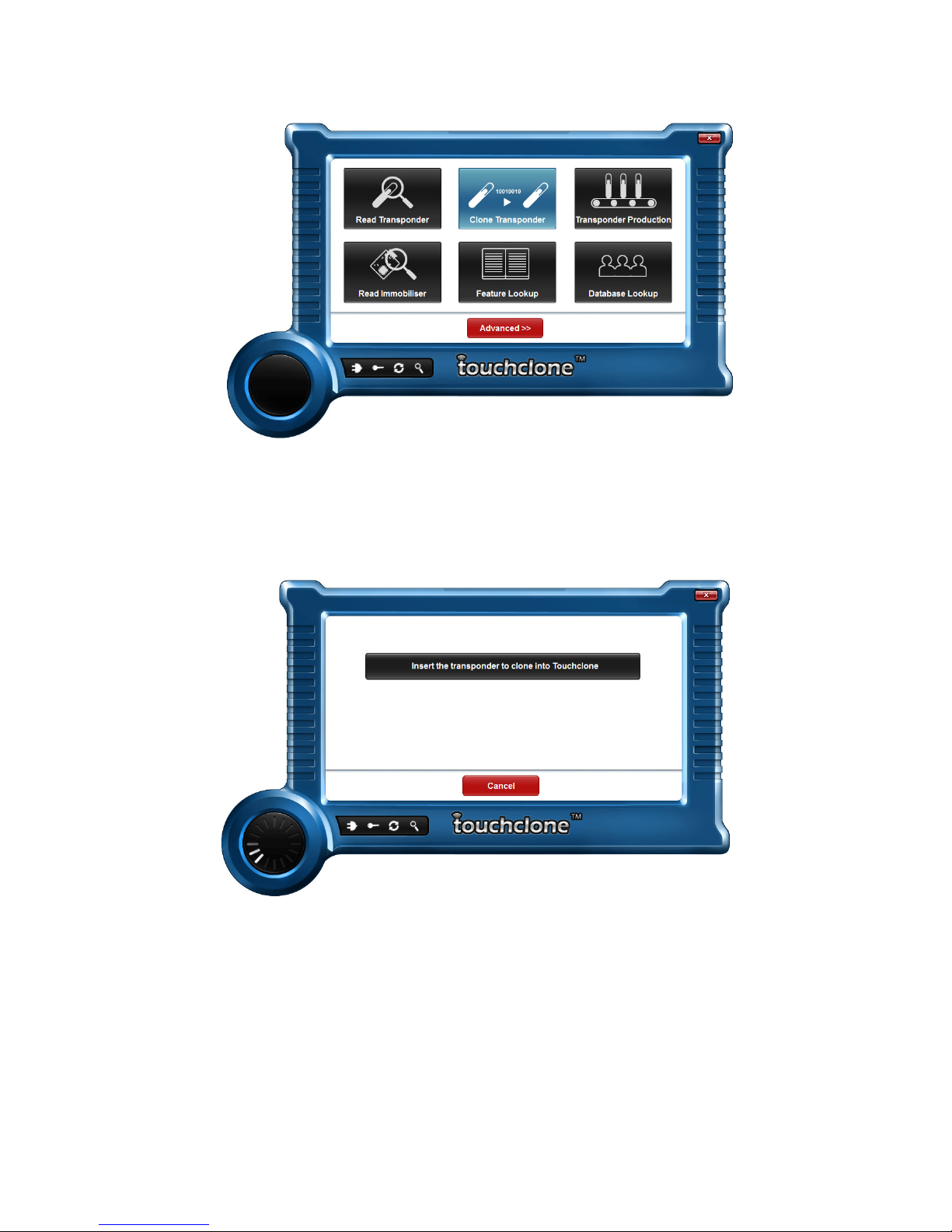

Touchclone™ Cloning
Clone Transponder: Touchclone can clone the following fixed code transponders:-
•ID 11,12,13,14,33
•Texas 4C
•ID40 (non crypto), 41, 42, some 44, and 45
•Touchclone also clones all the 4D prefixed transponders onto a TPX2.
Step :
Preparation: Ensure you have the correct transponder ready to clone to before you start the procedure.
Step 2:
INSERT key/transponder: Touchclone will automatically read the transponder following a mouse click of the
‘clone transponder’ icon, follow the on screen prompts to then put the clone transponder in after the original
has been read (clone data onto the following range of transponders:- T5, Z4C, PCF7935, TPX2, EH2).

Touchclone™ Transponder Production 9
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Transponder Production
Transponder production is a function of Touchclone which enables you to produce a variety of transponder Ids
from stocking only a small range of low cost blank transponders. This benefits the auto locksmith or heel bar as
their stock holding of transponders can be greatly minimised
Why? Transponders can be made to suit each vehicle you are working on without having any “dead” stock.
Step :
Transponder Production: Click the ‘transponder production’ icon. This will take you through to a list of
transponder Ids which can be produced using this function.
Step 2:
Verify ID: From the list ensure the transponder ID you wish to produce is supported.

Touchclone™ Transponder Production (Continued)...
10
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Transponder Production (Continued)...
Step 3:
Select: From the list select the ID you wish to produce. The transponder in the ‘brackets’ denotes the blank
transponder that will be used in the ID production.
Step 4:
Insert blank transponder: Touchclone will prompt you once you have made your selection to insert the
correct blank transponder. That ID will then be produced.

Touchclone™ Immobiliser Transponder Production Modules
11
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Immobiliser Transponder Production Modules
Read immobiliser: This advanced function brings up an array of vehicles which Touchclone™ supports by
reading the vehicles immobiliser unit. The immobilisers PCB security device (eeprom or MCU) is read in or out
of circuit.
The first column choice (depicted below) is a list of vehicle manufacturers, which once selected will bring up
the middle column of all the supported models for that manufacturer. Finally once the make and model is
selected the Touchclone™ supported years will then be displayed which must then be selected.

Touchclone™ Feature Lookup 12
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Understanding the on screen information:-
Car Model: This field indicates your selection of make, model and year. This is a summary line of the selected
vehicle you are working on (from the previous screen).
Chip: This is a description of the device you will find on the PCB, its generic name, and the file date size found
on the device.
Module: This is the Touchclone™ reference for that particular module.
Transponder: This is the transponder ID which you will need in order to work successfully with this software
module.
How to read the immobiliser - 4 Simple Steps:-
Step :
Unit ID: Identify the ECU/Immobiliser you have removed from the vehicle matches exactly the UNIT ID for the
Touchclone™ module. If they do NOT match we strongly recommend you do not continue (unless otherwise
advised).
Step 2:
PCB ID: Before working with any device on the board ensure that the PCB components and their layout match
the PCB ID picture exactly. Remember there can be several module options for the same vehicle, so please
check you select the correct module if it is available.
Step 3:
Device Prep: Now you have confirmed this immobiliser is an exact match for this module, you must now follow
the on screen preparations;- These will always indicate which is pin 1, but may also indicate a leg/track/or
component which must be de-soldered.
Step 4:
Instructions: Finally attach the microprobes to the PCB device, following the colour coding diagram and
establishing which is PIN 1 from the pictures supplied.

Touchclone™ Feature Lookup 13
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Feature Loo up
Feature Lookup: This feature allows the user to thoroughly research the vehicle they are working on using a
simple make, model and year selector chart. This culminates into a printable ‘car selector datasheet’ which
contains the following useful fields of information, a first in the automotive industry:-
•Manufacturer, Model and Year summary fields
•Key blank and remote key reference: SILCA, ILCO reference
•Picture/Image: of the key blank
•Transponder Type: ID of the transponder
•Touchclone module number: Module reference
•‘How to ignition or door lock: A first for those who need to strip down an ignition or door lock these
guides show you how (based on Ron Wakleys publication)
•Immobiliser Location: Where you will find the immobiliser box
•ODB Location: Coming soon
•Touchclone Engineers Checklist: A concise checklist all engineers should carry out before attending a
vehicle.
•It Prints Off Once you have researched your vehicle you then have the opportunity to print it off.

Touchclone™ Database Lookup 14
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Database Loo up
Database Lookup: This feature conveniently allows you to store customer data, car information etc which can
be recalled at any time.

Touchclone™ ID46 Diagnostics 15
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ ID46 Diagnostics
ID46 Diagnostics: This function allows any remote with a 46 ID (i.e. pcf7946, pcf7947 etc) to be read &
diagnosed. The full test indicates the state of each button to see if they are functioning correctly, the battery
life, and the LED status. Just a handy time saver when trying to eliminate faults when programming a vehicle.
Type: Once you have put the Hitag remote into the key holder (or rested it across the top if it is a key card).
Touchclone will verify which Philips device is driving the remote and display it e.g. PCF7946.
Battery: Good, OK, Change Soon, Change Now, Critical. These are the flags which will define the state of the
battery life within the remote.
LED: Remotes which have status LEDs will also be tested using this diagnostic function. The LED will be lit
during this test denoting a working LED.
Buttons: While the remote is in the holder each remote button can be pressed by the user which will flag up
on the PC screen verifying correct function. Buttons which are broken will NOT flag up.

Touchclone™ ID48 Unlock 16
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ ID48 Unloc
ID48 Unlock: Megamos ID48 Magic II transponders become locked once they have been programmed into a
vehicle. As they can’t be automatically be reused (unless on the same vehicle), this function will UNLOCK the
transponder. This allows your cost of inventory to be protected. NB This function relies on a default pin code
being used by the Megamos transponder.
Touchclone™ Mercedes Master Key
Mercedes Master Key: Mercedes transponder production for C class, E class and G class up to 2002. This
function produces a coded transponder which will be programmed simply by turning the key into the ignition
of the specified make and model range as stated previously.

Touchclone™ Settings 17
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Settings
TouchClone settings: This option allows access to view the user and TouchClone specific information, from this
option you will see the owner of the TouchClone and their company.
Version allows the user to determine which version of TouchClone they are running, an indication of whether
an update is due.
The information in Device is a specific serial number assigned to that device registered to each user.
License states the expiration of the user paid subscription. An expired license will maintain full functionality
but will not be able to receive any future updates.
Updates: Hit the “check” button to find out if you have the latest software and firmware release, if there are
updates waiting they will automatically be downloaded.

Touchclone™ Website 18
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.

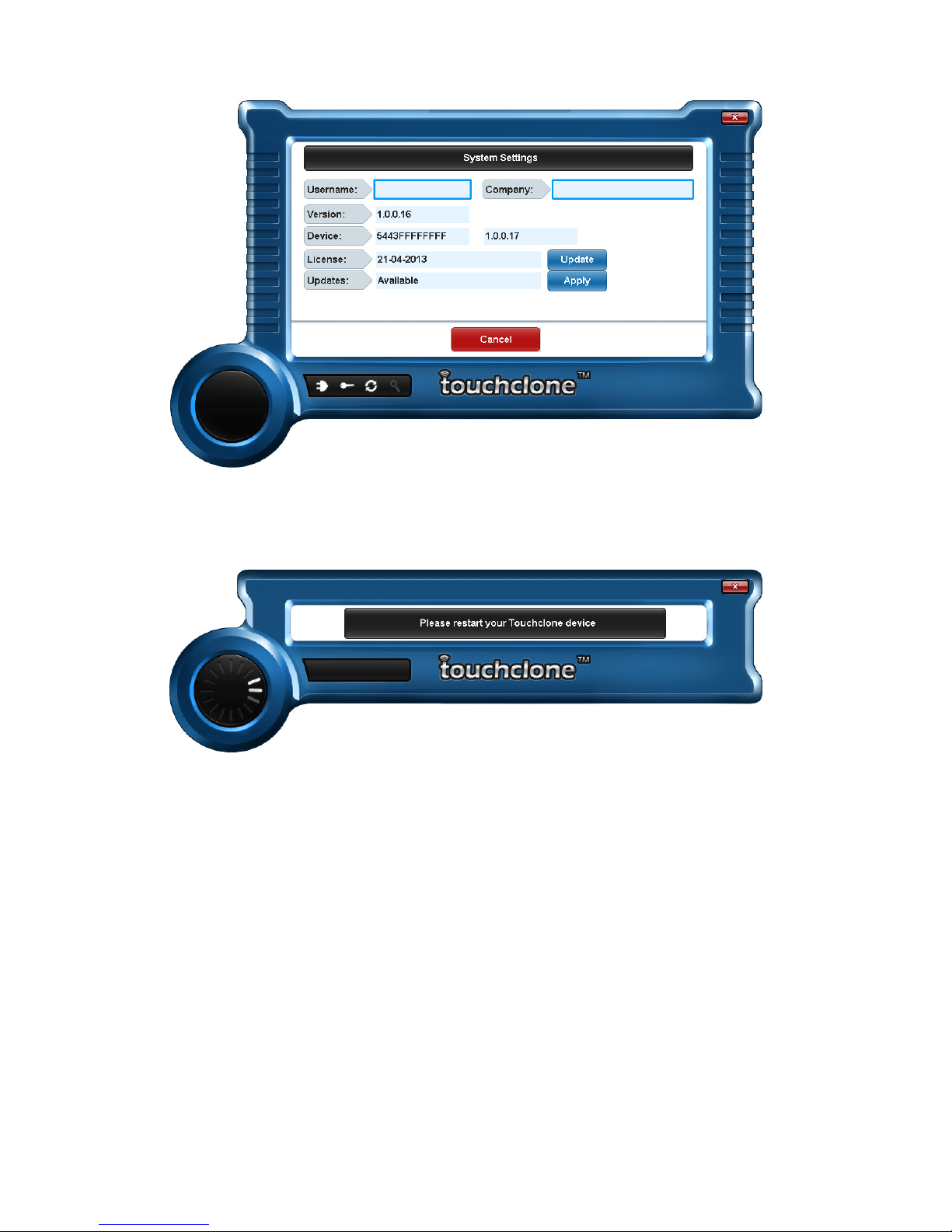

Once the updates have been downloaded the text in the updates field will change to “available” and the
“check” button will change to “apply.” Click “apply” and you will see the following window:
Follow the on screen instruction by powering the TouchClone device off and then back on using the power
switch. All available updates will be applied and once completed your TouchClone device have all the latest
exciting feature releases.

Touchclone™ Website 19
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ Website
Website: This simple function is a shortcut to the Touchclone website, allowing you fast access to the technical
support forum and videos, as well as seeing what new software is contained on the latest updates.

Touchclone™ VAG Group ID48 Pre-Coding 20
Touchclone™ Version 1.5 Manufactured & Developed by 1
st
Call Lockouts Limited. All rights reserved 2012.
Touchclone™ VAG Group ID48 Pre-Coding
There are three types of immobilisers on VAG cars that use three distinct types of ID48 transponders:
1. ID48
2. ID48 CAN (Audi/Seat/Skoda/VW)
3. ID48 CAN (Audi/Seat/Skoda/VW) Precoded
The ID48 precoding section of TouchClone allows you to program the latest type (type 3) to the customer’s
vehicle by writing vehicle specific data to the transponder. This vehicle specific data is known as Component
Security and is designed to prevent the ECU, immobiliser and transponder being switched between vehicles.
In order to get the data to write to the transponder we recommend you use OBD equipment - at present we
support datasets from units manufactured by both Advanced Diagnostics and Abrites. The OBD equipment will
present the component security data you need on screen.
On some of the newest vehicles the OBD equipment can only pull 6 of the 7 bytes needed to write to the key. In
order to get round this you have to manually go through the 56 possibilities.
Once you’ve obtained the 6/7 bytes fill in the details on this screen. You must then insert an ID48 CAN
transponder for the make of vehicle you’re working on. For example, a key for a VW Golf 2011 MUST have an
ID48 VW CAN transponder inserted an ID48 AUDI CAN will not work.
NB. The data obtained from AD equipment is encrypted and you must check the ‘From AD’ box should you
be using data from an AD unit.
