Manual for
4,5 inch Wireless Control LED Cabin Searchlight (12 - 24 VDC)
Model 150S / 151S Series

Manual
page 2 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
Content
1Validity, product images....................................................................................................................................... 3
2Product............................................................................................................................................................... 3
2.1 Description................................................................................................................................................. 3
2.2 Included in the Package.............................................................................................................................. 3
2.3 Main features.............................................................................................................................................. 3
3Construction........................................................................................................................................................ 4
4Technical Information.......................................................................................................................................... 4
5Installation .......................................................................................................................................................... 4
5.1 Important installation information................................................................................................................. 4
5.2 Dimensions Searchlight............................................................................................................................... 5
6Operation of the LED Searchlight......................................................................................................................... 7
6.1 Handheld Wireless Remote......................................................................................................................... 7
6.1.1 On / Off .................................................................................................................................................. 7
6.1.2 Function Button “Fn”............................................................................................................................... 7
6.2 Handheld wireless remote programming procedure...................................................................................... 7
6.3 Enjoy.......................................................................................................................................................... 7
7Certification......................................................................................................................................................... 8
7.1 FCC Information ......................................................................................................................................... 8
7.2 CE / RED.................................................................................................................................................... 8
8Additional information, liability.............................................................................................................................. 8
8.1 Updates and other tips................................................................................................................................ 8
8.2 Liability....................................................................................................................................................... 8
8.3 Acknowledgments....................................................................................................................................... 8
9Declaration of Conformity.................................................................................................................................... 9
List of Figures
Figure 1 Serachlight Footprint...................................................................................................................................... 5
Figure 2 150S Dimensions........................................................................................................................................... 6
Figure 3 Location CE-Mark .......................................................................................................................................... 8
List of Tables
Table 1 LED Searchlight in Operation........................................................................................................................... 3
Table 2 Technical Information...................................................................................................................................... 4

Manual
page 3 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
1 Validity, product images
This manual is valid for the following Products from 1st-Relief:
- 4,5 inch Wireless Control LED Cabin Searchlight
Article number: 1ST30SL150Snn-xx-x-xx
Table 1 LED Searchlight in Operation
2 Product
2.1 Description
This premium high power LED Searchlight comes with a Handheld Wireless Remote Control. The
speed of rotation and tilt of the headlight can be controlled by a switch. The Housing is in white
colour. The Searchlight is powered with 12 VDC or 24 VDC and is equipped with a LED lamp with a
maximum of 240.000 candela.
2.2 Included in the Package
- Model 150s LED Searchlight
- Handheld Wireless Remote Controller including 2 pieces of 23A Batteries (TX-SL014GO)
2.3 Main features
- 350° Rotation / 90° Tilt
- Programmable Handheld Wireless Remote Controller
- UV Ray and Saltwater Resistant

Manual
page 4 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
3 Construction
- Housing made of robust standard plastic (ASA) in White or Black (on request)
- Cast Aluminium Heat Sink
- LED 30 W (6 pcs OSRAM LED)
- Low Amp Draw
- Peak Beam Intensity with 240.000 Candela
- Flashing / Strobe Function
- Operating Temperature Range: -30 ℃to +70 ℃
- Integrated Motor
- 12 VDC and 24 VDC (Multi-voltage)
- Fully Up and Down 90° Tilting
- Left and Right 350° Rotation (Patented)
- Certification: CE, FCC, R10
4 Technical Information
Shape:
Rectangular
Colour:
White
Protection:
Weather resistance, searchlight housing IP56
Mount type:
Permanent Mount Base (Optional magnetic mount shoe available)
Luminous Intensity [cd]:
240.000
Beam Distance [m]:
980
Beam Pattern:
Spot
Tilting [°]:
90
Tilting speed [°/sec]:
11
Rotation [°]:
350
Rotation speed [°/sec]:
17
Illuminate type:
OSRAM High Power LED x 6 pcs
Wattage [W]:
30
Current Consumption [A]:
@ 12 VDC / 2,5 A (max); @ 24 VDC 1,25 A (max)
Colour Temperature [K]:
5.700 - 6.000
Weight [kg]:
1,6
LED module:
IP 68 Compliant
Housing:
Aluminium Housing as Heat Sink
Lens:
Hardened Polycarbonate Lens
Radio Frequency [MHz]:
433,92
Wireless Remote Battery:
2 pieces 23A
Wireless Remote Operation
Distance [m]:
65 (In an open and no interference environment)
Manufacturer:
Allremote
Table 2 Technical Information
5 Installation
5.1 Important installation information
Please note the following important installation instructions:
- Do not install the searchlight sideways or upside down.
- Do not use hand or other external force to rotate/tilt searchlight!
- Find a clean and flat surface to mount the searchlight and make sure there is no other
objects in the ways of rotation / tilt range.

Manual
page 5 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
5.2 Dimensions Searchlight
Screw holes [mm]: 9
Figure 1 Serachlight Footprint

Manual
page 6 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
350° Rotation
Figure 2 150S Dimensions

Manual
page 7 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
6 Operation of the LED Searchlight
6.1 Handheld Wireless Remote
6.1.1 On / Off
Press button to Switch on or off searchlight.
When turning off, the light will automatically return to home position.
If you wish the light to stay at the same position, simply quickly press this button again
to stop auto home feature.
Operate directions of the light beam by pressing the direction buttons.
Up =
Down =
Right =
Left =
6.1.2 Function Button “Fn”
The Button “Fn” is the trigger for the Flashing / Strobe function.
6.2 Handheld wireless remote programming procedure
(1) Switch off DC Power or disconnect from battery.
(2) Make sure there is NO other transmitter operating at the same time.
(3) Switch on DC Power, within 5 seconds press and hold Remote up ▲ and
down ▼buttons simultaneously.
(4) Searchlight will flash to acknowledge the Remote, connection has been
made.
(5) To program the second Remote (up to 4 remotes may be used with the
searchlight, programming a fifth will replace the first), within 5 seconds after
the first Remote programmed, press the second Remote up and down
buttons or repeat step 1.
6.3 Enjoy
Enjoy the usage of your 6-inch Wireless Control LED Cabin Searchlight.

Manual
page 8 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
7 Certification
7.1 FCC Information
The Federal Communication Commission Radio Frequency Interference Statement includes the
following paragraph:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
(1) This Transmitter must not be co‐located or operating in conjunction with any other antenna
or transmitter.
(2) This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimetres between the radiator and your body.
7.2 CE / RED
The device is compliant with the Radio Equipment Directive (RED) of
the European Commission.
8 Additional information, liability
8.1 Updates and other tips
For updates and additional tips, see:
https://www.1st-relief.com/de/45-zoll-wireless-control-led-cabin-
searchlight-12.html
8.2 Liability
Installation and use of this product are at the customer's own risk. We strongly recommend that the
product specification, use, and installation be checked by aprofessional technician prior to purchase
and that the installation be carried out by them.
Your safety and customer satisfaction are our top priority!
8.3 Acknowledgments
Thank you for choosing our products. Together with our manufacturer Allremote, we strive to deliver
the most innovative products of the highest quality. We hope you will enjoy our products for many
years to come. We look forward to your comments and feedback!
Your satisfaction is our number one priority! If you have any questions, please contact our customer
service [e-mail]

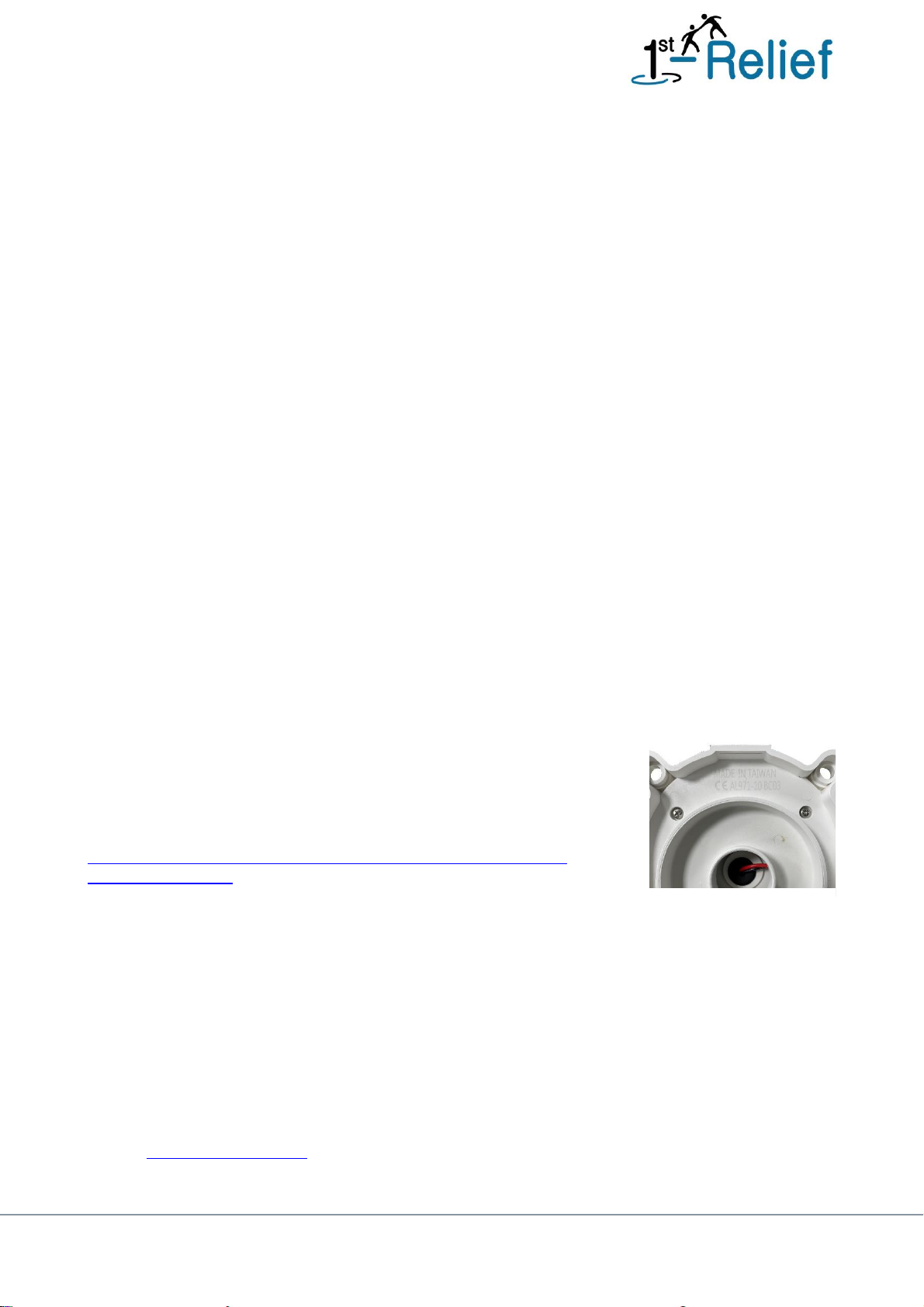

Figure 3 Location CE-Mark

Manual
page 9 of 9 Handbuch 150S EN 1_0.docx
FN: 552603b (LG f. ZRS Graz)
Bank: RB Graz-Mariatrost
1st-Relief GmbH
VAT No.: ATU76757859
Swift/BIC: RZSTAT2G223
Schulgasse 5
IBAN: AT08 3837 7000 0420 9185
8010 Graz, Austria
9 Declaration of Conformity
