3UVIEW TB2 User manual
VS Taxi L DisplayTRoofEDUser ManulaModel:SHENZHEN 3U VIEW CO.,LTD.TB2
Safety InformationProduct SpecificationInstalling StepsTaxi roof led display connectionPackage & ShipmentProblems & SolveMaintenanceAfter-sales ServiceAttcah: Basic Maintenance MethodContentI IIIII IV VVIVIIIX010202020405050607080909101010101011121.Taxi top led display LED2.Product Features and Parameters1.Maintenance tools and components2.Maintenance content(1).How to replace the module(2).How to replace the power supply(3).How to replace the control card(4).How to replace the wire(5).How to replace the IC card(6).How to replace LEDs
I Safety InformationDo not use this product if the ambient temperature outside the vehicle exceeds 80°C.As this product may generate heat, keep flammable and explosive materials away from this product. In order to avoid fire due to overloading of the power cable, please follow the instructions for use of this product or the Make sure that the installed cable is properly loaded and do not replace the power cord at will.Before using the apparatus, please must read, understand and comply with all thesafety information, warning and etc. Warning:Only qualified mechanics are allowed to install the apparatus according to the hereby product manual. Do not connect the apparatus to alternating current. Input current is DC8~DC18. The positive and negative poles of the main power line must be connected to the positive and negative poles of the car battery, and the control line must be connected to the ACC position of the fuse box or the ignition switch (professionals can also modify other methods). After installation, make sure wire connection is right and fasten the wire connection. Do not step on power or data cables, and especially avoid pinching plugs, power sockets, and power/data cable. Damaged power and data cables should be replaced immediately. Only use accessories and accessories specified by our company. If the product is not stored for a long time, please keep the product in a dry environment and test it with electricity every 3 months. Please train the driver on the basic working principle of the product, so as to know the basic problem point when there is an abnormality.This product should be installed and serviced by qualified service technicians.When this product is damaged in any events (such as a damaged power cord or plug, the device does not work properly, or the device has been dropped), please contact a professional mechanics to fix. This product may only be used in conjunction with systems or peripherals specified by the manufacturer or included with the device. Be careful when lifting, moving or transporting this product to avoid product tip-over damage and personal injury.This product may cause injury due to short circuit, smoke and falling due to improper operation. When installing this product or wiring, please make sure that the vehicle is turned off to avoid damage to the vehicle. Please do not connect the input power terminal of this product to AC power. Please carefully check the power cord, power cord connectors, and wiring terminals for any problems before powering on the product.Do not use any damaged or exposed power cord or power plug. To reduce product abnormalities, do not disassemble the product./ /01
II Taxi Roof LED Display Series IntroductionLight and thin cabinet design. Unique structure design, easy installation, suitable for fixed installation on the car roof.This series of Taxi Roof LED Display is vehicle safety voltage products.Asynchronous Android system card, built-in 4G-GPS wireless transmission, support text, picture, picture animation, and video.1.Taxi Roof LED Display2.Parameters and Features/ /02 Model Number Item ParametersCabinet Weight(Kg/set) 16 LED Type SMD1415/SMD1921 PixelPitch(mm) 2/2.5/3.3/4 ModuleSize(W*H)mm 320*160/320*320 ModuleResolution(W*H) 160*80/128*128/96*96/80*40
Module Weight(Kg) 0.58/0.71 Module Power(W) ≤60 Brightness(cd/m²) ≥4500 Gray Scale(bits) 14 Refresh Rate(Hz) ≥3840 Cabinet Size(W*H*D)mm 1010*384*139 Screen Resolution(W*H) 480*160/384*128/288*96/240*80 Mounting Weight(Kg/set) 4.5 Best viewing distance(m) ≥3 Ave.Power(W/set) ≤120 Max.Power ≤430 ModuleTB2
Support secondary development and cloud platform remote cluster control.Built-in Web Sever, support local frontpage, support computer, iPhone, Android phone, Tablet stand-alone program editing, cross-platform systems compatible.Onboard WiFi module, realize wireless communication, support AP mode, Station mode.Power Item ParametersProtection Power Line Control System ModuleCharge from car battery、over-current and over-voltage protection、reverse polarity protectionMain power line:use 6mm²*2+0.75mm²*1Pure copper cable(ensure enough to use and safety),overall length 5m、wire flame ratingV03.Good anti-UV performance and anti-yellow.2.Frosted design is for anti-glaring, without affect in direct sunlight.1.Adopt frosted anti-UV PC,which is impact resistance high tenacity. High heat and cold resistance, corrosion resistance and high transparency.can run up to 1.8 GHZ, with 2G memory and 16 GB EMMC high-speed flash memoryY71 is a highly integrated and high- performance quad-core Cortex-A17 core controller, Supported FormatsJPGBMPPNGGIFWMFMP4、、、、、Supported expansionsaudio、camera、weather forecast、display content playbackInput VoltageOperating Temperature-40℃~80℃Operating Relative Humidity10%~90%,without condensationRemarkSupport second development：Provide secondary development kitPower consumption forecastAccording to 20 hours of car use every day, the average power consumption per hour is 100W, that is, 20H*1000W=2000W, about 2 degrees of electricity consumption every day.Road test descriptionIn the city road speed bump,the product installation is stable,no abnormal sound;When slows down from 60 km/h to 20 km/h in 3 seconds in the city road,the screen does not shake or tremble to the naked eye.When slows down from 120 km/h to 60 km/h in 3 seconds on the freeways, the screen does not shake or tremble to the naked eye.It has been tested on first-tier cities roads (including freeways) for one year and no adverse phenomena have been found.Code secondary development and maintainEasy development and maintenanceMaterial production Material resolution is recommended the same as the screen resolutionDevice connection success rate and online rate The concurrent power-on and online rate of all devices should be greater than 90%[Affected by the specific network environment and the number of powered on devices]The success rate of advertisement delivery and playback Excluding material abnormalities and network faults and other objective factors, the success rate of playback should be close to 100%.OTA Upgrade success rateNative Android development environment, standard JAVA and Kotlin SDK.System FrameworkintroductionWithout the influence of objective factors such as abnormal power outage and network failure, the success rate of theoretical upgrade should be 100%.The APN must be configured when the SIM card is used for the first time.SIM card notes:/ /03 DC 9-36V
III Installation steps1.The installation procedure of the luggage rack:2.Taxi roof led display installation:Each type of vehicle has different mounting racks. Different lengths of mounting racks can be selected according to the type to be installed. The corresponding installation method can be designed according to different types of vehicles.Be sure to hand le it with care during installation to prevent the LED vehicle mounted screen from falling and damaging.Pay attention not to damage the vehicle body when installing the installation tools.Keep personnel clea n during installation to prevent vehicle body pollution.(3).assemble c(2).assemble a/b/d together with scres(5).pull the lock(4).open with key(7).ready(1).prepare accesssory a/b/c/d/e(6).insert e(2)(3).Install the screen at the central part of the bracket and make it tight(4).put at the top(9).turn on the sign after installation(5).use the key to open the lock,pull the lock hook to the dent part of the side (6)(7)(8),pull up and down to make it tight for the hookInstallation steps 7:(1).Install bracket,base,screws and keyMounting bracketMounting partsKeyMounting screw/ /04 Warning:Note:
VI Taxi Roof LED Display Trouble-shootingPossible ReasonsProblems1.Proper AC power to the LED display;2.Set the control software as working status; 4.Run the control software, upload the proper program file, and send to the receiving cards of the screen, then save it. 2.Check if controller is connected properly: Green indicator flashing, and Red indicator ON. The Green indicator is ON or OFF in case that sending card is damaged or no signal. In this way, the control card shall be replaced; Solutionon the whole LED displayNothing displayed 2.The LED display is shut by the software;4.No display program file on the controller.1.No power to the display;3.Controller problem;Display Chaos2.Incorrect resolution setting.1.Incorrect program;2.Reset the resolution (It shall be connected to the terminal after changing the resolution). 1.Check if all programs are correct, or contact the supplier if the programs are lost; "No Display Found"when running the terminal2.Display power failure1.No signal; connection to the SIM card;1.SIM card socket damaged, no network traffic to the SIM card; Replace the card socket or SIM card2.Connect the LED display to power.Display images flashing2.Power cable loose. 1.Ribbon cable loose;1.Re-connect the ribbon cables between modules2.Re-connect the power cables and fix them by screws.Resetting the configuration program and the display connection program as per signal cable direction, then send it to the display and save it. Improper configuration program.Display images misplace or repeatedSingle cabinet not working1.Power supply damage2.Controller damage1.Check if power supply is proper in this cabinet2.Check if controller card is powered properly (Red indicator ON), if there is signal transmission (Green Indicator Flashing); Cards need to be replaced if Green indicator ON or OFF.Single module not working1.Improper power supply;5.No signal output from the module before this one. 3.Input ribbon cable to this module is damaged.2.Ribbon cable to this module is loosen.4.Signal IC of this module is damaged1.Check if power supply voltage is proper4.Replace a new module5.Replace the module before this one.2.Re-insert the loosen ribbon cables3.Replace the input ribbon cable of this module3.IC damaged.1.Ribbon cable to this module is loosen 2.Input ribbon cable to this module is damaged2.Replace the input ribbon cable of this module3.Check and replace damaged IC related1.Re-insert the loosen ribbon cablesColor missing on the moduleSingle LED not working, or missing color 2.Control IC to this LED is damaged1.LED damage, or pins fake-solder or short-circuit LED2.Replace new IC1.Re-solder the pins of the LED or the control IC, or replace new LEDs2.Check the signal connection strength; 3.Check if any problems to the display modules. 1.Check if the terminal setting is correct; 1.Terminal setting not correct2.Weak signal of the control system3.Cabinet or module The LED display is out of control/ /06
IV Taxi roof led display connectionWiring diagram of taxi roof led displayThe main line is connected to the automobile battery, and the control line is connected to the fan safety terminal or the ignition switch:(1).+12V line is connected to the positive pole of the car head battery.(3).The control end is connected to the ACC fuse of the fuse box or modified to the ignition switch.(2).GND line is connected to the negative pole of car head battery.V Packaging and transportation of taxi roof led displayCarton packaging or pearl cotton + wooden box packagingDo not move the stacked wooden cases. When stacking, the lower wooden box shall be fixed to the final position first, and then place the upper box.Use a suitable forklift to handle the wooden cases and take necessary precautions to avoid personal injury.If the wooden case is broken, the wooden case must be bound firmly to avoid collapse of the stack.Before stacking or transporting wooden cases, please make sure that each wooden case is in normal use.Beforestackingortransportingwoodencasespleasecheckwhetherthewooden , casesandtheirfixingscrewsarewornordamaged .Main cable connect with car battery and control cable connect with lighter position:2.black is with “-”1.yellow(red) is with “+”3.lighter plug to the car lighter position,red switch control panel delay power off.Damp proof and shockproof provide better protection for led vehicle mounted ceiling lamp screen./ /05 Features:Warning: Control input↓DC12V input
↓
VII Maintenance • Cleaningshouldbedonewellduringstoragetopreventdebrisordustfromaccumulatingonthescreen .• .Avoidpestsandrodentsfromdamagingthescreenandcablesduringstorage(1)Preservationofaccessoriessuchasuninstalledscreensandsparemodules (2)Useandstorageofscreensinspecialenvironment (9).Whenplayingdonotstayinfullwhitefullredfullgreenfullblueandotherfullbright , , , , screenforalongtimesoasnottocauseexcessivelongtermcurrentexcessiveheatingof , - , thepowercorddamagetotheLEDsandaffecttheservicelifeofthedisplayDonot , , . disassembleorsplicingthescreenatwill .3Storage. • , Duringstoragerainwaterorothercorrosiveliquidsshouldbepreventedfromenteringandcontactingthescreenbodymodulesetc , , .• , Thestorageplaceshouldbewellprotectedfrommoisturethetemperatureshouldbeappropriatetherelativehumidityshouldbelowerthan90andtheambienttemperature, %, shouldbe105050F122F ℃~℃ (°~°).(10).Nonprofessionalsarenotallowedtotouchtheinternalcircuitsoasnottocausedamage- , tothecircuitIfthereisaproblempleaseaskaprofessionaltorepairit . , .(8).Thescreenneedstobecheckedregularlytoseeifitisworkingproperlyandwhetherthe lineisdamagedIfitdoesnotworkitshouldbereplacedintimeIfthelineisdamagedit . , . , shouldberepairedorreplacedintime . Check whether the power supply works normally and whether the power cord is loose.(1)The detection mainly includes the following procedure: Check whether the screen is running normally, and remove the dust on the product. Check whether the box is blocked by debris, etc. If there is, remove the debris prevention.Like any other electronic products, car LED screen not only needs to pay attention to the method during use, but also needs to be maintained to make the screen last longer.1Cabinet.(4).If water enters due to various reasons, please turn off the power immediately and contact the maintenance personnel until the display panel in the screen is dry before use. Keep the humidity in the environment where the screen is used, and do not let anything with the nature of moisture enter your screen. Applying power to the screen that contains humidity will cause the components of the screen to corrode, resulting in permanent damage.(2).Do not use it as much as possible under harsh natural conditions. Such as strong thunder and lightning weather.(1).The power supply system is required to be stable and well protected.(s2)OtherRegular dust the surface of the screen, especially in the outdoor dusty environment. Due to the factors of the working environment, it is easy to be exposed to the sun and dust for a long time. On the one hand, dust removal can improve the display effect, and on the other hand, it can prevent the corrosion of the surface of screen by the particulate matter in the air or other chemical factors under humid conditions.(3).Metal objects that are easy to conduct electricity such as water and iron powder are strictly prohibited in the screen. LED screen should be placed in a low-dust environment as much as possible. Large dust will affect the display effect, and too much dust will cause damage to the circuit.(.5) The use of screen: A. Start the vehicle. After the car starts, the screen will be turned on, and the screen will be displayed in about 1 minute. B. After turning off the ignition switch, the screen will automatically turn off.(6).The surface of screen can be wiped with alcohol, or dusted with a brush or a vacuum cleaner, and cannot be wiped directly with a damp cloth. To avoid possible problems, we can choose passive protection and active protection, try to keep items that may cause damage to away from the screen, and wipe the screen as gently as possible to avoid the possibility of injury to minimum.(7).Itisrecommendedthatthescreenrestformorethan2hoursadayandthescreenshould , beusedatleastonceaweekduringtherainyseasonGenerallythescreenisturnedonat . , leastonceamonthanditislitformorethan2hours , .Check the installation to ensure the safety. 2Display Zone.The application and maintenance of LED car ceiling light screen should pay attention to the following issues:/ /07 The screens should be installed in places with accumulated water as far as possible. The screen installed in coastal areas should pay attention to the corrosion of the metal parts due to the salt in the air.The vehicle should be grounded for lightning protection, and the product should be used in a thunderstorm environment to prevent lightning or screen leakage from burning out the screen and even causing personal injury or death.The screen may not be able to start normally due to the low temperature in winter. You can turn on the car air conditioner until the temperature rises to the starting condition. If necessary, a heater can be installed.Cleaningshouldbedonewellduringstoragetopreventdebrisordustfromaccumulatingon thescreen .emperature rises to the starting condition. If necessary, a heater can be installed.Thestorageplaceshouldbewellprotectedfrommoisturethetemperatureshouldbe , appropriatetherelativehumidityshouldbelowerthan90andtheambienttemperature, %, shouldbe10~5050F~122F ℃℃ (°°).Avoidpestsandrodentsfromdamagingthescreenandcablesduringstorage .Duringstoragerainwaterorothercorrosiveliquidsshouldbepreventedfromenteringand , contactingthescreenbodymodulesetc , , .
IX After -sales service3.Lifelong product maintenance servicesWe will provide free life-long software upgrade for users' equipment and provide users with the latest version control software in a timely manner.The maintenance service is only valid for the equipment originally supplied and the place and user where the equipment was originally installed. If the relevant equipment is re-installed in another location, or the user transfers the ownership of the screen equipment provided by the contract, the user shall notify us in writing so as to re-evaluate the relevant services. Otherwise, the maintenance service will be invalid.(1)During the warranty period, our company is responsible for equipment quality assurance.1.Free tel-hotline and email support(2)In any case, users may contact us through the 24-hour technical support email of our engineering service department. We will answer your questions in the shortest time and solve the relevant problems as soon as possible after receive the email.2.Free remote assistance serviceIf the customer feedback related technical problems can not be solved in real time by phone or email, our company will conduct network remote assistance with the customer or send engineering personnel to the project site for assistance according to the actual situation.4.Free upgrade5.Other termsWithin the terms of service, our company will reserve sufficient quantity of tube cores with the same display module and components with the same production batch number to ensure the quality of after-sales maintenance, which will not let purchaser delay the operation of the system due to lack of parts;In special cases, similar type of equipment can be provided for temporary replacement to ensure the smooth maintenance service of the project.(1)If the user's maintenance personnel have any problems in maintenance or operation, they can call the after-sales service department of our company to consult the technical personnel about relevant problems.(3)If there is a module, power supply or control system fault, user can also directly sent back to our company for maintenance, Our technical staff will timely return to the user after repair. If it can't be repaired, we can provide users with accessories of the same grade and only charge the cost.3U View's after-sales service system is completely in accordance with IATF16949 quality management system. Our company has after-sales technical service center, which will provide technical support and after-sales service for users. It also provides a full set of evaluation opinions and relevant technical suggestions on the technical parameters, specifications, equipment configuration, function setting and environmental factors of the products. Ensure that the software and hardware of the device can run safely, stably, and efficiently, so that the customer business can running normally.6.Long-term supply for spare parts, accessories and special tools(2)After the warranty period, our company can provide users with spare parts of the same grade for emergency fault replacement and possible fault maintenance during screen operation to ensure the stable operation of the system, and only charge the cost price of the replacement spare parts.(1)The service does not cover all faults or damage caused by negligence, accident, natural disaster, failure to follow instructions, misuse, failure to handle products as directed. Self-modified products and missing parts are also excluded.(2)Any damage caused by maintenance, alteration or unauthorized alteration of the system by persons not authorized by us is not covered by this warranty. If users remove any masks, LED lights and other devices by themselves, it may lead to safety risks or functional failures, so this product will not be included in the warranty scope.8.After-sales service commitmentReplace and repair product quality problems caused by design, manufacture and materials. If the equipment is damaged due to human factors or irresistible, we will charge the 7.Notes(3)Our company will not take any legal responsibility or compensate for the property loss and casualties caused by natural disaster or improper operation.Our company promises "2-year warranty, lifetime maintenance", and guarantees the maintenance response time to the user in the form of contract.10.Our company adheres to the working principle of "customer satisfaction is the highest standard of inspection work", which has trained a number of professional and technical personnel, provide strong support to display products and provide customers comprehensive and meticulous services from project design, project installation, commissioning and operation.9.Our company promises to guarantee the whole set of products for two years (except human factors and irresistible factors).After the warranty, the software will be upgraded free of charge, and the replacement of spare parts will only be charged at cost.Warranty service items: through telephone, E-mail and other ways to answer the problems encountered by users. Free upgrades to use software versions./ /08
9. After-sale personnel structureCustomer Service DirectorService SupervisorAfter-sale BusinessTechnical DepartmentMaintenance DepartmentAttached: Basic Maintenance Method1Maintenance tools and components.Thermostat soldering iron & Solder wireBlade & TweezersDigimerPliersLong & Short screwdriverSingle Component RTV Silicone Rubber(black)Spare Power SupplySpare ICSpare LEDsBusiness ClerkSoftware TechniciaHardware TechniciaPlatform TechniciaCommissioning TechnicianSystem MaintainerModule Maintainer/ /09
2.Maintenance Content(1).How to replace the moduleRemove the plastic screws from the damaged module.Remove the mask from the Taxi Roof LED Display.The module can be installed onto the box in reverse order of operation.Remove the module from the damaged area(2).How to replace the power supplyPut the spare power supply back in accordance with the same.Open the plug on the left side of the mask of Taxi Roof LED Display.Remove the screws that fix the power supply and take out the power supply.(3).How to replace the control cardThe IC card can be installed onto the box in reverse order of operation.Pull up the winding displacement.Use cross screwdriver removing the DC power cable(red/black)Remove the antenna.Remove the screws that fix the control card and power cable to take out the IC card.(4).How to replace the wirePower cable: use cross screwdriver counterclockwise remove the fixing screw on the power supply to be replaced to remove the power cable.Winding displacement: remove and replace it with your hands.Replace the wire in reverse order of operation.Please connect cables strictly according to the component labels when replace the power supply and control card, otherwise, components may be damaged!????/ /10 Warning:
(5).How to replace the IC cardRemove the IC, Clamp the IC both ends with tweezers so that each pin is aligned with the corresponding pin position on the pad.Note the IC direction.After module lights up and the display effect is normal, assemble the module back into the cabinet. Use single component RTV silicone rubber (black) to patch in the rubber where it has been scraped off and around the lamp board of the module which copper sheet is off.Accurately corresponds and appress to the IC pad.(Note that the pin at the concave dot in the upper left corner of the IC front side is the first pin and must be welded corresponding to the small circle of the circuit board IC silkscreen).Clean the conformal and tin freezing point on the pad surface.Use soldering iron to drag the pins on both sides of the heating IC back and forth. Fuse the tin on the pad with the pin and fix it onto the pad.Tilt the lamp board to 45 degreesHeat the tin on the IC pin with a soldering iron, drag it from up to down and gently shake off any excess tin sticking to the soldering iron.Until all the IC pins are not connected.Heat the IC with a air pressure gun(390℃) until the pin tin surface melts, then use tweezers to pick up the IC.Clean the conformal coating on the pad surfaceUse air pressure gun to heat the bad ICRemove the bad ICClean the tin freezing point on the pad surfaceAlign the IC with the direction and the padAdd tin to fix IC pinClean up excess tin from IC pinsShould not have connected ICOpertion schematic diagram?/ /11

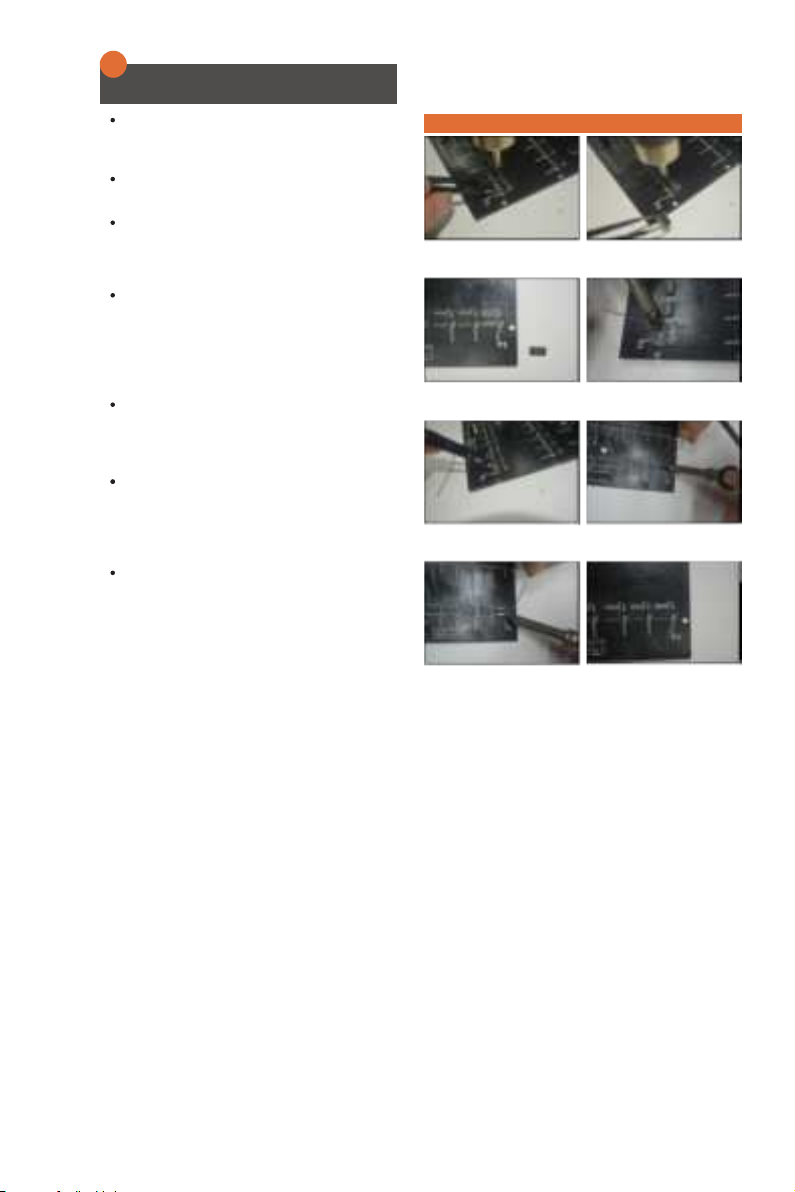

(6).How to replace the LEDsHow to measure LEDs?Aim the air pressure gun at the bad LEDs and heat until the tin surface of the pad melts.Heat the LEDs with the air pressure gun. Note that the temperature of it is set to 200℃.Take out the LEDs of the same model as the product, measure and confirm the positive and negative poles of it according to the above Remove the bad LEDs with tweezers and set aside.Set the digimer to diode test, the red stylus touches any pin on the side of the LEDs and the black stylus touches the pin on the other side of the LEDs. If the LEDs is lit, the end of the red stylus contact is positive, the end of the black stylus contact is negative.If the LEDs is not bright, switch the red and black stylus and measure again. If it is still not bright, means that the LEDs is broken. of other LEDs.Observe the LEDs front four corners which have a very small unfilled corner, a lamp base of its bottom is the positive of LEDs and the remaining three anti-clockwise lamp bases are respectively the negative pole of red, green,and blue lamp. The most direct method is to observe the silk screen printing of "+, R, G, B" on LED light board or the unfilled corner directionHow to replace LEDs?①②Heat the LEDs pad with air pressure gun and place the LEDs in the corresponding position on the pad. Heat until tin surface of pad melts and fixed with air gun.(LEDscannot float high and tilt)It can working properly after module is bright and display effect is normal.Clamp the LEDs with tweezers and make every lamp base accurately corresponds and appress to the pad.Heat the LEDs with the air pressure gun (200℃)Remove bad LEDs with air pressure gunAlign the LEDs to the direction and the padHeat until the LEDs pad is melted and fixedUnfilled cornerPositive
↓
↓
?/ /12 The temperature of the soldering iron should be 350℃ when replace IC and LEDs. The welding should be quick and the welding time should not be too long. Otherwise, IC and LEDs may be damaged due to overheating.Be careful when operating the product to avoid being scalded by the soldering iron. Turn off the soldering iron power in time when not in use. keep it away from combustible and let it cool down naturally.Non-professional and technical personnel please do not try to repair the LED module without authorization. Send the module back to our company for maintenance.Do not use sharp tools when removing the lamp board of waterproof module, otherwise the circuit board line will be damaged.This measurement method is only applicable to LEDs of this product model.Note: Warning：
