Prorack K436 User manual

K436
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 4 x 4 x 4
x 4
Revision No: 4D 1

Fitting Kit K436
MAX kgs (lbs)
W/P WHD
Land Rover
Discovery 3, 5dr SUV 04-05 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 3, 5dr SUV 04-09 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 3, 5dr SUV 04-09 AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 3, 5dr SUV 04-09 EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 4, 5dr SUV 09-Mar 17 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 4, 5dr SUV 09-Mar 17 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 4, 5dr SUV 09-Mar 17 AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery 4, 5dr SUV 09-Mar 17 EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Discovery, 5dr SUV 10-16 CN 75 kgs (165 lbs) 100 kgs (220 lbs)
LR3, 5dr SUV 04-09 US 75 kgs (165 lbs) 100 kgs (220 lbs)
LR4, 5dr SUV 09-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)
Range Rover Sport, 5dr SUV 04-12 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport, 5dr SUV 04-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport, 5dr SUV 05-12 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport, 5dr SUV 05-12 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport, 5dr SUV 05-13 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Range Rover Sport, 5dr SUV 06-12 US 75 kgs (165 lbs) 75 kgs (165 lbs)
2

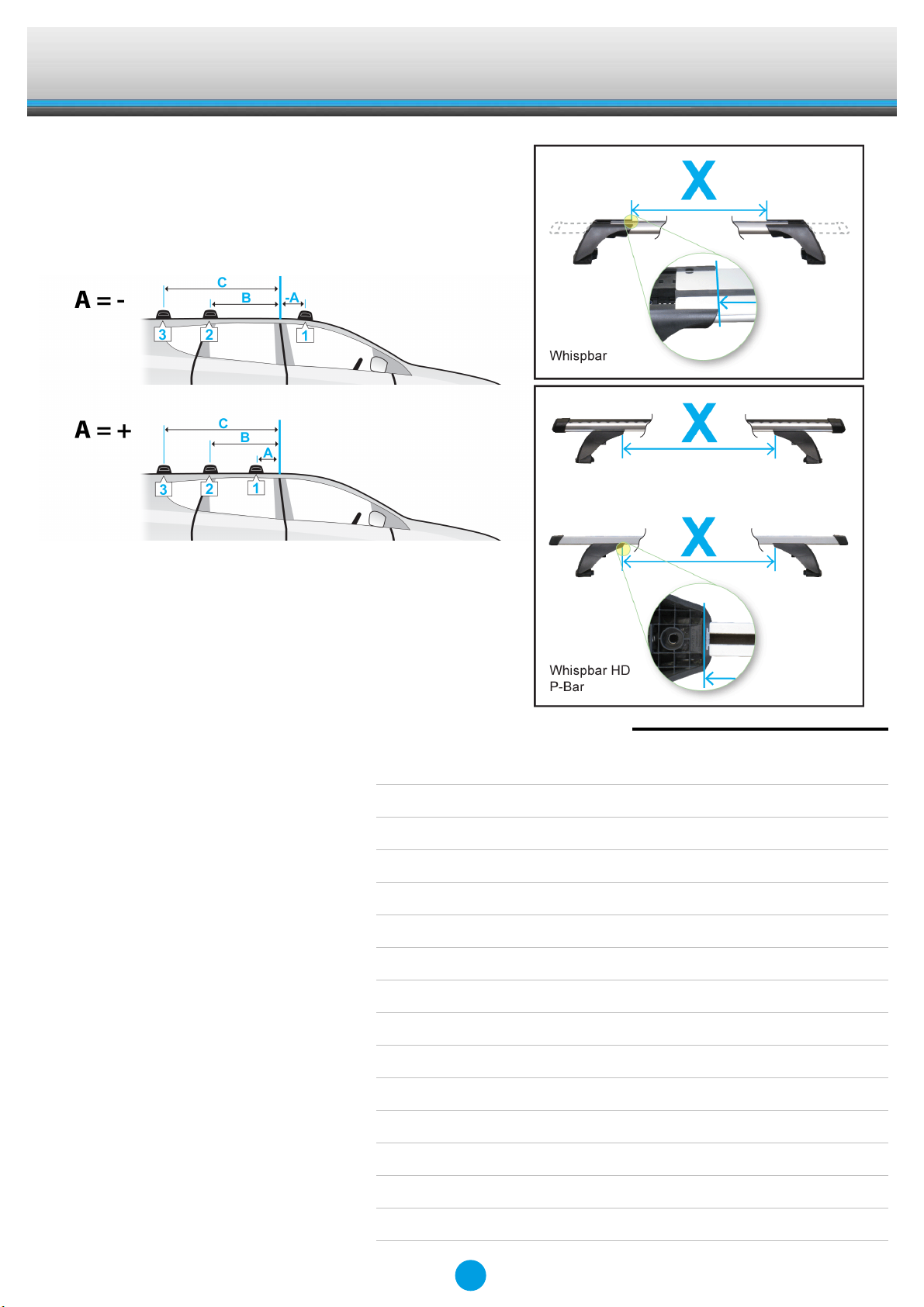

Fitting Kit K436
X
A B C 1 2 3
Discovery 3, 5dr SUV 04-05 (ZA) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 3, 5dr SUV 04-09 (NZ) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 3, 5dr SUV 04-09 (AU) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 3, 5dr SUV 04-09 (EU) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 4, 5dr SUV 09-Mar 17 (ZA) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 4, 5dr SUV 09-Mar 17 (NZ) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 4, 5dr SUV 09-Mar 17 (AU) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery 4, 5dr SUV 09-Mar 17 (EU) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Discovery, 5dr SUV 10-16 (CN) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
LR3, 5dr SUV 04-09 (US) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
LR4, 5dr SUV 09-+ (US) -330mm 250mm 840mm - 950mm 935mm
-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"
Range Rover Sport, 5dr SUV 04-12 (ZA) -200mm 380mm 940mm 1040mm 1030mm 1015mm
-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"
Range Rover Sport, 5dr SUV 04-12 (EU) -200mm 380mm 940mm 1040mm 1030mm 1015mm
-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"
Range Rover Sport, 5dr SUV 05-12 (AU) -200mm 380mm 940mm 1040mm 1030mm 1015mm
-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"
Range Rover Sport, 5dr SUV 05-12 (NZ) -200mm 380mm 940mm 1040mm 1030mm 1015mm
-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"
3

Fitting Kit K436
Range Rover Sport, 5dr SUV 05-13 (CN) -200mm 380mm 940mm 1040mm 1030mm 1015mm
-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"
Range Rover Sport, 5dr SUV 06-12 (US) -200mm 380mm 940mm 1040mm 1030mm 1015mm
-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"
4

Fitting Kit EN
K436
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
5

Fitting Kit EN
K436

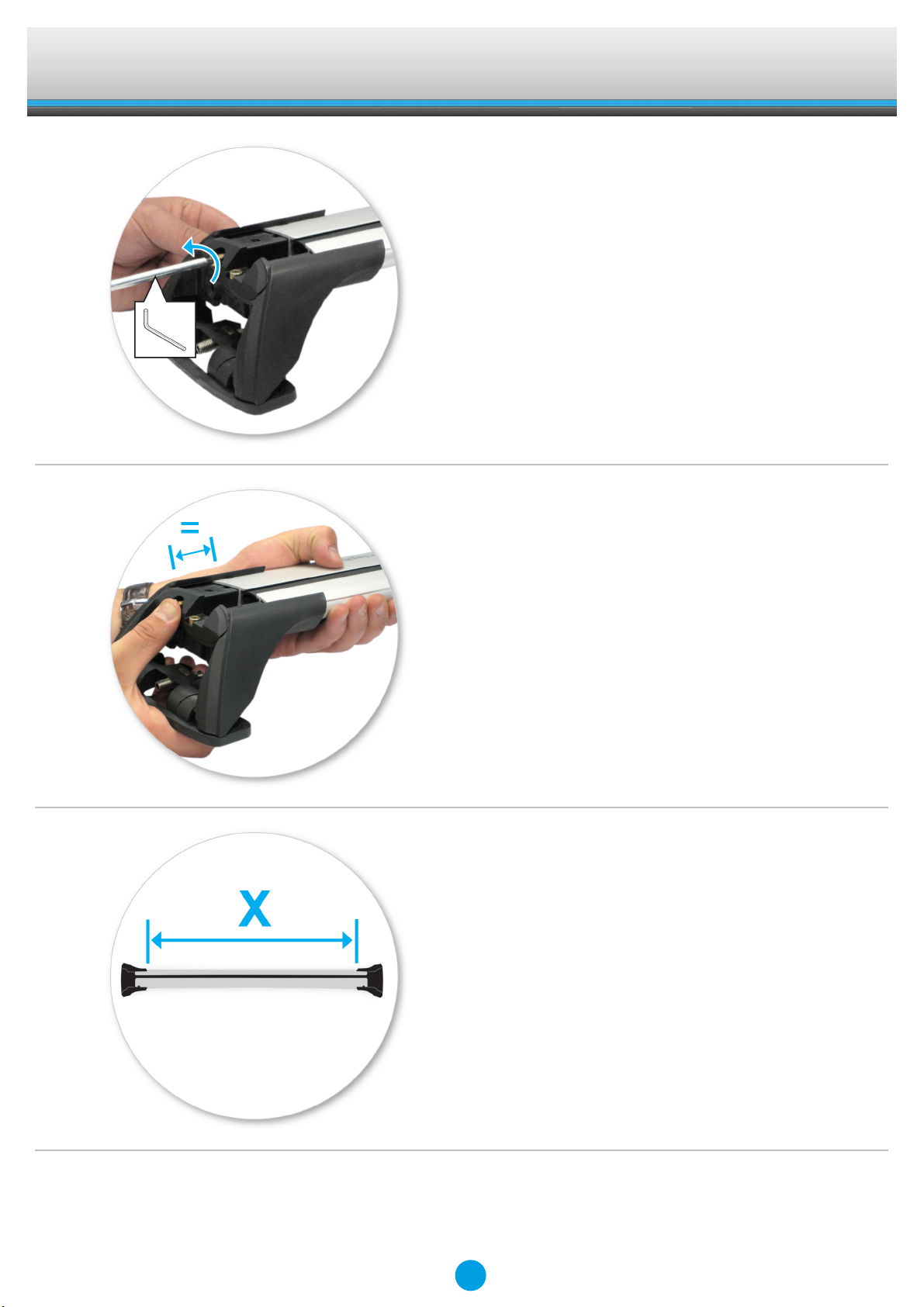

●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Please check the front of this manual for
information relating specifically to your
vehicle.
6

Fitting Kit EN
K436

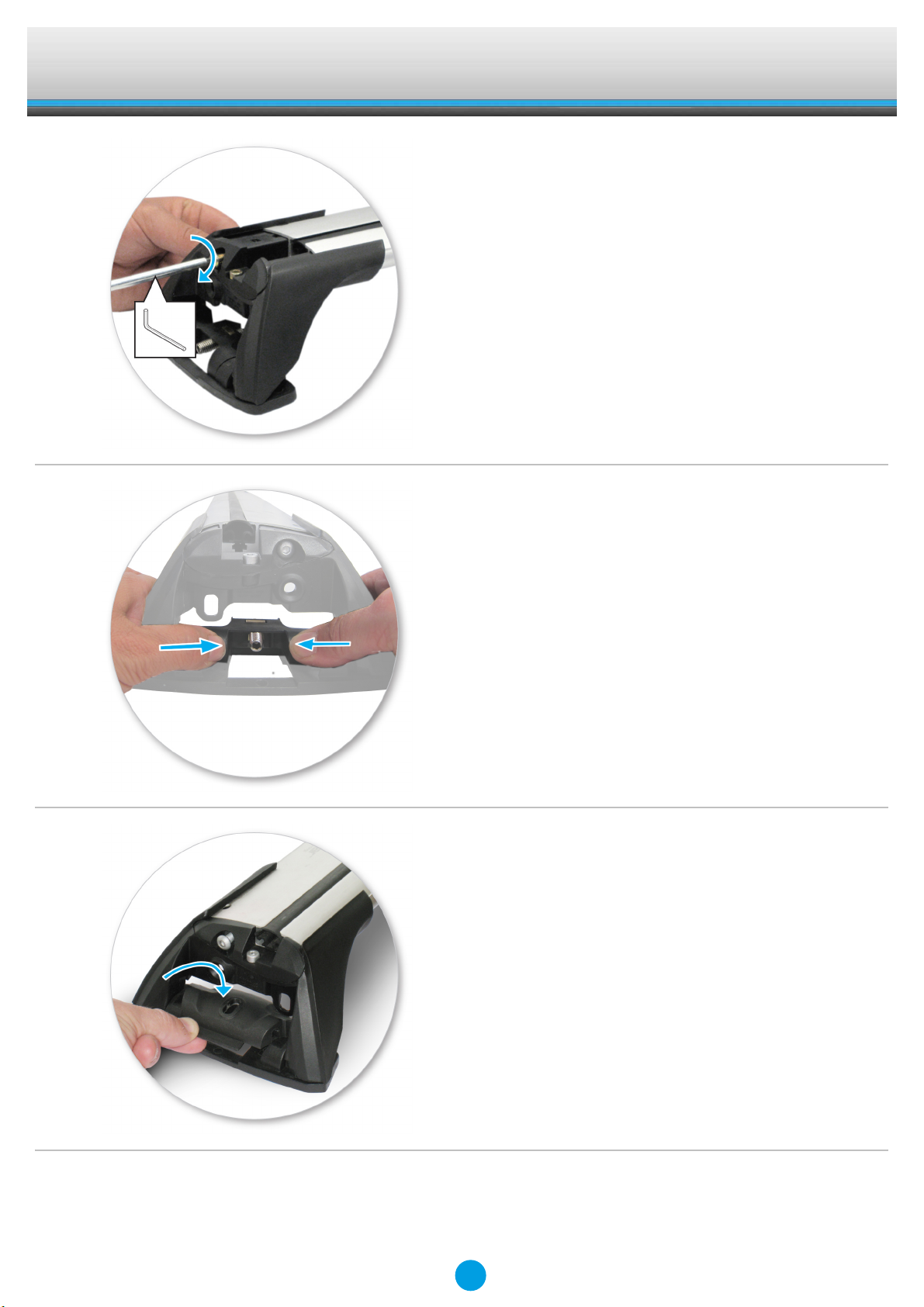

●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
7

Fitting Kit EN
K436

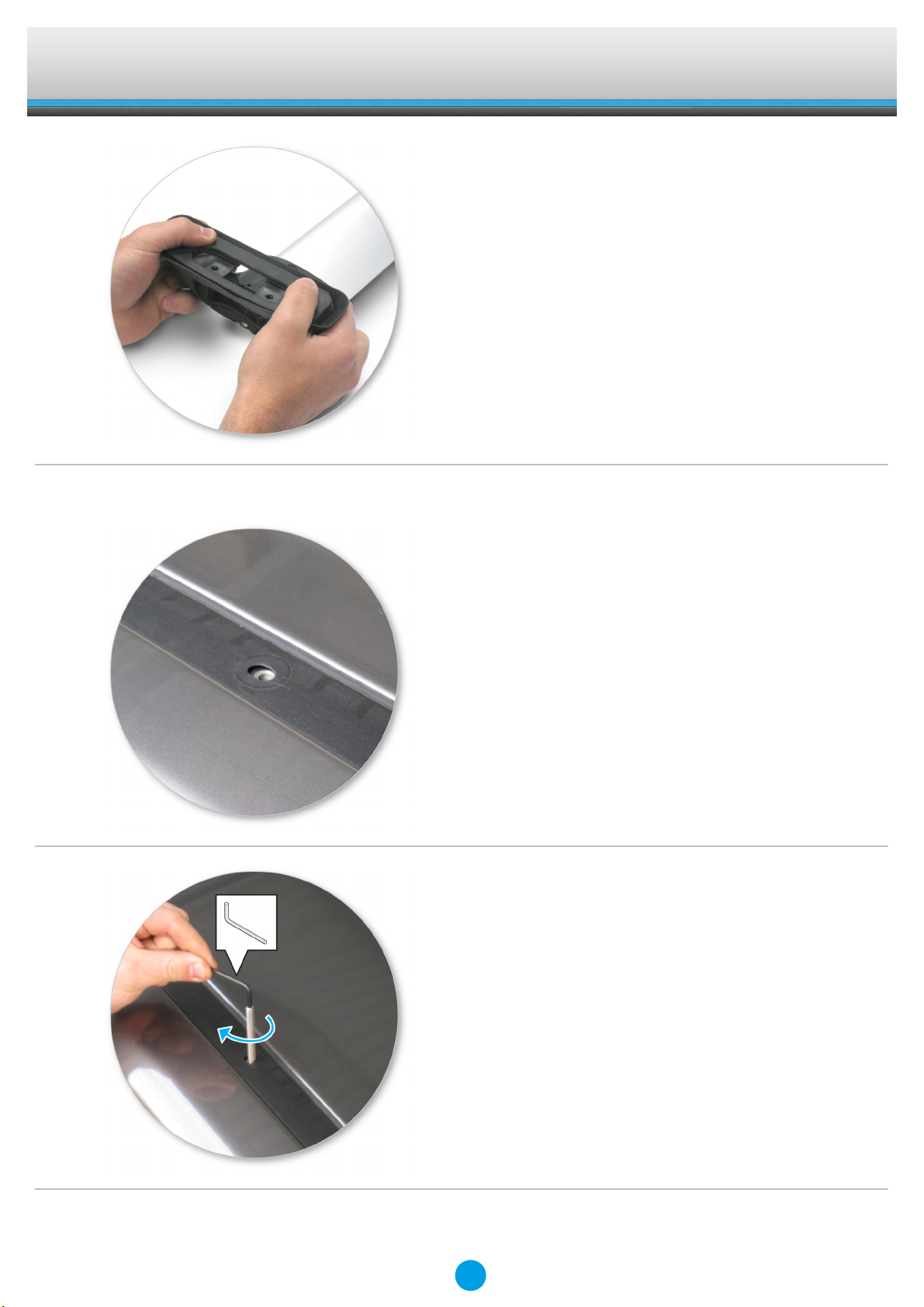

●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
●Repeat for all legs.
Fitment
●NOTE: Land Rover Discovery - Do not use
front fixpoint
●Locate and remove the small plastic bungs
on the roof.
●Store items away in a safe place.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
8

Fitting Kit EN
K436

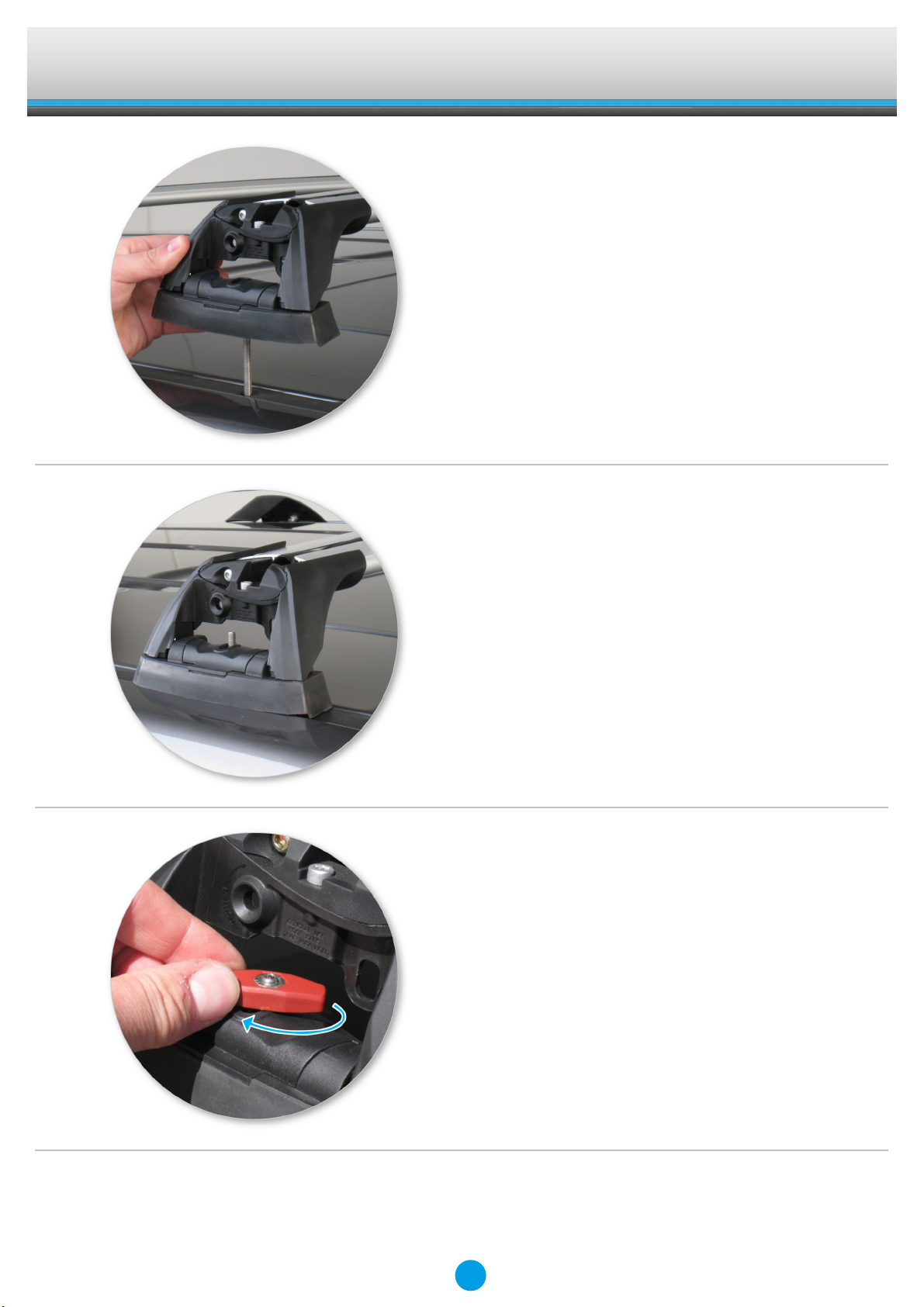

●Place crossbar foot over grubscrews.
●Ensure the pads are in the correct position
and the clamp threads pass through the
crossbar feet.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
9

Fitting Kit EN
K436
●In the fully tightened position, the knobs
should be parallel with the vehicle.
●Repeat for all four positions.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
