5LINX Powerplay2 User manual

• Liquids-Donotexposeyourdeviceto
liquidsorextremehumidity.Liquidscan
getintotheproduct’scircuits,leadingto
damageandcorrosion.Ifitdoesgetwet,
don’ttrytoacceleratedryingwiththeuse
ofanovenordryer,asthismaydamage
thedevice.
• Extremeheat/cold–Avoidplacingyour
devicenearaheatsourceorindirect
sunlight.Extremetemperaturescancause
thebatterytoswell,leakormalfunction.
• Cleaning–Useacleancottoncloth.Don’t
usealcoholorothercleaningsolutions.
• Neverplacethedeviceoverother
electronicdevices.
• Donotattempttorepairortakeapart
thedevicebyyourself.Contact5LINX®
customerserviceforassistance:
[email protected]
Precautions
1
A. MicroUSBtoUSBCable
B. USACtoUSBPowerChargerAdapterPlug
Included Accesories
2

• Liquids-Donotexposeyourdeviceto
liquidsorextremehumidity.Liquidscan
getintotheproduct’scircuits,leadingto
damageandcorrosion.Ifitdoesgetwet,
don’ttrytoacceleratedryingwiththeuse
ofanovenordryer,asthismaydamage
thedevice.
• Extremeheat/cold–Avoidplacingyour
devicenearaheatsourceorindirect
sunlight.Extremetemperaturescancause
thebatterytoswell,leakormalfunction.
• Cleaning–Useacleancottoncloth.Don’t
usealcoholorothercleaningsolutions.
• Neverplacethedeviceoverother
electronicdevices.
• Donotattempttorepairortakeapart
thedevicebyyourself.Contact5LINX®
customerserviceforassistance:
[e-mail]
A. MicroUSBtoUSBCable
B. USACtoUSBPowerChargerAdapterPlug
USB Charging output Jack & Light
Red Indicator Light–Powerindicator
Green Indicator Light –Chargerindicator
Blue Indicator Light
BluetoothIndicator
Device Power on/off switch
Push key3seconds
Device Overview
3
A B
Pictures are for illustration purposes only. Actual items
may slightly vary in appearance and design.
Charging indicator Bluetooth indicator MIC
Batter y life

1. Gotoyourmobiledevice’sNetworkSettings.
2. SetyourBluetoothdevicetodiscover.
3. Followyourdevice’sinstructionguide.
Thisusuallyinvolvesgoingintoa“setup”,
“connect”or“Bluetooth”menu.
1. ConnecttheMicroUSBcable(included)
totheMicroUSBportonthePowerPlay
andconnecttheUSBCabletothePower
ChargerAdapterPlug.
2. PlugtheAdapterPlugintoanelectrical
walloutlettofullychargethebattery
(approx.8hours).
3. Redindicatorlightisonwhilecharging
andwillturnoffwhenfullycharged.
Do not charge additional devices while
charging the PowerPlay, this will
damage the device.
Battery Management
4
4.Thenumberindicates%ofbatterylife
onPowerPlay.

Pairing your Bluetooth enabled
device to your PowerPlay
1. Gotoyourmobiledevice’sNetworkSettings.
2. SetyourBluetoothdevicetodiscover.
3. Followyourdevice’sinstructionguide.
Thisusuallyinvolvesgoingintoa“setup”,
“connect”or“Bluetooth”menu.
PowerPlay doesn’t work with all apps.
5
iPhone
Step 1

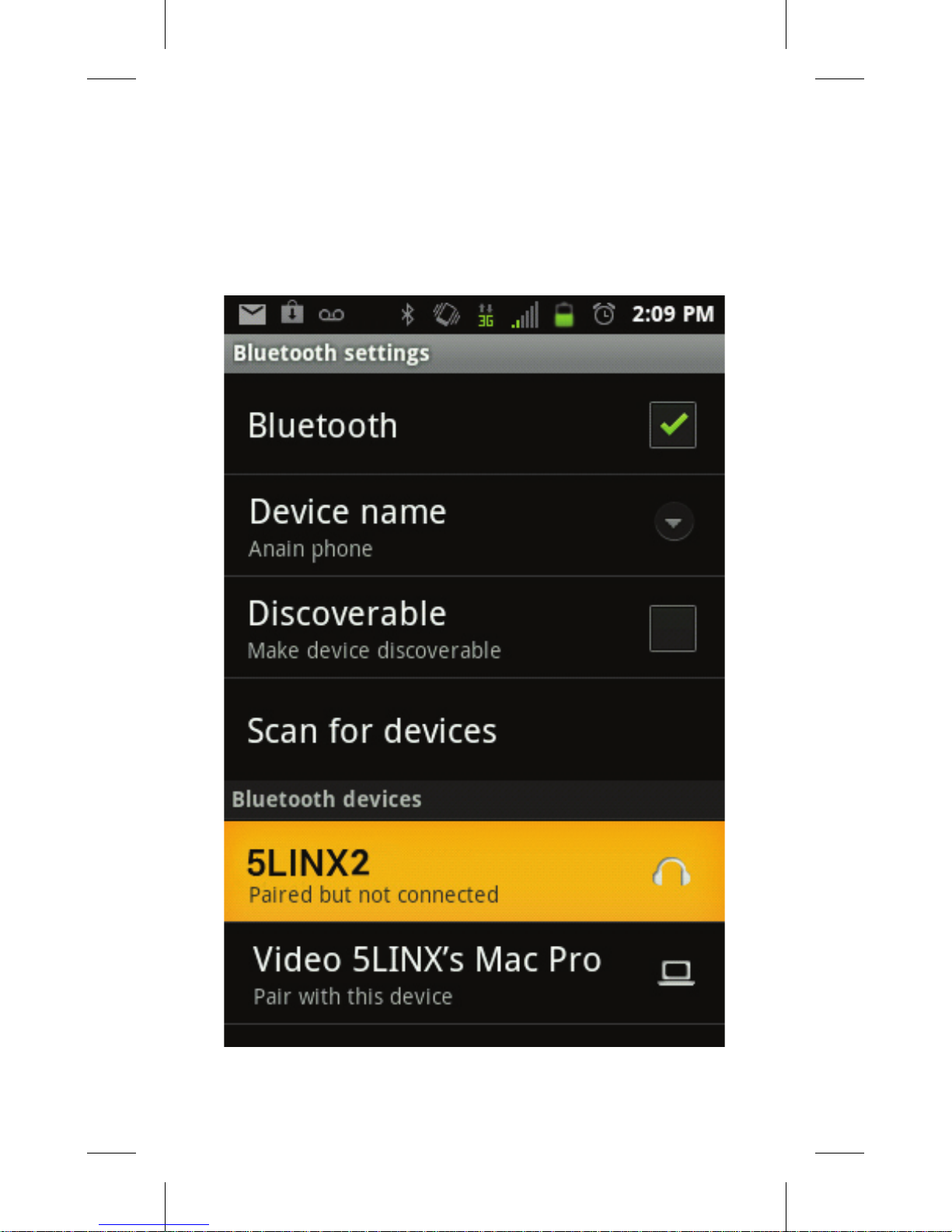

Android
Settings>Wireless&neworksettings>
BluetoothSettings>Bluetoothdevices
Step 1

iPhone
Settings>Bluetooth>Devices
Step 2

Android
Settings>Wireless & nework settings>
BluetoothSettings>Bluetoothdevices
iPhone
Settings>Bluetooth>Devices
Step 3
Step 2
4. Pushkey3secondstoturnon
Bluetooth.
5. LocatethePowerPlayonyourBluetooth
device&select“PowerPlay”fromthelist.
Keyinpassword“0000”.
6. YourPowerPlaywillbeepwhenpairing
iscomplete.
7. Usingkeytoplayandpause
musicplaying.

iPhone
Settings>Bluetooth>Devices
Step 3
4. Pushkey3secondstoturnon
Bluetooth.
5. LocatethePowerPlayonyourBluetooth
device&select“PowerPlay”fromthelist.
Keyinpassword“0000”.
6. YourPowerPlaywillbeepwhenpairing
iscomplete.
7. Usingkeytoplayandpause
musicplaying.

Android
Settings>Wireless&neworksettings>
BluetoothSettings>Bluetoothdevices
Step 3

In case of unsuccessful pairing, repeat the
steps on previous pages.
Android

Charging Devices
1. ConnecttheUSBendofthecharging
cablethatcamewithyourmobiledevice
totheOUTportonthePowerPlay.
2. ConnectthemicroUSBendtoyour
mobiledevice.
3. Duringcharging,theredindicatorlight
willstayon.
6

Charging Devices
1. ConnecttheUSBendofthecharging
cablethatcamewithyourmobiledevice
totheOUTportonthePowerPlay.
2. ConnectthemicroUSBendtoyour
mobiledevice.
3. Duringcharging,theredindicatorlight
willstayon.

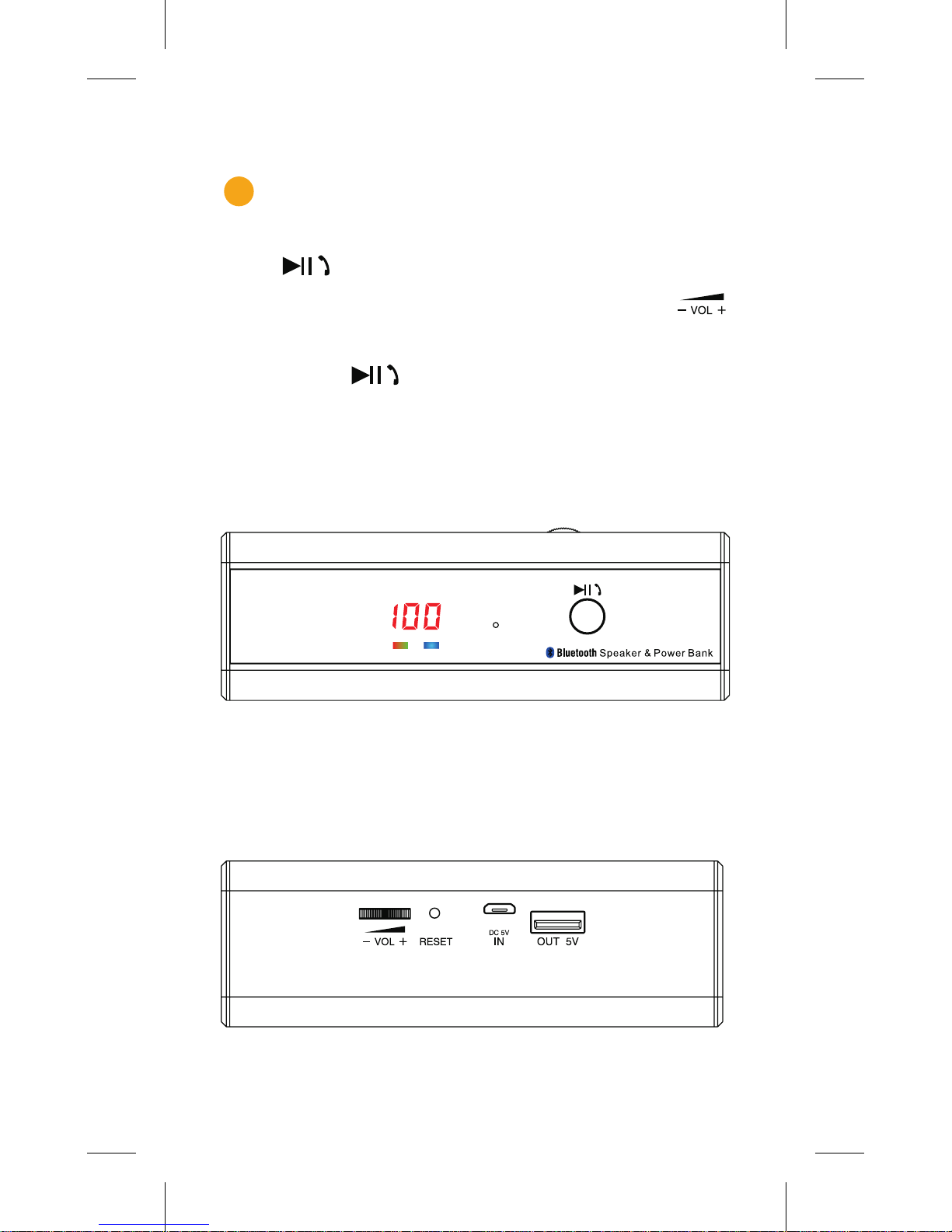

Hands-free calling
1. Make,receiveandendcallbypushing
botton.
2. ControlvolumebyusingPowerPlay
3. WhennotusingthePowerPlaybluetooth,
pressbotton3secondstoturnoff
tosavepower.
7
.

No Sound
• Makesurethemobiledeviceisnoton
muteandyourvolumeisturnedup.
Bluetooth Connection
• Ensurethatthespeakerandmobile
devicearewithin33feetofeachother.
• Ensuremobiledeviceisstillpairedwith
yourPowerPlay.
No Power
• Deviceneedstobecharged.Connect
thedevicetoaUSBportandthepower
adaptor.
Specs
• Weight<7.4ounces
• Size:4.65inches(L)*1.54inches
(W)*1.54inches(H)
• RechargeableBattery:Lithium-polymer
3.7V5200mAh
• PowerConsumption:DC5V/500mA~1A
• SuperHighCapacityRechargeable
• Battery5200mAh,about300%of
smartphonebatterylife
• SpeakerFrequency:100Hz~20KHZ
• FrequencyRange:2.4000Ghz-2.480GHz
• Input/Outputvoltage:5V
• Signalandnoiseratio:≥75dB
• Powerofloudspeaker:2W*2
• Chargingtime–Approximately8hours
• Playingtime–Approximately32hours
(volumeat60%)
• Hands-freecalling–Bluetoothconnector
• LEDindicatorLightforBluetooth
• EffectiveDistance–upto33feet
8

Troubleshooting
No Sound
• Makesurethemobiledeviceisnoton
muteandyourvolumeisturnedup.
Bluetooth Connection
• Ensurethatthespeakerandmobile
devicearewithin33feetofeachother.
• Ensuremobiledeviceisstillpairedwith
yourPowerPlay.
No Power
• Deviceneedstobecharged.Connect
thedevicetoaUSBportandthepower
adaptor.
9
Specs
• Weight<7.4ounces
• Size:4.65inches(L)*1.54inches
(W)*1.54inches(H)
• RechargeableBattery:Lithium-polymer
3.7V5200mAh
• PowerConsumption:DC5V/500mA~1A
• SuperHighCapacityRechargeable
• Battery5200mAh,about300%of
smartphonebatterylife
• SpeakerFrequency:100Hz~20KHZ
• FrequencyRange:2.4000Ghz-2.480GHz
• Input/Outputvoltage:5V
• Signalandnoiseratio:≥75dB
• Powerofloudspeaker:2W*2
• Chargingtime–Approximately8hours
• Playingtime–Approximately32hours
(volumeat60%)
• Hands-freecalling–Bluetoothconnector
• LEDindicatorLightforBluetooth
• EffectiveDistance–upto33feet

©Copyright20135LINX®Enterprises,Inc.Allrightsreserved.
