7inova 7HP120 User manual

7HP120 User
Manua l V1.0

7HP120 User Manual
i
Contents
1 Introduction.........................................................................................................................1
1.1 Product Features..................................................................................................1
1.2 Application.............................................................................................................1
1.3 System Requirements......................................................................................... 2
1.4 Packing List...........................................................................................................2
2 Safety Precautions............................................................................................................ 3
3 Getting to Know the Adapter............................................................................................4
3.1 The Ethernet Interface.........................................................................................4
3.2 The Adapter's Buttons.........................................................................................4
3.3 The Adapter's LEDs.............................................................................................5

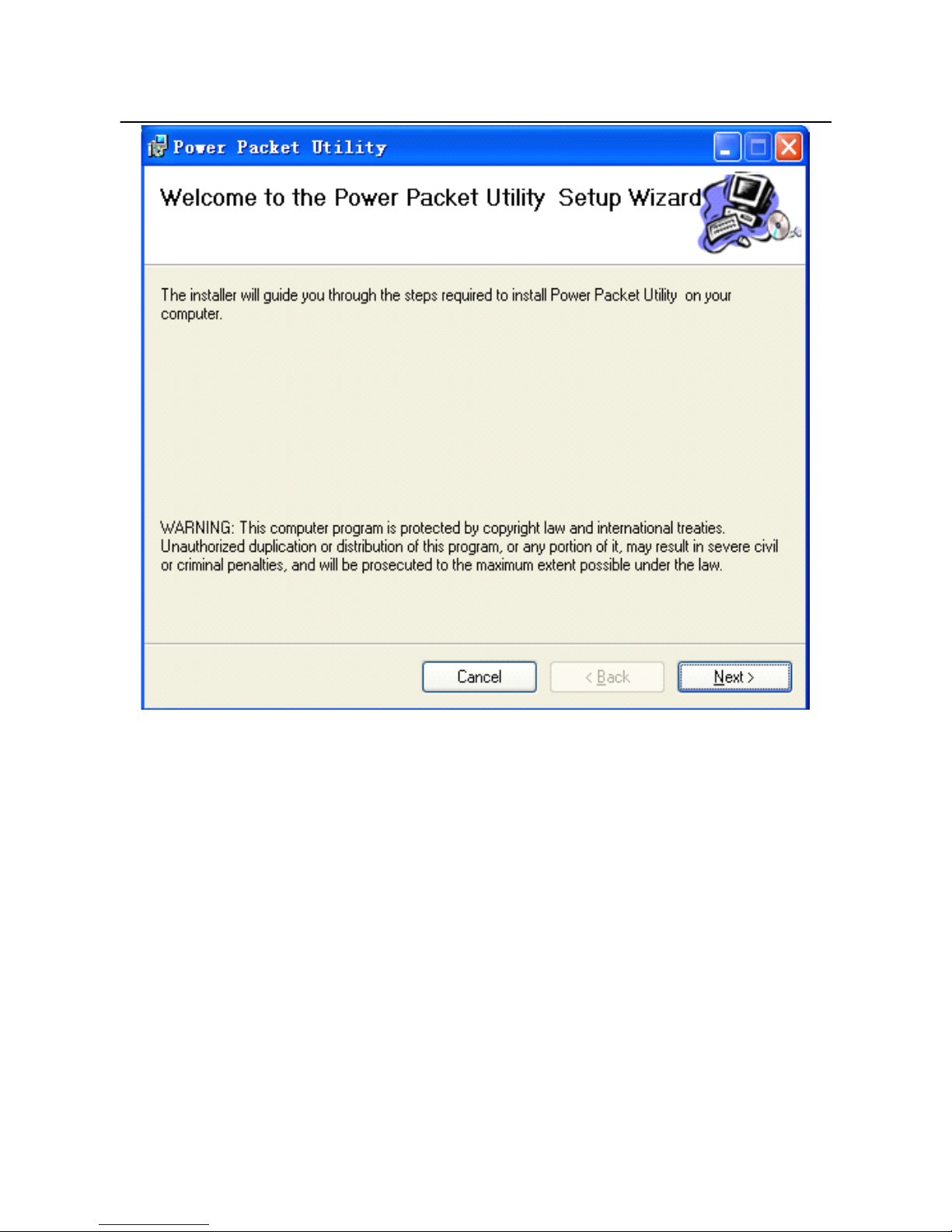

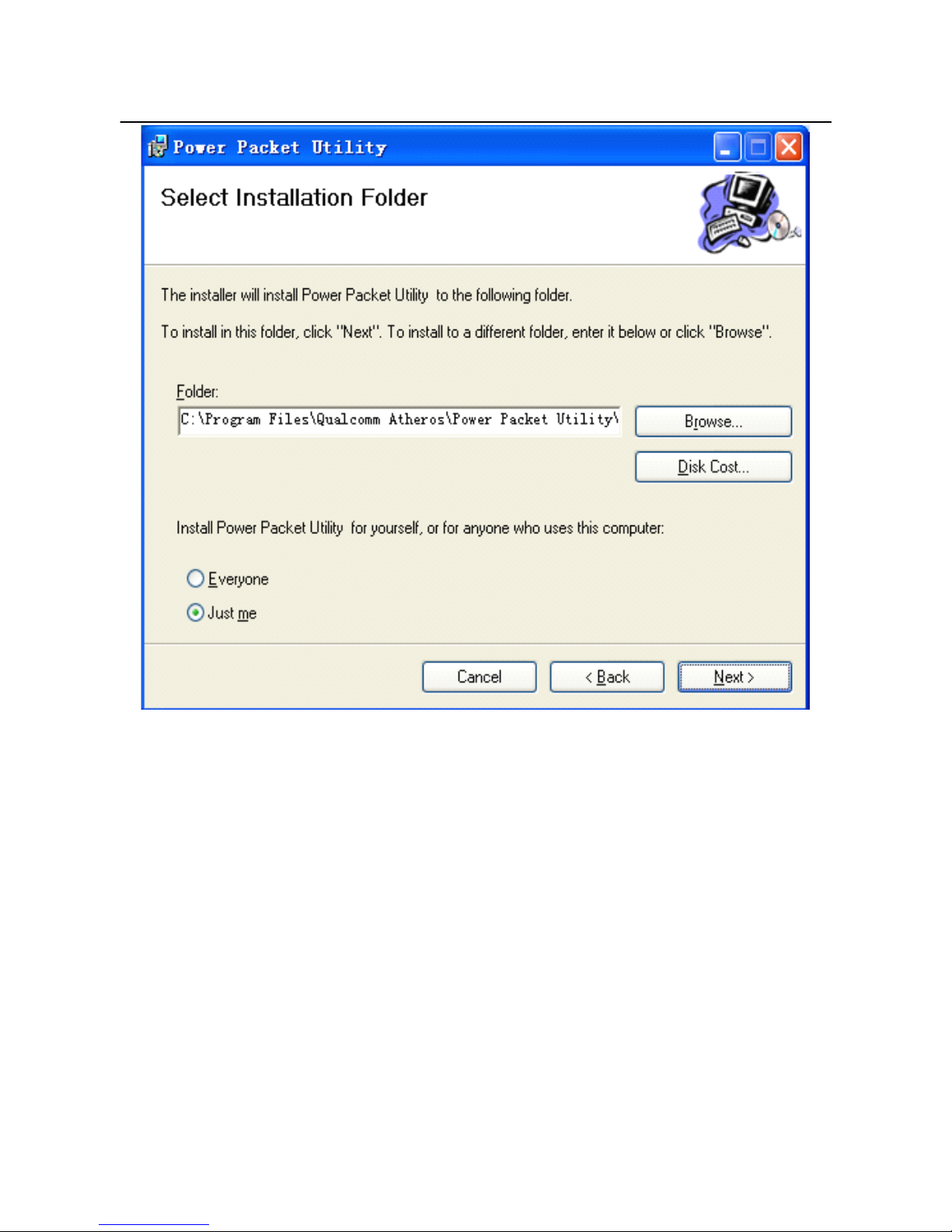

4 How to Install the Utility.....................................................................................................7
5 How to Use the Utility......................................................................................................15
5.1 Main Tab............................................................................................................. 15
5.2 Privacy Tab.........................................................................................................19
5.3 Diagnostics Tab..................................................................................................21
5.4 About Tab............................................................................................................23
6 Forming a HomePlug AV logical network.....................................................................25
6.1 Using the Security/Reset Pushbutton..............................................................25
6.2 Using the Utility.................................................................................................. 26
7 Joining a Network............................................................................................................28
7.1 Using the Security/Reset Pushbutton..............................................................28
7.2 Using the Utility.................................................................................................. 29
8 How to Improve the Transmission Capacity................................................................ 30
Appendix A Specifications............................................................................................. 31
Appendix BAcronyms and Abbreviations.........................................................................33
Appendix C About QoS............................................................................................. 34

7HP120 User Manual
1
1 Introduction
The 7HP120 is a mini-PLC adapter. It can transmit data up to 200Mbps in the
household powerline. It can be connected to the power socket directly without new
wire. The 7HP120 adapter can enter power save mode triggered by multiple
conditions. It can help you to establish a high-speed network that supports video,
voice and data without wiring and drilling. It is suitable for using in a wide range of
both residential (at home) and commercial (offices, apartments, hotels,
warehouses) network applications.
1.1 Product Features
�Without new wiring, every power socket becomes a connection node in the
household.
�Plug-and-play to your routers, computers and other network devices.
�Provides power save mode. In the power save mode, the output
consumption of the device is less than 0.5W.
�The physical data rate is up to 200Mbps.
1.2 Application
�High Definition (HD) and Standard Definition (SD) video distribution
�Higher data rate broadband sharing for powerline LAN
�Shared broadband internet access
�TV over IP (IPTV) and Voice over Internet Protocol (VoIP)

7HP120 User Manual
Figure 1 PLC Network
Architecture
1.3 System Requirements
�Operating system: Windows 98SE, 2000, ME, XP 32/64 bit and Vista
32/64bit
�CPU: Intel Pentium III or better, clock rate faster than 2.0GHz recommended
�RAM: At least 128MB
�Screen resolution: Any resolution
�Free disk space: At least 20MB
�Network interface: At least one Fast Ethernet (100 Mbps) network card, and
a Ethernet Cord
1.4 Packing List
�2 x 7HP120
�1 x CD ROM
�1 x Quick Installation Guide
�2 x RJ45 Ethernet cable
2

7HP120 User Manual
3
2 Safety Precautions
This device is intended for connection to the AC powerline. For installation
instructions, please refer to the installation section of this guide. The following
precautions should be taken when using this product.
�Read all instructions before installing and operating this product.
�Follow all warnings and instructions marked on the product.
�Unplug the device from the wall outlet before cleaning. Use a damp cloth for
cleaning. Do not use liquid cleaners or aerosol cleaners.
�Do not operate this product near water.
�This product should never be placed near or over a radiator or heat register.
�Do not use an extension cord between the device and the AC power source.
�Only a qualified technician should service this product. Opening or removing
covers may result in exposure to dangerous voltage points or other risks.
�Do not plug the device into a power strip or surge protector because these
devices may consist of filter and impair signal.
�Avoid plugging the device right next to noisy sources such as cell phone
charger, Halogen light, noisy desktop computer, vacuum cleaner, etc. These
cases result in poor transmission speed.
�Unplug the device from the wall outlet and refer the product to qualified
service personnel for the following conditions:
– If liquid has been spilled into the product
– If the product has been exposed to rain or water
– If the product does not operate normally when the operating instructions
are followed
– If the product exhibits a distinct change in performance
