A.caminetti Crystal 3D 50/60 Instruction manual

Manual of use installation & operation
www.acaminetti-factory.com

The passion and love for the wood fire inspired us to create the
unique fireplaces A.caminetti. A modern fireplace with a magnificent
and cozy fire that will fill your spirit with inspiration and will relax
your mind.Our philosophy is different and our vision is
positive.Starting from Gladys Taber quote,a house with no fireplace
is a house with no heart, we believe that every family deserve a
fireplace in their home,we simply do our best for that.The
price,quality and fire performance will make you a satisfied client.
01
Each material in our fireplaces are strictly choosen,we are
proud for our partners.
Partner companies: Senotherm / Schock metall / Schott
ROBAX / Culimeta / Skamol
Insert coat made of quality steel, in accordance with
EN 13229 Insert components manufactured using modern
cnc machines (2D Laser and press brakes)Insert welded
with MAG, guaranteed high quality.Steel door made of a
special profile, guaranteeing rigidity and high-temperature
resistance.Heat resistant ceramic glass with working
temperatures of up to 800°C.
Acaminetti company completes all the costumer requirements , we have a
new vision, to realise the fantasy of costumer with the Individual sizes. .
A.caminetti produce each model with individual sizes
Your fantasy turn into reality
Your faith to our company,for us is precious,we appreciate it maximally
and do our best to make you a satisfied client
High Efficency > 80%
Eco Friendly Product
Lovely Performance
Premium Design
A.caminetti – People‘s Fireplace

1.SAFETY
02
1.1 Risk of burning......................................................................04
1.2 Safe distance............................................................................
1.3 Putting into operation..........................................................05
1.4 Open operation.........................................................................
1.5 Fire in the chimney................................................................
1.6 Supply of combustion air.....................................................06
1.7 Unauthorized technical modifications........................................
CONTENTS
2. FUEL
2.1 Forbidden fuel............................................................................
2.2 Permitted fuel ...........................................................................
2.3 Types of wood........................................................................06
2.4 Storage of wood fuel..............................................................07
2.5 Recommended dose of fuel.......................................................
3. DESCRIPTION OF CONTROL ELEMENTS
3.1 Description of control elements.............................................08

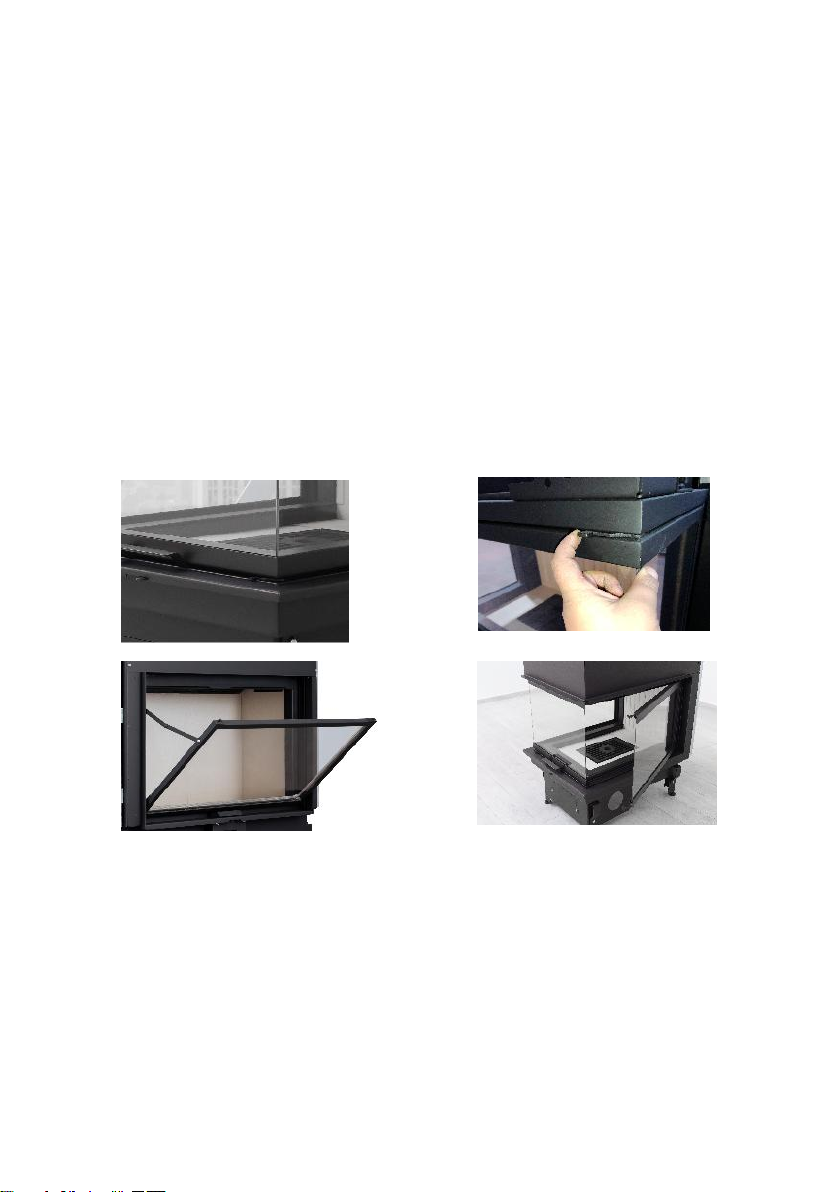

3.2 Options for closing the door......................................................
4. OPERATION OF FREPLACE INSERTS
4.1 Commissioning, burning phase and regulation of air supply..09
4.2 Operation in the transient period...........................................10
5. CLEANING AND MAINTENANCE
5.1 Cleaning the glass....................................................................11
5.2 Removing ash.............................................................................
5.3 Regular specialist maintenance..................................................
6. WHAT TO DO IN THE CASE OF A DEFECT........................................12

03
7. GENERAL WARRANTY TERMS
7.1 Important information..........................................................13
7.2 Warranty conditions.................................................................
7.3 Warranty period.......................................................................
7.4 Common wearing.....................................................................
7.5 Repair and maintenance.......................................................14
7.6 Making a claim..........................................................................
8. INTRODUCTION.....................................................................14
9. PRODUCTS....................................................................................15
10. CHECKING THE PRODUCT..........................................................16
11. CORRECT POSITIONING OF THE FIREPLACE...........................
12. TRANSPORT.................................................................................17

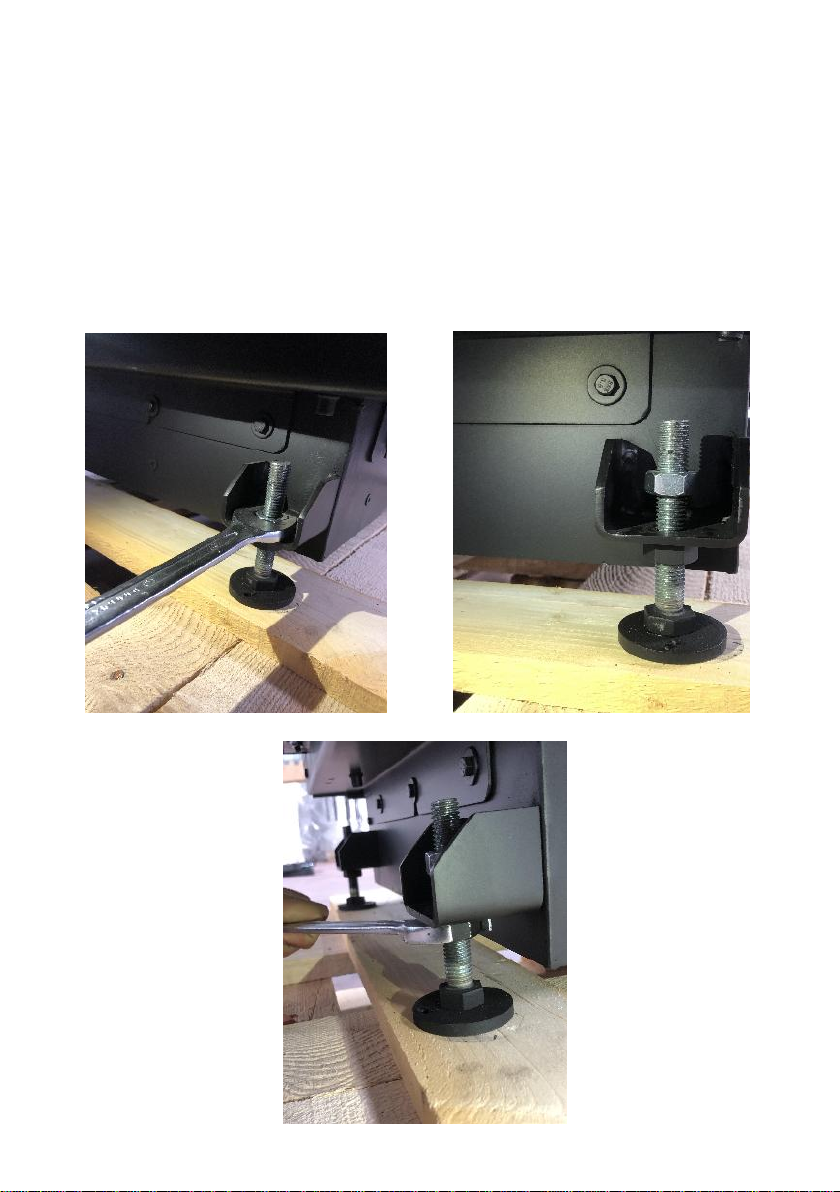

13. POSITIONING THE FIREPLACE INSERT.....................................18

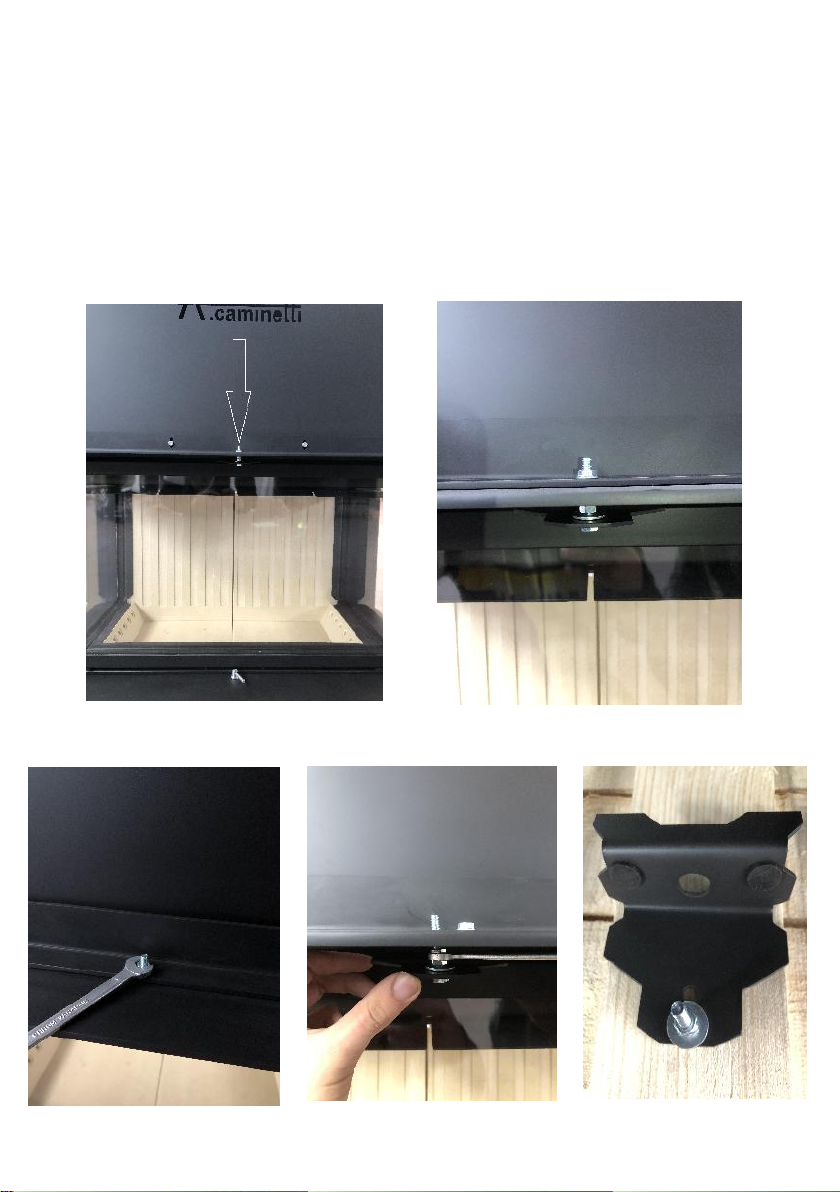

14. REMOVING THE TRANSPORT SECURING...............................19
15. GAS OUTLET VARIANTS.............................................................20
16. CONNECTION TO THE CHIMNEY..............................................21
17. AIR SUPPLY FOR BURNING.....................................................
18. CONDRAWEIGHT PLACEMENT..................................................22
19. DEFLECTOR...................................................................................23
20. LIFTDOOR MODELS.....................................................................24
21.INSTALLING THE FIREPLACE INSERT.................................. 25-27
20. PERMITTED INSULATING MATERIALS.....................................28

Carefully read these instructions for using the fireplace insert and keep the manual in a
safe place. A.caminetti fireplace inserts are certifed according to European standard EN
13229 and carry the CE indication. When assembling the fireplace insert, you must comply
with local regulations and instructions applicable to national and European standards. To
ensure that your freplace operates correctly, the fireplace must be builded by a
specialized company.
1.2. Risk of burning
Do not leave children near the fireplace insert unsupervised.
1.3. Safe distance
- The door, handle and glass are hot when in operation – there is risk of burning!
As a protection against fying sparks on flammable types of floors (carpet,
wooden floor, cork, etc.) there must be used a fire-proof layer (ceramics, stone,
glass or metal) with minimum dimensions (see Fig. 1). The distance is measured
from the glass in the fireplace insert.
- Always close the door even when fireplace is cold and only open it when
starting fre, adding wood or cleaning the insert.
All the surfaces of fireplace insert are very hot when in operation. For
servicing, use the attached glove and:
In the area where the fire is visible there is direct heat radiating, the minimum
distance of 80
cm from flammable items must be kept (flammable parts of the construction,
wood, furniture, decorative textile, carpets, curtains, etc.). Outside the area of
visibility of the fire, there must be a minimum distance of 20 cm from fammable
materials (flammable parts of the construction, wood, furniture, decorative
textile, carpets, curtains, etc.). The distance is measured from the glass in the
fireplace insert (Fig. 1).
1. SAFETY
04
1.1. Safety instructions
FIG.1

- The paint is soft during burning so do not touch it.
A.caminetti freplace inserts are not designed to be operated with an open door.
The fireplace must always be closed
with the exception of adding fuel so as to prevent burning wood falling out
and combustion gases leaking into the room.
1.4. PUTTING INTO OPERATION
- Open doors and windows in the room so that the area is
fully ventilated.
- The frst two batches of the fuel should correspond to the lower
limit of the recommended batch for the product
1.5. OPEN OPERATION
remove all attached documents and accessories from the fireplace. when first
heating up the fireplace insert, the high temperature resistant paint will dry and
harden. this drying and hardening is accompanied by a smell. the fumes are
not toxic, but are unpleasant. follow those rules:
05
1.6. FIRE IN THE CHIMNEY
When burning wood, sparks from the fireplace may get into the chimney and
ignite the built up layer of soot. Therefore, the fireplace insert, smoke flue and the
chimney must be regularly cleaned. If starting the heating after a long break in
operation, then first check that the system is not blocked anywhere.
A fire in the chimney is indicated by flames coming from the mouth of the chimney with
sparking and smoke and with a smell from the fireplace. In this case:
Call the fire brigade!
- Close the air supply of the fireplace insert.
- Remove all flammable items from nearby the chimney
Before the arrival of the fire brigade, do not try to extinguish the fire in the chimney
with water. In the case of a chimney fire, the temperature can reach up to 1,300 °C.
In this case, the water will immediately turn into a huge quantity of steam and destroy
the chimney.
- After the fire is gone, contact a chimney sweep who can assess the condition of the
chimney.

In the fireplace insert it is forbidden to burn any other fuel than that designated for its purpose.
Itis also forbidden to burn liquid fuel and waste. Under no circumstances should petrol, alcohol,
solvents, etc, be used for ignition! The use of any other fuel than that permitted will damage
thefireplace insert and load the environment and will also automatically invalidate the warranty.
The freplace insert is technically adapted for the combustion of air supplied from the
exterior. If during assembly the freplace insert was not connected to this external air
supply, it is necessary to ensure a suffcient quantity of combustion air in the room
by ventilation. Do not use the freplace insert together with other heating equipment
or a consumer appliance that may create under-pressure in a closed room.
Components for controlling the air supply into the freplace insert must not be
modifed.
2. FUEL
It is forbidden to interfere with the construction of freplace insert. If any
unauthorized technical modifcations are made, the manufacturer will not bear
any liability for safety during the operation of equipment and the warranty will
be automatically invalidated. Only spare parts approved by the manufacturer
must be used.
1.8. UNAUTHORIZED TECHNICAL MODIFICATIONS
1.7. SUPPLY OF COMBUSTION AIR
2.1 FORBIDDEN FUEL
06
2.2. PERMITTED FUEL
It is only permitted to burn only wood in natural condition with the
humidity 18 % in A.caminetti fireplace inserts.
2.3. TYPES OF WOOD
The volume of energy contained in one kilogram of wood is approximately
the same for all types of wood. However, the individual types of wood differ
by volume, i.e. density.
For ignition it is recommended to use wood with a lower density – soft
wood (spruce, pine, poplar, fir)
For regular adding, wood with a higher density is recommended – hard
wood (oak, beech, ash), that burns with calm flame and creates a steady
heat.

010
1
2
3
4
5
fresh wood
dry wood

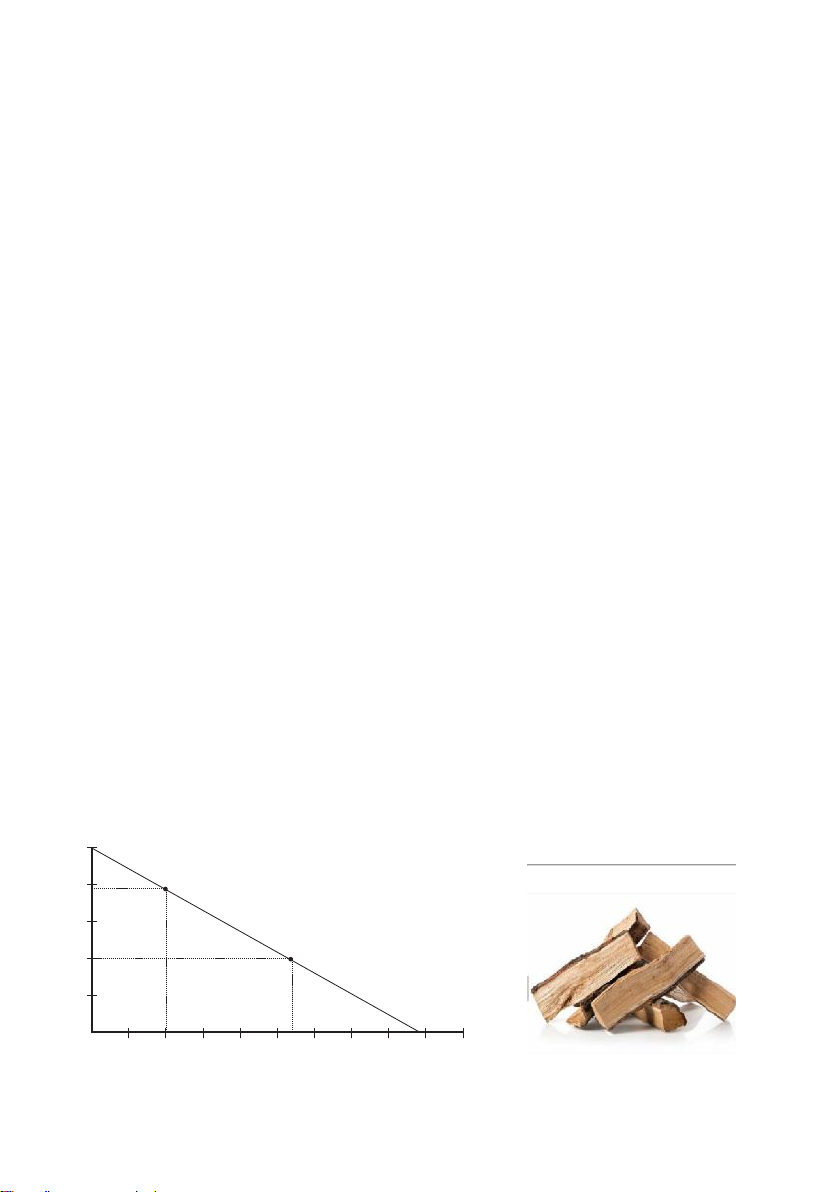

Graph of the dependence of the fuel and the calorific value
% H2O
20 30 40 50 60 70 80 90 100
kWh/kg
FIG. 4
07
2.4. STORAGE OF WOOD FUEL
it is recommended to store wood for ideally 2 to 3 years in well ventilated and
dry area. optimally, wood is recommended to be stored to the southern part of
the house on a grid to provide a fow of air and good ventilation of wood. we
recommend to cover the top of the wood to protect against rain (fig. 3). in this
way, humidity of 15–18 % will be achieved.
Under no circumstances should you use fresh wood. Fresh wood has humidity of
approximately 60 % and a caloric capacity less than 2 kW/h per 1 kg (Fig. 4). To
create the same volume of heat energy would require twice the volume of fuel.
Moreover, when using fresh wood, the fireplace insert does not achieve the
optimal burning temperature, efficiency and low emissions of pollutants. Burning
wood with high humidity excessively overloads the fileplace insert and rapidly
shortens its service life. In the case of repeated burning of wet wood, the insert or
parts of the insert can be damaged! This will also block the chimney and increase
the risk of fire in the soot in the chimney.
2.5. RECOMMENDED DOSE OF FUEL
Doses of wood fuel used in the fireplace insert must vary between the maximum and minimum
stated value (see table). If adding another batch of fuel than that stated, the fireplace insert can
be damaged, become less efficient and the emission values are increased. The fireplace insert is
designed for short-term combustion operation. The interval for adding fuel should vary within
the range 45-60 minutes.
Note: 1 kg hard wood with 18% humidity corresponds to one 30 cm long piece of wood with a
diameter of 10 cm. During burning this quantity of wood releases approximately 4 kW/h of
energy, therefore, adapt the doses to the energy demands of your house.
Note: 1 kg hard wood with 18% humidity corresponds to one 30 cm long piece of wood with a
diameter of 10 cm. During burning this quantity of wood releases approximately 4 kW/h of
energy, therefore, adapt the doses to the energy demands of your house.
30 cm
10 cm

FIG. 5A FIG. 5B
3. DESCRIPTION OF CONTROL ELEMENTS
3.2. OPTIONS FOR CLOSING THE DOOR
1– automatic closing of the door
2– manual closing of the door
A.caminetti fireplace inserts enable two methods of closing the door:
The door is set in production for manual closing
–1. if you want the door to automatically close
, inform your freplace builder before starting construction.
3. 1. DESCRIPTION OF CONTROL ELEMENTS
1. handles for opening the
door for cleaning
2. handle for opening the door
3.air control
4. ceramic glass
7.lift door system covering
5. condra weight covering
6. fireplace leveling
08
A.caminetti fireplace inserts are produced in one basic versions
for opening the door:
- liftdoor system (fig. 5a) (fig. 5b)

4.1.
First check that there is no large quantity of ash in the burning chamber. This would cause hot
particles to fall from the fireplace insert into the room when adding wood.
2.
3.
Place into the upper part of inserted wood (Fig. 7b), between the small pieces of wood,
thestated ignition piece then ignite it.
FIG. 7A FIG. 7B
Open the door of the fireplace and on the bottom of the chamber place the dose of fuel
recommended for your type of the fireplace insert against the rear wall. First place the
larger pieces of wood, then smaller pieces (Fig. 7a).
COMMISSIONING, BURNING PHASE AND REGULATION OF AIR SUPPLY
4. OPERATION OF FIREPLACE INSERTS
1. Set the handle for regulation of the air supply for burning to the maximum
This ensure a sufficient supply of air for ignition.
09
4. Close the door and observe the fire until it is fully burning.
5. If the file is burned and the whole dose of fuel is burning, set the regulation of the air
supply into the central position (Fig. 8) to achieve the optimal output .
If the burning did not start, repeat the step No. 4.
If it is not necessary, do not open the door of the fireplace and do not interfere with the burning Leave
the dose of the fuel to burn out. Add the next dose in the heat phase (active burning with flames
terminated). Slowly open the door to prevent the escape of smoke into the room and add the dose of
the fuel to your fireplace .
6.

7. If you do not want to add more fuel and the dose has burnt out, set the regulation of air to
the left to the minimum (Fig. 9). This will prevent burning air getting into the chamber and will
prolong the heat phase. The coal will remain hot in the chamber longer and the heat will not
escape through the chimney.
Notifcation: During active burning (visible fre), never close the air supply and do not
smoother the fre! Air fowing into the burning chamber cools the ceramic glass. If closing
the supply of air, it can be overheated and irreversible changes can occur in the crystalline
structure of the glass. During burning with an insuffcient air supply, an excessive amount of
harmful carbon monoxide - CO will originate. In the case of opening the air supply too fast,
there may be a rapid reaction of the collected gases with the oxygen.
10
Note!! In all the models the opening of air supply is when it is marked
number 1,the closing of air supply is when it is marked number 0.
4.2. OPERATION IN THE TRANSIENT PERIOD
For the correct function of the fireplace insert, a sufficient draught in the chimney is
required, which depends on the outdoor temperature. In winter when the outdoor
temperature is low, the chimney has the highest draught level. A problem with a sufficient
draught may occur in the transient period (before and after winter). A higher outdoor
temperature worsens the burning and increases the volume of the smoke. These undesirable
phenomena can be prevented as follows:
- When starting, increase the first dose of the fuel by 30 %, to quickly achieve the requested
draught in the chimney.
- Do not cut the wood into small pieces; this will result in heating the chimney too fast and
stabilize the draught.
- Leave the lever for the air supply in maximum position.
- Only add well dried wood.

Notification: Before starting to clean the fireplace insert, make sure that is cold and has
completely finished burning. The frequency of cleaning and the intensity of the maintenance
(fireplace insert, smoke flue, chimney) depends on the quality of the burnt wood. If the fireplace
insert was not in operation for a long time, then before heating, it is necessary to check that
thechimney is not blocked.
5.1. CLEANING THE GLASS
5.
CLEANING AND MAINTENANCE
The door of the A.caminetti fireplace insert is produced from high-quality ceramic glass and is fitted
with a self-cleaning ceramic glass system. Air supplied into the combustion chamber “rinses”
the glass from the inside. Correct regulation of air and by burning dry wood will result in clear glass
that won’t need to be cleaned very often. To clean dirty glass in the fireplace insert with the liftdoor,
first open all the handles along the perimeter (Fig. 10a). Then open the door into the cleaning
position
11
FIG.10A
FIG.10B
Only clean the glass with a wet paper cloth. If this is insufficient, apply a small amount of clean ash from
the burning chamber of the fireplace insert. Then wash the glass again with a wet paper cloth and polish
with a dry cloth.Do not use in any circumstances any aggressive cleaning detergents! These can damage
the components in the door of the fireplace insert (sealing, polished areas, stainless bars, imprinting of
glass, etc.).
5.2. REMOVING ASH
Notice: Ash can contain hot coal for up to 24 hours.Always remove the ash when it
is cold and extinguish the fireplace insert! Then place them for 24 hours into a
non-flammable vessel out of the reach of children. Your A.caminetti fireplace
insert uses the latest and the most effective grid-free method of burning. Remove
the ash within regular intervals adapted to the intensity of the heating. When
cleaning, leave a small quantity of ash to speed up the ignition.

Once a year, before starting the heating season, the fireplace insert should be inspected by
anexpert - fireplace technician. This maintenance should include:
checking the sealing parts and mechanism for opening
the door of the fireplace insert
5.3. rEGular SPECialiST MaiNTENaNCE
checking and cleaning of the burning chamber
and burnt passages
for hot-air fireplace insert: -
- checking the regulation and air supply system
12
6. WHAT TO DO IN THE CASE OF A DEFECT
The glass is heavily smoked
Possible reasons:
- incorrect fuel is used
- regulation of the combustion air is not opened -
- the line for the external air supply is blocked (contact your fireplace technician)
- the draught of the chimney is insufficient - in the transient period.
The fire does not want to ignite and keeps on going out
Possible reasons:
- incorrect fuel is used
- regulation of the combustion air is not opened -
- the line for the external air supply is blocked (contact your fireplace technician)
- the draught of the chimney is insufficient - in the transient period.
Smoke escapes into the room when wood is added
Possible reasons:
- incorrect fuel is used
- the draught in the chimney is insufficient – in the transient period
- the door was opened too fast
- fuel was not added in the correct phase of burning
- the door sealing is damaged (contact your fireplace technician
The wood burns too quickly or the consumption of the wood is too high
Possible reasons:
- incorrect fuel was used
- recommended dose of the fuel was not kept
- the air supply for burning did not reduce
- the door is not completely closed
The cooling loop often switches off
Possible reasons:
- the recommended dose of the fuel is not kept
- there is a high temperature of the accumulation tank – stop and add wood
- the valve is damaged (contact your fireplace technician)
- there was an electricity breakdown – stop to add wood
If defects continue, contact your fireplace technician!!

7.1. IMPORTANT INFORMATION
-
7.3. WARRANTY PERIOD
7. GENERAL WARRANTY TERMS
A.caminetti products are produced from high-quality materials with a long service life.
The whole manufacturing process is the subject of regular inspection to prevent any
defects.
The installation of this product requires professional knowledge and, therefore, must
only be done by qualifed companies aware of the valid legal provisions.
Note: Damage which exceeds the fnancial framework of our delivered devices, will not
be acknowledged unless stated by law otherwise.
7. 2 . WARRANTY CONDITIONS
The freplace insert may only be installed by a professional company in accordance with
our manuals and local standards.
- It is forbidden to make any technical changes to the freplace.
- During operation of the freplace insert, the operator must follow the stated user manual.
-
The warranty does not apply to damage originated during transport due to incorrect
storage in a wet environment.
- The warranty does not apply to common wearing of the freplace insert
The warranty does not apply to damage caused by overheating the freplace insert, i.e.
excessive volume of fuel, i.e. adding excessive volume of fuel , or use of the forbidden fue .
The warranty period starts from the day of sale to the end client. The warranty period for the
body of the freplace insert is 5 years. The warranty period for all mechanical parts and parts in
contact with fre is 2 years. The warranty does not apply to for common wearing parts .
13
7.4. COMMON WEARING
Warranty conditions do not apply to parts which are the subject of common wearing, particular
concerning:
Wearing of t he fireplace bed: Refractory / skamol plates are expanded or contracted during operation
due to thermal loading. During these processes, micro cracks may originate. If refractory
/ skamol plates keep their form and are not broken, then they fulfil their function.

7.5. REPAIR AND MAINTENANCE
7.6. MAKING A CLAIM
Wearing of surface treatment: colour change of the varnish surfaces due
to thermal stressing or overheating.
Wearing of sealing: decreasing the tightness due to the affection of heat, mechanical
wearing and hardening of sealing.
Wearing of glass: dirtying by soot or remainders of burn materials, colour or other
changes by the affection of heat.
During the warranty period, all defects will be repaired where the reasons are proven defects
to material and manufacturing defects. Compensation for defects outside the boundaries of
this damage is excluded.Maintenance of the device or the replacement of components will
not extend the warranty period. For the replaceable parts, the warranty period stated by law
is valid.
To make a warranty claim, contact your freplace technician
and submit:
- warranty certifcate
- description and photo documentation of the defect
CONTACT YOUR FIREPLACE TECHNICIAN !!
14
8. INTRODUCTION.
- Before starting work, carefully read this manual.
- We do not bear any liability for any damage that may occur as a result of complying
with the instructions in this manual, which will also invalidate they warranty.
- Injury and damage to the materials may occur if the procedure is not followed correctly.
- Following this manual and ensuring professional installation will result in energy
saving and ecological operation.
- When assembling the onsumer appliance, follow all local regulations and regulations
regarding national and European standards.
- Keep this manual in a safe place.

15
MODEL POWER OUTPUT DOSE OF CO LOAD OF WOOD EFFICIENCY
(KW) (%) (KG) (%)
CRYSTAL 3D 50/60 14 KW 0.041% 2-3 kg/h 85%
CRYSTAL 3D 50 14 KW 0.041% 2-3 kg/h 85%
CRYSTAL 3D 15 KW 0.032% 3-4 kg/h 85%
CRYSTAL 3D MAX 17 KW 0.031% 3-4 kg/h 87%
CRYSTAL 80 MAX 13 KW 0.044% 2-3 kg/h 85%
CRYSTAL 90 MAX 17 KW 0.031% 3-4 kg/h 87%
CRYSTAL 110 MAX 18 KW 0.028% 3-4 kg/h 88%
QUATTRO 80 MAX 13 KW 0.036% 2-3 kg/h 89%
QUATTRO 90 MAX 14 KW 0.033% 2-3 kg/h 87%
QUATTRO 100 MAX 17 KW 0.045% 3-4 kg/h 85%
FLAT Premium 60x50 13 KW 0.075% 3-4 kg/h 88%
FLAT Premium 75x50 14 KW 0.076% 2-3 kg/h 87%
FLAT Premium 75x60 15 KW 0.077% 3-4 kg/h 86%
FLAT Premium 90x60 19 KW 0.082% 3-4 kg/h 83%
FLAT Premium 90x70 19 KW 0.082% 3-4 kg/h 83%
FLAT Premium120x50 21 KW 0.084% 3-4 kg/h 81%
PRODUCTS
www.acaminetti-factory.com

Immediately after receipt of the consignment, check:
- that there is no visible damage
-
that the consignment is fully complete and contains:
- Installation and User Manual
- Warranty Certificate
IMMEDIATELY NOTIFY YOUR SUPPLIER OF ANY POTENTIAL DEFECTS AND DISCREPANCIES.
9. CHECKING THE PRODUCT.
that all movable parts and mechanisms are functional
-
16
10. CORRECTPOSITIONING OF THE
FIREPLACE INSERT.
When choosing the correct position for the fireplace insert, the following
requirements should be taken into consideration:
- The position of the fireplace insert must be approved by the construction supervisor
(chimney foreman).
- A sufficient air supply must be ensured in the room. Burning 1 kg of the wood requires
approximately 12 m3 of air.
- There must not be any electric cables running through the wall or ceiling where the
fireplace insert will be installed.
- The distances from walls and floors as well as distances from electricity cables and
flammable materials in walls and ceilings, e.g. wooden beams, must also be taken into
account.
- The consumer appliance must be positioned on a floor with the respective floor load
capacity.
The fireplace must not be positioned in rooms:
- where there is no air supply for burning
- where flammable and explosive substances or mixtures are processed, stored or produced
- where by the exhaustion of air, the under-pressure originates towards outdoor
environment (ventilators, fume hoods, ventilation and heating equipment,
ventilation driers, etc.)

-
-
11. TRANSPORT
Handling the fireplace insert is made easier by using the transport handles which
can be inserted into the on the body of the fireplace insert (Fig. 1).
Before transporting, make sure that both the ejection mechanism of the
doors (applicable to fireplace inserts with liftdoors) and linning of the
fireplace are secured.
17

- The fireplace insert must be positioned on a base with the respective load-bearing capacity.
- The fireplace insert must be positioned on the foundation plate, not on an unstable
or movable surface.
-
12. POSITIONING THE FIREPLACE INSERT
The distance of the fireplace insert from the floor can be regulated by turning the legs . Use the
adjustable legs to balance out a height difference of up to 6 cm (only 1 cm for corner inserts).
The fireplace insert must then be balanced horizontally.
18

-
-
After removing of the securings, check the movement of the door. If there are any defects, inform
your supplier and stop the installation work.
After positioning the fireplace insert, remove the transport securings that prevent damage
tothe lift-down door mechanism.
13. REMOVING THE TRANSPORT SECURINGS
19
This manual suits for next models
15
Table of contents
Popular Indoor Fireplace manuals by other brands

Paramount Fitness
Paramount Fitness EF-WM407 instruction manual

Lennox
Lennox Signature ESTATE EST-48 installation instructions

Quadra-Fire
Quadra-Fire Quadra-Fire VOYAGEUR-MBK installation manual

IN & OUT HOUSE
IN & OUT HOUSE Mantel MT197B Assembly instructions

Dimplex
Dimplex DF3033ST owner's manual

Napoleon
Napoleon GIZT3K installation instructions

Mendota
Mendota AA-11-02969 Installation and operating instructions

Regency
Regency L676S-LP1 Sunrise Specification sheet

ORTAL
ORTAL 98HH Series Installation and operation manual

Village
Village QVI35 Installer's guide

EdilKamin
EdilKamin H2OCEANO 15 CS Installation, use and maintenance

Piazzetta
Piazzetta 760T HT/C Instructions for installation
