Dimplex Toluca Deluxe User manual

INSTRUCTION MANUAL
For domestic household use only.
Toluca Deluxe 2kW Wall-Mounted
Electric Fire
Model: TLC20LX-AU
8/53789/0 Issue 5
OCN 11905

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your product for
the first time and keep them in a safe place.
• When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electrical shock and injury to persons,
including the following:
• If the appliance is damaged, check with the supplier before installation and
operation.
- Do not use outdoors.
- Do not use in the immediate surroundings of a bath, shower or a
swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface, or fix it to the
wall, as applicable.
• Do not locate the appliance immediately below a fixed socket outlet or
connection box.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Do not use this appliance in series with a thermal control, a program
controller, a timer or any other device that switches on the heat
automatically, since a fire risk exists when the appliance is accidentally
covered or dis-placed.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is only intended for INDOOR RESIDENTIAL applications only.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
cord away from traffic areas and where it will not be a tripping hazard.
• This appliance must not be used in a bathroom.
2

• Although this appliance complies with safety standards, we do not
recommend its use on deep pile carpets or on long hair type of rugs
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged it must be replaced by the manufacturer or
service agent or a similarly qualified person in order to avoid a hazard.
• Keep the supply cord away from the front of the appliance.
• Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision is
provided.
• To reduce the risk of fire, keep textiles, curtains and or flammable material a
minimum distance of 1m from the air outlet.
• In order to avoid overheating, DO NOT COVER the appliance. Do not place
material or garments on the appliance, or obstruct the air circulation around
the appliance, for instance by curtains or furniture, as this could cause
overheating and a fire risk.
• This Heater carries the warning symbol indicating that it must not
be covered.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-
out, this appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched
on and off by the utility.
• CAUTION Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and vulnerable
people are present.
• Children shall not turn on/off the appliance.
• Ensure that furniture, curtains or other combustible material are positioned
no closer than 1 metre from the appliance.
• Unplug the appliance when not required for long periods.
• Keep the supply cord away from the front of the appliance.
• This product is only suitable for well insulated rooms or occasional use.
• This heater shall not be located in front of a socket-outlet.
• Do not use this heater with an extension lead or power cord.
3

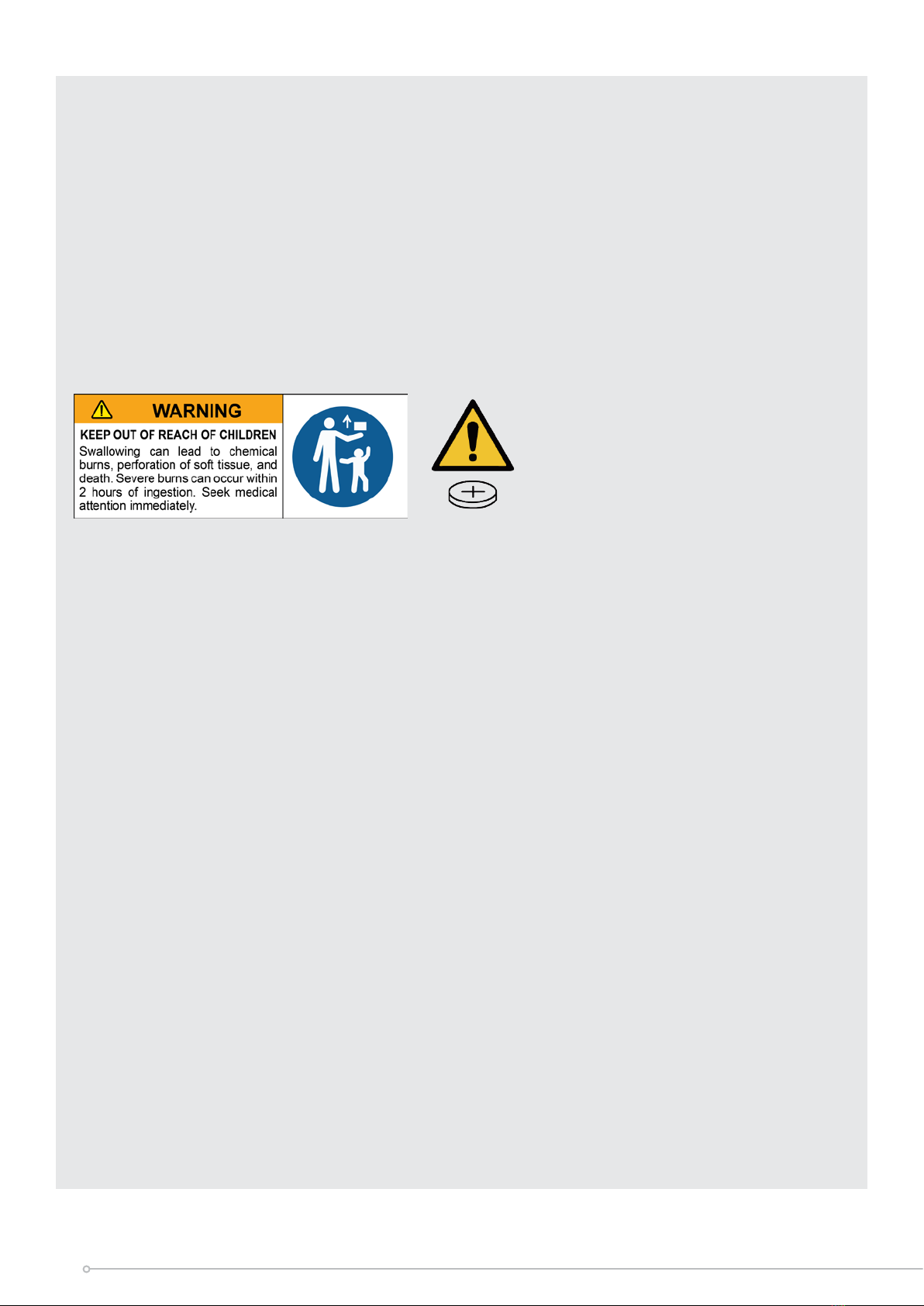

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery
immediately call the 24-hour Poisons Information Centre on 13 11 26 (in
Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can
still be dangerous.
CAUTION: No obvious symptoms
Unfortunately, it is not obvious when a button or coin battery is stuck in a
child's oesophagus (food pipe).
There are no specific symptoms associated with this. The child might:
• cough, gag or drool a lot
• appear to have a stomach upset or virus
• be sick
• point to their throat or stomach
• have a pain in their abdomen, chest or throat
• be tired or lethargic
• be quieter or more clingy than usual or otherwise 'not themselves'
• lose their appetite or have a reduced appetite
• not want to eat solid food/be unable to eat solid food
These types of symptoms vary or fluctuate. with the pain increasing and then
subsiding.
A specific symptom to button and coin battery ingestion is vomiting fresh
(bright red) blood. If the child does this seek immediate help. The lack of clear
symptoms is why it is important to be vigilant with 'flat' or spare button or
coin batteries in the home and the products that contain them.
4

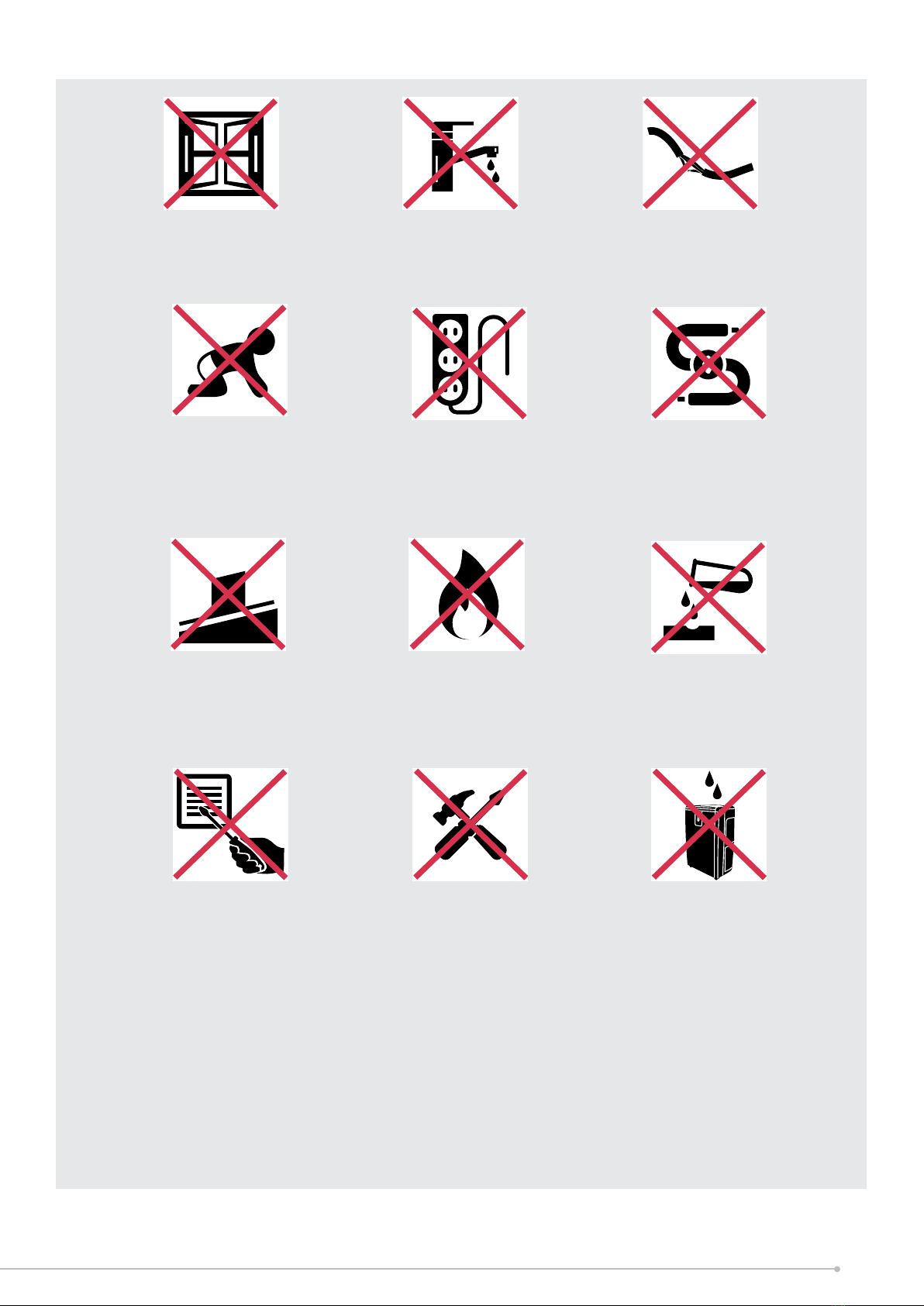

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension leads or
power boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
5

Model no. TLC20LX-AU
Colour/Finish Black
Wattage 2000
Heat Settings 2
Thermostat Control Y
Remote Control Y
Warranty 2 years
Dimensions (w x d x h) 820 x 155 x 540
Specifications
For greater precision, please always refer to the rating label placed on the product.

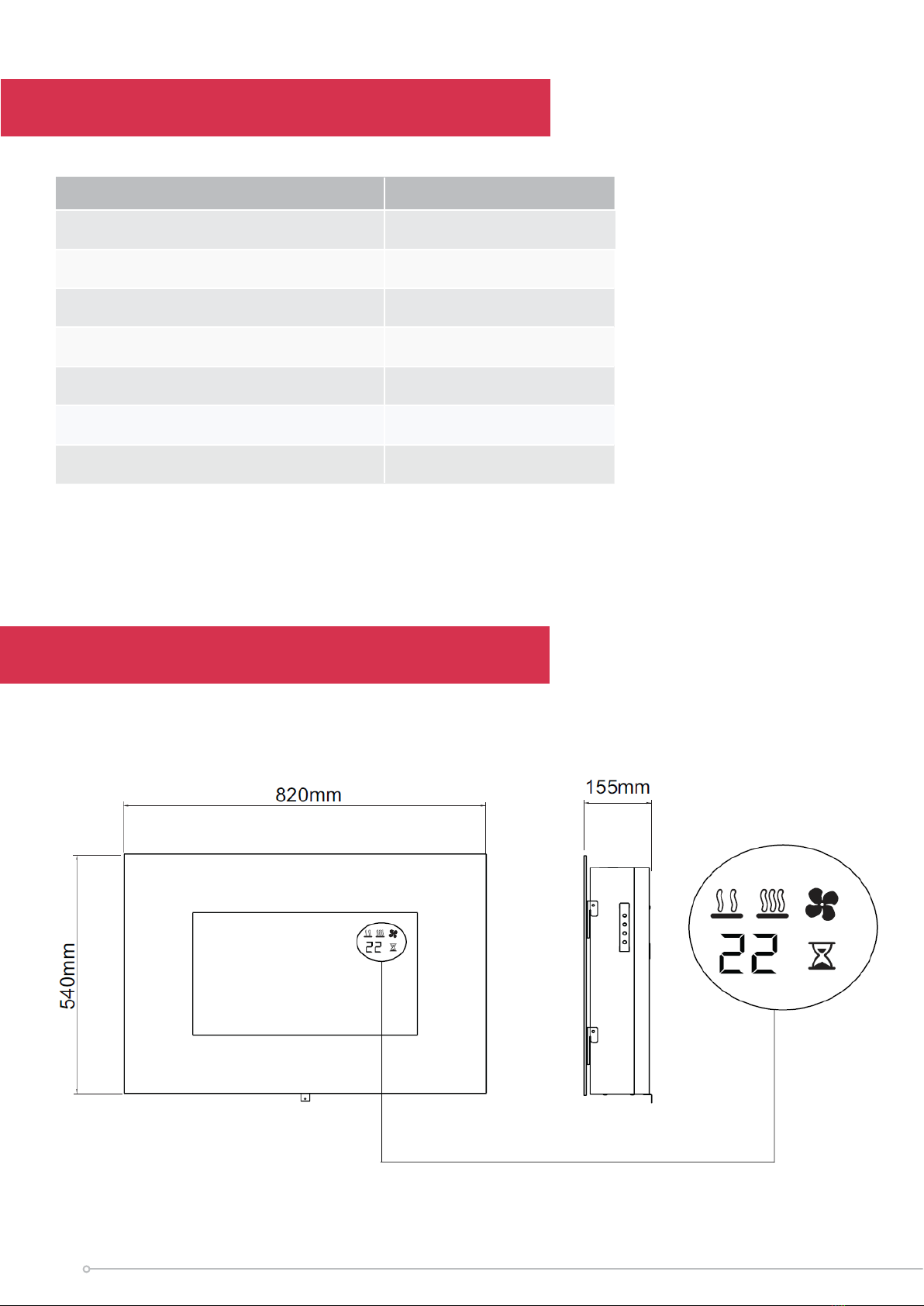

Product Dimensions
6

General Information
The fire incorporates a flame effect, which can be used with or without heat, so that
the comforting effect may be enjoyed at any time of the year.
To reduce heat loss and to prevent any chimney up draft affecting the operation of
your stove fire, we recommend that the chimney flue is sealed off.
Always ensure that the appliance is sitting on a level surface.
Before connecting the appliance, check that the supply voltage is the same as that
stated on the appliance.
Please note: Used in an environment where background noise is very low, it may be
possible to hear a sound which is related to the operation of the fan heater & flame
effect. This is normal and should not be a cause for concern.
Electrical Connection
WARNING: THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the voltage marked on the
heater must correspond to the supply voltage. Before switching on, please read the
safety warnings at the start of the instruction manual and operating instructions to
follow. Please retain this user’s guide for future reference
Light Emitting Diode
This fire is fitted with LED (Light Emitting Diode) bulbs in place of traditional
incandescent bulbs. These generate the same light levels as traditional bulbs, but use
a fraction of the energy consumed. These LED lamps are maintenance free and should
not require replacing during the life of the product.
Thermal Safety Cut-out
A thermal safety cut-out is incorporated in the fan heater to prevent damage due
to overheating. This can happen if the heat outlet was restricted in any way. If the
cut-out operates, unplug the heater from the socket outlet and allow approximately
10 minutes before reconnecting. Before switching the heater back on remove any
obstruction that may be restricting the heat outlet, then continue normal operation.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-
out, this appliance must not be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly switched on and off by the utility.
Setup
7

Installation
WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF
YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND
ON THIS PRODUCT.
WARNING: THE APPLIANCE IS PROVIDED WITH A WALL FIXING KIT, THIS KIT
IS DESIGNED TO HOLD THE PRODUCTS WEIGHT. IT IS NOT A SUBSTITUTE FOR
PROPER ADULT SUPERVISION. DO NOT ALLOW CHILDREN TO CLIMB OR HANG
ON THIS PRODUCT.
Safety Message: Sufficient expertise is required for installing this product. If unsure
we recommend that you use an installer and pay special attention to safety during
the installation.
Wall Installation
Do not connect the appliance until it is properly fixed to the wall and the instruction
manual/leaflet is completely read and understood. In particular, the minimum dis-
tances must be observed.

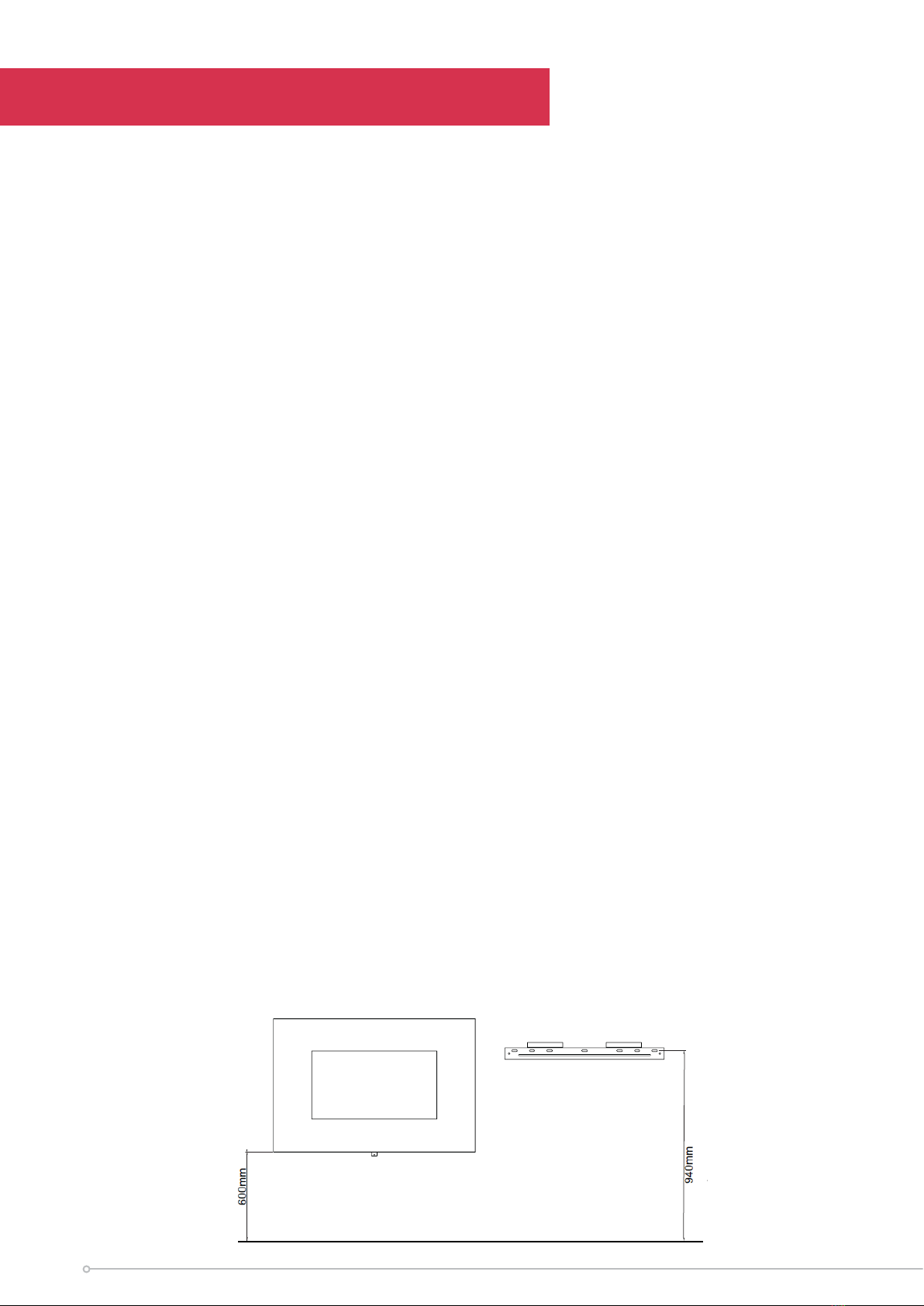

This model is designed to be permanently fixed to a wall at a minimum height of
300mm. The wall bracket must be fitted horizontally and the cable routed to the
bottom right of the appliance.
A height of 600mm to 725mm from the bottom of the appliance to the floor is rec-
ommended for optimum viewing of the fuel bed.
For optimum viewing, mark the top three screw fixing positions on the wall in ac-
cordance with the recommended fixing dimensions. Drill holes with a 6mm drill bit.
Fix the wall bracket using the plugs and screws provided. Carefully lift the appliance
up ensuring that the appliance engages with the wall bracket correctly.

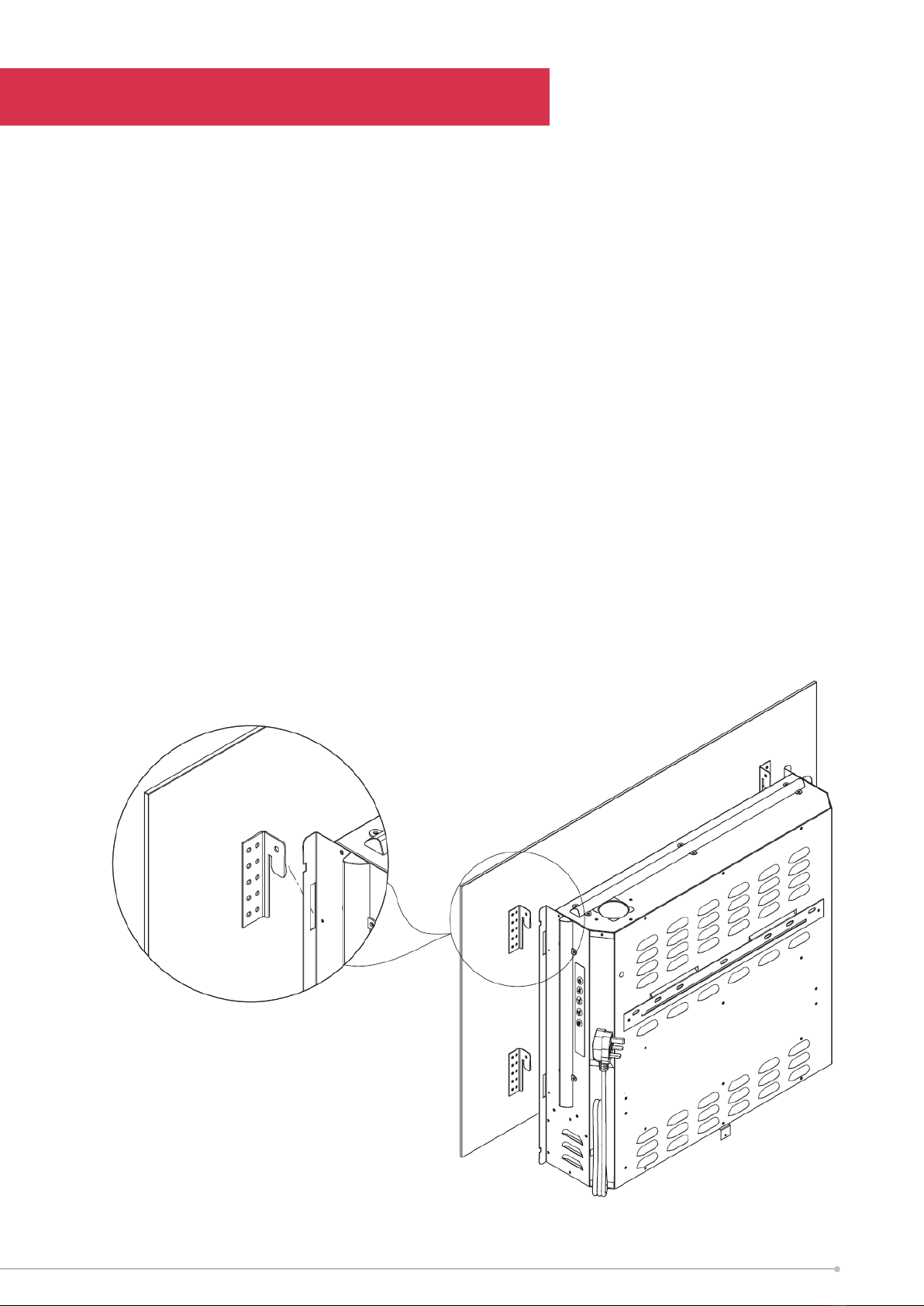

A bottom fixing bracket is supplied with the unit, fixed to the base of the appliance.
Remove the screw and the bracket, turn the bracket through 180 degrees so it is
now facing downward and re fit using the screw just removed. With the bracket in
place, mark the location on the wall. Remove the appliance, drill the wall, fit the wall
plug and re-fit the appliance ensuring that you secure it in place by screwing the
bottom fixing bracket to the wall.
8

Installation
Fuel Bed Media
Acrylic Ice Crystals and White Pebbles are supplied in the box with your fire, allow-
ing you the option of which to place on your fire. To fit the Acrylic Ice Crystals, place
the small Crystals on the fuel bed tray, then place the larger crystals on top of the
small pieces. Arrange the larger pieces to your liking. A suggestion is to place one
large crystal centrally on the fuel bed and the other four positioned symmetrically
around this piece.
The White pebbles are placed on the fuel bed tray until the tray is completely cov-
ered by pebbles to your liking.
Fitting the Front Glass
Your new fire is supplied with the front glass not secured to the engine, this is to
keep the glass safe in transit. To fit the glass to your fire, simply insert the four hang-
ers on the back of the glass through the slots provided on the chassis. The hangers
go in through the slots and then move down to hold the glass in place. The glass can
then be secured in place by inserting the small black screw provided through the
hole in any one of the hangers into the side of the unit.
9

Wireless Speaker Control
The unit needs to be in standby for the speaker function to operate, you do not
need the flame effect to be operating.
The speaker can be used in 2 ways. You can pair a suitable device to the speaker
wirelessly and listen to music, audio books or casts, or when the flame effect is op-
erating the soothing crackling sound of a log fire can be played for ambient sound
effect.
To listen to the crackling log effect, just press the volume up button on your remote
control until you reach a volume level which is comfortable for you. To lower the
volume, press the volume down button. The crackling is turned OFF by pressing the
volume down button until the sound is muted.
To use the speaker to listen to your own material, the speaker must first be paired to
a compatible device. To pair with the unit:
1. Ensure the unit is plugged in and switched on at the mains socket.
2. Using a compatible device search for "Dimplex Fire," and then select and pair
your device to "Dimplex Fire."
3. Once connection is made between your device and the unit, an electronic tone
will sound to alert you that the pairing was successful.
With the unit now paired, you can control the speaker volume using the volume but-
tons on the remote control handset or your device's volume controls.
Note: If you experience problems pairing to the speaker, you may need to re-pair to
the speaker, follow these steps:
1. On your device go to "Bluetooth Settings."
2. Select "Dimplex Fire," and press "Forget," to disconnect from the speaker.
3. Turn Bluetooth OFF, and then ON. Your device should now rediscover "Dimplex
Fire," again.
4. Select "Dimplex Fire," to pair with the speaker.
10

WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY
RESULT IN INJURY AND/OR DAMAGE.
Remote control
The maximum range of use is ~ 5 metres.
WARNING: It takes time for the receiver to respond to the transmitter. Do not press
the buttons more than once within two seconds for correct operation.
NOTE: The receiver for the remote control is located in the display, aim the remote
control in this direction when inputting demands.
1. To activate the remote control remove the battery isolation strip, which is used to
ensure your remote control reaches you fully charged.
2. To replace the remote control battery, turn over the remote control, and follow the
diagram embossed on the remote control
3. Only use CR2025 or CR2032 size batteries.
Control Panel & Remote
To replace the battery:
1. Remove the screw, push down on the battery cover located on the back of the
remote control. Slide the battery cover open.
2. Install 1 x 3V CR2025 or CR2032 Lithium battery in the battery holder. The positive
(+) side of the battery faces up.
3. Close the battery cover and replace the screw
Discard leaking batteries:
Dispose of batteries in the proper manner according to provincial and local regulations.
Any battery may leak electrolyte if mixed with a different battery type, if inserted
incorrectly, if all batteries are not replaced at the same time, if disposed on a fire, or if
an attempt is made to change a battery not intended to be recharged.
11

Operation
Operating Instructions
Dis-
play
Func-
tion
Description
A-Power /
Standby
Press Once to turn the product ‘ON’.
Press a second time to pss a second time to put the product into ‘STANDBY’.
(When returning from ‘STANDBY’ mode the product will return to previous settings
unless the product has been unplugged, in which case it will reset to factory settings)
B
'FLAME EFFECT' button turns the flame effect ON or OFF independently of the
products other features.
+ Flame
Up
This Button will increase the brightness of the flame effect. There are 5 brightness
settings shown as F1, F2, F3, F4, F5. This button will ONLY increase the brightness
level.
- Flame
Down
This Button will decrease the brightness of the flame effect. There are 5 brightness
settings shown as F1, F2, F3, F4, F5. This button will ONLY decrease the brightness
level.
Flame
Cycling
This setting is set by pressing the Flame Up button once more after F5. This will
cause the brightness of the flame effect to cycle from F2 to F5 in a continuous loop.
-Off
This will turn the flame effect off. If the heater is running, the display will activate and
remain active to read the set temperature and show if the product is on LOW HEAT/
HIGH HEAT/COOL BLOW.
C
'HEAT' button cycles the unit sequentially through the 4 settings: LOW HEAT, HIGH
HEAT, COOL BLOW and OFF. The heat setting will be indicated by an icon in the
display (see image on page 5).
When the flame effect is 'ON,' the display will turn off after 5 seconds, however if the
heater is being used independently of the fame effect, the low heat or high heat icon
will appear continuously in the display.
Low
Heat
This setting will run the heater at 'LOW HEAT.' This setting will be indicated by the
'LOW HEAT,' icon. To adjust the temperature setting, the Temp Down or Temp Up
buttons described below must be used.
(This icon is Red in colour).
High
Heat
This setting will run the heater at 'HIGH HEAT.' This setting will be indicated by the
'HIGH HEAT,' icon. To adjust the temperature setting, the Temp Down or Temp Up
buttons described below must be used.
(This icon is Red in colour).
Cool
Blow
This icon in the display indicated 'COOL BLOW.'This setting will be indicated by the
'COOL BLOW,' icon and the letters 'CB' appearing on the display.
(This icon is Blue in colour).
-Off
This switches the heater and blower 'OFF,' and no icon will be displayed. Note that the
blower will run for 5-10 seconds after being turned off, to ensure the product cools
down safely.
D-Back
Light
Pressing this button will turn ON and OFF the back lighting. There are 4 settings, Sides
only, Top only, all OFF and all ON.
E-Temp
Down
Press multiple times to lower the heater temperature in 1°C increments. The lowest
temperature that can be set is 18°C.
E-Temp Up
Press multiple times to increase the heater temperature in 1°C increments. The
highest temperature that can be set is 30°C.
When High Heat is selected, the letter 'HH' will appear on the display. This means the
heat will remain ON continuously and is not controlled by the thermostat.
12

Operation
FSleep
Timer
Press multiple times to change the 'SLEEP TIMER,' in 0.5 hour increments from 0.5
hours to 8 hours before turning off. The remaining time displays. (The icon is Green
in colour).
G-Volume
Down
Press multiple times to control the volume level of the speaker down to mute. When
bluetooth is not connected, the speaker will play sound of a fire, this can be turned
OFF by pressing this button until the sound is muted.
G-Volume
Up
Controls the level of the speaker up. The volume buttons can also control the volume
of your paired bluetooth device.
H-Blue-
tooth
When a device is paired to the product, pressing this button will disconnect the
paired device.
I-LED
Colour
Press multiple times to change the colour of the LED mood lighting and the coloured
fuel bed. The colour can be set as Orange, Red, Green, Blue or cycling through all
four colours continuously.
User Modes:
Mode Name /Description Action (Actions cannot be input by remote control)
Change Celsius (0C) to Fahrenheit (0F) Press both Temp down ( ) and Temp up ( ) on
the unit and hold until beep is heard and display
flashes. (To revert back to Celsius repeat this action)
Disable/Enable Heat Options Hold both Flame cycle ( ) and Heat cycle ( ),
on the product, for 5 seconds, when the heater has
been disabled the product will beep. This will disable
heat control functions on the product only. To enable
heat repeat this action. Note: the remote control will
still be able to operate heat functions.
13

Over time, dust can accumulate which can effect performance. It is recommended to
clean the unit at least once a month.
CAUTION: ALWAYS Turn the unit OFF and disconnect the appliance from the power
supply before undergoing any cleaning and maintenance.
The surfaces of the heater should be given an occasional wipe with a dry soft cloth. Do
not use detergents, abrasive cleaning powder or furniture polish as this can damage
the surface of the product.
The glass door should be cleaned carefully with a chamois leather. Do not use
proprietary cleaners.
To remove any accumulation of dust or fluff, the soft brush attachment of a vacuum
cleaner should occasionally be used to clean the outlet grille of the fan heater located
under the stoves main body.
To clean the fuel effect, remove the ash/crystal and wash in warm water. The plastic
tray should be wiped clean with a damp cloth. When completely dry replace the ash/
crystal and arrange as described in this manual.
Cleaning
Recycling: Do not dispose of electrical appliances as unsorted municipal
waste. Use separate collection facilities. Contact your local government
for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances
can leak into the ground water, polluting the food chain and damaging
health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
14

15

Customer Care: 1300 556 816
[e-mail]
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
TLC20LX-AU v5
16
