PuraFlame Galena User manual

FLAT PANEL FIREPLACE HEATER
Model Numbers: Galena (EF27H)
OWNER’S MANUAL
Wall-Hanging Mode
Free-Standing Mode
WARNING Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION Keep this owner’s manual for future reference. If you sell or give this product
away, make sure this manual accompanies this product.
NO VENTING REQUIRED
120V AC; 60 Hz; 1350 Watts

2
CONTENTS
CSA / Power Cord Labels ………………………………………………………………………….. 2
Important Safety Information & Warnings ……………………………………………………… 3
Preparation …………………………………………………………………………………………… 5
Parts & Hardware …………………………………………………………………………………… 5
Assembly - Free-Standing Mode ………………………………………………………………… 7
Assembly - Wall Hanging Mode ………………………………………………………………….. 10
Battery Information ……………………………………………………………………………….. 15
Operation …………………………………………………………………………………………….. 15
Control Panel ………………………………………………………………………………… 16
Remote Control ……………………………………………………………………………… 17
Care and Maintenance …………………………………………………………………………….. 19
Schematic Diagram
…
…………………………………………………………………………….. 20
FAQ – Frequently Asked Questions
…
…………………………………………………….… 21
Troubleshooting Guide
…
…………………………………………………………………………….. 22
Limited Warranty …………………………………..………………………………………… 23
Customer Service ……………………………………………….……………………………. 23
CSA / POWER CORD SAFETY LABELS
CSA Rating Label Power Cord Warning Label

3
IMPORTANT SAFETY INFORMATION!
WARNING
zRead all instructions before using this heater!
zThis heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of
the heater, and keep them away from the sides and rear.
zExtreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
zDO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or return to authorized
service facility for examination and/or repair.
zDO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs, runners,
or similar coverings. DO NOT route power cord under furniture or appliances. Arrange power
cord away from traffic area, and where it will not be tripped over.
zDO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause electric shock or fire, or damage the heater.
zTo prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could
cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
zA heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
zUse this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
zALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
zDO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
zNEVER use this heater in bathrooms, laundry rooms, or any other location where the heater
could fall into a bathtub or pool, become damp, or come in contact with water.
zAVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
zNEVER hang this unit on a wall directly below an electrical outlet.
zNEVER permanently install in a recessed area of the wall. This may result in blocked air
flow, overheating, or fire.
zFree Standing Mode: ALWAYS attach pedestal before use. DO NOT use wall mount bracket.
zWall Hanging Mode: ALWAYS mount to wall bracket before use. DO NOT attach pedestal.
zNEVER use a wall mount bracket or pedestal from another manufacturer.

4
WARNING
zWARNING: DO NOT DEPEND ON THE ON/OFF SWITCH THE SOLE MEANS OF
DISCONNECTING POWER WHEN SERVICING OR MOVING THE HEATER. ALWAYS
UNPLUG THE POWER CORD.
zWARNING: REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK---DO NOT USE THIS
HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.
zFor residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties, and could cause injury.
zThis product is not intended to be a primary heat source. It is for supplemental heat only.
zINDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
zRisk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
zNEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
zALWAYS turn this heater off before unplugging it from the outlet.
zALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
zNEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
zALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
zONLY use this heater on a 120V AC 15-Amp circuit. NEVER overload the circuit. If this
heater trips the circuit breaker, unplug all other appliances on the same circuit before the next
use. Avoid plugging other appliances into the same circuit as this heater.
zNEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
zALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
zThis heater has a polarized plug (one blade is wider than the
other). As a safety feature to reduce the risk of electrical shock,
this plug is intended to fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.
zSAVE THESE INSTRUCTIONS!

5
PREPARATION
This carton includes GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grouped for free-standing or wall-hanging use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
Free-Standing Mode: You will need Part A, Part B, Part 1, Box 2, Box 3, Box 4, Box 4, and
the following tools (not included): Phillips screwdriver.
Wall-Hanging Mode (Drywall installation only): You will need Part A, Part B, Part
C, Part 6, Box 1, Box 2, Box 5, and the following tools (not included): Phillips screwdriver; stud
finder; level; tape measure; electric drill; 1/16” wood drill bit.
Concrete walls: DO NOT use these anchors. Consult a professional for proper anchoring methods.
PARTS AND HARDWARE
A – Firebox ( 1 ) B – Front Glass Panel ( 1 )
NOTE: The wall mount bracket (C) is attached to the
back of the firebox (A) by two thumb screws (6).
C – Wall Mount Bracket ( 1 ) 6 – Thumb Screws ( 2 )
NOTE: Unscrew both thumbscrews (6) from the top of the firebox (A). KEEP the thumb screws. Remove the
wall mount bracket (C) from the firebox whether you will use the unit in free-standing or wall-hanging mode.
A
6 6 C

6
PARTS & HARDWARE - GENERAL
Box 1 – Remote Control & Machine Screws Box 2 – Decorative Glass
2 - M4x8 Machine Screws
( 2 )
RC - Remote Control ( 1 ) AAA Battery ( 2 ) D - Decorative Glass ( 1 set )
PARTS & HARDWARE: FREE-STANDING MODE
Box 3 – Pedestal Leg Parts and Hardware Box 4 – Pedestal Base
E – Pedestal Leg
( 1 ) G – Pedestal Leg Cover ( 1 ) 1 – M5x12 Machine Screws ( 8 ) F – Pedestal Base Assembly ( 1 )
PARTS & HARDWARE: WALL-HANGING MODE
Box 5 – Wall Hanging Hardware Owner’s Manual
4– M4x30 Drywall Screws(4)
5– M15x40 Drywall Anchors(4)
3 – M5x40 Wood Screws(4) Owner’s Manual

7
PARTS & HARDWARE:OPTIONAL
7 – External Sensor(1)
NOTE: The External Sensor (7) is optional (not for free), and not included in the parts list. Please
e-mail us to [email protected] if you have requirements.
ASSEMBLY: FREE-STANDING MODE
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.
STEP 1. Lay the firebox (A) on its back. Align the holes in the pedestal leg (E) with the threaded
inserts in the firebox. Thread one M5x12 machine screw (1) through each hole in the pedestal le
g
and into the threaded inserts. Check the leg alignment. Tighten securely with a Phillips screwdriver.
STEP 2. Press the pedestal leg cover (G) into the pedestal base assembly (F). Snap into place.
1 1
1
1
E E
A
F
G Notch for
Power Cord
These holes will
align with the
threaded inserts

8
STEP 3. Lay the firebox on its back so the pedestal leg (E) hangs over the edge of a table. Or,
have an adult helper lift the bottom edge of the firebox. Slide the pedestal leg cover and base (F/G)
over the pedestal leg (E). Make sure the power supply cord comes out from the notch in the
pedestal leg cover. Thread one M5x12 machine screw (1) through each hole in the pedestal base,
into the threaded holes in the pedestal leg. Tighten securely with a Phillips screwdriver.
The next step requires handling of small GLASS pieces! ALWAYS use extreme caution
when handling glass. Failure to do so could result in personal injury or property
damage.
ALWAYS keep these small glass pieces OUT OF THE REACH OF CHILDREN! Make
sure no pieces are left out where children could find them. Failure to do so could
result in a choking hazard.
STEP 4. Stand the fireplace up and set it on a sturdy level surface at or near where you plan to use
it. Carefully arrange the decorative glass (D) along the inset window ledge at the front of the
firebox. Use care when relocating the fireplace to prevent the decorative glass from falling out.
The next step requires installation of a GLASS panel! The manufacturer recommends
that two adults install the glass panel. Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
1
F/G
E
D

9

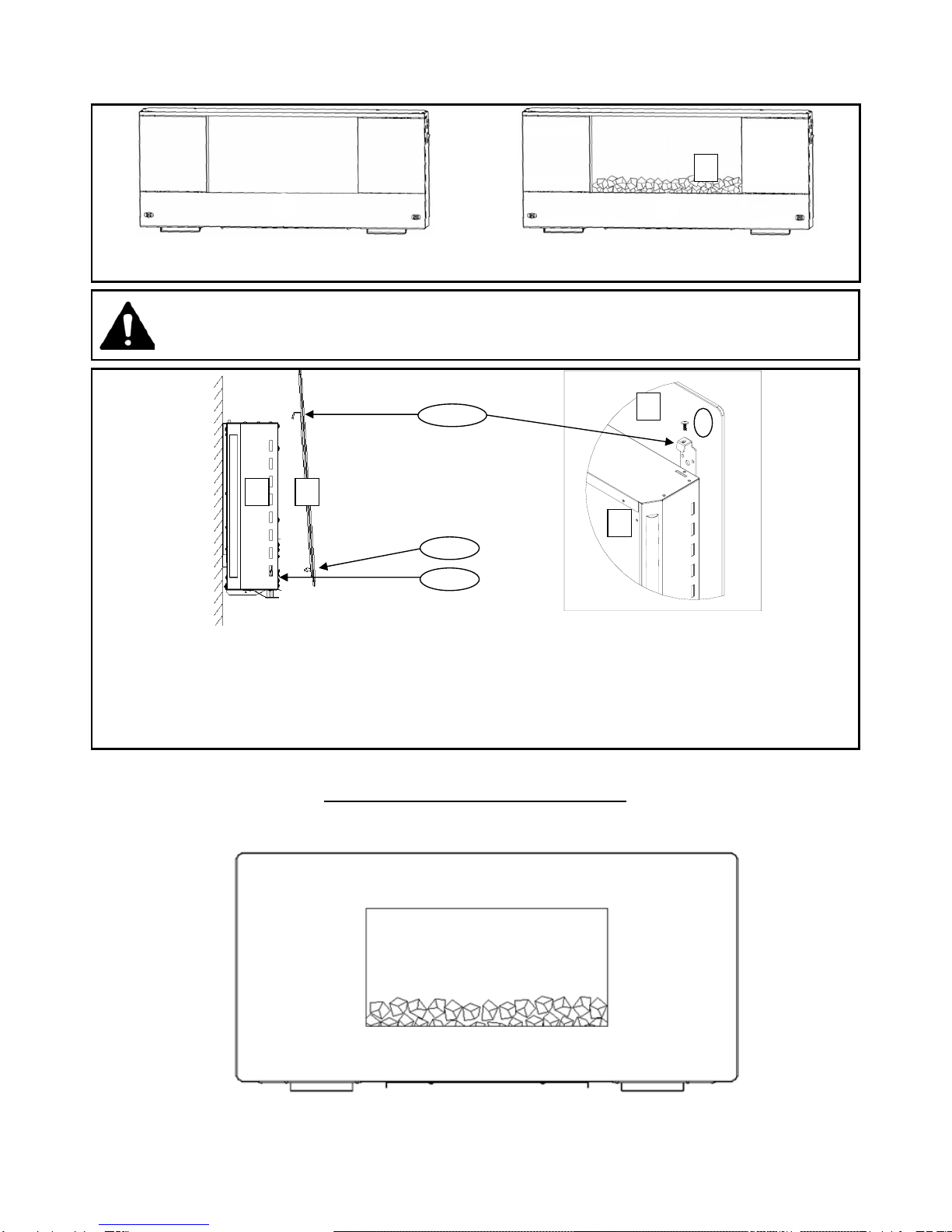

STEP 5. 1. Carefully set both hooks of the front glass panel (B) into the slots at the top front edge
of the firebox (A). 2. Press the two posts of the glass panel into the locking slots near the lower
corners of the front firebox panel. NOTE: Make sure the posts click into the slots. This will keep
the decorative glass in place. 3. Thread the M4x8 machine screws (2) through the glass panel
hooks and into the threaded holes in the firebox. Partially tighten by hand. Check the alignment of
the glass panel and securely tighten the screws with a Phillips screwdriver.
Free-standing Mode: Fully Assembled
A B
2
Hook
Post
Slot
A
B

10
ASSEMBLY: WALL-HANGING MODE
STEP 1. Find a safe location. Minimum clearance on each side must be at least 2 inches (50mm);
minimum clearance from the floor must be at least 4-3/8 inches (11.1 cm); minimum clearance from
the front must be at least 3 feet (90 cm). Choose a location near an outlet so an extension cord is
not required. DO NOT position the unit directly below a power outlet. See Safety Information on
pages 3 and 4 for more warnings about placement, installation, and use of this product.
NOTICE The wall mount fasteners included with this fireplace are for use ONLY with a
wood-framed wall covered in drywall (sheet rock). For concrete walls, cinder
blocks, or other wall types, consult a professional for the best attachment methods.
16”
16”
Studs
Drywall
Hook
Tab
C
16”
16”
16”
Note: The wall mount bracket
tabs are on the upper arms and
the hooks are on the lower arms.
Minimum 4-3/8 inches
Wall or other
objects at side
Wall or other
objects at side
Floor or other
surface
Minimum 2 inches
from edge of glass
Minimum 2 inches
from edge of glass

11
STEP 2. Locate the wall studs using an electronic stud-finder. Studs are spaced 16” apart as
measured from the center of each stud. The holes in the mounting bracket (C) will align with the
wall studs. The end of each arm has a set of three holes. Select one set of holes (left, center, or
right) when attaching the mounting bracket to the wall. There are also two holes on the center post.
AVOID INJURY and DAMAGE! Four screws should be screwed directly into wall
studs. If that is not possible, at least two screws must be screwed directly into wall
studs, AND four additional screws must also be screwed into the drywall anchors.
STEP 3. Position the wall mount bracket (C) over the wall studs. Level the mounting bracket and
mark the four holes with a pencil. Set the wall mount bracket aside. Drill a pilot hole at each marked
p
oint usin
g
a 1/16” wood drill bit. Make sure each hole
g
oes into a wall stud.
STEP 4. Thread one M5x40 wood screw (3) through the bracket, into the pilot hole, and into the
stud. Partially tighten. Make sure the bracket is level. Thread the remaining three M5x40 wood
screws into the other three holes. Check the alignment and tighten each screw securely with the
Phillips screwdriver. Check each screw to make sure it is tight, and that the bracket is secure.
3
C
3
3
3

12
STEP 5. If only one wall stud is available, the wall mount bracket must be secured to the wall with
two M5x40 wood screws (3) though the two center post holes AND four M4x30 drywall
screws (4) through one other set of bracket holes. DO NOT attach the wall mount bracket to the
wall studs with one of the outer sets of holes as the bracket will not be stable. Use the center holes.
STEP 6. Center the wall mount bracket (C) over the wall stud. Level the mounting bracket and
mark the two center post holes with a pencil. Mark the four outer holes for the drywall anchors. Set
the wall mount bracket aside until STEP 8.
STEP 7. Drill pilot holes into the two center marks using a 1/16” wood drill bit. Make sure each pilot
hole is drilled directly into a wall stud. Next, use a Phillips screwdriver to screw the four drywall
anchors (5) into the drywall until they are flush with the surface. DO NOT OVERTIGHTEN.
3
3
3
3
4
4
4
4
5
5
5
5
C

13
STEP 8. Thread the two M5x40 wood screws (3) through the center post holes, into the pilot holes,
and into the wall stud. Partially tighten. Make sure the bracket is level. Thread the four M4x30
drywall anchor screws (4) through the wall mount bracket and into drywall anchors.
DO NOT OVER-TIGHTEN! This may loosen the anchors or damage the drywall. Check the
alignment and tighten each screw securely with the Phillips screwdriver. Check that the bracket is
secure.
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.
STEP 9. With the firebox (A) at an angle, fit the slots in the back of firebox (A) over the hooks on
the wall mount bracket, and carefully press the top of the firebox against the wall mount bracket.
The slots at the top edge of the firebox should slide over the wall mount bracket tabs. Hold the
firebox in place and thread the thumb screws (6) through the holes in the firebox and into the wall
mount bracket tabs. Tighten both thumb screws and make sure the firebox is secure to the wall.
The next step requires handing of small GLASS pieces! ALWAYS use extreme caution
When handling glass. Failure to do so could cause personal injury or property damage.
ALWAYS keep these glass pieces OUT OF THE REACH OF CHILDREN! Leave no
pieces where children can find them. Failure to do so could cause a choking hazard.
4
3
3
4
4
4
C A
6
6

14
STEP 10. Carefully arrange the decorative glass (D) along the inset window ledge at the front of
the firebox. Use care when relocating the fireplace to prevent the decorative glass from falling out.
The next step requires installation of a GLASS panel! The manufacturer recommends
that two adults install the glass panel. Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
STEP 11. Set both hooks of the front glass panel (B) into the slots at the top front edge of the
firebox (A). Press the two posts of the glass panel into the locking slots near the lower corners of
the front firebox panel. NOTE: Make sure the posts click into the slots. This will keep the
decorative glass in place. 3. Thread one M4x8 machine screw (2) through each glass panel hook
and into the threaded hole in the firebox. Partially tighten by hand. Check the alignment of the glass
panel and securely tighten the screws with a Phillips screwdriver.
Wall-hanging Mode: Fully Assembled
A
B 2
A B
Post
Slot
Hook
D

15
BATTERY INFORMATION
Remote Control Battery
zThis remote control uses two AAA batteries (included).
zInstructions for battery installation are inside the Remote Control battery compartment.
zAlways replace the battery in the remote control with the same type of battery.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion.Dispose of batteries at your local hazardous material processing center, or as
required by local ordinances.
OPERATION
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Power
Make sure the ON/OFF switch, located on the control panel, is in the OFF position. Plug the power
cord into a 110~120 Volt 15 Amp outlet (see IMPORTANT SAFETY INFORMATION on Pages 3 and
4). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed the
maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (212°F / 100°C), the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait at least 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If it switches off again, UNPLUG THE HEATER RIGHT AWAY! Have the outlets, wiring, and
breaker box inspected by a professional. Make necessary repairs before using the heater.
Heater Rating
Maximum Heat Output: 1350 W (4600 BTU); Maximum Heating Area: 400 square feet.
Methods of Operation
CONTROL PANEL: Located on the right side panel of the fireplace (see figure below).
Controls ON/OFF, FLAME EFFECT, LED BACKLIGHTS, and HEATER.
REMOTE CONTROL (Battery included):
Controls FLAME EFFECT, LED BACKLIGHTS, HEATER, THERMOSTAT, and TIMER.
Review the IMPORTANT SAFETY INFORMATION on Pages 3 and 4 before operating.

16
Control Panel
BUTTON FUNCTION ACTION & INDICATION
ON/OFF
ON: Turns on the standby mode. Enables
all of the functions and remote control.
OFF: Turns off all of the fireplace functions,
and disables remote control.
1. Press to turn the power on. All functions,
and the remote control, are enabled.
2. Press to turn the power off and disable all
the functions.
FLAME
Controls the flame effect brightness.
Cycles through 3 levels of flame brightness
and turn off.
1. Press once to turn the flame effect on.
2-4. Press again to cycle through 3 levels of
flame brightness and turn off..
HEATER
Turns heater on and off.
NOTE: The heat will not change as the
room temperature change by pressing the
heater button.
1. Press once to turn the heater on.
2. The fan will blow for 10s before the
heater and be off after 30s. When the
flame effect is turned off, the red
indication light would be on for heating.
When the red indication light is off, the
heating is turned off. When the flame
effect is turned on, the red indication
light indicates heating. The red
indication light would be off after 10s.
NOTICE When the heater is first turned on, a slight odor may be present. This is
normal and should not occur again unless the heater is not used for a long
period of time.
Flame
Effect
Heater
V
ents
LED
Backlights
Control
Panel
Red
Indication
Light Blue
Indication
Light
Remote
Receiver

17
Remote Control (Control panel ON/OFF switch must be ON to use remote control.)
NOTICE Aim the remote control at the remote receiver. Make sure you hear a beep once
you turn on the fireplace! If not, the fireplace will not respond to the signal.
BUTTON FUNCTION ACTION & INDICATION
ON/OFF
ON: Turns on.
Note:
1. The unit can only be turned on when turns
off the flame effect, heating and backlight, and
enable the last memorial function.
2. All the functions are off in the standby
mode, it will memorize the working condition
of flame effect, backlight and heating.
3. The flame effect, backlight and heating
function is operable during the standby mode,
but the timer and thermostat can not be
operated.
OFF: Returns the unit to standby mode.
Turns off flame effect and disables all the
remote control functions.
1. Press. The flame effect and the
remote control functions are enabled.
The flame setting will display on the
remote control screen.
2. Press. The flame effect and all the
functions will turn off. The remote
control screen will go blank.
FLAME
Controls the flame effect brightness.
Cycles through 3 levels of flame brightness
and turn off.
1. Press once to turn the flame effect
on.
2-4. Press again to cycle through 3
levels of flame brightness and turn off.
HEATER
Turns heater on and off.
NOTE: If the thermostat is set below the room
temperature, the heater will not turn on.
NOTE: To prevent overheating, the fan blows
cool air for 10 seconds before the heater turns
on, and 30s after the heater turns off.
1. Press. The heater turns on.
The remote control screen
displays the heat symbol:
2. Press. The heater turns off.
The fan blows cool air for 10 seconds.
TEMP
Controls the thermostat setting.
Thermostat: Automatically turns the heater
on and off to maintain the temperature.
If the thermostat is set below the room
temperature, the heater will turn off.
NOTE: The thermostat only works when the
heater is on.
NOTE: The heat will not change as the room
temperature change when there is no
temperature shows on the remote screen.
NOTE: It will change between °C and °F after
pressing the button for 3s. 60-84°F
corresponds to 16-28°C. The temperature will
check 3min/time. It can not be operated in the
standby mode, but the temperature still
displays on the remote control screen.
1. Turn the heat on. Press.
The temperature displays 24°C.
2-13. Press again to increase the
temperature by 1°C interval up from
16°C to 28°C (maximum setting).
14. Press again. The thermostat turns
off. No temperature is displayed.
15. Press. Start at 23°C.

18
NOTE: The blue indication light would be on
once conducting an effective operation of
thermostat setting.
TIMER
Controls the timer settings.
The timer turns off the fireplace at the set
time, from 0.5 hours to 9.0 hours.
NOTE: The blue indication light would be on
once conducting an effective operation of
TIMER.
1-10. Press .
Timer setting: 0.5H, 1.0H, and
then each hour up to 9.0H.
11. Press. Off. No time is displayed.
BACK
LIGHT
Controls the LED light strips at the left and
right edges of the fireplace. The LED
backlights include individual and alternating
color combinations.
Press. Cycles through each of the LED
backlight color options.
Finally, turn the backlights off, or start
the cycle over.
NOTE: The temperature within a room can vary. Room size, fireplace location, air flow, sunlight,
wall type (interior vs. exterior), insulation, etc. all affect temperature. The fireplace setting may not
match your home thermostat exactly. This is normal.
If you have higher requirements on the room temperature during use, the external sensor could
meet your need of your desired temperature.
The installation of an external sensor is as follows:
Take out an external sensor and use the plastic port to plug it into the bottom part of the sensor port
on the product. The other side of the sensor can be placed anywhere in the room within the length
of the sensor to get more accurate environment temperature. Placing the sensor too close to the
heater area of the appliance will cause unwanted cycling of the heater.
NOTE: The external Sensor (7) is optional (not for free), and not included in the parts list. Please
e-mail us to [email protected] if you have requirements.
7

19
CARE AND MAINTENANCE
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Cleaning
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
zBuff using a soft cloth, slightly dampened with a citrus oil-based product.
zDO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
zUse a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
zNEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Plastic:
zWipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
zNEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
zUse a vacuum or duster to remove dust and dirt from the heater and vent areas.
zClean the exterior of the fireplace with a slightly damp cloth or duster.
Maintenance
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
zThe fan motors are lubricated at the factory and will not require lubrication.
zElectrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
zStore heater in a clean dry place when not in use.
Replacement parts:
zUse only replacement parts supplied by the manufacturer. Use of any other parts, or modifying
the fireplace in any way, will void all warranties.
zNo internal parts are replaceable or serviceable.
WARNING! No other servicing should be performed by the consumer. Do not attempt to
service the unit yourself.

20
SCHEMATIC DIAGRAM
M
~
M
θ
~
L
AC120V 60Hz
N
θ
M
~
Fuel Bed LED
Sensor Sensor
(Optional)
Indicating PCB Controlling PCB
Back
Light
LED
Back
Light
LED
Main Power PCB
Red
Red
Red
Red
Red
Red
Fan
Motor Fan
Motor
Heating
Element
Sychronous
Motor
Switch
Brown
Black
Black
White
Yellow
Black
Blue Blue Blue
Brown Thermal
Cutout
