A/DA PBF Flanger User manual
































PBFFLANGERbyADAUSERMANUAL
www.adaamps.com

PartNumber701423
Version0.1

ThePBFFLANGERbyADA



TheADAPedalBoardFriendlyFLANGERisanall‐analog
flangerbasedontherenownedADAFLANGERpedalsproduced
inthelate1970sinBerkeleyCalifornia.Itisprimarilydesigned
forelectricguitarandbassguitar,butcanbeusedwithother
electronicmusicalinstrumentsandintherecordingstudio.The
PBFFLANGERdeliverstheuniquetone,rangeandcharacterof
theoriginalADAdesigns,alongwithmanynewfeatures.The
PBFFLANGERnowhasaBASSswitchwhichkeepsthebottom
endtight,distinctandsmooth.TheRANGEcontrolisnow
taperedtomakeiseasiertodial‐insubtlevibratos,vocalwahs
andstaccatopulsing.TheSPEEDcontrolhasbeenexpandedfor
fasterandslowerrates.ThePBFhasasmallerenclosure–
convenientlythesamefootprintasthecommondie‐cast
enclosuresthathavebecomethenormforpedalboards.The
PBFFLANGERismanufacturedinCalifornia.


IfyourADAproductworks,yourpedalchainmostlikelyhasa
problem.Ifyouhearnothing,thentheremaybeaproblem
withyourindividualunit.Pleasesee“RETURNINGUNITSFOR
SERVICE”belowonhowtogetanRAnumber.

2. WhatdoIdoifmyproductisnotworking?
IfyourproductisnotworkingweSTRONGLYsuggestthatyou
runaseriesofquickteststotroubleshoottheunit(seeabove).
Theymaysoundverybasic,butitcansaveyoutimeingetting
yourunitworkingandyoubacktoplaying.Ifyouarean
international(non‐USA)customer,youmustcontactyourlocal
dealerand/oryournationaldistributorforrepair.Ifyouarein
theUSAandtheunittrulydoesnotwork,email
[email protected]togetaReturnAuthorization(RA)
numberfromus.

3. WhatdoIdoafterreceivingmyRAnumber?
Youwillneedtoboxyourunit,writeyourReturnAuthorization
(RA)numberontheoutsideoftheshippingboxinlarge,bold
lettering,andsendittotheaddresssuppliedwiththeRAyou
receivedfromus.YouareresponsibleforshippingtoADA,so
pleasetrackandinsureyourparcels.ADAcannotbeheld
responsibleforparcelsthatarelostordamagedintheshipping
process.ADAcannotacceptyourshipmentifthereisnoRA
numberwrittenontheoutsideofthebox.

SERVICE

Ifyourunitrequiresservice,pleasegotoourwebsite’sSERVICE
pageforinformationtohelpyoufindasolutiontotheproblem
youarehavingwithyourPBFFLANGER.Wehaveprovidedyou
withastep‐by‐steptroubleshootingproceduretogetyouback
upandrunningifyouareexperiencingasimpleproblem.


SPECIFICATIONS

InputImpedance  500KOhms

OutputImpedance  1KOhms

AnalogDelayICs(BBD) Twoseparate512‐stageanalog
bucketbrigadeICs

PowerRequirements 9VDCto12VDCat150mAfromAC
adapterorpedalboardsupply
DCPOWERJACK:2.1mm,centerpin
negative

CONTROLvoltagerange 0to+10V

MANUALCONTROL delayrange:0.35mSto15.3mS

SPEEDCONTROLsweeprate:0.06seconds(15Hz)to
30seconds

LEVELCONTROLoutputleveladjustment+/‐6dB

CONTROLPORTRing‐Tip‐Sleevestereo1/4"phone
jackforexpressionpedalsorcontrol
voltagesof0voltsto+10volts

ShippingWeight  1lb.(2.2Kg)
ShippingDimensions  5.75x3.5x3.37inches
EnclosureDimensions 4.5x2.5x1.5inches

MaterialPowered‐coatedall‐steelenclosure
forbettershielding


NEWFEATURES

TrueBypasswithLEDstatusindicator
OutputLEVELtrim
BASSGuitarContourSwitch
Smallenclosure
Poweredby9Vto12Vat150mA



FUNCTIONS

MANUAL setsstaticdelaytime
RANGE setsthedelaytimerangeoftheSPEED
SPEED  setstherateoftheauto‐sweep
THRESHOLD adjuststhegatethresholdofthedelayedsignal
LEVEL  outputleveladjustmentoftheflangeeffect
ENHANCE setstheamountofregenerationwhichvariesthe
intensityuptothepointofself‐oscillation
HARMONICS addsorsubtractsthedelayedsignalformidorbass
boost.EVENisbassboostandmidscoop.ODDis
hollowsoundingwithmidboost.
BASS decreasestheamountofENHANCEatlow
frequenciestopreserveatightbottom
CONTROL externalvoltageoranexpressionpedalport.
OverridestheMANUALcontrol

RETURNINGUNITSFORSERVICE

IfyoustillneedtosendinyourADAproductforservice,YOU
MUSTFIRSTGETARETURNAUTHORIZATIONNUMBER(RA)
BEFOREYOUSHIPTOOURSERVICECENTER.Itemsshippedto
uswithoutanRA,willnotbeacceptedbyourServiceCenter
andwillbereturnedtoyoubytheshipper.YoucangetanRA
numberbyfirstcontactingusonlineat:
[email protected].Youcanalsocheckonlinefor
additionalinformationatwww.adaamps.com/service

DONOTSHIPYOURPBFFLANGERTOOURSERVICE
CENTERBEFOREGETTINGANRA(Return
AuthorizationNumber)FROMUS.

Shipto:
ADAAmplification
1170BurnettAve.Ste.N
Concord,CA94520

WARRANTY

YourPBFFLANGERiswarrantedagainstdefectsinmaterialand
workmanshipforaperiodofthree‐hundredandsixtyfive(365)days
fromdateofpurchase.Thiswarrantyistotheoriginalownerandis
non‐transferable.Duringthewarrantyperiod,ADAoritsagentwill,at
itssoleoption,repairorreplacedefectivepartsandmakenecessary
repairstotheproductwhichisdefectiveatnocharge.Ifthefailureis
theresultofmisuse,abuse,accidentormisapplication,ADAhasno
obligationtorepairorreplacethefailedproduct.ADAretainsthe
righttomakesuchdeterminationonthebasisoffactoryinspection.
ADAwillnotberesponsibleforanyspeakerordevicedamagedbythe
FLANGER.Thiswarrantyremainsvalidonlyifrepairsareperformedby
ADAoritsagentandprovidedthattheserialnumberontheunithas
notbeendefacedorremoved.Thiswarrantyisexpresslyinlieuofall
otherwarrantieseitherexpressedorimplied.Thiswarrantygivesyou
specificrights.Youmayhaveotherrightsthatvaryfromstatetostate
intheU.S.



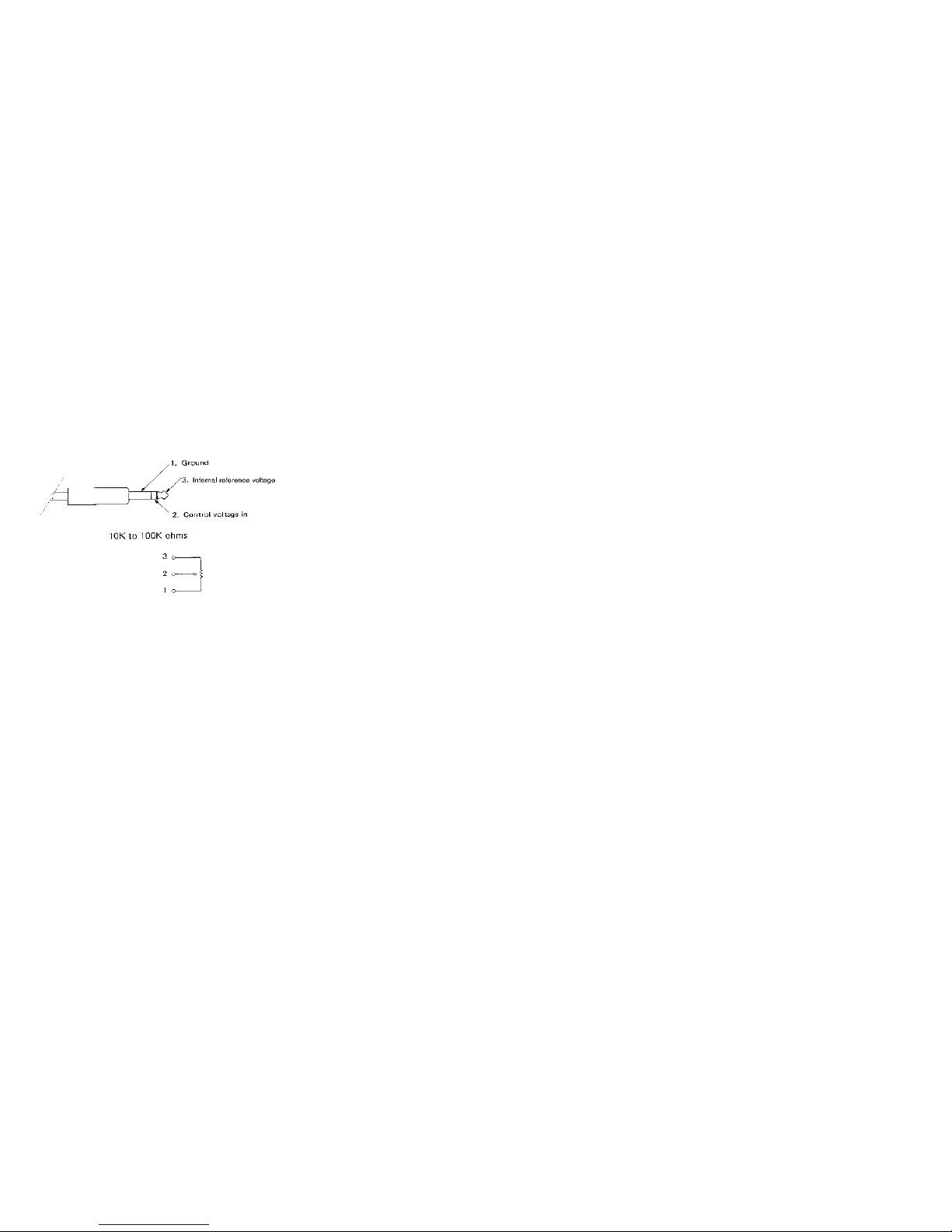

VOLTAGECONTROLPORT,rearpanel

CONTROL:Ring‐Tip‐Sleevestereo1/4"phonejackfor
expressionpedalsorcontrolvoltages.ControlVoltagejackis
wiredthesamewayastheoriginalFlangerswerewired,sothe
oldCONTROLPEDALA(aswellasotherexpressionpedals)work
withthePBFFlanger.Youcanalsoinputavoltagefrom0to+10
Voltstosetthedelaytime.Seethewiringdiagrambelow.


TIPS

ThePBFFLANGERsweeps"tothetop"butnot"thru‐zero"bychoice.
Thru‐zeroflangingisusefulforafullmix,butnotforaguitarbecause
theguitarsignaldropsoutatthethru‐zeropoint(orissubstantially
boosted)whichisnotmusicalsounding.ADAfeelsthatifyouwant
thateffect,aTremoloisabetterwaytoachievethevolumelevel
modulation.

TheRANGEmixestheMANUALandtheSPEEDvoltagessoyoucan
adjusttherangeandpositionoftheSPEED.SettingtheRANGEfully
counterclockwiseeliminatestheSWEEPandtheMANUAL(or
CONTROLPEDAL)hasfullcontroloverthesettingoftheFLANGER
delaytime,from0.35mSto15.3mS.

TheENHANCEfeedsbackthedelayedsignaltothewet/drymixto
increasetheintensityoftheflangingeffecttothepointofhighly
resonantoscillationor“DarthVader”sounds.


TheHARMONICSswitchinconjunctionwithanextremeENHANCE
settingcanradicallyshapeyourflangingtone,especiallywhenthe
SPEEDisoff(RANGEsetfullyCCW).ByturningtheRANGEvery
slightlyCWandsettingtheSPEEDtoabout3Hz,averynicevibrato
canbeachieved.MovingtheMANUALcontrolCWdecreasesthe
depthofthevibratoanddetuning.

TheTHRESHOLDisanadjustablelevelgatethatcandropoutthe
delayedsignalatlowlevelsorbeusedto"turnon"theflangeeffect
withtheinputsignalamplitude.Playingheavilyturnsontheflanging
effect,whileplayinglightlyturnsofftheflangingeffect.

TECHNICALSUPPORT

1. Whataresomequickteststotroubleshootmyunit?
Sometimesafewquicktestsathomecanbethedifference
betweenthinkingyourunitisbrokenandgettingitworking
properly.Hereisalistofquicktrouble‐shootingstepstotest
yourgearandunit.Asbasicasthesesoundpleaserunallthe
tests.

Checksimplesignalchain:Plugyourcablefromyourguitar
intoyouramp.Ifyouhaveadirectconnecttonegotostep2.If
notyouhaveabadcable,guitaroramp.
Check2ndcable:Takeyour2ndcableandswitchitwiththe
firstcable.Ifyouhavesound,wenowknowbothcables,your
guitarandamp,work.
Checkpower:Plugyourampintothesameoutletthatyou’re
usingtopoweryourADAproduct.Iftheampturnson,thenthe
outletworks.Ifnottryanotheroutlettopoweryourunit.
ChecknativeADASignalChain:Plugthefirstcablefromyour
guitarintoyourADAproduct(input).Plugthe2ndcable
betweenyourADAproduct(output)andintoyouramp.Make
suretheADAispluggedintoaworkingpowersource.DONOT
insertitinapedalchain,i.e.,donotintroduceanyotherpedals
intothesignalchain.

