A-Fire Design Original AWO Series User manual

User manual

Installation, Use, and Maintenance Notice
AFIRE devices standard compliance:
Original AWO Line: Commercial references: AWO 20-50, AWO 40-100, AWO 60-150
Premium AWP Line: Commercial references: AWP 20-50, AWP 40-100, AWP 60-150
XXL Line: Commercial references: AWX 40-100, AWX 60-150
AWA Corner Line, AWB Line, AWD Line, AW-VIP
comply with:
- European directives: 2004/108/EC EN 55014-1 :2006+A1 :2009+A2 :2011
EN 55014-2 :1997+A1 :2001+A2 :2008
EN 61000-3-2 :2006+A1 :2009+A2 :2009
EN 61000-3-3 :2013
- Part 15 of FCC regulations
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
1- PRECAUTIONS:
Before first use, we recommend reading this manual carefully.

The device must be installed in compliance with the instructions in paragraphs 3, 4, and 5.
Users are prohibited from interfering with the safety systems.
Installation and use of the devices are subject to the rules and procedures for use in the country where
the devices are installed.
Do not use the device if it is damaged after falling or any other reason. Contact AFIRE aftersales
service.
Do not let children or disabled persons use the device without supervision.
Do not use outdoors.
While the device is in functioning: Attention! Do not look at the device over this one. You risk to be
dazzled by the light.
Cut off electric power before any handling of the device, in particular before cleaning, transporting, or
repairing it.
For storage, be sure to keep the device in a dry location with no risk of damage.
Do not modify the device. Its use must comply with this manual.
ATTENTION! SAFETY WARNING
Use in a regularly ventilated room.
Ventilation vents in the room must not be obstructed and/or ventilation systems in the home must not
be hindered.
If the power cable to your device is damaged, it must be replaced by a professional or by AFIRE in
order to prevent any danger.
Never use accessories not supplied by AFIRE.
Keep the remote control out of reach of children. It contains batteries. If batteries are swallowed,
contact a doctor immediately.
Only use new batteries. Using recharge or old batteries or batteries that are not adapted or batteries
inserted backward may cause an explosion and cause injury.
FCC precaution: Modifications not expressly approved by the party responsible for compliance will
result is canceling the user’s right to use the device.
2- DEVICE TECHNICAL CHARACTERISTICS

ModelsReservoircapacityAutonomy Electric
power
Weight
Liter GallonHour Watt KG LBS.
AWP20‐5020,52820 60 13 28,66
AWP40‐10041,05620 120 26 57,32
AWP60‐1506,51,58420 180 40 88,18
AWX40‐10041,05620 120 26 57 ,32
AWX60‐1506,51,58420 180 40 88,18
AWO20‐5020,52820 38 11 24,25
AWO40‐10041,05620 76 22 48,50
Device delivered with a radio remote control.
Models A Length B Width C Height
AWP20-50 508mm(20in) 326mm(12.83in) 300mm(11.81in)
AWP40-100 /
AWX40-100 1016mm(40in) 326mm(12.83in) 300mm(11.81in)
AWP60-150 /
AWX60-150 1524mm(60in) 326mm(12.83in) 300mm(11.81in)
AWO20-50 508mm(20in) 326mm(12.83in) 235mm(9.25in)
AWO40-100 1016mm(40in) 326mm(12.83in) 235mm(9.25in)

Device equipped with exterior connection (dry contact) to allow for remote operation with a distant
switch or by a smart-home installation. Never start or use a device without supervision.
Device equipped with a Wi-Fi application for smartphones.
3. PRECAUTIONS FOR INSTALLING THE DEVICE IN ITS ENVIRONMENT:
Do not play any object on the device while operating. Leave access to the control components free.
Do not use in a room with air currents.
4. ELECTRIC CONNECTION TO YOUR DEVICE
Your device is sent with INPUT electric power of 100-240 volts (50/60 Hz) and OUTPUT of 24 volts.
Before embedding your device, you must connect the electric power to a 100-240 volt/50/60 Hz – 12-
amp circuit.
If you want to an external connection for a remote switch control or smart-home installation, you must
use the dry contact meant for this purpose.
5. Installation diagrams:
AFIRE devices are meant to be embedded without needing any ventilation in the housing for the
device.
In the housing, you must install a normal 110/240 volt (12 amp) electric current in order to power the
device through a 24-volt transformer.
You must also install water supply if you want to connect your device directly.
See the daagram below for the embedding dimensions.
You must leave 5 cm minimum around the device to facilitate installation.

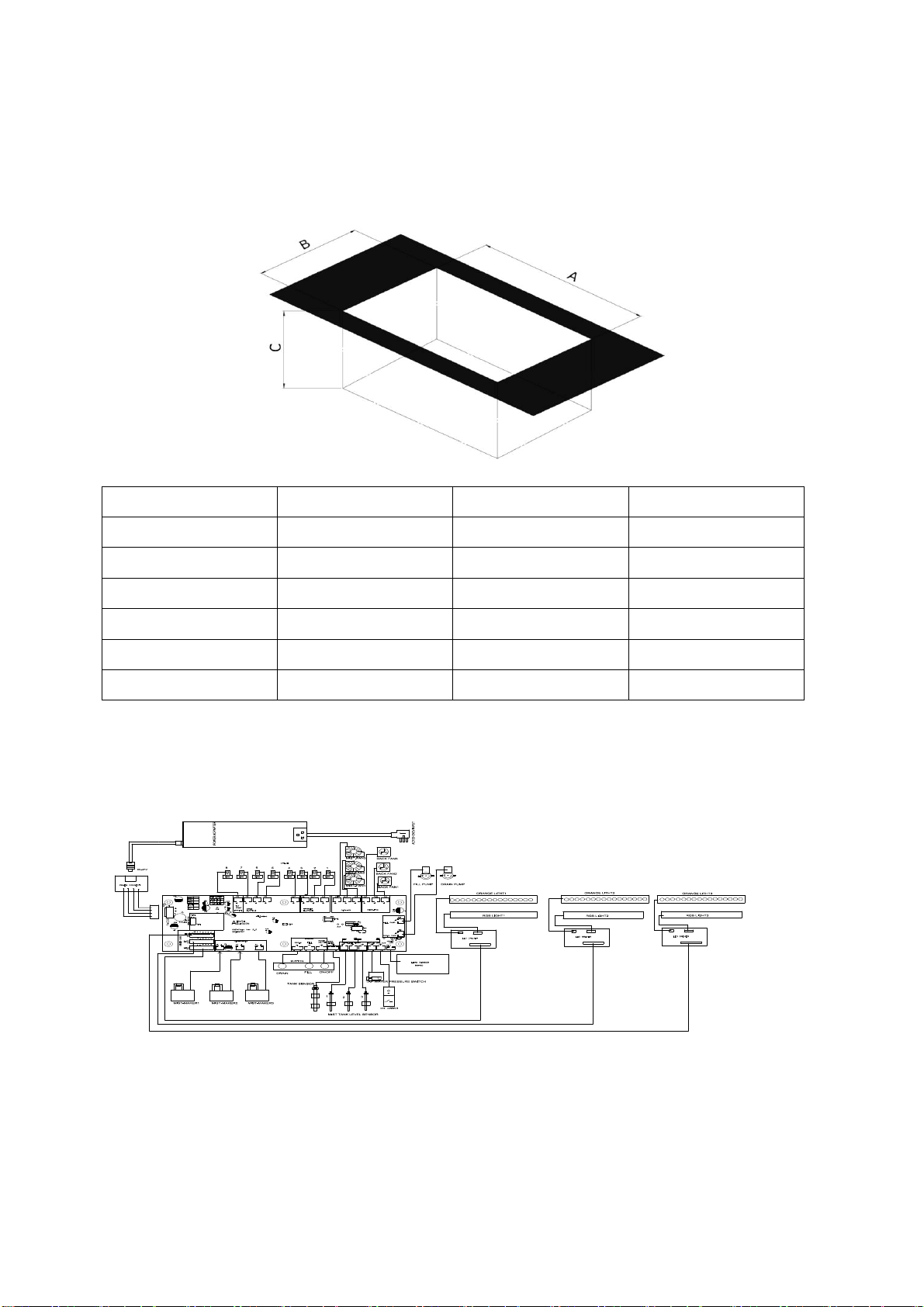

Embedding dimensions:
References A Length B Width C Depth
AWP 20-50 514mm(20.24in) 314mm(12.36in) 328mm(12.91in)
AWP 40-100 1022mm(40.24in) 314mm(12.36in) 328mm(12.91in)
AWP 60-150 1530mm(60.24in) 314mm(12.36in) 328mm(12.91in)
AWO 20-50 514mm(20.24in) 314mm(12.36in) 263mm(10.35in)
AWO 40-100 1022mm(40.24in) 314mm(12.36in) 263mm(10.35in)
6. Electric diagram
This diagram represents the 3 possibliities of connection depending on the model used: AWP 20-50,
AWP 40-100 , AWP 60-150 , AWO 20-50 , AWO 40-100, AWA, AWB, AWD, AW-VIP
7. INSTRUCTIONS FOR USE:

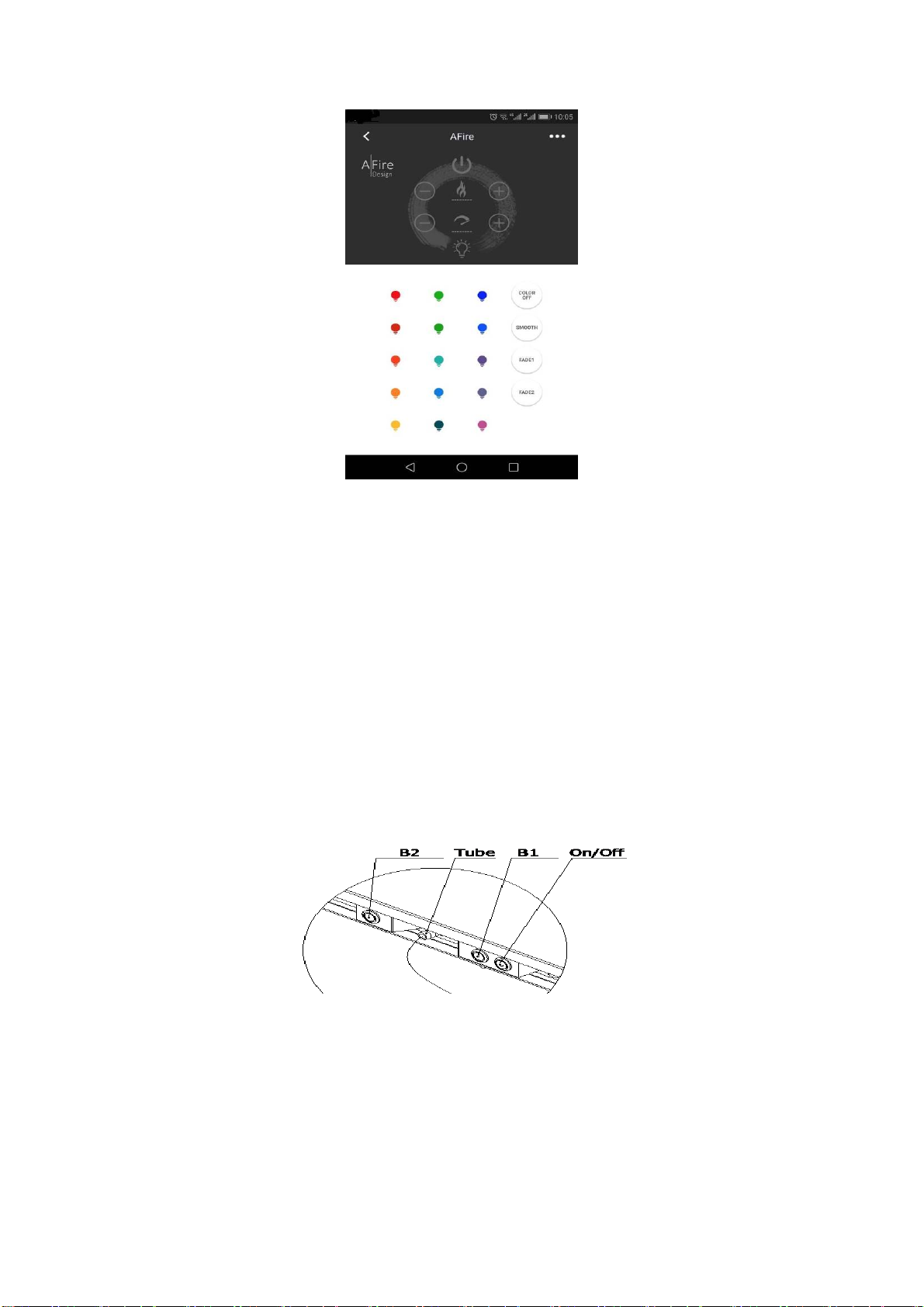

A- Description of the control strip

The ON/OFF button turns the device on and off. Button B1 is used to fill the reservoir with water.
Button B2 is used to empty the device. Hold the button for 5 seconds to start the pumps. Press
once to stop the pumps. The stainless-steel “Tube” connection connects to the plastic hose provided
to fill and empty the device.
ATTENTION: The water used must be perfectly clean with no dust or reside that may clog the
hydraulic system. This point is very important for the operation of your device.
B- Using your device for the first time
Depending on your type of device (PREMIUM AWP, XXL AW, Angle AWA, AW-VIP), it may be
connected directly to your home’s water network (see diagram below, ¼" ). In this case, if you press
the ON/OFF button and the isoalation tap on the hydraulic circuit is open, the device will fill
automatically. In all cases, if you do not use your device, shut off the income water supply to
avoid leaking.

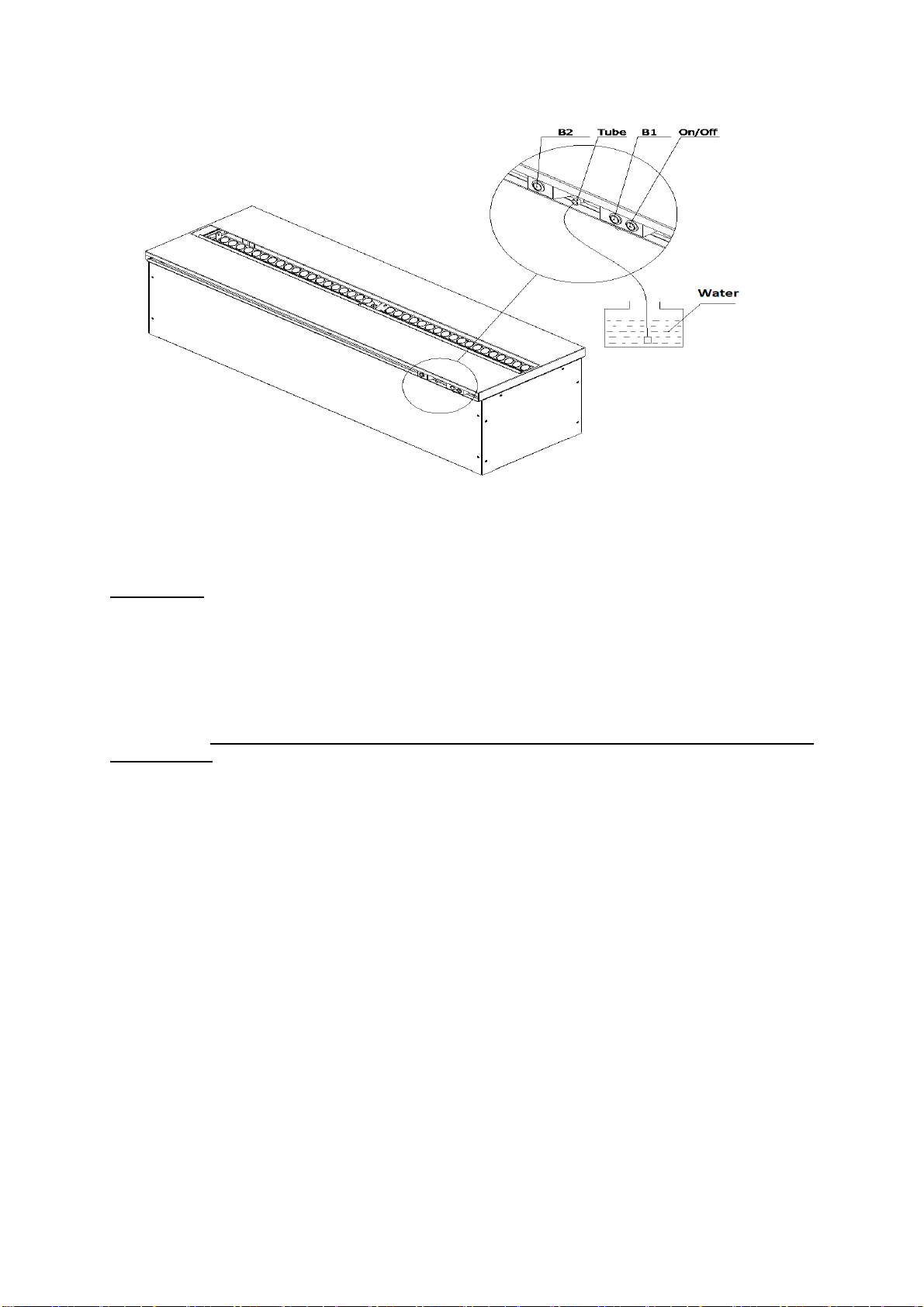

If the device is not connected to the water network, you can fill the reservoir using button B1 (fill). To
do so, first, connect the provided hose to the staintless-steel connector (tube) and submerge the mart
of the hose with its filter in a container of water. Then, press the ON/OFF button. The row of orange
LEDs will blink immediately (empty reservoir). Then, press B1 during 5 secondes once and the filling
pump will start and stop automatically when the reservoir is full. The organge LEDs will remain on and
vapor will start to come out of your device. Note: for the first filling, you will need: 2 liters for AWP 20-
50 and AWO2 0-50, 4 liters for AWP 40-100, AWO 40-100, and AWX 40-100, 6.5 liters for AWP 60-
150 and AWX 60-150. Then, you can control your device using the remote control or the App.
If your device is an ORIGINAL AWO, filling is done manually. You will need to remore the top plate to
access the reservoir cap. When filling, be sure not to let the water overflow, and preferabely use a
funnel.
C- Caution:
Tap water may be used in our devices, however, be sure the water is not considered to be “hard”
and that it contains no impurities (may clog valves). If your water is hard, you must use filtered or
softened water in order not to wear out the Mist Maker too quickly.

Direct connection to the water network ¼”
D- Using the device
AFIRE devices have several control possibilities.
1-Manual (On/Off button)
2-With a smartphon app (certain ranges only)
A) Install the app onto your smartphone
If you use Android, search for the AFIRE app on Google-Play.
IF you use iOS, search for the AFIRE app on the App Store.
B) Sign up
C) Start the app
D) Enter your email address and your password. You must use upper and lower-case letters and
numbers.

Tap “Sign up” The screen will show “Device”
E) Detect your device
1- Tap +(at the top right) and then tap Wifi config (enter the Wi-Fi password if applicable).
Simultaneously press the On/Off button and button B1 of your fireplace module until they
flash. Then, tap the “Start” button on your smartphone screen.
Detection should take 10 to 20 seconds. Your telephone will then indicate that the device has been
detected. Select “Afire” and confirm with the Confirm button on your smarthphone screen.
The screen will display the controls available for your device. Enter your password for your Wi-Fi
connection and tap “Start.”

Next, simply tap the AFIRE icon on your smartphone to get to the app function screen. Of course, your
Wi-Fi will need to be working.
.8. CONNECTION SEVERAL DEVICES TO CREATE A FIRE LINE
Choose one of the deivces that will be the MASTER receiver. All the other devices will be SLAVES
that depent on this MASTER for control. You can choose any of your devices to be the MASTER.
When you receive your devices, they are all MASTERS. Once you choose your MASTER, adjust all
the other modules as follows so they will become SLAVES.
Simultaneously hold the On/Off and B2 buttons for 5 seconds. You will hear a short beep and
the device is now a SLAVE.
Note that for fireplaces that have several modules, the smartphone app must be registered
ONLY for the MASTER.
To know the status of the module: Simultaneously hold the On/Off and B2 buttons for 5 seconds:
short beep SLAVE – Long beep MASTER
9: DEVICE MAINTENANCE

All cleaning and maintenance operations must be done with the device switched off. Occasionally
clean the visible parts with a soft cloth. Never interfere with the safety or electronic systems. Contact
us or an authorized specialist.
Some components are required to ensure the safety and proper operation of the device. Their
replacement may modify the performance of your device. Only original components should be used for
maintenance or repair operations. This maintenance may only be carried out by authorized specialists.
If these instructions are not followed, our liability will not be incurred. If you plan on moving the device,
always do so with the reservoir emptied.
Cleaning and maintenance: If you do not use your device for several weeks, it is very important
to empty it in order to prevent stagnant water.
After using for a while, your device may produce less vapor, and as such, reduce the quality of the
flames. You should then clean or replace certain worn-out parts, such as the ultrasonic Mist Maker,
the lifespan of which is between 2,000 and 3,000 hours (depending on the quality of the water used).
To do so, follow this procedure:
1 – Switch off your device and remove the top detachable plate.
2 – Disconnect the input of the Mist Make and unscrew the drain cap of the Mist Make.
3 – Replace the Mist Make or try to clean the white disk with white vinegar (a few drops on the disk for
a few minutes to dissolve lime scale).
5 - Reassemble.
Clean the air filter on the Mist Make case ventilator. To do this, clean carefully with water, then let dry
before reassembly.
10: Warranty
Devices have a limited warranty of two years (from date of purchase).
This limited warrenty applies only to the original purchaser of the product and is non-transferable.
Not covered by the warranty: The warranty does not apply to products that have been repaired (unless
they were repaired by the manufacturer or an authorized representative). The warranty does not
apply to replacable parts such as the ultrasonic Mist Maker.
This limited warranty does not apply to defects resulting from improper use, poor cleanliness of the
water used, abuse, accidents, negligence, improper installation, improper maintenance or handling.
For the warranty, defects must be reported to the manufacturer’s technical service or its representative.
Please provide proof of purchase (receipt) and serial number.
