AAD C-Series User manual

Introduction
Thank you for choosing AAD loudspeakers.
Their refined and natural sound character will
greatly enhance your listeningpleasure. Great
attention to detail hasgone into the designand
manufacturing of AAD loudspeakers, which
are built with only the finest materials. They
will provide many years of excellent
performance.
By usingmany proprietarycomponents, The
C-Series isthe resultof concentratedefforts
to combinesuperior sonicperformance with
exceptional aesthetic design to suit the
modern living environment. Some of the
features of C-Series include:
Smooth andextended frequencyresponse.
The AAD speakers are able to produce
wide musical range from bass through
mid-range frequencies and up to the
highest frequency beyond human limits.
1.
High acoustic output. This means that
modest amplifiers will be able to produce
acoustical levelsnormally associatedwith
amplifiers with substantially more rated
2.
power.
Superior transient performance. The
speakers are able to give definition to
percussion sound suchas piano, drumsand
triangles, all of which will be reproduced
3.
with startling clarity.
Precise stereo imaging. Close tolerance
pair matching of drivers ensure a stable
stereo image. Minimal phasecrossovers
ensure greatdepth andwidth ofthe sound
4.
stage.
Compatibility and flexibility. TheC-Series
includes many modelsof bookshelf, centre
channel, floor standing, rear surround
speakers and subwoofers in various sizes
to provide maximum flexibility for
different home theater and stereo
application. No matter what your
requirements are and type of room you
have, a custom designed system by using
speakers from the C-Series will meet your
5.
personal needs.
1

Placement
For stereo listening, you may choose any one
pair of bookshelf orfloor standing model.The
size of speakers should be determined by the
size of your living space so that they can
provide sufficient volume. The two
loudspeakers should be placed an equal
Two Channel StereoApplication
distance from your listeningposition.
Bookshelf systems will also benefit from
placement on standsor shelves.The C-Series
stands are designed to match the bookshelf
speakers functionally andaesthetically.
Placing the loudspeakersin corners oragainst
a wall will result in the strongest ( but not
necessarily the most accurate ) bass. For the
best stereo imaging, we recommend that the
systems be placed so that the high frequency
transducers are as close as possible to the ear
level of aseated listener.
Every room has different acoustic
characteristics and people have different tastes
in sound. You should experiment to find out
the placement position that satisfy your
personal tastes.
Please refertoTable2 fordifferentsystem
configuration dependingon roomsizes.
Multi - ChannelApplication
To get the best surround sound from your
C-Series speakers, werecommend to position
the speakers at the same distance from the
listening position.
The centerspeaker,however,may bemoved
closer, but not beyond the straight line
connecting thetwo frontspeakers. Therear
speakers may also be closer to listening
position than the front speakers to suit the
configuration ofyour room.
Notes:
Do notplace thecenter orrearspeakers
farther awayfrom thelistening position
When mounting the rear speakers on side
walls perpendicular to the listening position
they should be placed 60~90 cm above the
listener's ear level at sitting down position.
than thefront speakers.
Depending on the shape of your room,
you may wish to place the rear speakers
behind youinstead ofon theside walls.In
this case,you canuse a pair oflarge floor
standing speakers matching your front
speakers.
Main Speaker
Absorption Panel
Diffusion Panel
1/5 1/5 1/5 1/5 1/5
1/5
1/5
1/5
1/5
1/5
Connections
Make sure your amplifier is off and
disconnected from power while you are
connecting speakers to amplifier. Turn your
amplifier on only afteryou check and make
Two Channel StereoApplication
Connections are made at the terminals located
on the back of the loudspeaker system. The
terminals accept spade plugs, bare wire or
banana plugs. For best results, usehigh quality
All C-Series loudspeakers have 4 gold plated
binding post for single or bi-wring options.
speaker cables.

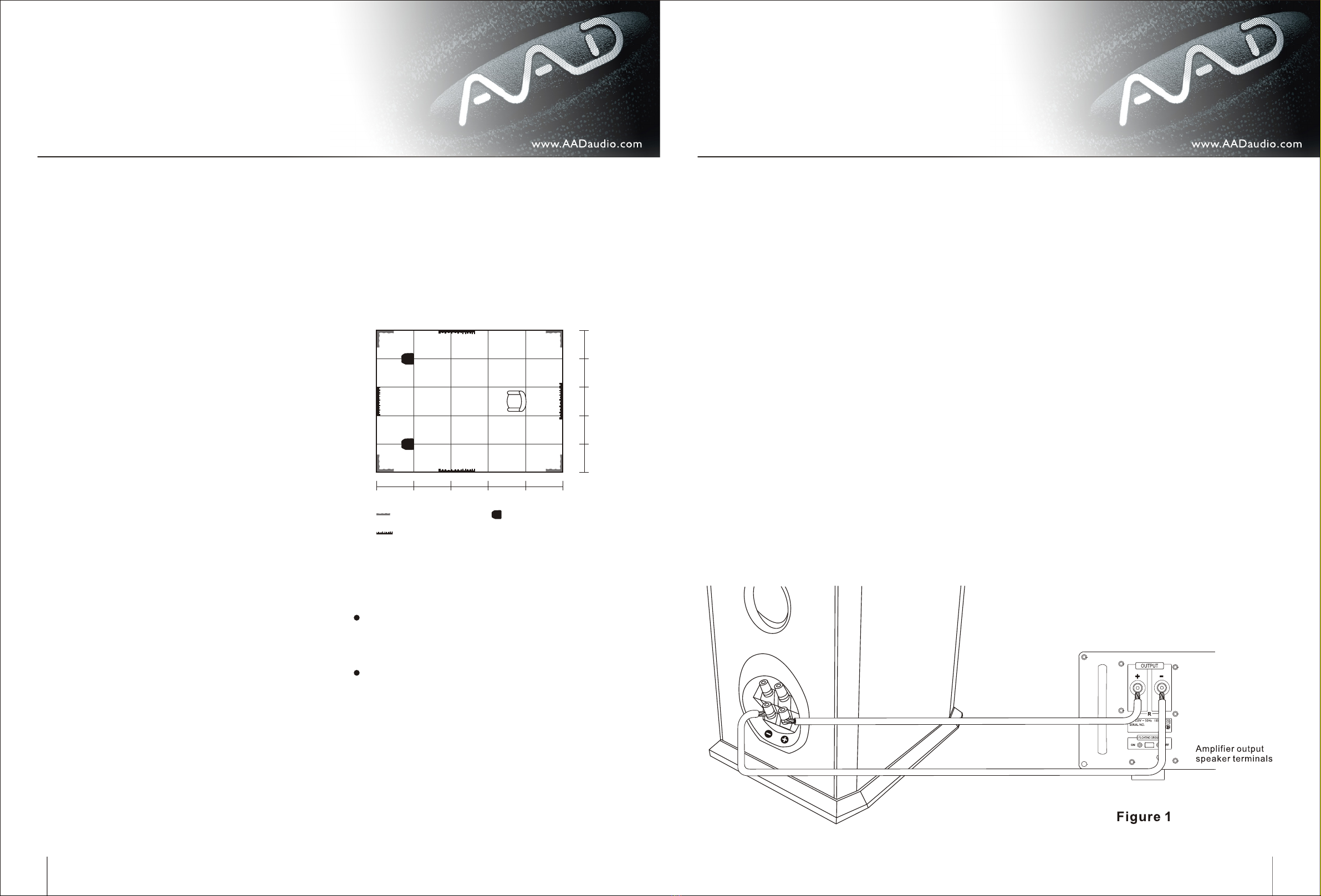

Single Wiring
This methoduses onlyone pairof cablesto
connect eachspeaker to the amplifier. (as
shown inFigure 1).
For each channel, the red terminal on the
loudspeaker should beconnected to thered or
(+) loudspeaker connection terminal on the
receiver or amplifier. The black terminal on
the loudspeaker should be connected to the
black or (-) loudspeaker connection terminal
on the receiver or amplifier. Connecting the
loudspeakers in thismanner ensures thatthey
will be in phase; that is, work together rather
than in opposition. Connecting the
loudspeakers out of phase will not damage
them, but will result in less bass and poor
imaging.
Note: make surethe metal links are in place
Note:
sure speakers areproperly connected.
32

Connections
Single Wiring
Bi-wiring increases the flow of current andwill
usually improve the sound quality. This method
uses two pair of cables: one pair for the upper
two terminals and one pair for the bottom two
terminals ( as shown in Figure 2).
Connect thespeakers toamplifier thesame
manner asyou dosingle wiring.
Note: removethe metallinks.
Adding center and rearspeakers to the leftand
right channels will enhance the surround
effects of motion pictures. If you choose
smaller models, an active sub-woofer is
Single Wiring
You will need one pair of cable for each speaker
in the system.
On the back panelof yourAV amplifier,locate
the Front Speaker, Center Speaker, and Rear
Using the same method as connecting two
channel stereo speakers, connect left and
right, center, and rear speakers to the
corresponding terminals on the AV
amplifier. Again, be sure to match the
speaker cablesto theappropriate terminals
on the components: (+) to (+) and (-) to (-)
to ensuresufficientbass andclear imaging.
For sub-woofer connection and operation,
please referto Sub-wooferOwner's Manual.
Amplifier withonly oneset
speaker output
Note:
Care& Service
General Care
The loudspeaker cabinet may be cleaned
with a slightly damp cloth. Grilles should be
kept on the speakers to protect the drive
units when thespeakers are notbeing played.
Never use any solvents to clean any part of
The grille is held in place by pins near the
edges. To removethe grille,grasp itby both
the system.
top and bottom edges and pull gently. To
replace the grille, reposition it carefully and
press gently atthe corners. Donot push onthe
center area of the grille. Keep the grille free
of dust and dirt. To clean, remove the grille
from thecabinet and vacuum lightly.
Warranty& Service
essential for adequate bassreproduction.
The C-Seriesspeakers comewith warranty
period of3 years,starting fromthe dateof
purchase. This warranty is provided to
original owner, and covers defect in
materials or workmanship that occurs in
If thisis notpossible, callor writeto:
Should youneed service onyour speakers,
please bring it to the dealer whom you
purchased fromalong withsales slip.
54
Speaker terminals.
[email protected]
Damage in shipment.
Damage caused by accidental or intentional
misuse or abuse.
Units not registered withAmerican Acoustic
Development Int'l Ltd.
Damage resulting from unauthorized
modifications or repairs.
The warranty is void ifserial number on the
product has been removed.
normal use.
Liability is limited to the repair or replacement,
at our option, of any defective component and
shall not include property or consequential
damages which may result from the failure of
this product. You will void warranty if the
cabinet is opened without factory authorization.
a)
b)
c)
d)
e)
This warranty does not include:

C - Series Family Products C - Series Specifications
Standard CabinetFinish: Cherry/ Classicblack leather( vinyl)
For reference only. You may choose yourown system to suityour demand for volume.
C-44 C-44W C-45
C-150
SD-10 SUB C-550 C-660 C-880
C-204 C-305
C-44
C-44 W
C-45
C-204
C-305
C-150
C-550
C-660
C-880
76
155 x 150 x 260
260 x 90 x 260
287 x 143 x 260
191 x 253 x 375
158 x 198 x 495
191 x 251 x 530
SD-10
191 x 251 x 940
228 x 295 x 1055
270 x 350 x 1260
320 x 365 x 430
3.5
3.5
5.5
7.3
6.8
11
15.5
19.5
27.5
18.5
8 Ohm
8 Ohm
4 Ohm
6 Ohm
4 Ohm
6 Ohm
6 Ohm
4 Ohm
4 Ohm
Bookshelf
Bookshelf
Bookshelf
Bookshelf
Center Channel
Center Channel
Floor Standing
Floor Standing
Floor Standing
Sub-Woofer
1x4"1
1x4"
1
2x4"
2
1 1x5 "
1
/5
2x4"
1
1 2x5 "
1
/5
1 2x5 "
1
/5
1 2x6 "
1
/5
2x8"
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
NoNone 1x10"
87
87
89
89
89
89
89
91
91
90 -22
90 -22
38 -22
45 -22
85 -22
80 -22
45 -22
35 -22
30 -22
25 -200
20 -200
20 -150
20 -120
20 -100
20 -75
20 -100
20 -80
20 -75
20 -75
70
C-Series HomeTheatreSystem Recomendation
C-44
C-44 W
C-45
C-204
C-305
C-150
C-550
C-660
C-880
Stand
Wall Bracket
C-350
SD-10
R
E
A
R
BS
C
E
N
T
O
W
E
R
SW
Room Size ( m )
215 - 20 20 - 30 25 - 35 28 - 40 30 - 40 30- 45 30 - 50

Terms Reference
www.AADinternational.com E-mail: [email protected] American Acoustic Development Int'l, Ltd.
Instead of a normal suspension construction, the
AAD Fixed Suspension Midrange ( FSM ) uses
an innovative design. The small movements of
the cone lightly compress and stretch the ring.
Because the ring's surface area is small, it
radiates relatively little sound, and what little
movement it does have always follows the cone
Firstly, the whole cone begins to respond much
quicker in a given time. In the time domain this
equates to a better transient response. In the
frequency domain it indicates a more extended
high-frequency response, and indeed the
response of this driver is smoother to higher
frequencies and allows a better-integrated
edge because it is so tightly coupled.
increase in clarity for the listener.
Fixed Suspension Midrange ( FSM )
crossover to the tweeter. Secondly, the final
pattern of cone movement is even more random
8
than forthe regular driver, witha resultant
PhaseAlignment Device (PAD )
The modeland serialnumbers arelocated onthe rear
of the unit. Record these numbers in the spaces
provided below. Refer to them when calling upon
your dealerregarding thisproduct.
If thisis notpossible, callor writeto:
[email protected]
Shouldyouneedserviceonyourspeakers,please
bring it to the dealer whom you purchased from
along withsales slip.
Owners Record
Foster controlled, uniform dispersion and
accurate phase response throughout a large
What emerges is a detailed, incredibly true
and transparenthigh-frequency presentation.
Power response is immediate, with lightning
speed and instantaneous reproduction of
transient information. Integrity of the upper
harmonics is completely intact and the
tweeter's uncanny accuracy and high-fre
quency articulation is a decided advantage
in an era of extended bandwidth formats.
listening window.
Fixed Suspension Midrange ( FSM )
Model No.
Serial No.
Date ofpurchase:
Dealer shop:
