AAVIX A11705 User manual

WARNING : To reduce the risk of injury, user must read this manual before assembling, operang
and maintaining this unit. You are responsible for operang the product properly & safely.
Version: V1.20171106
AAVIX OUTDOORS
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
20 INCH 2 IN 1 POLE/HANDHOLD HEDGE TRIMMER

2
WARNING!
READ ALL INSTRUCTIONS BEFORE OPERATING! Follow all instructions.
Save all warnings and instructions for future reference.
These instructions below are for your safety. Read them thoroughly before
using. Familiarize yourself with them to reduce hazards like personal injuries
and damage to property.
TABLE OF CONTENTS
Safety Rules.………………….………………..………………………………………………….2
Symbols.………………….………………………………………………………………………….7
Specifications.……….…………………………………..……………………………………….8

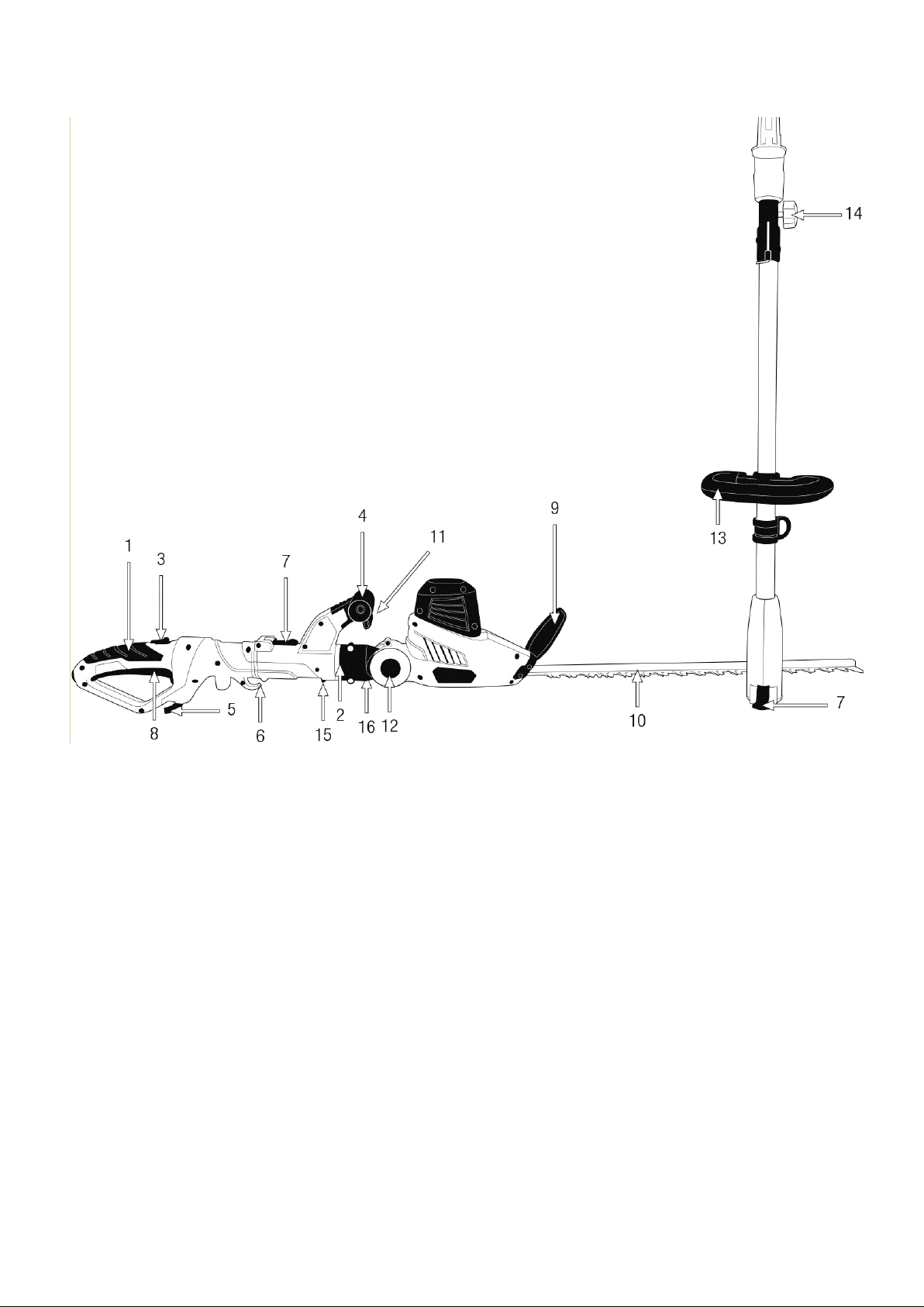

Know Your Product………….………………………………………………………….………9
Assembly……….…..…………………………………………..…………………………………10
Starting And Stopping……………………………………………….………….……………12
Operation……………………………………………………….…………………………………13
Maintenance…………….…………………………………………………………………….…17
Transport…………….………………………………………………………………………….…19
Storage…………….……………………………………………………………………………….20
Troubleshooting……………….……………………………………………….………………21
SAFETY RULES
Working Area Safety
1. Keep the work area clean and well lit.
Cluttered or dark areas invite accidents.
Only use the product in daylight or
good artificial light.
2. Do not operate the product
in explosive atmospheres, such as in
the presence of flammable liquids,
gases or dust.Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away
while operating a power tool. keep
them outside a 50-foot (15 m) radius,
at a minimum. If you are approached,
stop the unit immediately.
Electrical safety
1. Power tool plugs must match the
outlet. Never modify the plug in any
way Do not use any adapter plugs with
grounded power tools. Unmodified
plugs and matching outlets will reduce
risk of electric shock.
2. Avoid body contact with grounded
surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your
body is grounded.
3. Do not expose power tools to rain or
wet conditions. Water entering a
power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use

3
the cord for carrying, pulling or
unplugging the power tool. Keep cord
away from heat, oil, sharp edges or
moving parts. Damaged or entangled
cords increase the risk of electric shock.
5. When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the
risk of electric shock.
6. If operating a power tool in a damp
location is unavoidable, use a ground
fault circuit interrupter (GFCI)
protected supply. Use of a GFCI
reduces the risk of electric shock.
7. The substitution of the plug or cable
should be done by a qualified
professional and repaired, if necessary,
before you operate it again. We
recommend that this product should be
connected to residual differential.
8. Do not touch the unit, cords,
switches, power source or plugs with
wet hands.
Personal Safety
1. Stay alert, watch what you are doing
and use common sense when
operating a power tool. Do not use a
power tool while you are tired or under
the influence of drugs, alcohol or
medication. A moment of inattention
while operating power tools may result
in serious personal injury.
2. This product is dangerous in the
hands of untrained users.
3. Usepersonalprotectiveequipment.
Alwaysweareyeprotection.Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
4. Avoid accidental starting. Ensure the
switch is in the off-position before
plugging in. Carrying power tools with
your finger on the switch or plugging in
power tools that have the switch on
invites accidents.
5. Remove any adjusting key or
wrench from a rotating part before
turning the power tool on. A wrench
or a key left attached to a rotating part
of the power tool may result in
personal injury.
6. Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power
tool in unexpected situations.
7. Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes,jewellery, or long
hair can be caught in moving parts.
WARNING: Read all
safety warnings and all instructions.
Failure to follow the warnings and
instructions may result in electric
shock, fire, and/or serious injury.
Power Tool Use And Care
1. Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
2. Do not use the power tool if the
switch does not turn it on and off. Any
power tool that cannot be controlled
with the switch is dangerous and must
be repaired.
3. Disconnect the plug from the power
source from the power tool before
making any adjustments, changing

4
accessories, or storing power tools.
Such preventive safety measures
reduce the risk of starting the power
tool accidentally.
4. Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool. Power tools are
dangerous in the hands of untrained
users.
5. Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tools operation. If damaged have the
power tool repaired before use. Many
accidents are caused by poorly
maintained power tools.
6. Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to
bind and are easier to control.
7. Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool
for operations different from those
intended could result in a hazardous
situation.
Hedge Trimmer Safety
Warnings:
1. Use both hands when operating the
hedge trimmer. Using one hand could
cause loss of control and result in
serious personal injury.
2. Keep all parts of the body away from
the cutter blade. Do not remove cut
material or hold material to be cut
when blades are moving. Make sure
the switch is off when clearing jammed
material. Blades coast after turn-off. A
moment of inattention while operating
the hedge trimmer may result in
serious personal injury.
3. Carry the hedge trimmer by the
handle with the cutter blade stopped.
Proper handling of the hedge trimmer
will reduce possible personal injury
from the cutter blades.
4. Hold the power tool by insulated
gripping surfaces only, because the
cutter blade may contact hidden
wiring or its own cord. Cutter blades
contacting a “live” wire may make
exposed metal parts of the power tool
“live ” and could give the operator an
electric shock.
5. Keep cable away from cutting area.
During operation the cable may be
hidden in shrubs and can be
accidentally cut by the blade.
6. DANGER - Keep hands away from
blade. Contact with blade will result
in serious personal injury.
Service
Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power
tool is maintained.
Vibration And Noise Reduction
To reduce the impact of noise and
vibration emission, limit the time of
operation as well as wear personal
protective equipment.
The prolonged use of the product,
exposes the client to vibrations that in
extreme cases and through many hours
of use of the product could cause the
"white finger syndrome" also known as

5
Raynaud phenomenon, This causes a
reduction in the tact of the fingers and
their capacity to regulate temperature
generating a lack of sensibility.This
sickness could in extreme cases cause
problems with the nerve endings.
The exposure to the vibrations is the
cause of the white finger syndrome, To
minimise this effect as much as possible,
follow the following recommendations:
1. When working with the device, a
certain level of noise cannot be avoided.
Noisy work should be scheduled for
hours, during which it is allowed by
statute or other local regulations.
Adhere to any applicable rest times and
limit your working time to the
necessary minimum time. For your
personal protection and the protection
of people nearby, suitable hearing
protection must be worn.
2. Take the following points into account
to minimize the vibration and noise
exposure risks:
- Only use the product as intended by its
design and these instructions.
- Always use gloves.
- Always have your hands warm.
- Ensure that the product is in good
condition and well maintained.
- Ensure that the cutting device is always
sharp.
- Use correct attachments for the
product and ensure they are in good
condition.
- Keep tight grip on the handles/grip
surface.
- Maintain this product in accordance
with these instructions and keep it well
lubricated (where appropriate).
- Plan your work schedule to spread any
high vibration tool use across a longer
period of time.Take frequent breaks.
- If you detect any of the symptoms of
the white finger syndrome, consult
immediately with your doctor.
Residual risks
Even if you are operating this product in
accordance with all the safety
requirements, potential risks of injury
and damage remain. The following
dangers can arise in connection with the
structure and design of this product:
1. Health defects resulting from
vibration emission if the product is
being used over long periods of time
or not adequately managed and
properly maintained.
2. Injuries and damage to property due
to broken cutting attachments or the
sudden impact of hidden objects
during use.
3. Danger of injury and property damage
caused by flying objects.
WARNING! This product
produces an electromagnetic
field during operation! This field may
under some circumstances interfere
with active or passive medical
implants! To reduce the risk of serious
or fatal injury, we recommend persons
with medical implants to consult their
doctor and the medical implant
manufacturer before operating this
product!
DOUBLE INSULATION
Double insulation is a concept in safety in
electric power tools, which eliminates the
need for the usual three-wire grounded
powercord. All exposed metal parts are
isolated from the internalmetal motor
components with protecting insulation.
double-insulated tools do notneed to be

6
grounded.
ELECTRICAL CONNECTION
This product hasa precision-built electric
motor. Itshouldbe connected to a power
supplythat is120V, AC only, (normal
householdcurrent) 60 Hz. Do not operate
this product ondirectcurrent (DC). A
substantial voltage drop will cause aloss
ofpowerand the motor will overheat. If
the product does not operatewhen
plugged intoan outlet, double-check the
powersupply.
WARNING:The double
insulated system is intended to protect
the user from shock resulting from a
break in the tool's internal insulation.
Observe all normal safetyprecautions
to avoid electrical shock.
NOTE: Servicing of a product
with double insulation requires
extreme care and knowledge of the
system and shouldbe performed only
by a qualified service technician. For
service, we suggest youreturn the
product to your nearest authorized
service center for repair. Always use
original factory replacement parts
when servicing.
SAFETY RULES FOR
EXTENSION CORD
Make sureyour extension cord is in good
condition. When using an extension cord,
be sure to use one heavy enoughto carry
the current your product will draw. An
undersized extension cord will cause a
drop in linevoltage resulting in lossof
powerand overheating. Table 1shows
the correctsize touse depending on cord
length and nameplateampere rating. If in
doubt, use the next heaviergage. The
smaller the gage number,theheavier the
cord. To reduce the risk ofdisconnection
ofappliance cord from the extension
cordduring operating:
I) Make aknot as shown in Table 1; or
II) Use one of the plug-receptacle
retainingstraps or connectors described
in this manual.
Table 1 Minimum gauge for
extension cords
Volts
Total length of cord in
feet
120V
25
50
100
150
Ampere
rating more
than-not
more than
AWG
0-6
18
16
16
14
6-10
18
16
14
12
10-12
16
16
14
12
12-16
14
12
Not
recommend
ed
METHOD OF SECURING EXTENSION
CORD
(A) TIE CORD AS SHOWN

7
(B) CONNECT PLUG AND RECEPTACLE
NOTE: AWG = American Wire Gauge.
Ground Fault Circuit Interrupter (GFCI)
protection should be provided on the
circuit(s) or outlet(s) to be used with this
unit.For an extra measure of safety, use
receptacles with built-in GFCI protection.
WARNING! To reduce the risk
of electric shock, use a Ground Fault
Circuit Interrupter (GFCI) with a tripping
current of 30 mA or less.
WARNING:Keep the
extension cord clear of theworking
area. Position the cord so thatit will
not get caught on lumber, tools, or
other obstructions while you are
working with a power tool. Failure to
do so can result in serious personal
injury.
WARNING:Check
extension cords before each use.If
damaged replace immediately. Never
use the product with a damaged cord
since touching the damaged area could
cause electric shock resulting in serious
injury.
SYMBOLS
SAFETY ALERT SYMBOL
Indicates danger, warning
or caution. May be used in
conjunction with other
symbols or pictographs.
READ OPERATOR'S
MANUAL
WARNING:Read the
operators manuals and
follow all warnings and
safety instructions. Failure
to do so can result in
serious injury to the
operator and/or bystanders
Wear protective non-skid
boots with protective steel.
Wear security gloves and
use both hands to operate
this tool.
Wear ear protection
WARNING:Loud noise
can cause severe hearing
loss. Wear ear protection
when operating this unit.
Wear eyegoggles.
Thrown objectscan cause
severe eye injury.Wear eye
protection meeting current
ANSI / ISEA Z87.1 standards
Wear safety helmet!
Wear head protection
when operating this unit;
falling objects can cause
severe head injury. Use a
full face shield when
needed.
Wear respiratory
protection.

8
Wear protective clothing
DO NOT USE IN THE RAIN
WARNING: Avoid
dangerous environments.
Never operatethe unit in
the rain or in damp or wet
conditions. Moisture is a
shock hazard.
Danger!Keep hands away
from sharp blades, Don’t
touch the blades when
starting or while operating
the unit.
Unplug the product before
doing any maintenance
work on the product.
Remove plug from the
power source immediately
if the cable is damaged or
cut
DOUBLE INSULATED:
ClassⅡdevice .This device
must not be earthed.
WARNING: Keep all
bystanders, especially
children and pets, at least
50 feet (15 m) from the
operating area. Objects
thrown by the product
could hit the user or other
bystanders.
Always beware of the
danger from overhead
electric-power line, keep a
safe distance at least
10M(32.8ft) from the
power line.
SPECIFICATIONS
Model
A11705
Engine
120V ~ 60Hz
Power
4.6Amp
Protection grade
IP20
Bladelength:
20inch
Cut capacity:
3 / 4inch(19mm)
Protection class
/ II
Weight
5.3kg(11.7lbs)

9
Know Your Hedge Trimmer
1.Rear Handle
9.Guard
2.Rotation Angle Of The
Head Block
10.Blade
3.Lock Switch
11.Security Button
4.Front Handle
12.Unlock Button Head
Turn
5.Power Cord
13.Auxiliary Handle
6.Cable Hook
14.Length Adjustment Knob
7.Lock Buckle
15.Unlock Button Head
Rotation
8.Trigger switch
16.Turn Angle Of The Head
The diagrams and pictograms herewith enclosed in this manual are a guide but
not necessarily an exact copy of the actual product.

10
INTENED USE
1. Only cut hedges. Do not use this
product for otheruses for which the
product has notbeen designed to
carry out. Do not use thisproduct to
cut plastic parts, bricks or
construction materials. Do not use
this product to move objects.Any
other use could lead to dangerous
situations.
2. This product is intended for
private domestic use only, not for
any commercial trade use. It must
not be used for any purposes other
than those described.
ASSEMBLY
Unpack
1.Carefullyremove the product andany
accessories from the box. Make sure
that all items listed in the packing list
areincluded.
2.Inspect the product carefully to
make sureno breakage ordamage
occurred during shipping.
3.Do notdiscard thepacking material
until you have carefully inspected
and satisfactorily operated the
product.
4.If any parts are damaged or missing,
contact our customer service center.
NOTE: Be careful with small parts that
are removed during assembly or when
making adjustments. Make sure you do
not lose them.
WARNING: If any parts are
damaged or missing, do not
operate this product until the parts are
replaced. Failure to heed this warning
could result in serious personal injury.
WARNING: Do not attempt
to modify this product or create
accessories not recommended for use
with this product. Any such alteration
or modification is misuse and could
result in a hazardous condition leading
to possible serious personal injury.
WARNING: Do not connect
to powersupply until assembly is
complete. Failure to comply could
result in accidental starting and
possible serious personal injury.
PACKING LIST
- Hedge trimmer
1 pc
- Bar Sheath
1 pc
- Guard
1 pc
- Guard Screw
4 pcs
- Hex. Key
1 pc
- User Manual
1 pc
- Extension Tube
1 pc
- Shoulder Strap
1 pc
The Guard
Placeguard as shown this Figure, Insert
the 4pcs screws and tighten
The normal hedge trimmer:
1. Open thelock buckle1of the front
handle.

11
2. Insert the rear handle into the
opening of front handle.
3. Lock the lockbuckle1 of thefront
handle.
The pole hedge trimmer:
1. Unlock the lock buckle1 of the front
handle.
2. Insert the fronthexagonal aluminum
pipe joint into the opening of the
front handle.
3. Lock the lock buckle1 of the front
handle.
4. Unlock the lock buckle 2 oftelescopic
tube.
5. Insert the rearhandle into the
opening of rear hexagonal aluminum
pipe joint.
6. Lock the lock buckle2 of the
telescopic tube.
The shoulder strap
1. Use your thumb or fingers to squeeze
the safety lock piece, put the hook to
the hanging part of the tool.
2. Move slide buckle to adjust the
length of the shoulder strap. Adjust
the length of the shoulder strap to
obtain a comfortable working
position. A few practices swings
without starting motor should be
made to determine correct balance.
3. Put the shoulder strap over your
right shoulder. Carry the tool engine
at the right side of your body.
4. If the shoulder strap is too close to
your body, you can loose the hex
screw with hex wrench, then push
the lock ring further. When the
distance is fit for your operation,
tighten the hex screw.
The auxiliary handle
Place the auxiliary handle to telescopic
tube, adjust to desired position and
tighten the screw (A) by Allen key set
(B)firmly.

12
Connecting To Power Supply
WARNING: Make sure the
trigger switch is released before
connecting or disconnecting the power
source. Refer to the “Starting and
Stopping “section.
1. The cable section must be at least
1.5mm2and the cable must have a
maximum length of 25m(82ft) and it
must be completely unrolled before
starting to work with the product .
2. This product is designed with a cord
retainer that prevents the extension
cord from being pulled loose while
using.
3. Form a loop with the end of the
extension cord.
4. Form a loop with the end of the
extension cord.
5. Insert loop portion of extension cord
through opening in the bottom ofthe
rear handle and place over cord
retainer.
6. Slowly pull loop against cord retainer
until the slack is removed.
7. Plug product into extension cord.
WARNING: Do not allow
familiarity with this product to make
you careless. Remember that a careless
fraction of a second is sufficient to
inflict serious injury.
NOTE:Failure to remove all excess
cord slack from extension cord retainer
could result in plug loosening from
receptacle.
STARTING AND
STOPPING
WARNING: Always wear
safety goggles or safety glasses with
side shields that comply with ANSI
Z87.1 when operating power tools.
Failure to do so could result in objects
being thrown into your eyes, resulting
in possible serious injury.
After stopping the product, the blade
will not stop immediately. Wait until it
has stopped before carrying out any
maintenance work on the product or
before transporting the product. The
blades don't stop immediately when
releasing the on/off switch, the blades
stop at least 5 seconds after.
Checking Before Starting
1. Replace parts that are cracked,
chipped, or damaged in any way. Do
not operate the unit with loose,
damaged parts or improperly
adjusted.
2. Before start up, removethe security
blade sheathfrom the blade.
3. Make sure the guard is well fixed to
the product.
The Pole Hedge Trimmer
NOTE: To help prevent the motor from

13
starting accidentally, the lock switch and
trigger switch must both be engaged to
start the unit.
Starting
1. Remove the blade sheath.
2. Place one hand on the rear handle.
Place the other hand on the front
handle.
3. Press the security button.
4. Continue to press the security button.
Slide the lock switch forward, then
squeeze the trigger switch to turn ON
the hedge trimmer. The trimmer will
stay on as long as the trigger switch is
squeezed.
5. Lock switch may be released once
hedge trimmer is running.
Stopping
1. Release the trigger switch.
2. Wait until cutting bladehas stopped
fully.
NOTE:Upon release of thetrigger
switch, the lock switch will reset to the
locked position.
The normal hedge trimmer
Starting
1. Remove the blade sheath.
2. Place one hand on the rear handle.
Place the other hand on the auxiliary
handle.
3. Slide lock switch forward.
4. Continue to hold thelock switch.
Then squeeze the trigger switch to
turn ON the hedge trimmer. The
trimmer will stay on as long as the
trigger switch is squeezed.
5. Lock switch may be released once
pole hedge trimmeris
running.
Stopping
1. Release one of the security button or
the trigger switch on rear handle.
2. Wait until cutting bladehas stopped
fully.
OPERATION
WARNING: Do not use any
attachments or accessories not
recommended by the manufacturer of
this product. The use of attachments or
accessories not recommended can
result in serious personal injury.
Repair or replace everything you need
before using the product.
Holding The Unit
1. Place the holding belt as shown in
the image and click onto the product
using the ring.

14
2. Always grip the unit firmly with both
hands when the unit is running.
Angle Adjustment
Rotating The Head To Left And Right
1. Slide the unlock button (1) and then
turn the swivel handle to the desired
position. Release thelock button
again and check whether the button is
locked in place. See as below.
NOTE:The swivel handle can be
locked in five positions (-90°, -45°, 0°,
45° and 90°). See below.
Turning The Head Up And Down
Press the up/down rotary button (1) to
adjust the trimmer head angle. See as
below. Adjust the attachment angle to
fit the growth of the plant.
Adjusting The Pole Extension
1. Loosen the locking knob for length
adjustment completely and slide the
inner pole to the desired length.
2. To help maintain proper balance,
only extend the pole to the minimum
length required to reach the hedge
being cut. Hold the unit by the pole,
at the center of balance.
3. Screw the locking knob to lock the
inner pole in place firmly.
While Operating
1. Always turn the unit off when
operation is delayed,when setting the
unit down or When moving from one
working area to the next,. Make sure
all moving parts come to a complete
stop.
2. Switch the product off immediately

15
if you are disturbed while working
with it and when other people enter
the working area. Always let the
product come to complete stop
before putting it down.
3. Do not overwork yourself. Take
regular breaks to ensure
concentrated work and full control
over the product. Lack of rest and
fatigue can cause accidents and
damage.
Trimming Tips
1. When operating the hedge trimmer,
keep the extension cord behind the
user and the trimmer. Never drape it
over the hedge being trimmed.
2. This tool must not be used as a lever
to lift, move or split objects.
3. Keep handles dry, clean, and free
from oil and grease. Greasy, oily
handles areslippery causing loss of
control.
4. Always disconnect the unit from the
power source when it is not in use.
5. Do not force the hedge trimmer
through heavy shrubbery. This can
cause the blades to bind and slow
down. If the bladesslow down, reduce
the pace.
6. DOnot attempt to cut stems or twigs
that are thicker than 3/4” (19 mm), or
those obviously too large to feed into
the cutting blade. Use a non-powered
hand saw or pruning sawto trim large
stems.
7. If desired, you can use a string to
help cut your hedge level. Decide how
high you want the hedge. Stretch a
piece of string along the hedge at the
desired height. Trim the hedge just
above the guide line of string. Trim the
side of a hedge so that it will be
slightly narrower at the top. More of
the hedge will be exposed when
shaped this way, and it will be more
uniform.
8. Wear gloves when trimming thorny
or prickly growth. When trimming new
growth, use a wide sweeping action,
so that the stems are fed directly into
the cutting blade. older growth will
have thicker stemsand will be
trimmed easiest by using a sawing
movement. The unit is used for cutting
in either direction in a slow, sweeping
action from side to side.
9. We recommend that you test
yourself firstly withsmall branches in
an easy position so as to get some
experience before starting with more
complex cuts.
10.Stand so that you are stable and
balanced on both feet. Do not
overreach.Be especially careful when
using the product after it has rained as
the ground will be slippery and you
could slip.
11.Never use the hedge trimmer near
power lines, fencing, posts, buildings,
or other immovable objects.
12.Never use a blade after hitting a
hard object without first inspecting it
for damage. Do not use if any damage
is detected.
13.If the cutting mechanism strikes any
foreign object or the product starts
making any unusual noise or vibration,
shut off the power source and allow
the product to stop. Take the following
steps:
- Inspect for damage.
- Check for, and tighten, any loose

16
parts.
- Have any damaged parts replaced or
repaired with partshaving equivalent
specifications.
WARNING: Always keep
both hands on the hedge trimmer
handles gripping surface. Never hold
shrubs with one hand and operate
hedge trimmer with the other. Failure
to heed this warning can result in
serious injury.
WARNING: Clear the area
to be cut before each use. Remove all
objects such as cords, lights, wire, or
loose string which can become
entangled in the cutting blade and
create a risk of serious personal injury.
WARNING: Read the safety
information for safe operation using
the blade. Extreme care must be taken
when using blades to ensure safe
operation. Refer to General Safety
Rules and Specific SafetyRules.
14.Always start the hedge cutter before
placing the blade in the cutting area.
Once the hedge cutter has started,
place the product in the hedge in a flat
position and carry out long fan like
movements. If you tilt the product in
the cutting direction you will obtain
better cutting results.
15.Stop the engine before:
-Leaving the product unattended.
-Cleaning or when clearing a blockage,
-Checking, carrying out maintenance
or working on the product,
-Adjusting the working position of the
cutting device.
16.NOTE: if blades do become
jammed, stop the motor immediately,
allow the blades to stop,and
disconnect the plug from the power
source beforeattempting to remove
the obstruction.
- Make sure the product hasstopped
completely.
- Check that the temperature of the
blade is not extremely high. Always
allow the unit to cool down.
- Always use security gloves when
unblocking the blade.Use appropriate
tools to remove debris, e.g. a brush or
wooden stick! Never use your bare
hands!
- With the help of suitable tooling,
remove the blocking element from
the blade.
17.Prepare the product to required
length attaching the pole extensions
and/or the hedge trimmer shaft.
18.Cut both sides from the bottom
cutting upwards to the top. This will
prevent any of the cuttings falling into
the path of the area still to be cut.
19.After cutting the sides proceed to
the top.
20.When cutting wide hedges with the
cutting area in sightmove the cutting
blade lightly through the cutting

17
surface in a sweeping motion
following the shape of the hedge or
shrub. A slight tilt downwards of the
cutting blade in the direction of
motion is recommended for optimum
cutting performance.
21.Move the product with slow motion
forward when cutting higher hedge
and the cutting area out of sight.
22.Do not to rush and do not attempt
to cut too much with one stroke of
the cutting blade.
NOTE: Try to keep the cutting blade
angled at approximately 15° to the
cutting surface.
23.Cut in a number of stages if the area
being cut is particularly long to
achievea better result; smaller
cuttings will allow for easy
composting.
NOTE: When shaping it is advisable
to achieve a trapezoidal shape. A
trapezoidal cut corresponds to the
natural growth of plants and results in
optimal hedge growth, as it will
expose more light tothe bottom of
the hedge.
AFTER USE
1. Disconnect the product from power
source. Always allow the unit to cool
down before performing inspection,
maintenance and cleaning work!
2. Check, clean and store the product
as described below.
MAINTENANCE
WARNING:Before
inspecting, cleaning, or
servicing the machine,
disconnect the plug from
power source and wait for all moving
parts to stop. Failure to follow these
instructions can result in serious
personal injury or property damage.
NEVER perform maintenance or repairs
while the unit is running.
WARNING: When servicing,
use only identical replacement parts.
Use of any other parts may create a
hazard or cause product damage.
Do not modify the product or the

18
cutting elements, An inadequate use of
these elements can cause SEVERE
PERSONAL DAMAGES OR DEATH.
WARNING: Always wear
safety goggles or safety glasses with
side shields that comply with ANSI
Z87.1 during product operation. If
operation is dusty, also wear a dust
mask. Wear ear/hearing protection
when operating this unit. Use a hard
hat or other type of safety helmet.
WARNING: Do not at any
time let brake fluids, gasoline,
petroleum-based products, penetrating
oils, etc., come in contact with plastic
parts. Chemicals can damage, weaken,
or destroy plastic which may result in
serious personal injury. All service,
other than the maintenance
procedures described in this manual,
should be performed by an authorized
service center.
WARNING: Blades are
sharp, when handling the blade
assembly, wear non-slip, heavy-duty
protective gloves. Do not place your
hand or fingers between blades or in
any position where they could get
pinched or cut. Never touch blades or
service unit with the power supply
connected.
Checking Before Each Use
1. Inspect the product before each use
for worn and damaged parts.
2. Check the power cord and extension
cord to detect possible damage or
worn.
3. Check for loose screws, nutsor bolts
are tightly secured, (tighten as
needed).
4. Check the blade sharpness.
Cleaning After Each Use
WARNING: Do not use
chemical, alkaline,pine and lemon,
abrasive or other aggressive detergents
or disinfectants to clean this product.
Most plastics are susceptible to
damage from various types of
commercial solvents and may be
damaged by their use. Use clean cloths
to remove dirt, dust, oil, grease, etc.
NOTE : Always clean the
product after using it. Lack of proper
cleaning can cause damage to the
product and produce a malfunction.
Regular and proper cleaning will help
ensure safe use and prolong the life
ofthe product.
1. Stop the motor and disconnect from
power supply.
2. Always use security gloves.The blade
very sharp.
3. Carry out all maintenance work on a
clear and flat surface. And allow the
unit to cool down.
4. Clean dirt and debris from the body
of the hedge trimmer, using a slightly
damp cloth with a mild detergent. Use
a brush to clean theblade. Never use
petrol, detergents, water or any other
liquid to clean the blades.
5. In particular clean the air vents after
every use.
6. Remove stubborn dirtwith high
pressure air (max. 3bar).

19
7. Wipe offany moisture with a soft
cloth.
8. Lightly coat the blade and all screws
with a corrosion-inhibiting oil.
Ventilation Motor Conducts
Eliminate any dirt in the ventilation
conducts so as notdamage the engine
and avoid the machine overheating and
even burning.
Checking After Each Use
1. Check for any loose, worn or
damaged parts.
2. Repair or replace damaged parts and
tighten loose screws, nuts or bolts as
necessary or contact an authorised
service centre for repair before using
the product again..
Checking The Power Cord
1. Never use the product with a
damaged cable or with the electric
power source damaged.
2. Before connecting the product.
Check the plug, power cord and
extension cord periodically for
damages. If you find any damages,
have it repaired before operating. If
the cable is damaged or broken,
disconnect the product immediately.
Damaged cables or twisted cables
increase the risk of electric shock.
3. Damaged cords should be replaced
or repaired by an authorized service
center.
\
Blade Maintenance
When checking the
blade,wait for a few
moments after switching
the product off, the blade will carry on
moving.
1. Keep the hedging blade clean and
free of debris. Removetrimmings.
2. Keep the hedging blade sharp to retain
a good cutting performance. Replace a
worn or damaged cutting blade with a
new one of the same type.
3. Lubricate the hedging blades
regularly with oil after each use to
prolong the life span of cutting blade
and product. Apply light machine oil
along the edge ofthe cutting blade.
4. The blades of this product are high
quality metal and do not need to be
filed. If accidentally, the blade
catches on a metallic surface,
touches a rock or any other hard
object, a small breakage could occur.
If this small breakage does not
impede the blades functioning
correctly, then you can carry on
using the product. If, on the other
hand, the product does not work
properly, then take the product to
customer service center.
5. Blade sharpening must be carried
out by the service dealer. Do not
sharpen the blade yourself. The
blade must be sharpened
guaranteeing the cutting angle and
blade equilibrium. Blade sharpening
carried out by a non expert will
result in the product vibrating and
will eventually cause damages to the
product and usage problems to the
end user.
STORAGE
1. Follow all aforementioned
maintenance instructions. Clean the
product as described above.
2. Store in a well-ventilated place that
is inaccessible to children.

20
3. Attach the blade sheath.
4. Always unplug the product from the
power source before storing.
5. Store the product and its accessories
in a clean, dry, frost-free,
well-ventilated place, Keep the
product on a flat surface. Keep away
from corrosive agents such as garden
chemicals and de-icing salts.
6. We recommend using the original
package for storage or covering the
product with a proper cloth or
enclosure to protect it against dust.
7. Lock up the unit to prevent
unauthorized use or damage.
TRANSPORT
1. Disconnect the product before
transporting it anywhere. Always
transport the product with the engine
stopped.
2. Always carry the product by the
front handle when the product is not
running and always at a safe distance
from your body.
3. When transporting or storing the
product . Attach the blade with a blade
sheath. A proper use of the product
will result in a reduced probability of
accidental damages with the cutting
elements.
4. Protect the product from any heavy
impact or strong vibrations which may
occur during transportation in
vehicles.
5. Secure theproduct to prevent it
from slipping or falling over.
6. The product comes in a package that
protects it against damages during
shipping. Keep the package until you
are sure that all parts havebeen
delivered and the product is function
properly. Recycle the package
afterwards.
