Abatronic AMB-12H User manual

Model AMB-12H
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THIS UNIT.
THROUGH-WALL AIR-TO-AIR HEAT PUMP AND AIR CONDITIONER
Instruction Manual

- 1 -
TableofContents
1. SAFETY WARNINGS ……………………………… 2
2. CONSTRUCTION…...……………………………… 3
3. ASSEMBLYAND INSTALLATION .…...……………4
4. OPERATION …………………..……………….……12
5. MAINTENANCE…………………………..…………14
6. TECHNICAL INFORMATION ………...……………15
7. TROUBLE SHOOTING……………………….…… 16
8. PACKING LIST………………………………………17

- 2 -
1. SAFETYPRECAUTIONS
■Warning
●Never place the unit near any gas appliances, fire or flammable liquid.
●Never hit or shake the unit to prevent risk of damage.
●Never cover or obstruct the air inlet or outlet to prevent risk of overheating.
●Never spray water or place the unit near water to prevent risk of electric shocks.
●If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a qualified electrician in order to avoid a hazard.
●Never connect or disconnect the power plug with wet hands to prevent risk of electric
shocks.
●Never share the power outlet with other appliances.
●Never put rods or objects into the openings in the unit.
●Never use an extension lead.
●Do not let children play near the unit
●To protect the compressor, when the unit is restarted, it will take at least 3 minutes to
work again.
●The appliance shall be installed in accordance with national wiring regulations.
●This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
●Children should be supervised to ensure that they do not play with the appliance.
■Caution

- 3 -
●Keep the unit one meter away from TV sets or radios to avoid the risk of electromagnetic
interface.
●Do not use the unit directly in sunshine to avoid surface color fading or discolouration.
●Do not incline the unit more than 5° during its operation or 35° during transportation, if so,
please turn off power supply immediately and ask for advice from your local dealer
●The unit can only work efficiently in a certain room size. (see TECHNICALINFORMATION)
●In order to prolong the unit lifetime, please empty the condensed water completely while the
unit is not going to be used for a long period of time.
●Do not use chemical solvents (like alcohol or thinners) to clean the unit surface, otherwise,
the unit surface will be easily scratched, damaged, and the casing could even become
deformed.
2.CONSTRUCTION

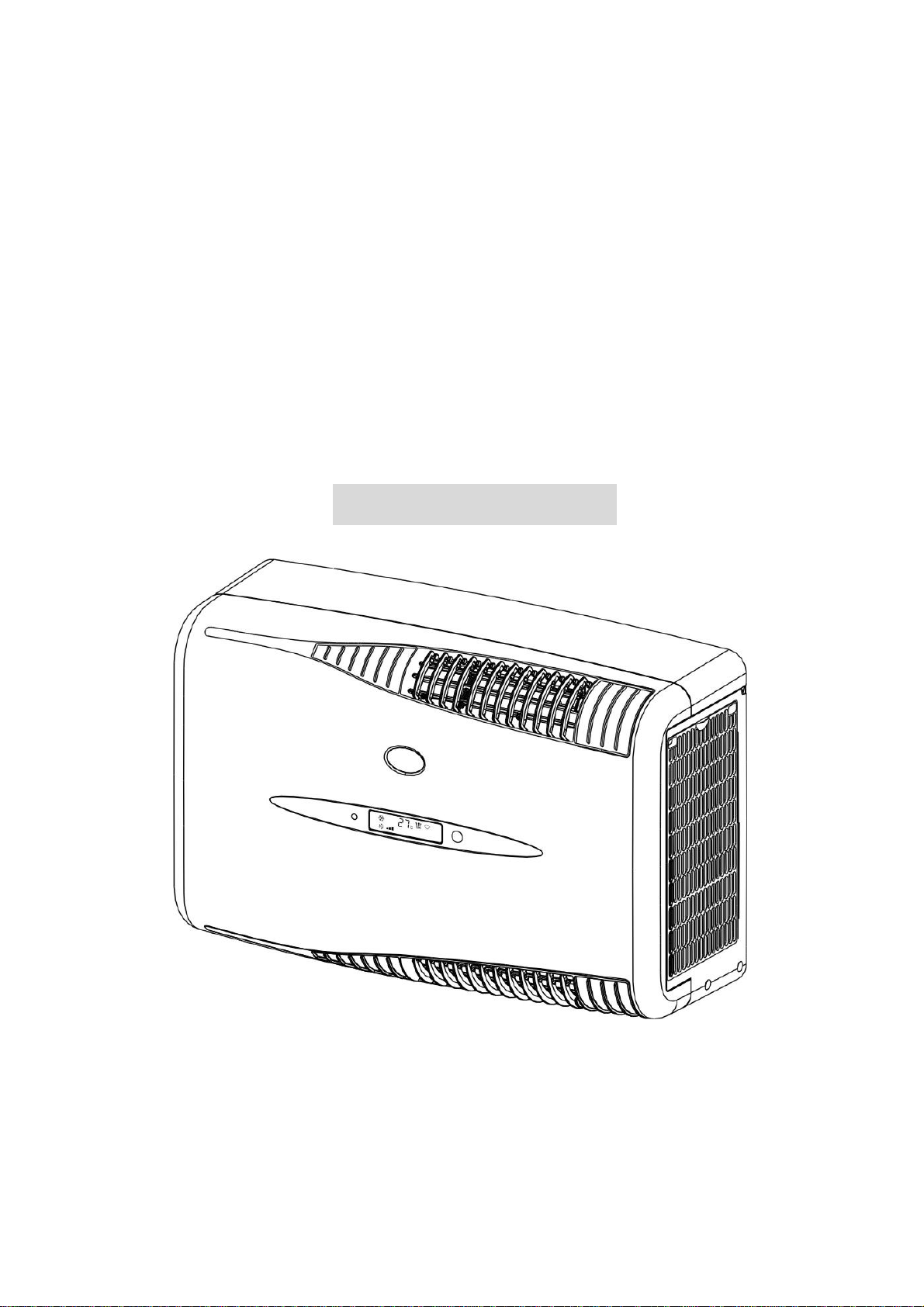

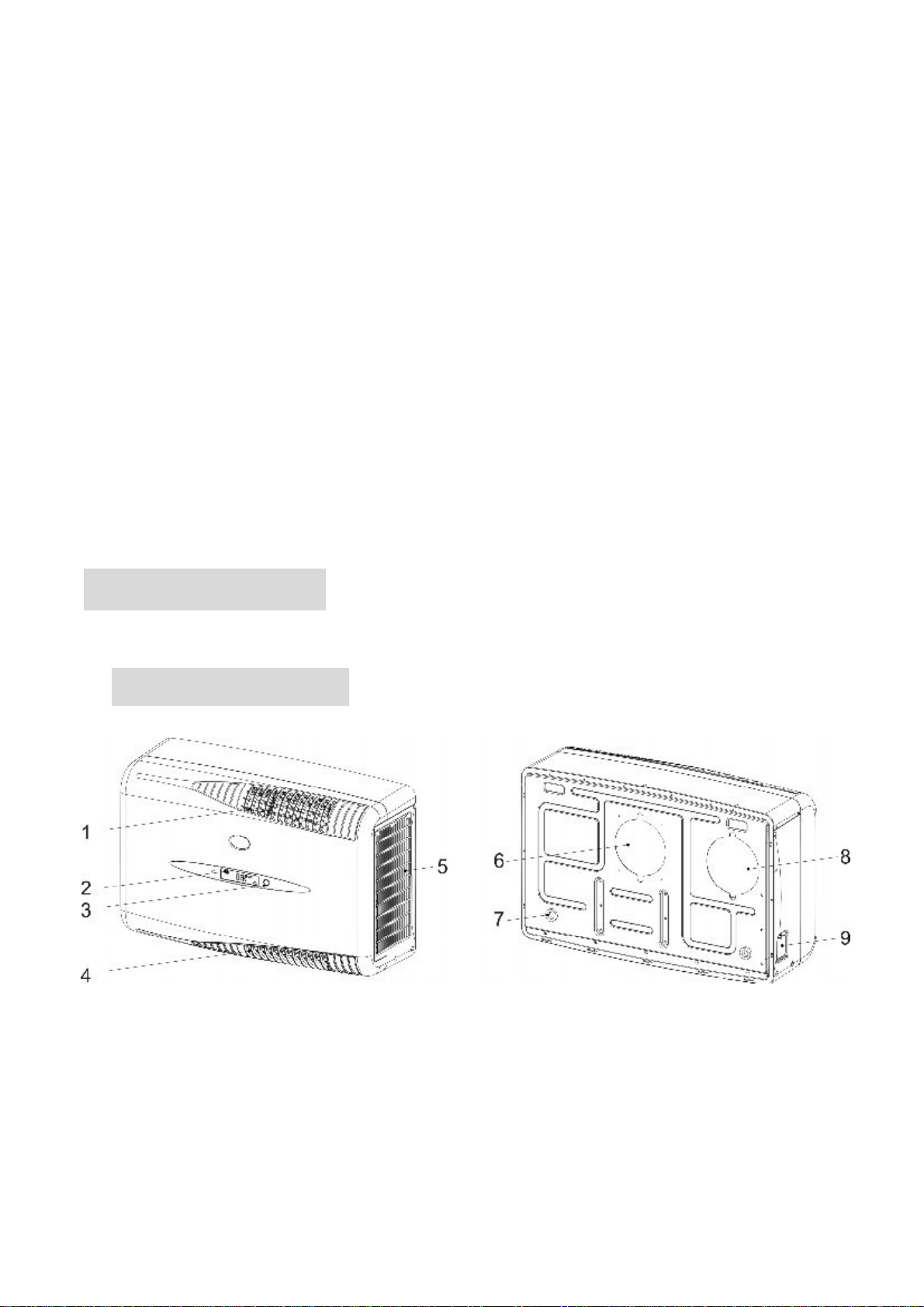

·UNIT CONSTRUCTION ( Figure 1)
Fig1
1. Upper Air Outlet
2. Display Board
3. Emergency Switch
4. Lower Air Outlet
5. Air Inlet Assembly
6. Air Inlet Hole
7. Anti-Vibration Pad
8. Exhaust Air Outlet
9. Water Filter Bracket

- 4 -

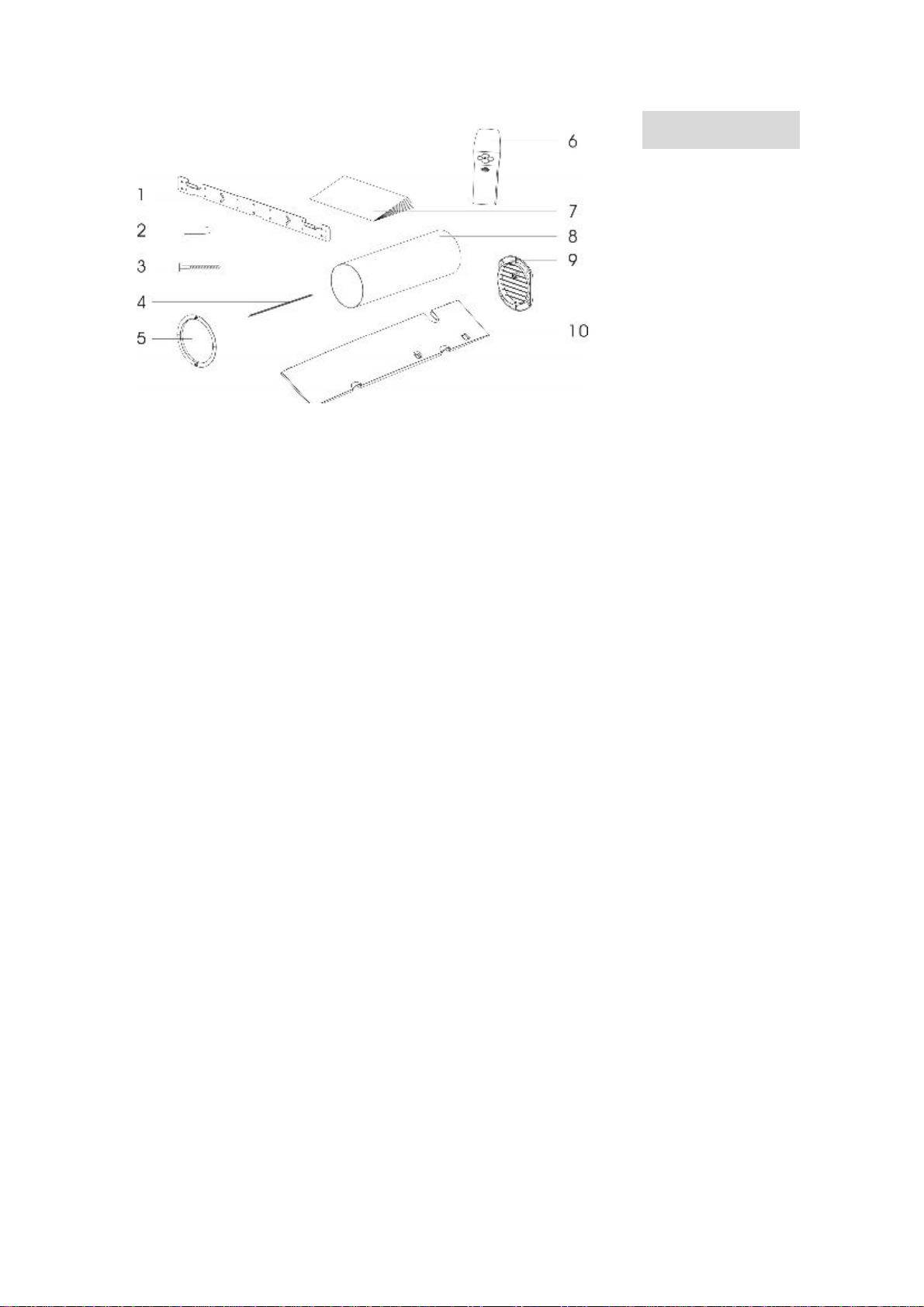

·ACCESSORIES (Figure
2)
1. Unit mounting bracket
2. Plastic Tube
3. Screw
4. Spring
5. Spring retaining ring
6. Remote Controller
7. Instruction Manual
8. Air Duct
9. Air Duct Cover
10. Bottom cover panel
Fig2

- 5 -

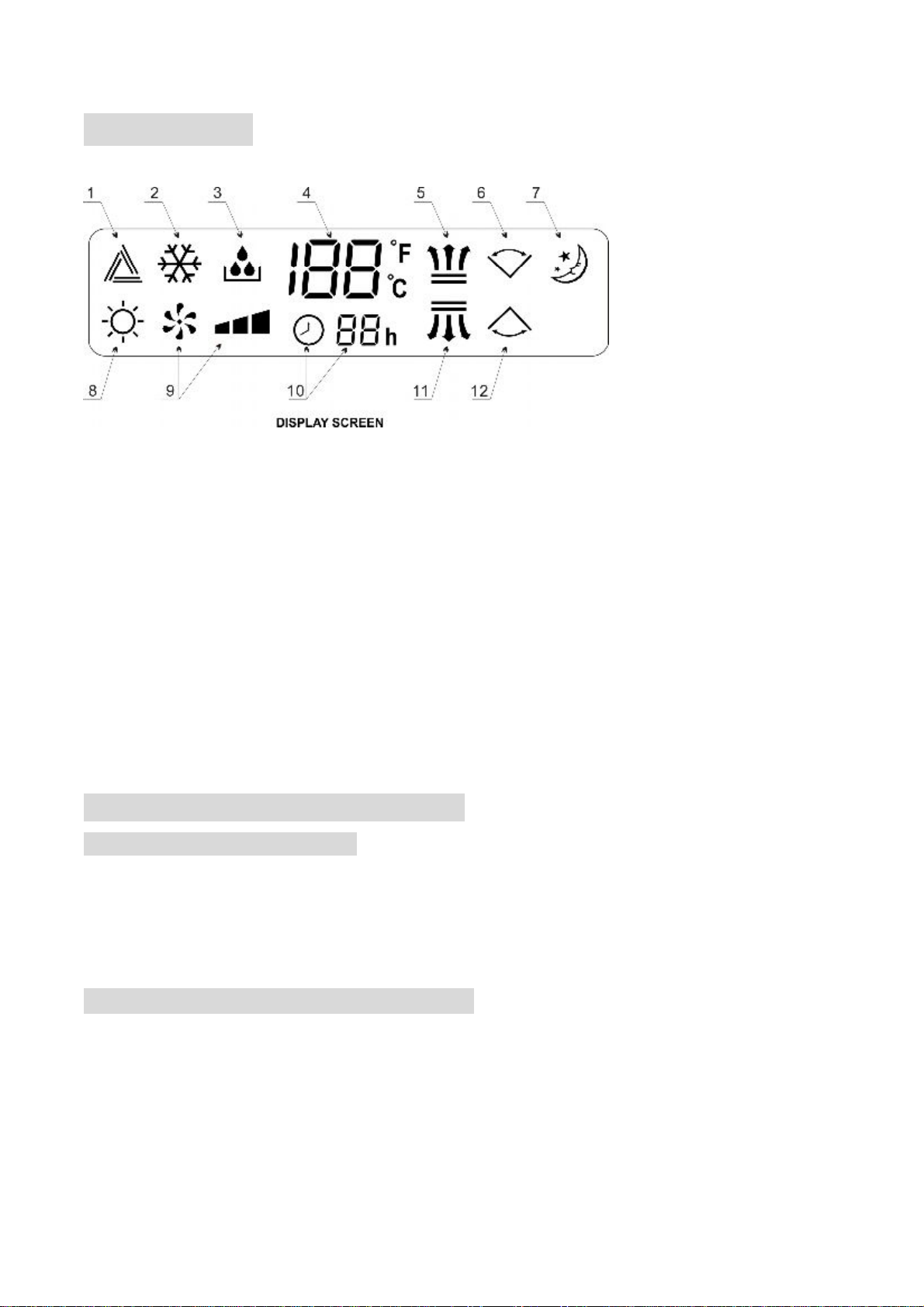

DISPLAY PANEL(Figure 3)
Fig3
1. Automatic Mode
2. Cooling Mode
3. Dehumidifying Mode
4. Temperature Display
5. Upper Air Outlet
6. Upper Swing
7. Sleep/night Mode
8. Heating Mode
9. Fan & Wind speed
10. Timer
11. Lower Air Outlet
12. Lower swing
3. ASSEMBLY AND INSTALLATION
3.1 ASSEMBLY INSTRUCTIONS
In order to get the best effect and functioning of the appliance, please operate according to
following instructions carefully. Failure to do this may result in mechanical failure or even more
serious damage to persons,animals and property.
3.2 POSITIONING OF THE APPLIANCE

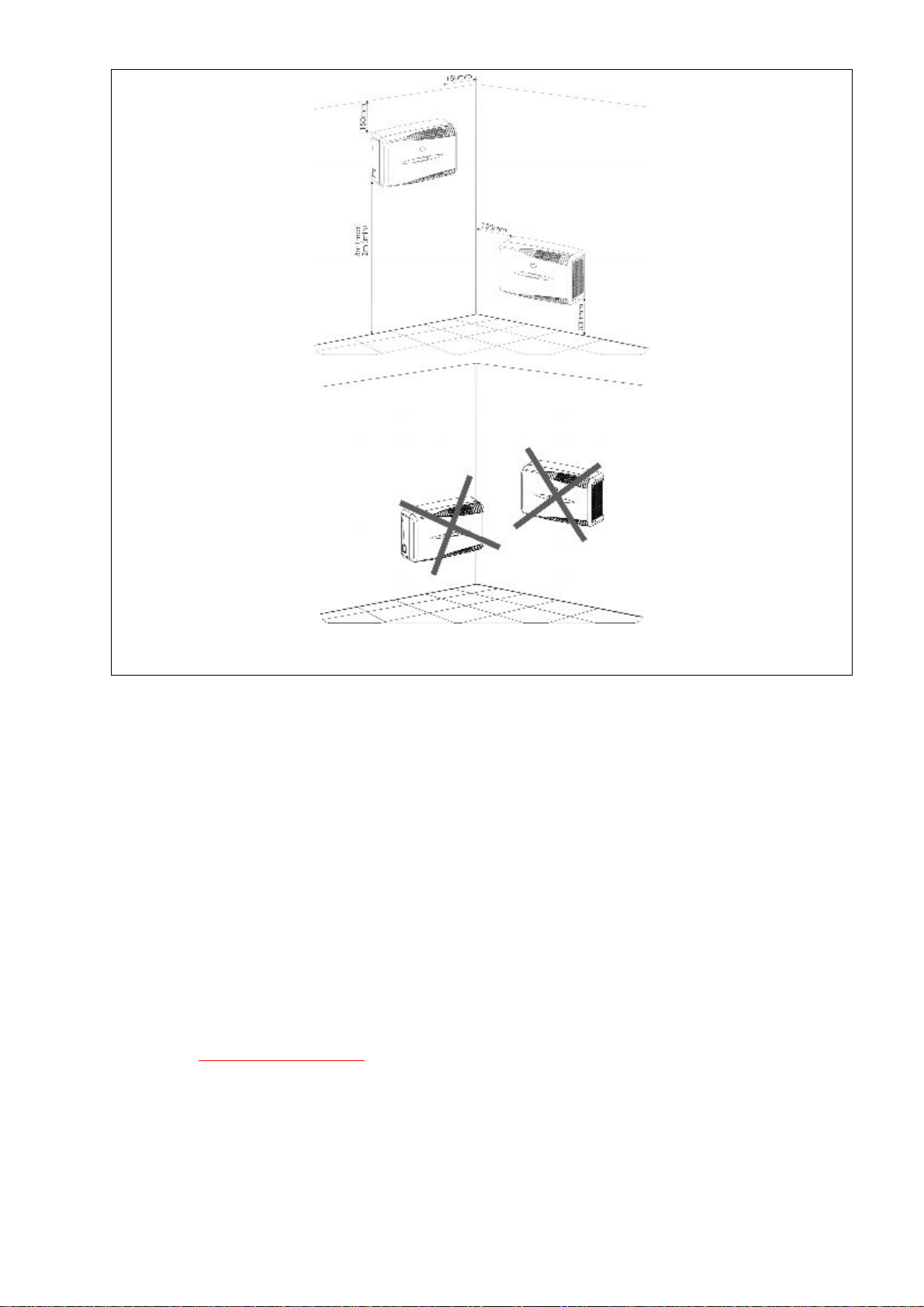

3.2.1 In order to get the best operation and to avoid any risks or failure, positioning of the
appliance should be in accordance with following diagram (Figure 4):

- 6 -
1. When the unitis to be installed high onthe wall, the distance frombottomof unit to floor should
be no less than 2mand no more than 3m. The distance fromside panel to wall should be no
less than 150mm.
2. When the unitis to be installed low on the wall, thedistance fromthe bottomof unit to floor
should ideally beno more than 300mmand no less than 100mm.The distancefromside panel
to wall should be noless than 150mm.
3. The wall that supports the unit must be strong enough to withstand the weight of unit.The
fixings should be chosenso as to be suitable for the type of wall – particularly hollow walls. Itis
the installer’s responsibility tocheckcarefully and use suitable fixings for the appliance.
4. Leave enough space around the unit for operation and maintenance.
5. Keep the area around air inlets completely clear to avoid any restriction of air flow, especially
within 0.2mrange of theair outlet area, otherwiseit will cause abnormal noise from the unit
during operation.
3.2.2 The chosen installation wall must be an outside wall.
Note: Before starting work ensure the correct positioning for the unit. Double check the
wall and confirm the wall is suitable to drill through. Take particular care that the wall
does not contain other services such as lights, wiring, water or gas pipes etc.
3.2.3 Before unit installation, it is necessary to double check the room size for the unit and
precisely calculate the heat load in summer and cooling load in winter that the heat pump
unit will have to manage for the room.
Precise calculation will optimize the unit function and help understand which potential
Fig4

- 7 -
factors would influence the unit performance. In order to make sure the unit has the
maximum possible effect, the following are recommendations:
- Keep the room as well sealed as possible, i.e no open windows and minimum
ventilation necessary.
- Do not use high power electrical appliances in the room if cooling is required.
- Keep direct sunshine out of the room if cooling is required.
3.3 INSTALLATION
3.3.1 Drill the hole through the wall
Use suitable tools (for example a core drill and large percussion/impact drill) that will help
make installation as efficient as possible, avoid excessive damage to the wall and avoid
inconvenience to the user or others.
.
Drill the wall according to instructions below.

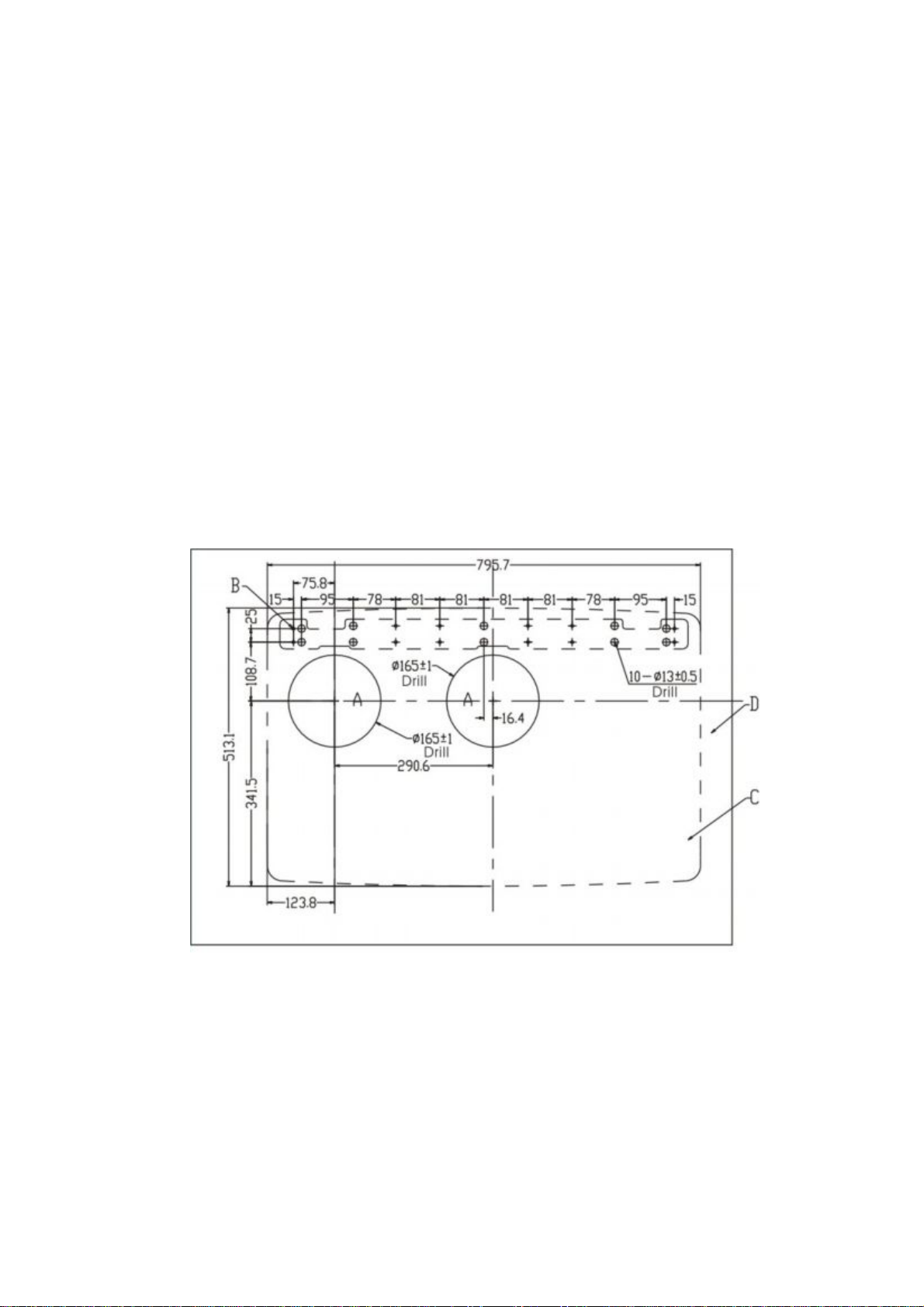

1. Stick the installation drawing (Figure 5) to the correct position on wall with adhesive tape, the
position should be in accordance with the dimensions given in section 3.2 Positioning the
appliance.
Fig5
2. Mark the centre point of each hole to be drilled by using a pen, small drill or punch.
3. Use masonry drill to make holes - Note: Hole position should comply with drawing. For small
holes use φ13mm drill, drilling approximately 60mm deep. For the large holes, pilot drill and

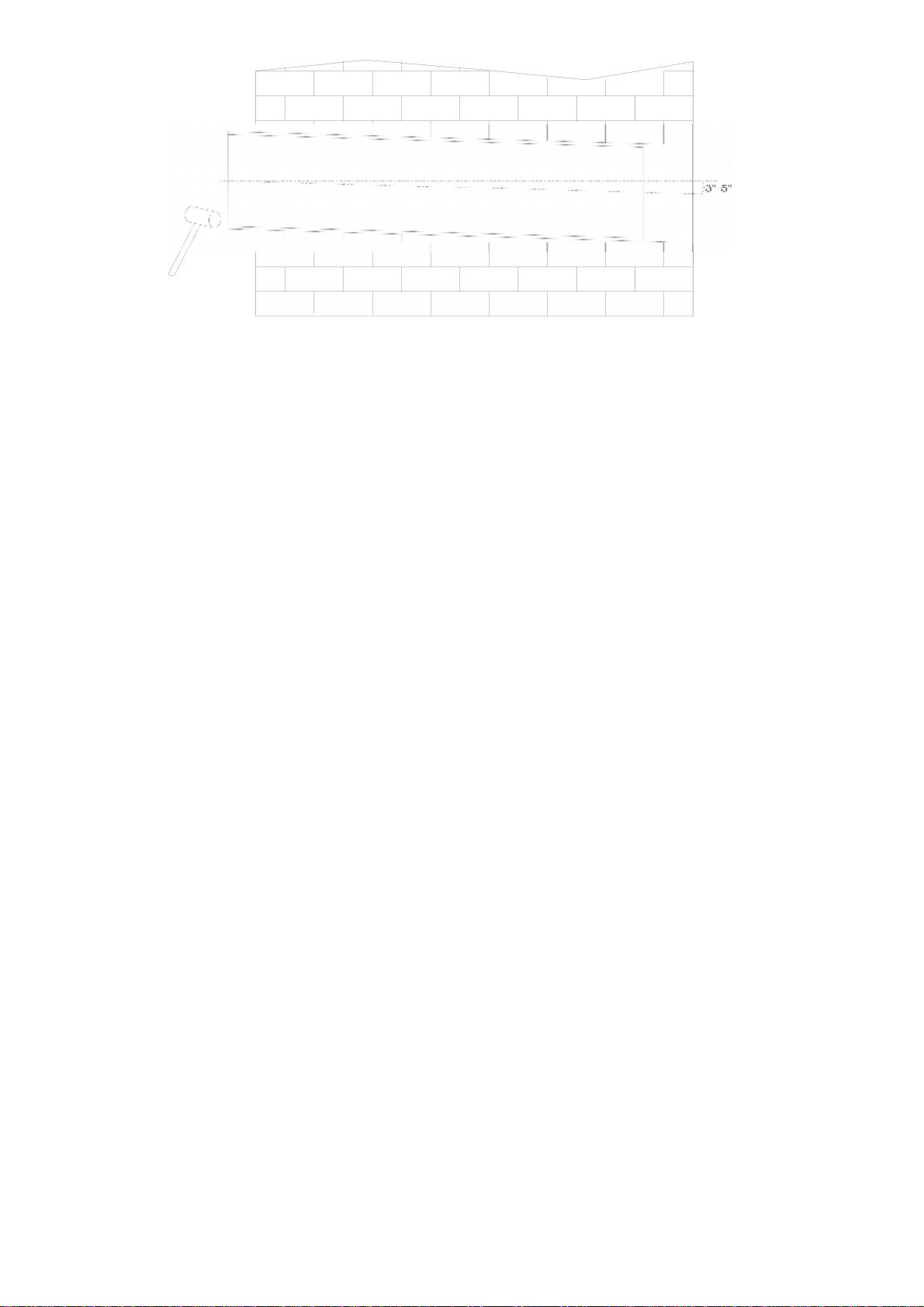

then open out to φ165mm right through the wall. The large holes must have a downward

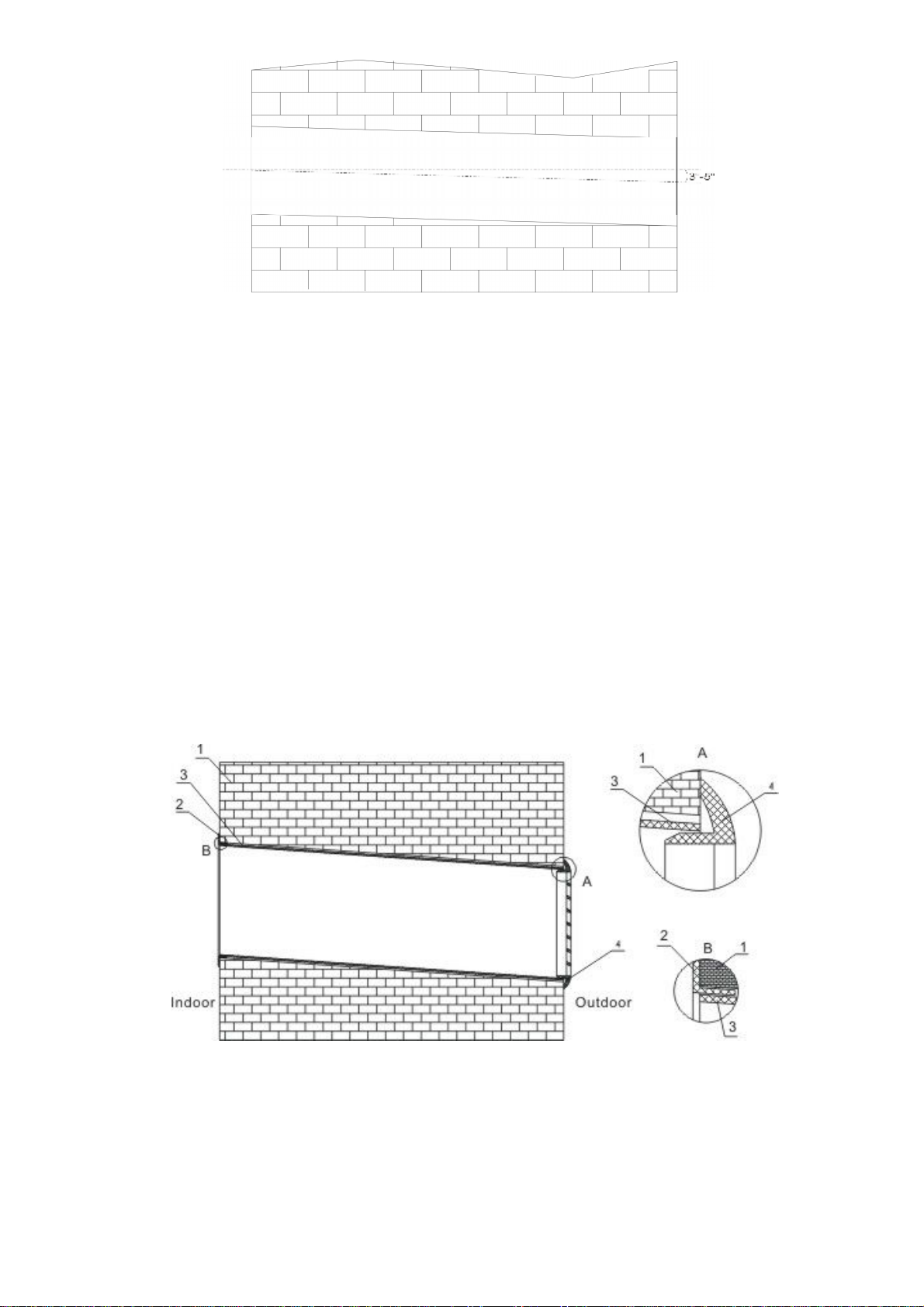

inclination of 3-5 degrees, to avoid water flow backwards. (Figure 6 ).

- 8 -
Indoor Outdoor
Fig6
During the drilling operation make sure that all debris falling outside of the property does
not fall anywhere that may cause a danger to persons or property, particularly is installing on
the upper floors of a building. When the drill is less than 50mm from the outside, reduce
drilling speed and pressure to reduce risk of large amounts of breakthrough debris. If
accessible, thedrilling can re-commence from outside of the wall to give a very accurate and
clean finish to the outside wall edges.
If the wall is not hard or strong enough, reinforce it by other methods such as a metal wall plate
etc.
Warning: Any resultant damage due to improper installation and operation is not the
responsibility of the manufacturer. Operation and installation according to instruction manual is
therefore essential to avoid any unnecessary damage to persons or property.
3.3.2 Exhaust Air Duct Spring and Exhaust Cover Assembly
Drill the hole accurately, clean out and then put exhaust air duct inside the hole. Finish to the
assembly drawing as follows (Figure 7)
Fig 7
1. Wall 2. Spring retainer 3. Exhaust Air Duct. 4. ExhaustAir Duct Cover
1. The length of exhaust air duct should be 5mm less than the wall thickness. Cut off the
surplus as required.
2. Use a hammer to knock the exhaust air duct into wall if required (Figure 8)

- 9 -
Fig 8

- 10 -

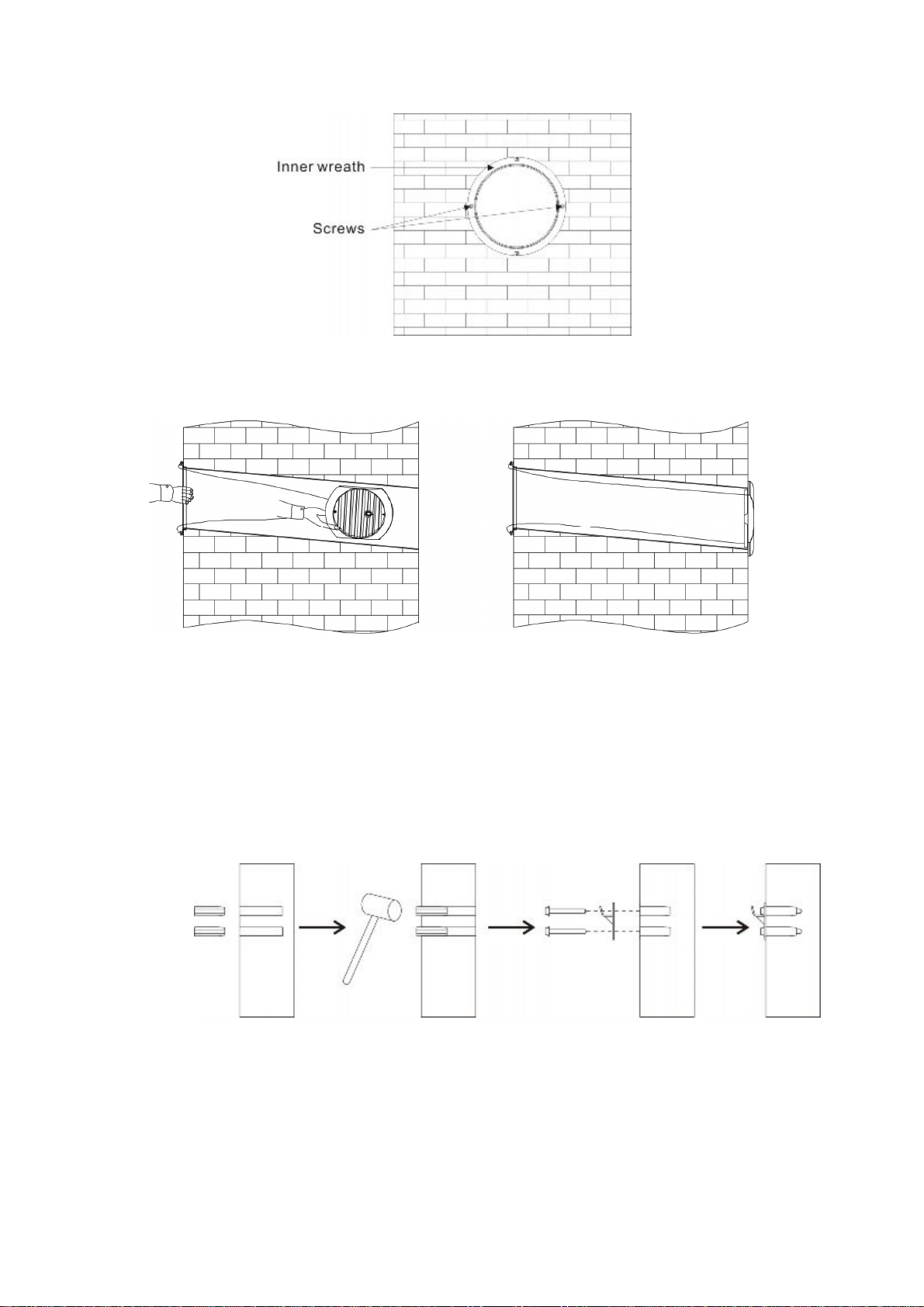

3. Put the spring retainer ring into wall and use 2 off ST5x16 screws to fix in place, please note
- put the 2 screws on the horizontal line (Figure 9)
Fig 9
4. Take the exhaust air duct cover and hook the retaining springs on to the spring retiner ring
installed as above. Angling the cover sideways as per fig 10, push it through the air duct and
allow it to fit back into the exhaust air duct with spring retaining pressure (Figure 10)
Fig10
5. Assemble the other tube using the same method.
Note: Do not look into air ducts when stretching the cover retaining springs to avoid eyes or
face being struck in the unlikely event that a spring breaks or comes adrift. Wear the safety
goggles used for drilling operations. Extend springs gently and gradually to avoid damage.
3.3.3 INSTALL THE UNIT MOUNTING BRACKET
1. Knock the wall plugs into the drilled 13mm holes in the wall;
2. Put the mounting bracket in the correct position and fix it with at least 4 screws.( Figure 11)
Fig11

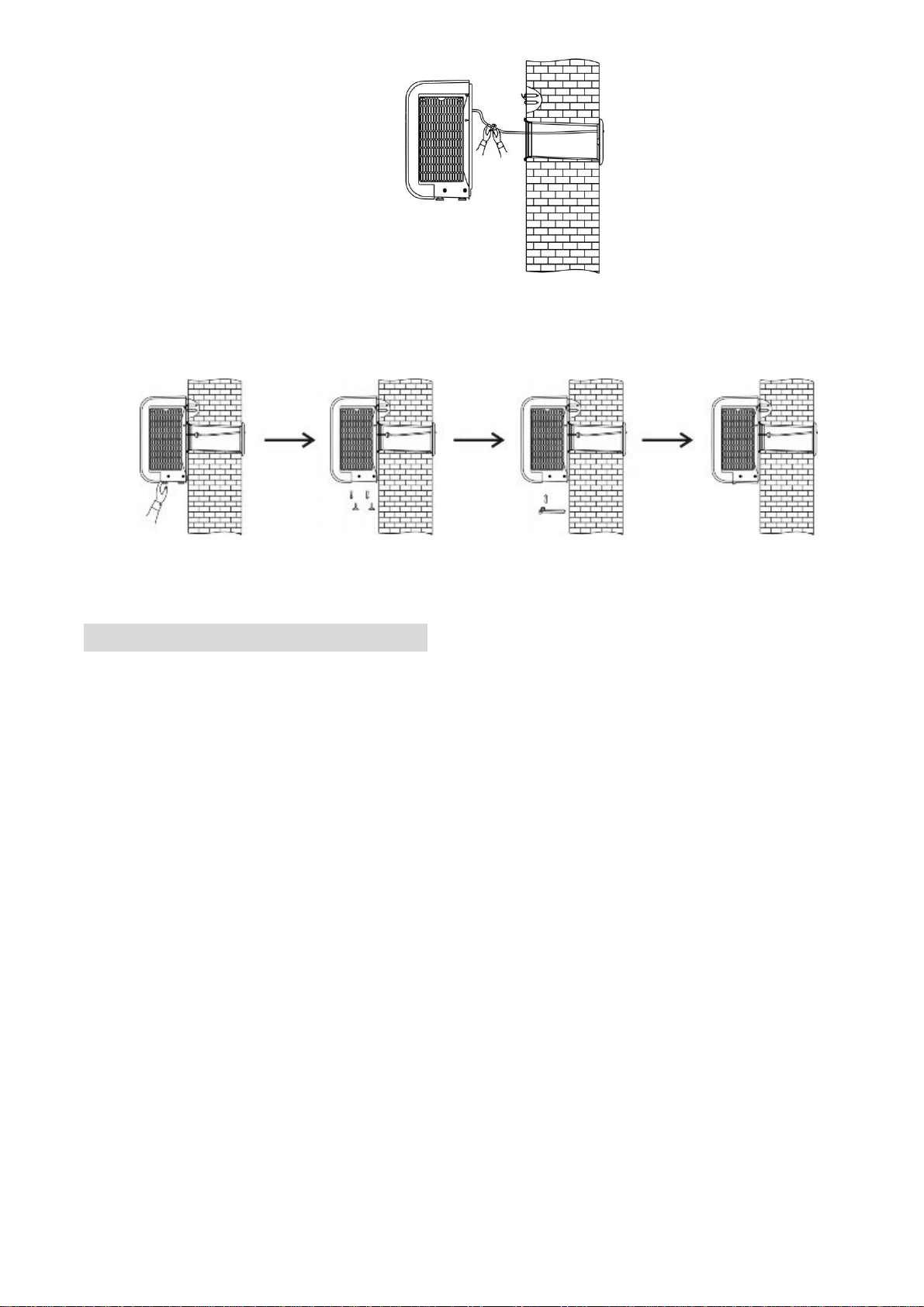

3.3.4 INSTALL THE UNIT ONTO MOUNTING BRACKET.
Make sure the mounting bracket is well secured on to the wall and the necessary electrical
connections are made. Now hang the unit onto the mounting bracket.
Note: When mounting the heating and cooling model, please connect the atomization
device tube before finally hanging the unit onto hook. (Figure 15)

- 11 -

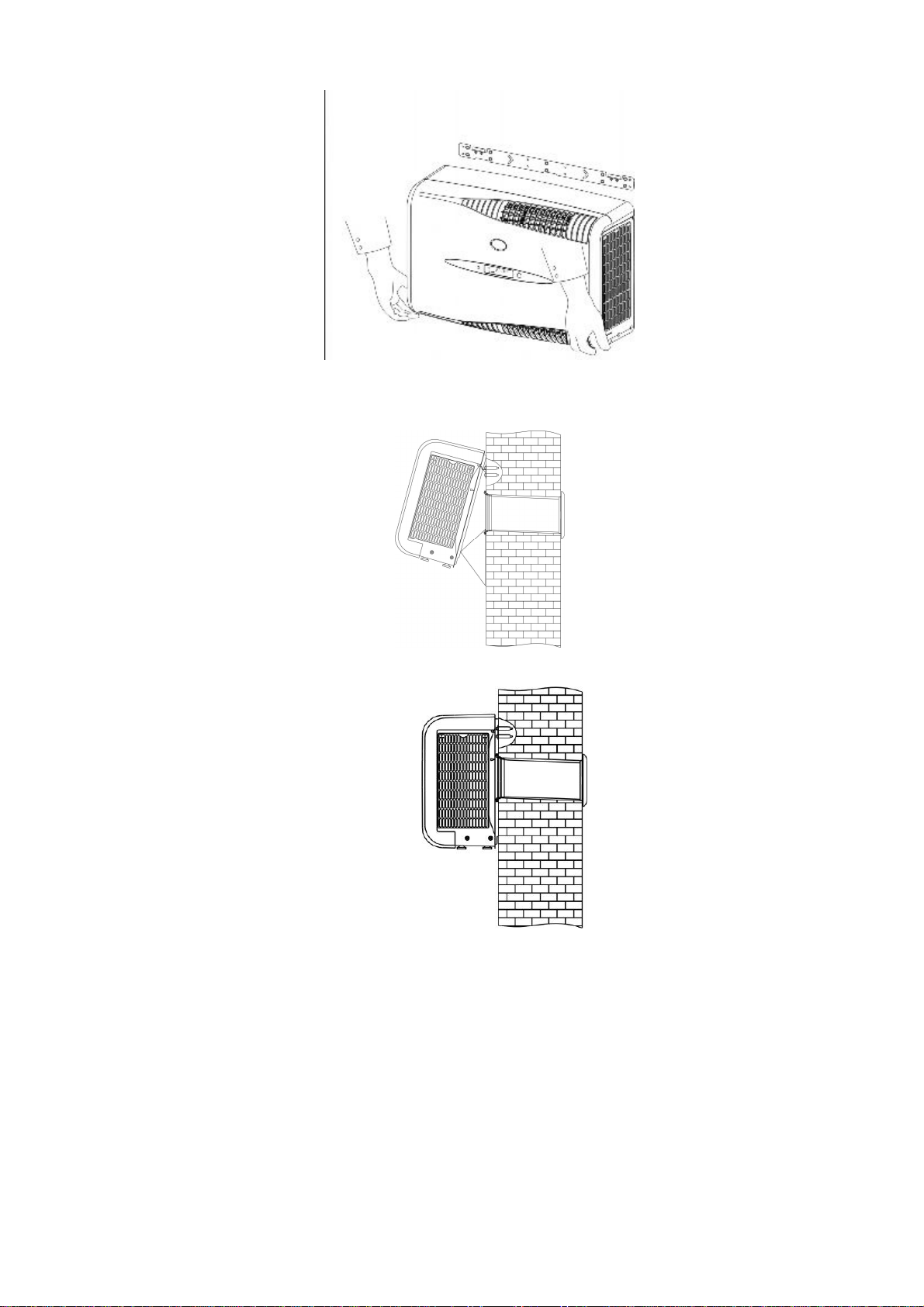

1. Hold the bottom of unit then lift it up. ( Figure 12)
Fig12
2. Hang the square hole at the back panel of unit onto hanging hooks. Incline unit
slightly for easy assembly on to bracket (Figure 13)
Fig13
3. The unit will now will hang onto the wall as per (Figure 14)
Fig14
4. Carefully double check the wall at the back of the unit to make sure it is sound to
accept the appliance after assembly is completed.

- 12 -
Fig15 – Connecting Atomising Device
3.3.5 Assemble bottom trim panel
Unscrew 5 foot pads, and assemble the bottom trim panel to bottom of unit (Figure 16)
Fig16
Note: Please do not assemble the bottom trim panel onto the unit if you want greater fresh air
exchange.
4. OPERATING INSTRUCTIONS
This heat pump is designed based on ”T1” working conditions where its running
environmental temperature range is –7 degrees C to 43 degrees C
When the electric supply is first connected and live, the machine will make a short beep
sound, upper and lower air outlet covers will open automatically then close and keep this status.
The unit is now ready for operation. If there is no response when power is connected, check
there actually is a live supply coming through.
This heat pump is best operated using the remote control handset. Please make sure the
batteries are connected and in good condition
Note: There is an emergency switch on the display panel. You can use it to operate the unit
when the remote controller is missing or lost. It will only work in auto mode. Press the button for
at least 3 seconds to switch the unit on or off;the upper and lower air outlet covers will
automatically open when the unit is on

- 13 -

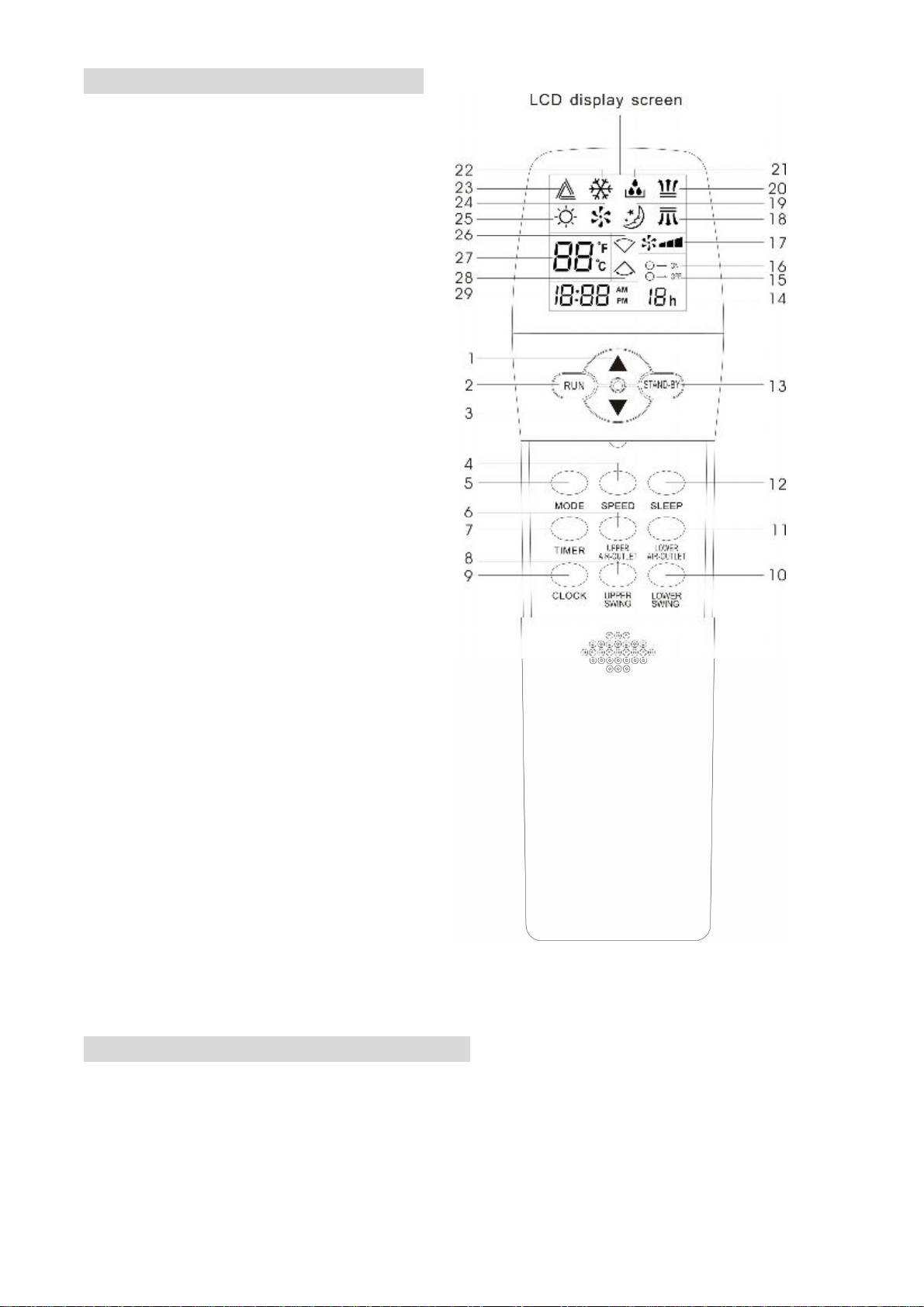

4.1 REMOTE CONTROL DISPLAY
(Figure 17)
1. INCREASE BUTTON
2. RUN BUTTON
3. DECREASE BUTON
4. AIR SPEED BUTTON
5. MODE BUTTON
6. UPPER AIR OUTLET BUTTON
7. TIMER BUTTON
8. UPPER SWING BUTTON
9. CLOCK BUTTON
10. LOWER SWING BUTTON
11. LOWERAIR OUTLET BUTTON
12. SLEEP/NIGHT BUTTON
13. STANDBY BUTTON
14. TIMER DISPLAY
15. TIMER ON DISPLAY
16. TIMER OFF DISPLAY
17. AIR SPEED DISPLAY
18. LOWER AIR OUTLET DISPLAY
19. SLEEP/NIGHT MODE DISPLAY
20. UPPERAIR OUTLET DISPLAY
21. DEHUMIDIFYING MODE DISPLAY
22. COOLING MODE DISPLAY
23. AUTOMATIC MODE DISPLAY
24. FAN MODE DISPLAY
25. HEATING MODE DISPLAY (When
flashing unit is in defrost mode – wait until
completed)
26. UPPER SWING DISPLAY
27. TEMPERATURE DISPLAY
28. LOWER SWING DISPLAY
29. TIME DISPLAY
4.2 REMOTE CONTROL OPERATION
4.2.1 There are two main methods following to use this remote controller
1. Run>> Select the operation mode >> Select air direction >> adjust the temperature
setting >> adjust air speed >> standby
2. Select operation mode>> adjust the temperature setting>> adjust air direction>>
adjust air speed >> Run >> standby
4.2.2 Button Functions
Fig17

- 14 -
4.2.2.1 Run Button
-To start up the air conditioner from standby status.
4.2.2.2 Standby Button
-To stop air conditioner operation when it is working.
4.2.2.3 Mode Button
-Select air conditioner operation mode, operation mode will change according to the
following order for every time the button is pressed
Auto Cooling Dehumidifying Fan Heating
4.2.2.4 Air Speed Button
Adjust fan speed, air speed will change according to following order every time the
button is pressed.
Low Mid High
4.2.2.5 Sleep/night button
Switch air conditioner into sleep mode or out of sleep mode. May be used during
cooling and heating mode only.
4.2.2.6 Timer Button
To set air conditioner on or off time automatically
4.2.2.7 Upper Air Outlet Button
Control upper air outlet cover open or closed.
4.2.2.8 Lower Air Outlet Button
Control lower air outlet cover open or closed
4.2.2.9 Clock Button
To Adjust time display, time will change according to following order for every time the
button is pressed.
Hour Minute Fix
4.2.2.10 Upper Swing Button
Controlupperswingdirection.
4.2.2.11 Lower Swing Button
Controllowerswingdirection.
4.2.2.12 Increase and Decrease Button
1. In default mode, adjust temperature setting.
2. In Timer adjustment mode, adjust timer
3. In Clock adjustment mode, adjust time display
Remark: Press ▲button once and the number will increase by “1”, press ▼button once and
number will decrease by “1”.
Note: When only one outlet is open, whether that is the upper or lower, it can’t be closed
as the unit must keep at least one swing cover open in operation.
NOTE: Operation principles of each mode
1. Auto Mode
In auto mode the unit will check the room temperature automatically and compare with the
set temperature, then select its operation mode.

- 15 -
:1. When the room temperature is ≥24, auto mode will be adjusted to cooling mode, the
compressor starts to run at low speed.
2. When the room temperature is higher than 22 but lower or equal to 24, auto mode will be
adjusted to fan mode, the compressor stops and fan operates at original speed.
3. When the room temperature is ≤22, auto mode will adjust to heating mode, compressor
starts to run with low speed.
●Dehumidifying Mode
1. The upper fan will run at low speed, the air speed is not adjustable.
2. The compressor and lower fan runs 8 minutes on and 6 minutes off automatically.
3. When the unit is in dehumidifying mode, temperature is not adjustable.
4. When the roomtemperature is lower than 15, the dehumidifying operation is not effective,
but the upper fan runs with original low speed.
2. Cooling Mode
When the room temperature is higher than the set temperature, the compressor starts to
run,
When the room temperature is lower than the set temperature, the compressor and lower fan
stop working, but the upper fan operates at original set speed.
●Fan Mode
The upper fan runs at set speed, the compressor and lower fan motor do not run, the
temperature is not adjustable.
3. Heating Mode
1. When the room temperature is lower than the set temperature, the unit will start heating
operation.
2. To avoid cold air blowing out, the unit is equipped with automatic anti-freezing
protection.
●Timer Operation
1. Press “Timer”button to set automatic off time while unit is running.
2. Press “Timer”button to set automatic on time while unit is in standby.
3. The adjustable time range is 1-12 hour, the interval of each press ▲or ▼is 1 hour, the
timer will display in LCD window correspondingly.
●Sleep/Night Mode
Sleep/Night operation is useful when the unit is in cooling or heating mode.
Press sleep button, the unit will then run in sleep/night mode. The upper fan will change to
low speed automatically.

- 16 -
1). In cooling mode, the set temperature will be increased 1deg automatically after one
hour’s running, and increased 1deg again after another one hour’s running, then unit stops after
working total 6 hours.
2). Under heating mode, the set temperature will be decreased 1deg automatically after one
hour’s running, and decreased 1deg again after another one hour’s running, then unit stops
after working total 6 hours.
4.3 REMOTE CONTROL HANDSET OPERATION
4.3.1. How to assemble batteries and set the time
●Insert batteries (Figure 18)
Fig18
1. Slide the back cover open.
2. Place the batteries into the slot, please pay very close attention to the correct polarity!
3. Close the back cover.
Note:
1. The positive pole and negative pole of the battery must correspond with the respective pole
one the remote controller handset.
2. Do not mix new batteries with old ones.
3. Please remove the batteries when the controller is not to be used for a long time or the
batteries are discharged.
4. To avoid environmental pollution, make sure the batteries are removed before discarding.
Dispose of them properly at a designated waste disposal site.

- 17 -
●Set The Time (Figure 19)
Steps:
1. Press the Clock button (5) as illustrated in the picture,
to switch into time setting mode. The hour indicator (1)
will flash. Press ▲(3) or▼(4) to adjust hour display.
2. Then Press Clock button (5) to move into minute
setting mode. The minute indicator (2) will flash. Press
▲(3) or▼(4) to adjust minute display
3. Finally, press the Clock button again (5) to exit time
setting. Hour and minute indicator display will stop
flashing.
5. MAINTENANCE
IN ORDER TO ASSURE UNIT EFFECT AND ITS LIFETIME, MAINTENANCE SHOULD BE
DONE REGULARLY.
■Filter Cleaning
1. Unscrew 2 screws from the side panel of unit, take out the air filter cover from air inflow
aperture. (Figure 20)
Fig20
2. Wash the air filter by immersing it gently into warm (about 40°C) water with a neutral
detergent. Rinse the filter clear of detergent and dry it thoroughly in a shaded place.
4. Re-assemble and push the air filter cover back into air inflow aperture, re-securing with the
Fig19

- 18 -
screws.
■Water Inlet Filter Cleaning
In order to ensure proper drainage the water inlet filter should be cleaned periodically. In
general, wash the water inlet filter once every 2 months. If air quality is badleading to water inlet
filter blockage, the unit will produce abnormal noise during
running. In this situation, stop the unit immediately and wash
water inlet filter straight away. The procedure is as following,

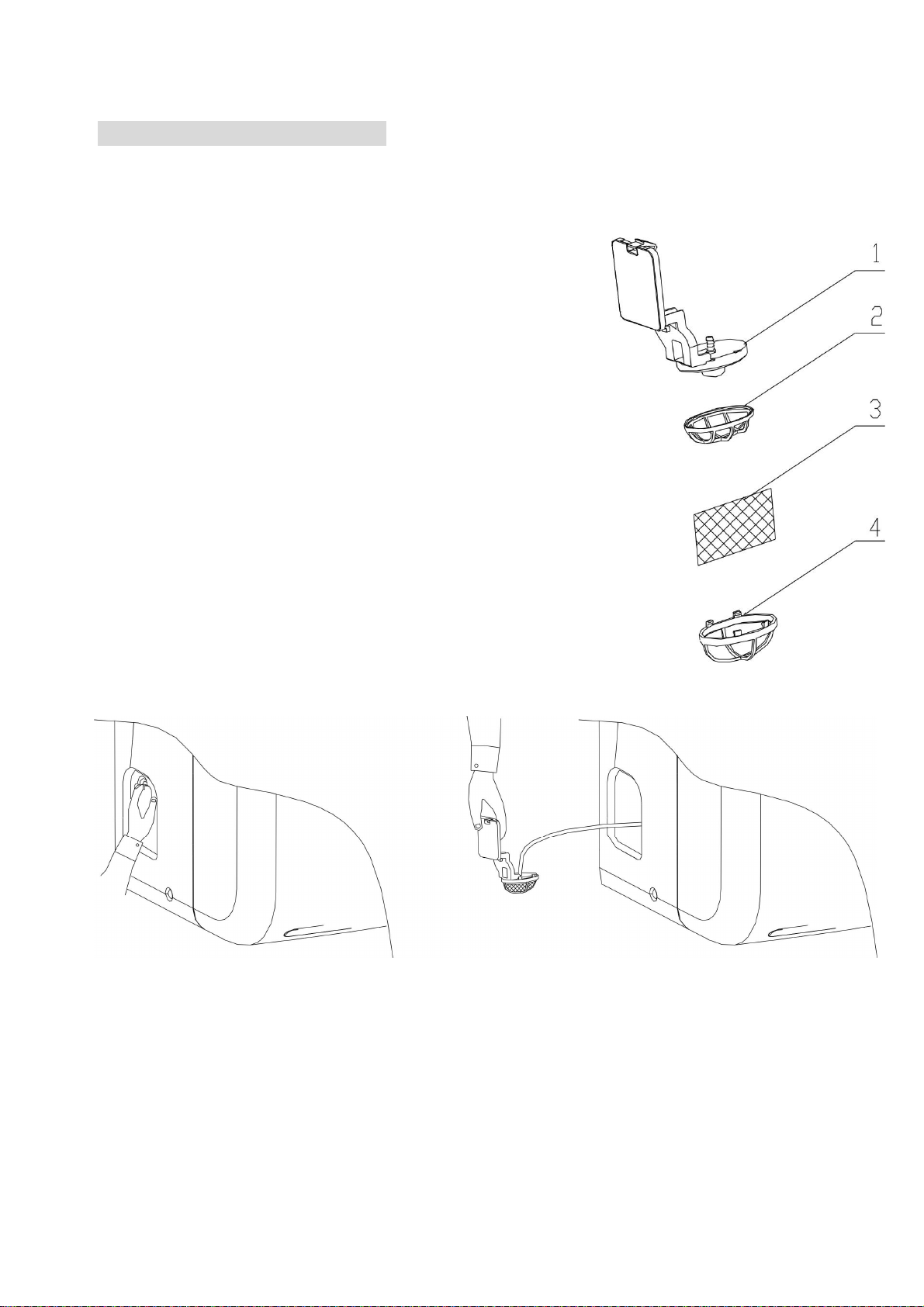

Water inlet filter assembly drawing (Figure 21)
1. Water inlet filter bracket
2. Water inlet filter inner cover
3. Water inlet filter
4. Water inlet filter outer cover
Remove water inlet filter bracket by hand (fig
22 ). Depress the top clip and once it is loose at
the top, angle the top outwards and ease
sideways to allow the filter to be removed from
the aperture. Now feed out the water pipe to
allow good access.
Figure 22
Notes:
1. Do not use too much force to remove the water inlet filter bracket in order to prevent
damage to the bracket or filter.
2. Do not touch retainers/fixings of the back cover when taking out filter to avoid any
damage to filter.
3. Do not use too much force when pulling out the water pipe to avoid water pipe connector
breakage.

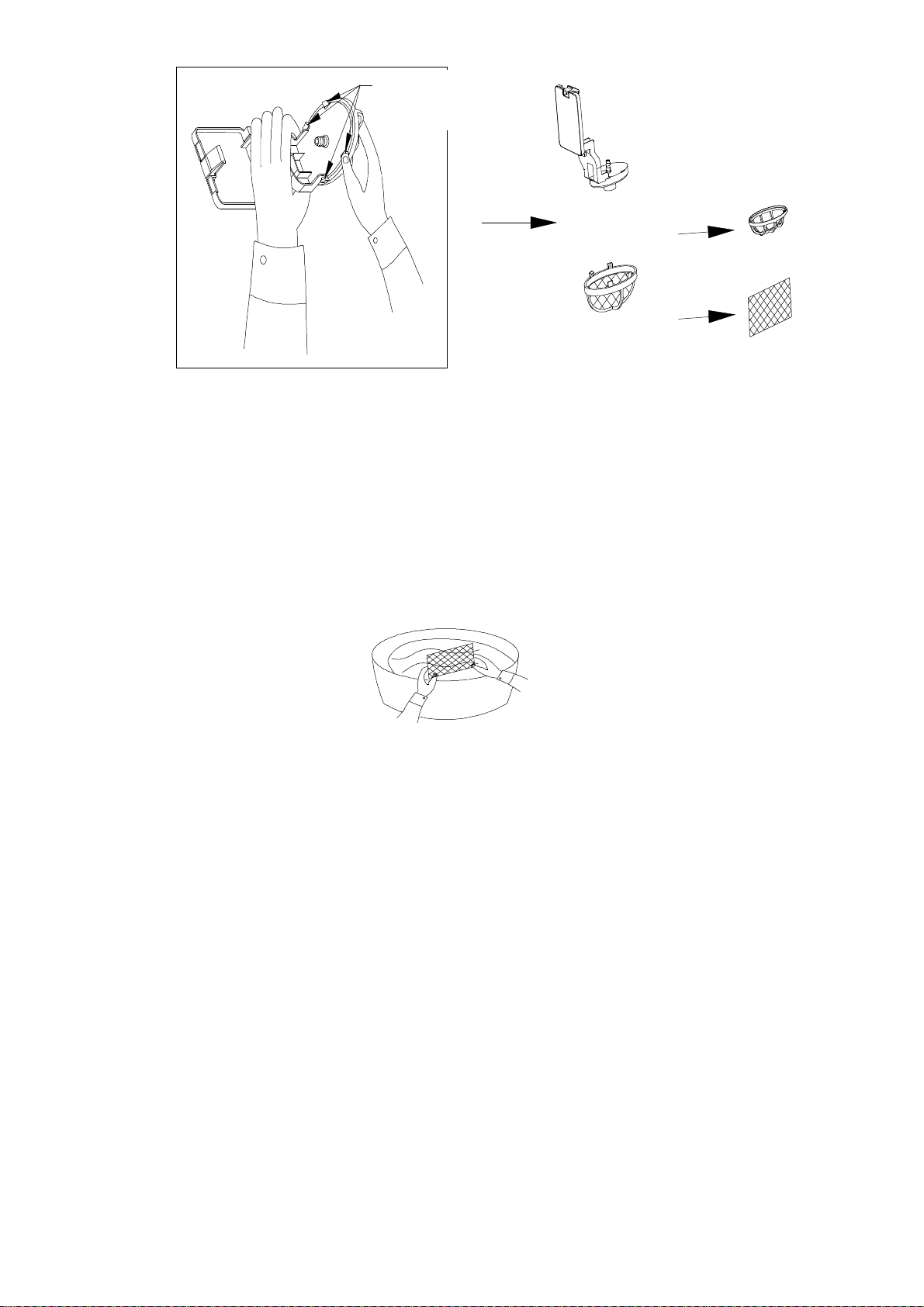

Hold the water inlet filter bracket with left hand, apply pressure to the 4 retainers of water inlet
filter outer cover to release with the right hand, then take out water inlet filter bracket inner cover,
and take out filter. (Figure 23)
FIG 21

- 19 -
Fig
23
Note:1) Use great care and avoid excessive pressure to avoid breakage of retaining clips.
2) Do not break filter when taking it out - use all possible care!
·Cleaning Filter: (Figure 24) Take water inlet filter in both hands and put into water. Gently
shake and turn filter until it is clean - do not use a lot of force, or stretch filter by two sides to
avoid any damage. If it can’t be washed fully clean please change for a new one.
Note: After cleaning the filter, check it carefully and replace by new one if any rustiness or
breakage is apparent.
Fig 24
Gently wash water inlet water filter bracket and its inner and outer cover.
Reassemble filter by reversing the steps described for dismantling.
Notes:
1. Keep unit switched off and disconnected from mains before cleaning to avoid any
possibility of electric shock.
2. It is recommended that the filter is washed once every 2 months. If this is not done dust
may accumulate into filter which may lead to reduced air volume.
Unclip 4
retaining clips
