Abex Exhibits EGW-88 User manual

SPECIFICATIONS / ASSEMBLY
ELITE GRAPHIC WALL fabric display
ELITE GRAPHIC WALL is constructed of aluminum extrusion
and features SEG press fit fabric graphics for hassle free set up.
Heavy duty aluminum feet ensure maximum stability. Graphics
are printed on premium fabric for vibrant colors. The entire unit
disassembles and packs flat in a single rotomolded case for
unparalleled protection.
Details
Set-Up Time: 35-40min
Lead Time: 10 Days
Warranty: Limited Lifetime Warranty
Dimensions
Additional informationShipping
Includes
• 8’ x 8’ Elite Frame
• Elite Stabilizer Feet
• SEG Front Fabric Graphic
• Elite Tool Kit
• Rotomolded Case
Assembled unit:
95”w x 95.25”h x 17.5”d
2413mm x 2419mm x 444mm
50 lbs / 22.7 kgS
Graphic area:
94.5”w x 94.5”h
2400mm x 2400mm
• Aluminum Extrusion Frame
• Single or double-sided SEG press fit
dye-sublimated fabric graphics
• Easy assembly
• Packs in a single rotomolded
flat transport case
• Limited Lifetime Warranty
• Made in the USA
Packs in ( 1 ) L-8R1851-02 case
Shipping dimensions:
51”h x 18”w x 4.5”d
1295mm x 457mm x 114mm
70 lbs / 31.8 kgS
3D VIEW
MODEL #: EGW-88

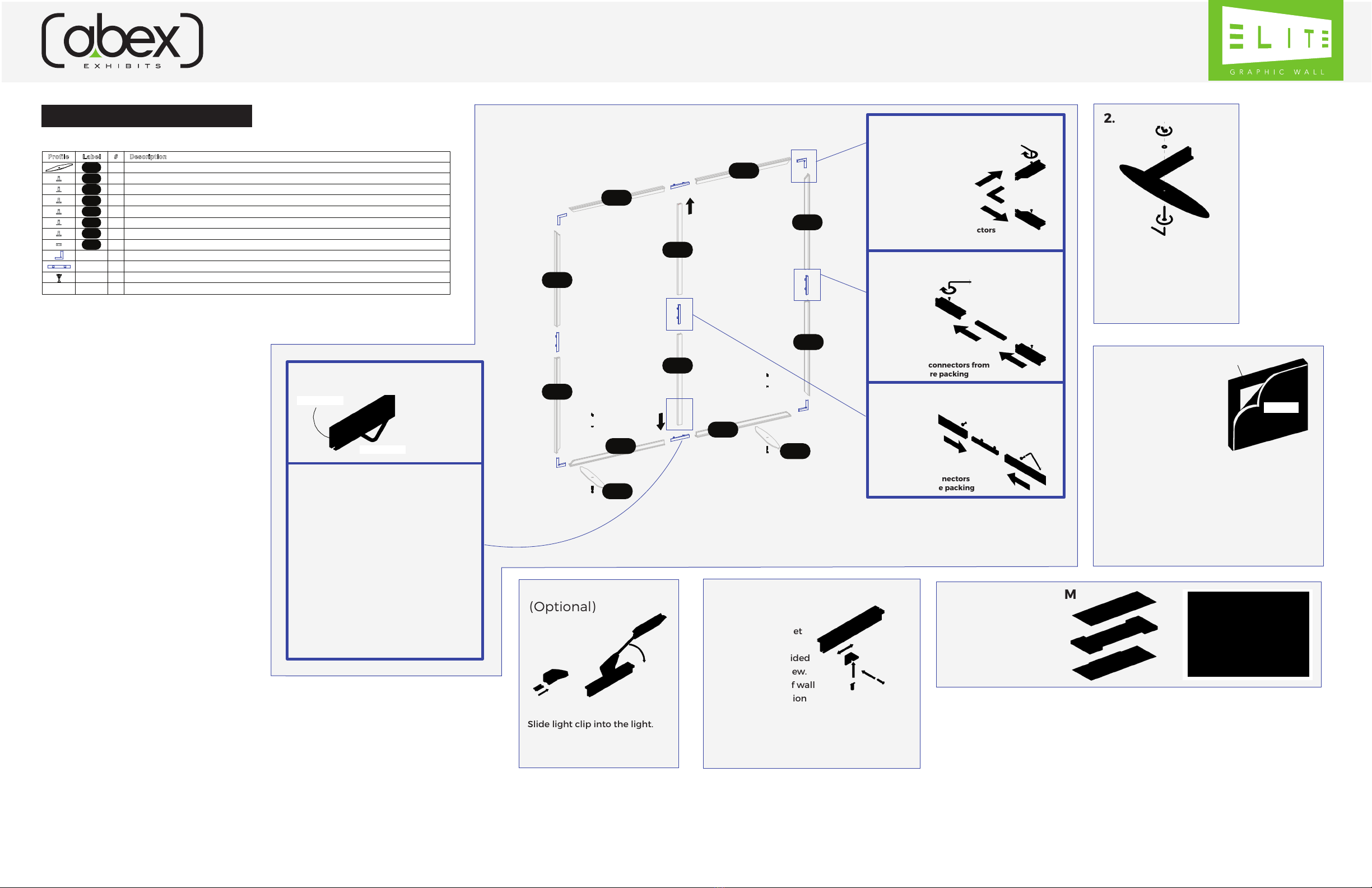

ASSEMBLY / INSTRUCTIONS 8ft.x 8ft
1.
Secure base plate
to bottom horizontal
extrusions with provided
bolt and wing nut
Insert the silicon
edge of the fabric
into the groove of
the extrusions.
Start on the corners,
then centers and work
your way to corners from
center on both directions.
To pull fabric graphic out
of extrusion groove, use
pull tab on corner
3. GRAPHIC
2.
5. WALL MOUNT
(Optional)
Attach wall bracket
to top extrusion
groove with provided
hammerhead screw.
Locate position of wall
bracket on extrusion
(preferably by wood stud) by sliding the
bracket on the extrusion and tighten it.
Secure the frame to the wall with provided
wood screw.
PACKING DIAGRAM
EGW-88 PACKAGE CONTENTS
Profile Label
001 Description 1/4" ALUMINIUM OVAL BASE PLATE 17.5" (444.5MM) x 3.15" (80MM)
#
2
002
003 M1307 47.5" (1206.5MM) EXTRUSION W/ (1) 45° CUT & (1) HOLE FOR BASE PLATE1
1
2M1307 47.5" (1206.5MM) EXTRUSION W/ (1) 45° CUT
004 M1307 47.5" (1206.5MM) EXTRUSION W/ (1) 45° CUT
2
1
M1307 47.5" (1206.5MM) EXTRUSION W/ (1) 45° CUT & (1) HOLE FOR BASE PLATE
005
006 M1307 47.5" (1206.5MM) EXTRUSION W/ (1) 45° CUT
4Z966 90° CORNER INTERNAL CONNECTOR
5/16-18 FLAT HEAD SCREW 2.25" LONG W/ WASHER & WING NUT
2
194.5"W (2400MM) x 94.5"H (2400MM) SINGLE SIDED DYESUB GRAPHIC W/ SEG WELT ALL 4 SIDES
5Z967 STRAIGHT INTERNAL CONNECTOR
2008 Z4400 45.9" (1165.9MM) EXTRUSION W/ (1) TENSION LOCK
007 1M1307 47.5" (1206.5MM) EXTRUSION W/ (1) 45° CUT
Abex Exhibit Systems • 355 Parkside Drive, San Fernando, CA91340 • [phone]
Extrusionfabric groove
fabric graphic
w/silicon edge
4. LIGHT ASSEMBLY
(Optional)
Slide light clip into the light.
Then place the light into the
groove and gently lower it down
Connect frame extrusions together, as shown, using
Torx tool (included). Do not overtighten.
NOTE: Remove corner connectors
from exrtrusions before packing.
NOTE: Remove connectors
from beams before packing
NOTE: Remove connectors from
extrusions before packing
Connect frame spliced extrusions together, as shown,
using Torx tool (included). Do not overtighten.
Connect frame spliced extrusions together, as shown,
using Torx tool (included). Do not overtighten.
Place tension lock into groove. Insert Torx 30
wrench and turn 1/2 turn.
1. Slide straight connector (Z967) into inner
channel of extrusion.Turn screw enough to hold
connector in place.
2. Take another extrusion and slide onto straight
connector. Tigthen both screws to connect
extrusions together.
3. Repeat above steps to connect all spliced
extrusions together.
4. Slide corner connector (Z966) into both sides of
horizontal extrusions.Turn each screw enough to
hold connector in place.
6. Slide vertical extrusions onto corner connectors
of top horizontal extrusion. Turn each screw
enough to hold connector in place.
7. Finish frame assembly by sliding corner
connectors of bottom horizontal extrusion into
inner channel of vertical extrusions and tighten
the screws to secure frame extrusions together.
Tension Lock
Torx Tool
001
001
002003
004
004
005
006
008
008
007
005

UNIT SIZES 3ft, 4ft, 6ft, 8ft & 10ft. Widths
10x8 8x8 6x8 6x6
4x8 4x6 4x4 3x8
3x6 3x4 3x3
