Abocom WR201 User manual

802.11g Wireless AP with 5.1 Channel Sound Card
Introduction

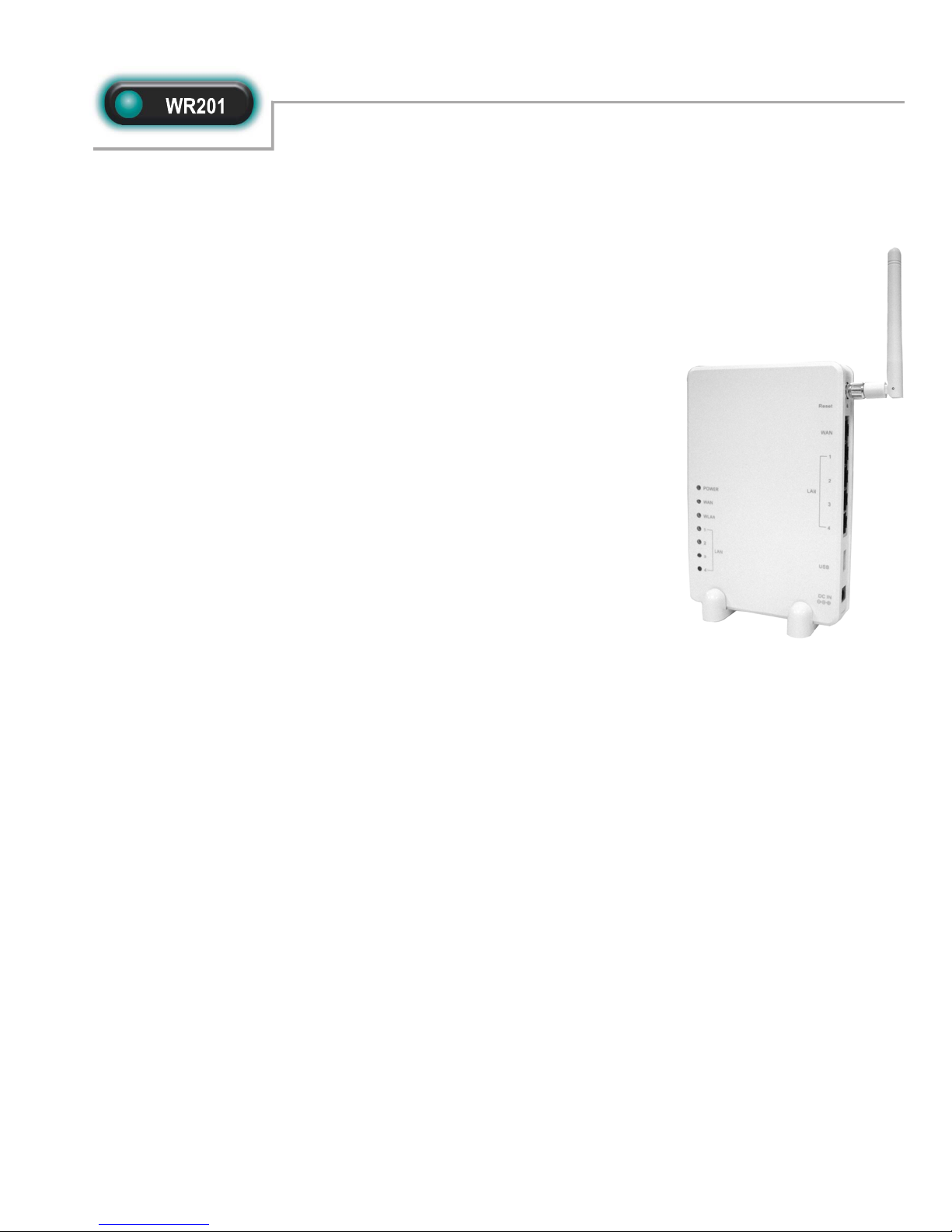

The WR201 is an 802.11g Wireless AP with 5.1 Channel Sound Card that
combines IEEE 802.11b/g wireless networking and audio capabilities, enabling
convergence of data and audio on wireless infrastructures to deliver tremendous
efficiency and superb sound quality.
The WR201 connects to your existing home stereo by standard electronic cables,
whereas the connection to your computers is by 802.11g wireless networking.
Besides functioning as an 802.11g AP, the WR201 receives PC audio and
transmits to your home stereo via the wireless connection, allowing any computer
in its vicinity to have a 2.1 or 5.1 Channel surround sound speakers. Users can
therefore sit at their desks and enjoy their digital music files or world Internet radio
with the great sound quality.
An easy and intuitive user interface facilitates users’ operation and guarantees a
pleasant and effortless installing experience. The powerful software that comes w
automatically detect the WR201 and recognize it as a sound card device. Just three steps and you are connected
ith the device lets your computer
eatures
ith 802.11g and 802.11b (2.4GHz) Standards

 Browser
 rom all of your networked PCs and Internet
 x, headphones, or powered speakers

 i-SonicTW audio devices

 c Streaming

 /48k/96KHz sample-rate and 16/24bits resolution


F
 Compatible w
Wireless Security with 64/128-bit WEP, WPA, WPA2
Web-based Utility for Easy Configuration from Any Web
Streams and plays MP3s and Windows Media format digital files f
radio directly to your home stereo
Listen through your stereo, boom bo
Supports Windows 2000/ XP
Supports Auto-Discovery for W
Provides Easy-Connect for audio GUI
C-Media proprietary real-time Wi-Soni
Supports 2.1 and 5.1 channel wireless audio
Integrated S/PDIF transmitter supports 44.1k
Supports the latest Dolby® Digital EX and DTS ®ES 6.1/7.1CH DVD soundtrack playback.
C-Media Xear 3D™ 7.1 Virtual Speaker SHIFTER technology

 th multi-drive 7.1, EnvironmentFX, ZoomFX,
 Voice™ to change users' voice tone for IP phone, online games, and messenger applications


 Dolby Digital Live supported.
Sensaura®CRL3D HRTF 3D positional sound enhancement wi
MacroFX, etc.
Supports Magic
10-band Equalizer with 12 preset modes; 27 global environment effects
HRTF-based 3D positional audio(C3DX) for 4 / 6 CH output.
pplication A
Internet
Router
WR201
SPDIF
Stereo
Line out

Specificationsi
General
Chipset RTL8722, RLT 825, CMI8769
Standard IEEE 802.11b, Wi-Fi compliant/IEEE 802.11g standard
Flash Memory 2 MByte
SDRAM 16 MByte
Interfaces
1x 3.5mm mini-Audio jack ;
1* SPDIF(Optical out);
1* Power Jack Power for DC 9V / 700 mA; AC Adapter 100V~240V;
1* Antenna SMA connector;
1* Reset button; 1* LAN
LED Indicator (5 LEDs)
Power LED (power up)：Green
Wireless Link/act：Green
WAN Link/Act：Green
Status：Green
Audio Link: Blue
Power Requirement 9V, 700mA (DC)
Physical Specifications Weight：TBD
141mm(W)*100mm(D)*27mm(H)
EMC Certification TBD
Supported OS Windows 2000/XP
Wireless
Antenna Single Detachable Dipole Antenna
Frequency Range 2.412GHz-2.4835GHz
Number of Selectable
Channels
USA, Canada: 11 channels
Europe: 13 channels
Japan: 14 channels
Modulation Technology 802.11b: Direct Sequence Spread Spectrum (PBCC, CCK, DQPSK, DBPSK)
802.11g: Orthogonal frequency division multiplexing

Data Rate
802.11b(11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
802.11g(54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6
Mbps)
Throughput 15 dBm+10%
Receiver Sensitivity -80dBm (11Mbps), -66dBm(54Mbps)
Transmit Power OFDM : TBD(54Mbps) CCK : 14dBm (11Mbps)
Audio
Audio D/A converter 24bit/96kHz
Frequency response 5Hz~22KHz
SNR 101 (dB)
Frequency response 5Hz~22KHz
iSpecifications are subject to change without notice.
