ABYSS BATTERY PAB9000 User manual

ABYSS BATTERY®, INC.
Portable Deep-Drop / Kite Electric
Fishing Reel Battery
PAB9000 USER MANUAL
Thank you for purchasing (PAB9000)
Please read carefully, keep properly and fully
understand product performance.
Component Explanation:
wContains Items
PAB9000 battery、special charger（optional
accessory：battery sleeve, 0.45 meter cable,
battery detector）
PAB9000
Connector
Electrode cover
Locknut
Special Charger
Charging:
The charging capacity is about 50% when you
receive it, so please fully charge before use.
Procedure:【When using PAB9000 charger】
①Align the electrode notch of the battery
connector with the electrode notch of the
charger plug, insert it to the bottom, and
tighten the locknut.
②Plug the charger power cord into the charger.
③Insert the charger power cord plug into
AC100～220V socket, The charger indicator
turns red and charging starts.
Be sure to follow the above steps to charge the
battery.
Power light Implication
Red light on：Charging
Green light on：Fully charged
Red light flashing：Abnormal charging
Don’t charge in a place with combustible
materials around.
According to the remaining capacity of the
battery before charging, the charging time
will vary.
When you find an abnormality, please contact
Abyss Battery® (855)-719-1727.
④After the battery is fully charged, please
unplug the charger power cord in time.
⑤Disconnect the battery from the charger.
⑥Fasten the electrode protection cover.

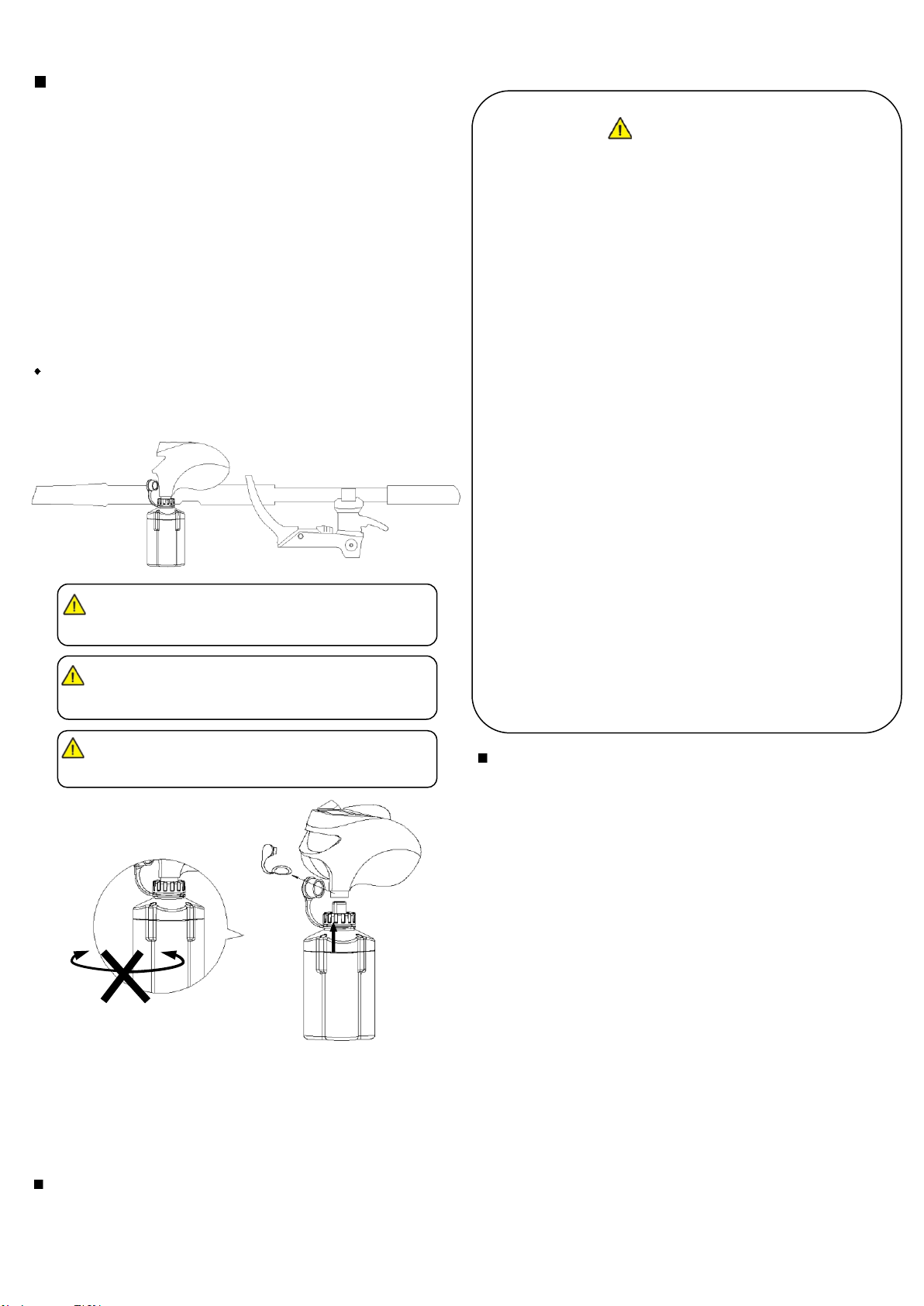

Instructions:
Method of connecting battery and electric reel
directly
①Method one: After installing the battery into the
protective cover, fix on the fishing rod, then
electric reel relates to the power cord.
②Method two: The battery is directly connected to
the electric reel.
③Above two methods: Tighten the lock-nut to fix
（as follow picture）。
wDo not rotate the battery.
The position of the battery and the pole stand:
The battery must not interfere with the fishing
rod and the boat's edge.
Attention DO NOT Leave the battery
connected while underway.
Attention Do NOT put too
much pressure on the battery.
Attention Do Not operate beyond
intended specifications.
After using battery, please fasten the electrode
protection cover,if there is any moisture please dry
it before buckling and storing the battery.
Safety Instructions:
To use safely and avoid hazards, please follow the
instructions and warning labels.
①Battery Safety Instructions:
WARNINGS
wDon’t use the battery under a hot,
hyperbaric, or sealed environment. Don’t put
the battery in fire or water.
wDon’t break, heat, decompose or modify the
battery.
wPlease avoid the direct sunlight and do not
put the battery in the car.
wWhen use the battery, please keep the
temperature at-20℃～60℃.
wPlease use the designated charger and
comply with the charging manual.
wDon’t apply for other items except electric
reel. It’s specifically designed for fishing reels
wPlease avoid the battery from impacting
strongly or dropping from heights.
wCell damage, liquid flow, pleases take
precautions. If the battery fluid contaminates
the skin, please immediately wash with
water. If it results in cystitis, please go to the
hospital immediately.
wIf you plan on storing the battery for a long
period of tim, please keep at temperature
at-20℃～25℃dry and in corrosive free
environment.
PAB9000 Characteristics:
①The battery shell is made of high-strength, high-
toughness, and impact-resistant ABS material
(class VO).
②The battery protection system has overcharge,
over discharge, overcurrent, short circuit,
temperature protection, undervoltage lockout
load, charge balance function, which can extend
battery life.
③When the electric wheel is overloaded, the
safety protection function of the battery will be
activated, and the power supply will be
temporarily stopped. If the battery is
disconnected and reconnected, it will
automatically recover.
④Under normal use, when the battery is
recharged 500 times, the discharge capacity is
≥80% of the initial capacity.
⑤Battery life: Under normal use, after more than
1,000 cycles of charging and discharging, the
battery may not be able to charge or the power

will be greatly reduced, then please replace with
a new battery.
⑥It’s recommended that the battery should only be
50% during transportation.
ATTENTION!
Since the battery will self-discharge during
storage, please charge it once every 6 months
when it is stored for a long time or not in use.
When the battery is installed on the electric
reel, the connecting part of the battery and the
electric reel cannot be forced。
The electrode protection cover is not completely
waterproof. Please do not immerse the
electrode part in water.
Please do not use organic solvents such as
gasoline. If there is abnormal heating, peculiar
smell, smoke, and other abnormalities occur
during use, charging, or storage, please stop
using it immediately contact Abyss Battery.
Charger Safety Instructions:
ATTENTION
Don’t break, heat, decompose or modify
the charger.
Please use AC100～220V 50Hz/60Hz
socket. Please keep the room
temperature at 0℃～45℃. Unplug the
power plug from the socket when not
charging.
External maintenance
(1) Please wipe the dirt of the battery (except the
electrode part) with a clean towel dampened
with clean water.
(2) When cleaning the dirt of the electrode, please
be careful not to damage the protective film of
the electrode surface.
【Fault Judgment】
Situation
Fault confirmation and handling method
Battery
Heat
Charging and discharging heat is normal.
If the battery is too hot to touch, the
battery may be abnormal. Stop using it
immediately and check at the dealer.
Electric reel
does not
work, or the
working
time
becomes
shorter
Battery exhausted, please charge.
Please confirm whether there is any
other matter in the electrode contact
point.
The battery protection function is
activated, please disconnect the battery
5 seconds before reconnecting. (In the
case of high temperature protection, it
takes about 15 minutes to restart
（Temperature ate 25℃））。
The battery has a service life. If the
discharge time is significantly lower after
normal charging, please replace it with a
new battery.
Battery
can’t be
charged
Please confirm whether [Battery and
charger] [charger and power cord]
[Power cord and plug] are connected
correctly.
Charging temperature protection
(charging temperature is between 0℃-
45℃, it may not be able to charge if it
exceeds this range.）
www.abyssbattery.com

Specifications
Portable
battery
Voltage
Capacity
time
Voltage：DC 14.8V
Capacity：(9000±200) mAh （0.2C 25℃）
Dimension
51mm(length)×51mm(width)×192 mm(height)
Weight
about730g
Charger
Input
Parameter
AC100-240V 50/60HZ
Output
Parameter
DC16.8V 4A （3A）
Charging
Time
About 2.7 hours (about3.6 hours)
Red light on：charging Green light on：full charge
Charging temperature at 0℃-45℃
