Fire Ready Hood
Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with instructions could result in personal injury and/or property damage!
WARNING
To reduce the risk of fire, electric shock, or injury
to persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer.
• Before servicing or cleaning unit, switch power off
at service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be
done by a qualified person(s) in accordance with all
applicable codes and standards, including fire rated
construction codes and standards.
• Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such
as those published by the National Fire Protection
Association (NFPA), and the American Society
of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
• To reduce the risk of fire or electric shock, do
not use this range hood with an additional speed
control device.
• Ducted fans must always be vented to the
outdoors.
• To reduce the risk of fire, use only metal ductwork.
• Use with approved wiring only.
• This unit must be grounded.
WARNING
To reduce the risk of range top grease fire:
• Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
• Always turn hood ON when cooking at high heat or
when cooking flaming foods.
• Clean ventilation fans frequently. Grease should not
be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware
appropriate for the size of the surface element.
To reduce the risk of injury to persons in the event
of a range top grease fire, observe the following:*
• SMOTHER FLAMES with a close-fitting lid, cookie
sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN. You may be
burned.
• DO NOT USE WATER, including wet dishcloths or
towels - violent steam explosion will result.
*Based on “Kitchen Fire Safety Tips” published by
NFPA.
Listed to UL 300A Standard
REPORT #1293
Model XRRS
Fire Ready Hood

2Fire Ready Hood
Table of Contents
Receiving, Unpacking, Handling & Storage ....... 2
Model Number Code......................... 3
Parts Checklist ............................. 3
Exploded View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Sample Installations ......................... 4
Preparing the Install Location
Mounting Bracket.......................... 5
Ductwork ................................ 5
Static Pressure Testing ..................... 5
Fans .................................... 6
Accessories .............................. 6
Installation
Installation Elevation ....................... 7
Mounting Bracket.......................... 7
Installing Hood onto Mounting Bracket......... 8
Installing the Fan .......................... 9
Range Element Disconnect Installation
Gas Disconnect Valve ..................... 10
Electrical Disconnect Box .................. 10
Installing Accessories
ClockBox ............................... 11
Remote ADA Switches..................... 11
Manual Pull Station ....................... 11
Ductwork ............................... 11
Electrical Installation
Main Control Power ....................... 12
Electric Disconnect Box.................... 13
Gas Disconnect Valve ..................... 13
Inline/Wall Mount Fan ..................... 14
ClockBox ............................... 14
Remote ADA Switches..................... 14
Fire Alarm System Connections ............. 14
Wiring Diagram .......................... 15
ClockBox Wiring Diagram .................. 16
Operation................................. 17
Environmental Monitoring / Pre-Suppression
Functions ............................... 17
Accessing the Internal Components............ 18
ClockBox Operation and Navigation ........... 19
Test Tank and Demonstration ................. 20
Controller Schematic........................ 21
Alarm Connections........................ 21
Self-Monitoring System...................... 22
After an Actuation ........................ 23
How to Reset the Suppression System......23-24
Maintaining the System...................... 25
Inspection Procedures
Nozzle Caps............................. 25
Fusible Link System....................... 25
10 Year Maintenance........................ 25
Lighting .................................. 25
Removing the Extinguisher Tank............... 26
Service and Recertification Schedule ........... 26
Replacement Parts ......................... 26
Maintenance Log........................... 27
Our Commitment........................... 28
Receiving
Upon receiving the product, check to ensure all
items are accounted for by referencing the delivery
receipt or packing list. Inspect each crate or carton
for shipping damage before accepting delivery. Alert
the carrier of any damage detected. The customer will
make notation of damage (or shortage of items) on the
delivery receipt and all copies of the bill of lading which
is countersigned by the delivering carrier. If damaged,
immediately contact your Accurex Representative. Any
physical damage to the unit after acceptance is not the
responsibility of Accurex, LLC.
Unpacking
Verify that all required parts and the correct quantity of
each item have been received. If any items are missing,
report shortages to your local representative to arrange
for obtaining missing parts. Confirmation of shipment(s)
must be limited to only items on the bill of lading.
Handling
Handle in such a manner as to keep from scratching or
chipping the coating. Damaged finish may reduce ability
of unit to resist corrosion.
Storage
Units are protected against damage during shipment. If
the unit cannot be installed and operated immediately,
precautions need to be taken to prevent deterioration of
the unit during storage. The user assumes responsibility
of the unit and accessories while in storage. The
manufacturer will not be responsible for damage during
storage. These suggestions are provided solely as a
convenience to the user.
The ideal environment for the storage of units and
accessories is indoors, above grade, in a low humidity
atmosphere which is sealed to prevent the entry of
blowing dust, rain, or snow. Temperatures should be
evenly maintained between 30°F (-1°C) and 110°F
(43°C). All accessories must be stored indoors in a
clean, dry location.

3
Fire Ready Hood
Example: XRRS-30-F-D-N
Accurex RRS, 30 inches long, with front fan discharge,
with dual element disconnect, NFPA 101 Compliant
XRRS - 30 - F - E - D - N
Type
Residential
Range
Suppression
Length
30 inches
36 inches
Ventilation
F - Integral Fan - Front Recirculation
R - Integral Fan - Rear Discharge
T - External Fan - Top Discharge
External Fan Type
D - Inlet Duct
W - Wall Mount
NFPA 101 Compliance
X - Noncompliant
N - Compliant
Range Disconnect Type
E - Electric
G - Gas
D - Dual (gas and electric)
Model Number Code
Parts Checklist
Hood
Back support mounting bracket
External fan (Inline / Wall Mount / None)
• 25 ft. plenum rated wire for plug and play
connection
8 ft. of metal clad wire for hood power connection
(marked with red tape)
Gas disconnect valve (optional)
• 6 ft. shielded control wire for plug and play
connection
Electrical disconnect box (optional)
• 6 ft. shielded control wire for plug and play
connection
8 ft. of metal clad wire for gas disconnect/electrical
disconnect connection (marked with black tape)
Remote switches, ADA (optional)
Manual Pull Kit (optional) consisting of the following:
• Pull Box (1)
• Pull Face (1)
• Elbow Pulley (3)
• 25 ft. Cable and Pin
The ClockBox (optional)
• 20 ft. shielded control wire for plug and play
connection
Exploded View
Recirculating Vent
(recirculating model)
Power Switch
Reset Switch
Electrical Disconnect
(Black Tape)
Thumbscrew to remove vent
on some models
Thumbscrews (2x)
(inline models)
Discharge Nozzles
with protective caps
Light Bulb
Fusible Link
Low Temperature
Switches
High Temperature
Switch
Thumb Nut (3x)
Grease Tray
Grease Filter
Extinguisher
Pressure Gauge
110 VAC Power Supply
(Red Tape)
Junction Box
Back Support
Mounting Bracket
Fan Speed Knob
Light Switch
LED Status Light

4Fire Ready Hood
Sample Installations
Plenum Ready
Supply Cable to Fan
(provided)
Power Disconnect Cable
(provided)
110 VAC Supply Cable
(provided)
Cabinet
Range Hood
(provided)
Airflow
Soffit
Inline Duct Fan
(provided)
10 in. Ductwork
Roof Cap
(by others)
7 in. to 10 in. Transition7 in. to 10 in. Transition
7 in. Ductwork
Fan
Cabinet
Range Hood
(provided)
Airflow
Soffit
Plenum Ready
Supply Cable to Fan
(provided)
Power Disconnect Cable
(provided)
110 VAC Supply Cable
(provided)
Wall Mount Fan Box
with Access Cover for
Service and Mounting
(provided)
Wall Mount Fan Box
with Access Cover for
Service and Mounting
(provided)
Cabinet
Wall Cap
(by others)
Range Hood
(provided)
Airflow
3½ x 12-in. Ductwork
Soffit
Power Disconnect Cable
(provided)
110 VAC Supply Cable
(provided)
Cabinet
Range Hood
(provided)
Airflow
Soffit
Power Disconnect Cable
(provided)
110 VAC Supply Cable
(provided)
External Fan | Inline Fan
Integral Fan | Rear Discharge Integral Fan | Front Recirculation
External Fan | Wall Mount Fan

5
Fire Ready Hood
Preparing the Install Location
Mounting Bracket - The mounting bracket and hood must be centered over the range. If the range is not in place,
the center marking should be relative to it’s final position. Refer to page 7 for bracket mounting points, rear access
holes and access points.
Ductwork - The ductwork and fittings used for outside venting (if applicable) must be carefully selected to ensure
that the static pressure is in line with the fan parameters. The table below displays maximum duct length allowed for
the various fan options.
Hood
Width
NFPA 101
Compliance Fan Type Venting CFM (at hood)
Duct Length
(maximum)
30 inches
No Internal Front (recirculating) 140 Not applicable
No Internal Rear Discharge 250 Not applicable
No Inline Duct Fan Vertical Duct 470 35 feet
No Exterior Wall Fan Vertical Duct 150 20 feet
Yes Internal Front (recirculating) 500 Not applicable
Yes Internal Rear Discharge 500 Not applicable
Yes Inline Duct Fan Vertical Duct 510 35 feet
Yes Exterior Wall Fan Vertical Duct 550 20 feet
36 inches
No Internal Front (recirculating) 140 Not applicable
No Internal Rear Discharge 250 Not applicable
No Inline Duct Fan Vertical Duct 470 35 feet
No Exterior Wall Fan Vertical Duct 150 20 feet
Yes Internal Front (recirculating) 500 Not applicable
Yes Internal Rear Discharge 500 Not applicable
Yes Inline Duct Fan Vertical Duct 510 35 feet
Yes Exterior Wall Fan Vertical Duct 550 20 feet
Maximum duct length equals horizontal and vertical duct runs plus duct components such as fittings, elbows, and transitions.
For installations requiring vertical duct venting to an inline fan and NFPA 101 compliance, the hood should be
adapted from a 7-inch round duct access hole to a minimum 12-inch duct.
For installations requiring vertical duct venting to an inline fan and NFPA 101 compliance is NOT required, the hood
can be adapted to a minimum 10-inch duct.
WARNING
The amount of fittings and ductwork directly affects the resistance or static pressure placed on the system. If the
system is not within the proper static pressure range, the heat sensors and controls will be adversely affected and
will impact the proper function of the safety controls. Therefore it is required that airflow testing be recorded along
with installation documentation. The air testing is accessed by the removal of the grease tray and measured with
an airflow pressure gauge.
Static Pressure Testing - The magnehelic gauge test port opening is located
beneath the grease tray. The static pressure needs to be measured to ensure
airflows meet design criteria. The airflow is measured by attaching the gauge
tubing to the magnehelic gauge inlet, and the hood fitting is attached to the
grease drain hole beneath the grease tray.
A reading of 0.45 to 0.85 inches wg. is required to meet design standards.
This reading will correspond to the static pressure of the ductwork, hood
and fan combination. Magnehelic Gauge
Test Port
Magnehelic Gauge
Test Port

6Fire Ready Hood
Fans
For inline fans and exterior wall fans, fan location and
proper mounting will be required.
If the hood system is configured for front recirculation
discharge or rear discharge and NFPA 101 compliance,
the unit will come equipped with a fan box. If installing
under cabinets, keeping the fan box flush to the
underside of cabinet will guarantee correct spacing.
Otherwise, center and mark the installation area
according to wall mounting bracket prior to hanging.
The following steps will be required.
1. Insert/attach the top portion of the manual pull kit
conduit through the fan box.
Accessories
Location restrictions will apply if the hood system
supplied is provided with any of the optional
accessories:
• ClockBox
• Remote ADA Switches
• Manual Pull Station
2. Attach square duct collar to the bottom of the fan
box with included hardware.
3. Attach the fan box to the mounting bracket with
included 8/32 nuts, then complete the installation on
the manual pull kit conduit and top/bottom unions.
When prepping a space for installation, a 4-9⁄16 inch
space must be allowed between the top of the mounting
bracket and the bottom of the cabinet for the fan box.
The additional height of the unit should not result in
reduced range clearance. Cabinets should be installed
approximately 5 inches higher to accommodate the
additional size of the NFPA 101 fan box assembly.

7
Fire Ready Hood
A
B
CD
E
F
G
Installation
Mounting Bracket for a 30-inch unit
Mounting Bracket for NFPA Installation
Installation Elevation
A. Hood (30 or 36 inches)
B. Appliance (for reference purposes)
C. Range Disconnect - electric, gas or dual (optional)
D. Gas Range Element Disconnect (not shown)
E. The ClockBox. Range Element Time-Out System (optional)
F. Handicapped Accessible Control Box (optional)
G. Manual Pull Station (optional)
Mounting Bracket
A. Center notches
B. Critical mounting points must be
secured to studs or drywall hangers.
C. Rear access to junction box
connection
D. Primary access point for
connections to junction box
E. Secondary access point for
connections to hood (options/
accessories)
F. Additional mounting points. Secure
minimum of three (3) screws per row.
Cabinet FrontCabinet Front
Cabinet Bottom
Electrical
Access Hole
7-inch Round Duct
Access Hole
C
L
5-15/16 in.
7-13/16 in.
10-5/16 in.
4 in.
1/16 in.
28-5/8 in.
1-11/16 in.
A
BB
B
C
F
F
F
F
F
F
F
F
A
0 in.
2-7/16 in. 4-7/16 in. 6-7/16 in. 8-7/16 in.
10-15/16 in.
DE
10-5/16 in.
5-7/8 in.
1/16 in.
28-5/8 in.
1-5/8 in.
A
BB
B
C
F
F
F
F
F
F
F
F
A
0 in.
2-1/2 in. 4-1/2 in. 6-1/2 in. 8-1/2 in.
11 in.
DE

8Fire Ready Hood
1. Lift hood onto mounting bracket and seat the lower
tabs of the mounting bracket into slots in back of
hood.
2. While holding the hood up, hook safety cable to
chain link on mounting bracket and screw nut
to close the link. The hood is now in the service
position.
3. Connect male plug from top of hood into female plug
mounted in junction box.
5. Remove the safety key from the actuator arm by
rotating and lifting straight upwards. The system will
not actuate without completing steps 4 and 5.
6. Rotate hood to wall and thread the three thumb nuts
to the bolts in the mounting plate. Check page 18 for
location of thumb nuts.
Installing Hood onto Mounting Bracket 4. Remove the safety pin - identified with the yellow
CAUTION flag from the trigger on top of the
extinguisher bottle.
Safety Pin
CAUTION
The system is now armed.
NOTE
Install manual pull station, if provided, before arming
the system.
Slots Lower Tabs
Chain Link

9
Fire Ready Hood
CAUTION
Use sheet metal screws to secure ductwork to inlet
and outlet. It is critical that the screw penetrate the
metal of the flange, but not so far as to bind the
impeller. It may be necessary to angle screws away
from impeller.
Installing Fan (if applicable)
Inline
Install fan vertically in ductwork running between the
unit and roof cap.
For best results, use as few elbows or transitions as
possible. If necessary, long radius elbows or bends are
recommended.
To attach ductwork, use duct tape at inlet and outlet to
assure a good seal. If using fan clamps, attach clamps
and insert screws through clamp into inlet and outlet
flanges.
Wall Mounted Fan
Fasten the fan box to an external wall via the four
0.27-inch mounting holes.
Run electrical through the 0.81-inch hole towards the
top right corner of the box.
Attach ductwork using duct sealant, caulk, or tape
to all seams to prevent air leakage and maximize air
performance.
For best results use as few elbows or transitions as
possible. If necessary, long radius elbows or bends are
recommended.
8.25 in.
10.00 in.
3.75 in.
2.00 in.
Ø13.375 in.
Inline Exhaust Fan - Non-NFPA
Inline Exhaust Fan - NFPA
11.875 in.
10.50 in.
3.75 in.
2.4375 in. Ø16.00 in.
17.50 in.
12.00 in.
14.00 in.
14.625 in.
4.0625 in.
Ø0.27 in. (4X)
MOUNTING HOLES
Ø8 IN. VENT DUCT CONNECTION
Wall Fan - Non-NFPA
Wall Fan - NFPA
17.8125 in.
11.625 in.
15.875 in.
4.625 in.
Ø0.81 in.
13.375 in. Ø0.27 in. (4X)
MOUNTING HOLES
Ø8 IN. VENT DUCT CONNECTION

10 Fire Ready Hood
Gas Disconnect Valve (if applicable)
The gas solenoid is designed for use with 3/4-inch NPT
pipe. Be sure to note the “IN” and “OUT” ends of the
solenoid body (as marked on the body). This determines

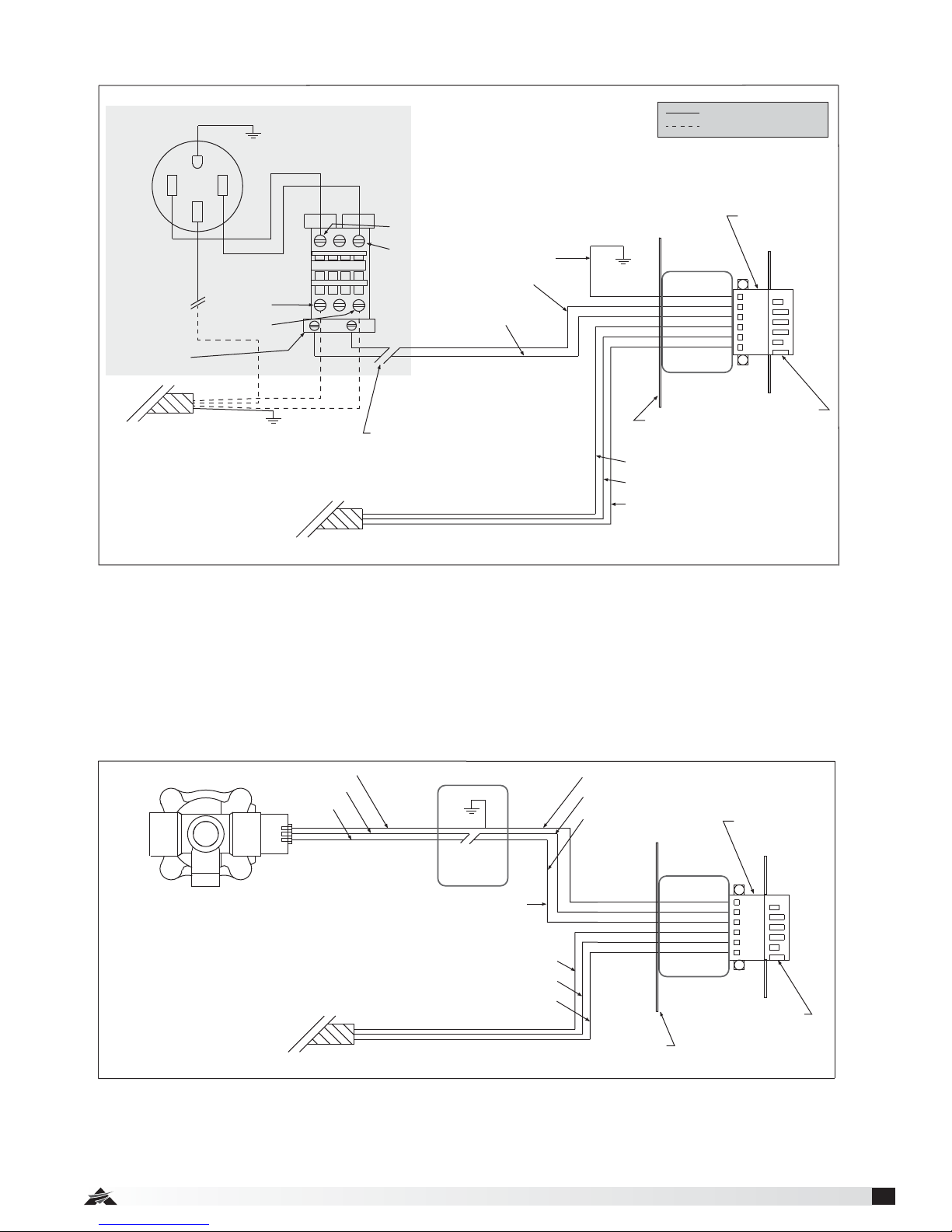

direction of gas flow. Refer to wiring diagram on pages
13 and 15 for details on electrical connection.
Electrical Disconnect Box (if applicable)
1. Cut a hole in the drywall for the relay box; refer to
the submittal for dimensions. Be sure to note the
1-1/4inch overhang on each side of the face plate.
Given this, the hole should be about 6-3/8 by 8-3/4
inch. The relay box has been designed to fit in a
standard 2x4 studded wall.
2. If you haven’t already done so, run wiring from the
junction box location (on the unit mounting plate) to
the power disconnect box location and string through
one of the knockouts in the box.
3. Make all wiring connections and secure face plate to
box in wall. Wiring information is provided on pages
13 and 15.
Range Element Disconnect Installation
Face Plate
208-220 VAC
supply to appliance
120 VAC
from hood, black tape
120 VAC
from hood, black tape
6-3/8 in.
8-3/4 in.
110 VAC Supply from Hood
- Electrical Connection
3/4-in. NPT
3/4-in. NPT
GAS FLOW

11
Fire Ready Hood
Refer to your submittal for installation dimensions of
these accessories.
ClockBox (optional)
The ClockBox works by controlling the cooking element
(gas, electric and dual element ranges) and minimizes
the likelihood of an unattended cooking fire. The system
disables the cooking element until the operator unlocks
the cover and presses the GO button. After two hours
the cooking element is automatically disabled.
If this unit was provided with the ClockBox, a ClockBox
controller and Touchscreen user-interface will be
provided. Both will need to be remotely mounted near
the appliance (range) on a nearby wall.
Remote ADA Switches (optional)
If the unit is provided with the remote ADA switches,
these will have to be installed to be in compliance with
ADA standards for Accessible Design.

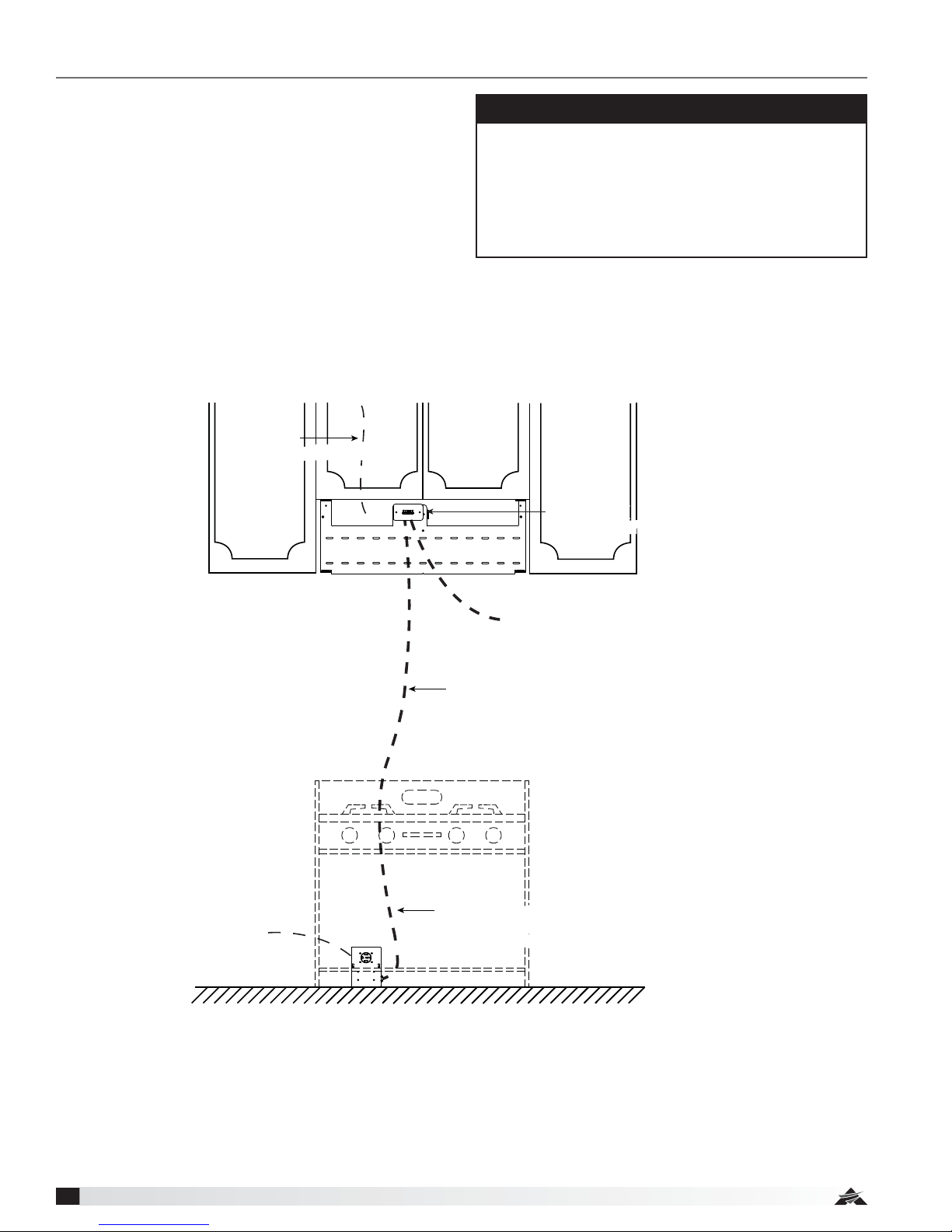

Manual Pull Station Installation (optional)
If the unit is provided with the remote ADA switches,
these will have to be installed to be in compliance with
ADA standards for Accessible Design.
Parts included in the kit:
Step 1: Installing Conduit
Mount the pull box in an appropriate location according
to local building codes. Keep
in mind you are supplied with
25 feet of cable and three (3)
elbow pulleys. Install 1/2inch
conduit (not included)
between the unit and the
pull box, using the pulleys as
needed. Pull cable through
the conduit, and allow 8 to
12 inches of slack to be left
at the hood unit end. Be sure
to abide by all local building
codes when installing
conduit.

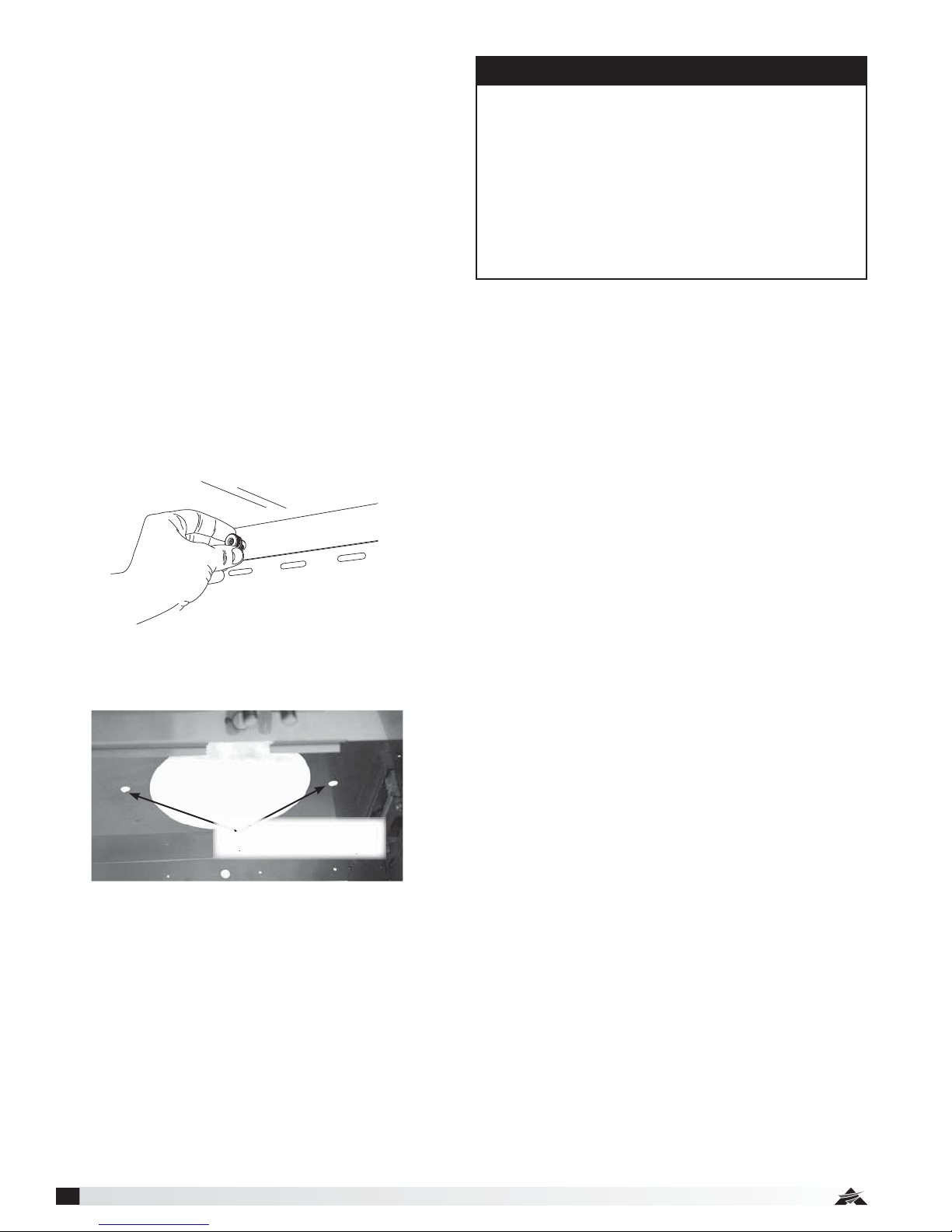

Step 2: Replace Safety Pin and Key (to prevent
accidental discharge)
With the unit lowered
into its service position,
put the safety pin in
its slot at the top of
the extinguisher tank.
Also replace the safety
key in its slot in the
actuator arm. Then
remove the cable from
the actuator arm.
Step 3: Install Cable and Pin to hood
Thread the cable through the conduit, with the pin
reaching the unit. Remove the grease filter. In the upper
right corner, find the two pulleys as illustrated. Hold the
rear-most pulley in
place. From the top
of the unit, replace
its pin with the one
on the cable. Push
the pin through the
pulley until you hear
it click in place. Go
back to the actuator
arm and rehook
cable onto the arm.
Step 4: Install Cable to Pull Face
With the unit in its lowered
position, attach the
cable to the pull face by
crimping a loop in the
cable through the hole
on the back side of the
handle. Be sure cable
is securely crimped to
withstand at least 50 lbs.
of pull force. Leave no more than 12 inches of slack
in the line on the pull face end, but maintain 8 to 12
inches. To make this easier, the handle may be removed
by loosening the set screw in one of the studs, and
sliding the red plastic rod out. Attach the pull face to
the pull box already mounted on the wall, collecting
any slack into the pull box. Do not allow slack cable to
collect above the hood.
Installing Ductwork (optional)
Ductwork will need to be provided and installed if the
unit was provided with an external fan.
Installation work must be done by qualified person(s)
in accordance with all applicable codes and standards,
including fire-rated construction.
To minimize static pressure losses and promote
adequate airflow, minimize duct run lengths where
possible.
WARNING
You must allow for 8 to 12 inches of slack in the cable
to sit at the pull face. Failure to do so will cause the
unit to discharge the next time the unit is lowered into
its service position.
CAUTION
Make sure the cable does not become caught on any
part of the hood or conduit, or the cable will not be
able to be pulled, and the unit will not discharge.
Installing Accessories
Pull Box (x1) Pull Face (x1) Elbow Pulley (x3) Cable and Pin (25 ft)
Conduit attachment
to backplate Crimp

12 Fire Ready Hood
Main Control Power
1. Determine mounting location of the appliance
disconnect (contactor box and/or gas valve) and
mounting bracket, if not already done.
2. Run factory-provided wire from junction box
through the wall to the appliance disconnect,
unless ClockBox option is provided. For electrical
installation information regarding the ClockBox, refer
to page 16. Wire the factory-provided 110 VAC main
power connection to a 15 amp rated circuit.
3. If the hood unit is to be linked to a fire alarm system,
accommodations for those wires will need to be
made at this time as well. Refer to fire alarm electrical
installation information on page 14.
CAUTION
Electrical installation should be performed by a
licensed electrician. Installation should be performed
according to all applicable codes and regulations. Shut
off power at the main breaker to prevent electrical
shock when accessing electrical connections.
All field installation and wiring of electrical equipment
must be done to meet NEC and local codes
Electrical Installation
Range Supply Line
208-220 VAC 50A max
supplied by others
Hood Supply 110-120 VAC 15A
Metal clad wire from 110-120 VAC supply line
12/2 8 ft length, marked with red tape
supplied by Accurex
Run metal clad wire from junction box on mounting
plate to power disconnect box through wall
Metal clad wire from 110-120 VAC supply line
14/2 8 ft length, marked with black tape
supplied by Accurex
Power disconnect mounted flush to wall
50A 250V NEMA 14-50 receptacle
supplied by Accurex
Power disconnect mounted flush to wall
50A 250V NEMA 14-50 receptacle
supplied by Accurex
Junction Box
with Connector
Junction Box
with Connector
Alarm Wire(s)
NO/NC Local and Remote Alarm
by others
Alarm Wire(s)
NO/NC Local and Remote Alarm
by others

13
Fire Ready Hood
Electric Disconnect Box (if applicable)
Gas Disconnect Valve (if applicable)
50AMP 250V
NEMA 14-50
L1 208-220 VAC Black Hot
L3 208-220 VAC Red Hot
T1 208-220 VAC Black Hot
T3 208-220 VAC Red Hot
By others Provided by Accurex
Provided by others
By Accurex
T1
L1
T3
L3
50 AMP 208-240 VAC Single Phase
Supply Line (by others)
110 VAC Coil
Wire Nut
Neutral
GND
6 Position
Orange
Connector
6 Position
Grey
Connector
15 AMP 110-120 VAC
Supply Line (by others)
Metal Clad to 110-120 VAC
Power Disconnect
(Black Tape) - 14/2
Metal Clad Wire from 110-120 VAC
Supply Line (Red Tape)
Green Ground
Wire nut inside power
disconnect box
Green Ground
Black Hot
110-120 VAC 14/2 Hood
White Neutral
Black Hot 110-120 VAC
Junction
Box
White Neutral
Contactor 50A
Supplied
Power Disconnect Box
8” x 6” x 4”
Back Support
Mounting Bracket
GND
NEUT
HOT
GND
NEUT
HOT
H
N
H
HH
}
}
}
Metal Clad Wire from 110-120 VAC
Supply Line (Red Tape)
6 Position
Orange
Connector
6 Position
Grey
Connector
15 AMP 110-120 VAC
Supply Line (by others)
Multiconductor
(4 Conductor)
110-120 VAC Gas Solenoid Green
Green Ground
Green Ground
Black
Hood
White Neutral
White Neutral
Black Hot 110-120 VAC
Black Hot 110-120 VAC
Junction
Box
Junction Box
Wire Nut
White
Back Plate
GND
NEUT
HOT
GND
NEUT
HOT
Metal Clad to 110-120 VAC
Power Disconnect
(Black Tape)

14 Fire Ready Hood
Inline/Wall Mount Fan Power (if applicable)
Twenty-five (25) feet of plenum rated wire is provided
with both the inline fan and wall mounted fan option.
The fan needs to be connected with the provided
connector within the hood controls. See wiring diagram
on page 15 for wiring information.
ClockBox (if applicable)
Twenty (20) feet of shielded control wire is provided with
the ClockBox option to connect the ClockBox controller
to the touchscreen interface. The ClockBox needs to be
connected back via the connector within hood controls.
See wiring diagram on page 15 for wiring information.
Remote ADA Switches (if applicable)
Eight (8) feet of shielded control wire is provided with
the ADA remote switch option. The switches need to be
connected back with the provided connector within the
hood controls. See wiring diagram on page 15 for wiring
information.
Fire Alarm System Connections
The hood unit has two fire alarm connections (discrete
switches), each with its own trigger. A connection is
made to one output (Y#) and one common (C#) at the
controller. The output labeled Y0 is triggered by a fault
from the high temperature switch (190°F), or pressure
switch, or hose switch. Output Y1 is triggered by a
high temperature switch (190°F) and a low pressure
fault in the extinguisher tank (the fire suppressant has
discharged). You may use either one connection or
both, depending on your situation. When there is a fault,
a buzzer in the unit will sound and the power disconnect
will turn off.
Local Alarm Connection: Connect to output Y0 and
common C0
Remote Alarm Connection: Connect to output Y1 and
common C1
To connect to the alarms, it is preferred that you use a
spade terminal connector (supplied), but a stripped wire
is acceptable.
Connecting the alarm system in the configuration
described above results in a normally open connection.
To switch these two alarm contacts to normally closed
connections, insert a jumper into the blue and the gray
terminal adjacent to it (terminal blocks 4 and 5). One
leg of the provided jumper is inserted into the blue
terminal and the other into the gray terminal.
In addition to the fire alarm system connections
described previously, a second connection may be
made to the fire alarm switch installed in the unit. Unlike
the connection above, this switch does not require
power to be fed to the hood in order to function. The
fire alarm switch is located above the actuator arm,
beside the controller assembly. The fire alarm switch is
activated when the actuator arm trips.
To connect the fire alarm switch, wire the fire alarm to
the common connector and normally open or normally
closed connection as shown.
NOTE
Ensure jumper is inserted completely and the top of
the jumper is level with the other jumpers.
Y0
Y1
C0
C1
Onboard Controller
Common
Normally Open
Normally Closed
Fire Alarm Switch

15
Fire Ready Hood
Wiring Diagram
Description Value
CB ClockBox 2 HR
F1 Controller Fuse 1 AMP Fast Blow
F2 Fan Fuse 2 AMP Slow Blow
F3 Dual Disconnect 1 AMP Slow Blow
F3 Disconnect Fuse 0.5 AMP Slow Blow
F4 Main Fuse 8 AMP Slow Blow
F5 ClockBox Fuse 8 AMP Slow Blow
MP1 Main Power Connector
FP2 Fan Connector
SW1 Main Power Switch
SW2 Light Switch
SW3 Service Switch
SW4 Reset Switch
SW5 Optional ADA Light
SW6 Optional ADA Fan
HSW1 Hose Switch
HITH1 High Temp Thermostat 190°F
LOTH1,2 Low Temp Thermostat 150°F
FSP1 Fan Speed Controller 4.0 FLA
FAN Inline or Recirc Fan
CAP1 Capacitor for Recirc Fan 10 UF
M1 Stove Disconnect 40 FLA 50 A RES
LIGHT Hood Light 60 WATT
Controller Computer Driving Hood
BUZZER Alarm in Hood 90 DB

16 Fire Ready Hood
ClockBox Wiring Diagram (if applicable)
ClockBox System Interface Diagram
1. An independent 110 VAC supply line is provided to
the ClockBox.
a. This supply line provides power to the ClockBox,
which is independent from the supply line to the
hood.
2. The ClockBox provides 110 VAC to the Power
Disconnect Assembly
3. The ClockBox provides control signal voltage (5VDC)
and logic control to the Touchscreen [HMI]
4. The Power Disconnect Assembly supplies the input
line to the stove/range as follows:
a. If an Electric Disconnect
- Controls the 110 VAC contactor coil allowing the
220 VAC supply line to the stove/range via the
NEMA 14-50 receptacle.
b. If a Gas Disconnect
- Open the solenoid valve allowing gas to flow to
the input line of the stove/range
c. If Dual Disconnect
- Both conditions 6.a.i and 6.b.i will apply
d. The above reference will be maintained for as long
as there is time left at the ClockBox, it will open
the contact in the timer, stopping the supply line
to the Power Disconnect, which in turn, will shut
off the stove.
NOTE
Some electric stoves/ranges have a warning light
to alert the user that the burners/coils are hot.
These warning lights will be off since the supply line
powering the stove/range is not present.
120VAC
INPUT
Supply Line
GND
N
H
Green
White
Black
Fuse
5.5 Amps
T3 T4 T5
24 VDC
Blue
Brown T5
Green/
Yellow
Y0
Y1
Y2
Y3
COM
Y4
COM
Y5
COM
(NEG)
(POS)
Circ DIN
5 VDC
PLC
Black
Black
CLOCKBOX
Black
White
Green GND
T5
T4
T1
HN
A1 A2
PWR DISC
OUTPUT
Supply Line
White
Brown
Green
Black
Red
1 - SG
2 - SD
3 - RD
4 - (NEG)
5 - (POS)
SCREEN
TOUCH
T2
L N GND -V +V
POWER SUPPLY
H
N
HOOD 120VAC
INPUT
Supply Line
ClockBox
Touchscreen
ClockBox
Touchscreen
110VAC to
Disconnect
110VAC to
Disconnect
110VAC
Supply Cable
110VAC
Supply Cable
110VAC
Supply Cable
110VAC
Supply Cable
110VAC to Hood110VAC to Hood
5VDC
Communication
Wire
5VDC
Communication
Wire
Clock
Box
Clock
Box

17
Fire Ready Hood
Operation - How it Works
The XRRS functions as a standard ventilation range
hood with the added capability to suppress stove top
fires.
Designed for use over a standard 30 and 36 inch
residential range, it uses a mechanical, commercial style
automatic fire suppression system.
Refer to the illustration below to familiarize yourself with
the following functions.
• A controller provides an internal alarm plus
connections for up to two external alarms that may go
to a local alarm panel and/or remote location, i.e. the
local fire department.
• The unit is powered from standard 115 VAC / 60 Hz /
single phase. A main Power Switch is located at the
upper left of the front surface. (Remote ADA switches
provided).
• For normal daily use, the unit provides a fan speed
control knob and a light switch for the light.
• A Reset Button (white) is provided to energize the
controller and the main power disconnect contactor
(electric range) or valve (gas stove). Upon initial power
up, the control system is not enabled and this reset
button needs to be pressed. In doing so the Status
LED below the reset switch will turn from red to green.
Environmental Monitoring / Pre-Suppression
Functions
The controller operating system is designed to enhance
the functionality of the unit and the safety of the cooking
environment.
The system relies on input from a set of thermostats to
control the fan and shutoff power to the stove when the
temperature reaches preset points.
As the temperature rises, the controller monitors the
environment with the three (3) thermostats. The board is
programmed to respond to two temperature thresholds.
The first at 150°F and the second at 190°F.
At the first temperature threshold of 150°F, the
ventilation fan will turn on, regardless of the front
panel switch setting.
At the second temperature threshold of 190°F:
1. The power disconnect to the stove (valve or
contactor) is de-energized, shutting off power to the
stove.
2. The “local” alarm output is tripped, indicating a
trouble condition with the unit. This output is from
contacts C0 and Y0 on the controller.
3. The on-board audible alarm sounds (high pitched
tone).
NOTE
See page 21 for controller schematic.

18 Fire Ready Hood
Accessing the Internal Components
Moving the unit between ‘operating’ and ‘service’
positions.
All XRRS models have been configured as a stand
alone unit mounted to a wall plate. As such, the unit
may easily be tilted down into a service position, giving
you access to the electronics and extinguisher tank, or
be removed completely for maintenance and cleaning.
Provisions have been made to facilitate easy removal
including a minimal amount of fasteners and modular
electrical connections.
To place the unit in the service position, a few simple
steps are required. Be sure to wear safety glasses at all
times during this process:
1. Shut the unit off with the power switch on the front of
the hood.
2. Remove the grease tray and the grease entrapment
filter.
3. For non-ducted installation, loosen and remove
the thumb nuts that are on the rear inside wall of fan
housing compartment.
On ducted installations, remove the two thumb nuts
located at the top inside near the fan intake. Slowly
lower the unit.
4. The unit will now freely pivot downward to a stop
position. A safety cable is provided to prevent the
unit from falling or lowering too far.
5. Place safety pin in the tank valve to avoid accidental
discharge.
With the unit in this position, basic servicing and
cleaning may be performed, including servicing the
extinguisher tank assembly.
To move the unit back to the operating position, simply
reverse the process as outlined above.
CAUTION
• Be careful while working with the unit in the service
position. Release of the cable system or applying
force to the tank valve assembly may cause
discharge of the tank. The high pressure discharge
has the potential to cause skin or eye damage and
injury!
• An electrical shock hazard is present at the
electrical compartment whenever there is power to
the hood. Use caution when working around this
device while the unit has power.
Th
Th
um
b nut locations
Th
T
fo
f
r
d
ucte
d
f
an on
l
y
y
Three thumb nut locations
for non-ducted fan

19
Fire Ready Hood
ClockBox Operation and Navigation (if applicable)
FIGURE 1
1. Press Start/Reset to allow the
2 hour timer to begin. This will
prompt to the password screen.
See Figure2.
2. Press Pause to pause the timer,
press again to continue.
3. Press STOP to stop the timer.
4. If the timer is running, pressing
the Start/Reset button will reset
the timer at the original timer value
and start running the timer again.
5. The Accurex logo is a hidden
button which allows access to
background menus. Press the
Accurex logo to access hidden
menu to modify timer values and
passwords. See Figure 3.
NOTE: Main Screen will always
show available time. System is pre-
set to countdown remaining time.
FIGURE 2
1. Factory preset master password:
06412
2. Enter password 06412 and then
press the enter symbol ().
FIGURE 3
1. Press Timer Mgmt to modify the
timer value. See Figure 4 for timer
management screen.
2. Press Password Mgmt to add/
modify/delete passwords.
See Figure 5 for password
management screen.
FIGURE 5
1. Adjust pasword number and level.
Press under New Pass to key
new password. To validate the
password, re-type the password
under Re-Type Pass. Press the
Change/Add key to add or adjust
a password or Delete to omit a
stored password.
FIGURE 4
1. To adjust hours, minutes, or
seconds of cook timer, press on
respective number. Enter the new
value and press enter symbol ()
to store the value.

20 Fire Ready Hood
Test Tank and Demonstration
WARNING
The safety pin must be in place in the extinguisher
tank until the unit is ready to be returned to service
or to be tested. Always wear safety glasses during
this procedure.
WARNING
Be careful of the protective caps on the nozzles.
These will fly off the nozzles when the unit is actuated.
Always wear safety glasses during this procedure.
Once the hood has been installed, it may be necessary
or desired to test the unit with a test tank filled with
pressurized nitrogen (optional).
1. Following the “Removing the Extinguisher Tank”
instructions on page 25, remove the extinguisher tank
and replace it with a test tank.
B. Manual Pull Kit (if installed)
Raise the unit to its operational position after the test
tank has been installed. Remove the plastic break rod
from the pull face with an allen wrench (refer to manual
pull station appendix for
more detailed information
on this). Pull the handle
to actuate the unit. Refer
to the “Manual Pull Kit”
section on the method to
return the pull station to an
operational state.
2. The unit can be actuated one of two ways:
A. Cut Test Links
Replace the actuator arm’s safety key. Loosen the
turnbuckle in the fusible link cable assembly (underside
of hood). Replace one of the fusible links with a test link.
Retighten the turnbuckle to the proper tension. Remove
the safety key and raise the unit to its operational
position. To test, cut the test link with wire cutters or
similar.
3. Nitrogen should be released from each nozzle
simultaneously.
4. Replace the test tank with the extinguisher tank, the
test link with a fusible link, and place the unit to its
operational position. The unit is now ready to be put
into service.
Turnbuckle Fusible Link
Safety Key
Safety Pin
