Baumatic AS35SS User manual

AS35SS Cooker
Hood

User Manual for your Baumatic
AS35SS Cooker Hood
Studio Solari 80 cm Chimney Hood in
Stainless Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
1

SPECIFICATION OF YOUR COOKER
HOOD PAGE 3
IMPORTANT SAFETY
INFORMATION PAGES 4 - 5
ENVIRONMENTAL NOTE PAGE 6
DESCRIPTION OF YOUR COOKER
HOOD PAGE 7
USING YOUR COOKER HOOD PAGE 8
CLEANING YOUR COOKER HOOD PAGE 9
MAINTENANCE- Removing and cleaning the
g
rease filter
Changing a light bulb
Fitting the carbon filter
The carbon filter saturation
signalling device
PAGE 10
PAGE 11
PAGE 12
PAGE 13

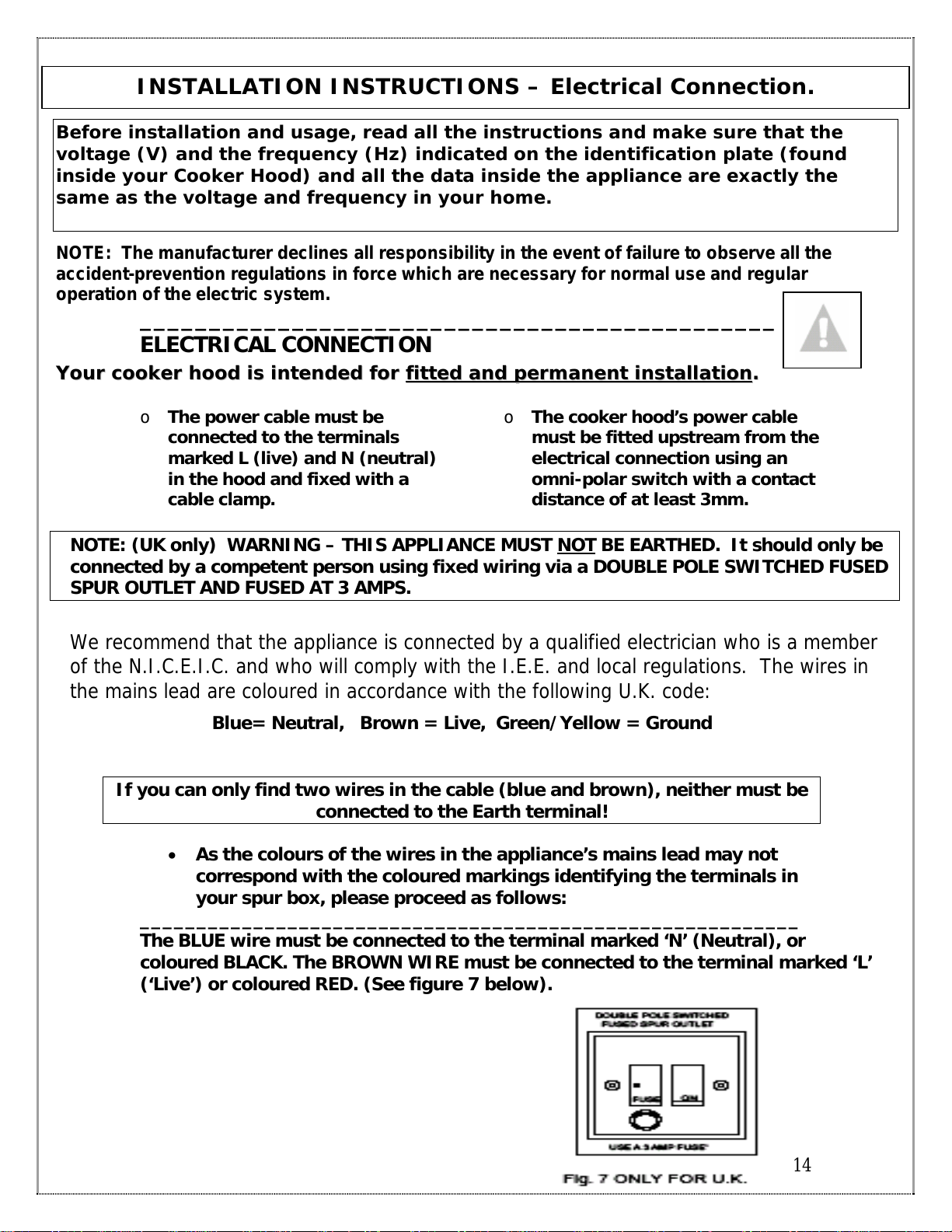

INSTALLATION- Electrical Connection
Before beginning installation
Extraction mode or
recirculation mode?
Installation without a
chimney
Installation with a chimney
Connecting to external
ducting.
PAGE 14
PAGES 15 -
16
PAGE 17
PAGE 18
PAGE 19
PAGE 20
TROUBLE SHOOTING PAGE 21
CONDITIONS OF GUARANTEE PAGE 22
CONTACT DETAILS PAGE 23
2
CONTENTS

Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with the specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to install your
cooker hood correctly.
DIMENSIONS
Width (canopy): 800 mm
Depth (canopy): 131 mm to 346 mm
Height (with chimney) 1105 mm to 1635 mm
(without chimney) 569 mm
Dimensions of Chimney Section:
Width 240 mm
Depth 250 mm
Your stainless steel Cooker Hood is fitted with:
•Superior extraction capacitor motor
•Touch control operation with blue under lit buttons
•3 speeds and Booster
•2 metallic grease filters
•2 Halogen lights
Extraction capacity – 600 m³/hr
Optional Extra: Carbon filter kit (available from the
Baumatic Spares Department)
3
S
p
ecifications of
y
our AS35SS Cooker Hood

Any installation work must
be carried out by a qualified
electrician or competent
person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
700 mm
9Gas cookers:
700 mm
Important Safety Information: Please Read this before installing & using.
9Coal/ oil cookers:
800 mm
* NOTE -
DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
4

oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o
Dirty oil is an even
greater fire risk.
o
Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
Important Safety Information: Please Read this before installing & using.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
:Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood.
5

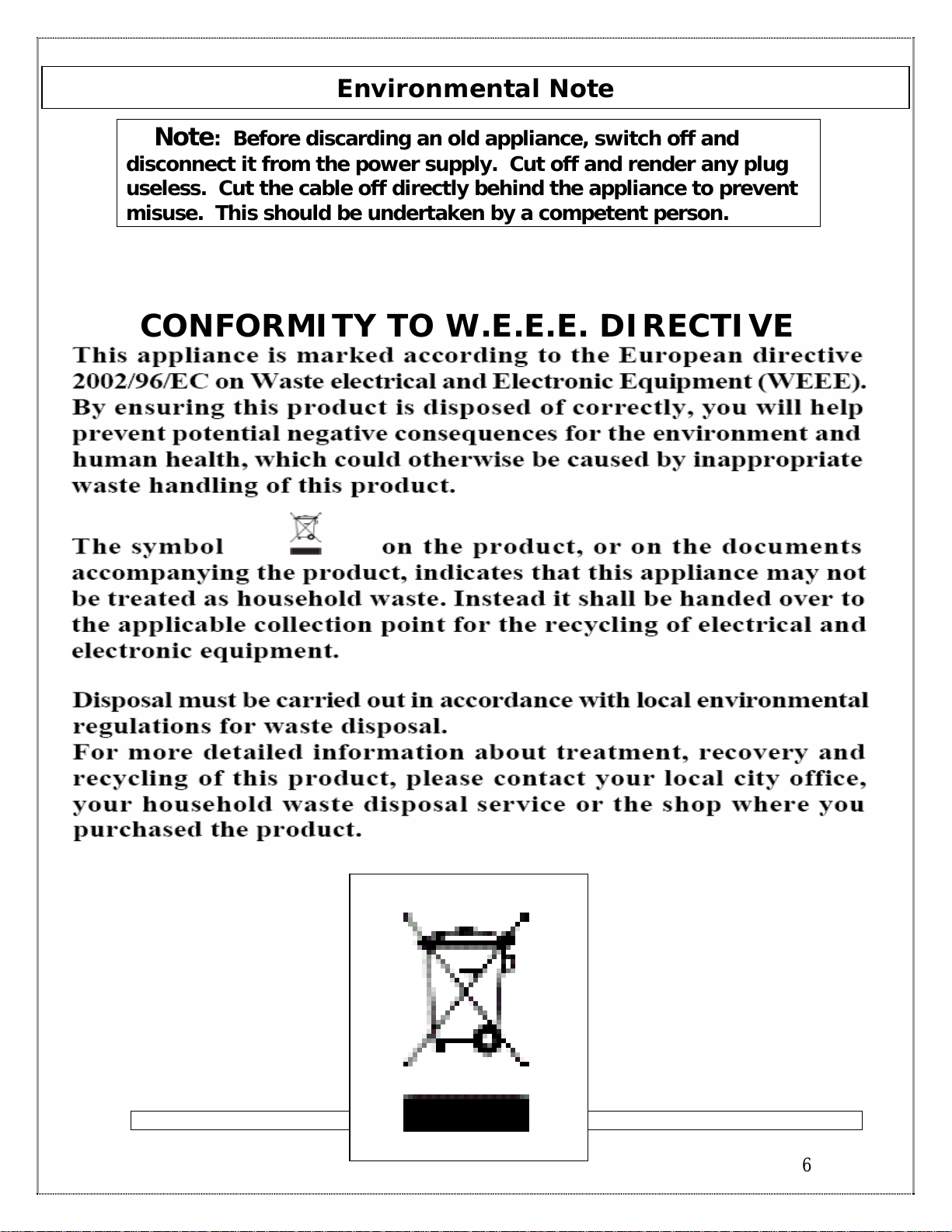

Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
6
Environmental Note

Description of your Cooker Hood

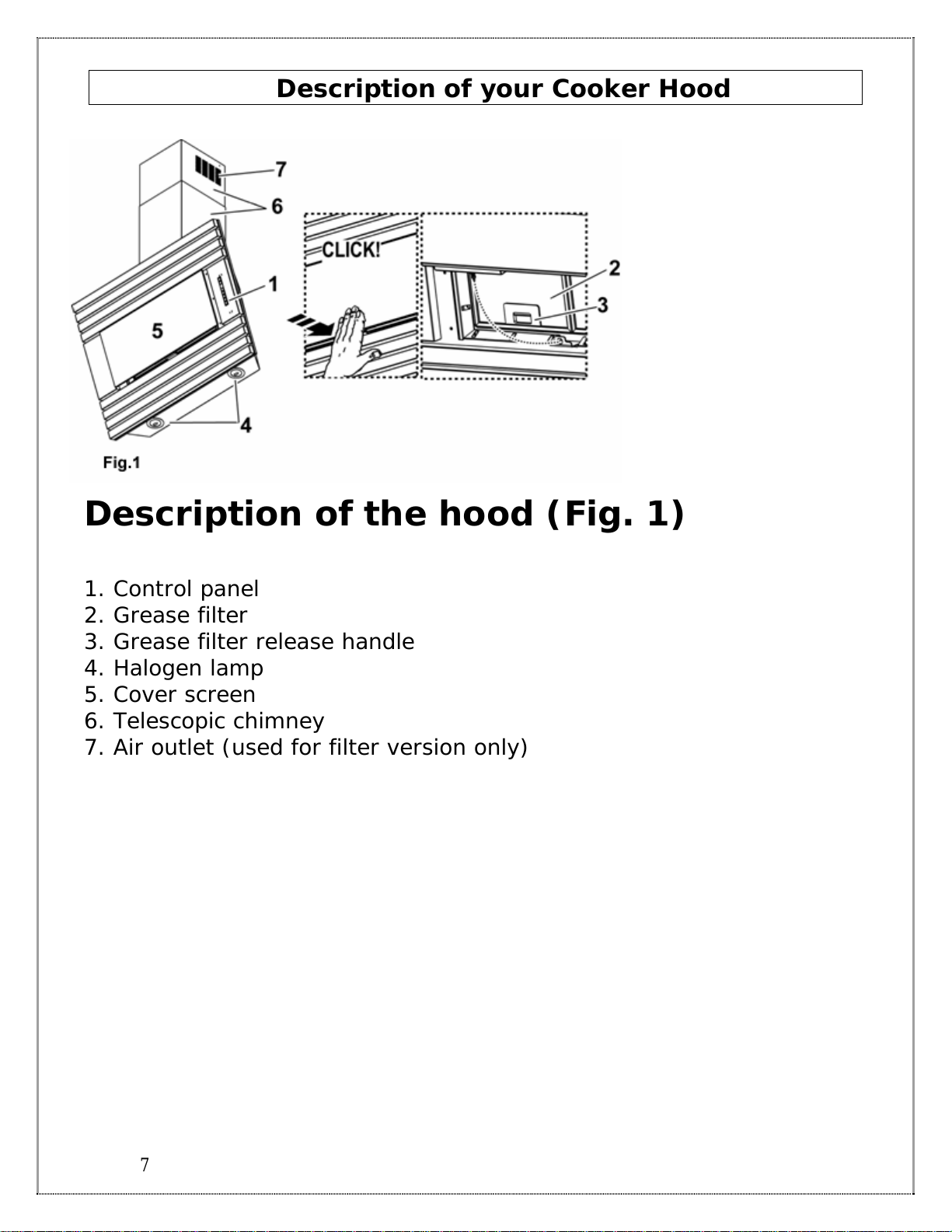

Description of the hood (Fig. 1)
1. Control panel
2. Grease filter
3. Grease filter release handle
4. Halogen lamp
5. Cover screen
6. Telescopic chimney
7. Air outlet (used for filter version only)
7

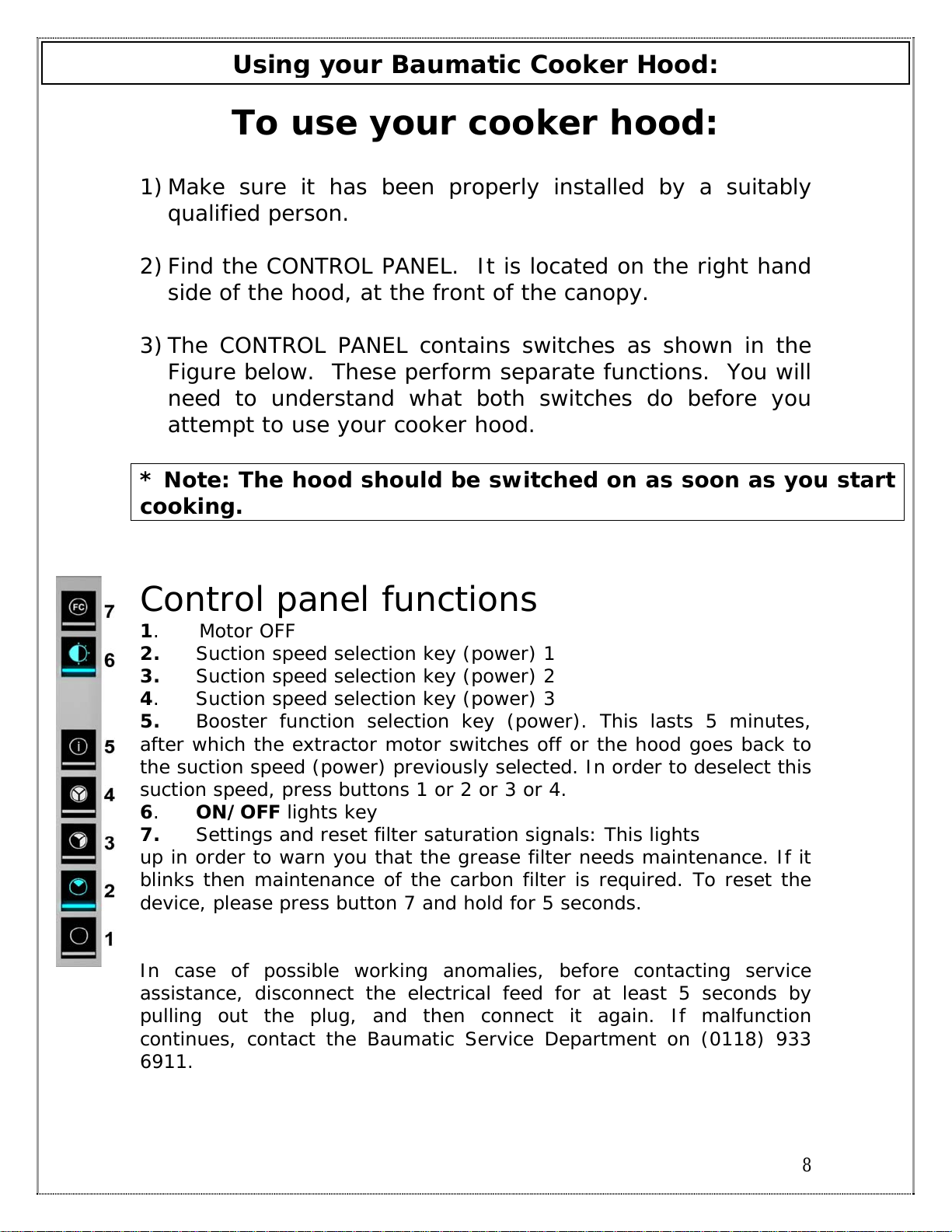

To use your cooker hood:
1)Make sure it has been properly installed by a suitably
qualified person.
2)Find the CONTROL PANEL. It is located on the right hand
side of the hood, at the front of the canopy.
3)The CONTROL PANEL contains switches as shown in the
Figure below. These perform separate functions. You will
need to understand what both switches do before you
attempt to use your cooker hood.
* Note: The hood should be switched on as soon as you start
cooking.
Control panel functions
1. Motor OFF
2. Suction speed selection key (power) 1
3. Suction speed selection key (power) 2
4. Suction speed selection key (power) 3
5. Booster function selection key (power). This lasts 5 minutes,
after which the extractor motor switches off or the hood goes back to
the suction speed (power) previously selected. In order to deselect this
suction speed, press buttons 1 or 2 or 3 or 4.
6. ON/OFF lights key
7. Settings and reset filter saturation signals: This lights
up in order to warn you that the grease filter needs maintenance. If it
blinks then maintenance of the carbon filter is required. To reset the
device, please press button 7 and hold for 5 seconds.
In case of possible working anomalies, before contacting service
assistance, disconnect the electrical feed for at least 5 seconds by
pulling out the plug, and then connect it again. If malfunction
continues, contact the Baumatic Service Department on (0118) 933
6911.
8
Usin
g
y
our Baumatic Cooker Hood:

IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Grease Filter
ÂYour cooker hood includes a grease filter which
helps to absorb grease particles to protect your
kitchen & furniture from greasy residues.
ÂThe metallic filter may become inflammable if it
becomes saturated with this greasy residue.
9To prevent this fire hazard, the filter should be
cleaned regularly. Depending on use, this should be
done every 10-15 days or at least once a month,
using hot water and normal washing-up detergent.
9DO NOT WASH THE GREASE FILTER IN A
DISHWASHER.
9
Cleanin
g
y
our Baumatic Cooker Hood:

Maintenance- Cleaning the grease filter
Removing the grease filter (Fig. 2)
Figure 2- Open the cover screen (5) and then remove
the grease filter (2) by pressing the spring clip (3).
•You can now clean the grease filter.
•Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
•Repeat the process if required.
•Let the grease filter dry thoroughly and then refit it.
10

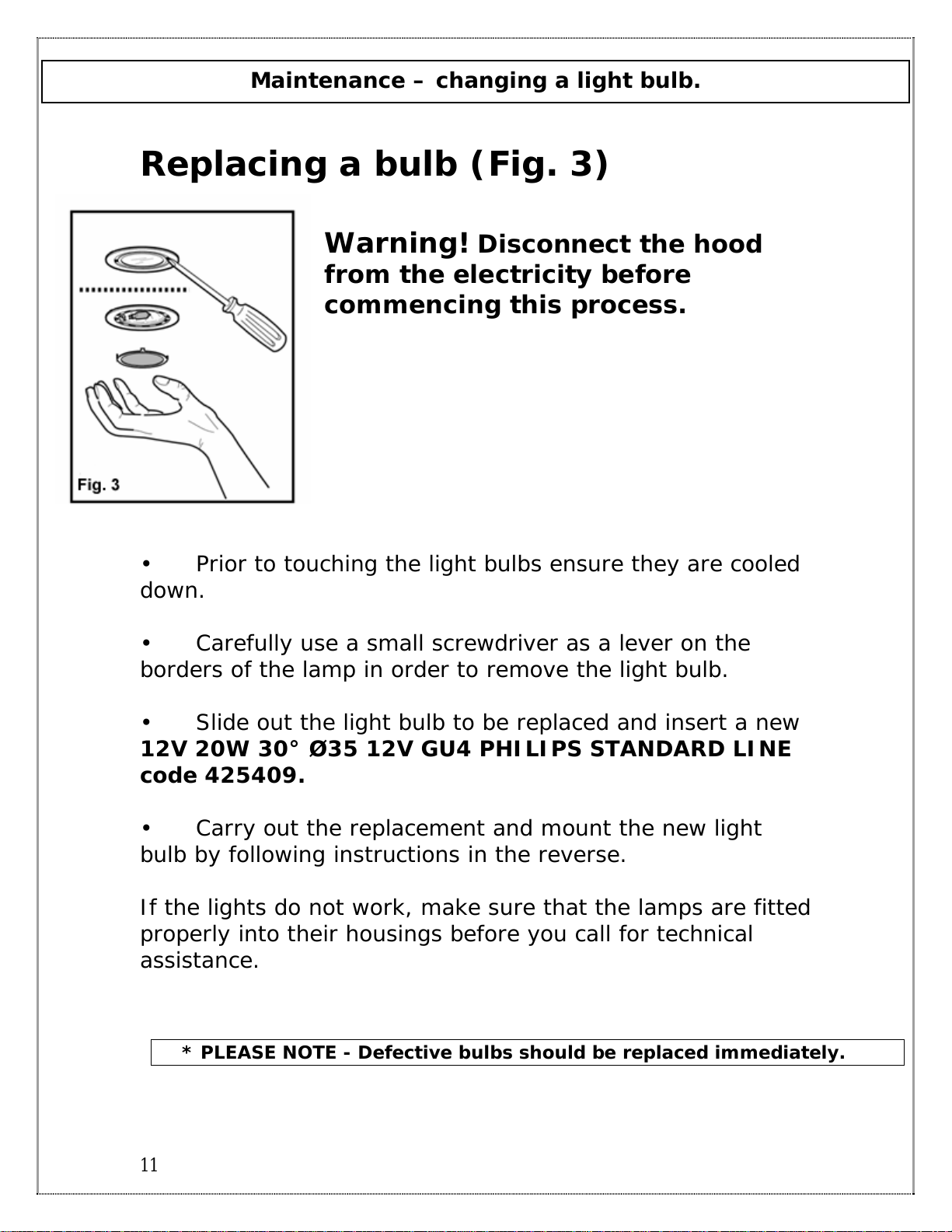

Replacing a bulb (Fig. 3)
Warning! Disconnect the hood
from the electricity before
commencing this process.
• Prior to touching the light bulbs ensure they are cooled
down.
• Carefully use a small screwdriver as a lever on the
borders of the lamp in order to remove the light bulb.
• Slide out the light bulb to be replaced and insert a new
12V 20W 30° Ø35 12V GU4 PHILIPS STANDARD LINE
code 425409.
• Carry out the replacement and mount the new light
bulb by following instructions in the reverse.
If the lights do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
* PLEASE NOTE - Defective bulbs should be replaced immediately.
Maintenance – chan
g
in
g
a li
g
ht bulb.
11

Maintenance
– Fittin
g
the carbon
f
ilter.

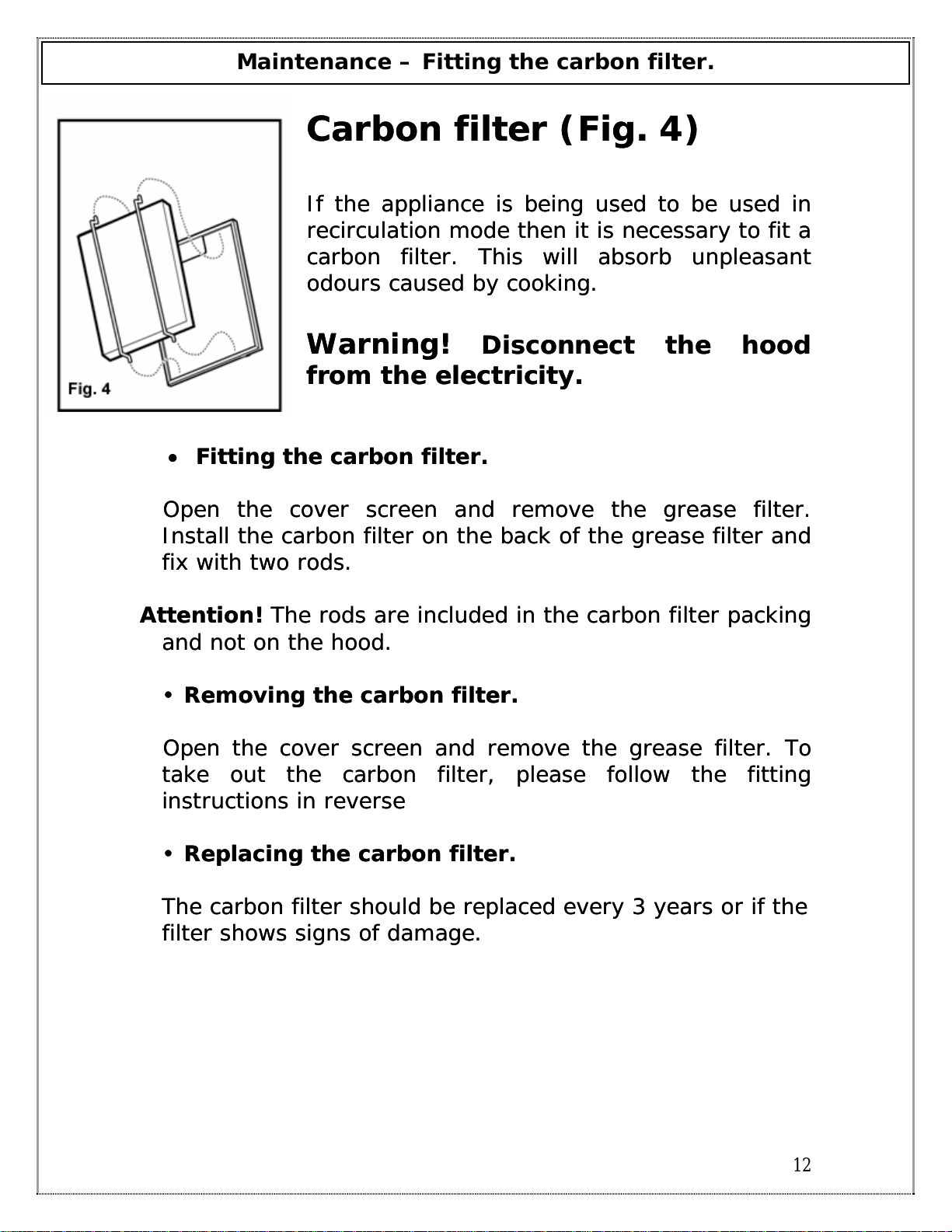

Carbon filter (Fig. 4)Carbon filter (Fig. 4)
If the appliance is being used to be used in
recirculation mode then it is necessary to fit a
carbon filter. This will absorb unpleasant
odours caused by cooking.
If the appliance is being used to be used in
recirculation mode then it is necessary to fit a
carbon filter. This will absorb unpleasant
odours caused by cooking.
Warning! Disconnect the hood
from the electricity.
Warning! Disconnect the hood
from the electricity.
•Fitting the carbon filter.•Fitting the carbon filter.
Open the cover screen and remove the grease filter.
Install the carbon filter on the back of the grease filter and
fix with two rods.
Open the cover screen and remove the grease filter.
Install the carbon filter on the back of the grease filter and
fix with two rods.
Attention! The rods are included in the carbon filter packing
and not on the hood.
Attention! The rods are included in the carbon filter packing
and not on the hood.
• Removing the carbon filter.• Removing the carbon filter.
Open the cover screen and remove the grease filter. To
take out the carbon filter, please follow the fitting
instructions in reverse
Open the cover screen and remove the grease filter. To
take out the carbon filter, please follow the fitting
instructions in reverse
• Replacing the carbon filter.• Replacing the carbon filter.
The carbon filter should be replaced every 3 years or if the
filter shows signs of damage.
The carbon filter should be replaced every 3 years or if the
filter shows signs of damage.
12

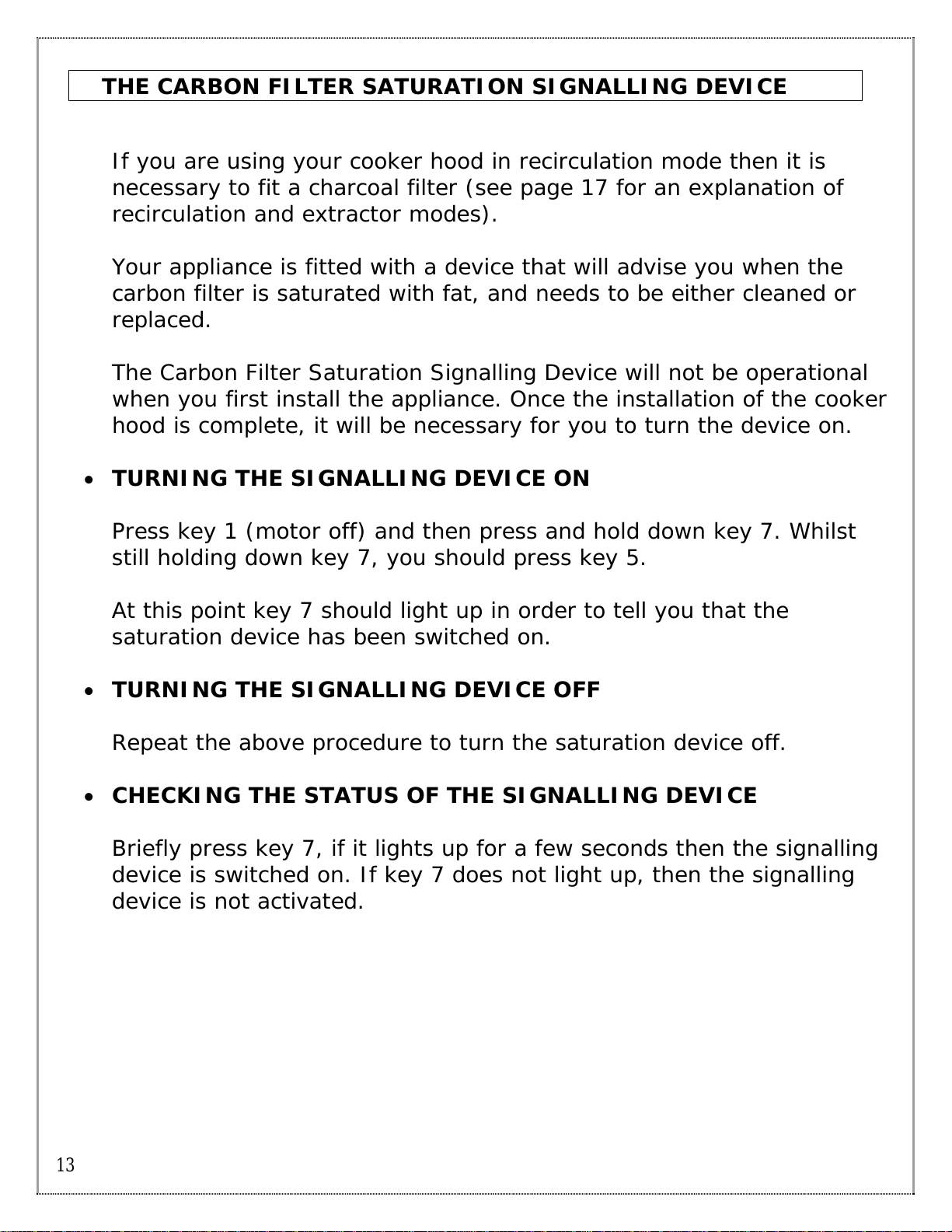

THE CARBON FILTER SATURATION SIGNALLING DEVICE
If you are using your cooker hood in recirculation mode then it is
necessary to fit a charcoal filter (see page 17 for an explanation of
recirculation and extractor modes).
Your appliance is fitted with a device that will advise you when the
carbon filter is saturated with fat, and needs to be either cleaned or
replaced.
The Carbon Filter Saturation Signalling Device will not be operational
when you first install the appliance. Once the installation of the cooker
hood is complete, it will be necessary for you to turn the device on.
•TURNING THE SIGNALLING DEVICE ON
Press key 1 (motor off) and then press and hold down key 7. Whilst
still holding down key 7, you should press key 5.
At this point key 7 should light up in order to tell you that the
saturation device has been switched on.
•TURNING THE SIGNALLING DEVICE OFF
Repeat the above procedure to turn the saturation device off.
•CHECKING THE STATUS OF THE SIGNALLING DEVICE
Briefly press key 7, if it lights up for a few seconds then the signalling
device is switched on. If key 7 does not light up, then the signalling
device is not activated.
13

INSTALLATION INSTRUCTIONS -
ElectricalINSTALLATION INSTRUCTIONS – Electrical Connection.
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r fitted and permanent installation fitted and permanent installation. .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOTE: (UK only) WARNING – THIS APPLIANCE MUST NOT BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET AND FUSED AT 3 AMPS.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
•As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
__________________________________________________________
The BLUE wire must be connected to the terminal marked ‘N’ (Neutral), or
coloured BLACK. The BROWN WIRE must be connected to the terminal marked ‘L’
(‘Live’) or coloured RED. (See figure 7 below).
14

INSTALLATION INSTRUCTIONS – Before beginning installation.
15
:
The cooker hood should not be exposed to a direct heat
source from the cooking device underneath it, i.e. naked
flame from a gas burner or heat from electric hob zones
without a pan on them.
:
We recommend that at least two people install this hood.
:
The lights on this appliance should only be used during
operation of the cooker hood. They should not be left on
permanently and used as a lighting source.
Before beginning installation:
• Check that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
• Carry out all necessary masonry work prior to the fitting of the
cooker hood.
• Ensure that all electrical connections are carried out by a
suitably qualified person.
• Before commencing installation of the cooker hood the grease
filter should be removed.
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD WHETHER TO USE IT IN
EXTRACTION MODE OR
RECIRCULATION MODE. PLEASE TURN
TO PAGE 17 NOW TO UNDERSTAND
THE DIFFERENCES BETWEEN THESE
TWO MODES.

16

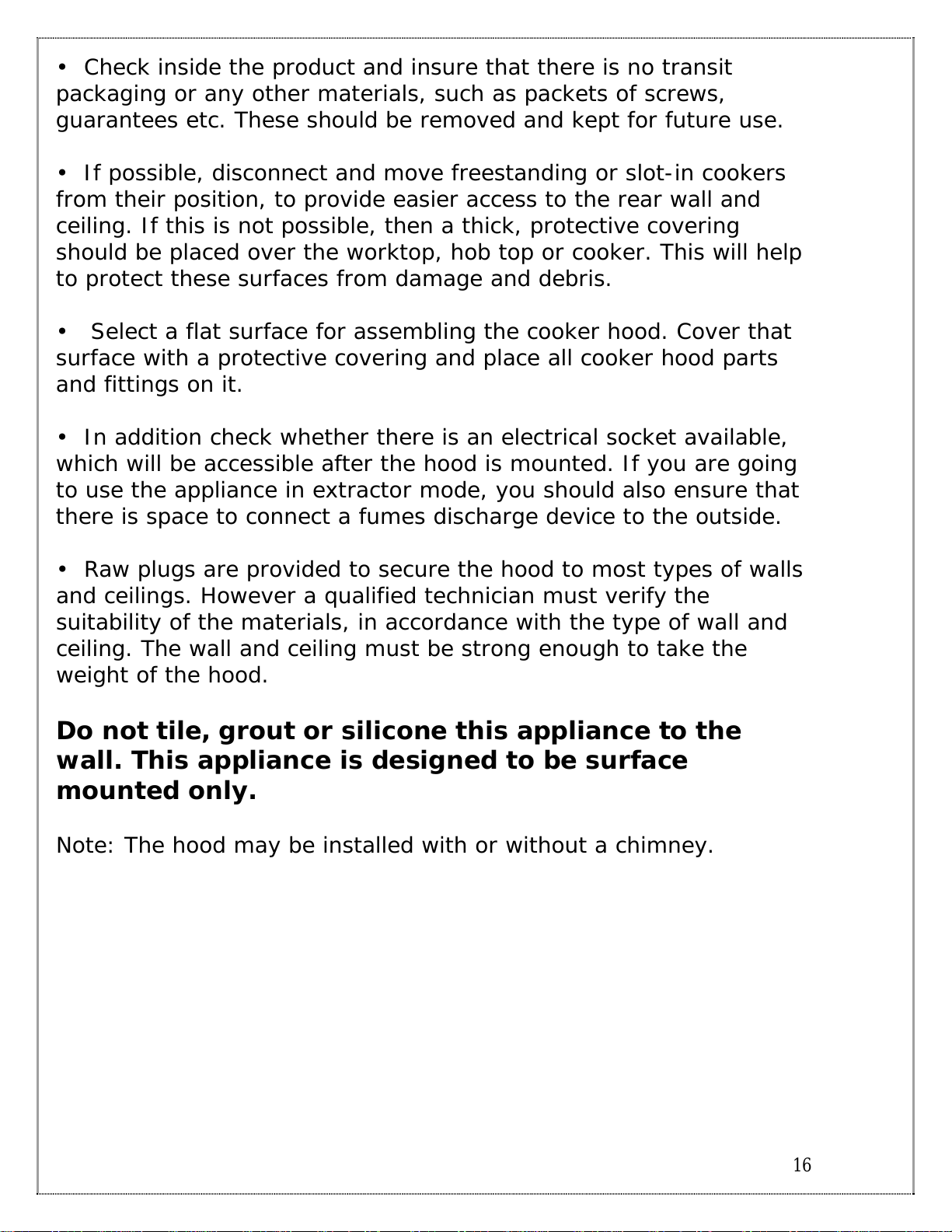

• Check inside the product and insure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future use.
• If possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will help
to protect these surfaces from damage and debris.
• Select a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood parts
and fittings on it.
• In addition check whether there is an electrical socket available,
which will be accessible after the hood is mounted. If you are going
to use the appliance in extractor mode, you should also ensure that
there is space to connect a fumes discharge device to the outside.
• Raw plugs are provided to secure the hood to most types of walls
and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall and
ceiling. The wall and ceiling must be strong enough to take the
weight of the hood.
Do not tile, grout or silicone this appliance to the
wall. This appliance is designed to be surface
mounted only.
Note: The hood may be installed with or without a chimney.

17
COOKER HOOD- extraction mode or recirculation
mode?

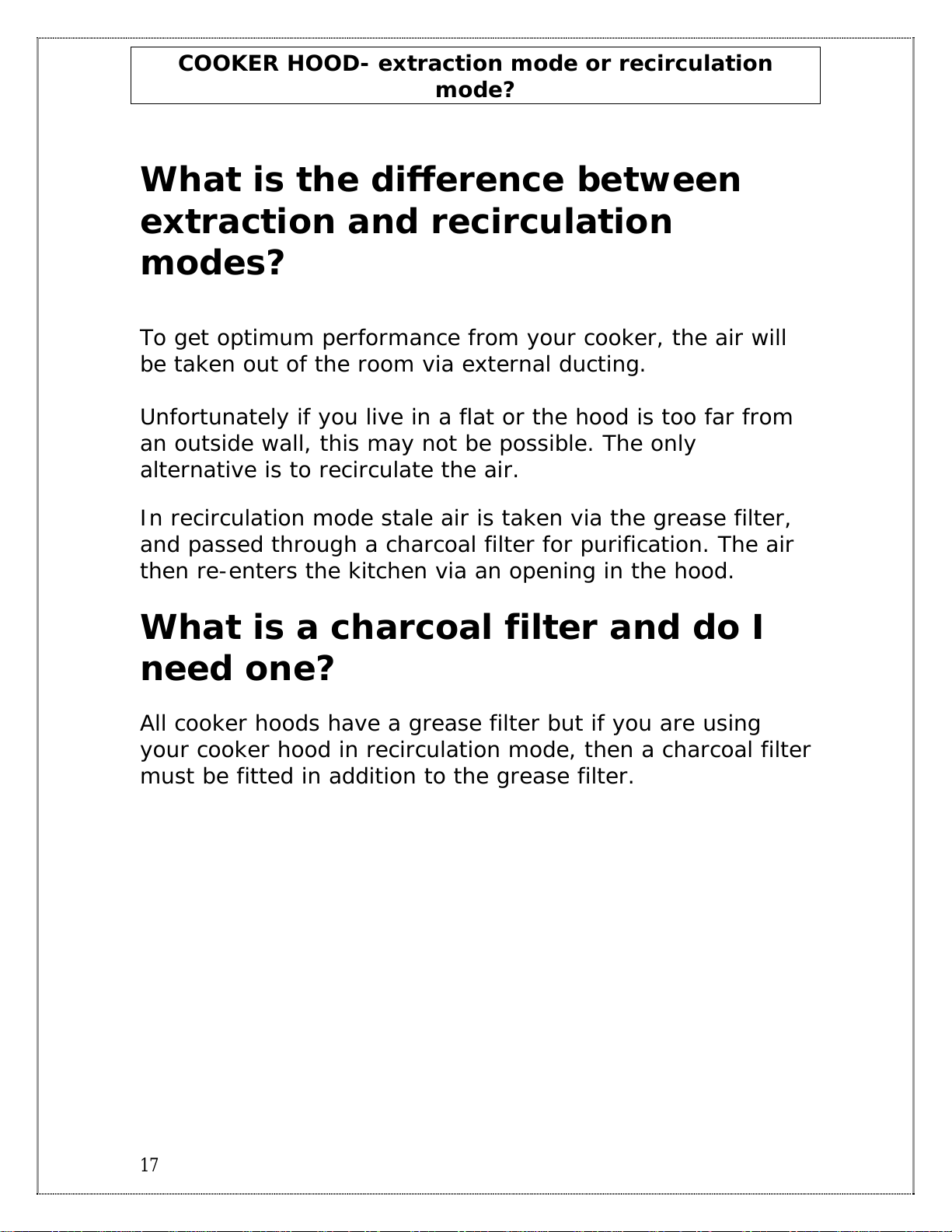

What is the difference between
extraction and recirculation
modes?
To get optimum performance from your cooker, the air will
be taken out of the room via external ducting.
Unfortunately if you live in a flat or the hood is too far from
an outside wall, this may not be possible. The only
alternative is to recirculate the air.
In recirculation mode stale air is taken via the grease filter,
and passed through a charcoal filter for purification. The air
then re-enters the kitchen via an opening in the hood.
What is a charcoal filter and do I
need one?
All cooker hoods have a grease filter but if you are using
your cooker hood in recirculation mode, then a charcoal filter
must be fitted in addition to the grease filter.

For installation without a chimney. (Figure 5)
• For ease of
mounting, trace a
central line on the wall
(1). Position the cut-
out template, so that
the middle line printed
on the top of it,
corresponds to the
central line that you
have marked
previously. The
bottom of the
template should
correspond to the
lower part of the
hood, once it is
mounted (2).
• Drill two holes Ø
8 mm and fasten the
support bracket „F“
with two wall inserts
and screws (3).
• Mount the hood
(5) onto support
bracket „F“. You can
then level the appliance using the adjusting brackets (6 and 7).
• Lift the cover screen and mark the lower fixing point on the wall
(10). Remove the hood and drill on this marking, one hole of Ø 8
mm (9). Then insert one wall plug, hang the hood again and fasten
it securely with one screw (11).
• Without a chimney the hood must
operate in recirculation mode, therefore you
should install the defector (Fig. 5a) and then
fit the carbon filter (see page 12 for details
on how to fit the carbon filter).
18

For installation with a chimney. (Figure 5)
• For ease of mounting, trace a central line on the wall (1). Position
the cut-out template, so that the middle line printed on the top of it,
corresponds to the central line that you have marked previously.
The bottom of the template should correspond to the lower part of
the hood, once it is mounted (2).
• Drill two holes Ø 8 mm and fasten the support bracket „F“ with
two wall inserts and screws (3).
• Mount the hood (5) onto support bracket „F“. You can then level
the appliance using the adjusting brackets (6 and 7).
• Lift the cover screen and mark the lower fixing point on the wall
(10). Remove the hood and drill on this marking, one hole of Ø 8
mm (9). Then insert one wall plug, hang the hood again and fasten
it securely with one screw (11).
CONNECTING THE CHIMNEY SECTION (FIGURE 6).
• Apply the support bracket „G“ to the
wall. Using the chimney support bracket as a
guide, you should mark two holes with a
pencil and then drill out these holes with an
8mm drill bit. Then insert two raw plugs. The
small indentation found in the middle of the
support bracket should coincide with the
centre line previously marked on the wall.
• Fasten the support bracket „G“ to the
wall with two 5 x 45mm screws (4).
• When fitting this appliance with a
chimney section, it is possible to use the
product in recirculation mode. However it is
obligatory to fit a carbon filter (see page 12
for details on how to fit the carbon filter). If
you are going to use the appliance
in extractor mode, please see page 20.
19
