Ace Capri 2.0 JTD 2006 User manual

Enjoy the freedom
WARRANTY &
SERVICE HANDBOOK
MOTORHOMES
2006

CONTENTS
Warranty............................................................................2
What to do if you Require Assistance ..............................4
Annual Service/Inspection Record ...................................5
Specifications....................................................................8
Capacities - Water and Gas ...........................................10
Towing Capabilities .........................................................11

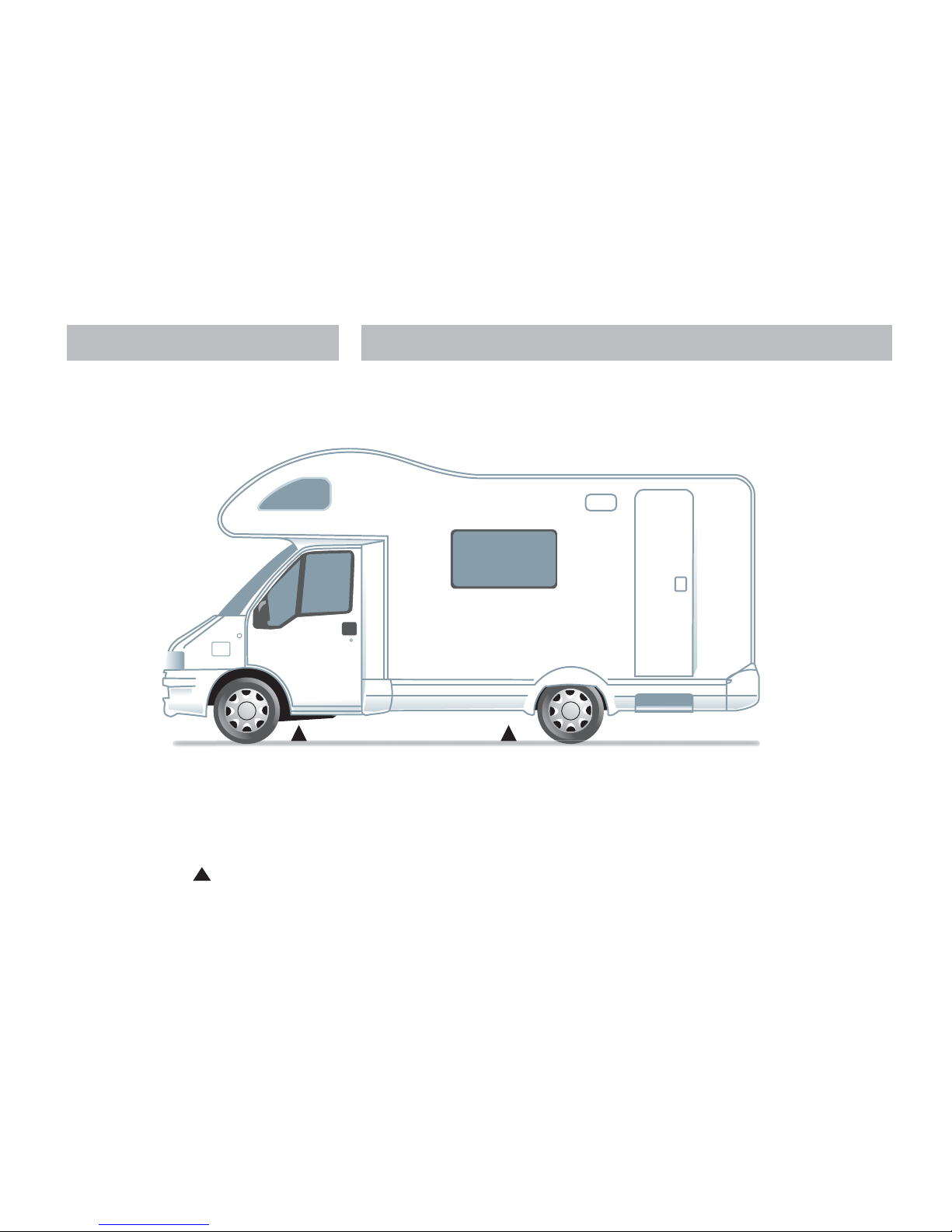

Jacking............................................................................12
Wiring Diagrams..............................................................13
Bulb Replacement ..........................................................14
Change of Ownership .....................................................15

Warranty
2
All the illustrations and descriptive matter in
this handbook are intended to give a general
idea of the motorhome. Changing market
and supply situations and our policy of
continuous product development may
prevent us from maintaining the exact
specifications detailed in this handbook. We
therefore reserve the right to alter
specifications as materials and conditions
demand.
Dealers are not agents of Swift Group
Limited, the manufacturer of Swift Group
motorhomes and have absolutely no
authority to bind the manufacturer by any
express or implied undertaking or
representation.
All motorhomes (other than the engine,
chassis cab and associated parts referred to
earlier in this handbook which are subject to
the relevant chassis manufacturer's
warranty) have a 3 year SuperSure
manufacturer's warranty from the date of
purchase (or hire purchase), which is subject
to a chargeable annual service and
inspection being carried out at an authorised
Swift Group Service Centre.
During the warranty period, subject to the
exclusions set out in this section of the
handbook, the manufacturer, Swift Group
Limited, will repair (or at its option, replace)
all defective parts of the motorhome. For any
engine, chassis cab and associated parts
warranty issues please contact your local
Fiat Agent.
The manufacturer will honour the warranty
until 36 months from the date of sale,
provided that the motorhome has been
serviced annually within 90 days before or
60 days after each anniversary of the original
date of sale. The third service must,
however, be carried out before the expiry of
the 36 month period from the original date of
sale.
In the first 12 months the warranty will
cover:
Faults arising from a manufacturing defect
but not those which are a result of normal
wear and tear or those which relate to
replacement light bulbs.
Also not covered under the first year are
faults resulting from accidental damage or
damage caused by misuse of any
component part of the motorhome.
In the years two and three the warranty
will cover:
1. All original components of the motorhome
including permanently fitted equipment
forming part of the manufacturer's
original specification.
2. Water ingress and body delamination
Specific exclusions to Supersure Warranty
during Years 2 and 3
• Glass including heat shields, sink lids,
mirrors.
• Paintwork including all exterior paint, heat
shields, heater cases and all other
painted surfaces.
• Decals, mirror transfers, resin badges.
• GRP/ABS wheel spats and skirts.
• Cosmetic finishes to kitchen sinks,
cooker tops, vanity units, shower trays.
• Soft furnishings including upholstery,
curtains, pelmets.
• Carpets, lino and floor coverings
including door mats, shower mats.
• Work surfaces, tables, and flaps.
• Wallboards, ceiling boards and all other
interior décor finishes.
• Window catches, stays and associated
fittings.
• Blinds and flyscreens including door, Heki
and other rooflights.
• All hinges, catches, knobs, stays and
handles (interior and exterior).
• Adjustment of external doors and lockers.

Warranty
3
• Replacement of bulbs, fluorescent tubes,
fuses and electrical connections including
12n and 12s plugs, high level brake lights
and bulb contacts.
• Adjustment and natural movement of
internal doors, flaps and furniture.
• Audio equipment including radios,
speakers, aerials and associated parts.
• Bent corner steadies.
• Fair wear and tear, accidental damage or
any damage caused by the misuse of any
component fitted by the manufacturer.
• Routine maintenance items which are
part of the annual service including
lubricants, rubber gas hose, the cleaning
of the heater and fridge flues, the
replacement of gas jets, the resealing
and/or replacement of shower room
sealant, and the adjustment and
lubrication of locks.
General terms applying to all three years
of the warranty period
The motorhome is not covered for:-
• The failure of a component for reasons of
fair wear and tear.
• Damage resulting from accidents.
• Misuse of any component.
• Normal deterioration or negligence of any
person other than the Swift Group
Limited which causes stoppage of or
impairment to the function of any
component of the motorhome.
• Replacement of parts which have
reached the end of their effective working
life because of age and/or usage.
• Cleaning or adjustment of any
assemblies.
The warranty will be invalidated if the
motorhome has been neglected, misused,
modified or for hire or reward. The
motorhome will be deemed to have been
neglected if it has not been serviced and
maintained as stated in this handbook.
The warranty only applies to motorhomes
purchased and used within the UK, and for
continuous journeys abroad of no longer
than 90 days per journey.
The cost of transporting, towing or moving
the motorhome by any means to or from the
place of repair is the responsibility of the
owner.
The benefit of this warranty may be
transferred to a new owner if the motorhome
is sold, provided that the motorhome has
been serviced by an authorised Swift Group
Service Centre in accordance with the
requirements of this handbook, and details
of the change of ownership have been
supplied to Swift Group using the change of
ownership form set out in this handbook.
Failure to notify Swift Group of a change of
ownership within 14 days of such a change
will invalidate the warranty.
This warranty only applies to motorhomes
purchased in the UK.
You have legal rights under UK law
governing the sale of consumer goods. This
warranty does not affect your legal rights.
The name and address of the warranty
provider is:-
Swift Group Limited
Dunswell Road
Cottingham
East Yorkshire
HU16 4JX
To make a claim under this warranty, contact
the Swift Group Service Centre which
supplied your motorhome. Alternatively,
details of your nearest authorised Swift
Group Service Centre can be obtained by
contacting the Swift Group Customer Care
Department on 01482 875740, or enquiring
on the website www.swiftleisure.co.uk

Assistance
4
WHAT TO DO IF YOU REQUIRE ASSISTANCE
Congratulations on purchasing an Ace product. We are confident that you will enjoy many
happy holidays. However, should you have an enquiry or require assistance with a problem,
we hope that this guide will be of assistance to you.
If you have a problem, or enquiry with regards to your new motorhome, please follow
these steps:
1. Check the Owners Handbook, paying particular attention to the fault finding advice at
the back of the book.
2. Contact your supplying dealer for assistance.
If you need to contact the Swift Group, please be aware of the following:
1. When contacting Swift Supercare, please quote your name, postcode and build number
of your motorhome.
2. In most instances, the Customer Care Team will involve your dealer in resolving the issue
you are experiencing.
3. If you are contacting the company by email, letter or fax, the Customer Care Team will
respond to you within five working days from the date of receiving the correspondence.
4. If you are calling the Customer Care Team, please avoid where possible, Mondays and
lunch times.
5. Please be aware that the Swift Group cannot send parts direct from the factory. In all
cases, without exception, your dealer must place the order for you.

Service/Inspection
5
MOTORHOMES - ANNUAL SERVICE/INSPECTION RECORD
In order to comply with the warranty, you must have your motorhome inspected and
serviced by an authorised Swift Group Service Centre at least once per year.
It is important that the owner’s handbook is stamped on the appropriate page by the
authorised Swift Group Service Centre. Failure to do this will invalidate the warranty and the
transfer of the warranty on the change of ownership.
The inspection should take approximately two hours and will cover the areas dealt with in
the annual service check list. Any areas requiring service and/or maintenance will be
highlighted by your dealer and we recommend that you authorise any necessary work to be
carried out.
NB. It is essential, to validate the warranty, that an annual inspection be carried out by an
authorised Swift Group Service Centre covering the items listed.
Just as the engine/gearbox/roadwheels need regular servicing by your chassis dealer,
so there are components in your conversion that need regular maintenance by your
motorhome dealer.
These include the gas and electrical systems and the seals in the bodywork. Your dealer
will complete the record in this handbook to show that the work has been carried out.
1. Damp and lamination test.
2. Chassis and chassis to body security.
3. Corner steadies.
4. Motorhome step.
5. Road lights, wiring and reflectors.
6. Internal lights and 12V DC system.
7. Water heater - gas and 230V AC.
8. Hob, grill and oven.
9. Refrigerator 230V AC, 12V DC and gas.
10. Gas system.
11. Water pump, taps and water system.
12. Mains 230V AC system.
13. Windows and fittings.
14. Roof lights.
15. Furniture hinges/stays etc.
16. Exterior locks and hinges.
17. All internal vents.
18. Seals.
19. Blinds and fly screens.
20. Blown air heating and gas fire systems.

ANNUAL SERVICE/INSPECTION RECORD
MOTORHOME MODEL REGISTRATION NUMBER
CHASSIS NUMBER REGISTRATION DATE
1st SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
2nd SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
3rd SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
4th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
Service/Inspection
6

7
5th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
6th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
7th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
8th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
9th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
10th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.

8
** Does not allow for optional television aerial (add 100mm High Line, 160mm Low Line)
NOTE: 1. The Maximum User Payload includes: a) the conventional load (this is the allowance for passengers)
b) essential habitation equipment (items and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment (items available from the manufacturer over and above the standard specification)
d) personal effects (those items not covered by the above)
2. The Mass in Running Order is the mass of the unladen vehicle including a 75kg allowance for the driver plus engine coolants and 90% of the fuel tank, water tank and gas capacity.
3. PLEASE TAKE CARE TO ENSURE THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARAVAN,
e.g. passengers, optional equipment, essential habitation equipment and personal effects, such as clothing, food, pets, bicycles, sailboards, sports equipment etc.
4. WARNING - UNDER NO CIRCUMSTANCES SHOULD THE MAXIMUM TECHNICAL PERMISSIBLE LADEN MASS OF THIS MOTOR CARAVAN BE EXCEEDED.
MODEL
Roof Profile
Designated Passenger Seats
Berths (Sleeping Positions)
Overall Length
Overall Width (mirrors folded)
Overall Height (no TV aerial)**
Maximum Technical
Permissible Laden Mass (A)
Mass in Running Order (B)
Maximum User Payload (A-B)
Essential Habitation Equipment
Thermal Insulation Grade
BED SIZES
Front Double
Front Nearside Single
Front Offside Single
Rear Double
Rear Nearside Single
Rear Offside Single
Overcab Bed
Capri 2.0 JTD
Ducato 11 SWB
Low Line
1
2
5.59m/18'4"
2.22m/7'3"
2.94m/9'8"
3000kg
2685kg
315kg
14kg
TWO
2.09m x 1.33m
6'10" x 4'4"
Napoli 2.0 JTD
Ducato 15 MWB
High Line
1
4
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3400kg
2870kg
530kg
14kg
TWO
2.09m x 1.39m
6'10" x 4'7"
2.09m x 1.35m
6'10" x 4'5"
Genova 2.0 JTD
Ducato 15 MWB
High Line
1
4
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3400kg
2872kg
528kg
14kg
TWO
2.09m x 1.87m
6'10" x 6'2"
1.87m x 0.73m
6'2" x 2'5"
1.87m x 0.73m
6'2" x 2'5"
2.09m x 1.35m
6'10" x 4'5"
Milano 2.0 JTD
Ducato 15 MWB
High Line
3
5
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3400kg
2933kg
467kg
14kg
TWO
1.87m x 1.20m
6'2" x 4'0"
1.87m x 0.66m
6'2" x 2'2"
1.87m x 0.87m
6'2" x 2'10"
2.09m x 1.35m
6'10" x 4'5"
Modena 2.3 JTD
Ducato 15 LWB
Low Line
1
2
6.16m/20'3"
2.22m/7'3"
2.94m/9'8"
3400kg
2893kg
507kg
14kg
TWO
1.87m x 1.30m
6'1" x 4'3"
Roma 2.8 JTD
Ducato 18 LWB
High Line
3
6
6.99m/22'11"
2.22m/7'3"
3.00m/9'10"
3850kg
3232kg
618kg
14kg
TWO
1.87m x 1.20m
6'2" x 4'0"
1.87m x 0.87m
6'2" x 2'10"
1.93m x 1.35m
6'4" x 4'5"
2.09m x 1.35m
6'10" x 4'5"
Firenze 2.8 JTD
Ducato 18 XLWB
High Line
4
6
7.50m/24'7"
2.22m/7'3"
3.00m/9'10"
3850kg
3353kg
497kg
14kg
TWO
1.87m x 1.20m
6'2" x 4'0"
1.87m x 0.87m
6'2" x 2'10"
2.09m x 1.87m
6'10" x 6'2"
1.87m x 0.73m
6'2" x 2'5"
1.87m x 0.73m
6'2" x 2'5"
2.09m x 1.35m
6'10" x 4'5"
Standard Specifications

Optional Specifications
9
** Does not allow for optional television aerial (add 100mm High Line, 160mm Low Line)
NOTE: 1. The Maximum User Payload includes: a) the conventional load (this is the allowance for passengers)
b) essential habitation equipment (items and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment (items available from the manufacturer over and above the standard specification)
d) personal effects (those items not covered by the above)
2. The Mass in Running Order is the mass of the unladen vehicle including a 75kg allowance for the driver plus engine coolants and 90% of the fuel tank, water tank and gas capacity.
3. PLEASE TAKE CARE TO ENSURE THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARAVAN,
e.g. passengers, optional equipment, essential habitation equipment and personal effects, such as clothing, food, pets, bicycles, sailboards, sports equipment etc.
4. WARNING - UNDER NO CIRCUMSTANCES SHOULD THE MAXIMUM TECHNICAL PERMISSIBLE LADEN MASS OF THIS MOTOR CARAVAN BE EXCEEDED.
MODEL
Roof Profile
Designated Passenger Seats
Berths (Sleeping Positions)
Overall Length
Overall Width (mirrors folded)
Overall Height (no TV aerial)**
Maximum Technical
Permissible Laden Mass (A)
Mass in Running Order (B)
Maximum User Payload (A-B)
Essential Habitation Equipment
Thermal Insulation Grade
BED SIZES
Front Double
Front Nearside Single
Front Offside Single
Rear Double
Rear Nearside Single
Rear Offside Single
Overcab Bed
Capri 2.3 JTD
Ducato 15 SWB
Low Line
1
2
5.59m/18'4"
2.22m/7'3"
2.94m/9'8"
3400kg
2755kg
645kg
14kg
TWO
2.09m x 1.33m
6'10" x 4'4"
Napoli 2.3 JTD
Ducato 15 MWB
High Line
1
4
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3400kg
2940kg
460kg
14kg
TWO
2.09m x 1.39m
6'10" x 4'7"
2.09m x 1.35m
6'10" x 4'5"
Napoli 2.8 JTD
Ducato 18 MWB
High Line
1
4
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3850kg
3015kg
835kg
14kg
TWO
2.09m x 1.39m
6'10" x 4'7"
2.09m x 1.35m
6'10" x 4'5"
Genova 2.3 JTD
Ducato 15 MWB
High Line
1
4
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3400kg
2942kg
458kg
14kg
TWO
2.09m x 1.87m
6'10" x 6'2"
1.87m x 0.73m
6'2" x 2'5"
1.87m x 0.73m
6'2" x 2'5"
2.09m x 1.35m
6'10" x 4'5"
Genova 2.8 JTD
Ducato 18 MWB
High Line
1
4
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3850kg
3017kg
833kg
14kg
TWO
2.09m x 1.87m
6'10" x 6'2"
1.87m x 0.73m
6'2" x 2'5"
1.87m x 0.73m
6'2" x 2'5"
2.09m x 1.35m
6'10" x 4'5"
Milano 2.3 JTD
Ducato 15 MWB
High Line
3
5
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3400kg
3003kg
397kg
14kg
TWO
1.87m x 1.20m
6'2" x 4'0"
1.87m x 0.66m
6'2" x 2'2"
1.87m x 0.87m
6'2" x 2'10"
2.09m x 1.35m
6'10" x 4'5"
Milano 2.8 JTD
Ducato 18 MWB
High Line
3
5
6.16m/20'3"
2.22m/7'3"
3.00m/9'10"
3850kg
3078kg
772kg
14kg
TWO
1.87m x 1.20m
6'2" x 4'0"
1.87m x 0.66m
6'2" x 2'2"
1.87m x 0.87m
6'2" x 2'10"
2.09m x 1.35m
6'10" x 4'5"

Capacities
10
Fresh Water Waste Water Water Toilet Tank
Tank Tank Heater (Flushing)
Napoli, Milano, Roma & Genova 100 litre 80 litre 10 litre 0 litre
Firenze 70 litre 80 litre 10 litre 0 litre
Capri 82 litre 80 litre 10 litre 0 litre
Modena 82 litre 68 litre 10 litre 0 litre
Water Tank Capacities
Capacity
All models 2 x 7kg
Gas Capacities
The above are recommended gas bottle sizes
NOTICE
For technical data on the base vehicle please refer to manufacturer's handbook

Towing Capabilities
11
Model Engine / Chassis MTPLM Permissible Permissible Recommended Gross Train
Front Axle Rear Axle Maximum Weight
Load Load Trailer Weight
Milano 2.0L JTD Ducato 15 MWB 3400kg 1750kg 1900kg 1600kg 5000kg
Milano 2.3L JTD Ducato 15 MWB 3400kg 1750kg 1900kg 1600kg 5400kg
Milano 2.8L JTD Ducato 18 MWB 3850kg 1850kg 2120kg 1600kg 5500kg
Napoli 2.0L JTD Ducato 15 MWB 3400kg 1750kg 1900kg 1600kg 5000kg
Napoli 2.3L JTD Ducato 15 MWB 3400kg 1750kg 1900kg 1600kg 5400kg
Napoli 2.8L JTD Ducato 18 MWB 3850kg 1850kg 2120kg 1600kg 5500kg
Roma 2.8L JTD Ducato 18 LWB 3850kg 1850kg 2120kg Not Recommended 5500kg
Firenze 2.8L JTD Ducato 18 XLWB 3850kg 1850kg 2120kg Not Recommended 5500kg
Capri 2.0L JTD Ducato 11 SWB 3000kg 1600kg 1650kg Not Recommended 4600kg
Capri 2.3L JTD Ducato 15 SWB 3400kg 1750kg 1900kg 1600kg 5400kg
Modena 2.3L JTD Ducato 15 LWB 3400kg 1750kg 1900kg 1600kg 5400kg
Genova 2.0L JTD Ducato 15 MWB 3400kg 1750kg 1900kg 1600kg 5000kg
Genova 2.3L JTD Ducato 15 MWB 3400kg 1750kg 1900kg 1600kg 5400kg
Genova 2.8L JTD Ducato 18 MWB 3850kg 1850kg 2120kg 1600kg 5500kg
Towing Capabilities
CAUTION: When fitting a towbar, it must meet certain minimum requirements as specified by Type Approval Regulations. The bar will have marked
on it the approval standard (94/20/EC) and the maximum download, or noseweight, that it can accept. It must fit the manufacturer’s
approved mounting points and must not obscure the towing vehicle’s number plate. The towbar must be fitted to an extension that is
capable of transferring the towbar loads to the rear of the Fiat chassis.
To ensure adequate road holding, the load on the front axle, under all conditions, must not be less than 42% of the total weight.
Care must be taken when distributing loads. The loadings above are maximum loadings and must not be exceeded under any circumstances.

Jacking
12
Jacking Points:

Wiring Diagrams
13
ALL MODELS

Bulb Replacement
14
Type Power All models
EXTERIOR LIGHTS
Front Road Lights
Full beam headlight H4 12V-55/60W ✓
Dipped beam headlight H4 12V-55/60W ✓
Front side lights R5W 12V-5W ✓
Front directional indicators P21W 12V-21W ✓
Side directional indicators W5W 12V-5W ✓
Rear Road Lights
Rear directional indicators PY21W 12V-21W ✓
Brake lights P21W 12V-21W ✓
Reversing lights (RH side) P21W 12V-21W ✓
Rear foglight (LH side) P21W 12V-21W ✓
Side light R5W 12V-5W ✓
High level brake light capless 12V-2.3W ✓
Other Exterior Lights
Front marker light C5W 12V-5W ✓
Rear marker light C5W 12V-5W ✓
Amber side marker lamps C5W 12V-5W ✓
Number plate light CW5 12V-5W ✓
Awning light P21W 12V-21W ✓
INTERIOR LIGHTS
Downlight (switched) Halogen G4 Bi-Pin 12V-10W ✓
Downlight (unswitched) Halogen G4 Bi-Pin 12V-10W ✓
Reading lights Halogen G4 Bi-Pin 12V-10W ✓
Spotlight Halogen G4 Bi-Pin 12V-10W ✓
Cab interior ceiling light CW5 12V-10W ✓
Note: Not all lights and bulbs feature on all models within a range

Ownership
DETAILS OF MOTORHOME: Model:
Chassis No:
Registration No:
Serial No:
CURRENT OWNER: Name:
Address:
NEW OWNER: Name:
Address:
NOTIFICATION OF CHANGE OF OWNERSHIP
If you sell your motorhome, please notify the change of ownership by completing this page, detaching it and sending it to:
Swift Group Ltd., Dunswell Road, Cottingham, East Yorkshire, HU16 4JX.
Please note that the benefit of any unexpired warranty cannot be transferred to the new owner until the change of
ownership details above have been received.

NCC Approved
All Swift Group models have been certified by the National Caravan Council for compliance
with stringent European Standards, British Legislation and industry set Codes of Practice
specifically relating to health and safety issues. The approval process covers the testing and
inspection of critical areas of the product from fire safety, weights and dimensions, to gas,
electrics and ventilation. Every Ace motorhome carries the "NCC Approved Motor Caravan"
badge. The NCC also conduct unannounced inspections at the Swift factory to ensure
continued compliance. NCC Approval gives you peace of mind that your caravan is legal
and safe.
All Ace motorhomes are European Whole Vehicle Type Approved.
We believe that the Swift Group is currently the only UK manufacturer to have this approval.
This is your assurance that these motorhomes meet all European regulations, and have been
constructed and conform to approved standards of safety and manufacturing.

ACE MOTORHOMES, DUNSWELL ROAD, COTTINGHAM, EAST YORKSHIRE HU16 4JX.
TELEPHONE: [phone] FAX: [phone]
e-mail: [email protected] web site: www.acemotorhomes.co.uk
A MEMBER OF THE SWIFT GROUP
Issued September 2005 1065694
