I INTRODUCTION

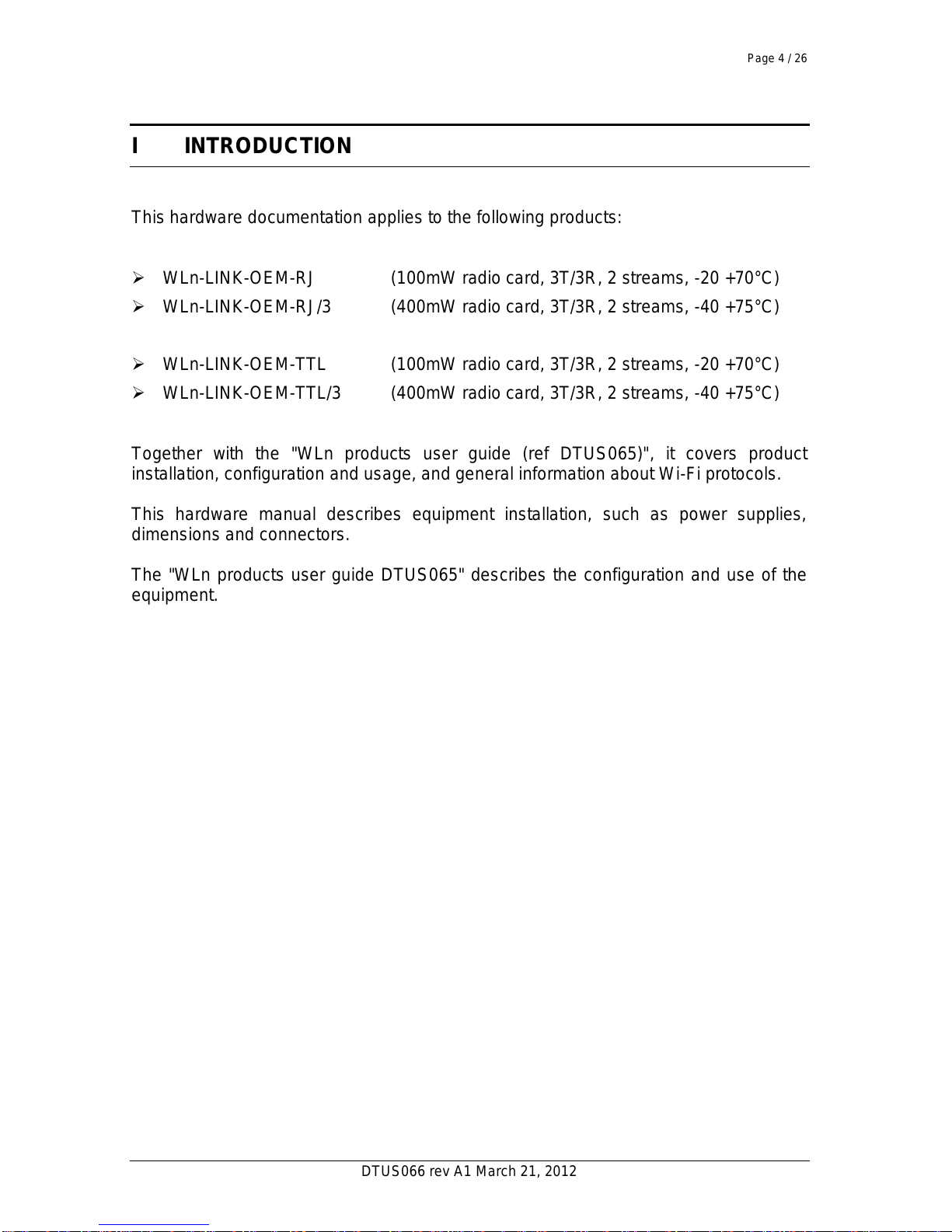

This hardware documentation applies to the following products:
WLn-LINK-OEM-RJ (100mW radio card, 3T/3R, 2 streams, -20 +70°C)
WLn-LINK-OEM-RJ/3 (400mW radio card, 3T/3R, 2 streams, -40 +75°C)
WLn-LINK-OEM-TTL (100mW radio card, 3T/3R, 2 streams, -20 +70°C)
WLn-LINK-OEM-TTL/3 (400mW radio card, 3T/3R, 2 streams, -40 +75°C)
Together with the "WLn products user guide (ref DTUS065)", it covers product
installation, configuration and usage, and general information about Wi-Fi protocols.
This hardware manual describes equipment installation, such as power supplies,
dimensions and connectors.
The "WLn products user guide DTUS065" describes the configuration and use of the
equipment.

Page 5 / 26
DTUS066 rev A1 March 21, 2012
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance
with the instructions included in the user documentation provided with the
product. Any changes or modifications (including the antennas) made to this
device that are not expressly approved by the manufacturer may void the user’s
authority to operate the equipment. The manufacturer is not responsible for any
radio or television interference caused by unauthorized modification of this
device, or the substitution of the connecting cables and equipment other than
manufacturer specified. It is the responsibility of the user to correct any
interference caused by such unauthorized modification, substitution or
attachment. Manufacturer and any authorized resellers or distributors will
assume no liability for any damage or violation of government regulations
arising from failing to comply with these guidelines.
Information in this document is subject to change without notice and does not
represent a commitment on the part of ACKSYS.
ACKSYS provides this document “as is”, without warranty of any kind, either
expressed or implied, including, but not limited to, its particular purpose.
ACKSYS reserves the right to make improvements and/or changes to this
manual, or to the products and/or the programs described in this manual, at any
time.
Information provided in this manual is intended to be accurate and reliable.
However, ACKSYS assumes no responsibility for its use, or for any
infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors.
Changes are periodically made to the information herein to correct such errors
and these changes are incorporated in new editions of the publication.

Page 6 / 26
DTUS066 rev A1 March 21, 2012
II MECHANICAL DIMENSIONS
II.1 Bottom view
All dimensions in mm ± 0.1
Mounting holes : 4 x Ø3.2mm

Page 7 / 26
DTUS066 rev A1 March 21, 2012

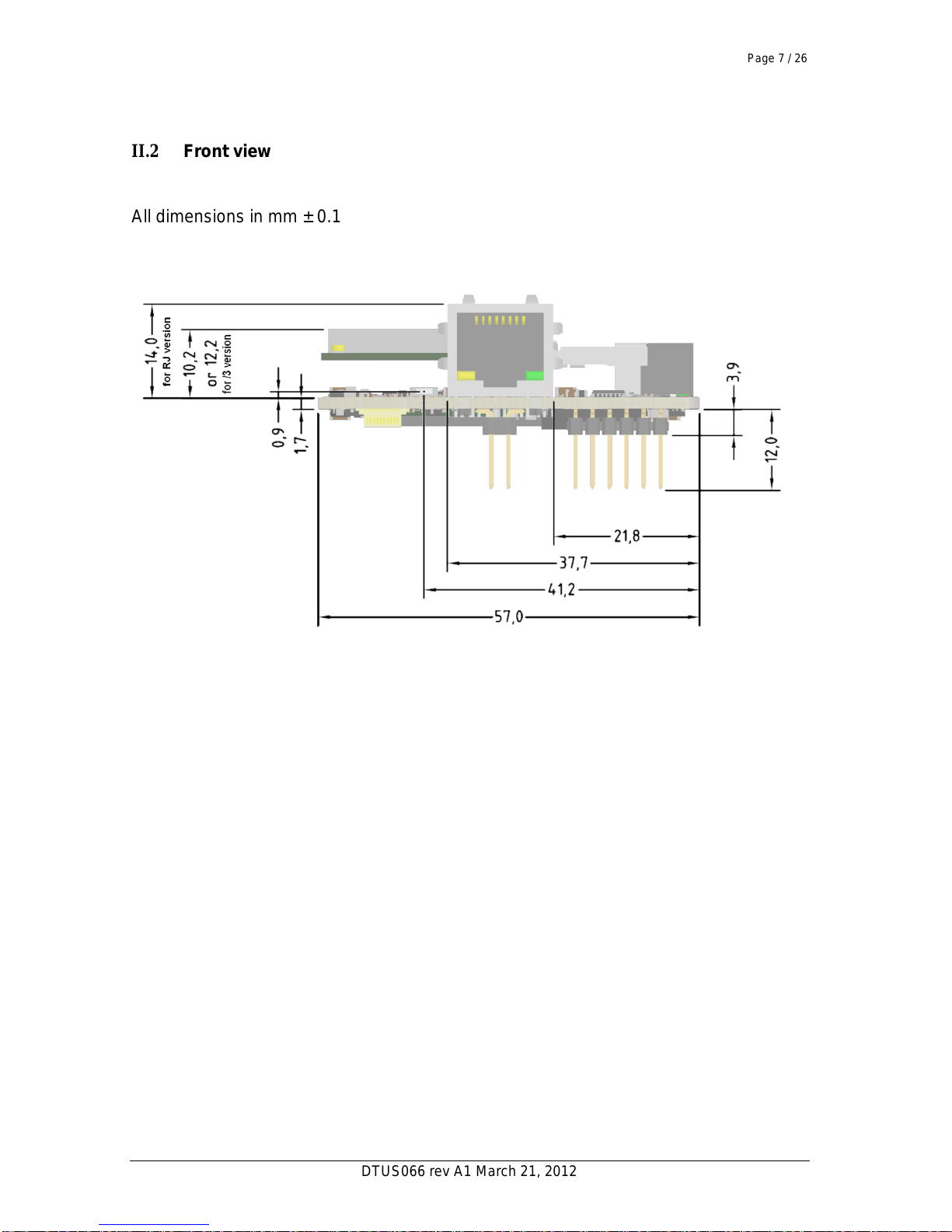

II.2 Front view
All dimensions in mm ± 0.1

Page 8 / 26
DTUS066 rev A1 March 21, 2012
III LEDS AND BUTTON
III.1 Leds
The leds and the button are directly available on the WLn-LINK-OEM:
III.2 Signals relocation
All the leds and button are also made available to the host
motherboard via the P-GEN and P-LED connectors (see information in
the following chapters) in order to be used in your own way.
III.2.1 Power
GREEN while powered on
III.2.2 Diag
GREEN when product is OK and initialized
RED during initialization (~ 40 seconds)
Flashing when firmware in flash is not valid
OFF or RED for more than 2min: Hardware failure
III.2.3 WLAN State
Fixed GREEN when associated with another Wi-Fi product
Flashing GREEN when unassociated
Power
Diag
WLAN State
WLAN Activity
WLAN Strength
Ethernet 100/1000
Ethernet Link/Activity

Page 9 / 26
DTUS066 rev A1 March 21, 2012
III.2.4 WLAN Activity
Flashing BLUE when there is activity on WLAN (sending or receiving)
or during the search for a Wi-Fi access point (only in "Bridge Mode")
III.2.5 WLAN Strength
Only available in "Bridge Mode" (4 leds OFF in "Access Point Mode")
4 leds GREEN to indicate the strength of Wi-Fi signal:
- 4 ON : Excellent signal
- 1 ON : Poor signal
During initialization, these leds flash one after other to indicate the start
of the product.
III.2.6 Ethernet 100/1000
OFF when Ethernet connection is negotiated in 10 MBit/s
GREEN when Ethernet connection is negotiated in 100 MBit/s
YELLOW when Ethernet connection is negotiated in 1000 MBit/s
Available at the same location either directly on the board (for TTL
version) or on the RJ connector (for RJ version)
III.2.7 Ethernet Link/Activity
Fixed GREEN when link is established with another Ethernet product
Flashing GREEN when there is activity on Ethernet (sending or
receiving)
Available at the same location either directly on the board (for TTL
version) or on the RJ connector (for RJ version)

Page 10 / 26
DTUS066 rev A1 March 21, 2012
III.3 Reset

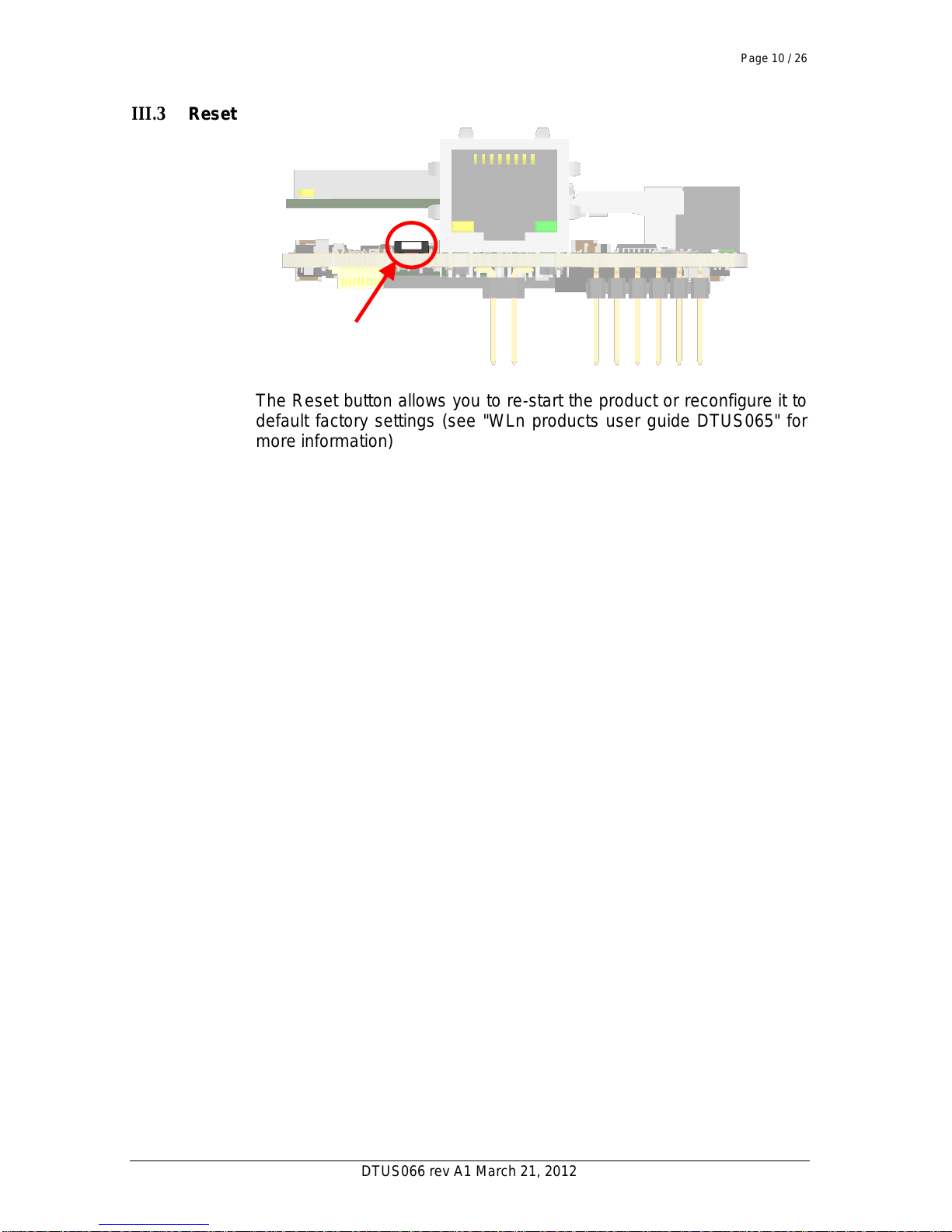

The Reset button allows you to re-start the product or reconfigure it to
default factory settings (see "WLn products user guide DTUS065" for
more information)

Page 11 / 26
DTUS066 rev A1 March 21, 2012
IV EVALUATION BOARD
In order to evaluate this module, you can use the WLn-LINK-OEM-EVAL :
The "Quick start for WLn-LINK-OEM-EVAL - DTFRUS050" describes the configuration
and use of this equipment.

Page 12 / 26
DTUS066 rev A1 March 21, 2012
V WIRING CONNECTORS
V.1 Pinout
Top view Bottom view
"Fixation pads" are isolated from GND
(Numbers and locations
according to radio card)

Page 13 / 26
DTUS066 rev A1 March 21, 2012
V.2 P-GEN
HE10/HE13/HE14/Strip Male Header 2.54mm pitch, 2x5 pins
- Compatible with HE10/HE13/HE14 Female Receptacle
(ex: SAMTEC Series BCS, BSW, ESQ, ESW...)
(ex: ANTELEC Series APC104, FT2...)
Pin
In/
Out
Function
Voltage
Max current
1
Out
LED Ethernet 100 BaseT
active at 3.3V
2 mA
2
Out
1V8 (for feeding the Ethernet
transformer on the TTL
version)
not for power use
-
3
Out
LED Ethernet Link/Activity
active at 0V
2 mA
4
Out
LED WLAN Activity
active at 0V
15 mA
5
Out
LED Diag
active at 3.3V
5 mA
6
In
Reset
active at 3.3V
20 µA
7,9
In
Power +5V
+5V ± 0.25
2A with normal version
2.5A with /3 version
8,10
-
Power GND
0V
WARNING : You must take care of the polarity of the power
supply source. There is no protection on this product.
V.3 P-LED
HE10/HE13/HE14/Strip Male Header 2.54mm pitch, 2x3 pins
- Compatible with HE10/HE13/HE14 Female Receptacle
(ex: SAMTEC Series BCS, BSW, ESQ, ESW...)
(ex: ANTELEC Series APC104, FT2...)
Pin
Function
Voltage
Max current
1
LED Ethernet 1000 BaseT
active at 3.3V
2 mA
2
LED WLAN Status
active at 0V
15 mA
3
LED WLAN Bargraph level 3 good signal
active at 0V
15 mA
4
LED WLAN Bargraph level 2 medium signal
active at 0V
15 mA
5
LED WLAN Bargraph level 4 excellent signal
active at 0V
15 mA
6
LED WLAN Bargraph level 1 poor signal
active at 0V
15 mA
When one WLAN quality bargraph led is on, all the lesser-quality leds
are also on (this is a software feature).

Page 14 / 26
DTUS066 rev A1 March 21, 2012
V.4 RJ CONNECTOR
LAN-Transformer RJ45 10/100/1000 BaseT
Only available with RJ version
It allows connecting a classical Ethernet cable (cat 5e or cat 6 for 1000
BaseT)
V.5 P-ETH
HE10/HE13/HE14/Strip Male Header 2.54mm pitch, 2x5 pins
Only available with TTL version
- Compatible with HE10/HE13/HE14 Female Receptacle
(ex: SAMTEC Series BCS, BSW, ESQ, ESW...
ANTELEC Series APC104, FT2... )
This connector gives directly raw signals from the Ethernet PHY
component, without insulation. The PHY used on the WLn-LINK-OEM-
TTL is 88E1118 from Marvell.
These signals can be used to relocate a RJ45 Plug far away in your
system. The signals should be correctly insulated, routed with wires of
equal lengths and with a 100ohms differential impedance, especially
with long distance. You can see at the next page some examples of
insulation for these signals
You can also connected two PHY together by using two transformers
(using two times "Example 1", for each PHY)

Page 15 / 26
DTUS066 rev A1 March 21, 2012

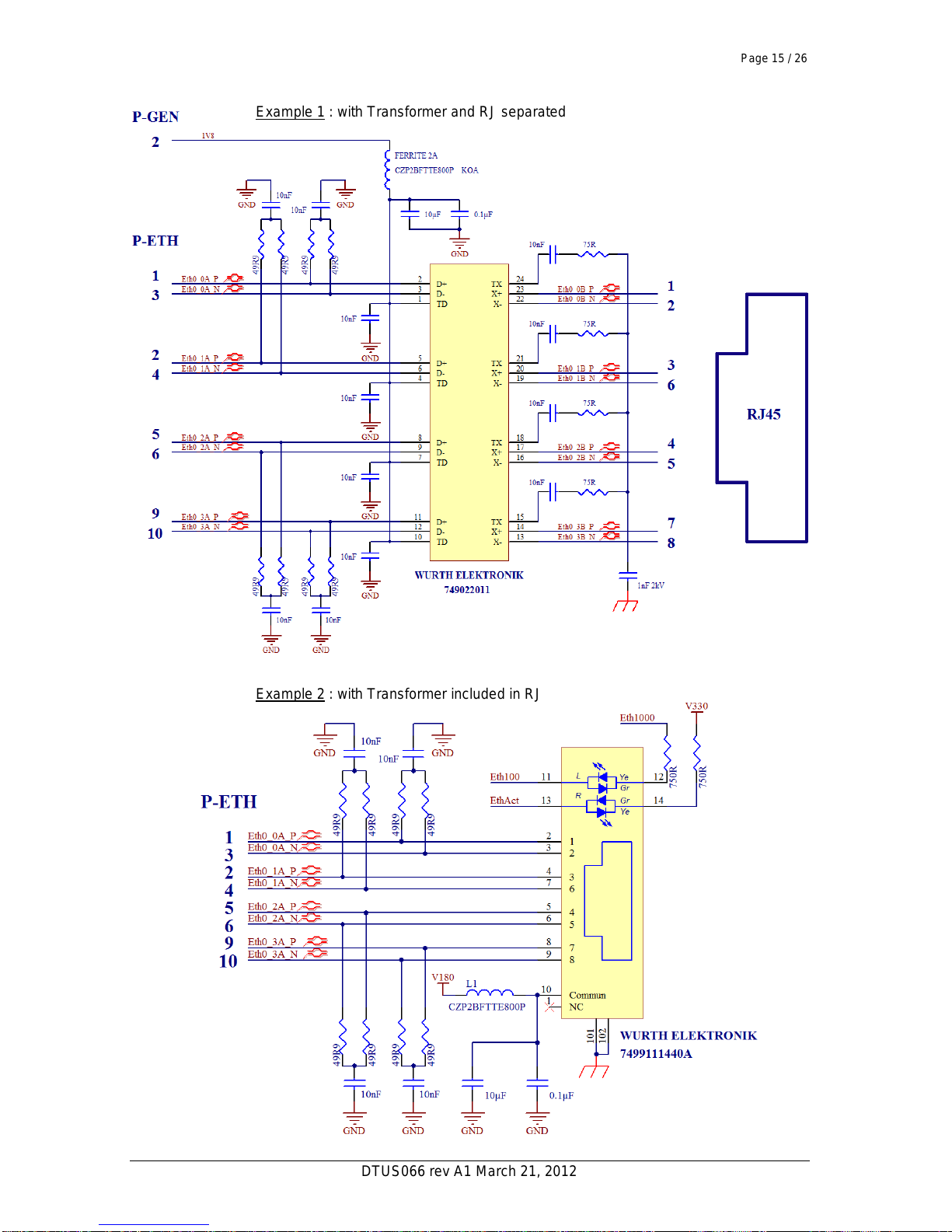

Example 1 : with Transformer and RJ separated
Example 2 : with Transformer included in RJ

Page 16 / 26
DTUS066 rev A1 March 21, 2012
V.6 P-USER
Receptacle connector 0.5mm pitch DF12-20DS-0.5V from HIROSE
- Compatible with Header HIROSE Series DF12
(ex : DF12(5.0)-20DP-0.5V(86)
DF12B(5.0)-20DP-0.5V(86)
DF12D(5.0)-20DP-0.5V(81)
DF12E(5.0)-20DP-0.5V(81) )
- Using this connector requires a height of 5mm between WLn-
LINK-OEM and your motherboard (see chapter "MOUNTING OF THE
DEVICE" for more information)
- This connector is not needed for common use of the WLn-LINK-
OEM. It only provides some additional functions.
I²C and UART1 should be only used with ACKSYS authorization.
Their incorrect use could irremediably corrupt the product and
void all pertaining guaranty.
Pin
Fonction
Description
1
SCL
For I²C (Address 0x48, 0x60, 0x61, 0x74 already used and polled
regularly. Linux I²C driver, support for /dev/i2c-0, I2C leds and gpios,
PCA and PCF algorithms)
2
SDA
3
RX
For UART1, Reserved for factory testing, do not use
4
TX
5
3V3
Only voltage reference, not for power use
6
GND
Only voltage reference, not for power use
7
RX
User UART2, May be left unconnected if not used
(RTS, only for driving RS485 transceivers)
8
TX
9
RTS
10
Not connected
-
11
LED1 CKEY
For CKEY use, only on option
Must handle 20MHz signals of with routing constraints (wires
of equal length, far away from spurious signals)
(May be left unconnected if not used)
LED1 (green) active at 3.3V to indicate that CKEY is OK
LED2 (red) active at 3.3V to indicate an error on CKEY
LED1 or 2 flashing during access to CKEY
LED1 and 2 OFF if CKEY not detected
12
LED2 CKEY
13
CKEY 8
14
CKEY 7
15
CKEY 6
16
CKEY 5
17
CKEY 4
18
CKEY 3
19
CKEY 2
20
CKEY 1

Page 17 / 26
DTUS066 rev A1 March 21, 2012
Example of wiring for UART (1 and/or 2) :
The CKEY is an optional storage device
used to save and restore the product
configuration. You can relocate it
somewhere else in your system. It
should be removed and inserted only
when power supply source is OFF.
CKEY functionality is currently not
implemented and shouldn't be used.
It will be available soon !
The relevant CKEY model for WLn-
LINK-OEM range is CKEY-M2.
Pinout and mechanical dimensions of
CKEY, in mm ± 0.1 :

Page 18 / 26
DTUS066 rev A1 March 21, 2012
V.7 ANTENNA CONNECTOR
With normal version : 3 x U.FL male connectors, from Hirose
With /3 version : 3 x MMCX male connectors
- Connect it three 2.4/5GHz antennas with 50ohms coaxial cable
(with U.FL or MMCX female connector according to radio card)
- You should use 3 antennas at the same time, else performance
will be drop.
WARNING: Leaving an antenna connector unplugged may
damage the miniPCI radio module of /3 version.
V.8 P-ADM
This connector, present on the board, is not documented voluntarily
and shouldn't be used.

Page 19 / 26
DTUS066 rev A1 March 21, 2012
VI MOUNTING OF THE DEVICE

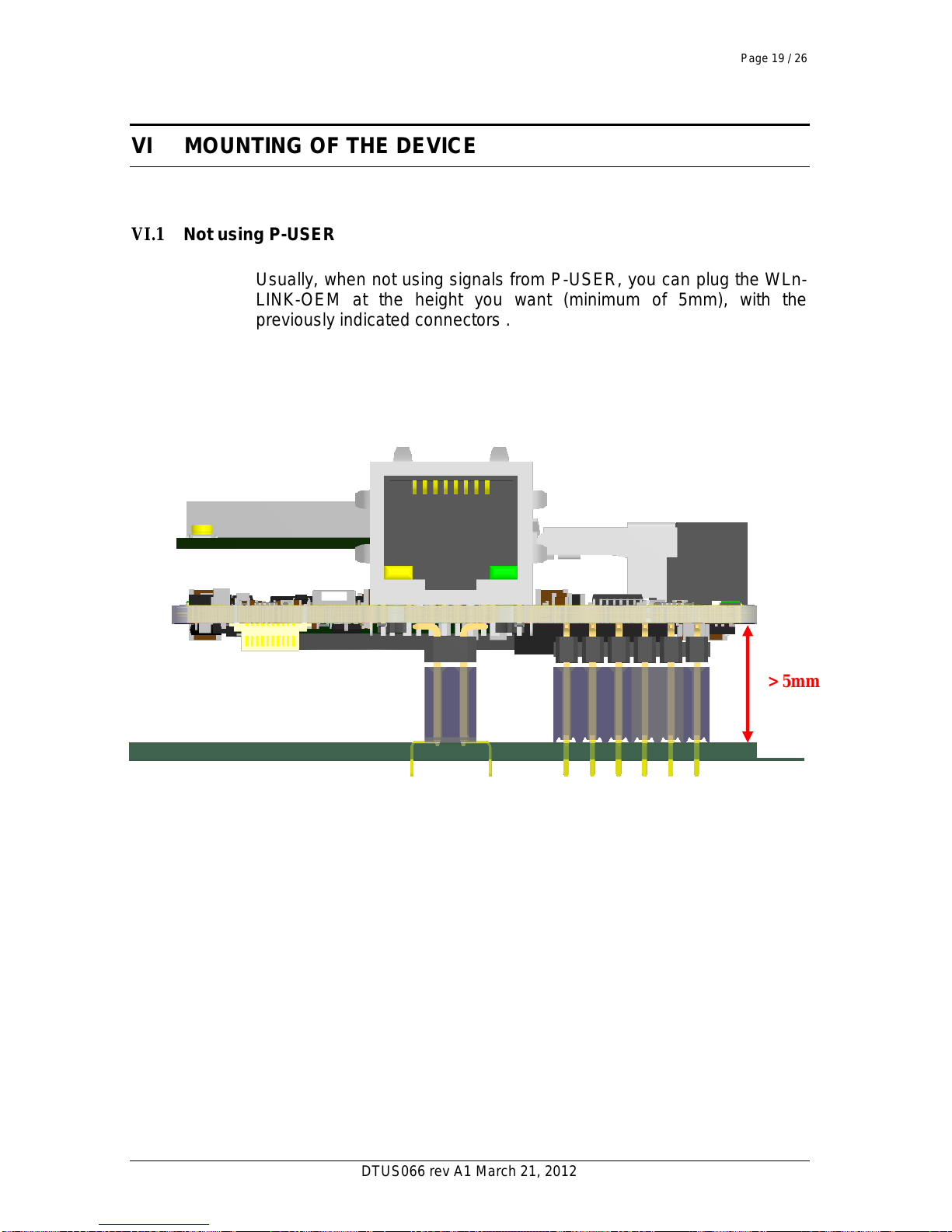

VI.1 Not using P-USER
Usually, when not using signals from P-USER, you can plug the WLn-
LINK-OEM at the height you want (minimum of 5mm), with the
previously indicated connectors .
> 5mm

Page 20 / 26
DTUS066 rev A1 March 21, 2012

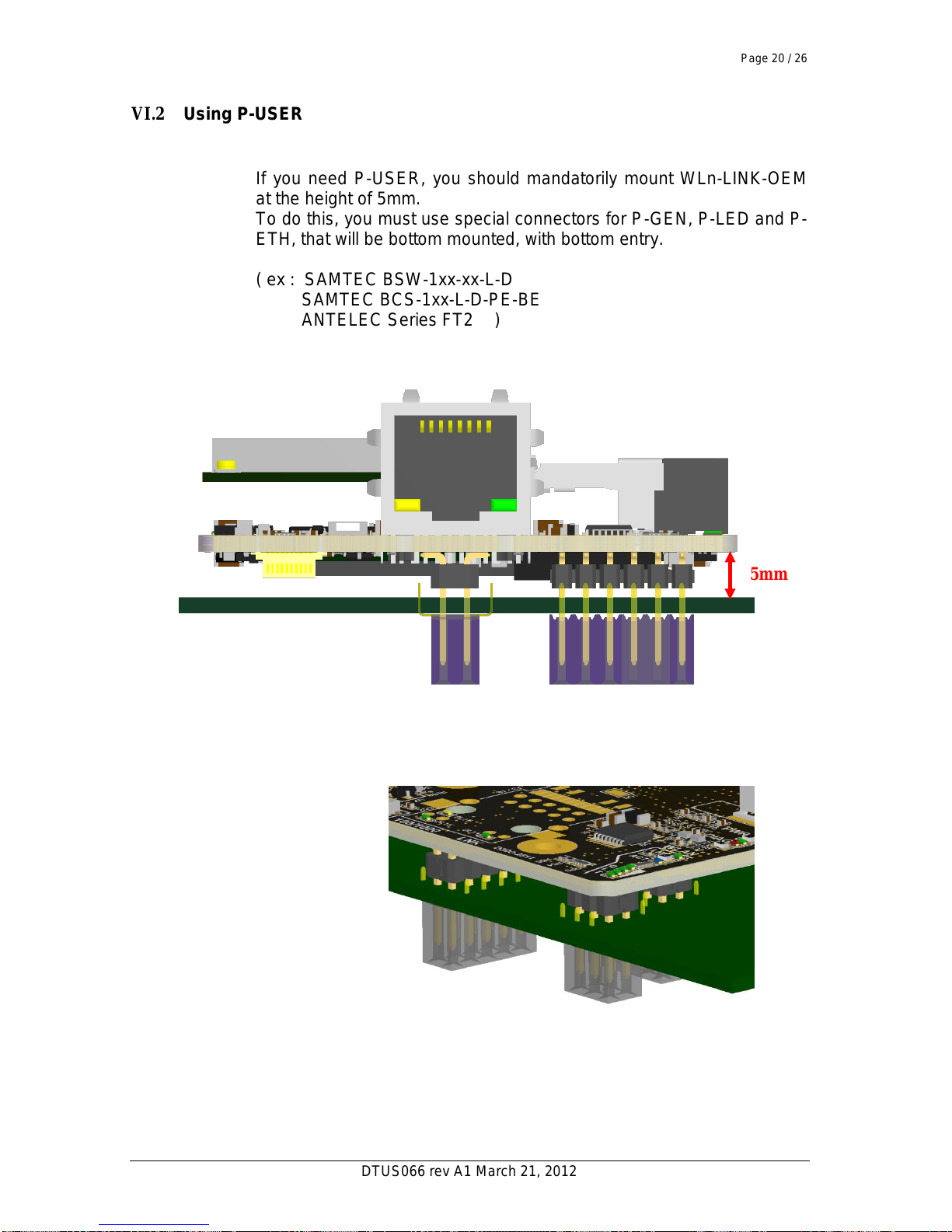

VI.2 Using P-USER
If you need P-USER, you should mandatorily mount WLn-LINK-OEM
at the height of 5mm.
To do this, you must use special connectors for P-GEN, P-LED and P-
ETH, that will be bottom mounted, with bottom entry.
( ex : SAMTEC BSW-1xx-xx-L-D
SAMTEC BCS-1xx-L-D-PE-BE
ANTELEC Series FT2 )
5mm
