Acoustic Control NARCISSUS GAMMA Series User manual

Your GAMMA SERIES Narcissus Warm
Delay from Acoustic Control Corporation
allows you to add inspiring echoes to
your guitar sound, with a tone quality
reminiscent of classic “bucket brigade”
delay units. The delay chip at the heart of
this pedal provides echoes that get darker
with each repeat, helping to ensure that
the ambience Narcissus creates doesn’t
obscure the new notes you are playing, as
echoes of previous notes are fading away.
It’s all built into a road-ready metal chassis
with metal knobs, operating from either a
9-volt battery, or 9-volt DC power supply.
OWNER’S MANUAL
FEATURES:
• Classic bucket brigade-style delay, for warm echoes that won’t obscure what you play
• All metal chassis and knobs and a road-ready design
• Simple operation for easy access to essential sound for electric guitar
• Operates from a 9-volt battery or 9V DC adapter (battery and DC supply not included)
• Mono audio input and output, with buered bypass for consistent tone in any setup
SPECIFICATIONS:
Delay Time
25-600ms
Power Input Compatibility
9V DC (Center Negative)
Power Draw 45mA
Battery Compatibility
9V (Alkaline recommended)
12 Hours Run Time
Input
¼” Instrument Level Input
(650k Ohms Impedance)
Output
¼” Instrument Level Output
(1k Ohms Impedance)
Dimensions
4.59 in (D) x 27.5 in (W)
x 2.19 in (H)
Weight
.55 Lbs (8.8 oz)
CUSTOMER SUPPORT & SERVICE
For product questions or customer service, please visit www.AcousticControlCorp.com,
or call us at [phone], Monday-Friday 8:00 a.m.-5:00 p.m. MST.

1. DC 9V Power Input Jack
You can power your GAMMA Series
pedal from a 9-volt regulated DC
adapter (plug polarity is positive on
the barrel and negative in the center).
2. Battery Capability
Use a Phillips head screwdriver to
remove 4 bottom screws to access
battery connection. High quality
alkaline 9-volt battery can be used for
approximately 12 hours of continual
operation. If pedal won’t operate when
battery is installed, battery may be
discharged, and should be replaced
with a fresh, fully-charged battery. Or
connect a compatible power supply
for non-battery operation.
3. Footswitch
Push down the footswitch to toggle
between on and bypass status.
4. LED
When the LED is lit, the eect is on.
When it’s o, the eect is bypassed.
5. INPUT Jack
¼” mono audio jack, to receive the
signal from your guitar or a previous
pedal. Pedal draws power only when
this jack has a plug inserted.
6. OUTPUT Jack
¼” mono audio jack, outputs the signal.
7. LEVEL Knob
Adjusts the volume of the echoes from
minimum, to maximum. The level of
your “dry” guitar sound is not aected.
8. TIME Knob
Adjusts the timing of the echoes, from
25ms to 600ms, letting you achieve
tight “slap back” echo, thickening
delays, or quarter note-timed echoes
down to 100 bpm.
9. ECHOES Knob
Determines how many times a given echo
will repeat, with settings near maximum
allowing each echo to increase
in volume, to create a continuous
“crashing” of darkening echoes.

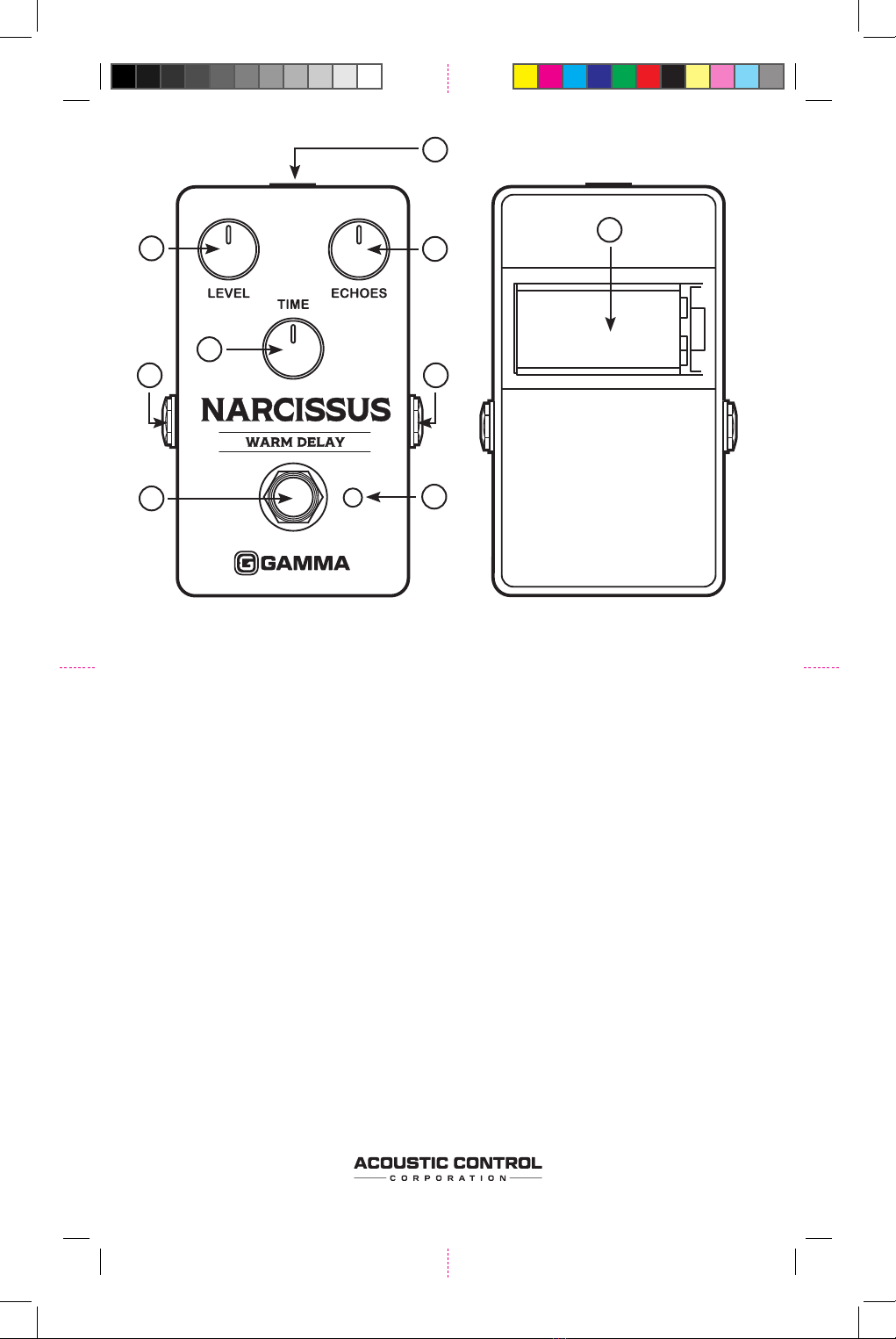

1
2
34
7
8
9
6 5
Underside of pedal
(Bottom removed for battery access)
