Acoustic AG60 User manual

AG60 USER’S MANUAL
60 WATT ACOUSTIC PERFORMANCE SYSTEM
www.acousticamplification.com

www.acousticamplification.com
Three (3) Year Limited Warranty
Subject to the limitations set forth below, Acoustic® hereby represents and warrants that the components of this product shall be free from defects
in workmanship and materials, including implied warranties of merchantability or fitness for a particular purpose, subject to normal use and service,
for three (3) years to the original owner from the date of purchase.
Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of use of product, loss of time, interrupted operation
or commercial loss or any other incidental or consequential damages including but not limited to lost profits, downtime, goodwill, damage to or
replacement of equipment and property, and any costs of recovering, reprogramming, or reproducing any program or data stored in equipment
that is used with Acoustic®products. This guarantee gives you specific legal rights. You may have other legal rights which vary from state
to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Acoustic
P.O. Box 5111
Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders.
0804-8107.02
FCC Statements
1. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
2

AG60 USER’S MANUAL
60 WATT ACOUSTIC PERFORMANCE SYSTEM
EXPOSURE TO HIGH NOISE LEVELS MAY CAUSE PERMANENT HEARING LOSS. INDIVIDUALS VARY CONSIDERABLY TO
NOISE-INDUCED HEARING LOSS BUT NEARLY EVERYONE WILL LOSE SOME HEARING IF EXPOSED TO SUFFICIENTLY INTENSE
NOISE OVER TIME.
The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:
3
IMpoRtANt SAfEty INStRUctIoNS
DURATION PER DAY (HOURS) 8 6 4 3 2 1 1/2hr. or less
SOUND LEVEL (dB) 90 93 95 97 100 103 110
This symbol is intended to alert the user to the presence of
non-insulated “dangerous voltage” within the products enclosure.
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.
Apparatus shall not be exposed to dripping or splashing. Objects
filled with liquids, such as vases, shall not be placed on
the apparatus.
1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be kept for future reference.
3. Read and understand all warnings listed on the operating instructions.
4. Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e., bathtub, sink, swimming pool, wet basement, etc.
6. Only use dry cloth to clean this product.
7. Do not block any ventilation openings, it should not be placed flat against a wall or placed in a
built-in enclosure that will impede the flow of cooling air.
8. Do not install this product near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type
plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus. Do not break the ground pin of the power supply cord.
11. Only use attachments specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, exercise caution when
moving.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
14. Care should be taken so that objects do not fall and liquids are not spilled into the unit through the ventilation ports or any other openings.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way.
16. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17. When a mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
18. An apparatus with CLASS 1 construction shall be connected to a MAINS socket outlet with a protective grounding connection.
According to OSHA, any exposure in the above permissible limits
could result in some hearing loss. Hearing protection must be
worn when operating this amplification system in order to prevent
permanent hearing loss.

www.acousticamplification.com
WARRANTY .....................................................2
IMPORTANT SAFETY INSTRUCTIONS .................................3
WELCOME ......................................................5
OUR MISSION ....................................................5
A WORD ABOUT YOUR NEW AMP ...................................5
FRONT PANEL ....................................................6
BACK PANEL .....................................................7
CABINET FEATURES ...............................................7
SPECIFICATIONS ..................................................8
TAKING CARE OF YOUR NEW AMPLIFIER ..............................8
tABLE of coNtENtS
4

AG60 USER’S MANUAL
60 WATT ACOUSTIC PERFORMANCE SYSTEM
5
Congratulations on your purchase of the AG60 acoustic performance system. Founded as the Acoustic Control
Corporation in Van Nuys, California in 1969, Acoustic has been the rig of choice for many legendary touring
professionals. Acoustic amp users include some of music’s premier rock, jazz and funk players — and many original
Acoustic rigs are still cranking out professional tones on stages world wide.
Now you own a piece of the Acoustic legacy — so turn it up and enjoy what pros have known about for decades.
Welcome to Acoustic, the Pro’s Tone™.
wELcoME ANd coNGRAtULAtIoNS!
The Acoustic design philosophy is simple. It’s simple to operate, simple to maintain, and its Fast-Tone™ technology
allows you to dial up great sound in an instant. This way of thinking is part of every amp we make. That’s why
many legendary musicians have used Acoustic to develop their trademark sounds.
If you’re new to Acoustic amps, we encourage you to get in tune with its rich heritage and join the long line of
Acoustic users who would never consider playing through anything else.
oUR MISSIoN
A woRd ABoUt yoUR NEw AMp
Your new Acoustic amplifier is designed to sound great with any acoustic instrument. We put a lot of thought and
effort into selecting exactly the right components and designing a product that will be easy to adjust and quickly
find the voice of your instrument and project it beyond your personal performance space.
One example is the speaker, which is an 8” studio monitor style speaker which has a polypropylene cone speaker
with a rubber surround. This produces a very soft, warm low frequency response. Additionally, the coaxial tweeter
provides a chime-like clarity to your high frequencies.
No matter your style of playing or choice of acoustic instrument, you will find that your new amp will capture and
project the very best of your musical voice to a larger audience.

www.acousticamplification.com
6
fRoNt pANEL
62 4 5
1

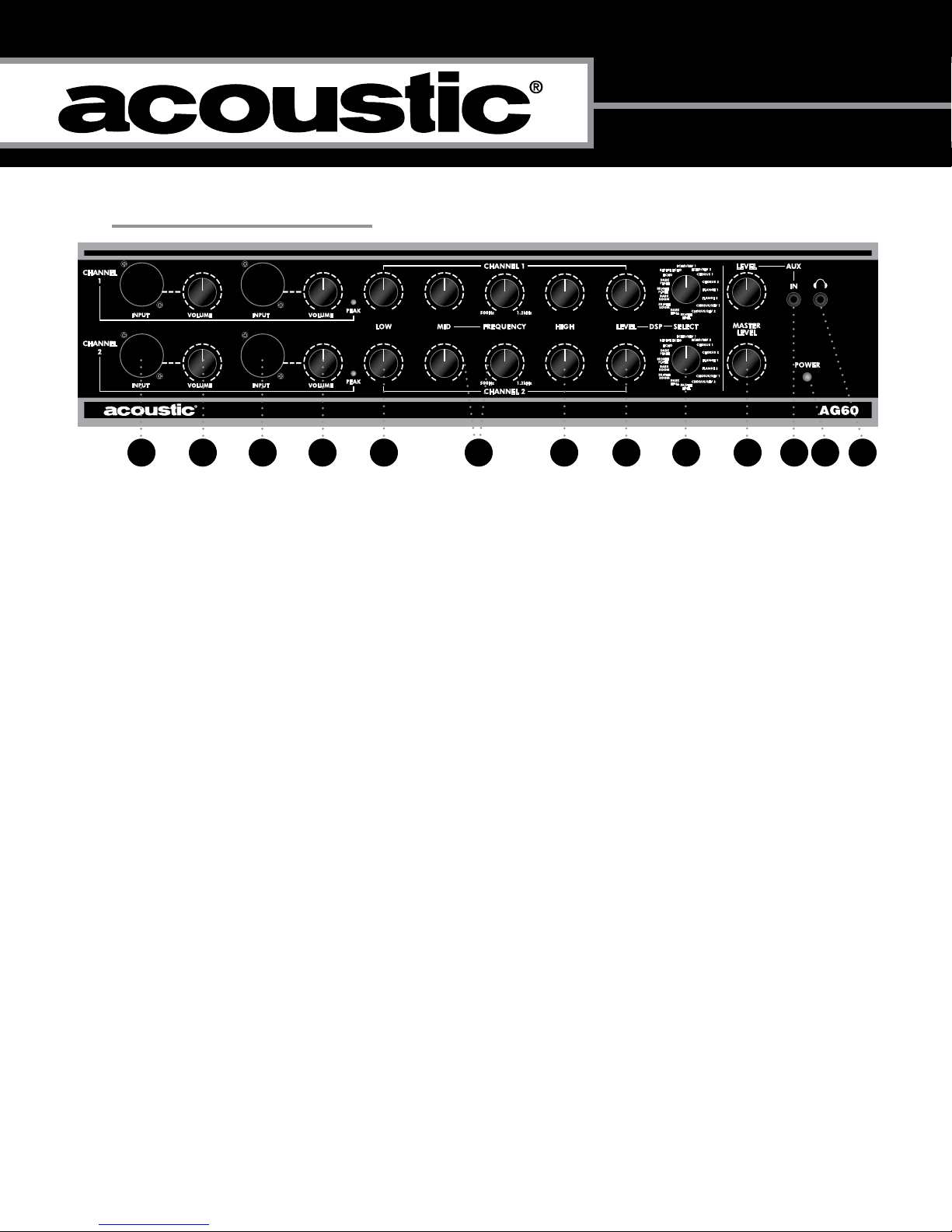

The AG60 Acoustic Performance system is designed for up to four inputs which can be any combination of
microphones and/or instruments. One suggested operation of the AG60 would be to use Channel 1 for vocal
microphones, and channel 2 for instruments. The EQ and effects can be tailored for each channel independently.
1. Dual combination balanced XLR and 1/4” 2-conductor acoustic instrument inputs. These four inputs may be
used simultaneously and each have their own Volume control. You may plug an acoustic instrument and/or
microphone into any input in either channel.
2. Volume controls. These controls adjusts the overall loudness of the individual inputs of the amplier. If your
acoustic instrument has a preamp, you should set the volume control on your instrument at about half volume.
You can then adjust the amplifier volume to your normal playing level and still have room to increase or
decrease your volume as needed from the instrument.
3. Low frequency control set to boost (15 dB) or cut (-15 dB) frequencies at 80 Hz. Controls the lowest fundamental
frequencies to enhance the warmth and deep, full tones of your acoustic instrument.
4. Midrange frequency control set to boost (15 dB) or cut (-15 dB) frequencies that you can sweep between
500Hz and 1.2kHz. Moving the midrange frequency and either cutting or boosting this frequency will give you
maximum control over the body of your tone. This control can also be useful in eliminating acoustic feedback. It
also allows you to control the definition and voice of your acoustic instrument.
5. High control set to boost (15 dB) or cut (-15 dB) frequencies at 10 kHz. Increasing this will enhance the clarity
and brightness of your acoustic instrument.
6. The Effect level control Is used to determine how much of the selected effect is applied to your music. Each
channel has an independent Level control for the effects.
7. The Effect Select control for each channel allows you to select from one of 16 different effects including reverbs,
delays, choruses and combinations of the above. The 16 effects are detailed around the face of the knob on the
AG60. A unique and useful feature is that a different effect can be selected for Channels 1 and 2.
8. The Master Level controls the overall stage volume of the amplifier. Changing this level control will not affect
the line out levels on the back of the amplifier, therefore will not change your signal sent to a live or recording
mixing console.
9. This 3-conductor 1/8” media input jack will allow you to plug in a CD, MP3 player or any other source so you can
play along. This input has a separate level control which allows for fine tuning of the input signal.
10. Power LED. This light will illuminate with a soft blue color when the amp is turned on and ready to play
11. This 1/8” 3-conductor jack is for plugging in headphones. When used, it will disconnect the internal speaker.
3
2
1710 118 9

AG60 USER’S MANUAL
60 WATT ACOUSTIC PERFORMANCE SYSTEM
7
BAcK pANEL
5
2
3
1
46
cABINEt fEAtURES
2
1
1. The effects loop provides a parallel loop in the signal chain for the use of external effects devices including
compressors, equalizers, etc. The Send jack provides a line level signal and may also be used as a line out to
another device such as a powered monitor speaker or additional amplifier.
2. The Line Out section is extremely versatile and includes a balanced XLR output jack and an unbalanced 1/4”
jack, both of which may be used simultaneously. The Line Out level control is strictly for level adjustment of
the Line Out signal and will not affect the stage volume of the amplifier. Conversely, the “Master Level” control
on the front of the amplifier will not affect the Line Out level. The ground lift can be engaged to reduce noise
from being induced when the AG60 is plugged into a device on a different power circuit.
Heavy-Weight Cloth Grill
1
Heavy-Duty 8” Coax Studio –
Monitor Style Speaker
2
Angled Monitor Style Cabinet
Projects Sound Upwards
3
Rugged & Comfortable Handle
4
Easy to Read Control Panel
5
Protective, Long-Lasting Covering
6

www.acousticamplification.com
8
SpEcIfIcAtIoNS
Model AG60
Power 60W RMS
Equalizer: Two equalization sections,
one for each channel featuring –
3-Band EQ with sweepable midrange
Low ±15dB@80Hz
Med ±15dB@ Sweepable from 500Hz to 1.2kHz
High ±15dB@10kHz
Channels 2 - each with dual input jacks and volume controls
Speaker Twin 8” Coax Studio Monitor Style
Dimensions 21.3” x 15” x 20.8”
Weight 58 lbs.
LOCATION
• To avoid deformation, discoloration, or more serious damage, do not expose the unit to direct sunlight, high temperature
sources, or excessive humidity.
POWER SUPPLY
• Turn the power switch off when the AG60 is not in use.
• The amplier (main plug) should be unplugged from the AC outlet if the AG60 will not be used for an extended
period of time.
• Avoid plugging the amplier (main plug) into an AC outlet that is also powering high consumption appliances such as
electric heaters or televisions. Also avoid using multi- plug adapters since these can reduce sound quality, cause operation
errors, and result in possible damage.
• To avoid damage, turn off the AG60 power switch and all related devices prior to connecting or disconnecting cables.
HANDLING AND TRANSPORT
• Never apply excessive force to any parts.
• Unplug cables by gripping plugs rmly. Do not pull on cables.
• Physical shocks caused by dropping or bumping can result in serious damage.
CLEANING
• Clean with a dry, soft cloth.
• A slightly damp cloth may be used to remove stubborn grime and dirt.
• Never use cleaners such as alcohol or thinner.
ELECTRICAL INTERFERENCE
• The AG60 contains electronic circuitry that may cause interference if placed too close to radio or television receivers.
If this occurs, move the AG60 further away from the affected equipment.
SERVICE AND MODIFICATION
• There are no user serviceable parts in the AG60.
• Do not attempt to open the AG60 or make any change to circuits or parts. This will void the warranty.
tAKING cARE of yoUR NEw AMpLIfIER
