ACPro GMV-36WL/A-T(U) User manual

AC Pro VRF Mini
DC Inverter
User Manual
Models
GMV-36WL/A-T(U)
GMV-48WL/A-T(U)
GMV-60WL/A-T(U)

We reserve the right to correct any clerical errors.
Copyright 2018 AC pro.

WIRED CONTROLLER
Control Panel
12
3) Dry
4) Heat
5) Fan
6) Heating temperature compensation
7) Anti-freezing
8) Air swing
9) Drainage pump
10) IDU EXV
11) Static pressure level
2 Wired Controller

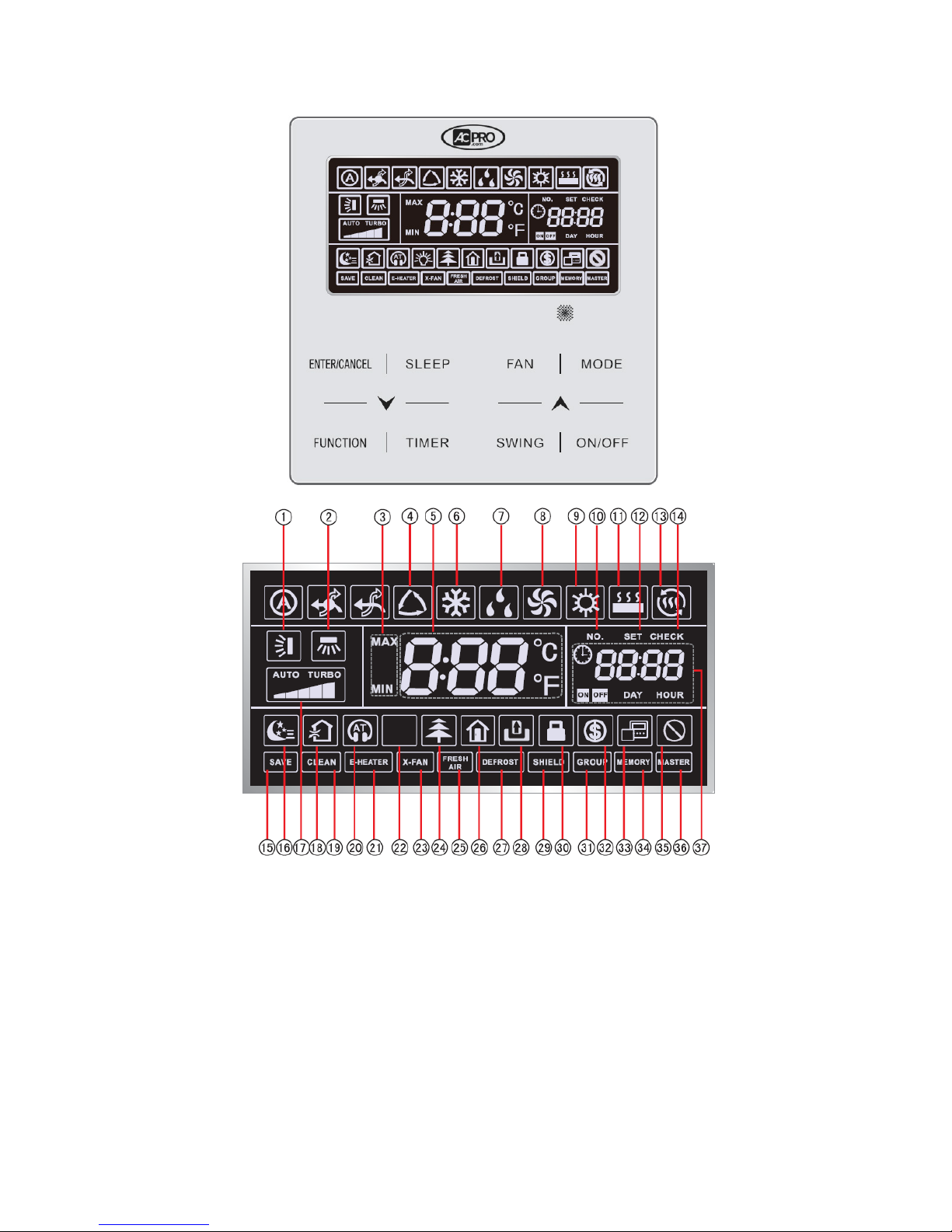

2.1 Control panel
12
3) Dry
4) Heat
5) Fan
6) Heating temperature compensation
7) Anti-freezing
8) Air swing
9) Drainage pump
10) IDU EXV
11) Static pressure level
2 Wired Controller
2.1 Control panel

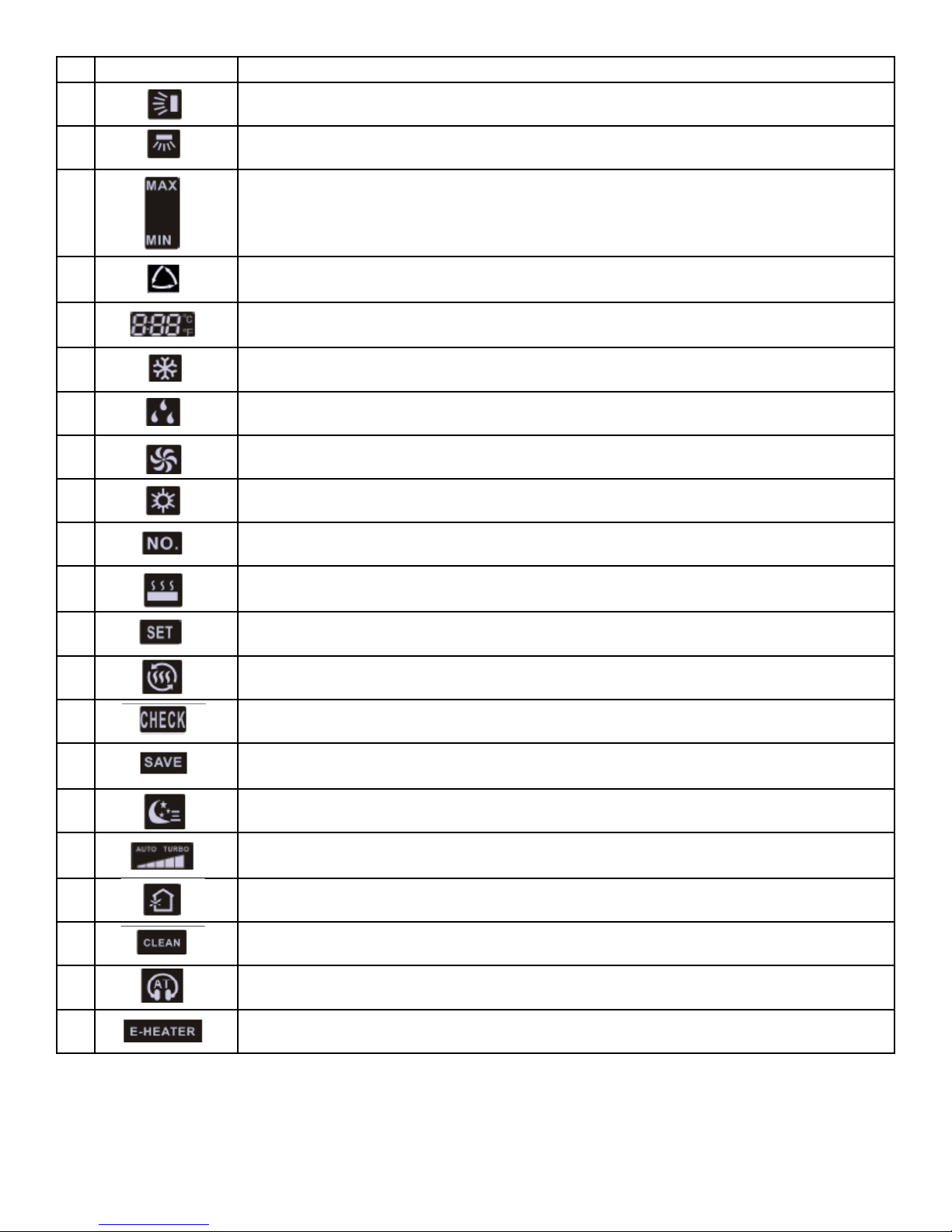

No. Symbols Instructions
1Up and down swing function
2 Left and right swing function
3
Its valid under save mode and dispays during setting process.Temperature Lower limit
for cooling: Limit the minimum temperature value under cooling or dry mode.Tem-
perature upper limit for heating: Limit the maximum temperature value under heating,
space heating or 3D heating mode.
4Auto mode (Under auto mode, the indoor units will automatically select their operating
mode as per the temperature change so as to make the ambient comfortable.)
5It shows the setting temperature value (In case the wired controller is controlling a
fresh air indoor unit, then the temperature zone will display FAP)
6 Cooling Mode
7 Dry Mode
8 Fan Mode
9 Heating Mode
10 When inquiring or setting project number of indoor unit, it displays “NO” icon
11 Floor heating mode (When heating and floor heating simultaneously shows up, it indi-
cates 3D heating is activated.)
12 Display “SET” icon under parameter setting interface
13 Space Heating Mode
14 Display “CHECK” icon under parameter view interface
15 Outdoor unit operates under Save mode/upper limit of system capacitor less 100%
remote Save Status
16 Sleep Status
17 Current set fan speed (including auto, low speed, medium-low speed, medium speed,
medium-high speed, high speed and turbo seven status)
18 Air Status
19 Remind to clean the filter
20 Quiet Status (Including Quiet and Auto Quiet two status)
21 Allow Auxiliary electric heating On icon
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13

No. Symbols Instructions
22 Light On/Off Function
23 X-Function
24 Health Function
25 Fresh Air Status
26 Out Function
27 Outdoor Unit Defrosting Status
28 Gate-Control Function
29 Shielding Status
30 Child Lock Status
31 One Wired Controller Controls Multiple Indoor Units
32 Save Status of indoor unit
33 it indicates the current wired controller is the slave wired controller (address of wired
controller is 02)
34 Memory status (The indoor unit reumes the original setting state after power failure
and then power recovery)
35 Invalid Operation
36 Current Wired Controller connects master indoor unit
37 Timer zone: Display system clock and timer status
Note: When wired Controlller is connected with different indoor units, some functions will be different
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics
14
Button Graphics

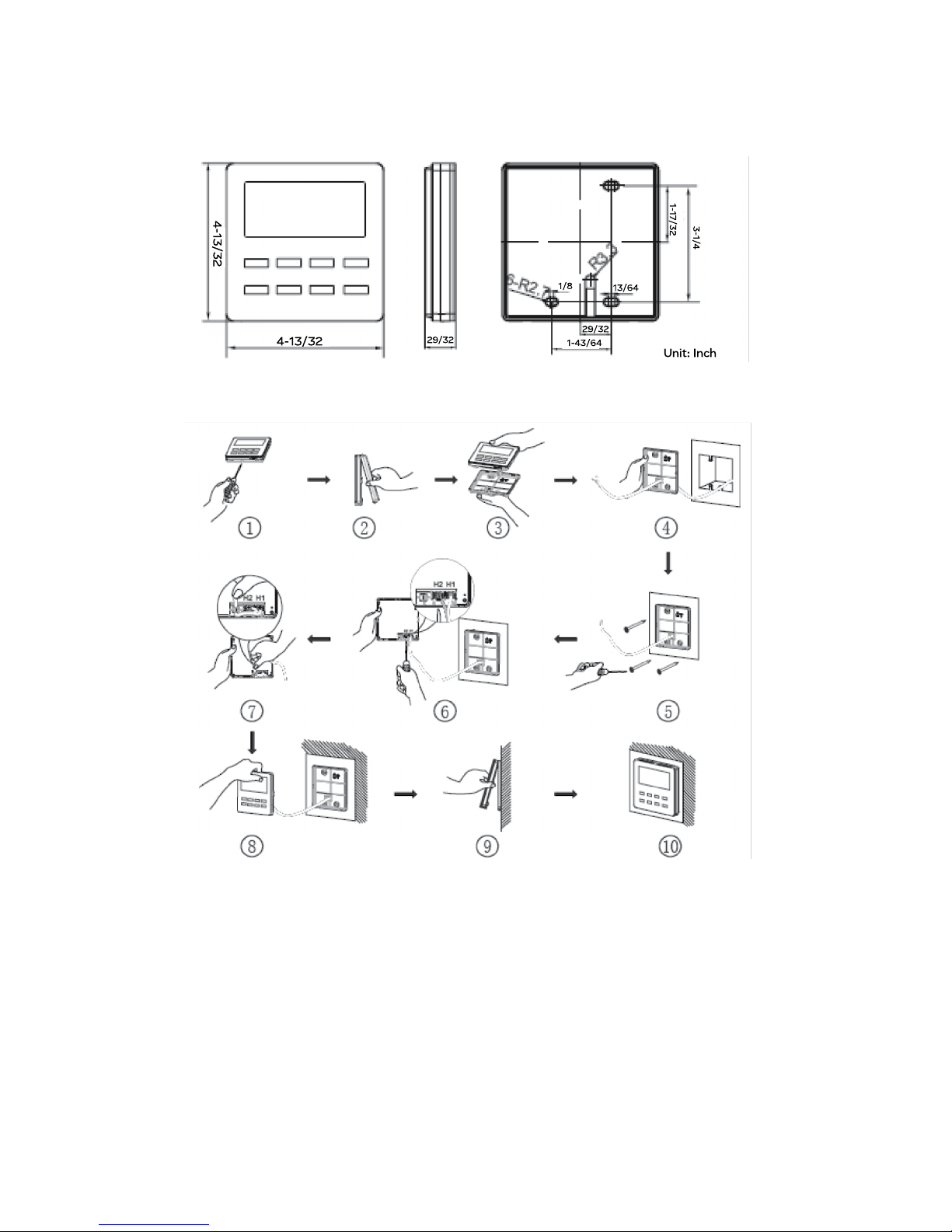

Installation and Removal
Installation Method
4-13/32 Unit: Inch
4-13/32
29/32
29/32
1-43/64
3-1/4
1-17/32
13/64
1/8
4-13/32 Unit: Inch
4-13/32
29/32
29/32
1-43/64
3-1/4
1-17/32
13/64
1/8
Above is a simple installation method of wired controller. Please pay attention to the following:
1) Before installation, disconnect power of the indoor unit. Do not operate when power is connected.
2) Pull out the 2-core twisted pair cable from the installation hole on the wall and lead it through the hole
on the back plate of wired controller.
3) Place the wired controller on wall and secure its back plate on wall with screw M4X25.
4) Connect the 2-core twisted pair cable to terminal H1 and terminal H2. Tighten up the screws.
5) Stick the cable in the slot that is left of the terminals and buckle the wired controller’s panel with its back
plate.

Removal Method
WARNING
If caliber of the communication cord is too large, which causes difficulty in leading or sticking the cord accord-
ing to above point 2 and point 5, strip some of the sheath of the communication cable to meet the installation
requirement.
16
3) Place the wired controller on wall and secure its back plate on wall with screw
M4X25.
4) Connect the 2-core twisted pair cable to terminal H1 and terminal H2. Tighten up
the screws.
5) Stick the cable in the slot that is left of the terminals and buckle the wired
controller’s panel with its back plate.
If caliber of the communication cord is too large, which causes difficulty in leading or sticking the cord
according to above point 2 and point 5, strip some of the sheath of the communication cable to meet the
installation requirement.
2.2.3 Removal method
Fig.2.1.3 Removal of Wired Controller
2.2.4 Connection of communication cord
There are 4 ways to connect wired controller with indoor units’ network:
Fig. 2.2.4.1 One wired controller Fig. 2.2.4.2 Two wired controllers
control one indoor unit controls one indoor unit
REMOTE CONTROLLER
Remote Controller YAP1F
18
3 Remote Controller
(1) Remote controller YAP1F
Button name and function introduction
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
TURBO
Set turbo function
3
MODE
Set operation mode
4
Set up&down swing status
5
I FEEL
Set I FEEL function
6
TEMP
Switch temperature displaying type on the unit’s display
7
Set health function and air function
8
LIGHT
Set light function

Button name and function introduction
No. Button Name Function
1 ON/OFF Turn on or turn off the unit
2TURBO Set turbo function
3 MODE Set operation mode
4 Set Up & down swing status
5 I FEEL Set I FEEL function
6 TEMP Switch temperature displaying type on the unit’s display
7Set health function and air function
8 LIGHT Set light function
9X-FAN Set X-FAN function
10 SLEEP Set sleep function
11 CLOCK Set clock of the system
12 TOFF Set timer off function
13 TON Set timer on function
14 Set left&right swing status
15 FAN Set fan speed
16 Set temperature and time
18
3 Remote Controller
(1) Remote controller YAP1F
Button name and function introduction
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
TURBO
Set turbo function
3
MODE
Set operation mode
4
Set up&down swing status
5
I FEEL
Set I FEEL function
6
TEMP
Switch temperature displaying type on the unit’s display
7
Set health function and air function
8
LIGHT
Set light function
18
3 Remote Controller
(1) Remote controller YAP1F
Button name and function introduction
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
TURBO
Set turbo function
3
MODE
Set operation mode
4
Set up&down swing status
5
I FEEL
Set I FEEL function
6
TEMP
Switch temperature displaying type on the unit’s display
7
Set health function and air function
8
LIGHT
Set light function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function

No. Button Name Function
1 ON/OFF Turn on or turn off the unit
2FAN Set fan speed
3Set temperature and time
4 MODE Set operation mode
5Set quiet function
6Set health function and air function
7 Set left&right swing status
8 Set up&down swing status
9X-FAN Set X-FAN function
10 TIMER ON Set timer on function
11 TIMER OFF Set timer off function
12 SAVE Set energy-saving function
13 SLEEP Set sleep function
14 LIGHT Set light function
15 CLOCK Set clock of the system
16 I FEEL Set I FEEL function
17 TEMP Switch temperature displaying type on the unit’s display
Remote controller YV1L1
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
19
9
X-FAN
Set X-FAN function
10
SLEEP
Set sleep function
11
CLOCK
Set clock of the system
12
TOFF
Set timer off function
13
TON
Set timer on function
14
Set left&right swing status
15
FAN
Set fan speed
16
/
Set temperature and time
(2) Remote controller YV1L1
No.
Button name
Function
1
ON/OFF
Turn on or turn off the unit
2
FAN
Set fan speed
3
▲/▼
Set temperature and time
4
MODE
Set operation mode
5
Set quiet function
6
Set health function and air function
7
Set left&right swing status
8
Set up&down swing status
9
X-FAN
Set X-FAN function
10
TIMER ON
Set timer on function
11
TIMER OFF
Set timer off function
12
SAVE
Set energy-saving function
