Balanced Flue Gas Stoves
Wychwood
USER, INSTALLATION & SERVICING INSTRUCTIONS
For use in GB & IE (United Kingdom and Ireland)
This appliance has been tested and certified for other counties (see technical data). However to install appliance in other countries, modification
of the appliance and its method of installation may be necessary in order to use the appliance safely and correctly. The manual for the local lan-
guage must be obtained. Contact ACR for further information.
To be retained by the user for future reference.

1
Contents
Thankyou for purchasing an ACR Gas Stove.
To ensure you gain the most from your purchase, please read through this manual before
operating for the first time.
Please keep this manual safe as it will be required to be completed by your Gas Safe
engineer after each annual service.
Page 2. General Notes & User Instructions
Page 4. Puck Handset User Instructions
Page 6. Manual User Instructions
Page 7. Cleaning & Maintenance
Page 8. Installation Instructions
Page 10. Clearance Requirements
Page 11. Flue Configuration
Page 12. Burner Installation
Page 13. Flue Connection
Page 22. Positioning of Logs & Embers
Page 26. Commissioning the Appliance
Page 28. Briefing & Handover to the Customer
Page 29. Gas Checklist, Dealer & Installer Information
Page 30. Fault Finding Checklist
Page 34. Spare Parts List.
Page 35. Technical Information
Page 36. Technical Data
Page 37. Dimensions
Page 38. Servicing
Page 39. Annual Service Records
Page 41. Warranty
Page 42. Warranty Claim Form

2
General Notes
IMPORTANT
Please read these instructions carefully before installation or use.
This appliance must be installed and serviced by a qualified person in accordance with local
and national regulations.
The flue system must be installed and inspected by a qualified person in accordance with lo-
cal and national regulations.
This product has been tested, and certified also for use on Biopropane Gas. Biopropane Gas
can be used as a fuel, with no adjustment necessary if the product is installed as an LPG ver-
sion.
This Manual covers the following Products:
Wychwood Gas –WYC1GAS
This ACR gas appliance is a high efficiency, Balanced Flue Live Fuel Effect appliance. It pro-
vides radiant and convected heat using the latest burner technology. As well as having a var-
iable heat output, these fires also utilise a special control system that allows the appliance
to function in thermostatic and timer modes. A Symax device could be used instead of a
Puck handset and also a smart phone or tablet in conjunction with My Fire app & My Fire
module.
User Instructions
Installation and service must be performed by a qualified installer,
service agency, or the gas supplier. Installation shall conform with
local codes, or in the absence of local codes, in accordance with
the National Fuel Gas Code ANSI Z223.1 /NFPA 54 or the IFGC or
CSA B149.1. All piping and tubing must comply with local codes
andordinances.
Use only your hand to push in or turn the gas control knobs. Never
use tools. If a knob will not push in or turn by hand, do not try to
repair it. Call a qualified service technician. Force or attempted re-
pair can result in a fire or explosion.
Do NOT use a product if you suspect it has been subjected to high
temperatures, damaged, tampered with, or taken apart. Do NOT use
a product if you suspect it has been under water or that liquid has
seeped into the product. Any of these incidents can cause leakage
or other damage that may affect proper operation and cause poten-
tially dangerous combustionproblems.
Do NOT store or use gasoline or other flammable vapours and liquids
in the vicinity of this control or other appliances.
WHAT TO DO IF YOU SMELL GAS
▪Do NOT operate anyappliance.
▪Do NOT touch any electrical switches; DO NOT use any
phone in the building.
▪Immediately evacuate the area and contact the gas
supplier. Follow the gas supplier’s instructions.
▪If you cannot reach the gas supplier, call the fire
department.
Read these instructions carefully and completely before
installing or operating. Failure to follow them could
result in a fire or
explosion causing property damage, personal injury, or
loss of life. Service and installation must be performed
by a trained/experienced service technician.

3
Before installation, check that the local distribution conditions, nature of the gas and pres-
sure, and adjustment of the appliance are compatible.
This appliance is intended for use on a gas installation with a governed meter.
This gas installation may only be installed by a registered professional competent person
(Gas Safe installer in the UK). The installation must adhere to the requirements of the local
and national Building Regulations and national standards. The installation manual must also
be followed.
Emergency Gas Isolation
In the event of a gas leak or if gas is smelt, the appliance must be isolated. This is done by
turning OFF the gas at the isolation tap. This isolation tap is located at the rear of the appli-
ance.
We strongly recommend a carbon monoxide detector conforming to EN50291 is perma-
nently fixed in the same room as the appliance.
Operating the Appliance for the First Time
Before igniting the appliance, ensure that all packaging, safety stickers and any protective
wrapping have been removed, and that the glass has been cleaned, including all fingerprints
from the glass. If fingerprints are not removed, they will permanently mark the glass.
Ensure that the room is adequately ventilated the first time that the appliance is ignited; we
would recommend opening windows if possible. Run the appliance at full setting for a few
hours so that the paint gets an opportunity to fully cure. Take care not to touch the paint
during this process as this will leave a mark.
During this period, it is possible for some fumes and vapours to be given off. We would rec-
ommend keeping children and pets out of the area at this time.
Do NOT use if leakage is detected. There is a danger of fire or explosion depending on conditions.

4
Puck Handset User Instructions
Technical Data
AMBIENT TEMPERATURE RANGE
CE: The Puck: 0 °C to 55 °C
RADIO FREQUENCY
CE: 868.1 MHz for Europe (The Puck,
Receiver)
POWER SUPPLY
Handset: 2 x 1.5 V “AAA” (quality alkaline
recommended)
Radio Frequency Receiver & Handset
A code is selected automatically for all Mertik Maxitrol electronics from among 65,000 codes
available. The Receiver must be paired with a handset.
Synchronization Receiver / The Puck Handset
(First time use only)
1. Insert batteries or connect AC mains power. With mains adapter, batteries can
be used for backup.
2. Place ON/ OFF switch to ON position.
3. The Receiver has to learn the Puck's code:
Press and hold the Receiver’s reset button until you hear two (2) beeps. After the
second, lon- ger beep, release the reset button. Within the subsequent 20 seconds press
and hold the "–" button on the Puck (approx. 4 seconds) until two (2) short beeps
confirm the code is set.
NOTE: This is a one time setting only, and it is not required after changing the
batteries in the Puck or Receiver.
The Receiver transmits and receives (bidirectional) signals and the Puck (unidirectional)
transmits signals. The Puck sends status information every 4 to 6 min to the Receiver.
When the RF Receiver is placed in the appliance, the surrounding metal can reduce
reception considerably.
To keep the Receiver free from debris, dirt, and humidity, do not re-
move the Receiver from the plastic bag until all construction is com-
plete.
WiringofvalveandReceivermustbe completedbeforestarting igni-
tion. Failure to do so could damage the electronics.
The handsets and Receivers are not interchangeable with previous
electronics G6R and B6R-R8(9)U(T).
NOTICE

5
Puck Handset User Instructions
Modes of Operation
When pilot ignition is confirmed, motor turns automatically to maximum
flame height.
To avoid damaging the electronics, do NOT use metal tools to remove the
batteries from the handset / Receiver.
If the pilot does not stay lit after several tries, turn the main valve knob to OFF
and follow the instructions “TURN OFF GAS TO APPLIANCE”
Without using a mains adapter, battery replacement is recommended at the
beginning of each heating season.
Old or dead batteries should be removed immediately. If left in the unit the
batteries can overheat, leak, and/or explode.
Do NOT expose batteries (including during storage) to direct sunlight,
excessive heat, fire, moisture, or severe impact. Each of these conditions can
cause the batteries to overheat, leak, and/or explode.
Batteriesmustbekeptwithintheirrecommendedtemperature limits (ambient
battery temperature range: 32 °F to 131 °F / 0°C to 55°C).
New and old batteries and different brands of batteries should not be used
together. Mixing of various batteries can cause the batteries to overheat,
leak, and/or explode.
If the appliance will not operate, follow the instructions “TURN OFF GAS TO
APPLIANCE.
Up/HIGH
Down /LOW
ON/
OFF
Turn Fire On & Off
Press and hold the power button until 2 short beeps
confirms the start sequence has begun; release button.
Main gas flows once pilot ignition is confirmed.
Press and hold the start button to turn off.
Standby Mode (Pilot Flame)
Press and hold the –button to set appli-
ance to pilot flame.
Flame Height Adjustment
To increase flame height press and hold +
To decrease flame height or set appliance
to pilot flame press -.
Designated Low Flame & High Flame
To go to high flame, double click + button
To go to low flame, double click –button
NOTE: Flame goes to high flame first before
going to low flame.

6
Manual User Instructions
Knob Settings
KNOB
POSITION
FUNCTION
Main valve
knob
OFF
Permits main gas flow through valve.
Main valve
knob
ON
Permits main gas flow through valve if pilot is lit and
thermocouple is generating sufficient power.
Manual knob
MAN
Allows pilot to the manually ignited and prevents main gas
flow.
Manual knob
ON
Allows automatic ignition.
Manual Turn Off
In the event that the appliance needs to be turned OFF manually, for instance, if the remote
control is lost or the batteries become totally flat, the control valve must be accessed and
the switch flipped to OFF (marked “0”).
The picture below shows the control valve.
The control valve is located behind the control hatch in the Base of the appliance.
Main Valve Knob in
OFF Position
Microswitch
Manual Pilot
Valve Operator
8 Wire
Receiver Jack
MANUAL Knob
in MAN Position
ON/ OFF
Switch in
ON Position
Connection Piezo
Ignitor Tab
2.8 x 0.8 mm
Piezo Ignitor
(optional)

7
Cleaning & Maintenance
Never attempt any cleaning or maintenance of the
appliance unless the appliance is cold
This appliance should be inspected and serviced once a year by a qualified, competent and
registered person.
The inspection and maintenance must at least ensure that the appliance is working correctly
and safely.
It is advisable to clean the exterior of the appliance of any dust and debris regularly during
the heating season and especially if the appliance has not been used for some time.
This can be done with a soft brush and a vacuum cleaner or a damp cloth and if required a
non-abrasive cleaning agent.
Do not use corrosive or abrasive substances to clean the exterior of the appliance as this
may damage the painted finish of the stove.
This appliance uses 4 x AA batteries for the ignition and control of the stove.
To access to these batteries, reach under the appliance and remove the control unit located
to the rear right hand side of the appliance, remove the top cover and replace the existing
batteries.
Never use a metal tool to remove the batteries as this may damage the control unit.
Once the batteries have been replaced always refit the control box cover.

8
Installation Instructions
Unpacking
Remove the appliance from its packaging and check for any damage or missing items before
commencing the installation.
Packing List
Appliance
Log Set
Remote control handset
Bag of embers
Glow fibre pack
Burner
Before commencing installation, confirm that the details on the appliance data plate
correspond to the local distribution conditions, gas type and pressure to which the
appliance is to be installed. Check you are in receipt of the correct gas type burner.
Ensure the gas supply and supply pipe is capable of delivering the required volume and
pressure of gas and is in accordance with the rules in force.
Protective clothing should be worn when installing the appliance.
Care should be taken when lifting this appliance due to it’s weight.
We strongly recommend a carbon monoxide detector (conforming to EN50291) is permanently fixed in the same room as the appliance.
Ensure that the Flue Terminal is not in any way obstructed and is clear of vegetation, i.e. trees, shrubs etc. and that no objects are leant
against the terminal or guard.
Always clean the Window Panel before the fire is initially ignited. Any finger prints must be removed, as these will be burnt into the glass
and will be un-removable.
Do not operate this appliance if the glass panel has been broken (or cracked), removed or is open.
The appliance is designed to fit numerous installation situations as listed in these installation instructions. However only flue approved by
ACR for this appliance may be used. 3 standard kits are available through ACR. Additional parts can be purchased from Poujoulat but must
be approved by ACR.
This appliance is a balanced flue product and is room sealed and as such requires no additional ventilation for operation. However an
adequate supply of fresh air to maintain temperatures and a comfortable environment is recommended.
This appliance is designed as a heating appliance, and as such will get very hot in operation; all surfaces (except the controls and
access door) are considered to be working surfaces and as such should not be touched. The front windows and surrounds are not consid-
ered to be fully secure guards against accidental contact. It is recommended that an approved fire screen be used if children, the elderly
or persons with limited mobility are to be present in the same area.
Do not place curtains, laundry, furniture etc. within a safe distance of 300mm of this appliance.
Do not attempt to burn rubbish on this appliance.
If this appliance is extinguished, on purpose or other, no attempt to relight should be made within 3 minutes.

9
Installation Instructions
Gas Connection
This appliance has a gas inlet connection of Ø 8mm.
Ventilation
This appliance is a Balanced Flue room sealed appliance, and as such needs no additional
ventilation. However, an adequate supply of fresh air to maintain temperatures and a com-
fortable environment is recommended.
This appliance may be installed in a completely sealed or mechanically ventilated house.
Do not install the appliance in a bathroom or a room that contains a bath or shower.
Do not cover the appliance and or do not wrap it in an insulation blanket or any other
material.
Do not make any changes to the appliance.
The gas connection must be in accordance with local and national regulations.
This appliance is intended for use on a gas installation with a governed meter.
Appliance Fireplace Installation
Determine the position required for the appliance.
Create a gas connection for the appliance in approximately the correct location for the gas
controls.
The gas controls are connected to the Burner of the appliance.
For clearance details see below & diagrams on Page 10.
The clearance distance of the Flue from combustibles must not be less than 75mm. This di-
mension can be reduced to 25mm as the distance from the underside and the sides of hori-
zontal flue runs.
Hearth
A hearth conforming to national regulations should be provided for the stove extending
to at least the front of the supporting legs, and to at least each side of the stove. ACR rec-
ommend a hearth footprint 50mm more on all 4 sides than the footprint of the appliance.
The hearth should have a minimum thickness of 12mm.

10
Clearance Requirements
Corner Installation –Distance to combustibles
Above –Distance to combustibles
Side & Rear –Distance to combustibles

11
Installation of the appliance
The appliance is supplied in separate boxes, please refer to the packing list above.
The installer is required to install the burner, optional rear panel and log set to the
appliance.

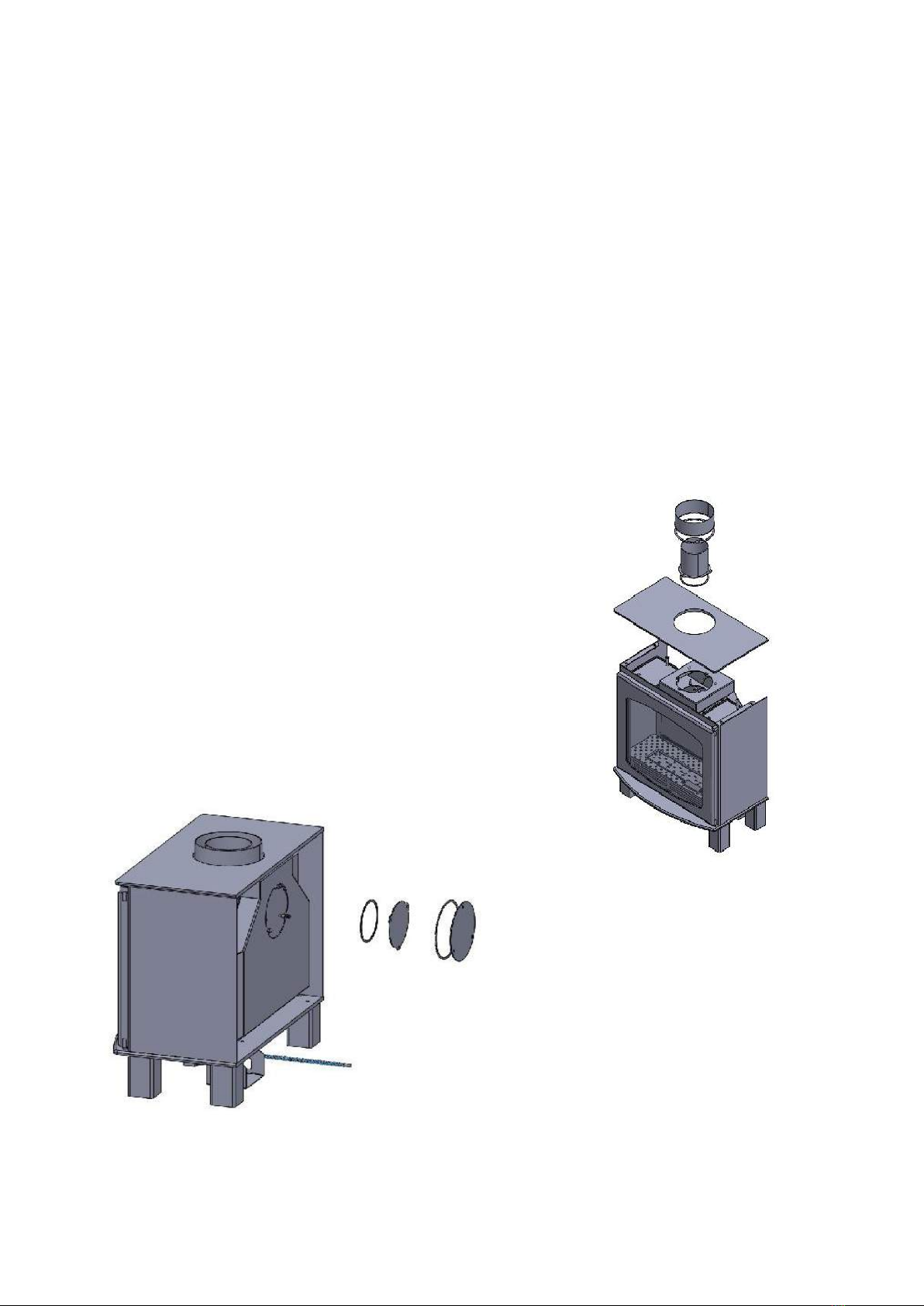

Flue configuration
The appliance is pre-set with a vertical flue configuration, if this is the desired flue route
then no further action needs to be taken.
The appliance is able to be installed with a rear flue option when used in conjunction with
the ACR snorkel kit, to prepare the appliance for this application the flue collar assembly will
need to be removed from the top of the appliance and swapped to the rear of the
appliance.
1. Remove free floating top plate, remove air
intake collar and gasket, and remove inner flue
outlet collar and gasket.
2. Remove rear outer blanking plate and gasket,
and remove inner blanking plate and gasket.
3. Swap the blanking plates, flue
collars and gaskets and retighten
fixing bolts. Place the cosmetic
blanking plate onto the top of the
free - floating top plate.

12
Burner installation
Before connecting the burner please ensure that the gas supply pipework is in the correct
position for connection to the unit, please ensure that the gas supply pipework is purged
and free from debris.
1. To access the combustion chamber please loosen the two retaining bolts located in
the side of the openable door.
2. Remove the log guard and lift out the perforated grate from the combustion
chamber.
3. Unpack the complete burner and insert the
burner into the combustion chamber. Secure the
burner to the base of the appliance using the 4
bolts provided ensuring that the seal is fully com-
pressed on all sides. Please pay careful attention
to make sure that the attached control box and
associated wiring are not trapped between the
bottom of the burner and the combustion cham-
ber. Ensure that the flexible gas supply pipe is not
damaged in any way and that it’s protruding from
the rear, underside of the appliance.

13
4.Replace the perforated grate and log guard.
5.Place the control box into the holder located on the underside back left of the appliance
ensuring that the wiring is not trapped in any way.
The appliance is now ready to be connected to the gas supply pipework and the flue
connection can be made.

14
Flue Connection
General Notes
This appliance may be installed with a roof terminal or a wall terminal.
This appliance may only be used with Balanced Flue (otherwise known as Concentric Flue)
parts as specified by ACR. The ACR specified flue parts have been approved with the appli-
ance. If the appliance is installed on non-ACR approved parts, ACR cannot guarantee or ac-
cept any responsibility for the proper and safe working of the appliance.
The flue system must be constructed from the appliance upwards, with all joints being fully
locked and sealed using the ACR specified parts.
If installing the flue renovation kit, the existing flue must be swept & checked for soundness
prior to installation.
Timber Frame Construction
Whilst it is possible to install room-sealed appliances in timber frame properties, great care
needs to be taken to ensure that the flue assembly does not interfere with the weather
proofing qualities of any outer wall which it may penetrate. Before attempting this work,
further details need to be referenced, (e.g. “Gas Installations in Timber Frame Buildings”
from the GAS SAFE installer publications in the UK).
Car Port or Building Extension
Where a flue terminal is sited within a car port or building extension, it should have at least
two completely open and unobstructed sides. The distance between the lowest part of the
roof and the top of the terminal should be at least 600mm.
Note: A covered passageway should not be treated as a car port. Flues should not be sited in
a covered passageway between properties.
Basements, Lightwells and Retaining Walls
Flue terminals should not be sited within the confines of a basement area, lightwell or
external space formed by a retaining wall, unless steps are taken to ensure the
products of combustion can disperse safely at all times. It may be possible to install this
Balanced Flue system in such a location provided that it is not sited lower than 1m from the
top level of that area to allow combustion products to disperse safely.
Flue terminals should be sited to ensure total clearance of the combustion products in
accordance with the manual.
When the products of combustion are discharged, they should not cause a nuisance to
adjoining or adjacent properties and they should be positioned so that damage cannot occur
to other parts of the building. If the outer wall surface is constructed of combustible
material, a non-combustible plate should be fitted behind the terminal projecting 25mm
beyond the external edges of the terminal

15
Terminal Guards
The flue outlet should be protected with a terminal guard conforming to BS5440-1
if persons could come into contact with it, or if it could be damaged or if it is in a
vulnerable position such as where the flue discharge is within easy reach from the
ground (less than 2m) balcony, veranda or an opening window.
The flue outlet can be either taken from the standard top exit or converted rear exit of
the appliance.

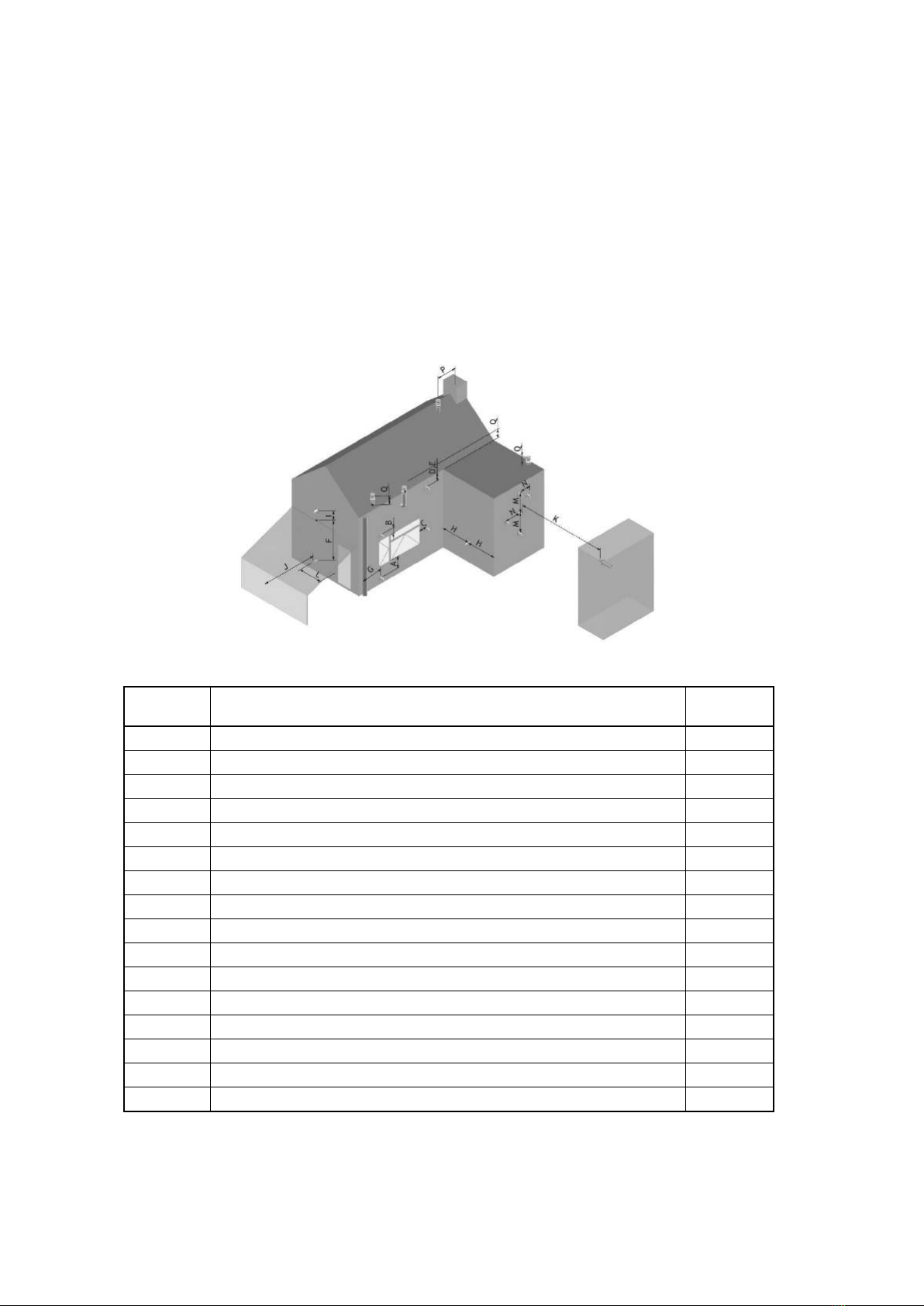

Terminal Locations
Dimension
Terminal Position
Distance
(mm)
A*
Directly below an opening, air brick, opening window etc.
600
B
Above an opening, air brick, opening window etc.
300
C
Adjacent to an opening, air brick, opening window etc.
400
D
Below gutters, soil pipes or drain pipes
300
E
Below eaves
300
F
Below balconies of car port roof
600
G
From a vertical drain pipe or soil pipe
300
H
From an internal or external corner
600
I
Above ground roof or balcony level
300
J
From a surface facing the terminal
600
K
From a terminal facing the terminal
600
L
From an opening in the car port (e.g. door , window into the dwelling)
1200
M
Vertically from a terminal on the same wall
1500
N
Horizontally from a terminal on the same wall
300
P
From a vertical structure on the roof
600
Q
Above intersection with roof
150
* In addition, the terminal should not be nearer than 300mm to an opening in the building fabric
formed for the purpose of accommodating a built-in element such as a window frame.

16
Wall Vent Terminations
Vertical Roof Vent Termination
Flue sizing:
Wychwood: Ø100/150 Connector on Appliance.
Ø100/150 Maybe used throughout.
Flue Terminal: Ø100/150
Part No. USDVC 100
Minimum Vertical Flue Height: Wychwood - 0.5m
Flue Restrictors to be fitted, Ø100/150:
Wychwood
Vertical Rise < 1m No Restrictor
Vertical Rise 1-2m 35mm Restrictor
Vertical Rise 2-4m 40mm Restrictor
Vertical Rise 4-6m 50mm Restrictor
Vertical Rise 6-9m 35mm Restrictor
Vertical Rise >9m No Restrictor
Horizontal Wall Vent Termination
Flue sizing:
Wychwood: Ø100/150 Connector on appliance.
Ø100/150 Maybe used throughout.
Maximum pipe extension, for outside wall (H)
= 1 X Vertical Pipe Rise (V). For Ø100/150 flue.
Maximum Permissible Run (H) =15m.
Flue Restrictors to be fitted, Ø100/150:
Wychwood
Vertical Rise < 1m No Restrictor
Vertical Rise 1-2m 35mm Restrictor
Vertical Rise 2-4m 40mm Restrictor
Vertical Rise 4-6m 50mm Restrictor
Vertical Rise 6-9m 35mm Restrictor
Vertical Rise >9m No Restrictor

17
Examples of possible alternative flueing
arrangements*
*Contact your local dealer for more information

18
Examples of possible alternative flueing
arrangements*
*Contact your local dealer for more information

19
Examples of possible alternative flueing
arrangements*
*Contact your local dealer for more information
